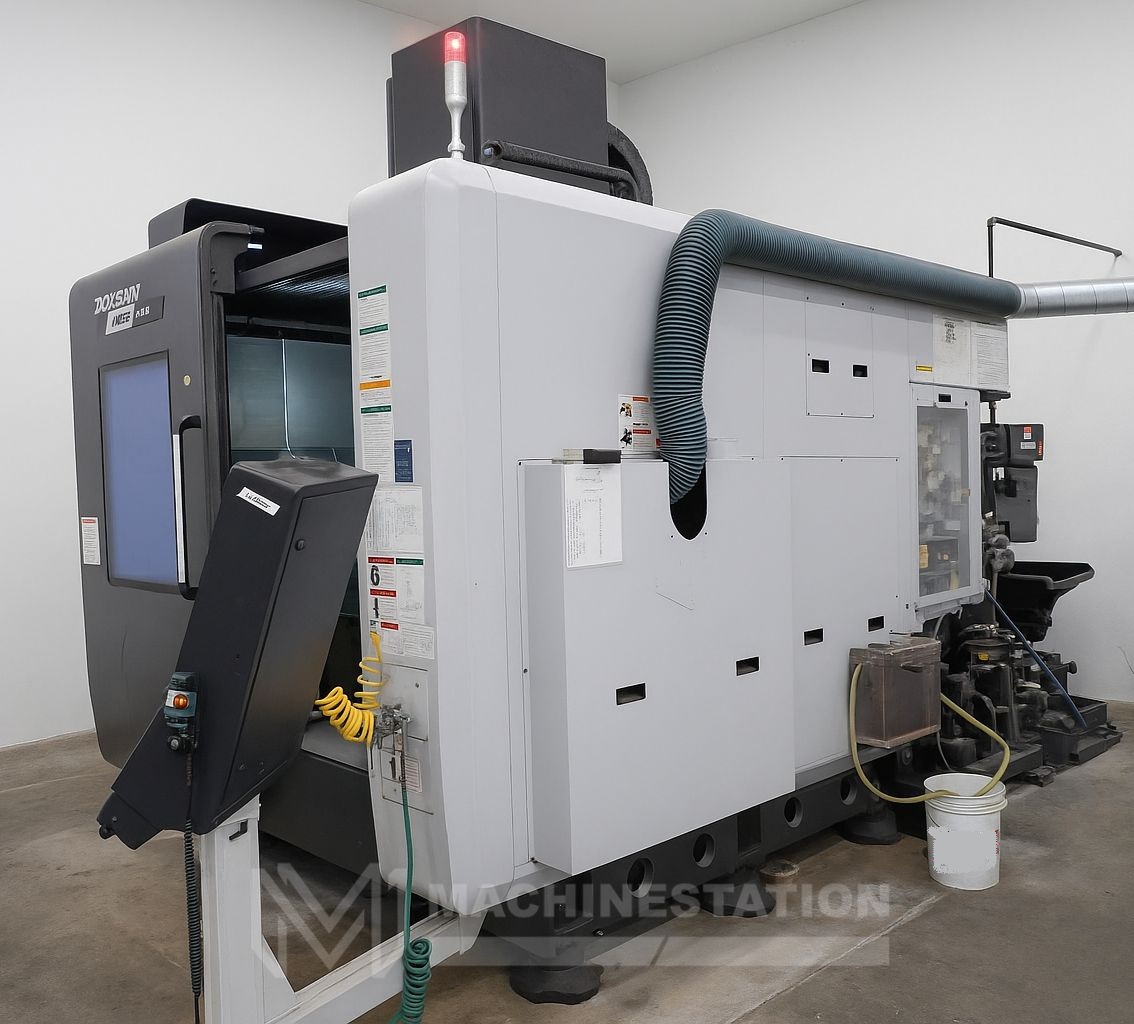

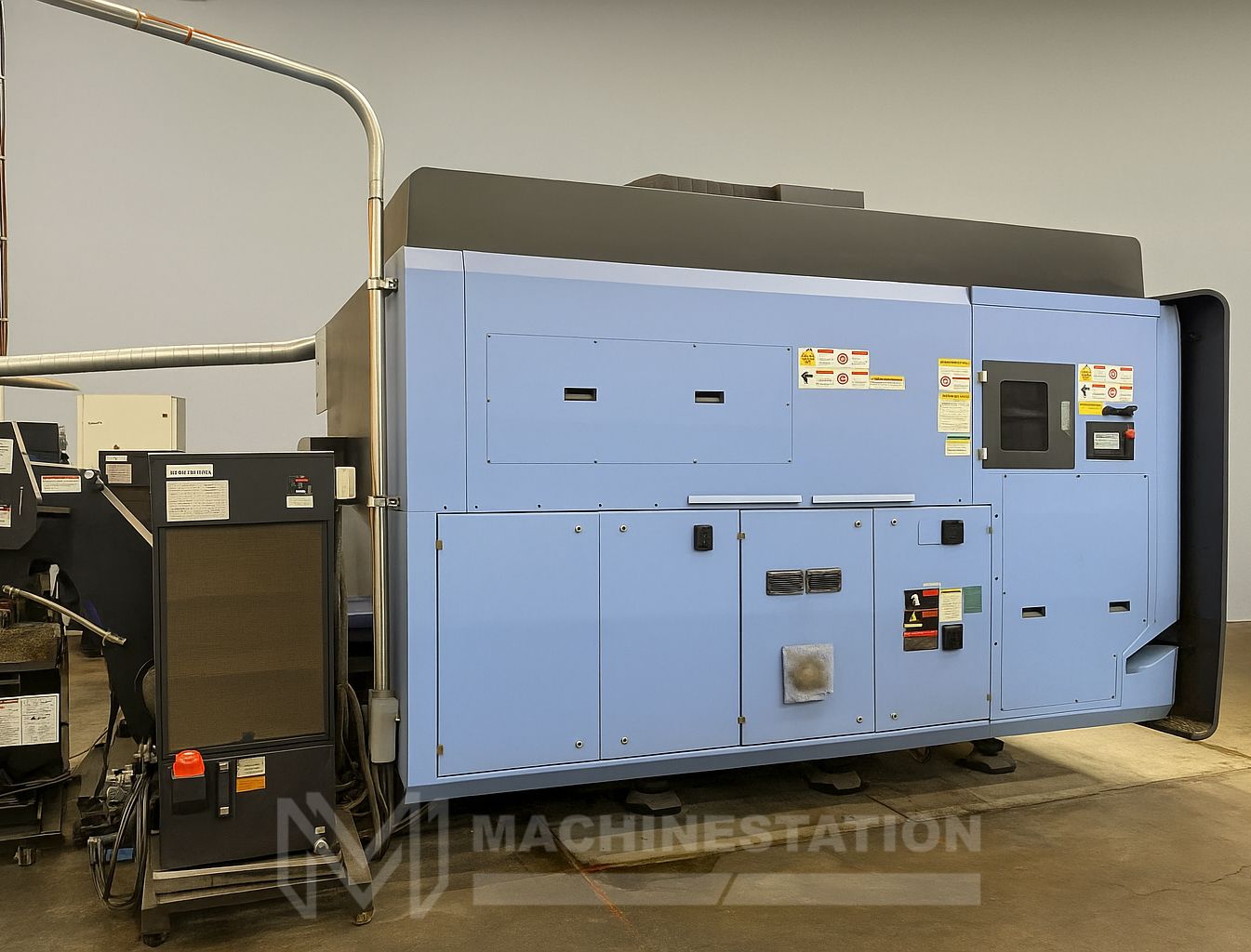

Doosan DVF-6500 5 Axis CNC Vertical Machining Center – 2021 Mill
In stock
| SKU: | 115091 |
| Make/Model: | Doosan DVF-6500 |
| Year: | 2021 |
| Cutting Time: | 933 Hours |
| Condition: | Used – Excellent |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | DVF-6500 |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Features: |
|---|

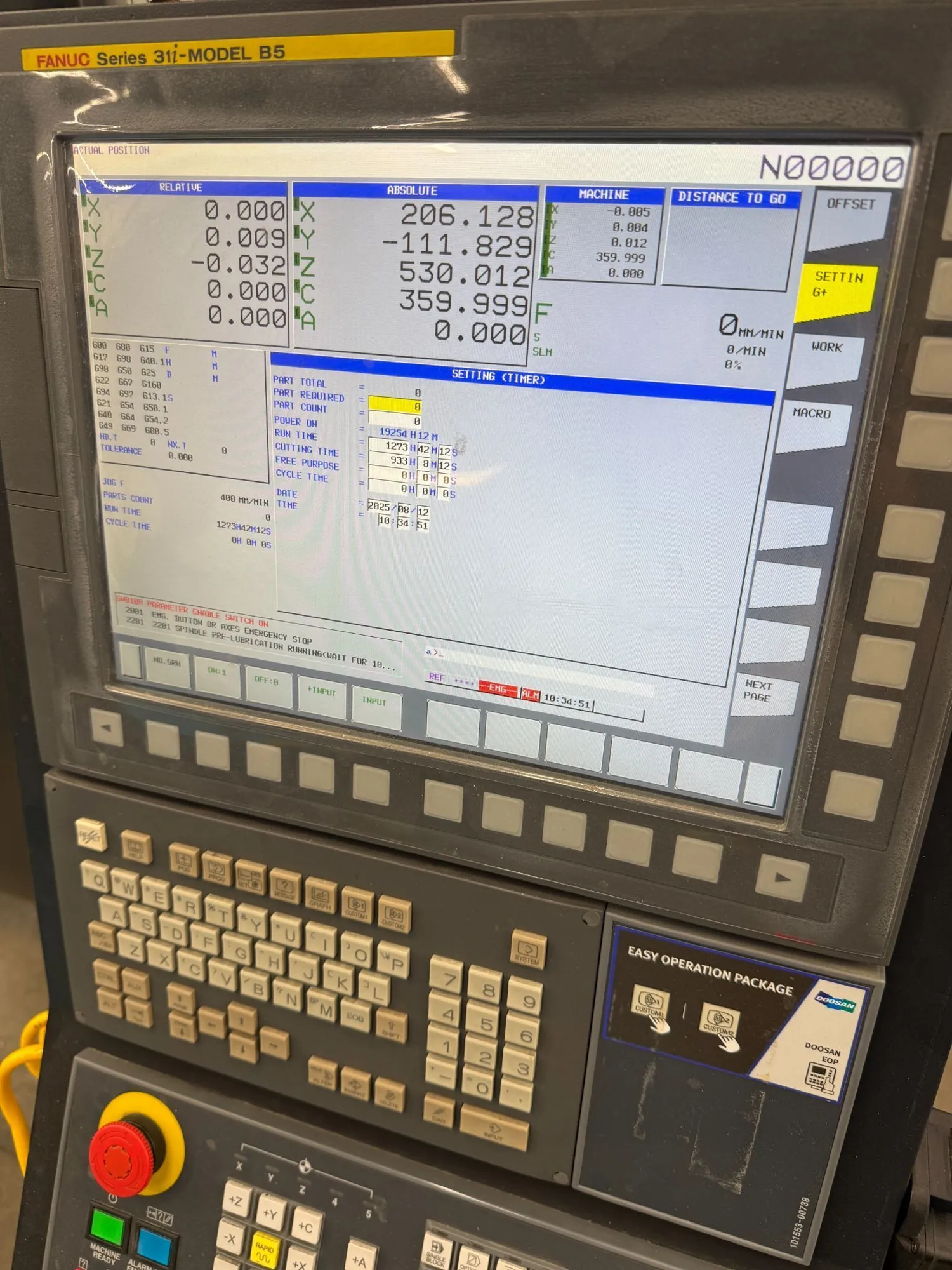

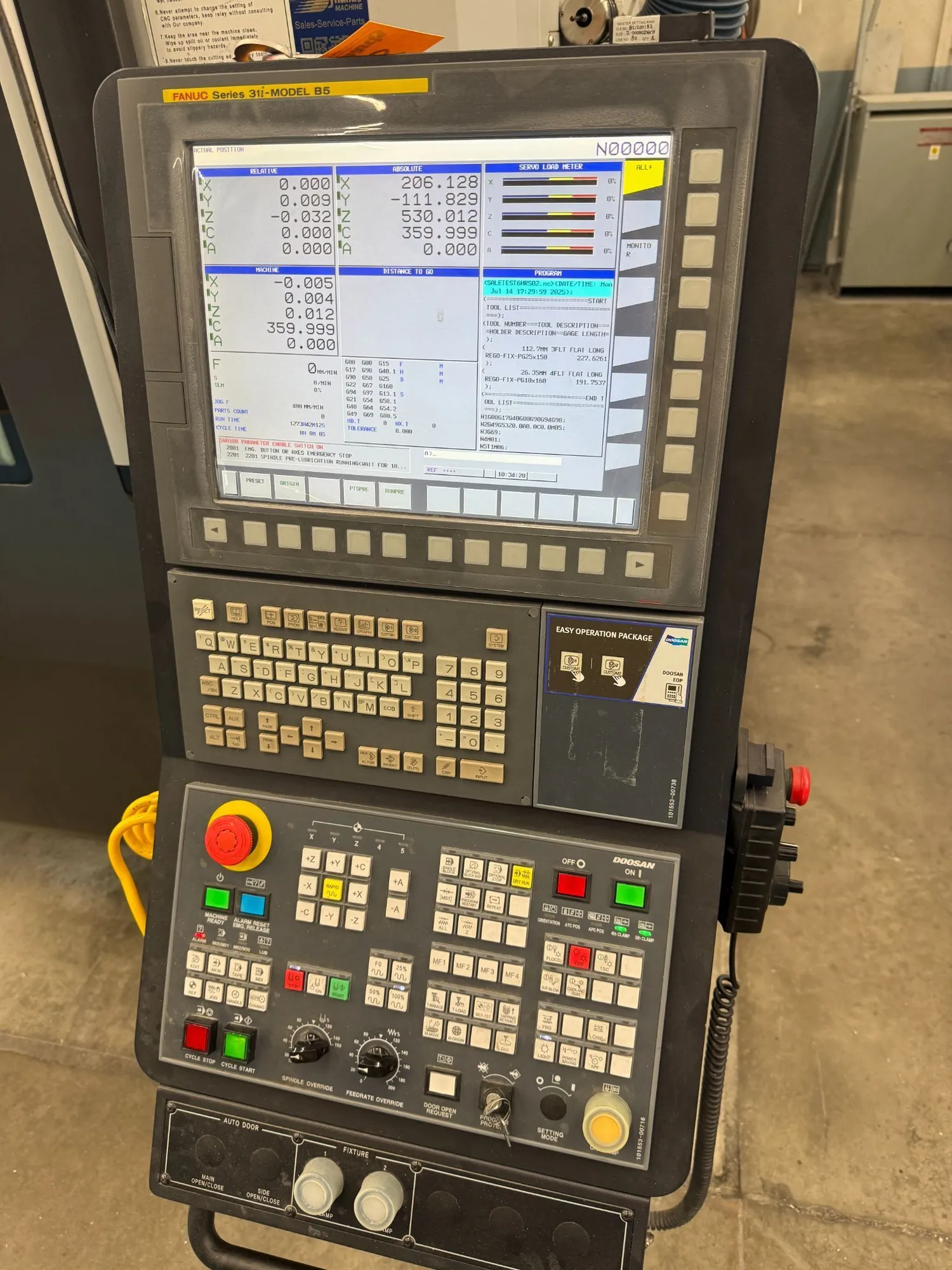

| Fanuc 31i Model B5 Series CNC Control |
| 5 Axis Simultaneous Machining |

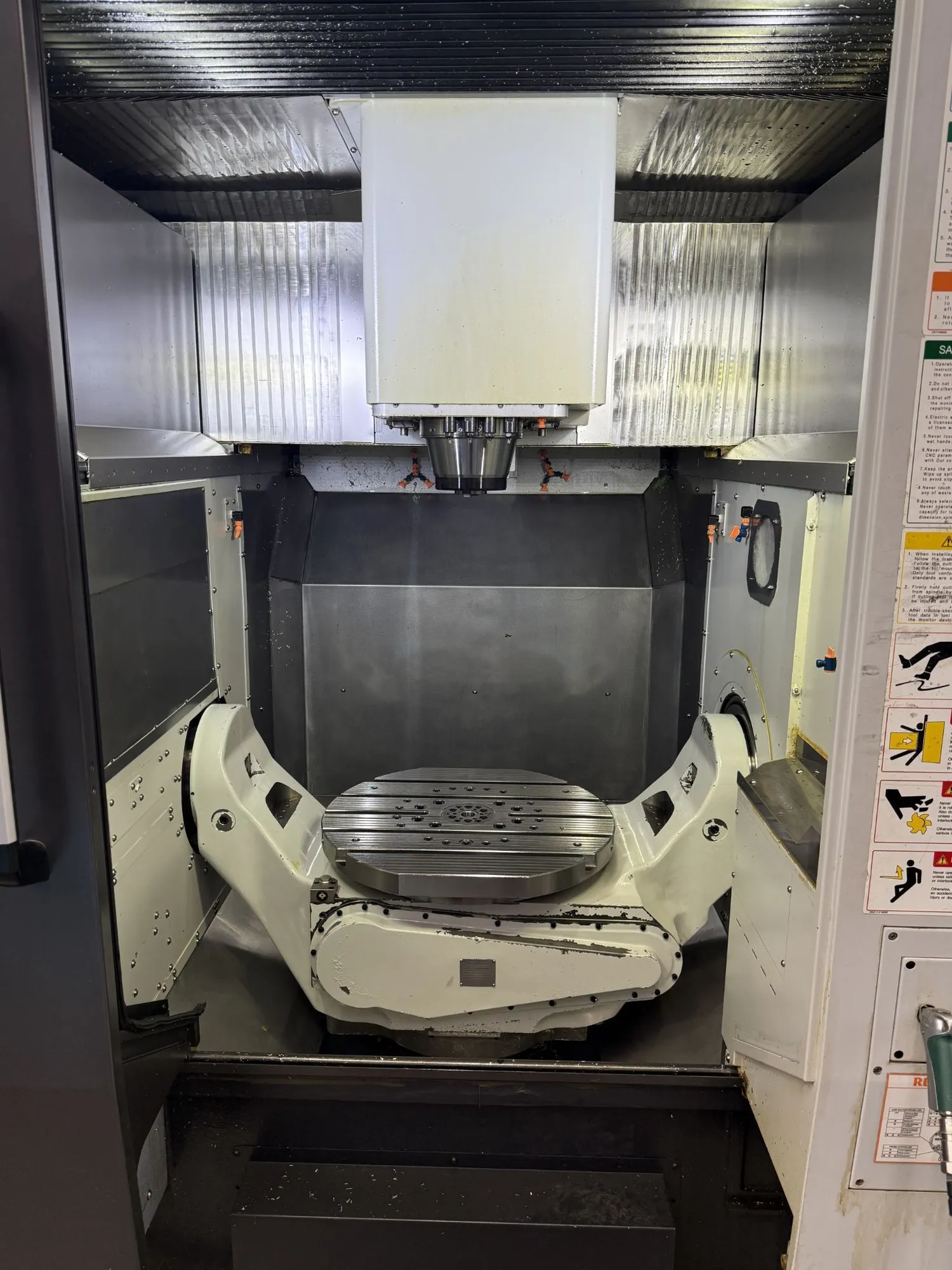

| ø 25.6″ Trunnion Table |

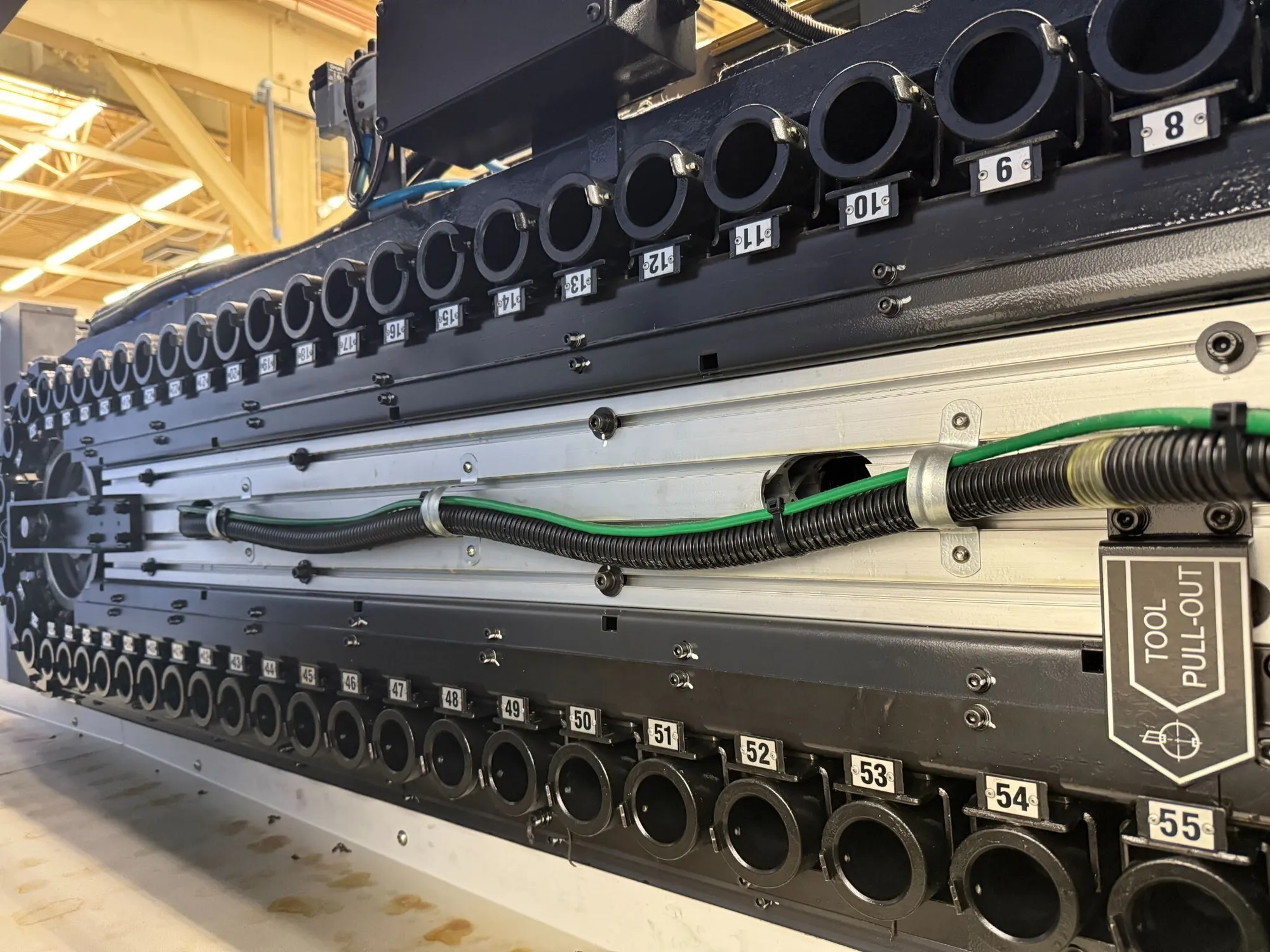

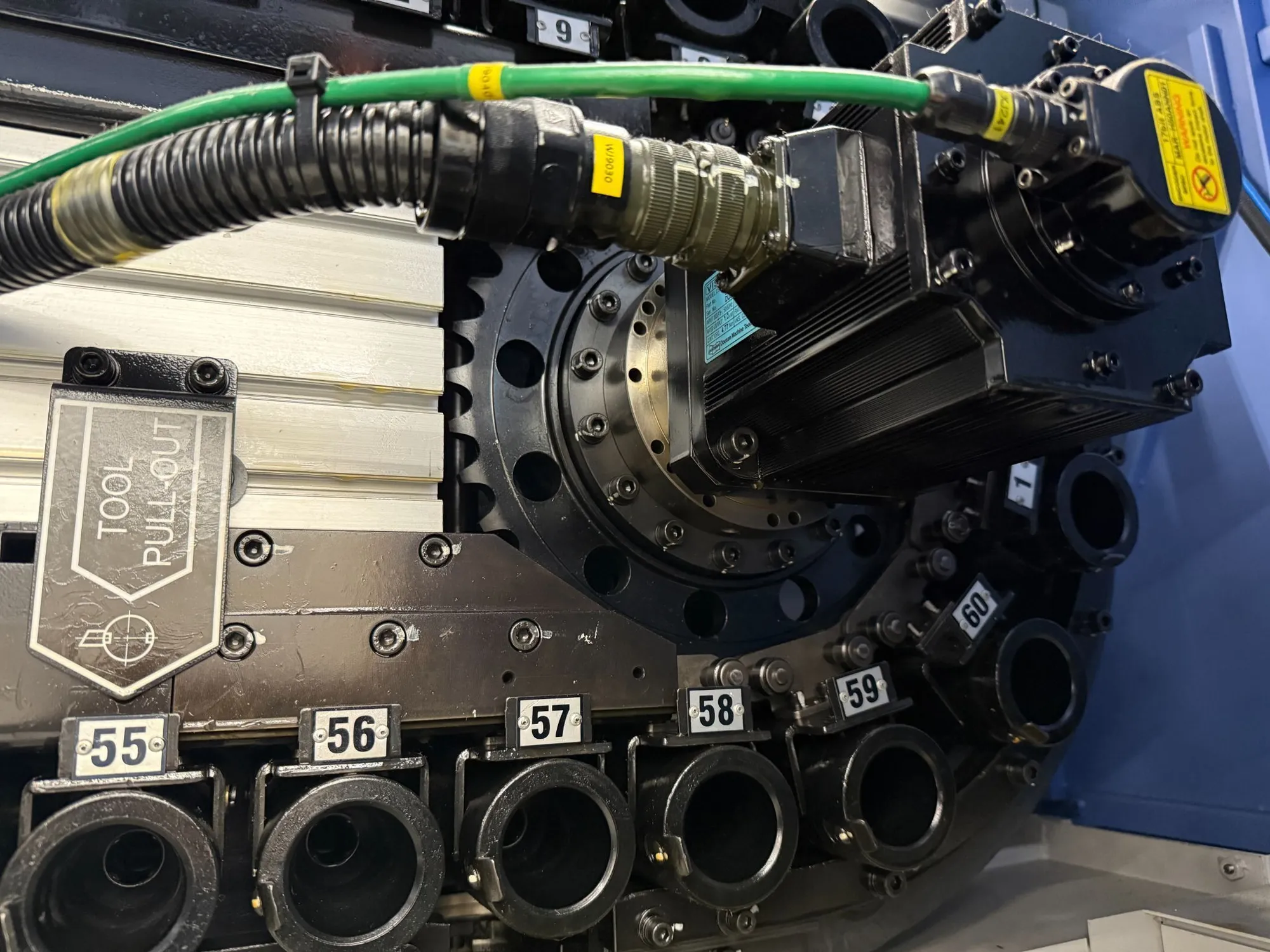

| 60 Station Automatic Tool Changer |

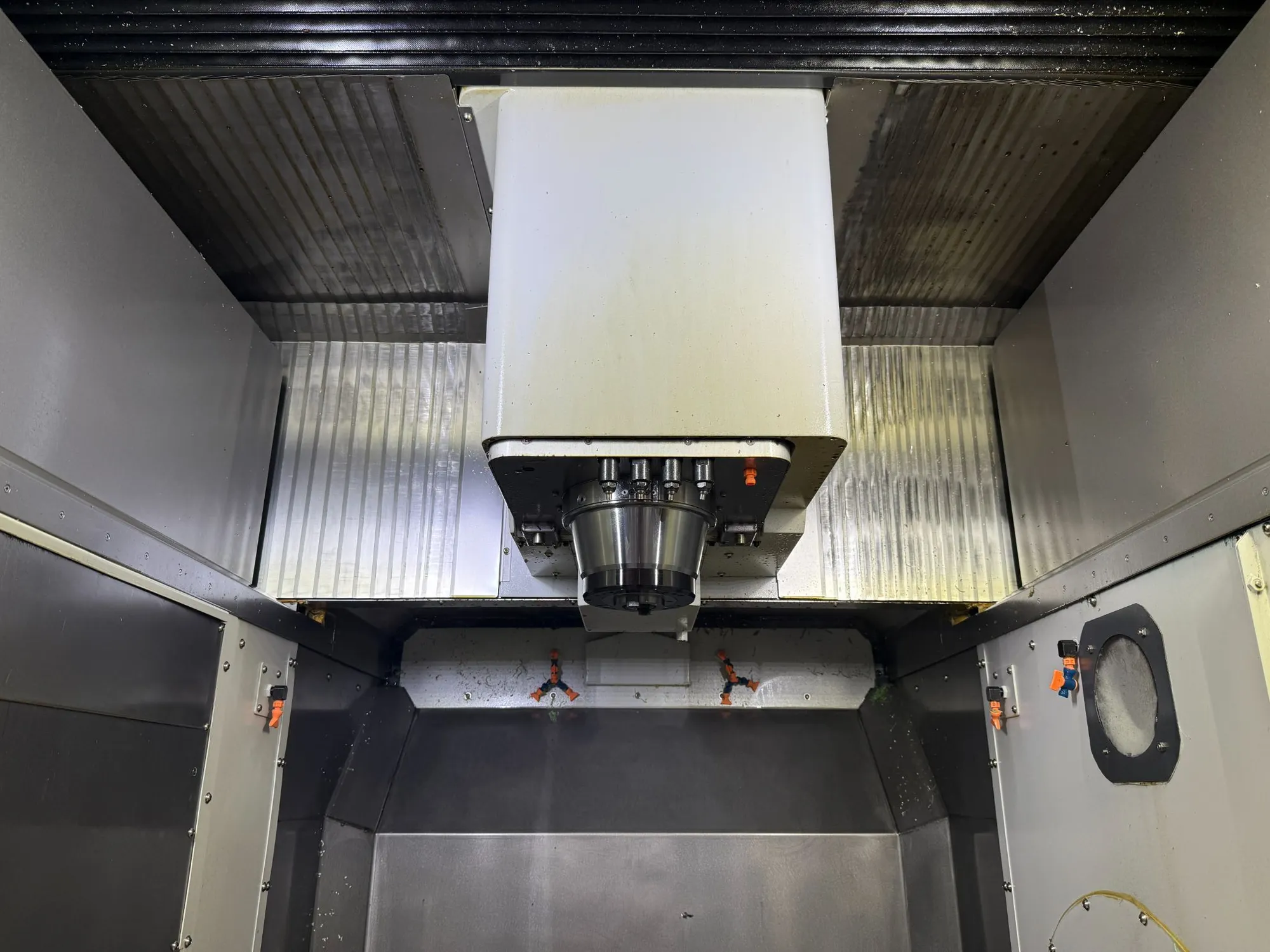

| 18,000 RPM High Speed Spindle |
| CAT-40 Big Plus Spindle Taper |
| Through Spindle Coolant |
| Air Through Spindle |
| Spindle Oil Chiller |

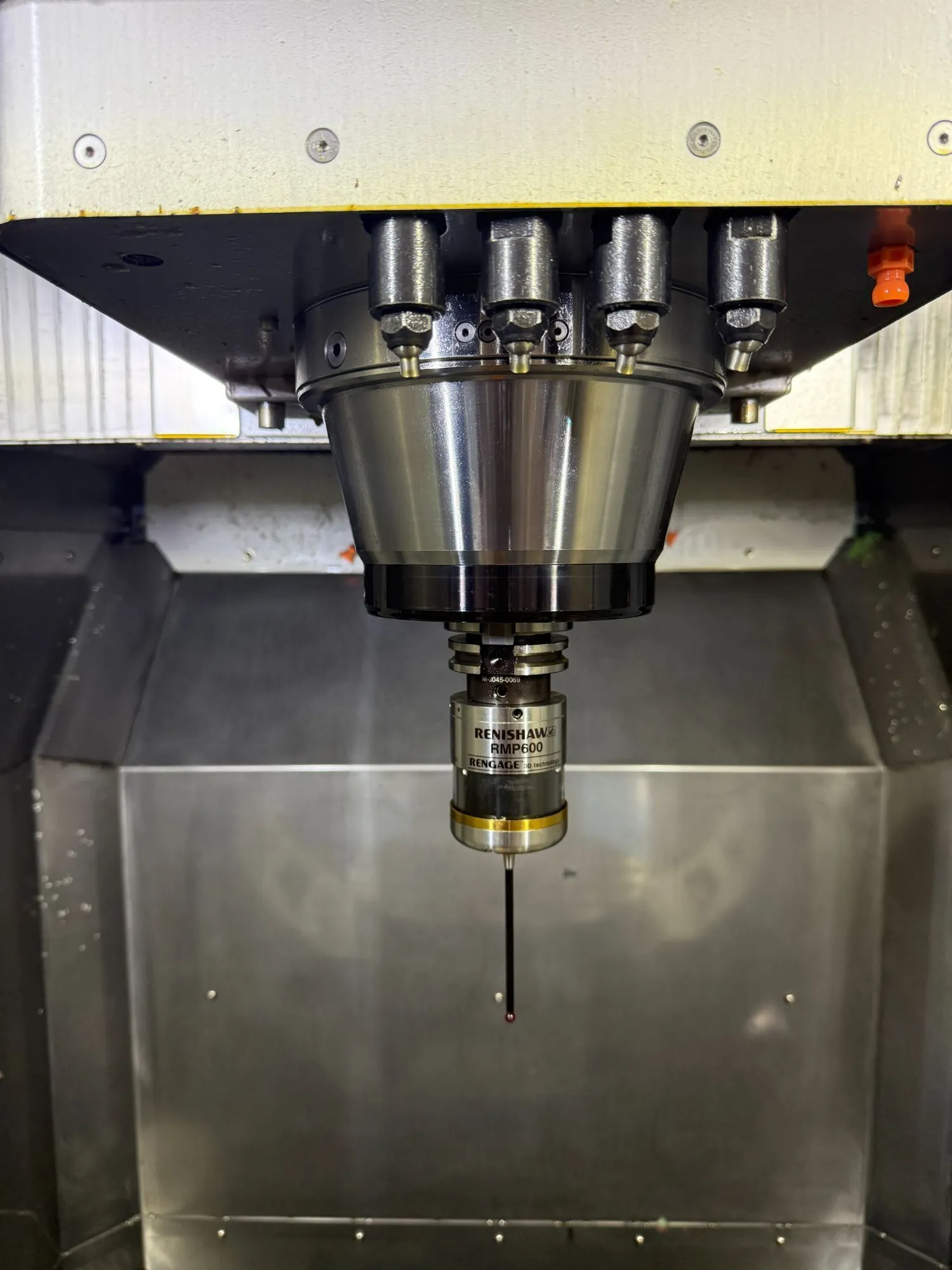

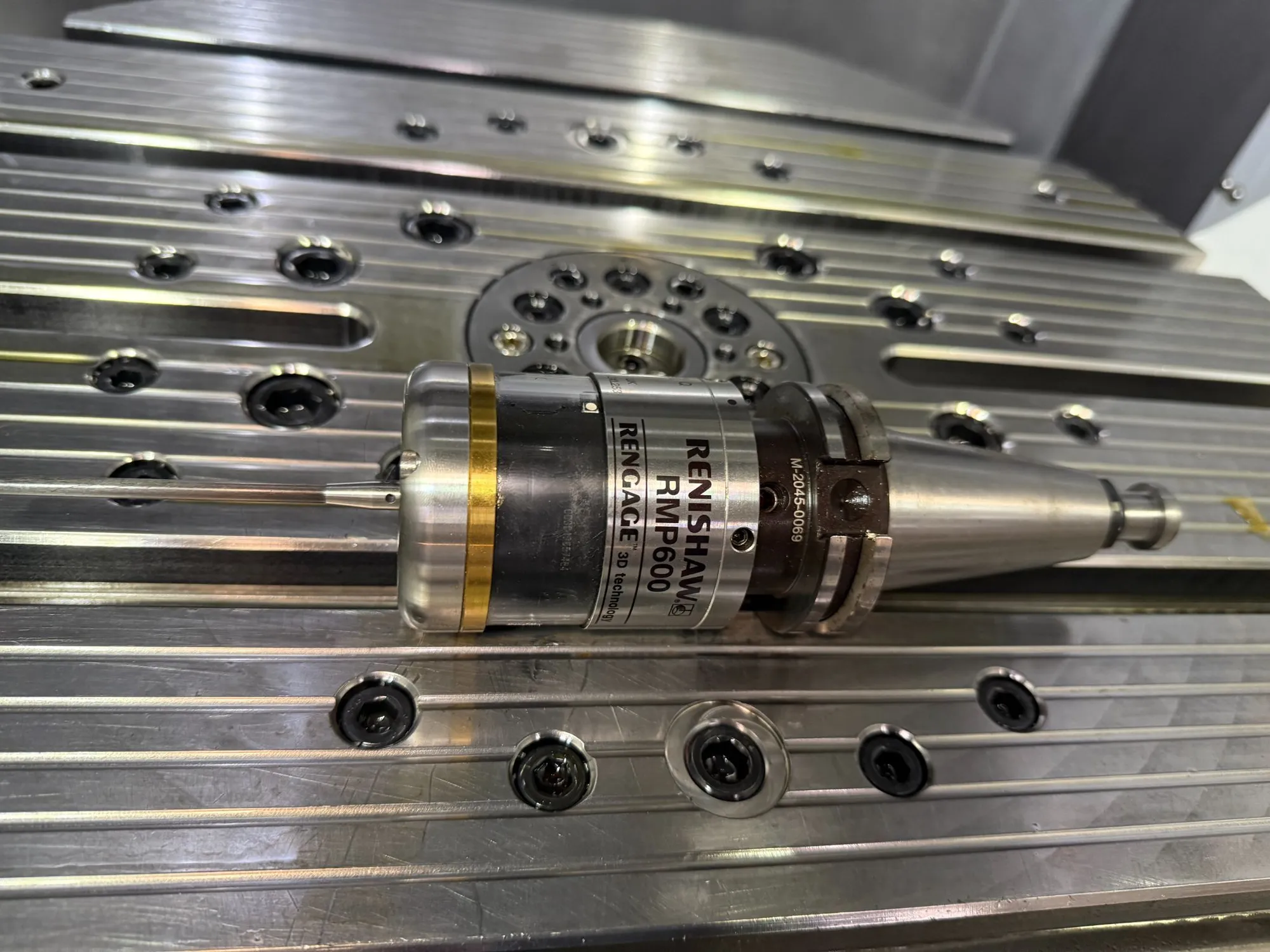

| Renishaw RMP600 Probing System (Probe Inclued) |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| High Rigidity |
| Coolant System |
| Coolant Chiller |
| Multiple Flushing Nozzle |

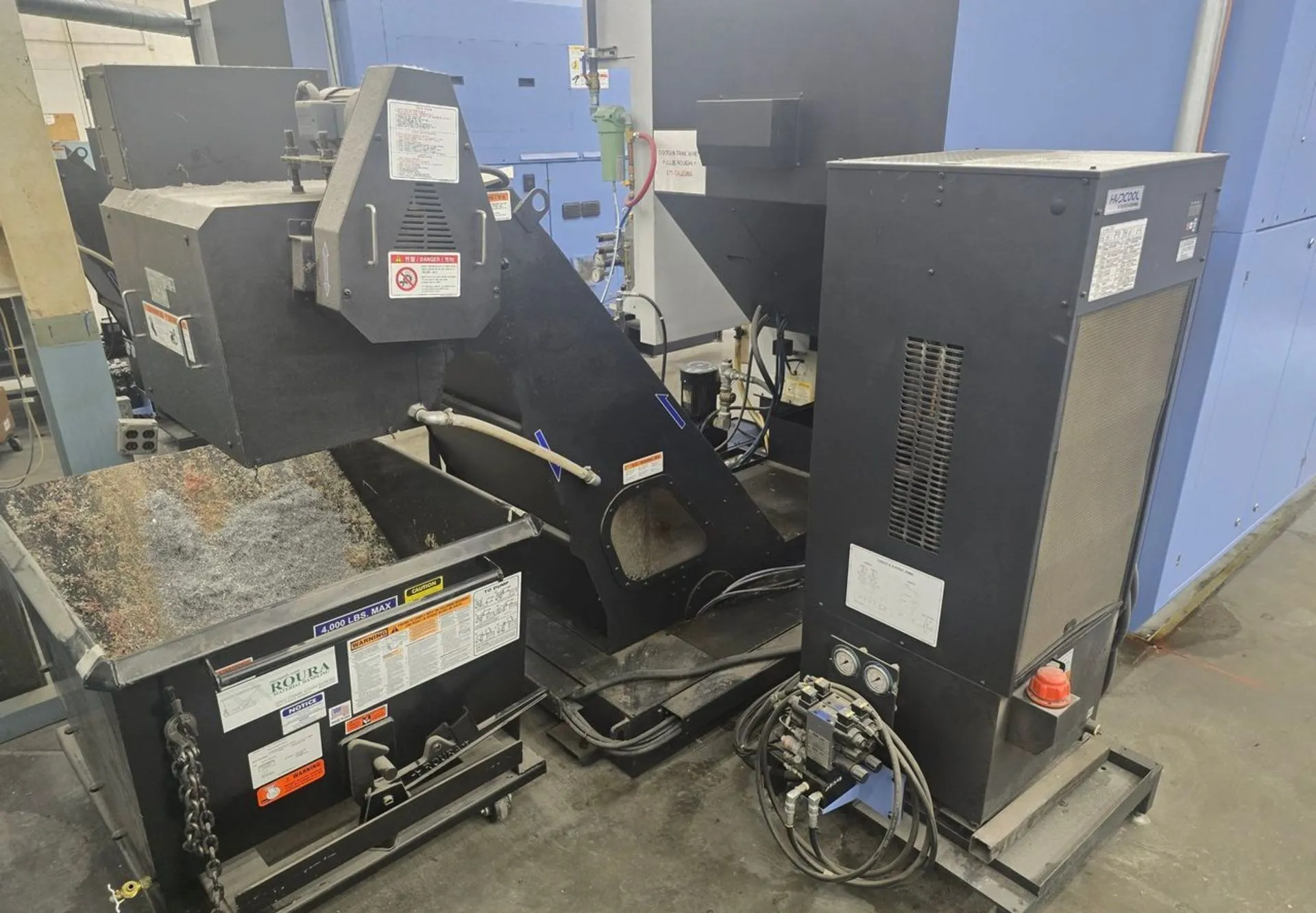

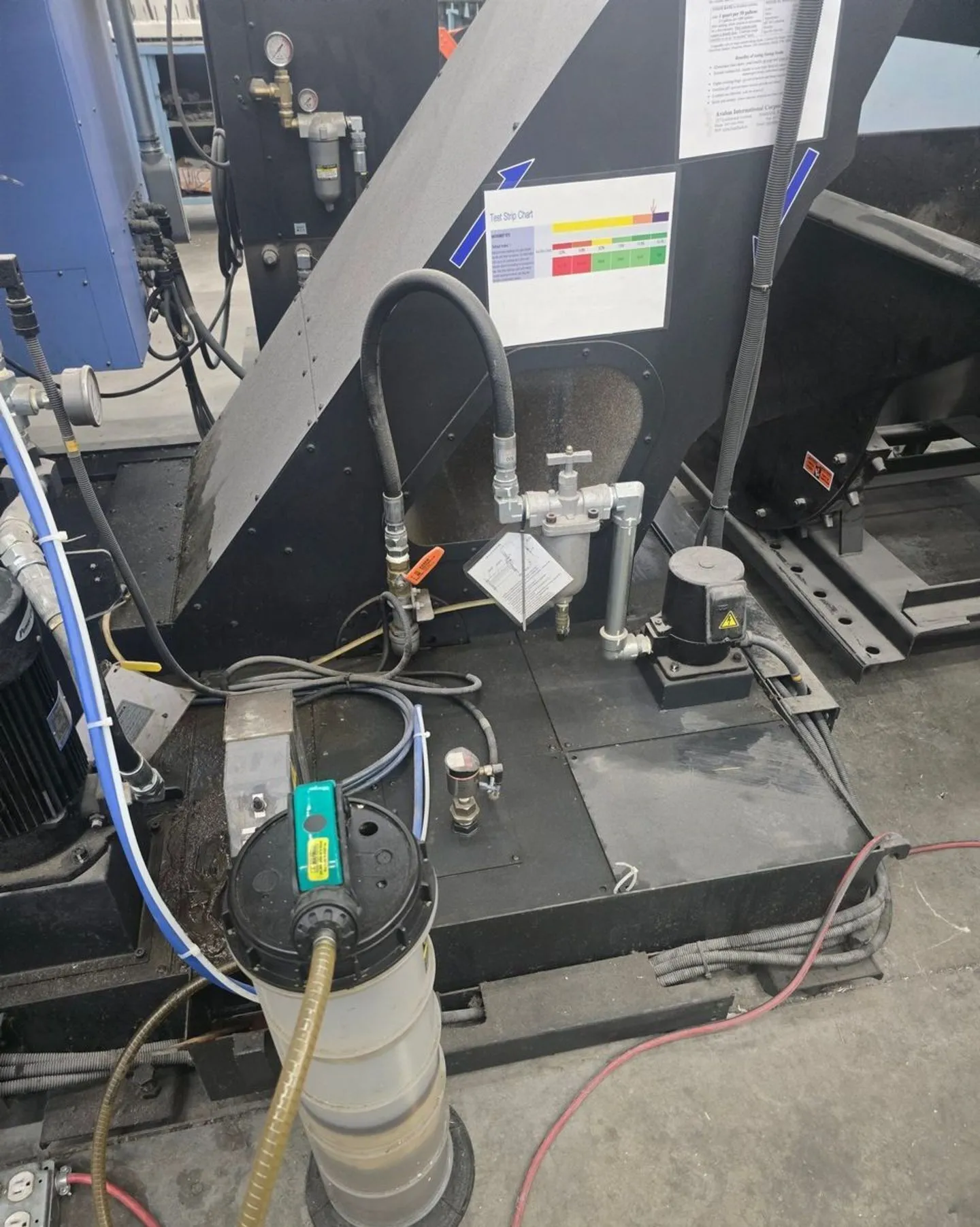

| Osung Type OHN-009D Chip Conveyor |

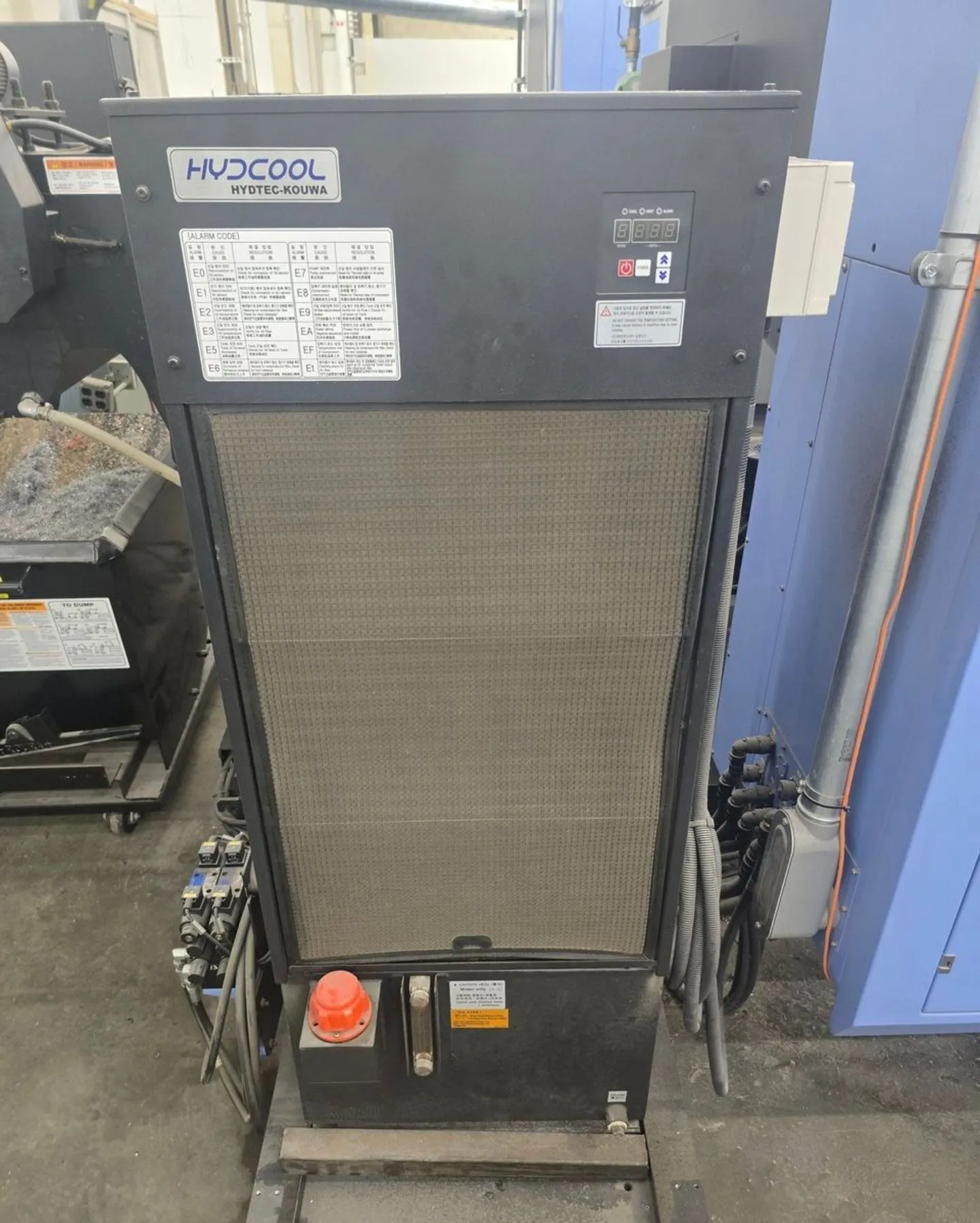

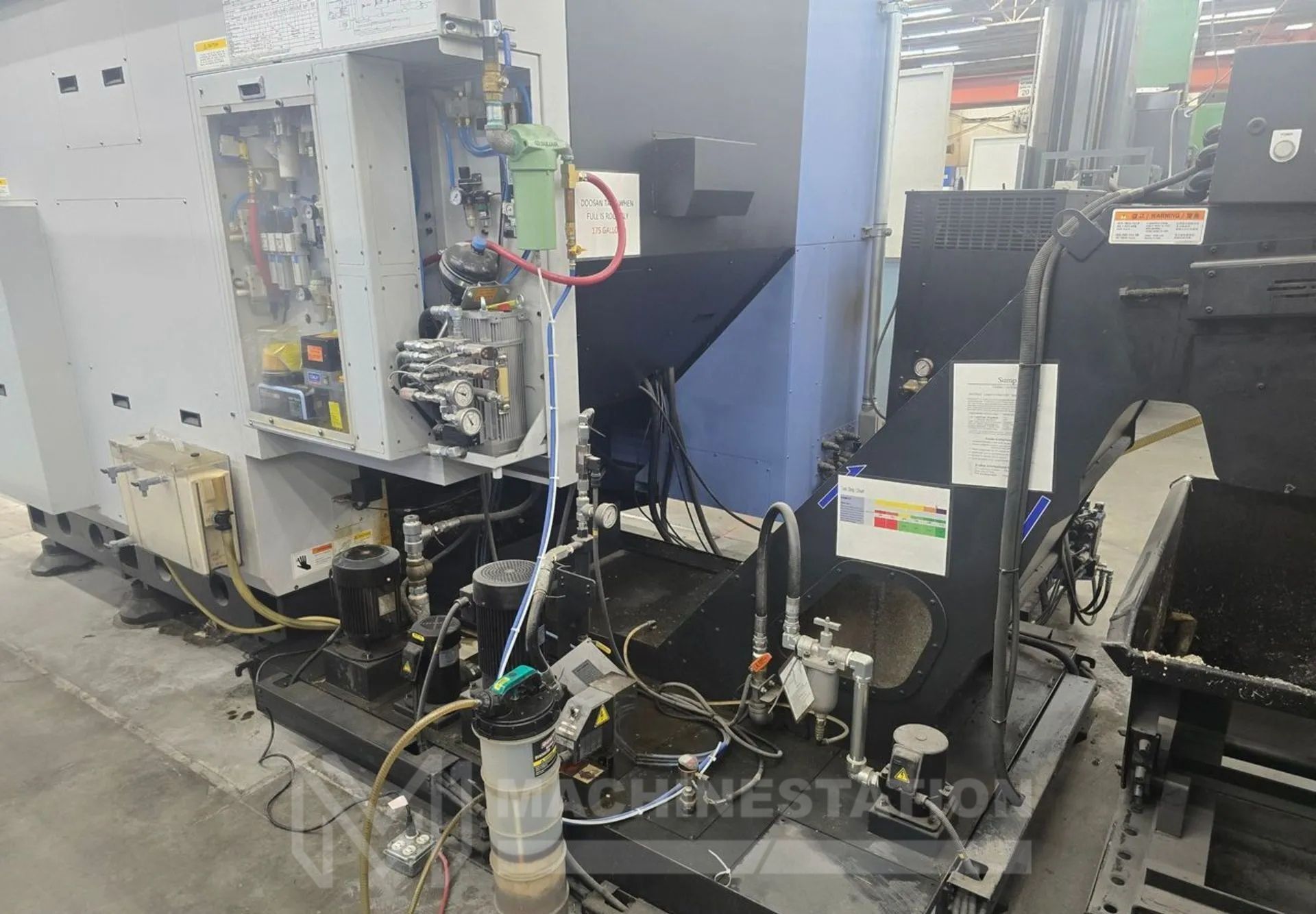

| Includes Extra Hydtec Hydraulic Power Unit (New) |
| Table: |
|---|

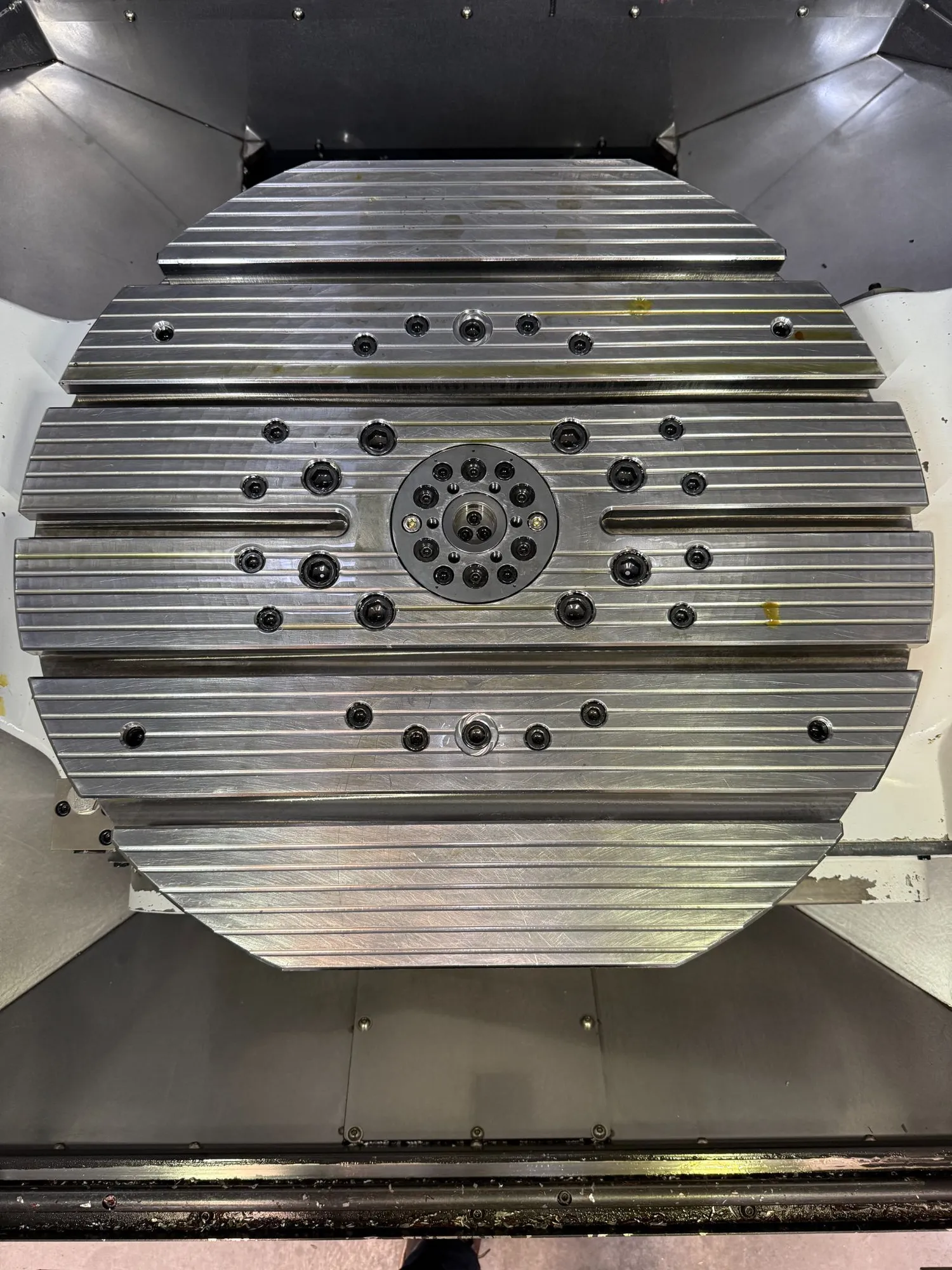

| Table size: ø 25.6″ |
| Max Part Diameter: 33.0″ |
| Max Part Height: 19.7″ |
| Max Weight on Table: 1322 lbs |
| Travel: |
|---|
| X Axis: 29.5″ |
| Y Axis: 30.9″ |
| Z Axis: 23.6″ |
| B Axis: ±120° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Feed Rates: |
|---|
| Rapid X, Y, Z Axis: 1771.6 Inch Per Minute |
| Rapid B Axis : 25/50 RPM |
| Rapid C Axis : 25/50 RPM |
| Spindle: |
|---|
| Taper Size: CAT-40 Big Plus |
| Speed Range: 18,000 RPM |
| Spindle Power: 30 HP |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: CAT-40 Big Plus |
| Max Tool Diameter: 4.9″ |
| Max Tool Height: 11.8″ |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 60 Hz / 3-Phase |
| Machine Dimensions: 145.7″ x 96.5″ x 145.7″ High |
| Weight: 32,000 lbs |
| Make | |
|---|---|
| Model | DVF-6500 |
| Categories | CNC Multi Axis Machining Center |
