*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

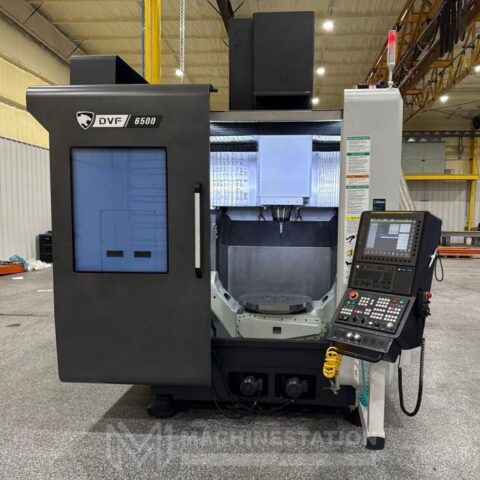

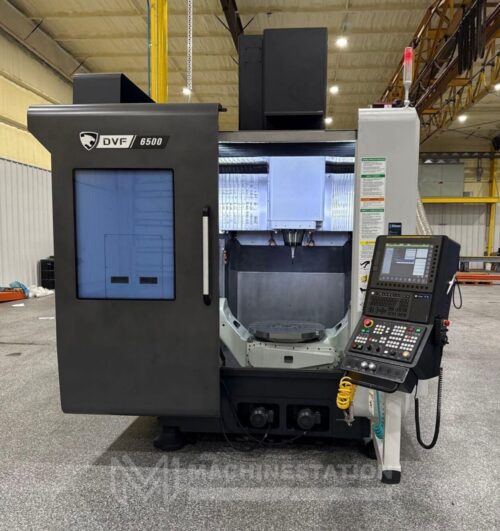

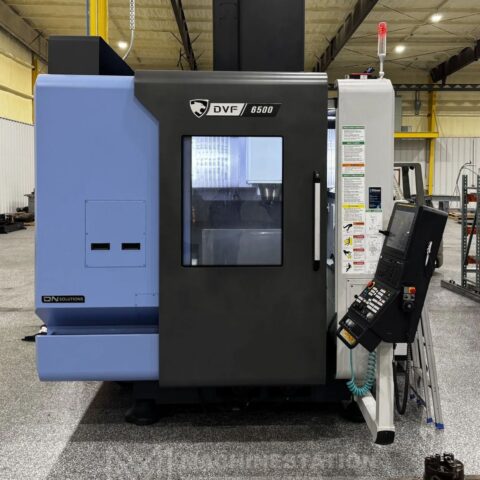

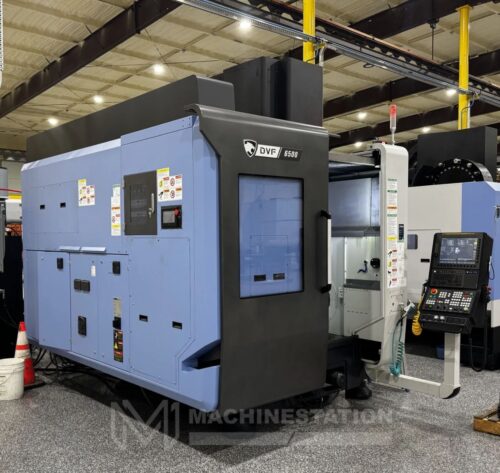

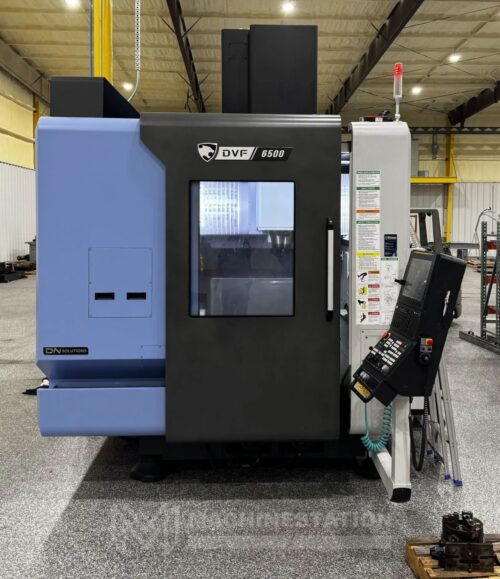

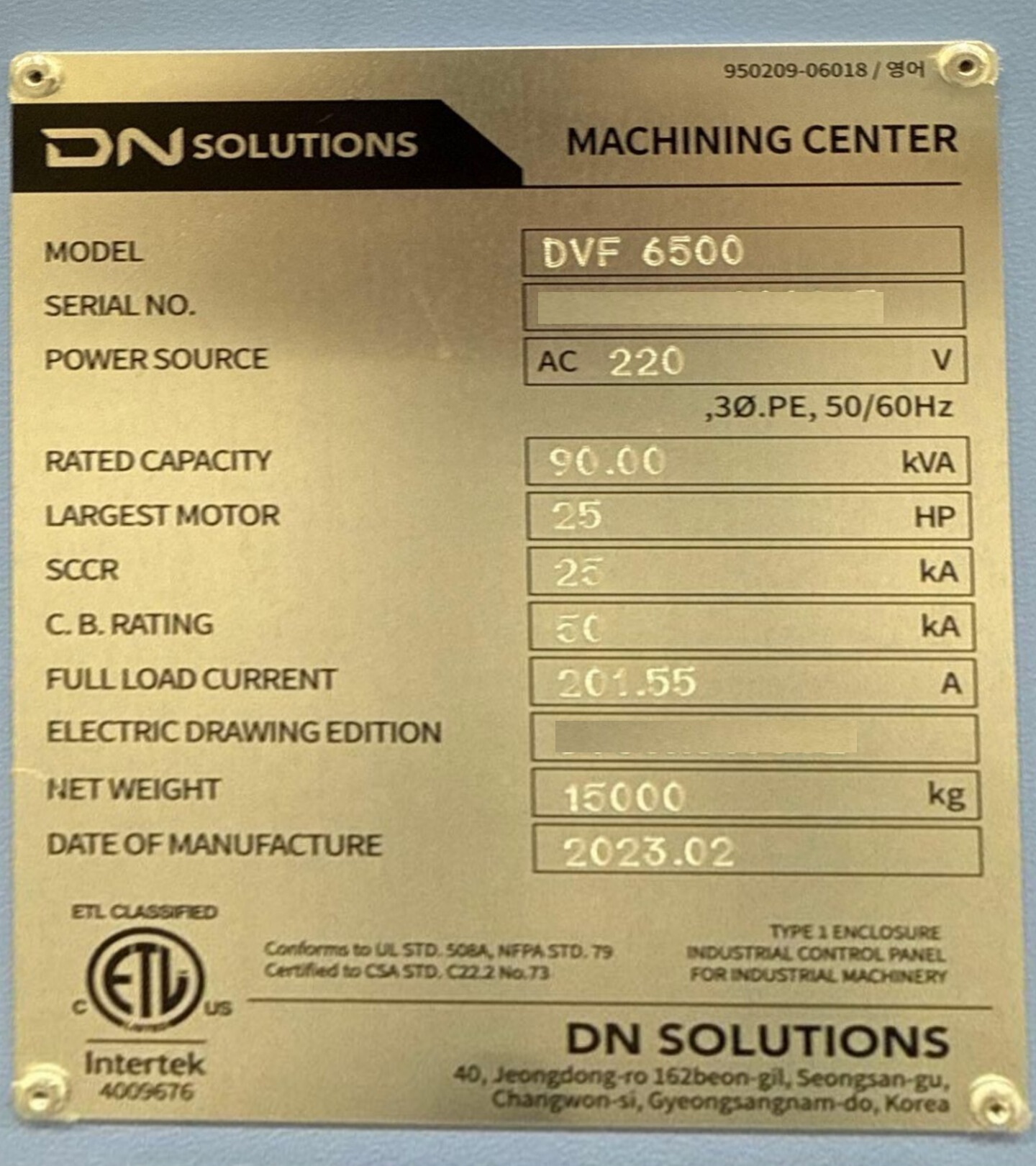

| Make: | Doosan |

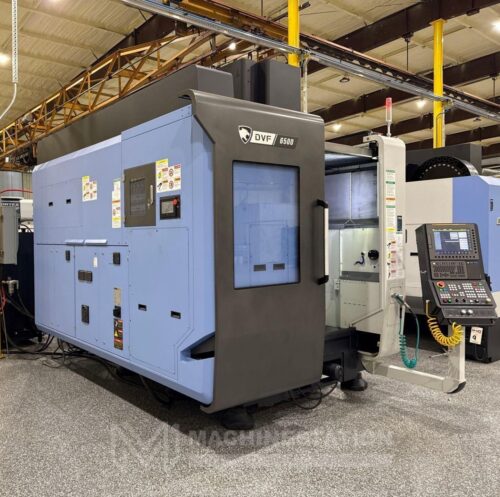

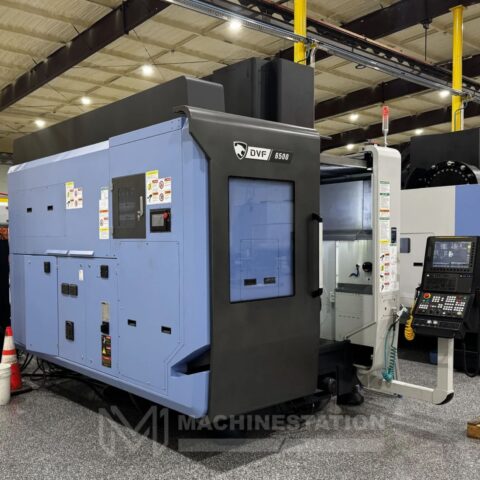

| Model: | DVF6500 |
| Year: | 2023 |
| Features: |
|---|

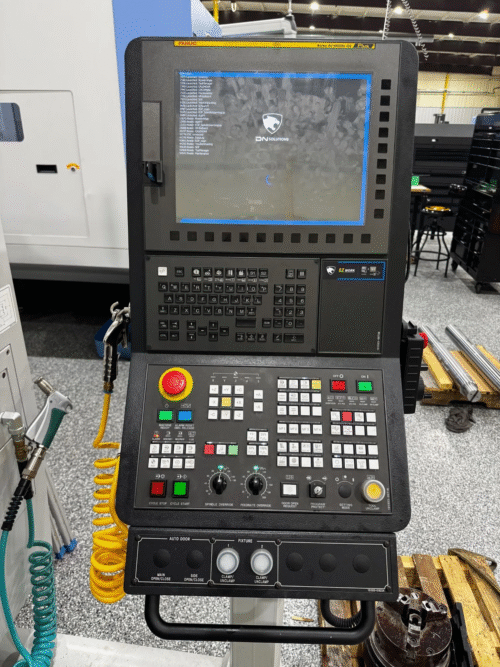

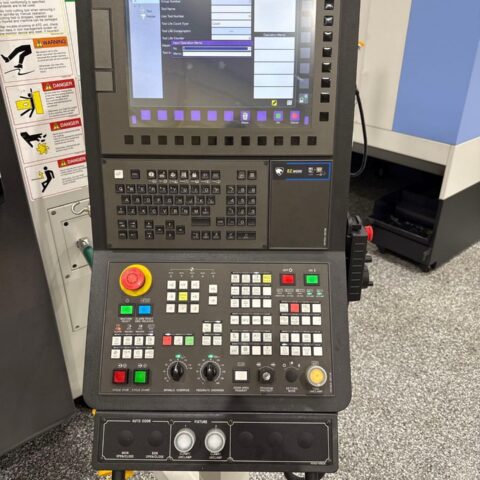

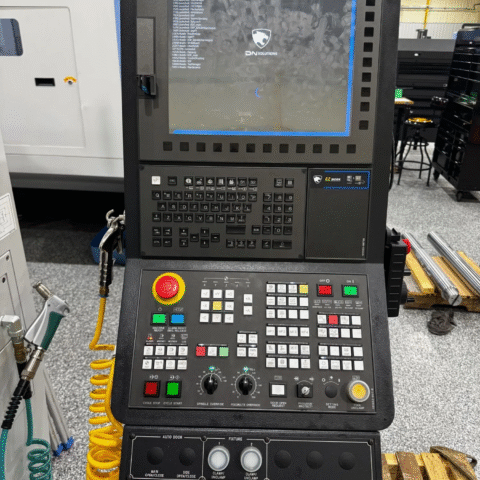

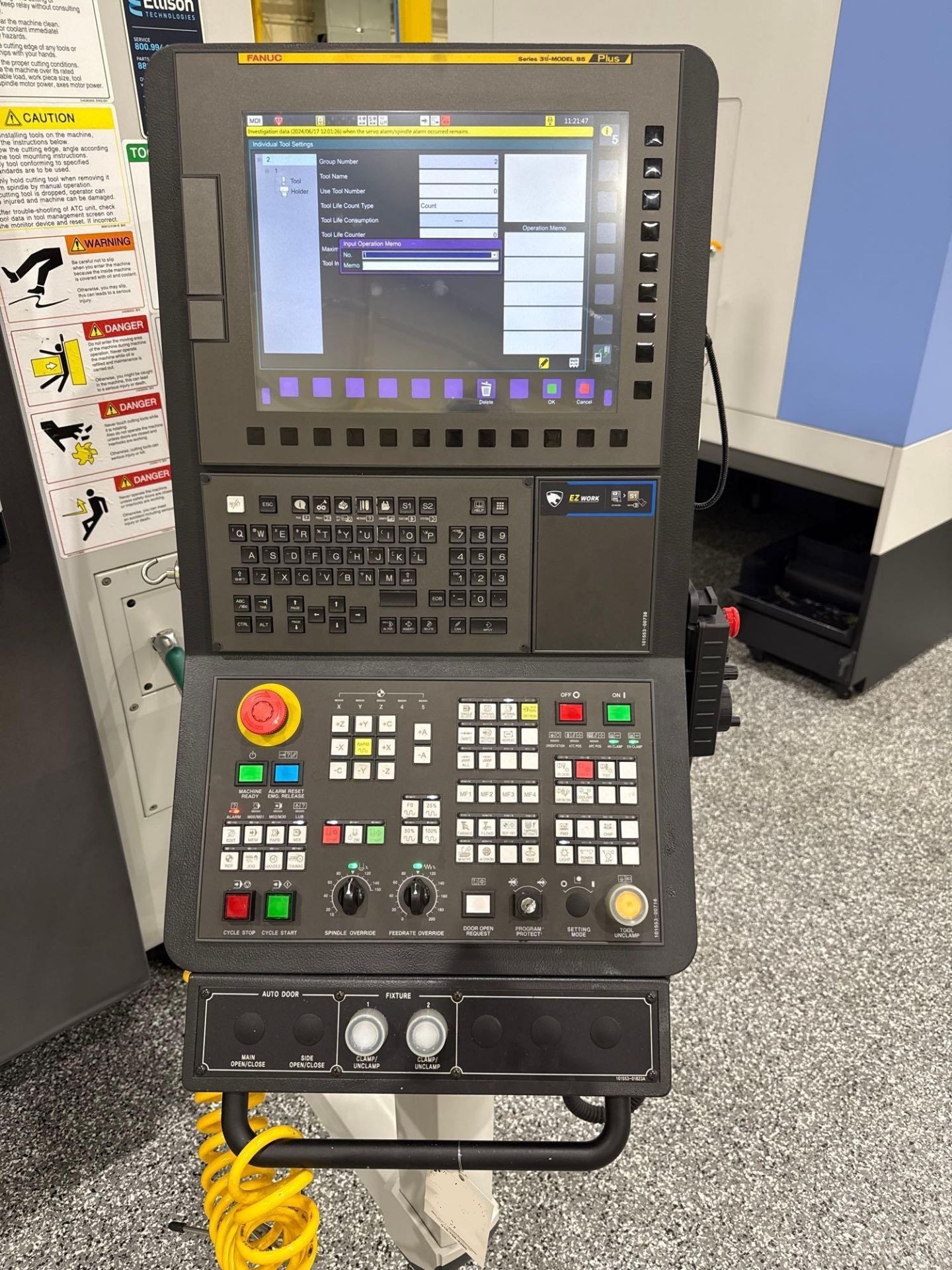

| Fanuc 31i Model B5 Series CNC Control |
| 5 Axis Simultaneous Machining |

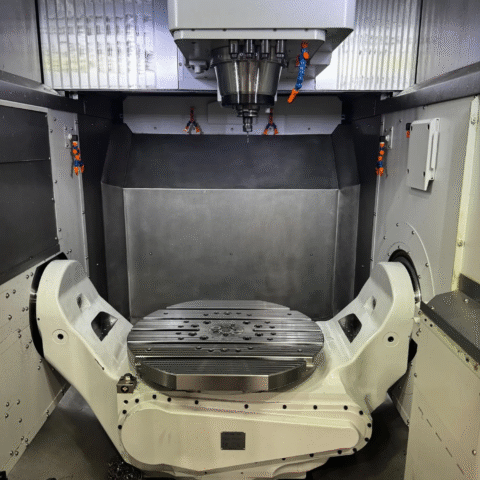

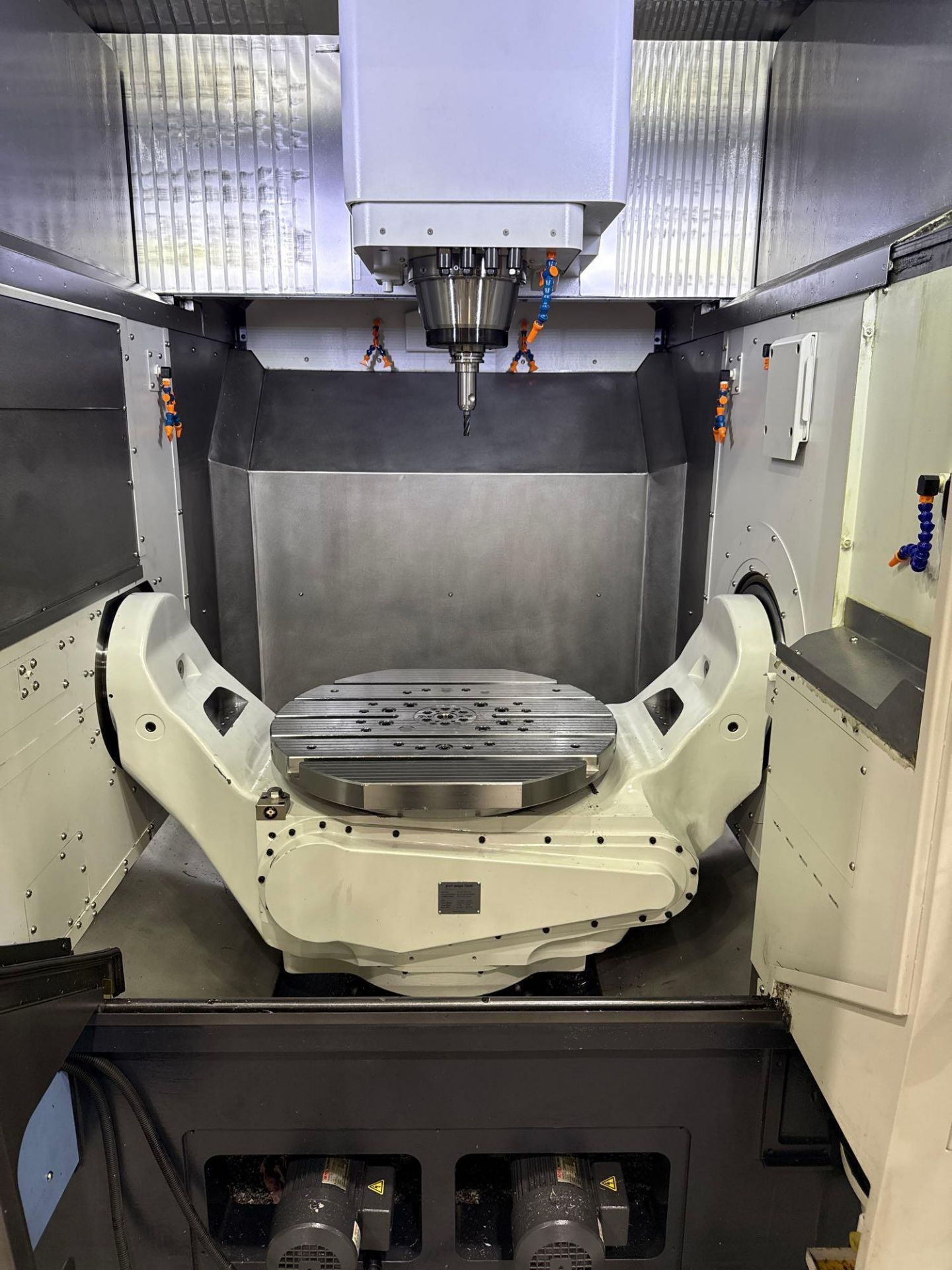

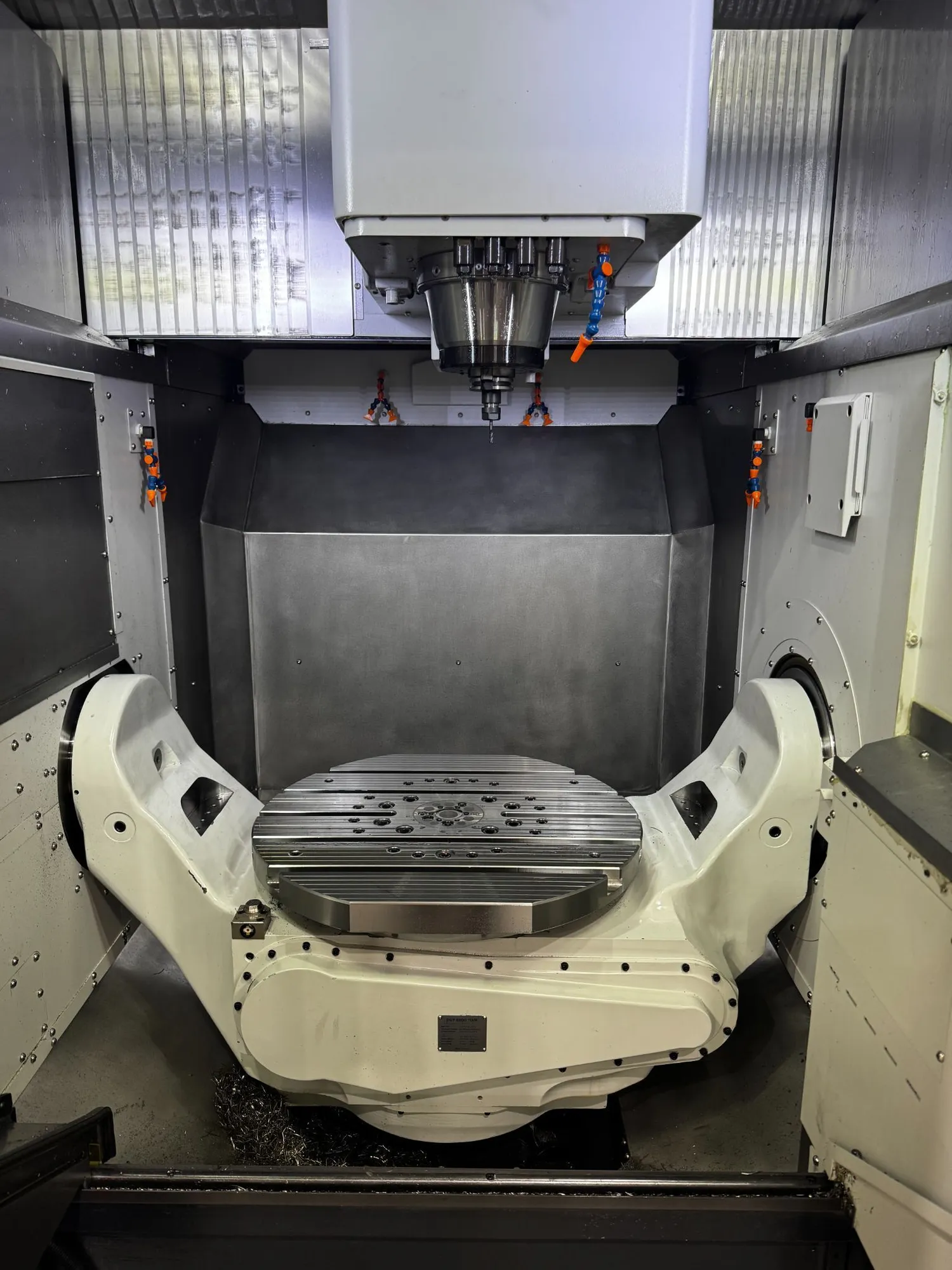

| ø 25.6″ Trunnion Table |
| 60 Station Automatic Tool Changer |
| 12,000 RPM High Speed Spindle |
| Through Spindle Coolant |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |

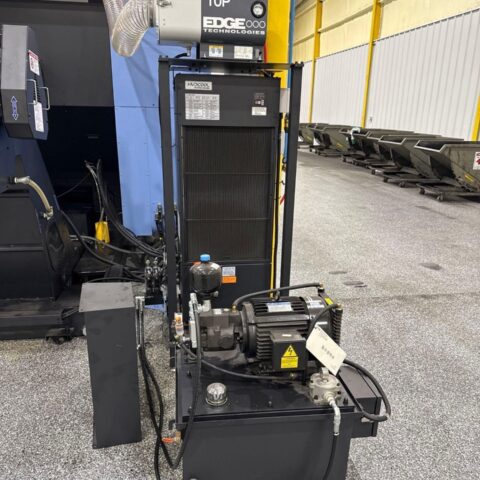

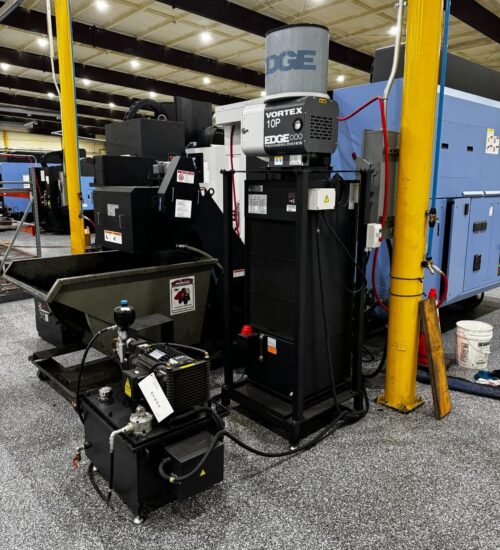

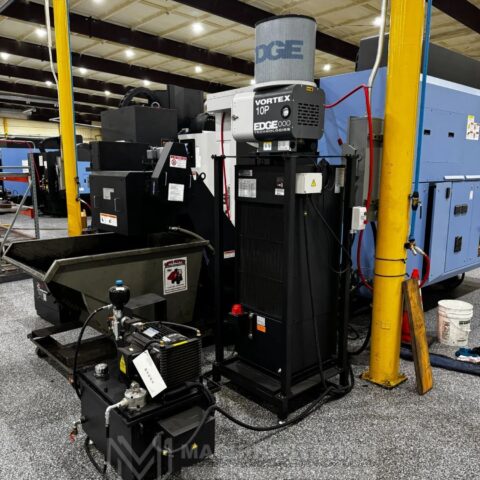

| Coolant System |

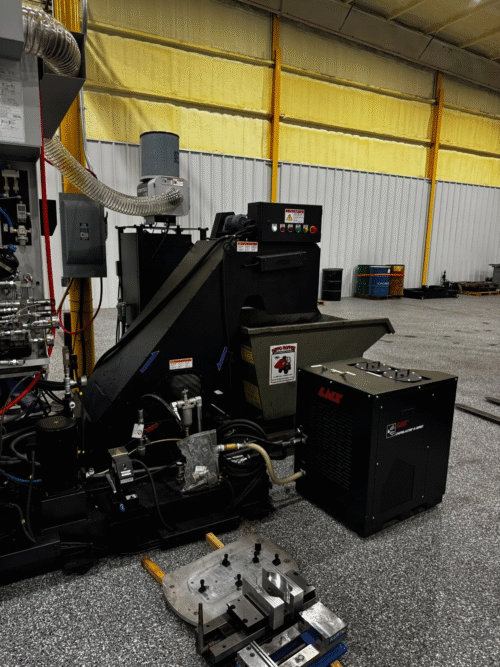

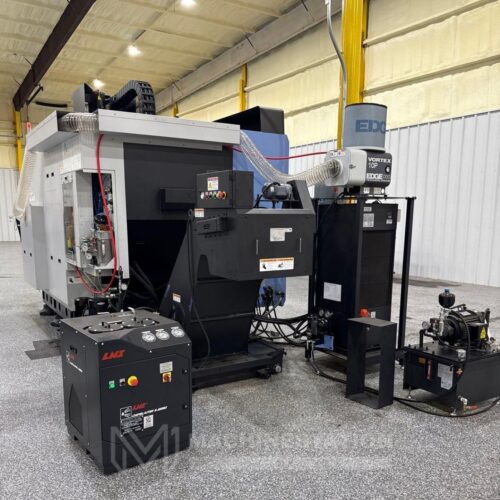

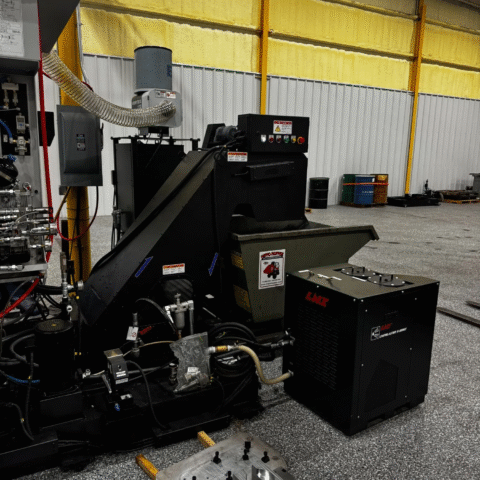

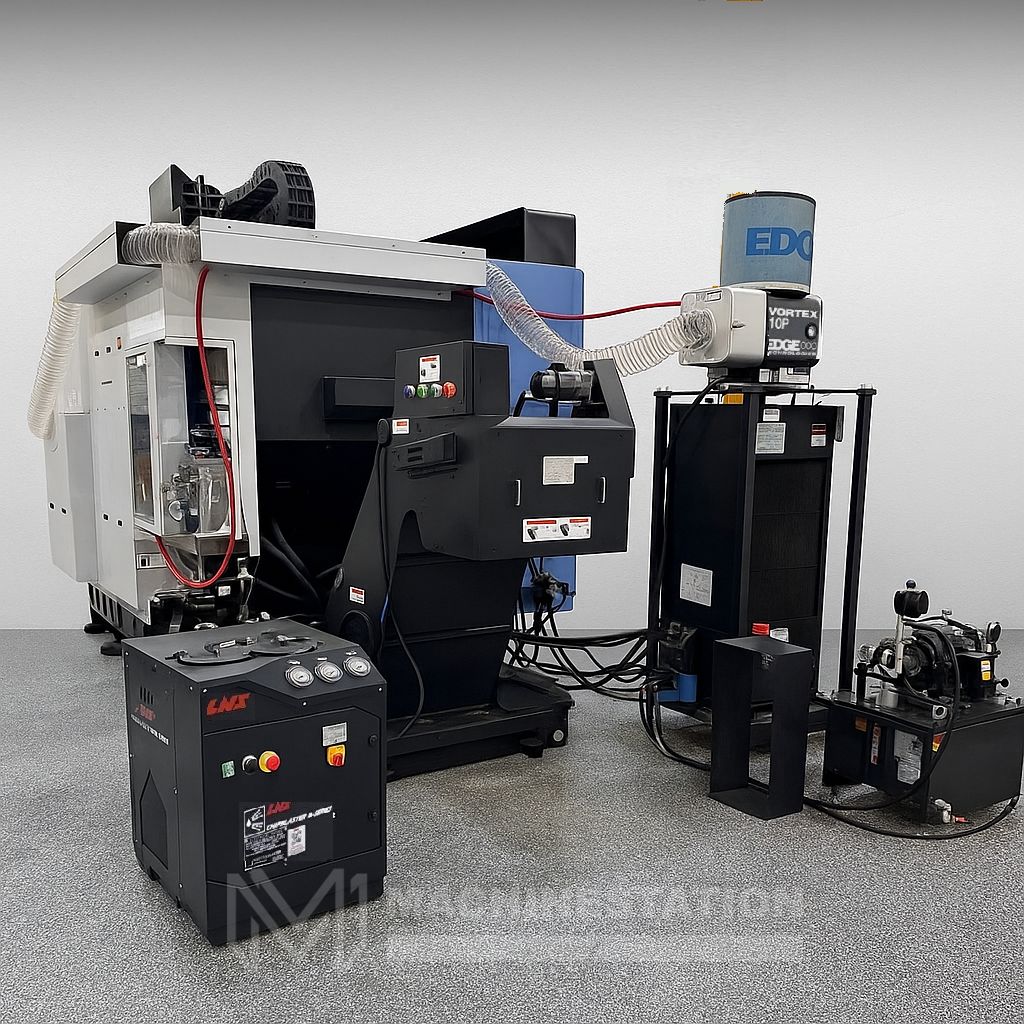

| LNS Chip Conveyor |
| Table: |
|---|
| Table size: ø 25.6″ |
| Max Part Diameter: 33.0″ |
| Max Part Height: 19.7″ |
| Max Weight on Table: 1322 lbs |
| Travel: |
|---|
| X Axis: 29.5″ |
| Y Axis: 30.9″ |
| Z Axis: 23.6″ |
| B Axis: ±120° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Feed Rates: |
|---|
| Rapid X, Y, Z Axis: 1771.6 Inch Per Minute |
| Rapid B Axis : 25/50 RPM |
| Rapid C Axis : 25/50 RPM |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: CAT-40 |
| Max Tool Diameter: 4.9″ |
| Max Tool Height: 11.8″ |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

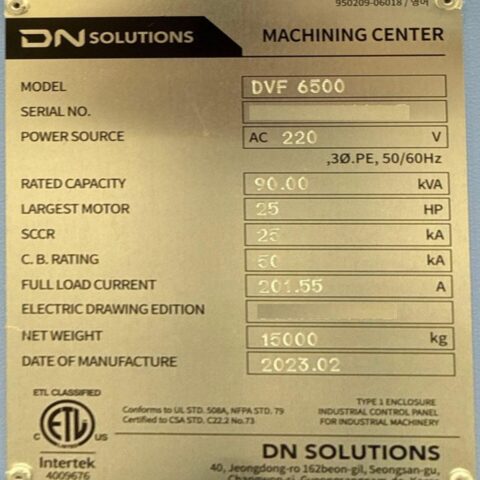

| Power: 220v / 60 Hz / 3-Phase |
| Machine Dimensions: 145.7″ x 96.5″ x 145.7″ High |
| Weight: 32,000 lbs |
