*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

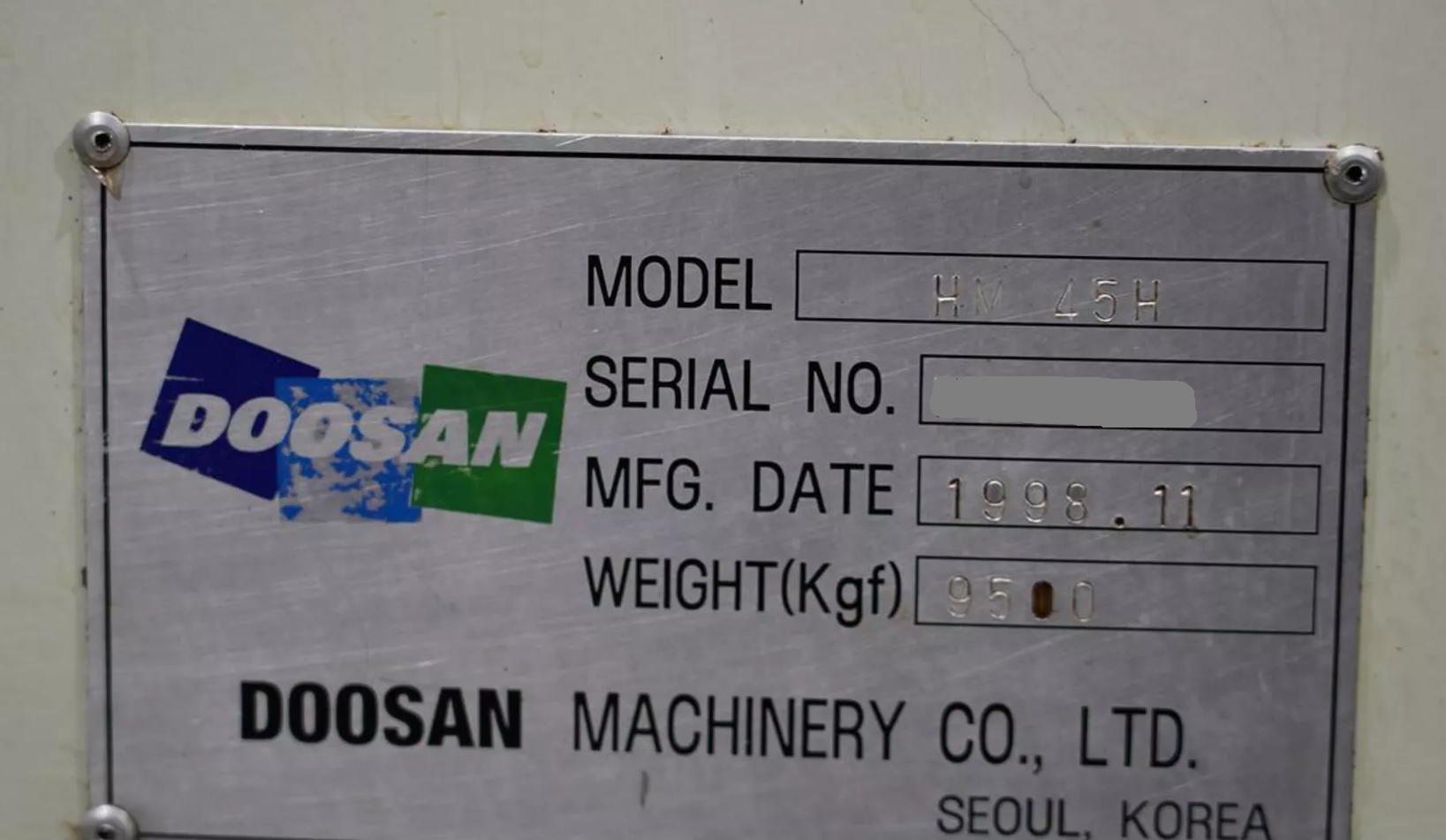

| Make: | Doosan |
| Model No.: | HM-45H |
| Year of Manufacture: | 1998 |

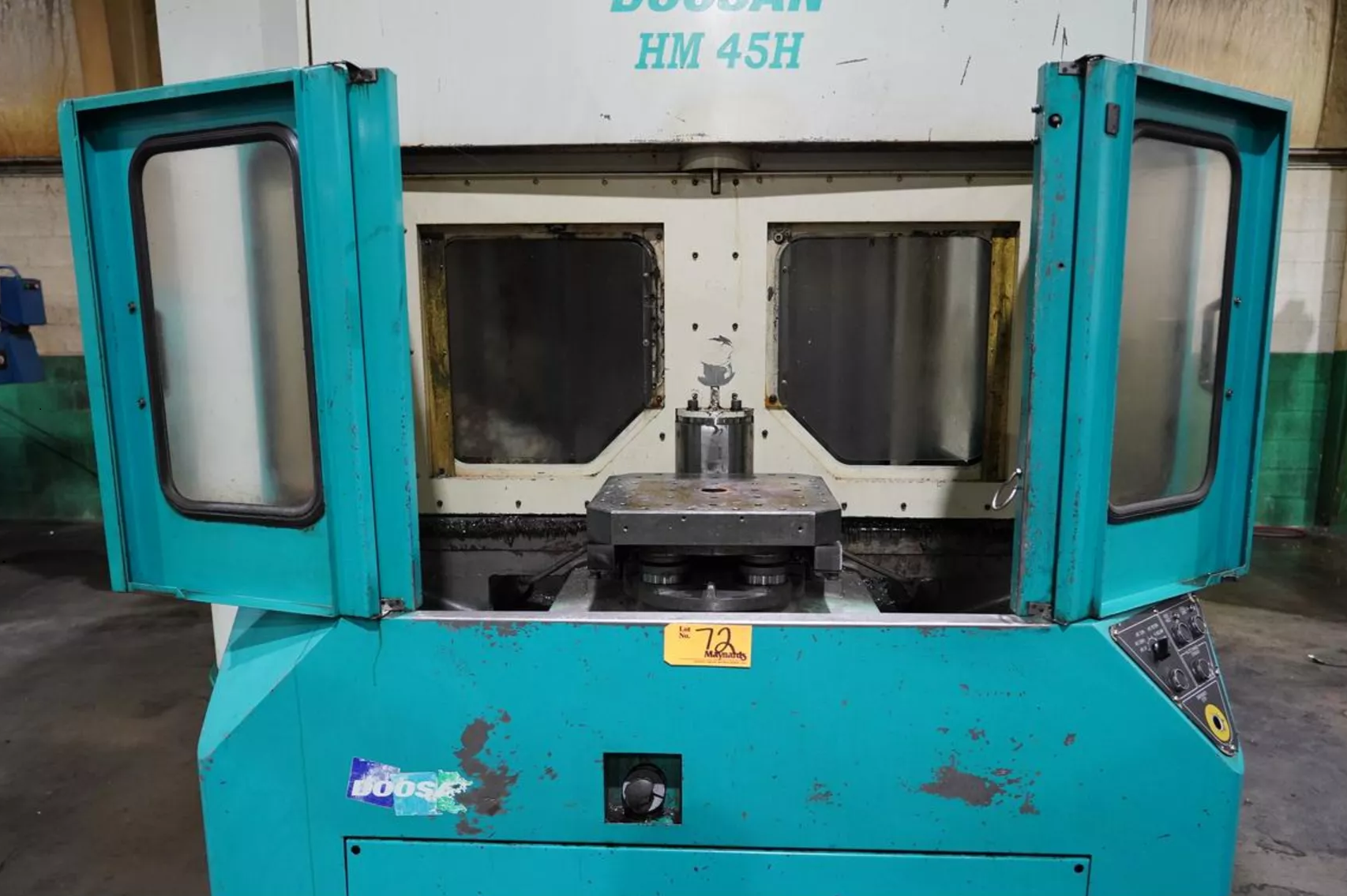

| Machine Type: | CNC Horizontal Machining Center |

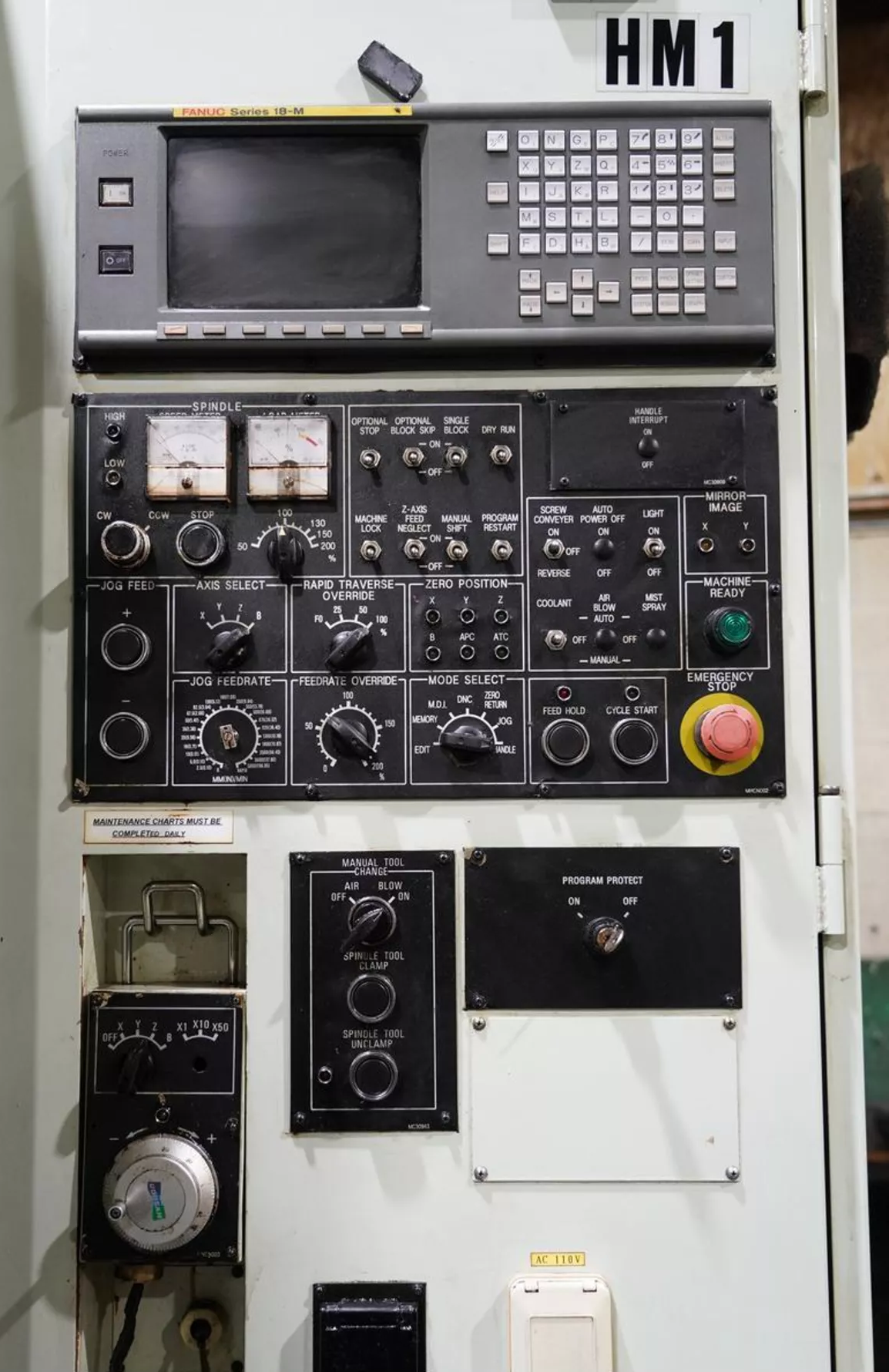

| Control: | Fanuc 18-M CNC Control |
| Country of Origin: | South Korea |
| Equipped With: |
|---|
| Dual Pallet Changer |
| 4th Axis Capability |
| 40-Position Automatic Tool Changer |
| High-Speed Spindle |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|

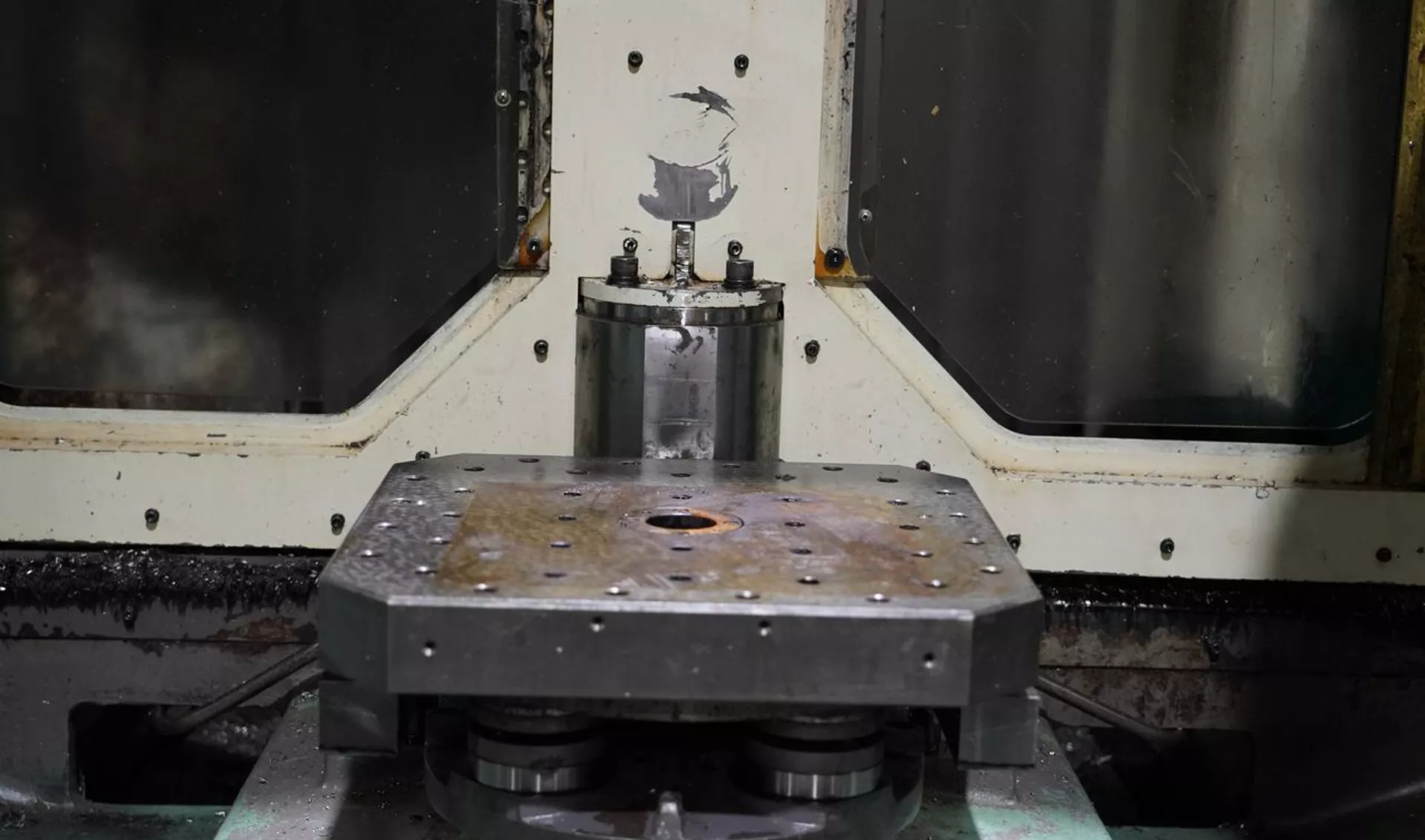

| Pallet Size: 17.75″ x 17.75″ |
| Number of Pallets: 2 |
| Max Pallet Load: 500 lbs |
| Travels: |
|---|
| X-Axis Travel: 23.622″ |
| Y-Axis Travel: 22.047″ |
| Z-Axis Travel: 22.047″ |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: 24.8 HP (18.5 kW) |
| Tooling: |
|---|
| Tool Capacity: 40 Tools |
| Tool Changer Type: Automatic |
| General: |
|---|
| Number of Controlled Axes: 4 |
| Power Source: AC 220/440 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 179″ x 138″ x 125″ |
| Machine Weight: 19,850 lbs |
