*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model No.: | HP 4000 |
| Year: | 2008 |
| Condition: | Used – Good |

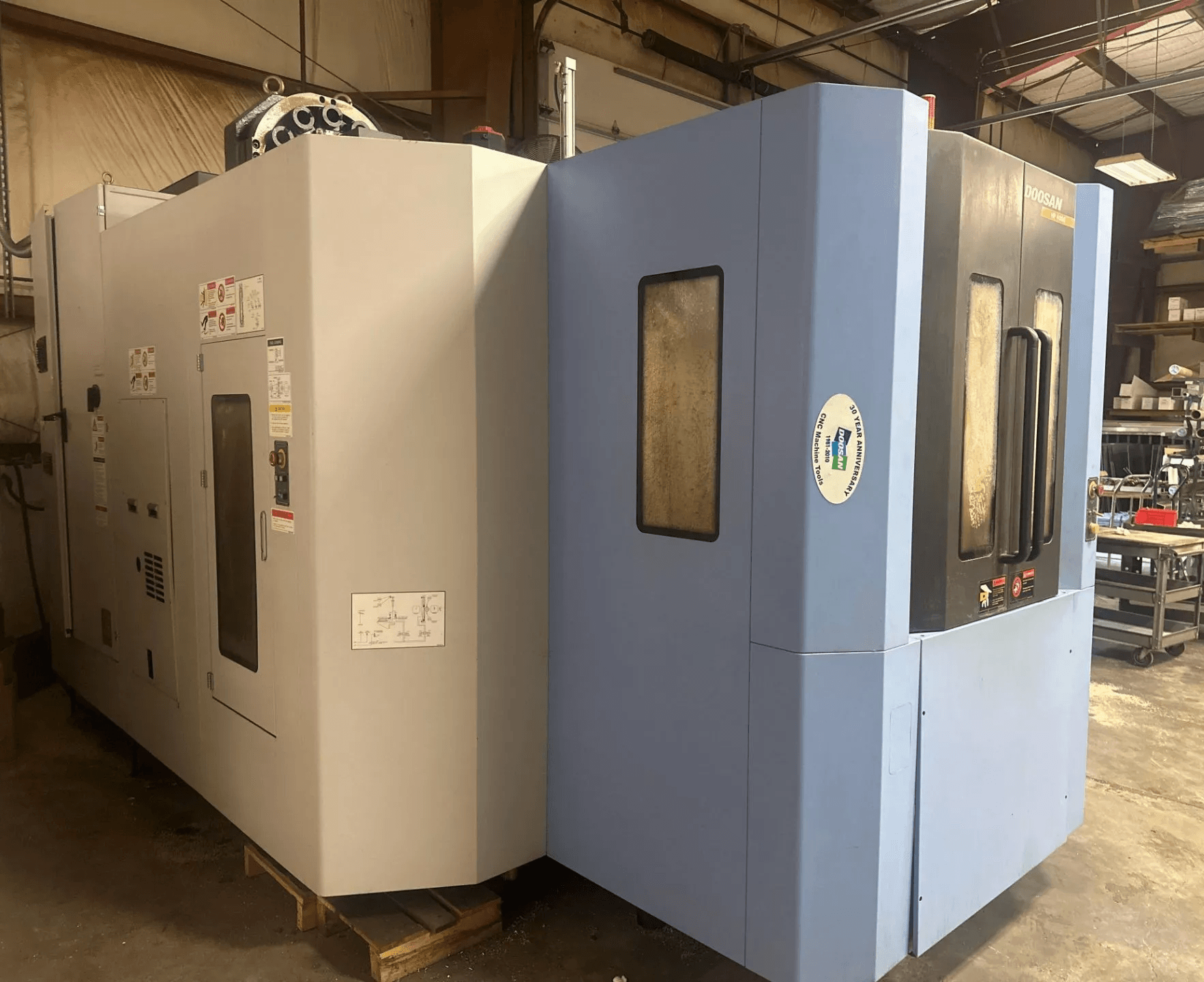

| Machine Type: | CNC Horizontal Machining Center |

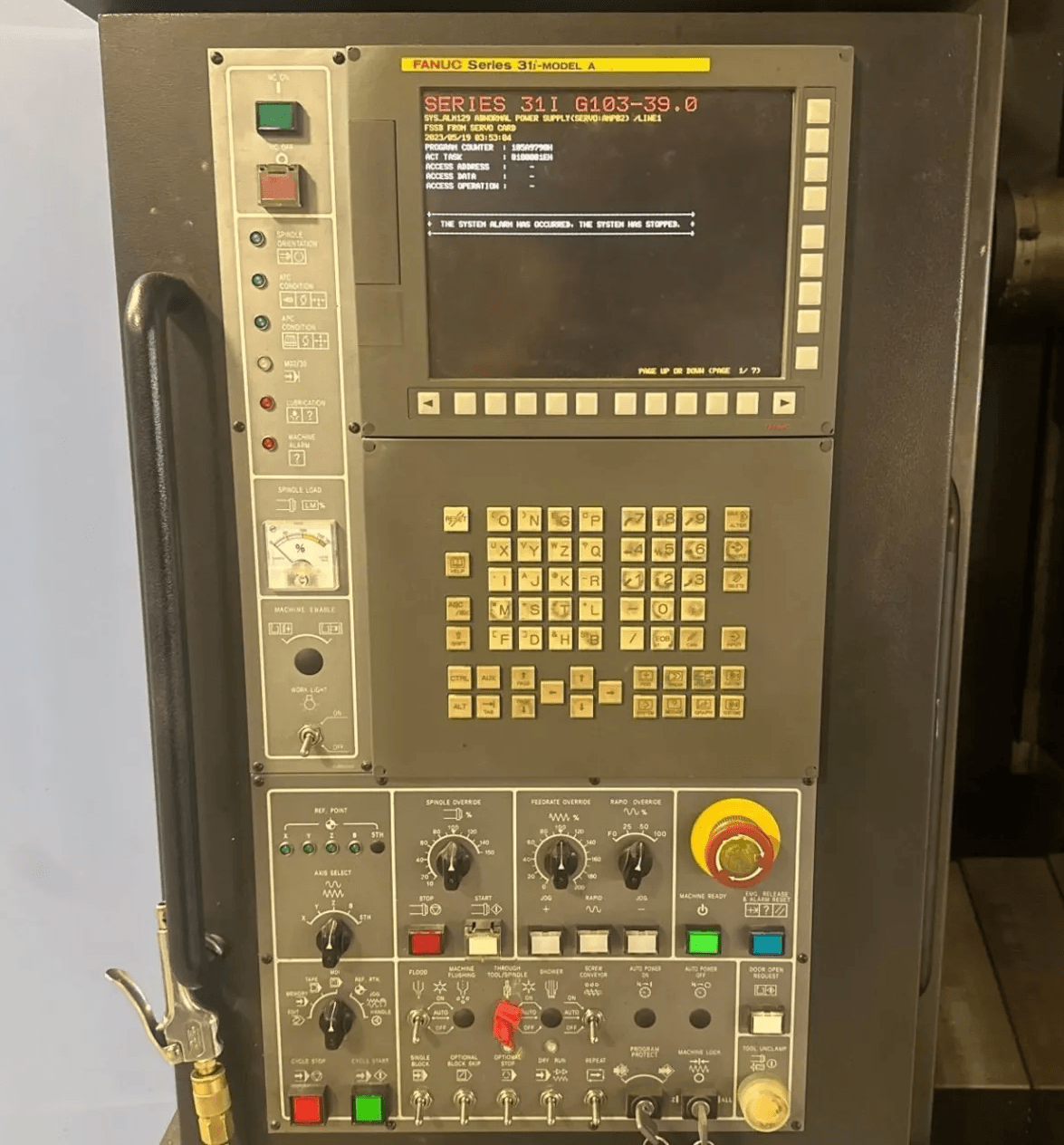

| Control: | Fanuc Series 31i Model A |
| Country of Origin: | South Korea |
| Features: |
|---|
| Fanuc Series 31i Model A CNC Control |
| Box Way Construction |
| Dual Pallet Changer (APC) |
| Full 4th Axis Rotary Table |
| 12000 RPM Direct Drive Spindle |
| Through Spindle Coolant (if equipped) |
| 40 Station Automatic Tool Changer |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| High Speed Machining Capability |
| Travels: |
|---|
| X Axis: 22″ |
| Y Axis: 24.8″ |
| Z Axis: 24.8″ |
| B Axis: 1° Indexing (Full 4th Optional 0.001°) |
| Pallet: |
|---|
| Dual Pallet Changer |
| Pallet Size: 15.7″ x 15.7″ |
| Max Weight on Pallet: 880 lbs |
| Max Part Diameter: 24.8″ Approx. |
| Max Part Height: 39″ Approx. |
| Pallet Change Time: 12 – 15 Seconds |
| Spindle: |
|---|
| Taper Size: 40 |
| Spindle Speed: 12000 RPM |
| Spindle Power: 18.5 kW (Approx. 25 HP Peak) |
| Feed rates: |
|---|
| Rapid Traverse Rates: 1890 Inch Per Minute |
| Cutting Feed Rates: 787 Inches Per Minute |
| Tool changer: |
|---|
| Capacity: 40 Station Automatic Tool Changer |
| Max Tool Diameter: 3.15″ – 5.9″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 15.4 lbs. |
| Tool Change Time (Tool to Tool): 1.5 seconds |
| General: |
|---|
| Air Required: 90 psi |

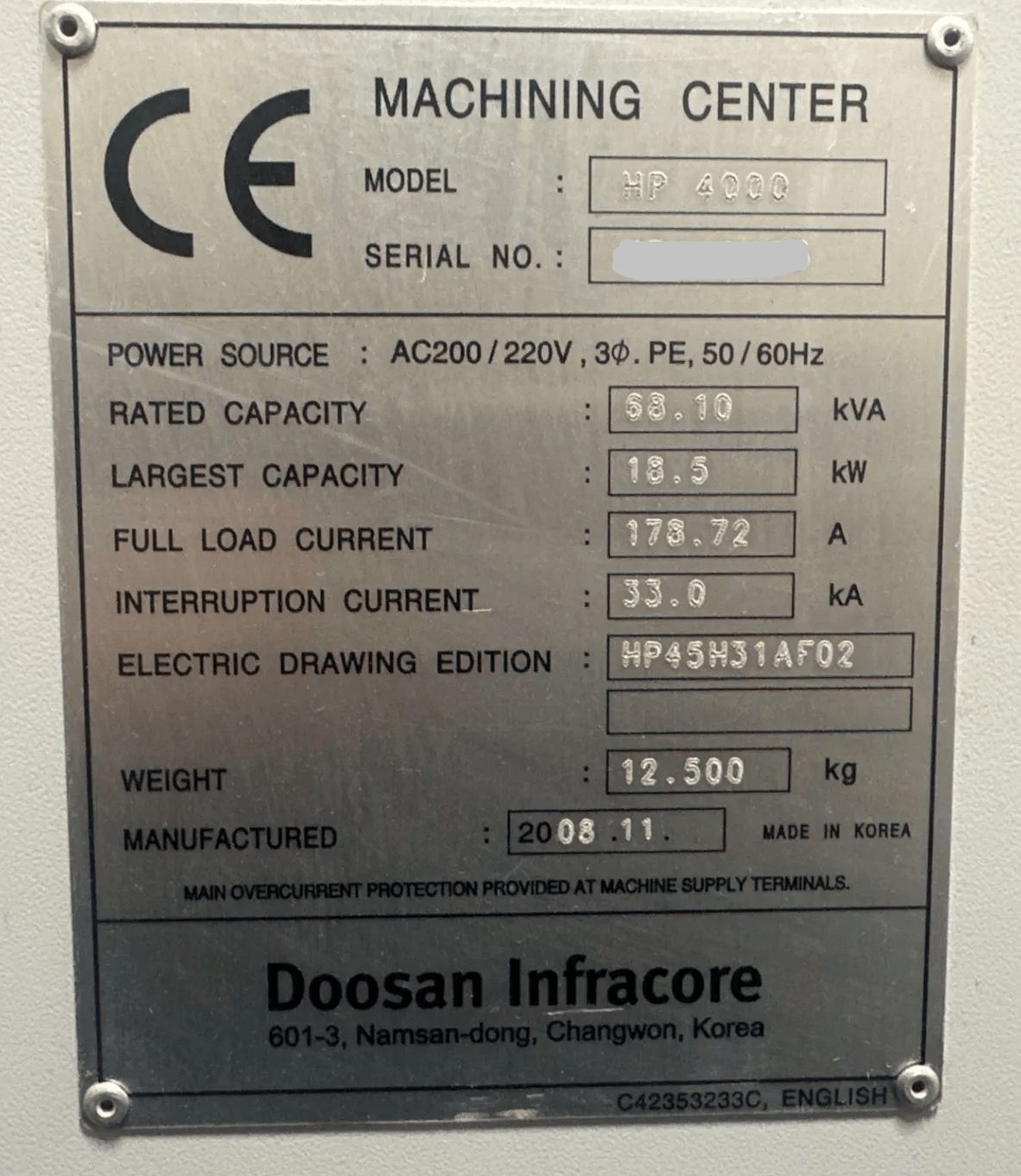

| Power: AC200/220V / 3-Phase / 50-60Hz |
| Power Capacity: 68.10 kVA |
| Full Load Current: 178.72 A |
| Overall Shipping Dimensions: 160″ x 95″ x 105″ High Approx. |
| Weight: 27,500 lbs. Approx. |
