*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 105370 |

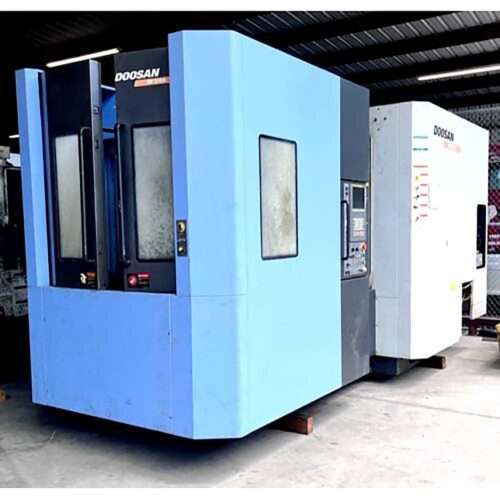

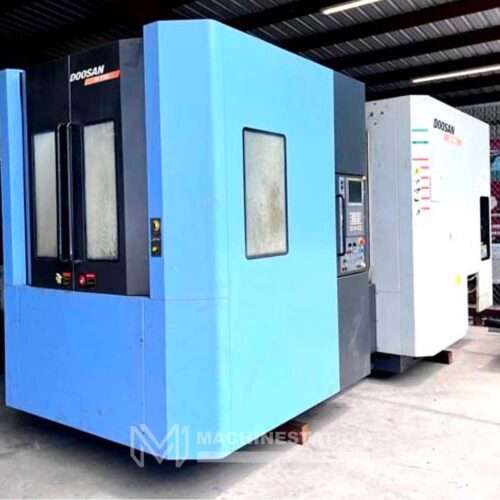

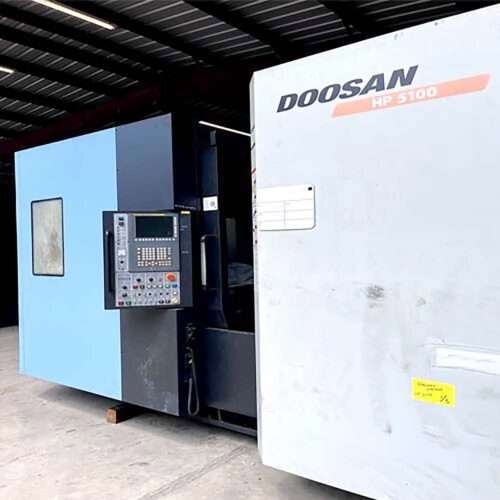

| Make: | Doosan |
| Model: | HP-5100 |

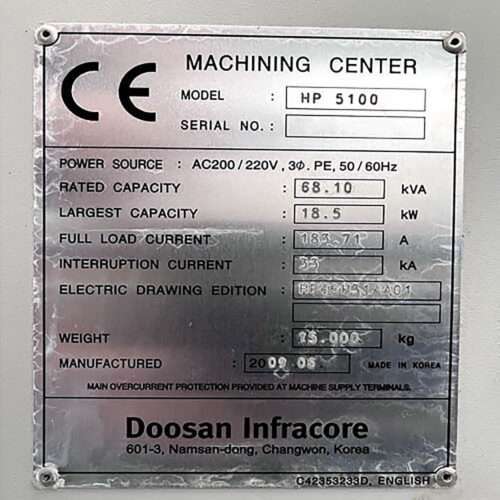

| Year Of Manufacture: | 2009 |
| Condition: | Used-Good |
| Features: |
|---|

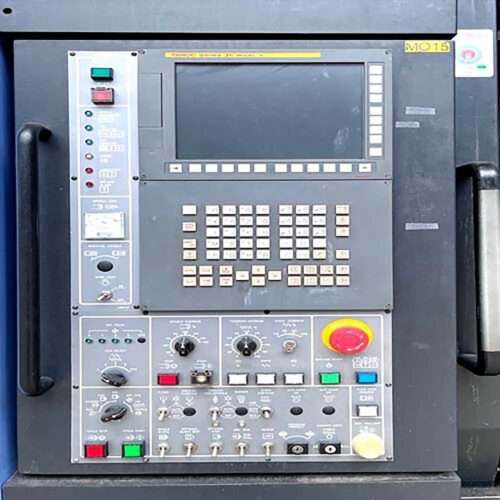

| FANUC 18i-MB CNC Control |
| 1° Indexing Table |
| 19.7″ x 19.7″ Twin Pallet |
| Automatic Pallet Changer |
| 14,000 RPM High Speed Spindle |
| 30 HP High Torque Spindle Power |
| 2362 IPM Fast Rapid Traverse Rate |
| Through Spindle Coolant |
| 120 Station Tool Changer |
| PCMCIA Card Slot |
| Upgraded Memory |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Helical Interpolation |
| Flood coolant with large coolant tank |
| Chip Conveyor |
| Travels: |
|---|
| X Axis: 33.5″ |
| Y Axis: 27.6″ |
| Z Axis: 29.5″ |
| B Axis: 1° Indexing |
| Spindle Nose to Table Center: 5.9″ – 35.4″ |
| Table: |
|---|
| Length: 19.7″ |
| Width: 19.7″ |
| Max Weight on Table: 1102 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Max. Speed: 14,000 RPM |
| Power: 30 HP |
| Feed rates: |
|---|
| Rapid X, Y & Z Axis: 2263 Inch Per Minute |
| Cutting Feedrate : 945 Inch Per Minute |
| Tool Changer: |
|---|
| Capacity: 120 Tools |
| Taper: 40 |
| Max Tool Size: 5.5″ |
| Max Tool Length: 15.7″ |
| Max Tool Weight: 22 lbs. |
| Tool Change Time (Tool to Tool): 1.5 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 65kva / 480v / 3-Phase |
| Overall Dimensions: 194″ X 110″ x 120″ High |
| Weight: 33,000 lbs Approx. |
