Doosan LYNX 220 CNC Turning Center

Out of stock

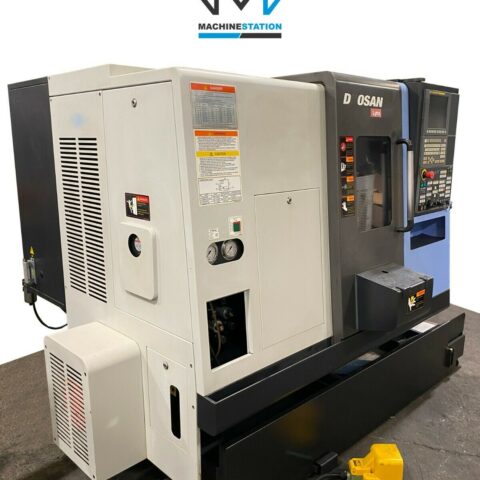

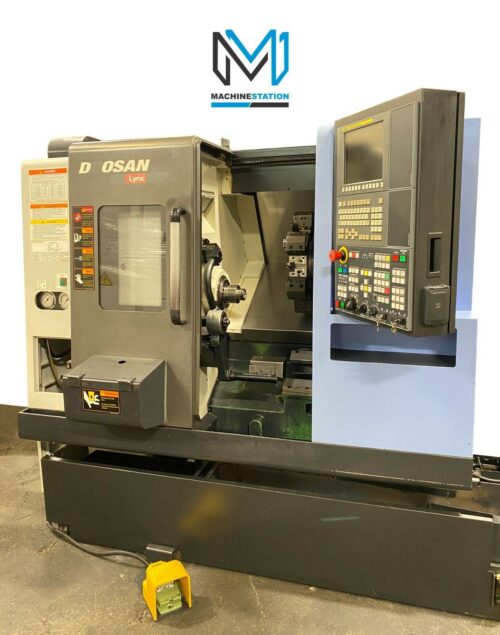

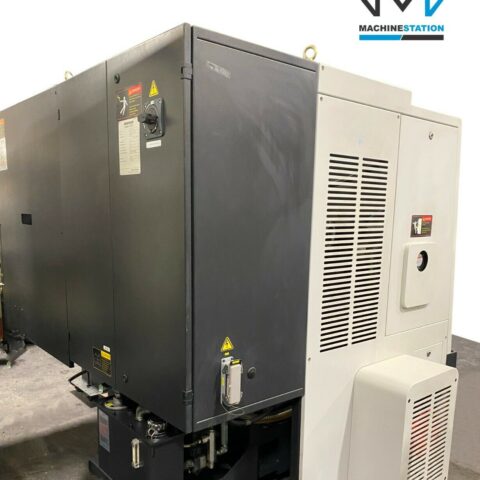

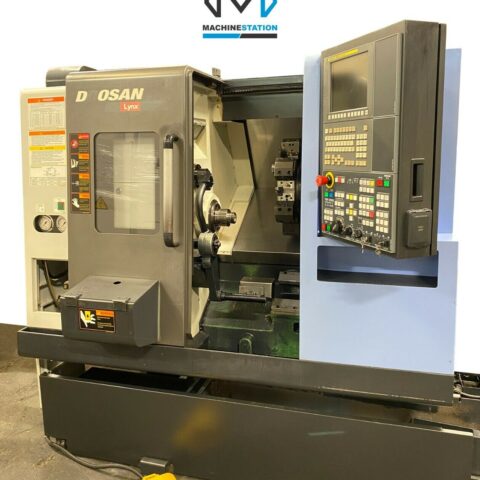

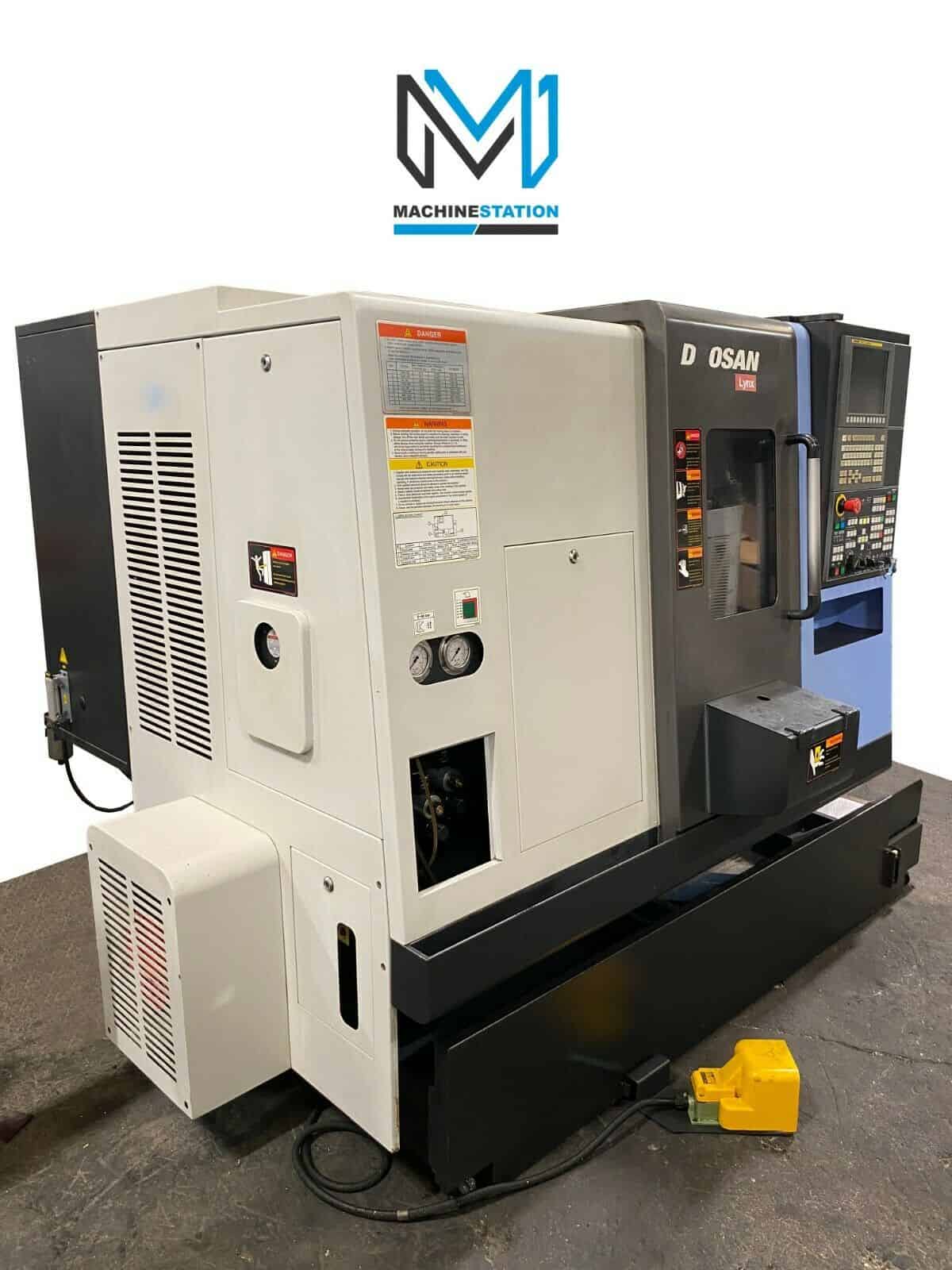

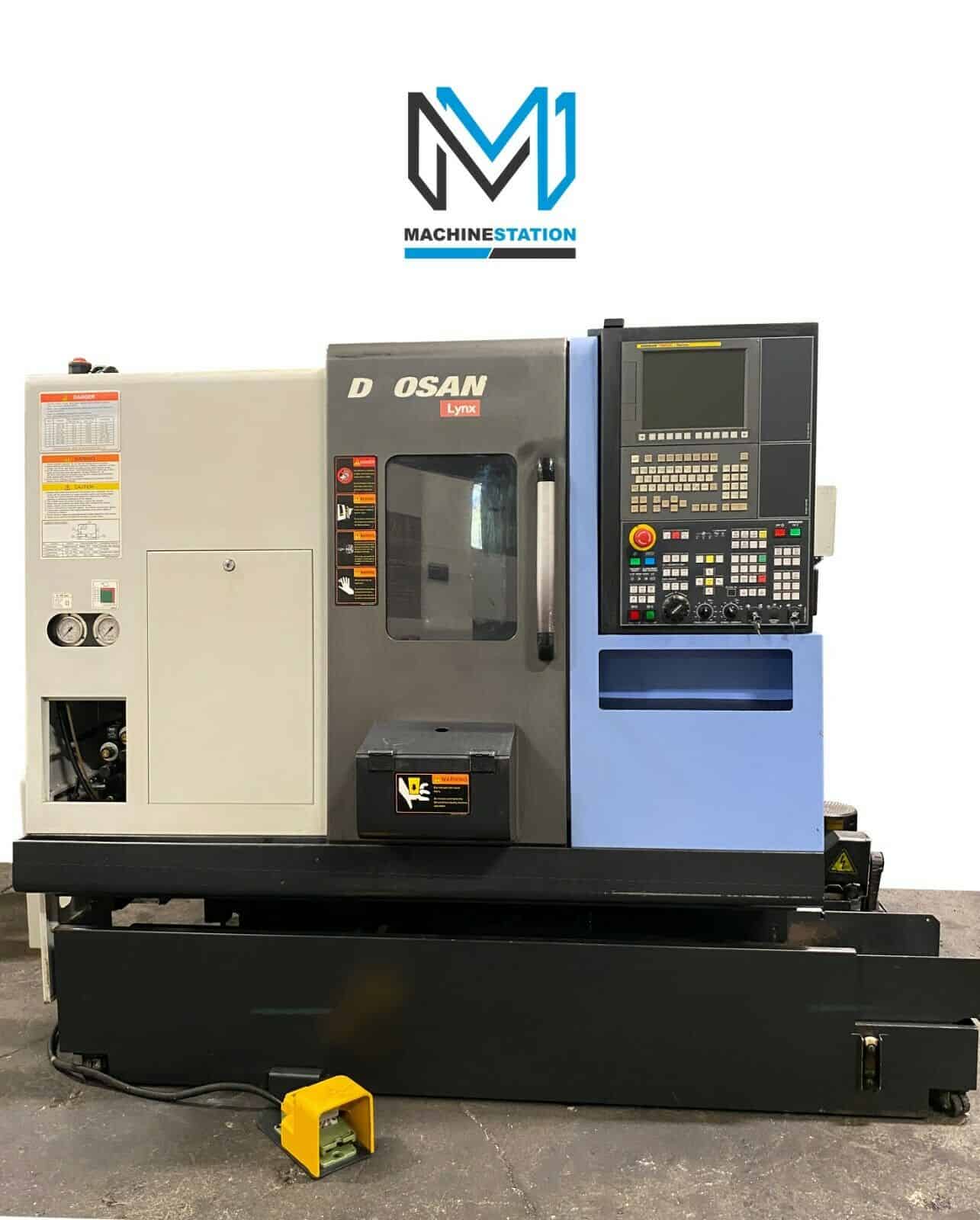

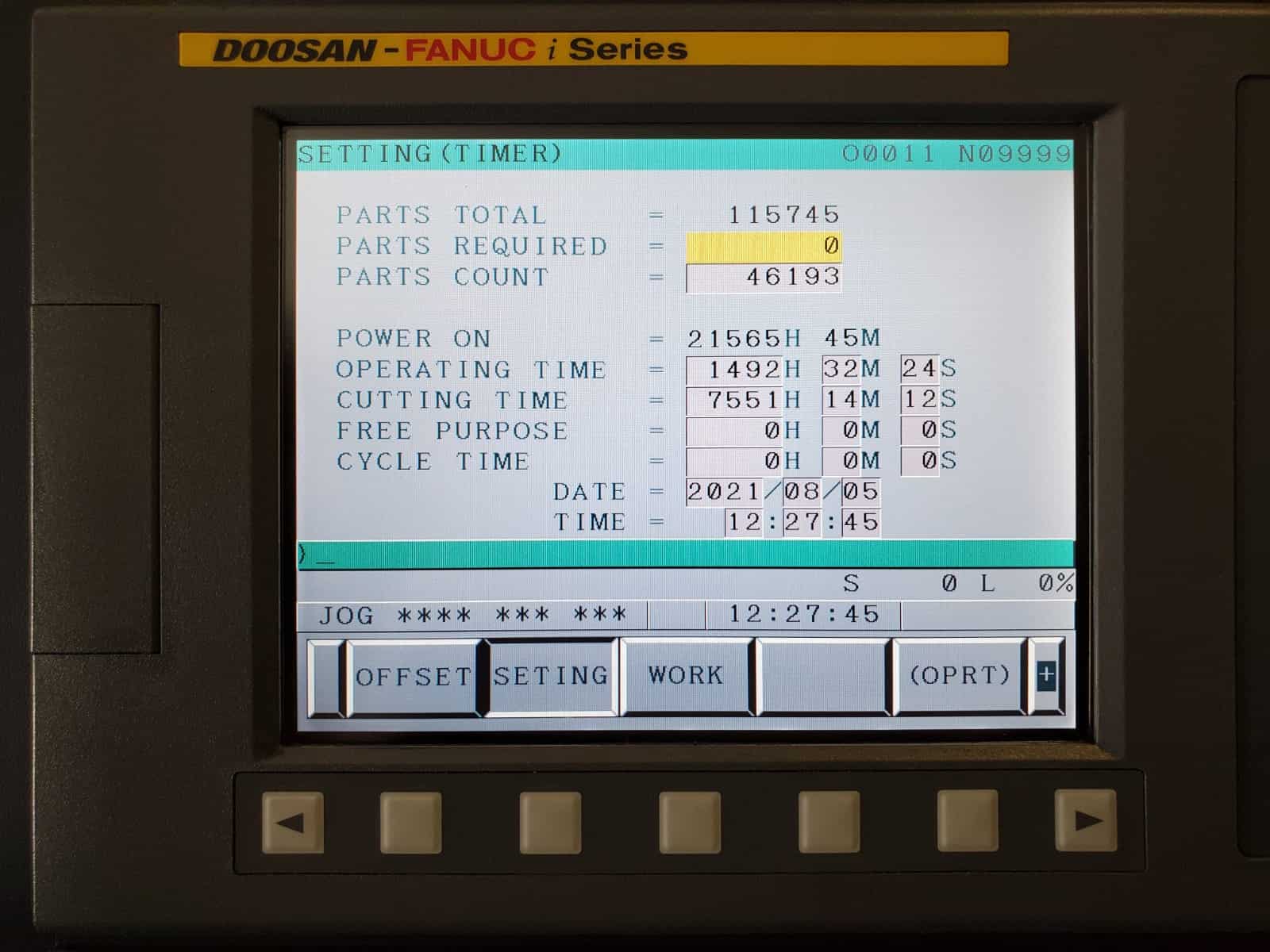

Used Doosan LYNX 220 CNC Turning Center for Sale. This Doosan LYNX 220 has minimal cutting hours and is in almost new condition.

Location: Lake Elsinore, CA
SKU: 2176
Make/Model: Doosan LYNX 220
Video: [fusion_button link=”www.youtube.com/embed/nbjbCznAR7g?rel=0&showinfo=0&modestbranding=0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_color=”” accent_hover_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_color=”” border_hover_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]Play Video[/fusion_button]
SKU: 2176

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2176
Make: Doosan
Model: LYNX 220

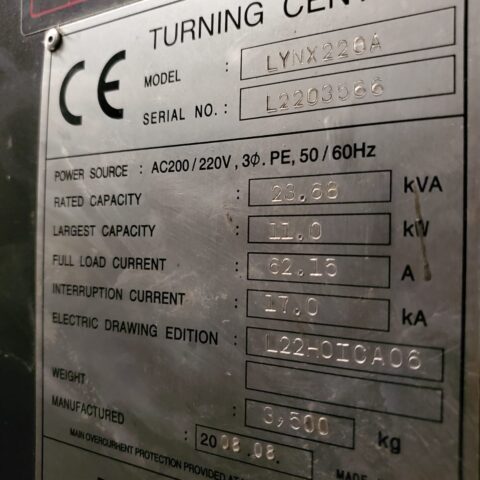

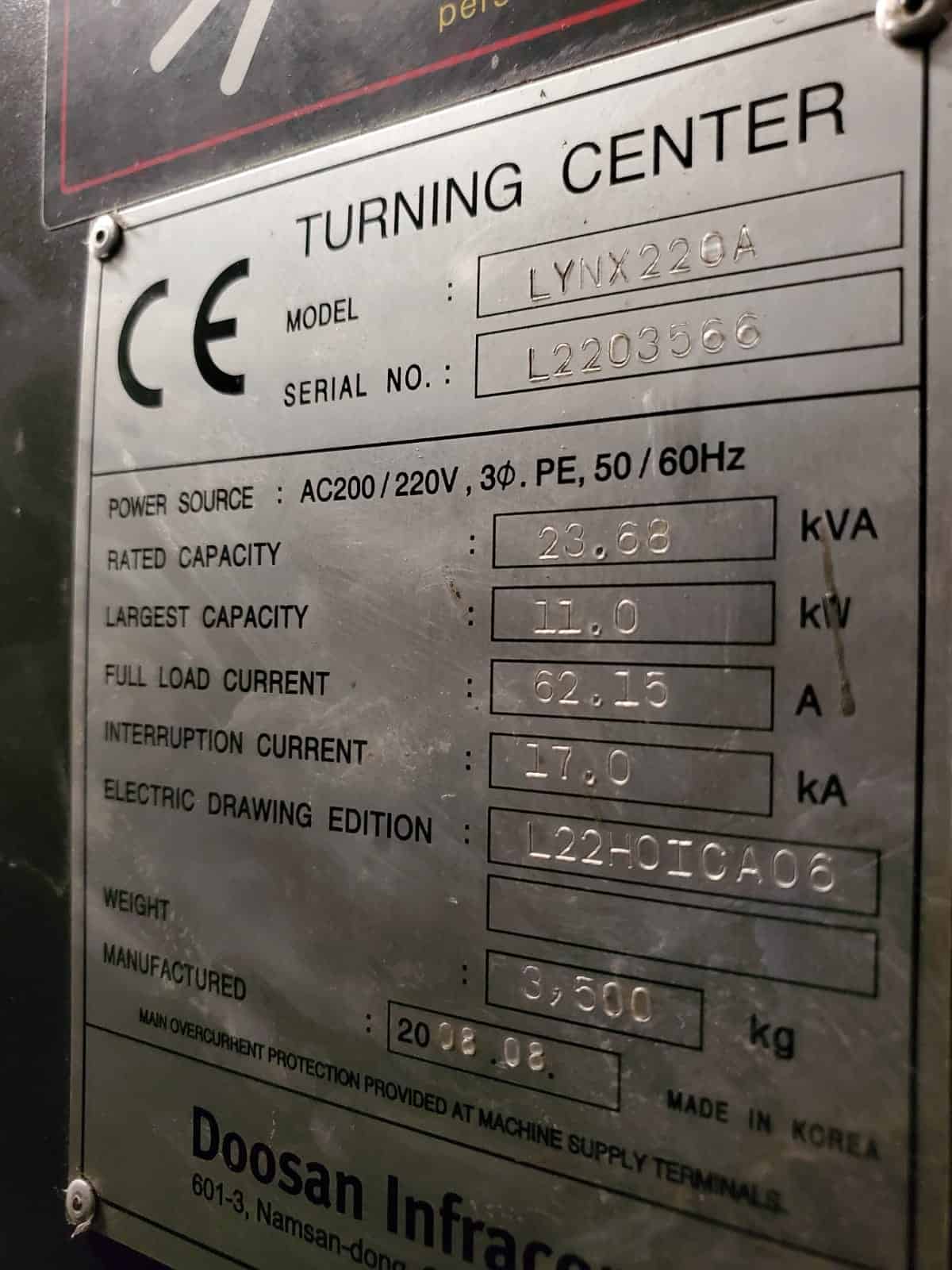

Serial: 2203566
Condition: Very Good



Equipped With:

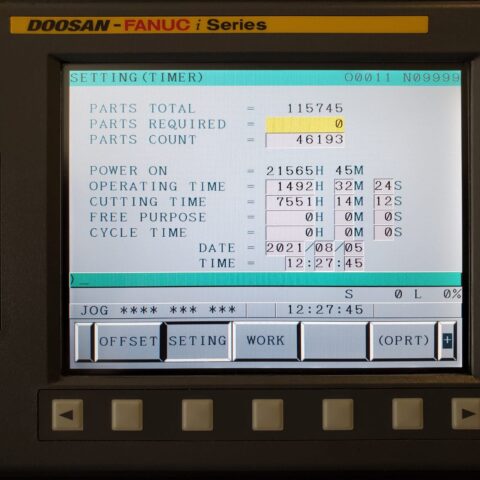

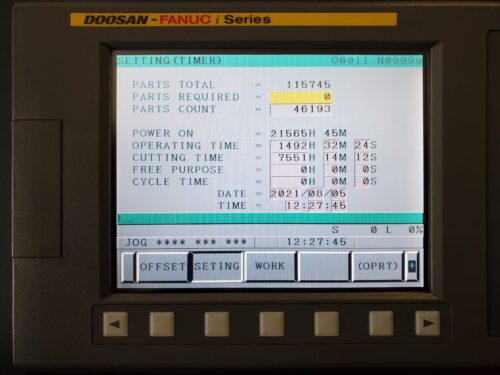

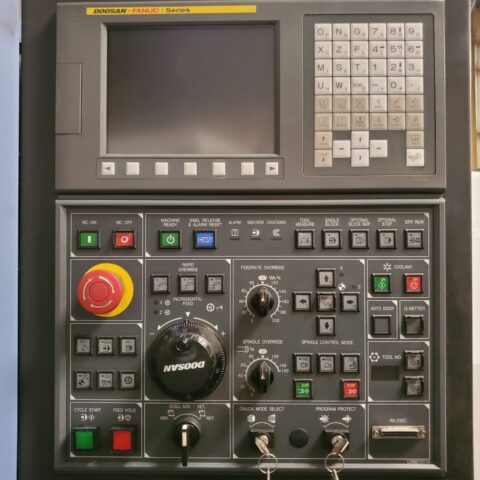

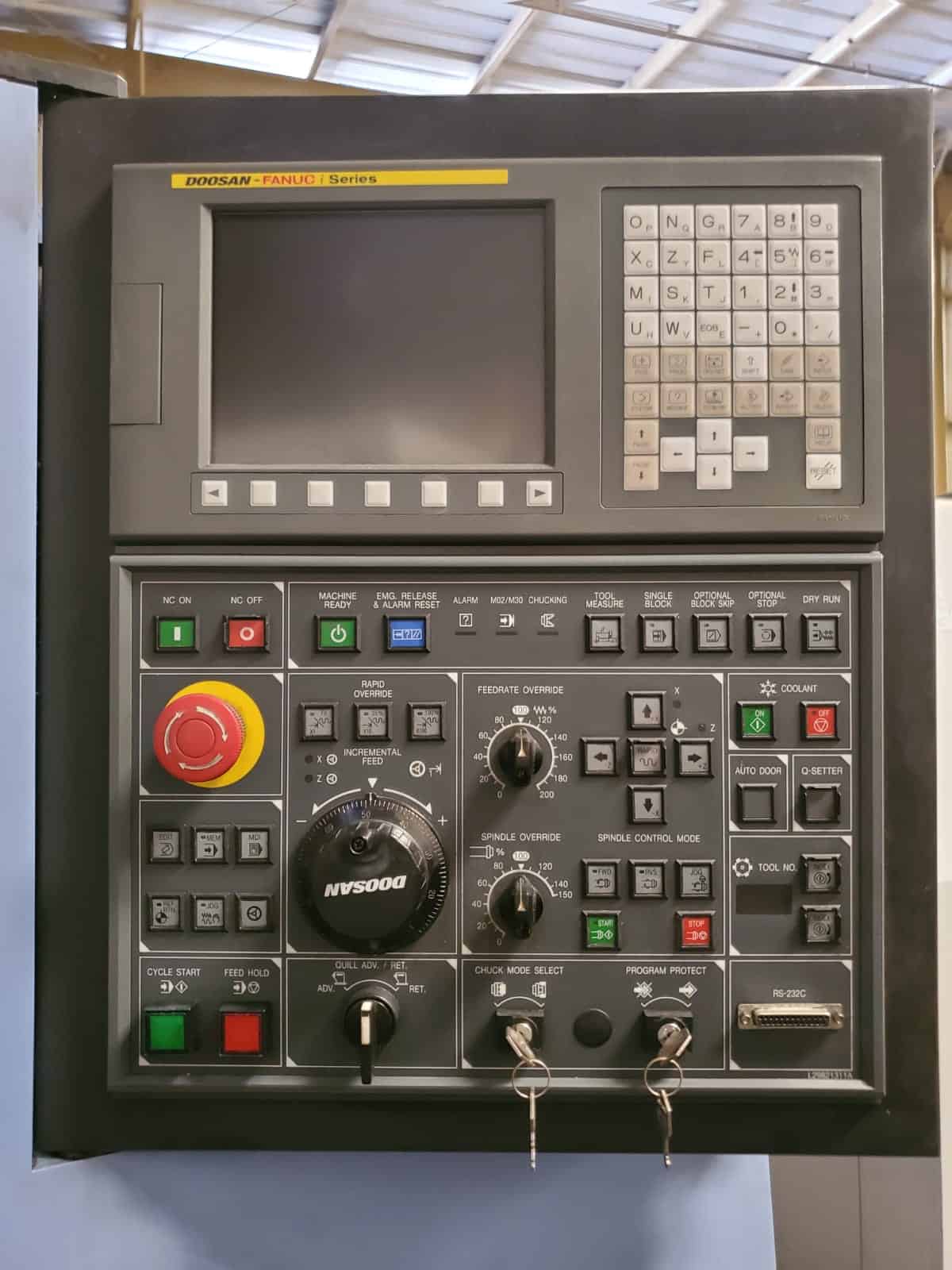

Fanuc i series CNC Control

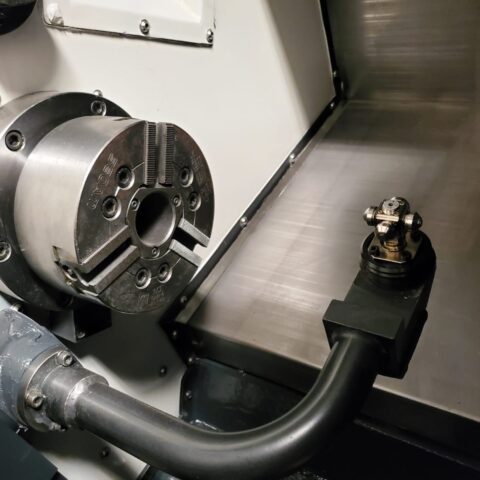

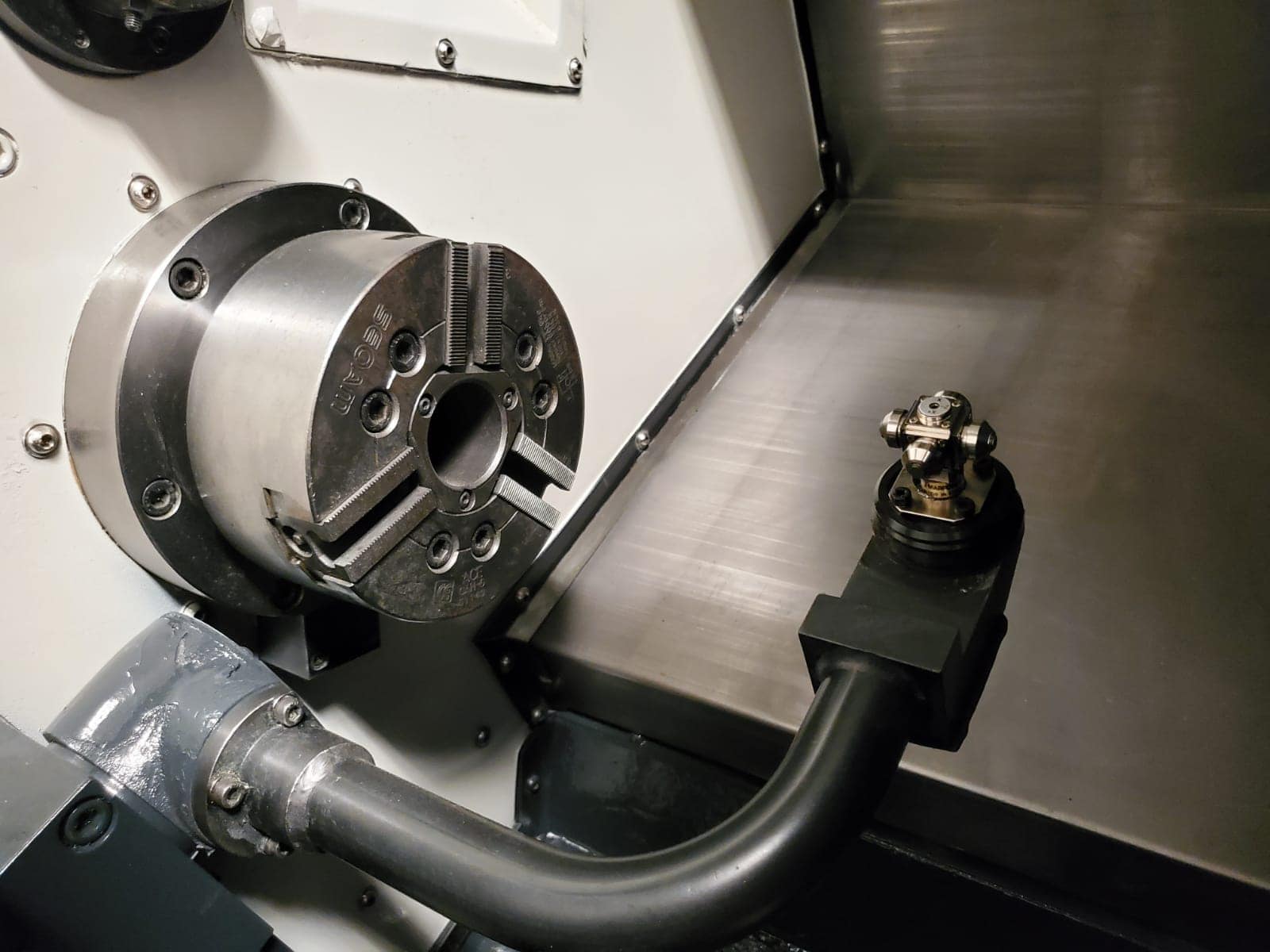

6.5″ 3 Jaw Hydraulic Chuck
Tool Presetter
Hydraulic Tailstock and Quill
PCMCIA Card Interface
USB Drive

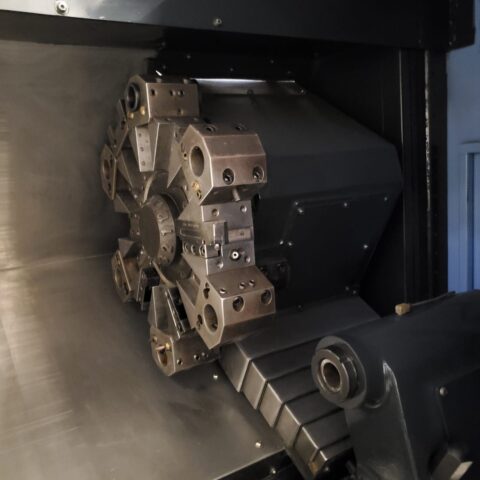

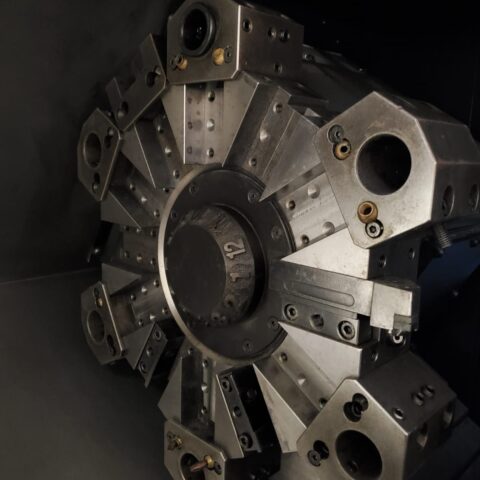

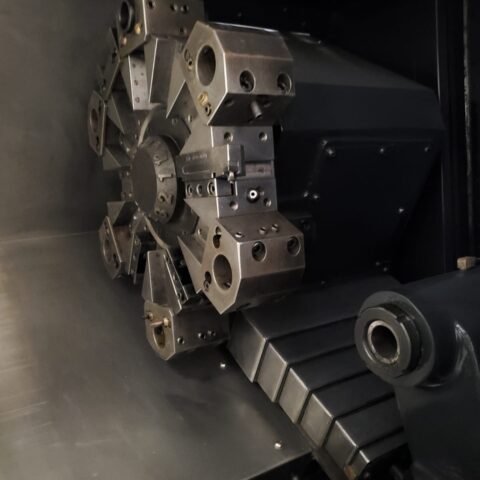

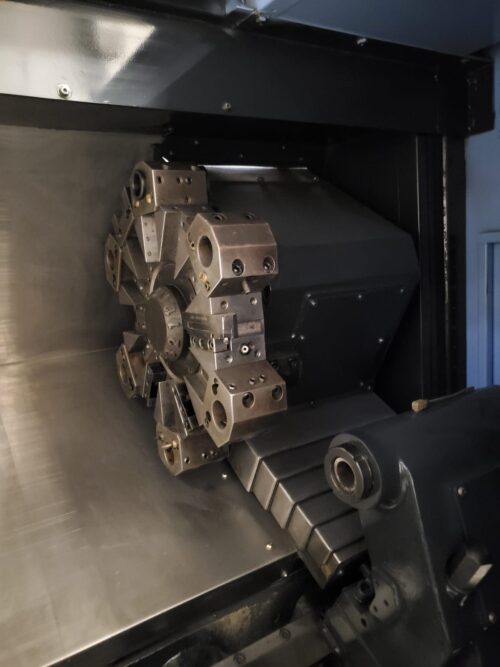

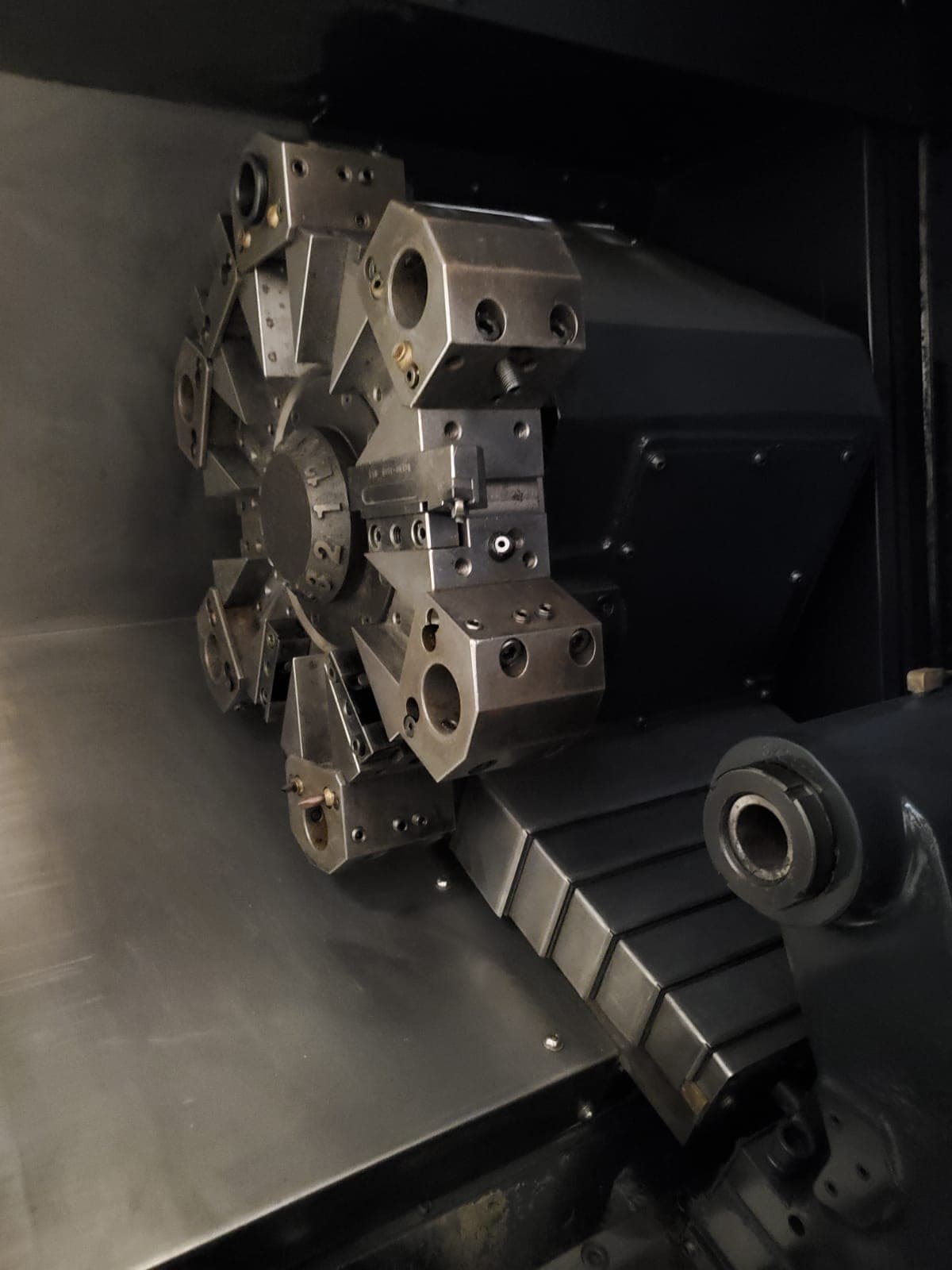

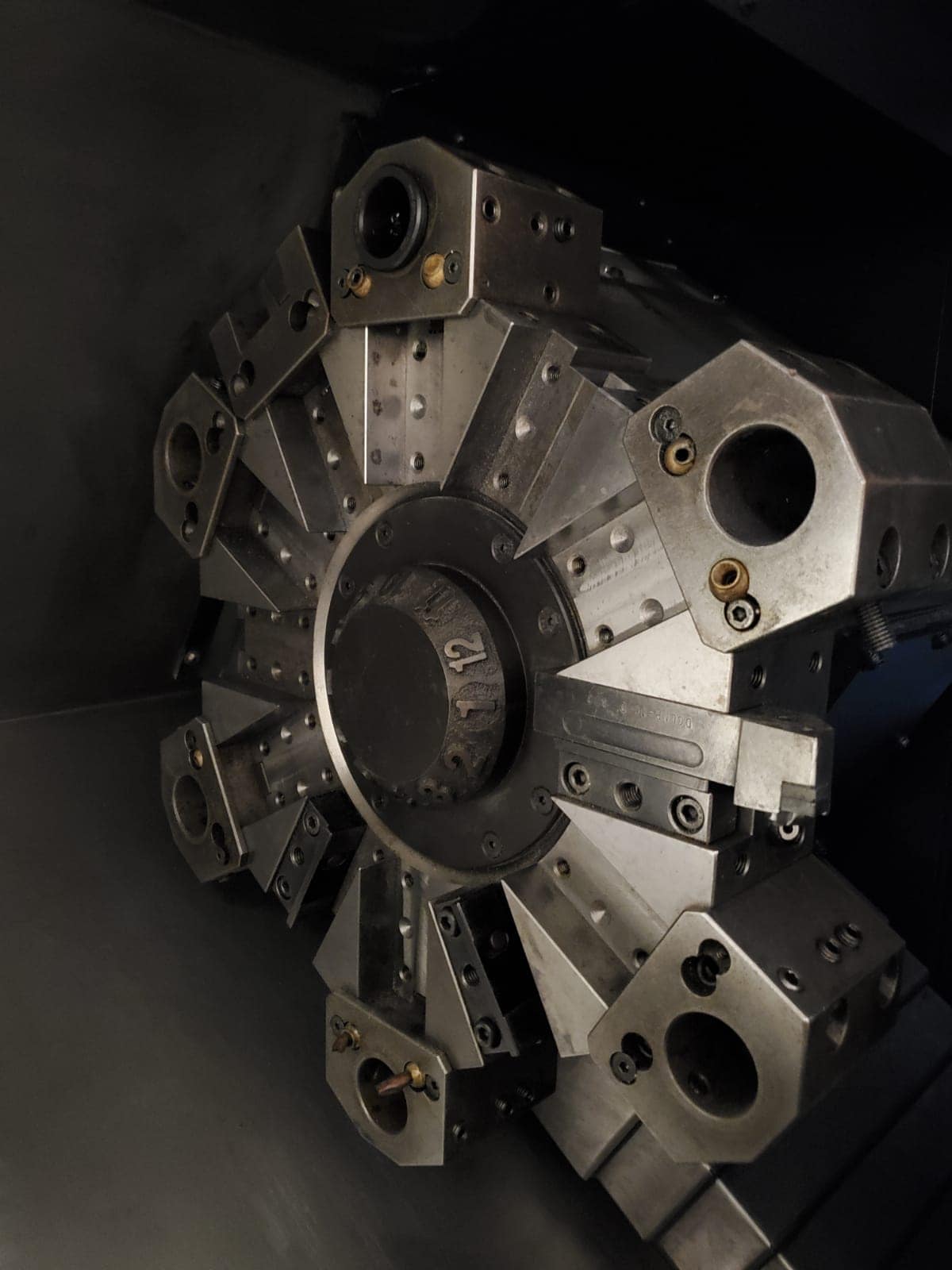

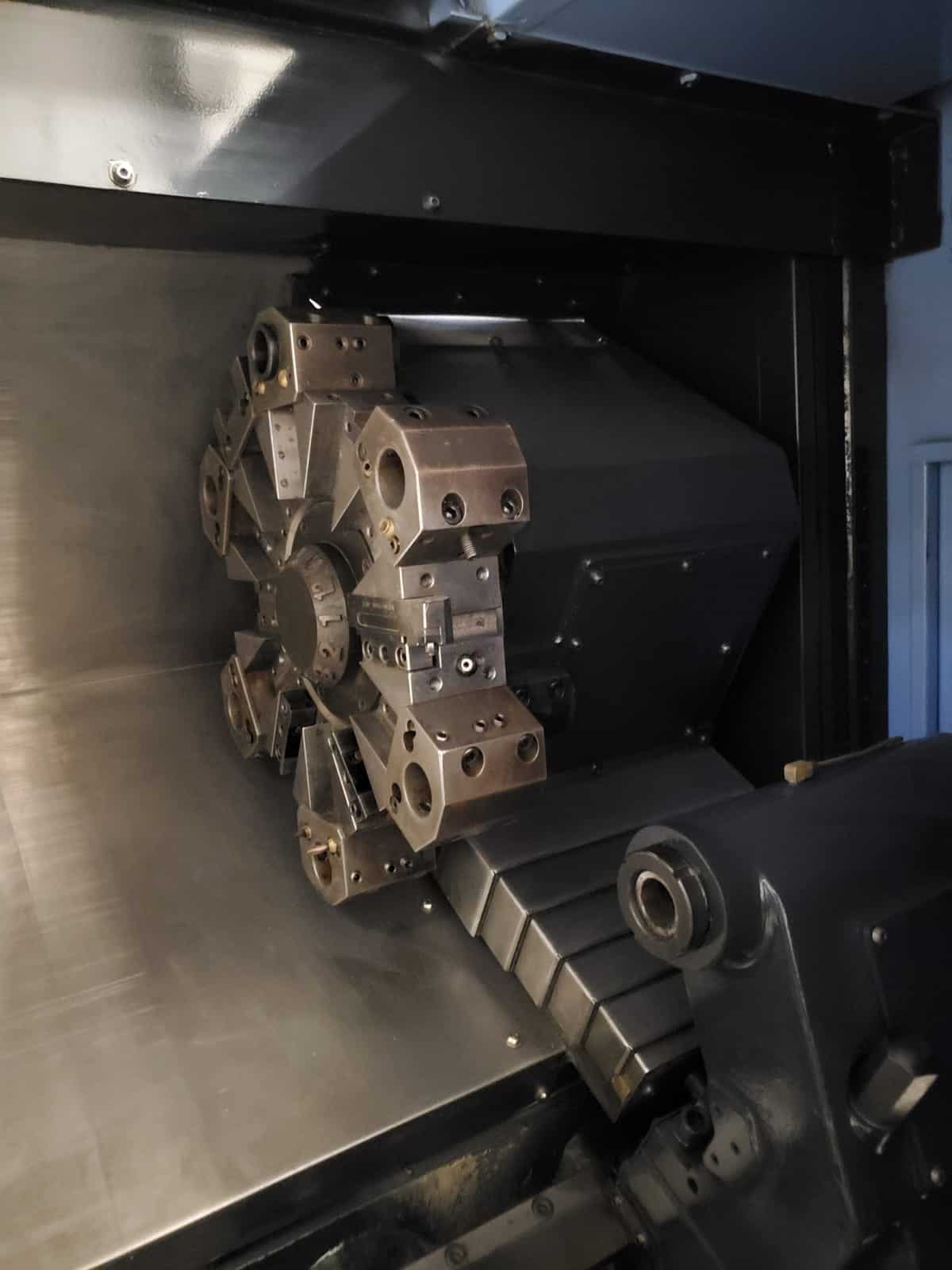

12 Station Automatic Turret
Foot Switch
Oil Skimmer
Coolant System
Barfeed Interface



Capacity:
Max Turning Diameter: 12.6″
Max Turning Length: 12.7″
Max Bar Capacity: 1.8″
Swing Over Bed: 20.1″
Swing Over saddle: 11.4″
Distance Between Centers: 20.7”



Travel:
X Axis Travel: 6.9″
Z Axis Travel: 13.5″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM



Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.1″
Spindle Speed: 6000 RPM
Spindle Motor: 15 hp



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Size: 1.0″



Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 21.7″Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″



General:
Power: 24 kva, 220v / 3-Phase
Overall Dimensions: 90″ x 63″ x 65″ High
Weight: 6500 lbs
