All specifications are approximations and are subject to verification.
| Make | Doosan |
| Model No. | Lynx 300 |
| Year | 2011 |
| Condition | Used-Good |
| Cutting Time: | 6818 Hours |

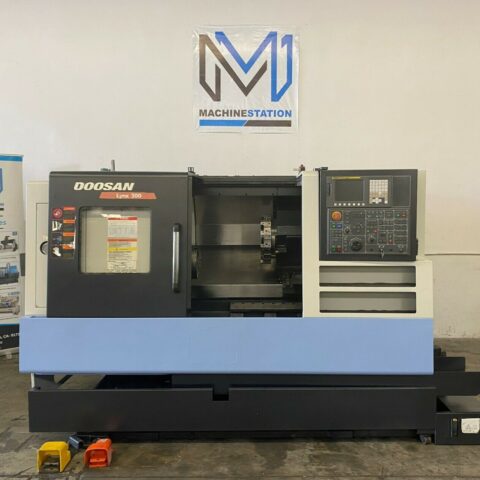

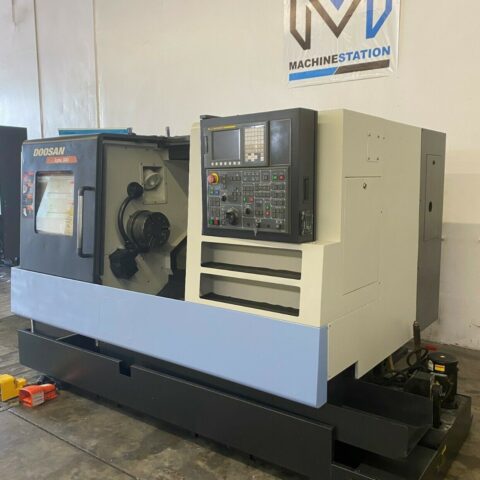

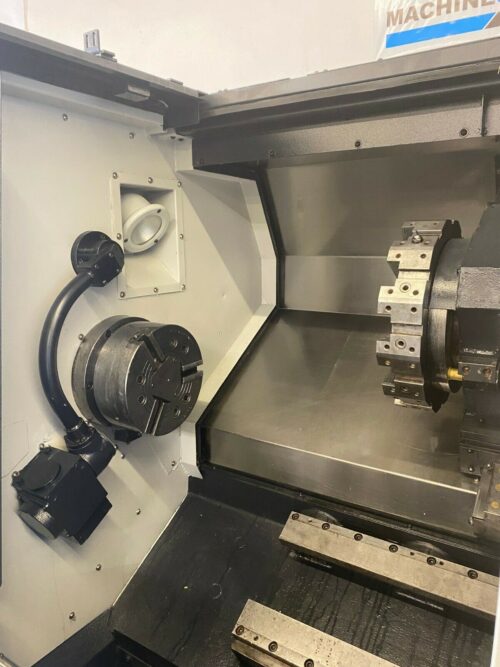

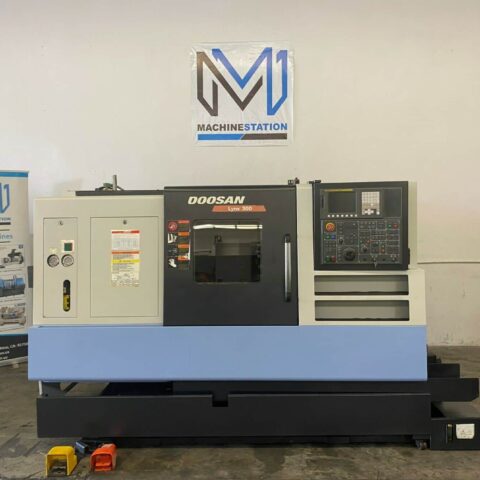

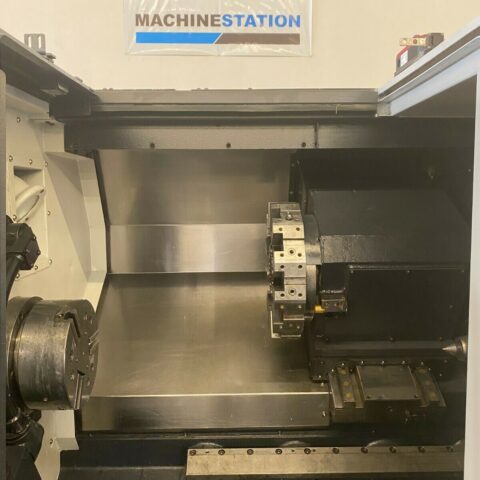

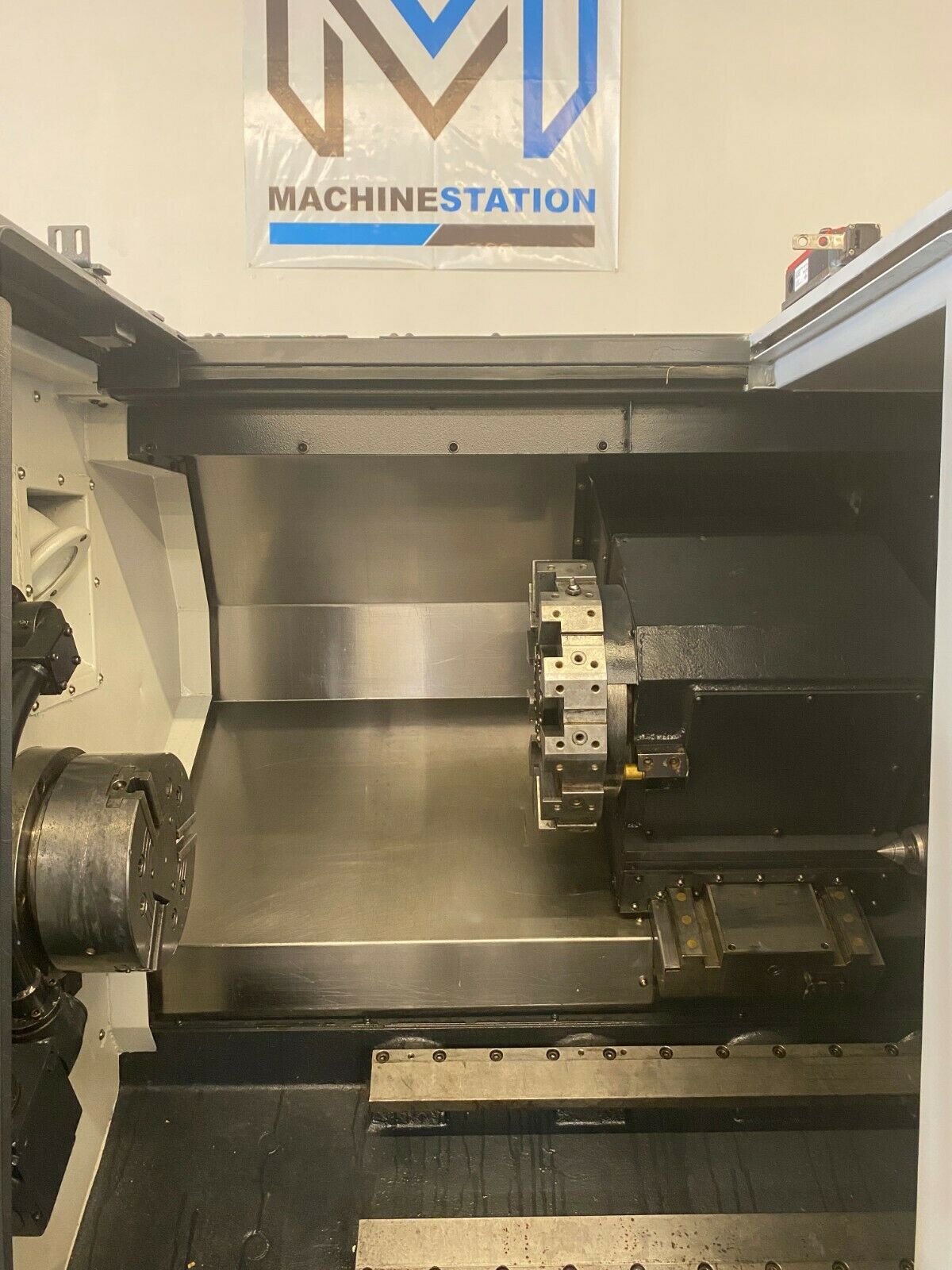

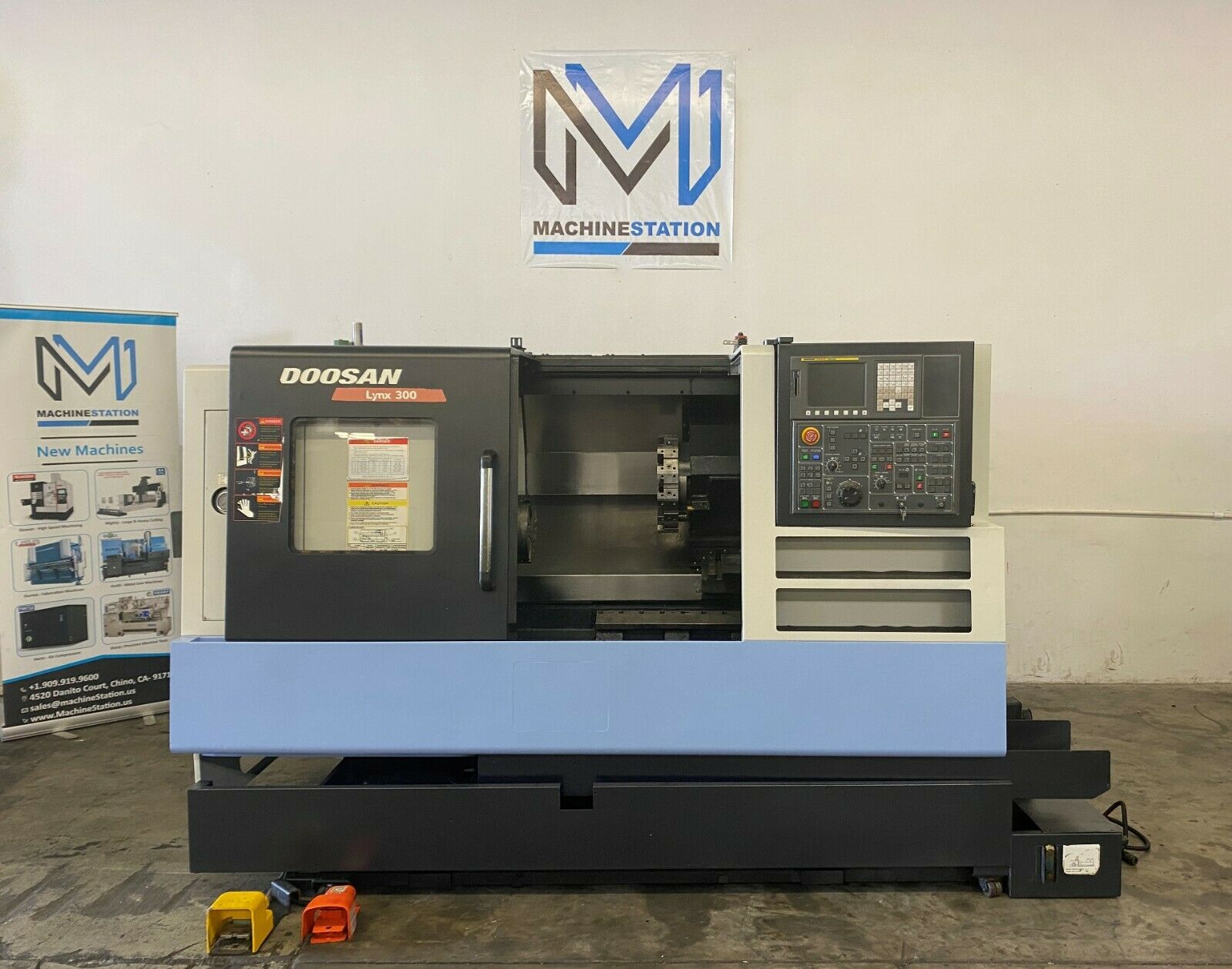

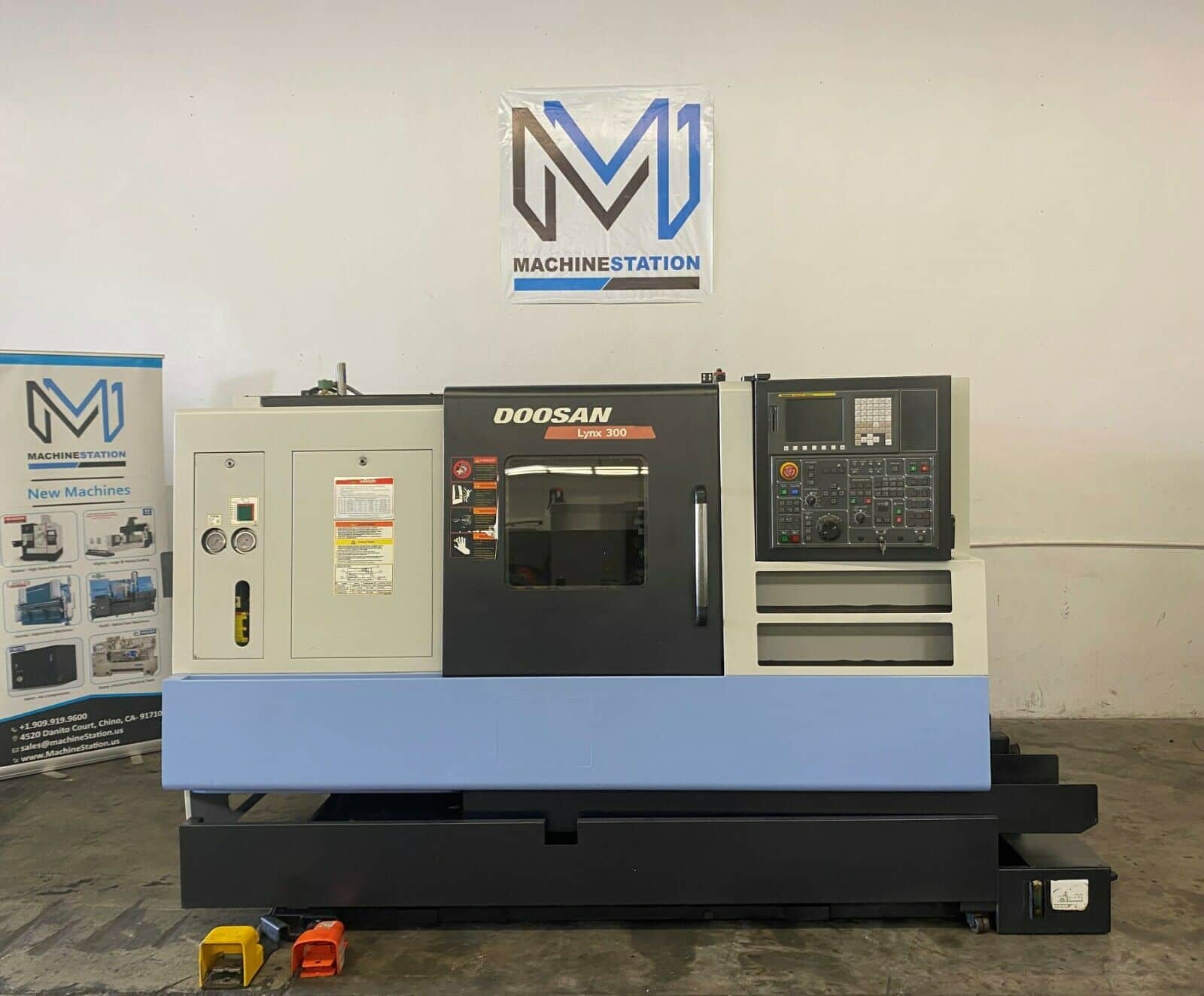

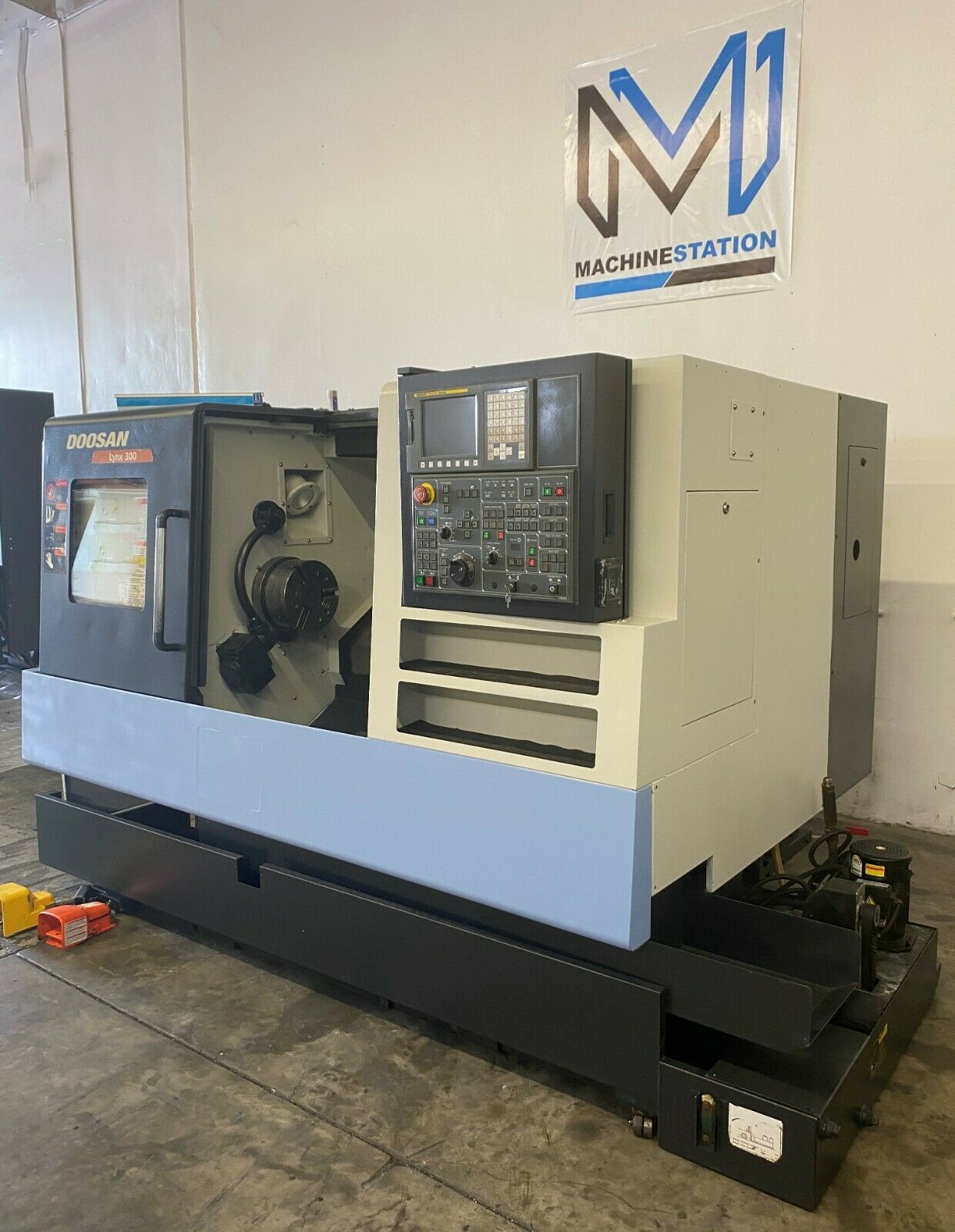

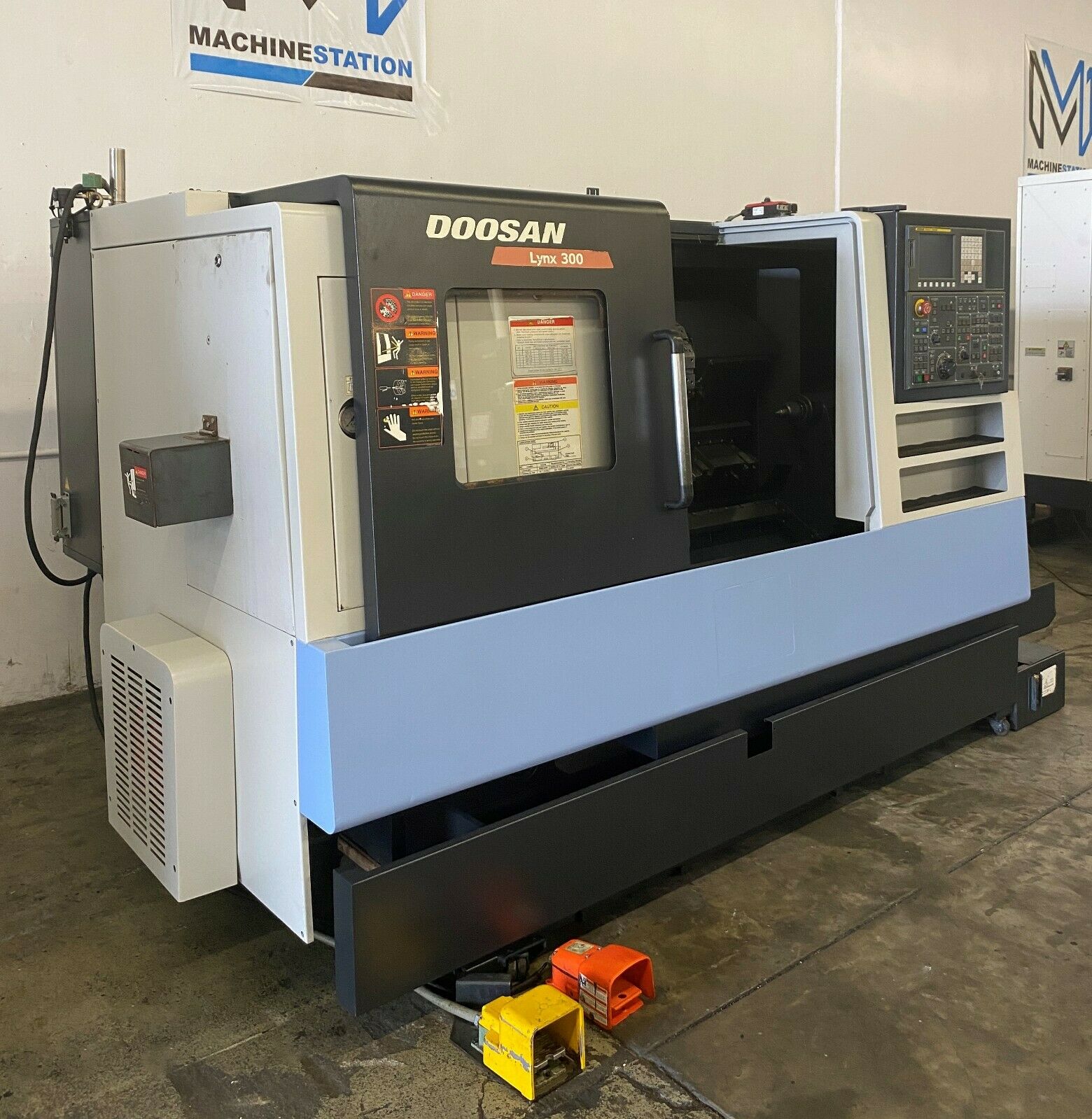

| DOOSAN LYNX 300 CNC Turning Centre Lathe Equipped With: |
|---|

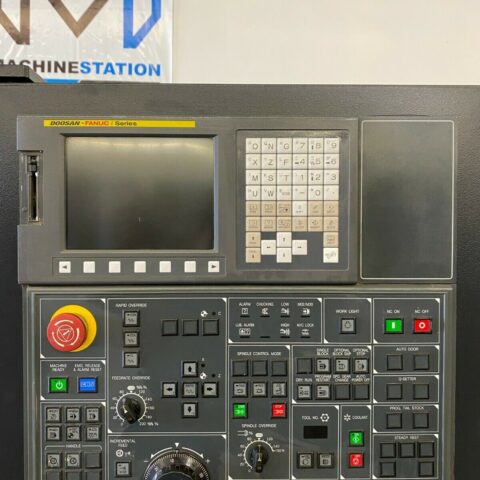

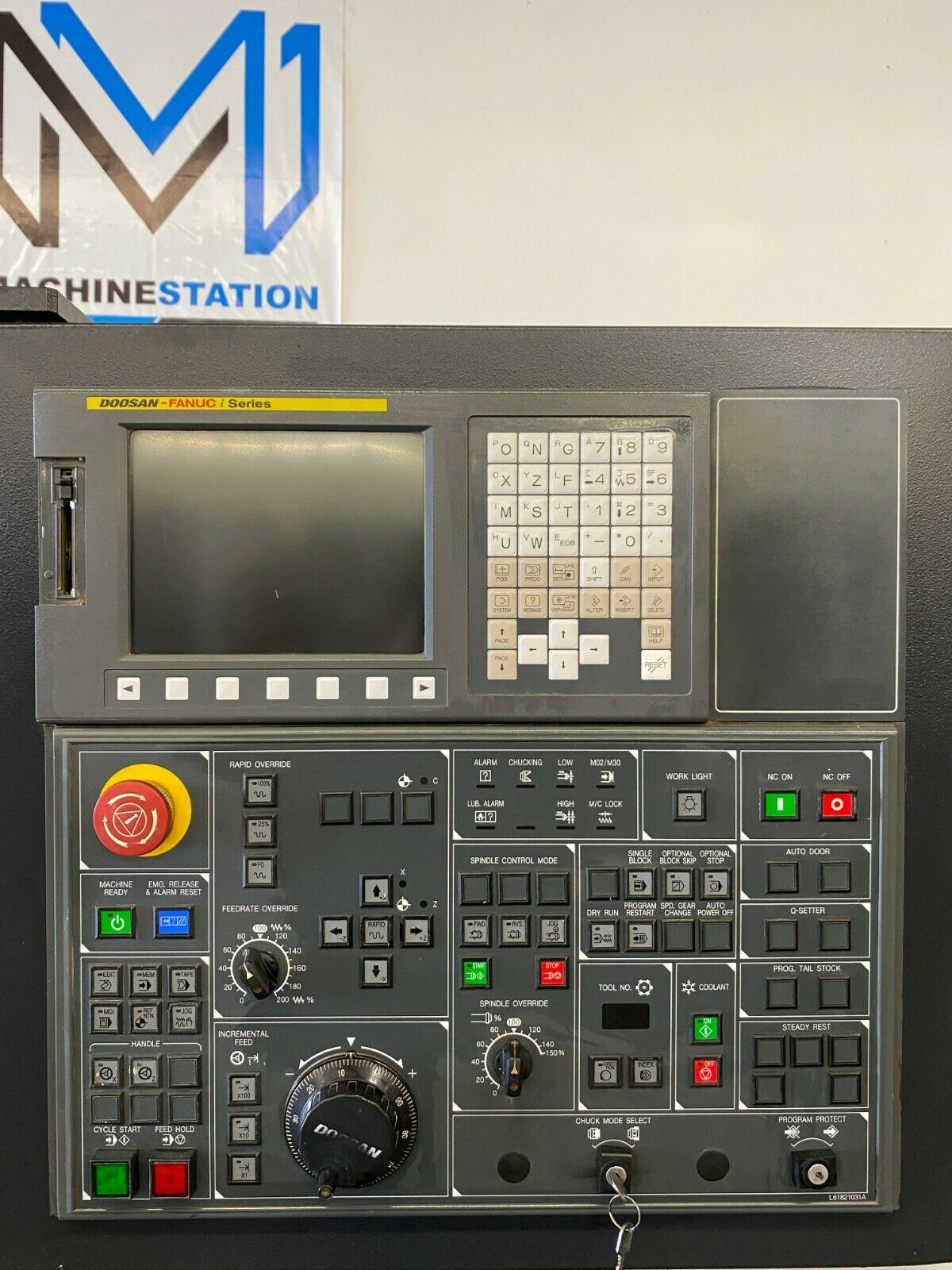

| Fanuc i series CNC Control |

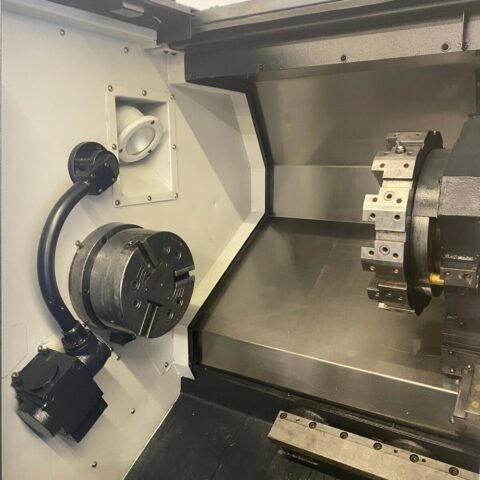

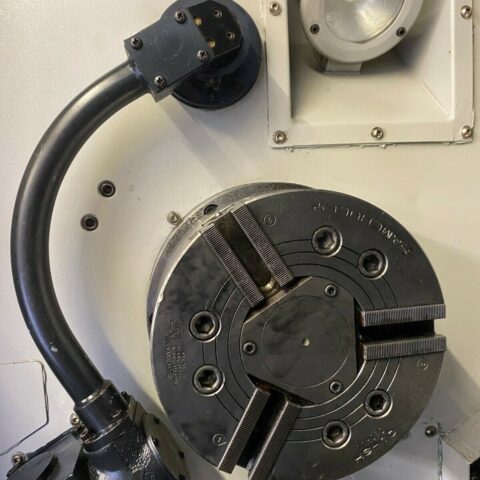

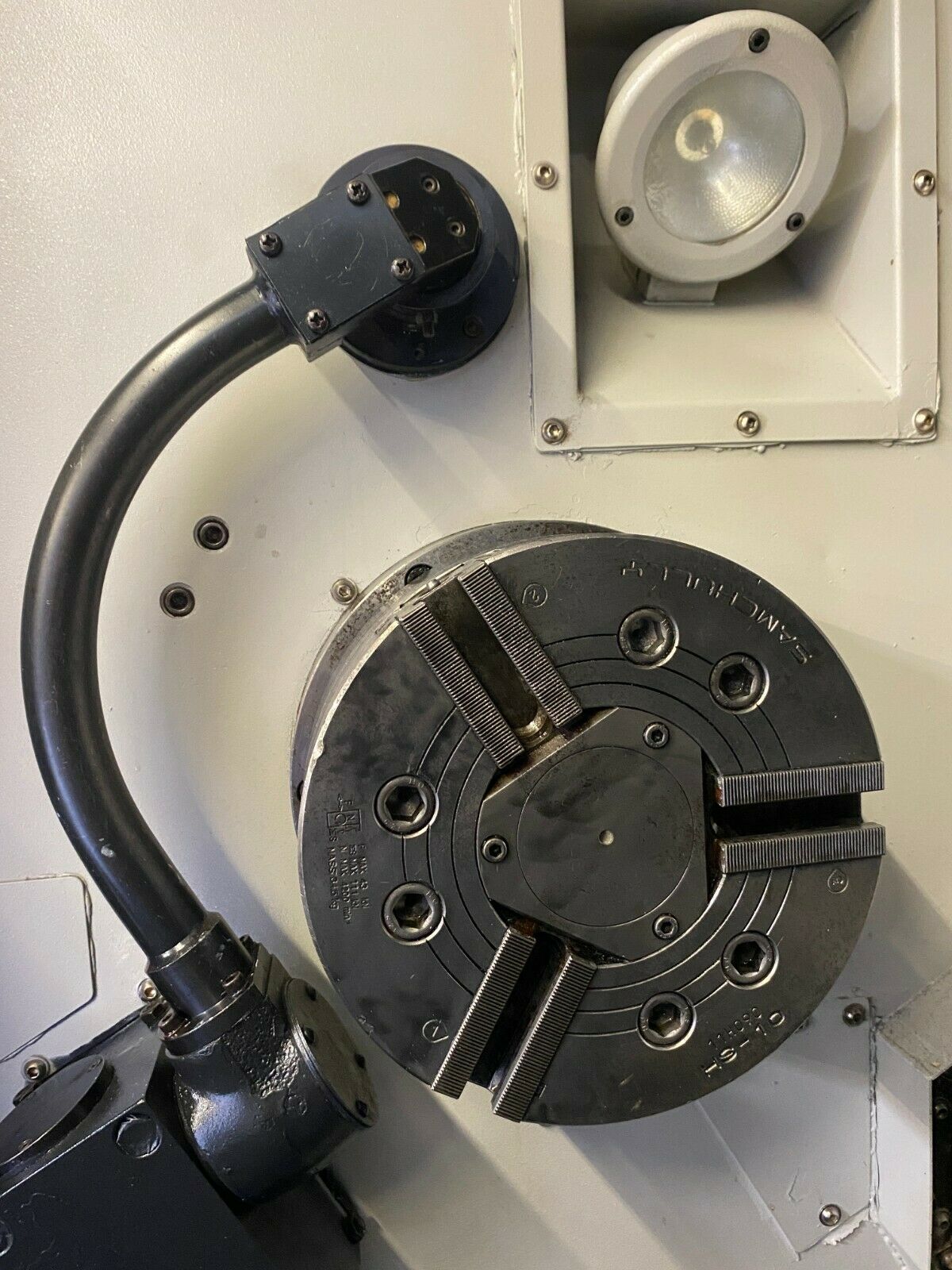

| 10″ 3 Jaw Hydraulic Chuck |
| A2-8 Spindle Nose |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |

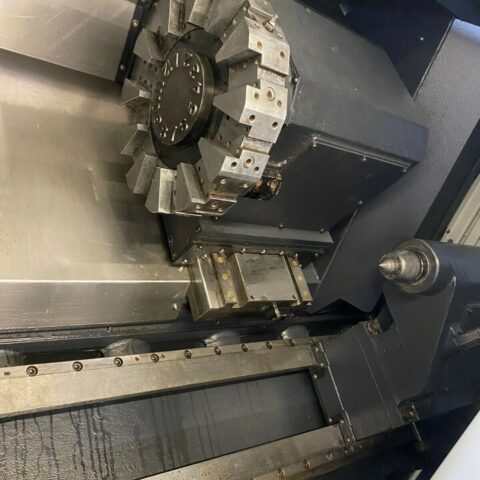

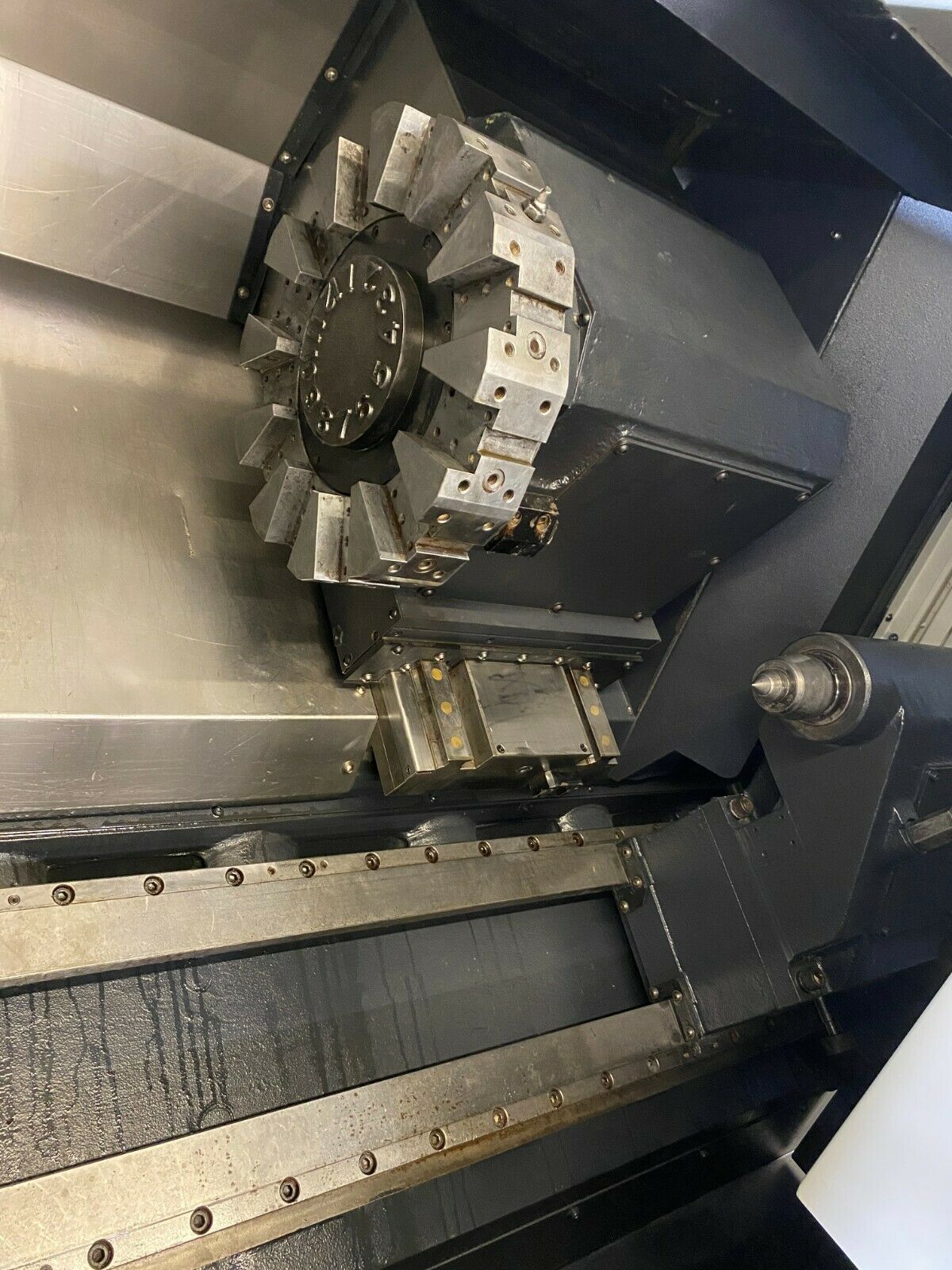

| 12 Station Automatic Turret |
| Foot Switch |
| Oil Skimmer |

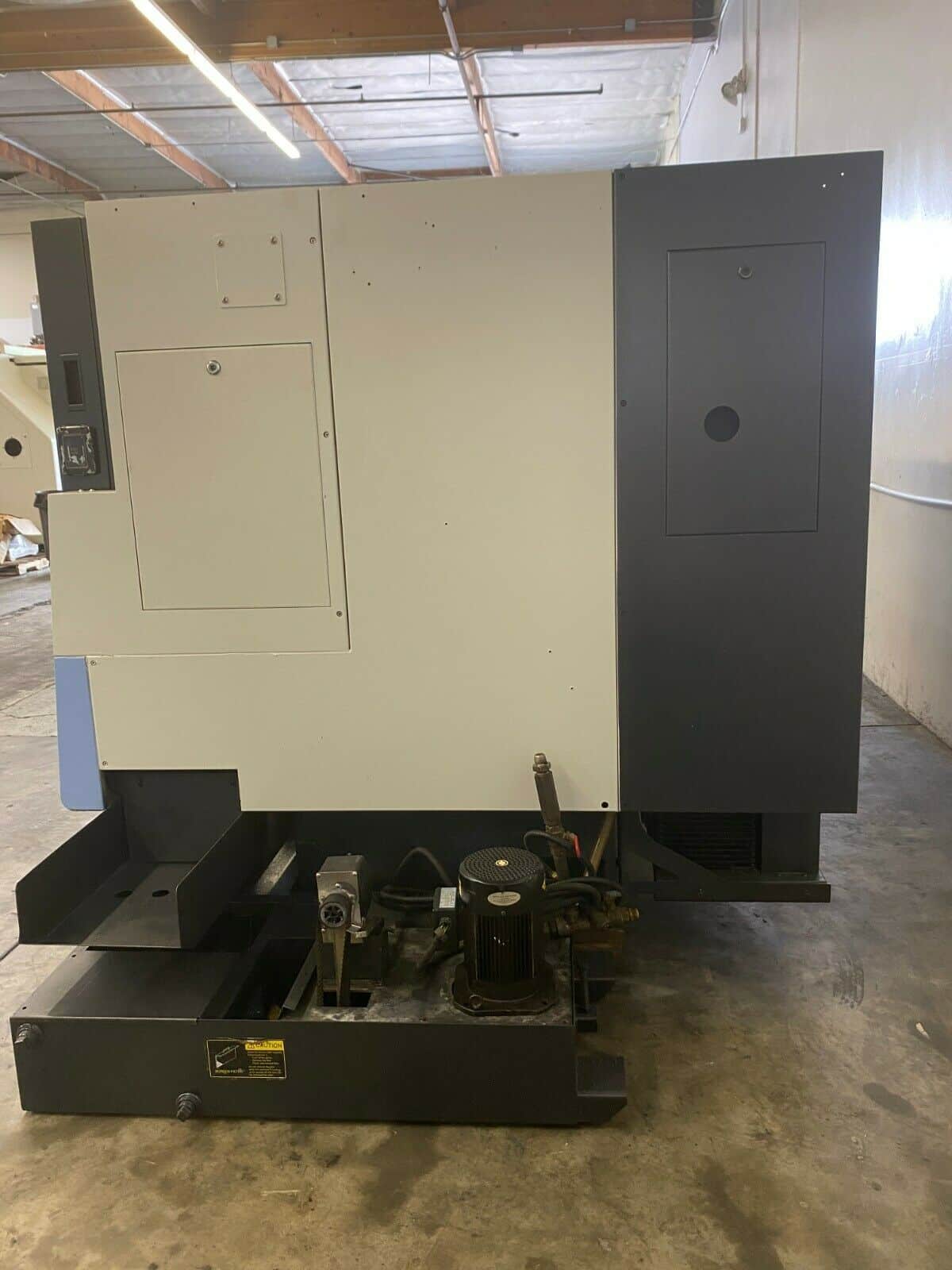

| Coolant System |
| Barfeed Interface |
| DOOSAN LYNX 300 Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 17.7″ |
| Max Turning Length: 30.1″ |
| Max Bar Capacity: 3.0″ |
| Swing Over Bed: 25.6″ |
| Distance Between Centers: 32.0” |
| Travel: |
|---|
| X Axis Travel: 10.0″ |
| Z Axis Travel: 31.1″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.4″ |
| Spindle Speed: 35 – 3500 RPM |
| Spindle Motor: 25hp |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 1.0″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 30.5″ |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Travel: 4.7″ |
| General: |
|---|

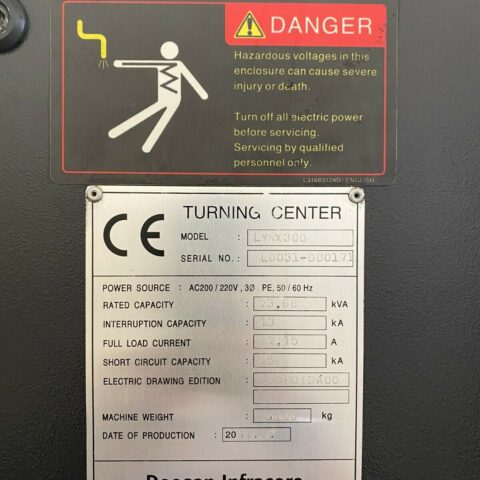

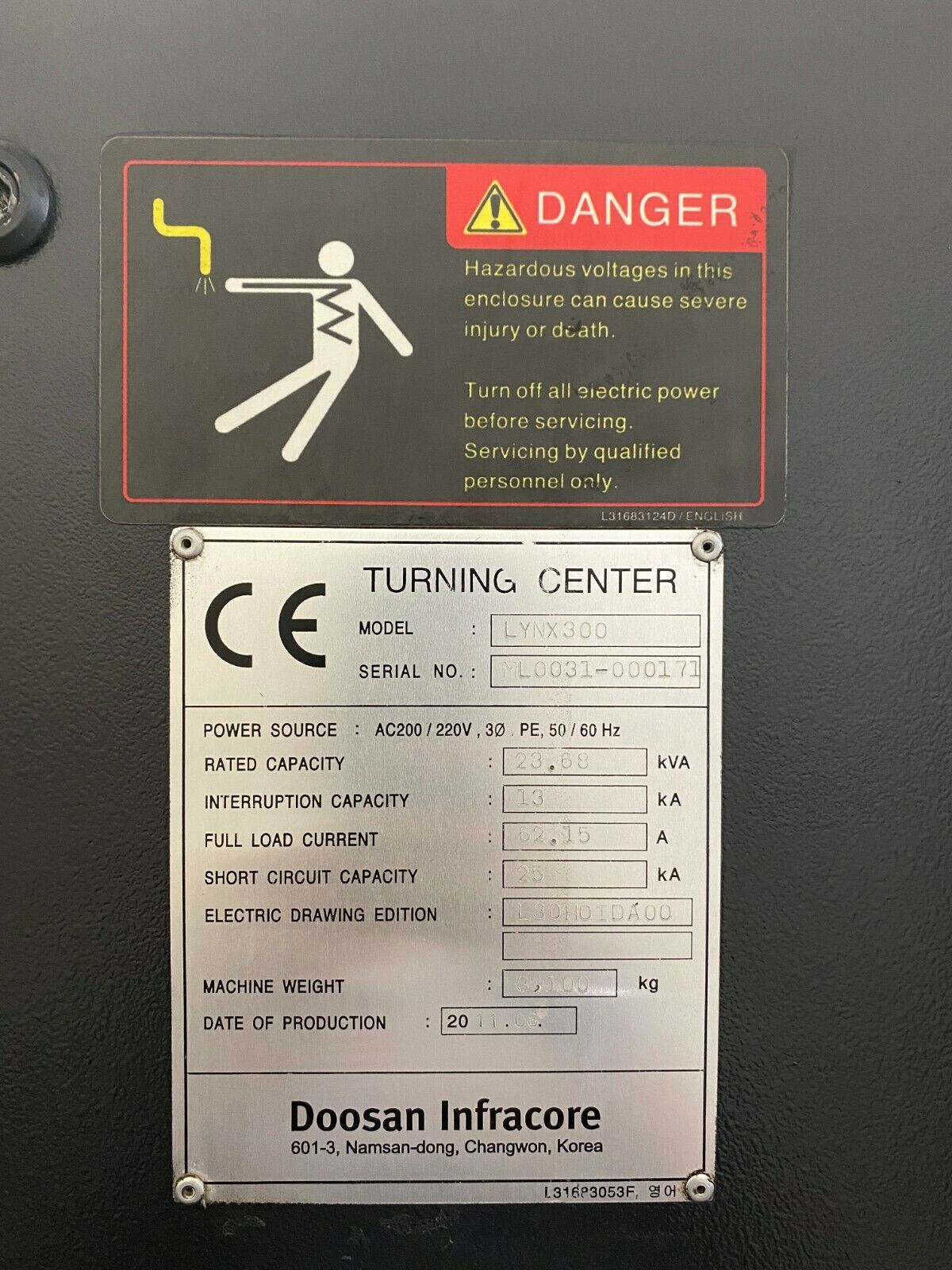

| Power: 35 kva, 220v / 3-Phase |
| Overall Dimensions: 120″ x 77″ x 70″ High |
| Weight: 8800 lbs |
“No Charges for loading at list Price”Comes as shown in pictures….
