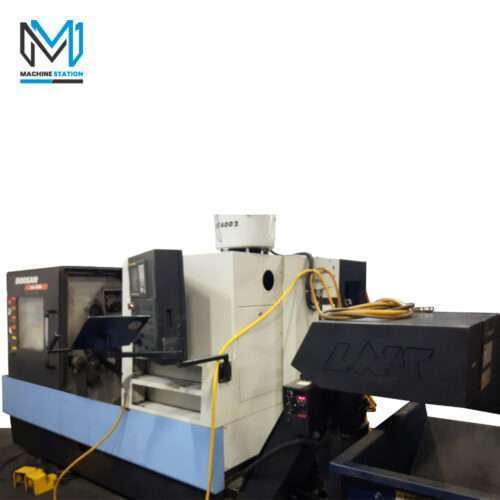

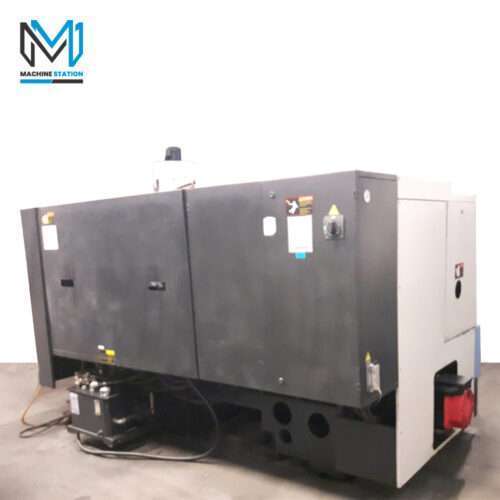

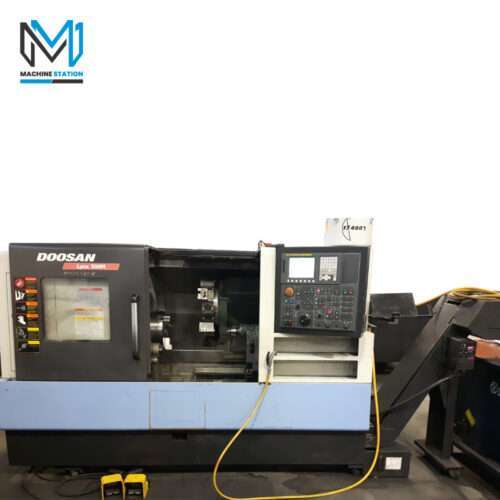

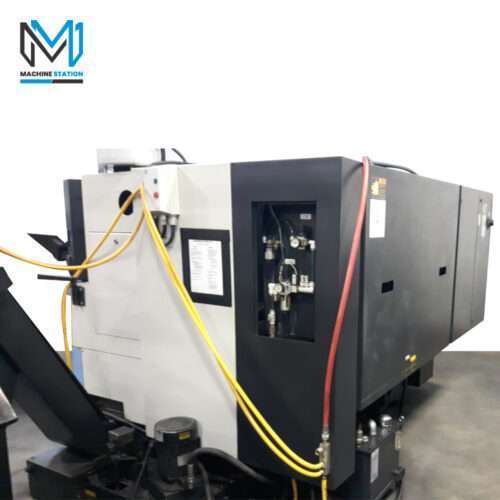

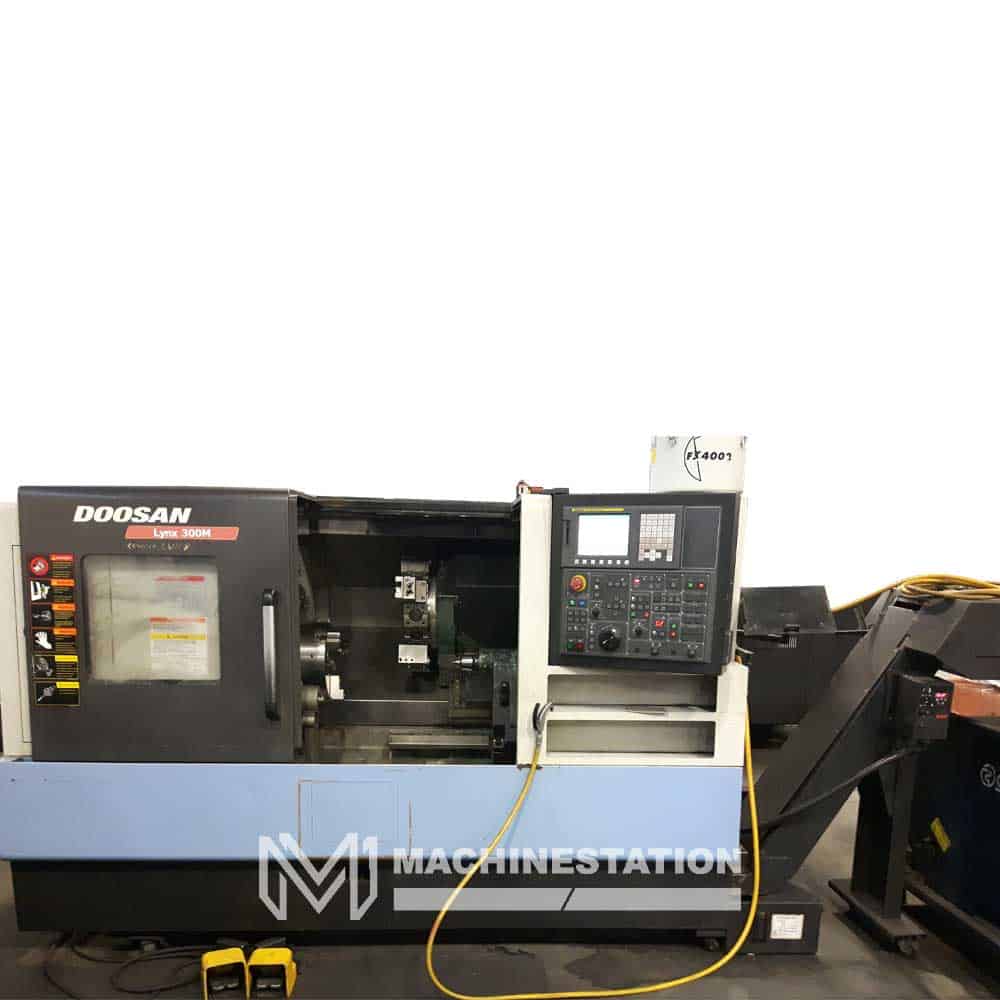

Doosan Lynx 300M CNC Turn Mill Center

SKU 7036
Make Doosan
Model Lynx 300M
Out of stock
SKU: 7036
Make: Doosan
Model: Lynx 300M
SKU: 7036

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Doosan
Model: Lynx 300M
Year: 2012

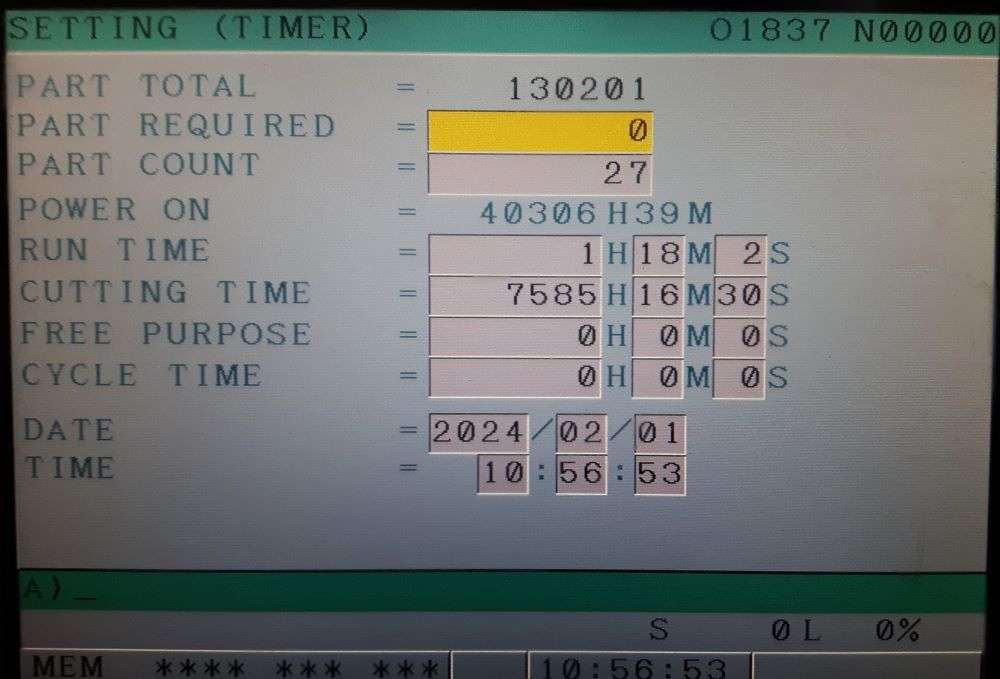

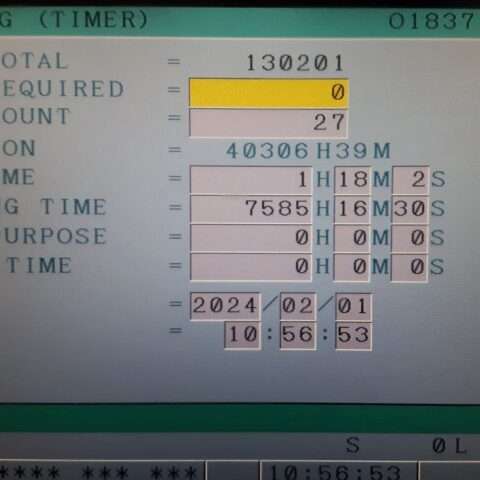

Cutting Time: 7585 Hours
Equipped With:

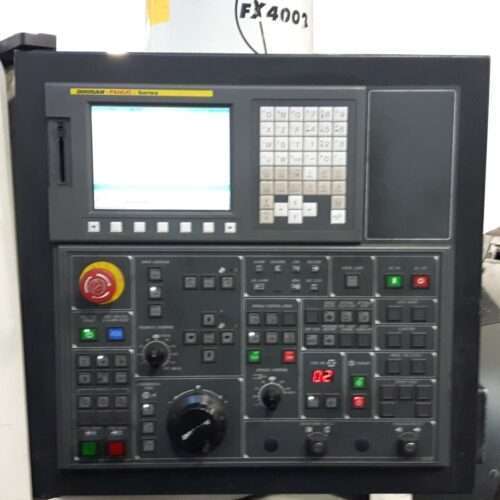

Doosan-Fanuc i Series CNC Control
3.2″ Big Bore, Long Bed Lathe

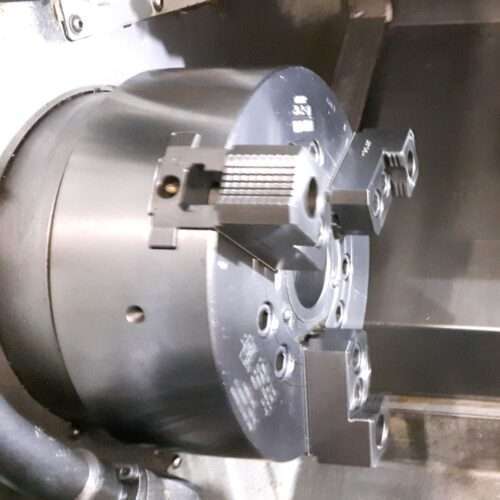

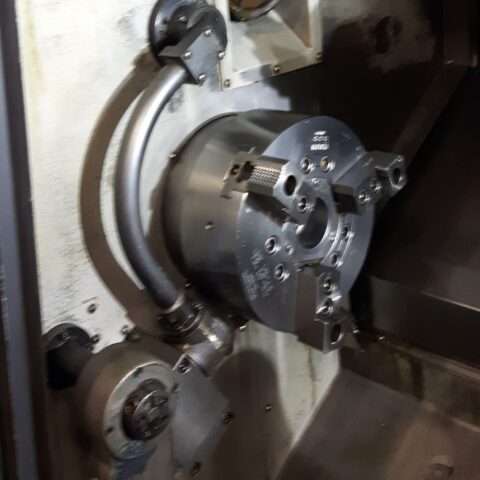

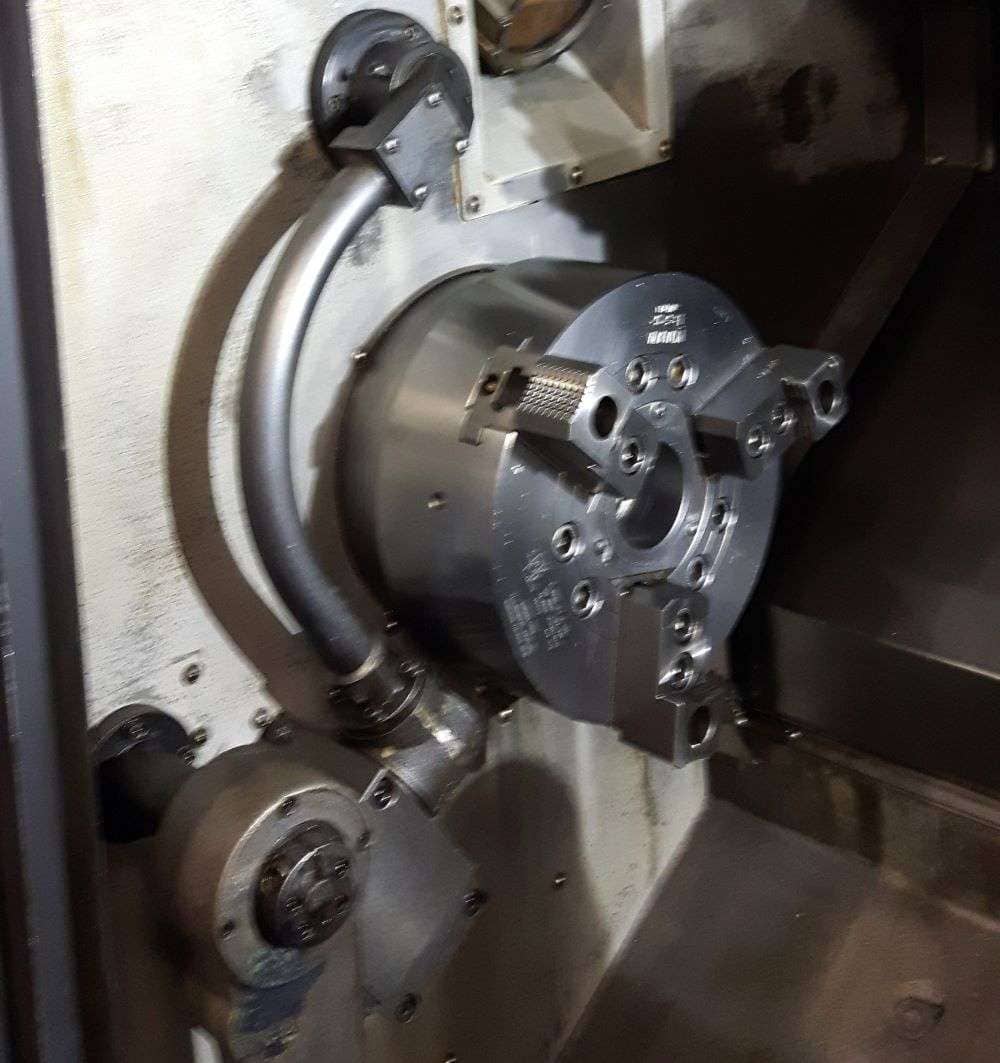

10″ 3-Jaw Hydraulic Chuck
C Axis Capability
12 Station Live Tool Turret
Hydraulic Tailstock Quill
Tool Presetter
USB Drive
PCMCIA Card Slot
Coolant System
Chip Conveyor
Foot Switches
Capacity:
Max Turning Diameter : 14.6″
Max Swing Over Bed : 25.6″
Max Swing Over Saddle : 18.1″
Max Turning Length: 28.0″
Max Bar Capacity : 3.0″
Travels:
X Axis Travel : 10.0″
Z1 Axis Travel : 31.1″
C Axis Travel : 0.001 Degree
Rapid Traverse X Axis: 944 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.2″
Spindle Speed: 3500 RPM
Spindle Motor: 20 HP

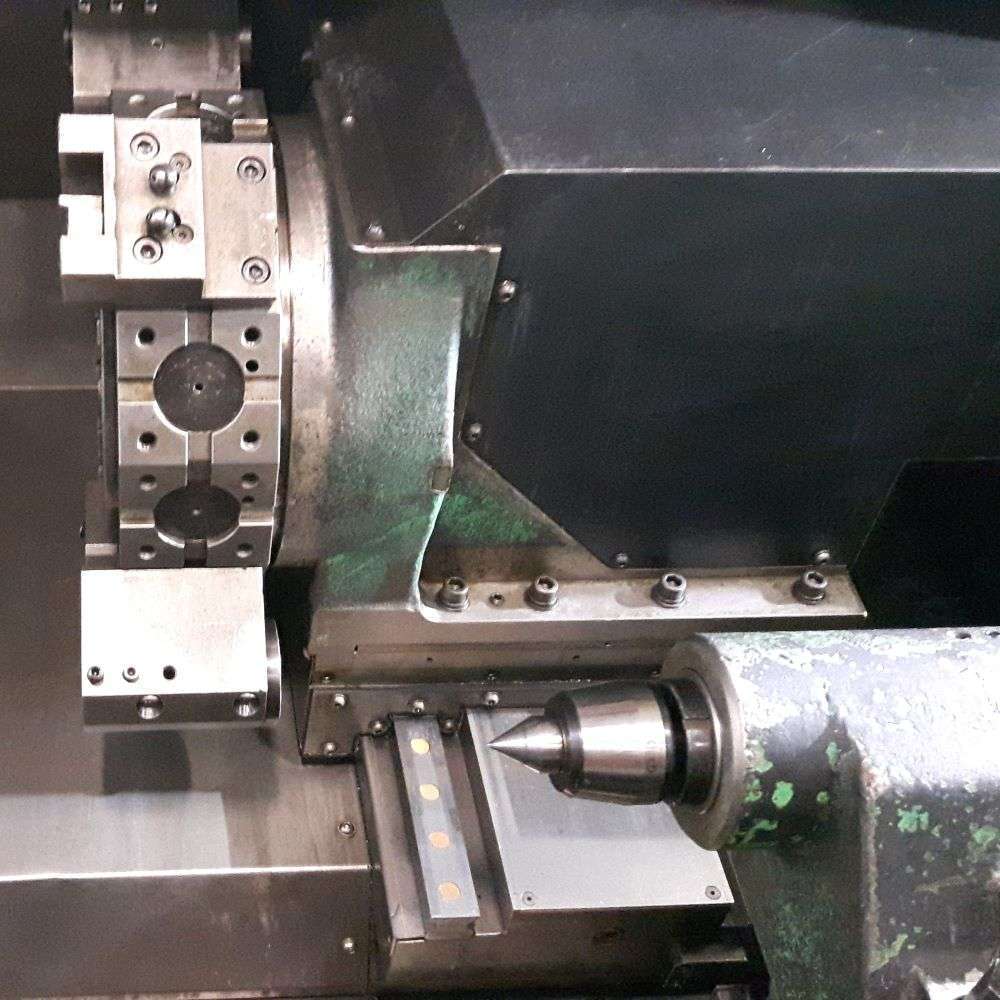

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP

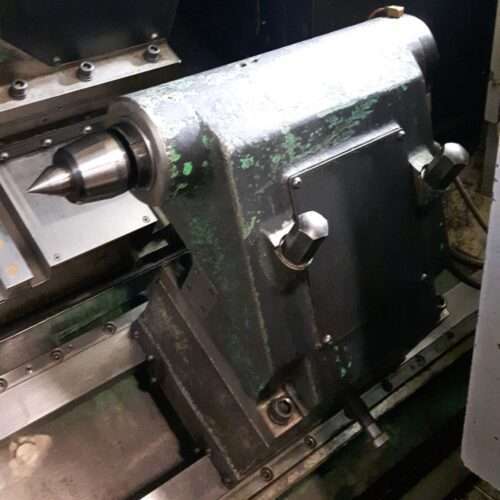

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.1″
Tailstock Quill Travel: 4.7″
General:

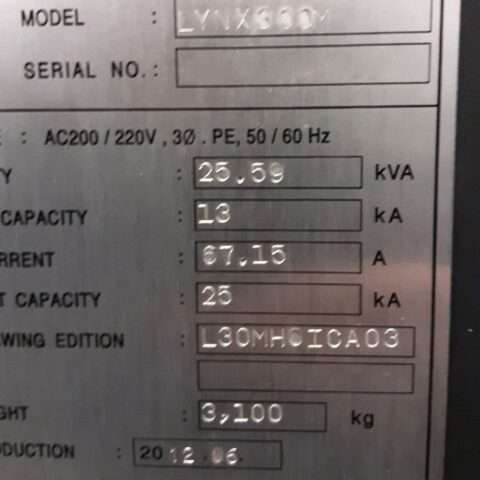

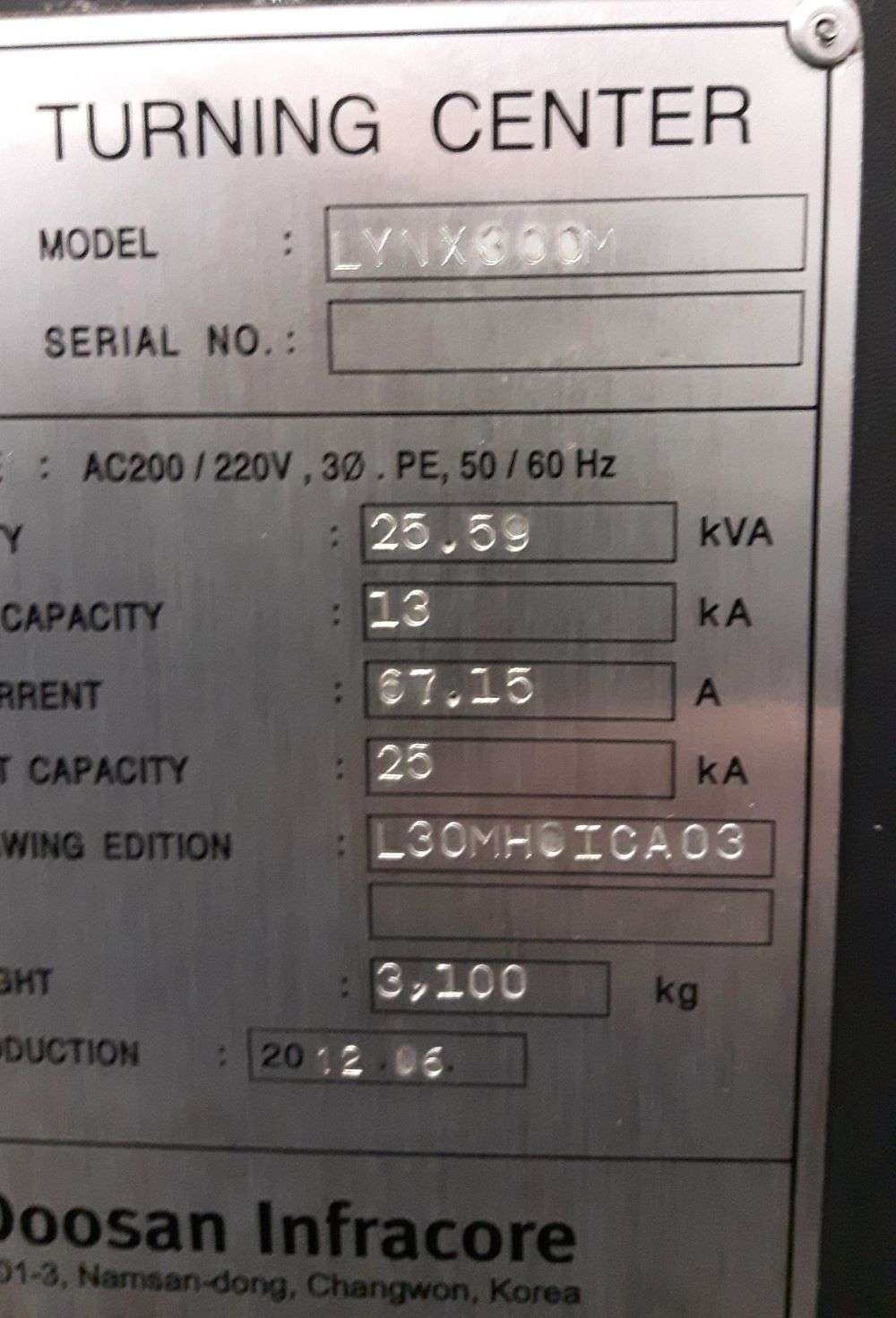

Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 25.59 kva
Machine Dimensions: 117.8″ x 70.3″ x 65.5″ High
Machine Weight: 6,835 lbs Approx.
Equipped With:
Doosan-Fanuc i Series CNC Control
81 mm Big Bore, Long Bed Lathe
254 mm 3-Jaw Hydraulic Chuck
C Axis Capability
12 Station Live Tool Turret
Hydraulic Tailstock Quill
Tool Presetter
USB Drive
PCMCIA Card Slot
Coolant System
Chip Conveyor
Foot Switches
Capacity:
Max Turning Diameter : 371 mm
Max Swing Over Bed : 650 mm
Max Swing Over Saddle : 460 mm
Max Turning Length: 711 mm
Max Bar Capacity : 76 mm
Travels:
X Axis Travel : 254 mm
Z1 Axis Travel : 790 mm
C Axis Travel : 0.001 Degree
Rapid Traverse X Axis: 944 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 81 mm
Spindle Speed: 3500 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 79 mm
Tailstock Quill Travel: 119 mm
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 25.59 kva
Machine Dimensions: 2,992 mm x 1,786 mm x 1,664 mm High
Machine Weight: 6,835 lbs Approx.
