Sold

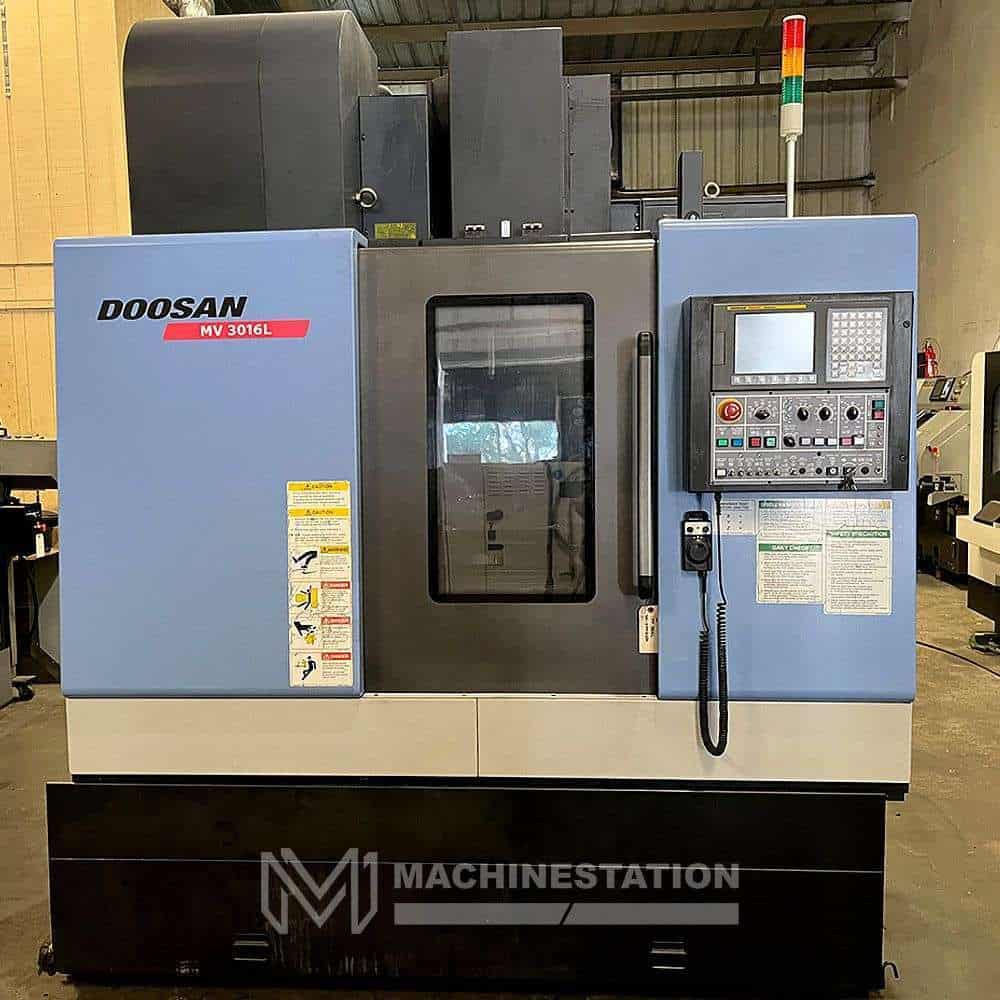

Doosan MV-3016L CNC Vertical Machining Center
Out of stock
| Location: |
Lake Elsinore, CA |
| SKU: |
105403 |
| Make/Model: |
Doosan MV-3016L |
| Condition: |
Used-Good |
| Video: |
|
| Make: |
Kitamura Mycenter |
| Model: |
3XD |
| Year: |
2015/2016 |
| Condition: |
Used-Good |
| Cutting Hours: |
5096 Hours Only |
| Equipped With: |
| Fanuc Oi-MD Series CNC Control |
| 12,000 RPM High Torque Spindle |
| 35 HP High Torque Spindle Motor |
| 24 Automatic High Speed Tool Changer |
| 1889 IPM Fast Rapid Traverse Rate |
| Through Spindle Coolant |
| High Speed Machining |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Telescopic Way Covers |
| Flood Coolant System |
| Oil Chiller |
| Chip Conveyor |
| Travel: |
| X Axis Travel : 8.1″ |
| Y Axis Travel : 4.1″ (+/-2.1″) |
| Z1 Axis Travel : 22″ |
| B Axis Travel : 20″ (Sub Spindle) |
| C Axis: 360° (0.001°) Both Spindle |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Cutting Feed Rates: 787 IPM |
| Spindle Nose to Table (Min.- Max.): 3.93″ – 24.01″ |
| Spindle: |
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 35 HP |
| Automatic Tool Changer: |
| Capacity: 24 Station Side Mounted |
| Max Tool Dia: 5.90″ |
| Max Tool Length: 9.45″ |
| General: |
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 25 kva / 3-Phase |
| Overall Dimensions: 95″ x 88″ x ?” High |
| Weight: lbs |
