*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DOOSAN |
| Model: | MV-4020 |
| Year: | 2008 |
| Condition: | Used – Good |
| Features: |
|---|

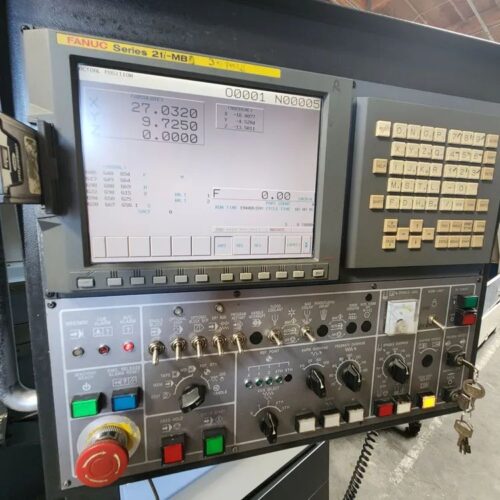

| Fanuc 21i-MB CNC Control |
| 8,000 RPM High Speed Spindle |
| 30 Station Side Mounted Automatic tool changer |
| 40 Taper Spindle |
| Hand Wheel MPG Control |
| Rigid Tapping |
| PCMCIA Card Slot |

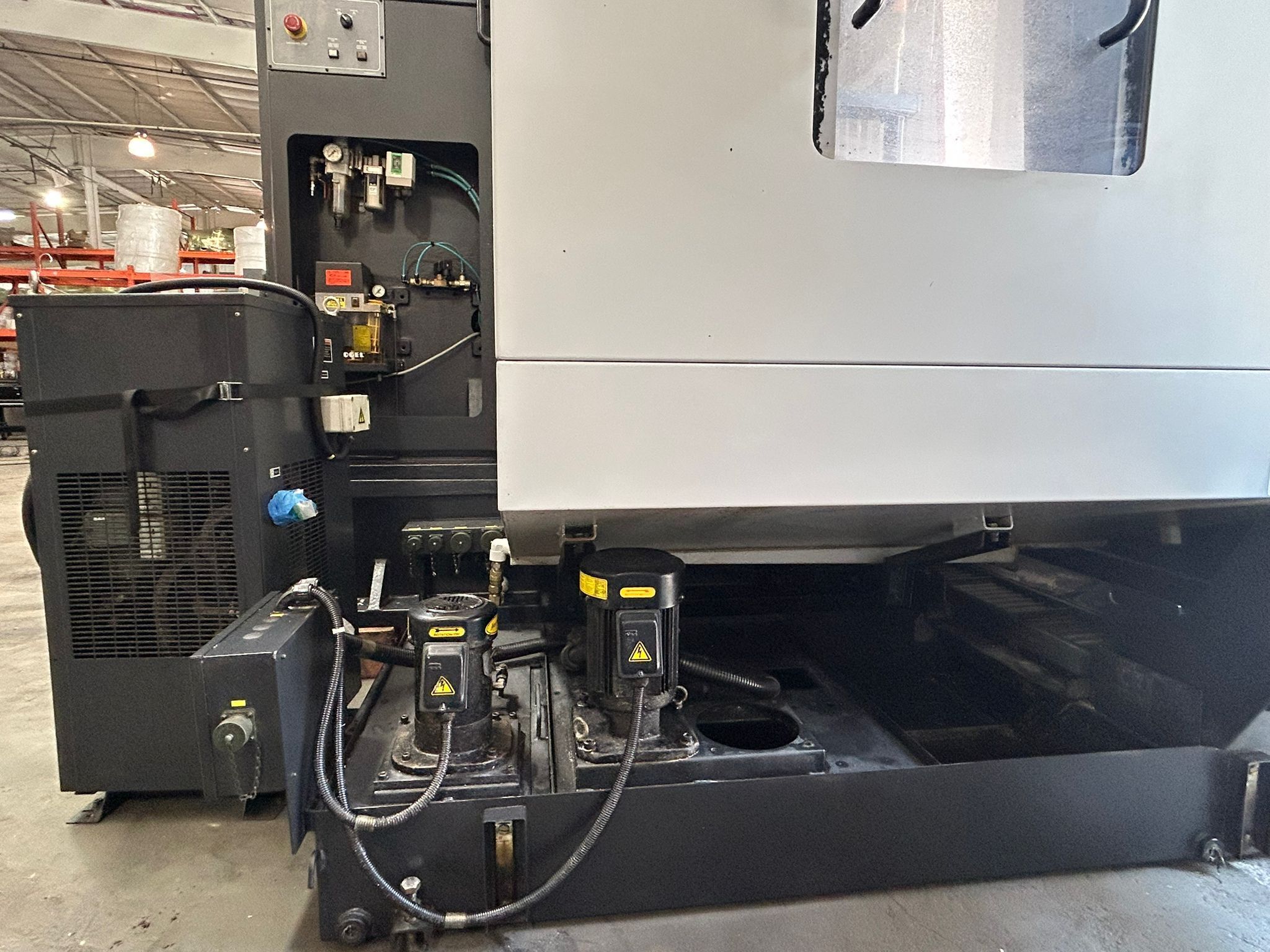

| Coolant System |
| Chip conveyor |
| Travels: |
|---|
| X-Axis: 40.2″ |
| Y-Axis: 20.1″ |
| Z-Axis: 24.6″ |
| Rapid Traverse Rates X, Y Axis : 1181 Inch Per Minute |
| Rapid Traverse Rates Z Axis : 945 Inch Per Minute |
| Cutting Feed Rates: 472 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.5″ |

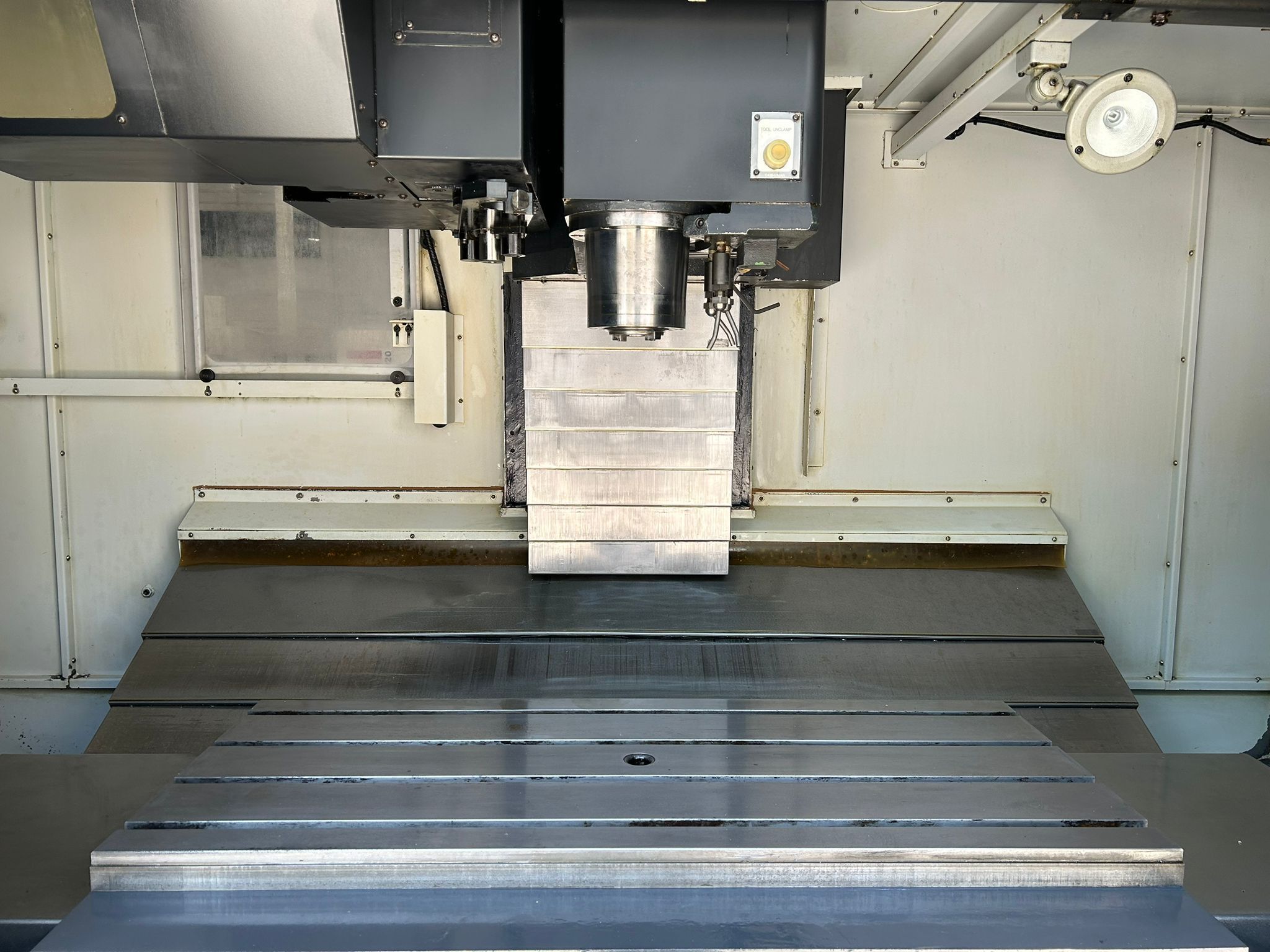

| Table: |
|---|
| Length: 47.2″ |
| Width: 19.7″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1760 Ibs |

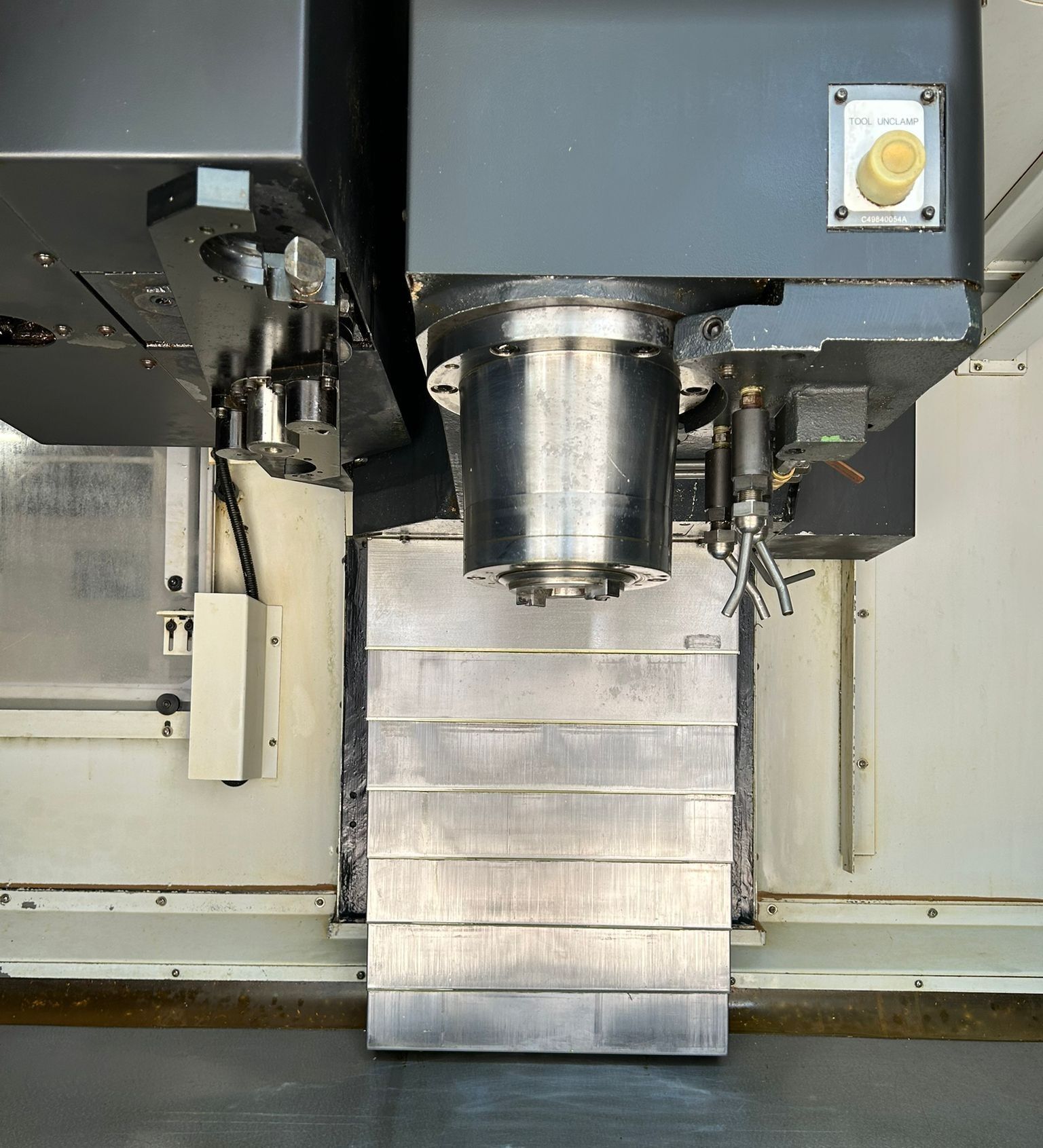

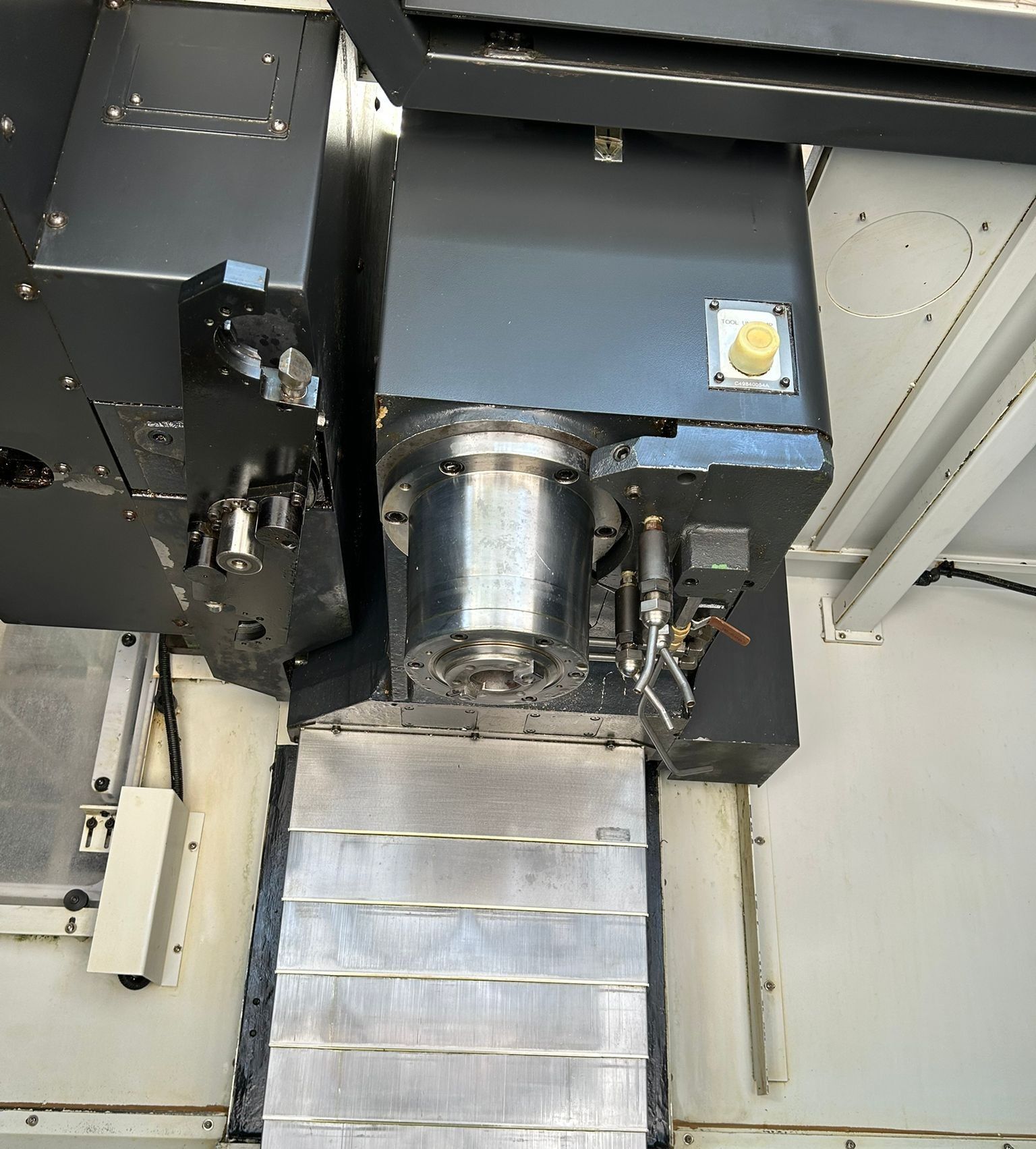

| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

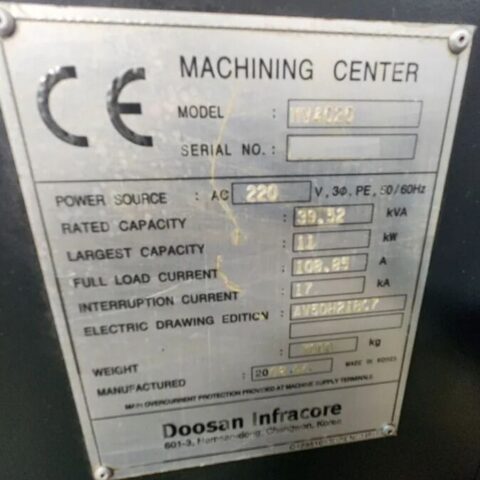

| Power: 220v / 39.52 kva / 3-Phase |
| Overall Dimensions: 140″ x 100″ x 110″ High Approx. |
| Weight: 15,432 lbs. Approx. |
