*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
Box Way constructionFanuc 21iMB CNC Control8,000 RPM Precision SpindleThrough Spindle coolant4th Axis ReadyDorian TGV-200 8″ Table Option ($4500 ExtraMPG ControlRigid TappingSpindle OrientationBrushless servo drive motors on all axis30 Automatic high speed tool changerTelescopic way coversCoolant systemChip conveyor
| SKU | 105300 |

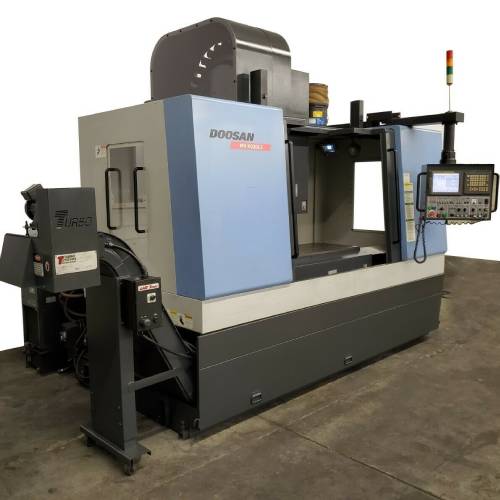

| Make | Doosan |
| Model No. | MV-4020 |
| Year | 2008/2009 |
| Condition | Used-Good |
| Cutting Hours: | 7740 |
| Features: |
|---|
| Box Way construction |

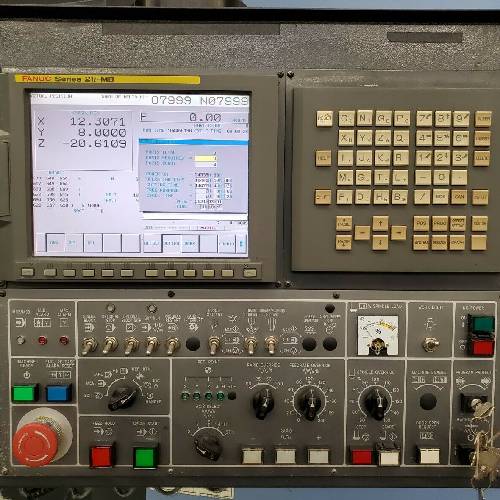

| Fanuc 21iMB CNC Control |
| 8,000 RPM Precision Spindle |
| Through Spindle coolant |
| 4th Axis Ready |
| Dorian TGV-200 8″ Table Option ($4500 Extra |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Brushless servo drive motors on all axis |
| 30 Automatic high speed tool changer |
| Telescopic way covers |
| Coolant system |
| Chip conveyor |
| Specifications: |
|---|
| Travels: |
| X-Axis: 40.1″ |
| Y-Axis: 20.1″ |
| Z-Axis: 24.6″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.5″ |
| Spindle Center to Column: 20.5″ |

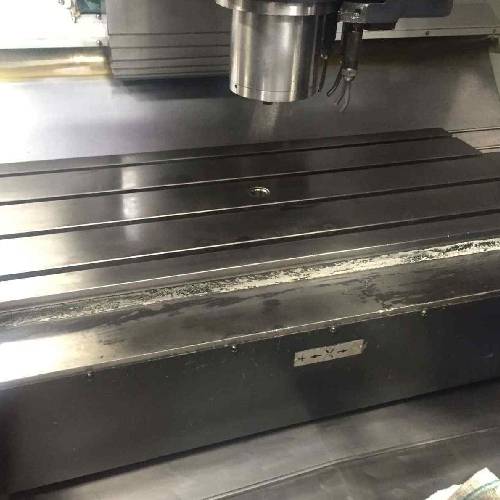

| Table: |
|---|
| Length: 47.2″ |
| Width: 19.7″ |
| Max Weight on Table: 1760 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 60 – 8000 RPM |
| Spindle Power: 30 HP |
| Feed rates: |
|---|
| Rapid X & Y: 1181 inch/P.M |
| Rapid Z: 945 inch/P.M |
| Cutting Feedrate: .04″ – 472″ inch/ P.M |

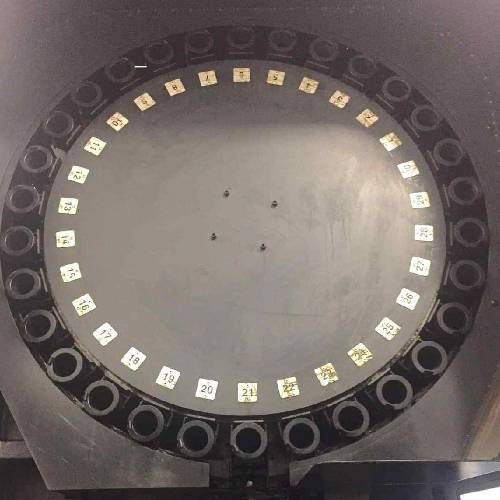

| Automatic Tool Changer: |
|---|
| 40 Taper |
| Capacity: 30 |
| Max Tool Weight: 18 lbs |
| Max Tool Length: 13″ |
| Max Tool Dia.: 3.5″ |
| General |
|---|
| Air Required: 100 psi, 4 scfm |

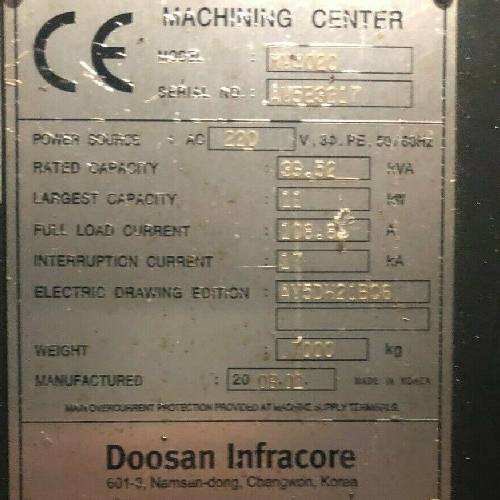

| Power: 205-235v / 66FLA / 3-Phase, 36 Kva |
| Overall Dimensions: 130″ x 105″ x 110″ High |
| Weight: 15,400 lbs |
“No Charges for loading at list Price”
