All specifications are approximations and are subject to verification.
| SKU | 105092 |

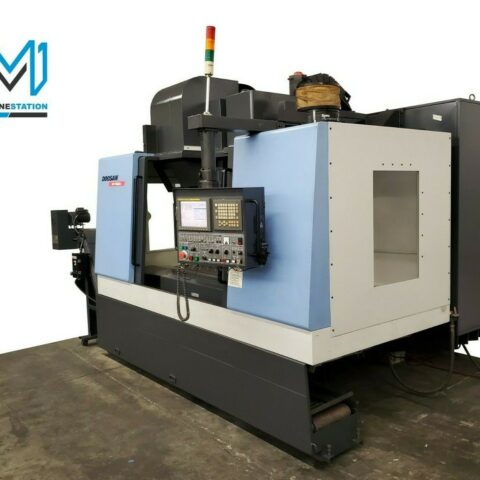

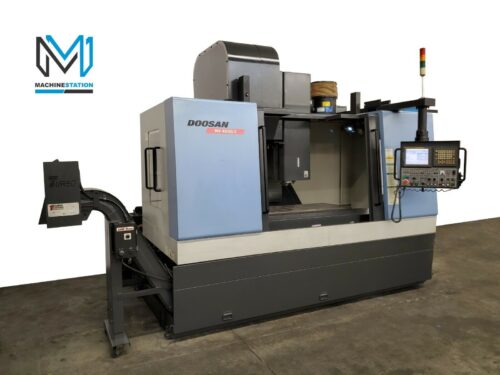

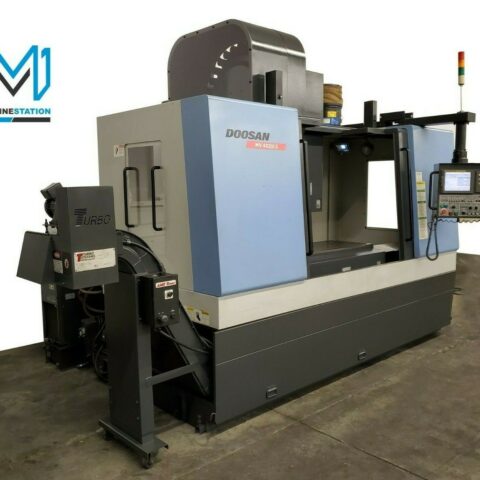

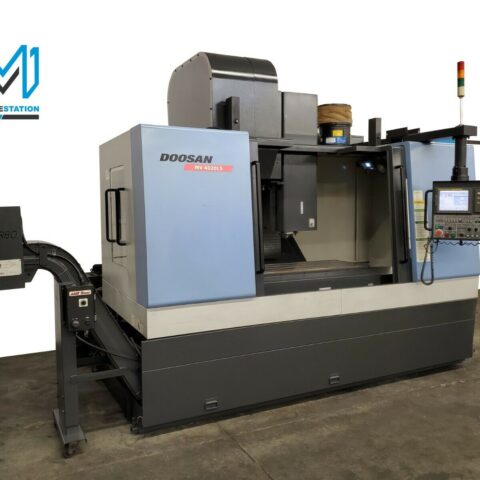

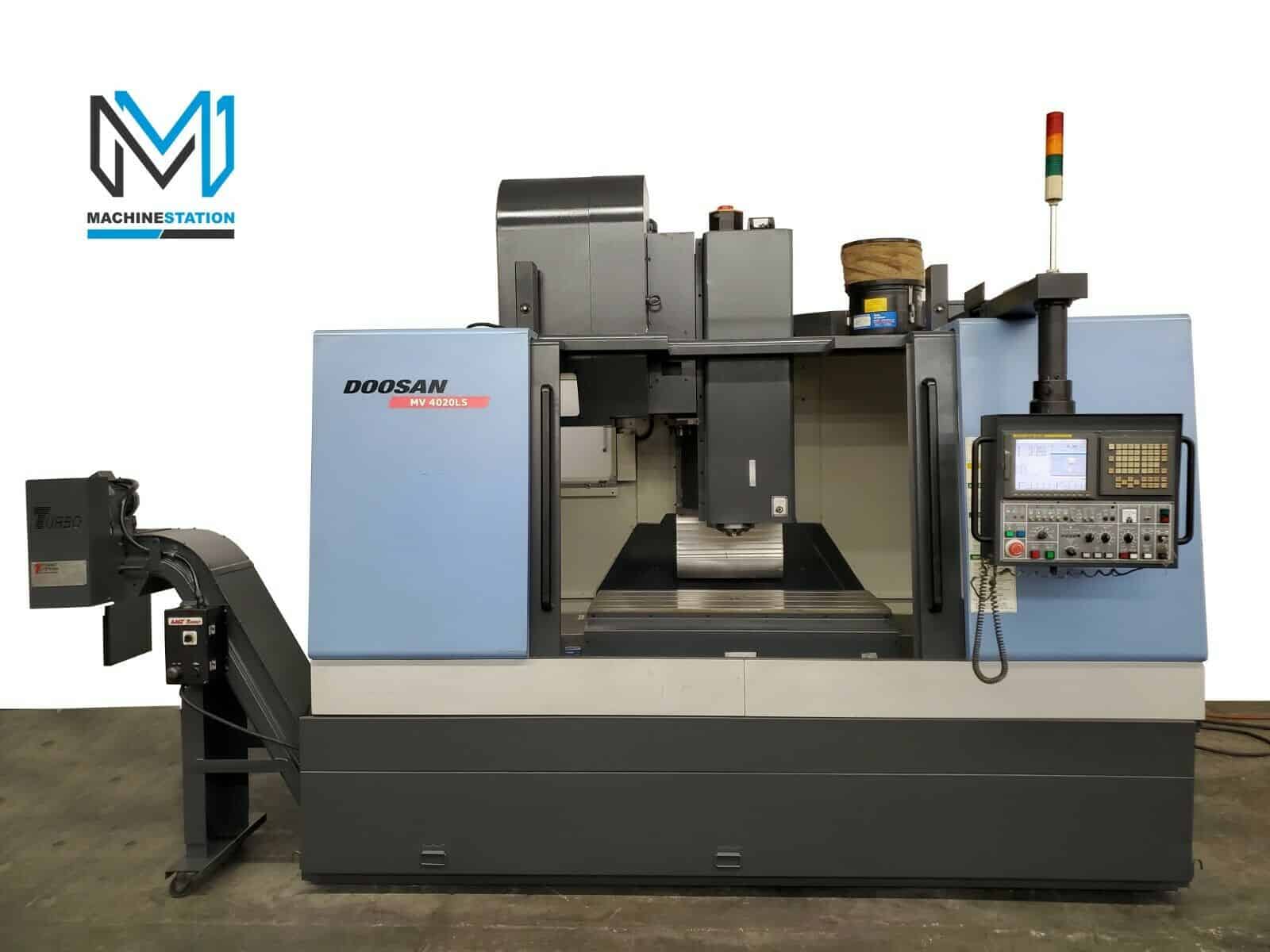

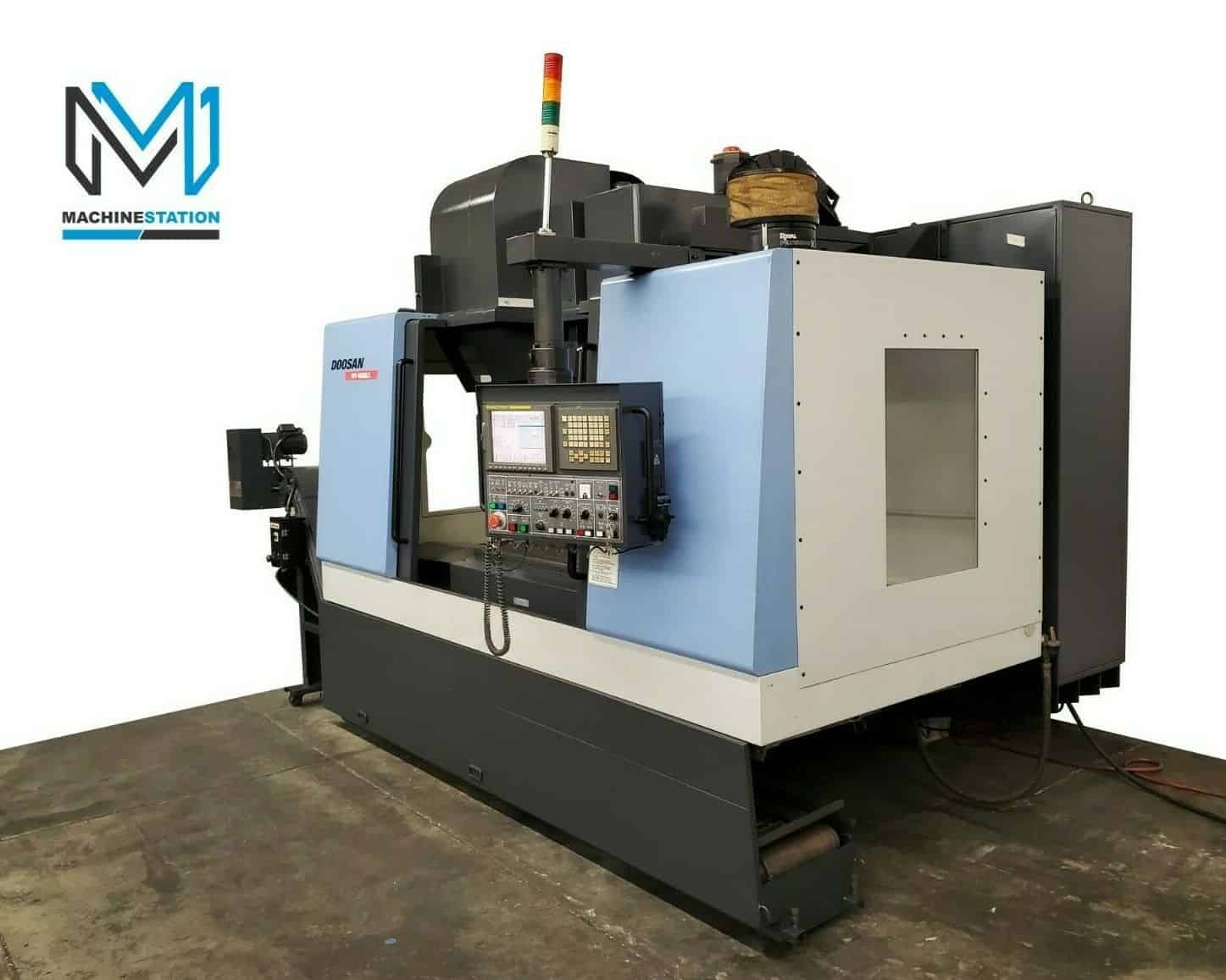

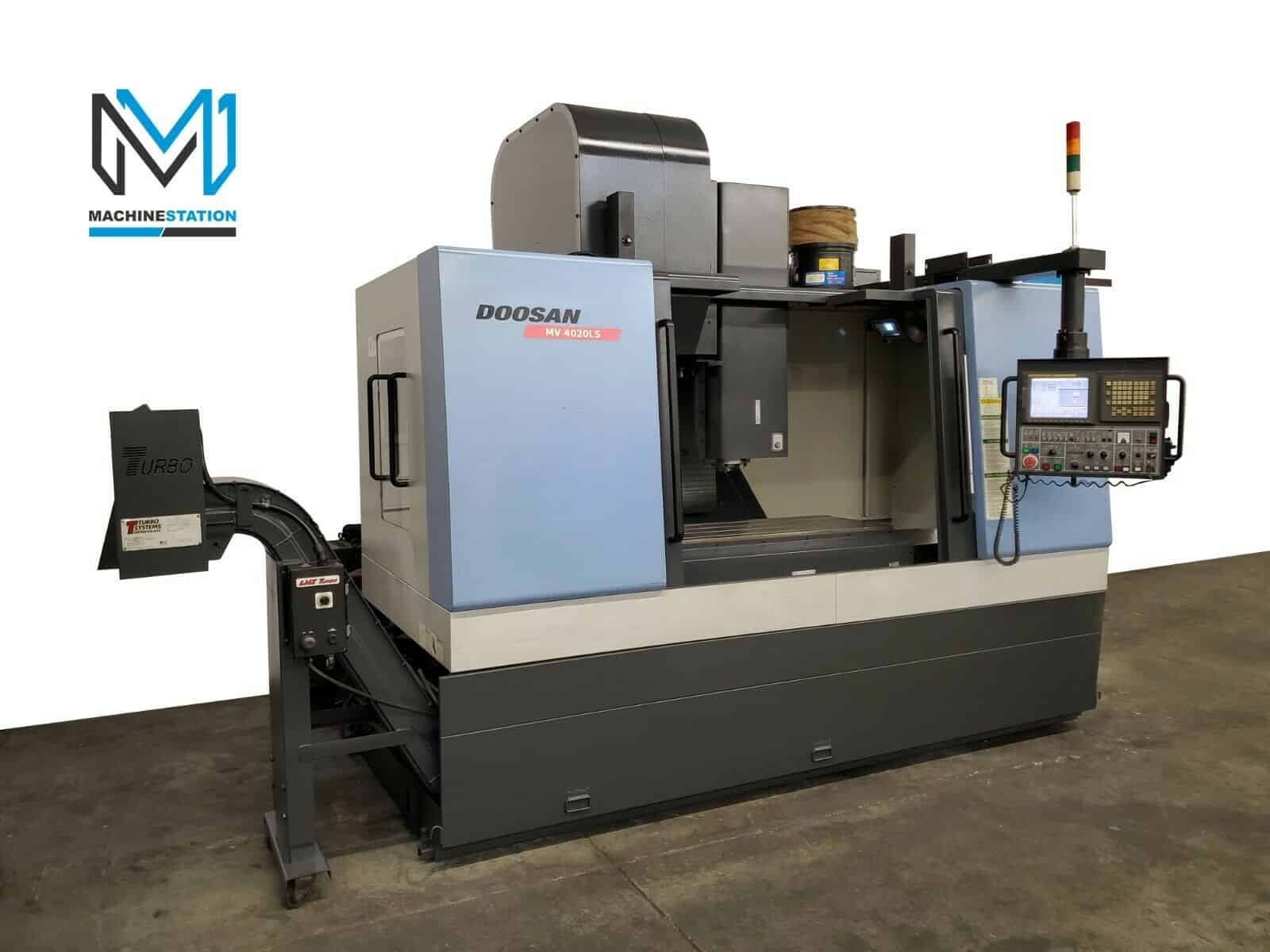

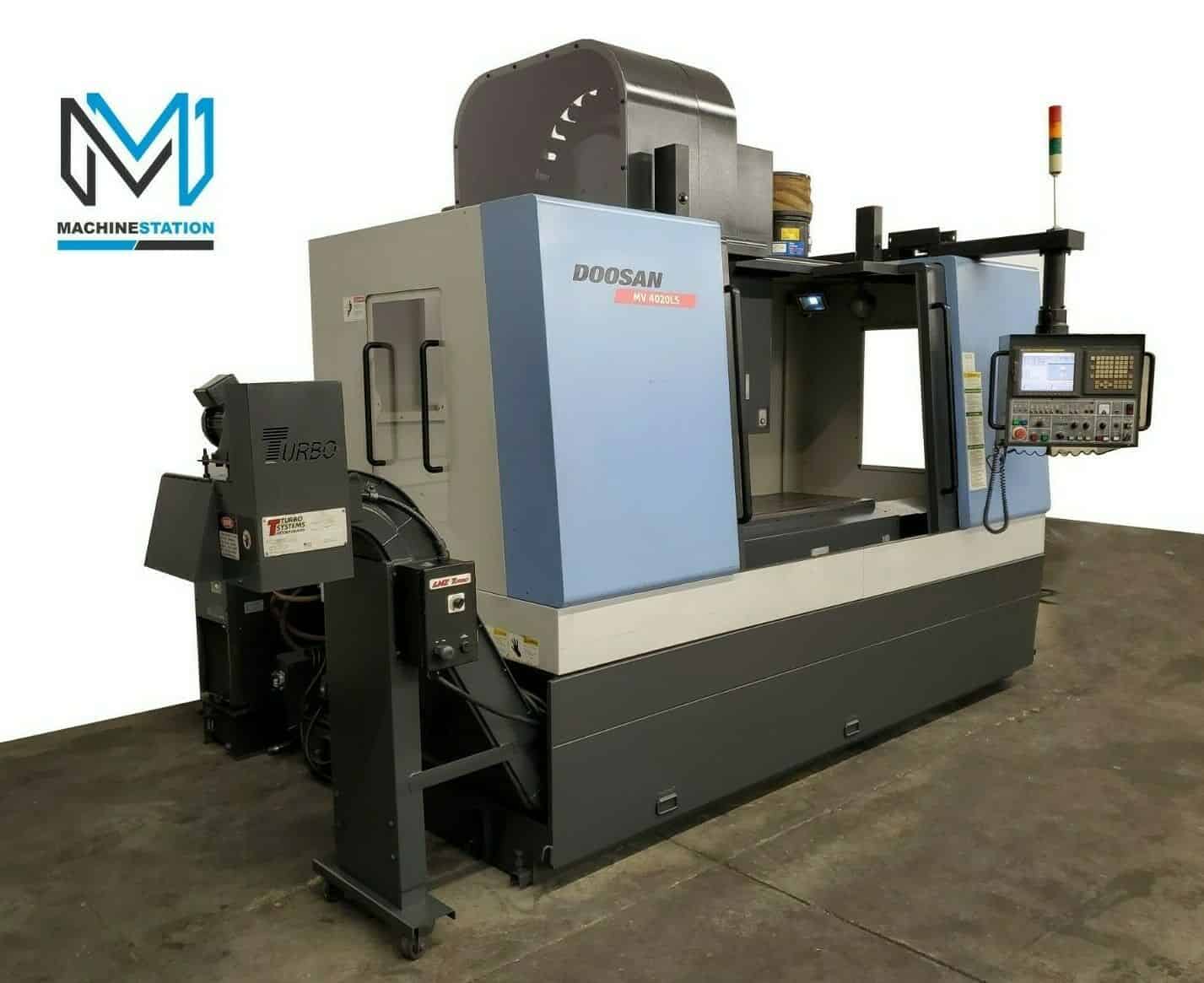

| Make | DOOSAN |
| Model No. | 4020LS |
| Year | 2008-09 |
| Condition | Used-Good |
| Features: |
|---|

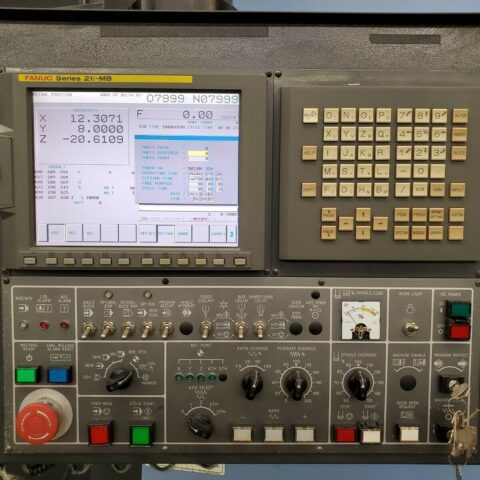

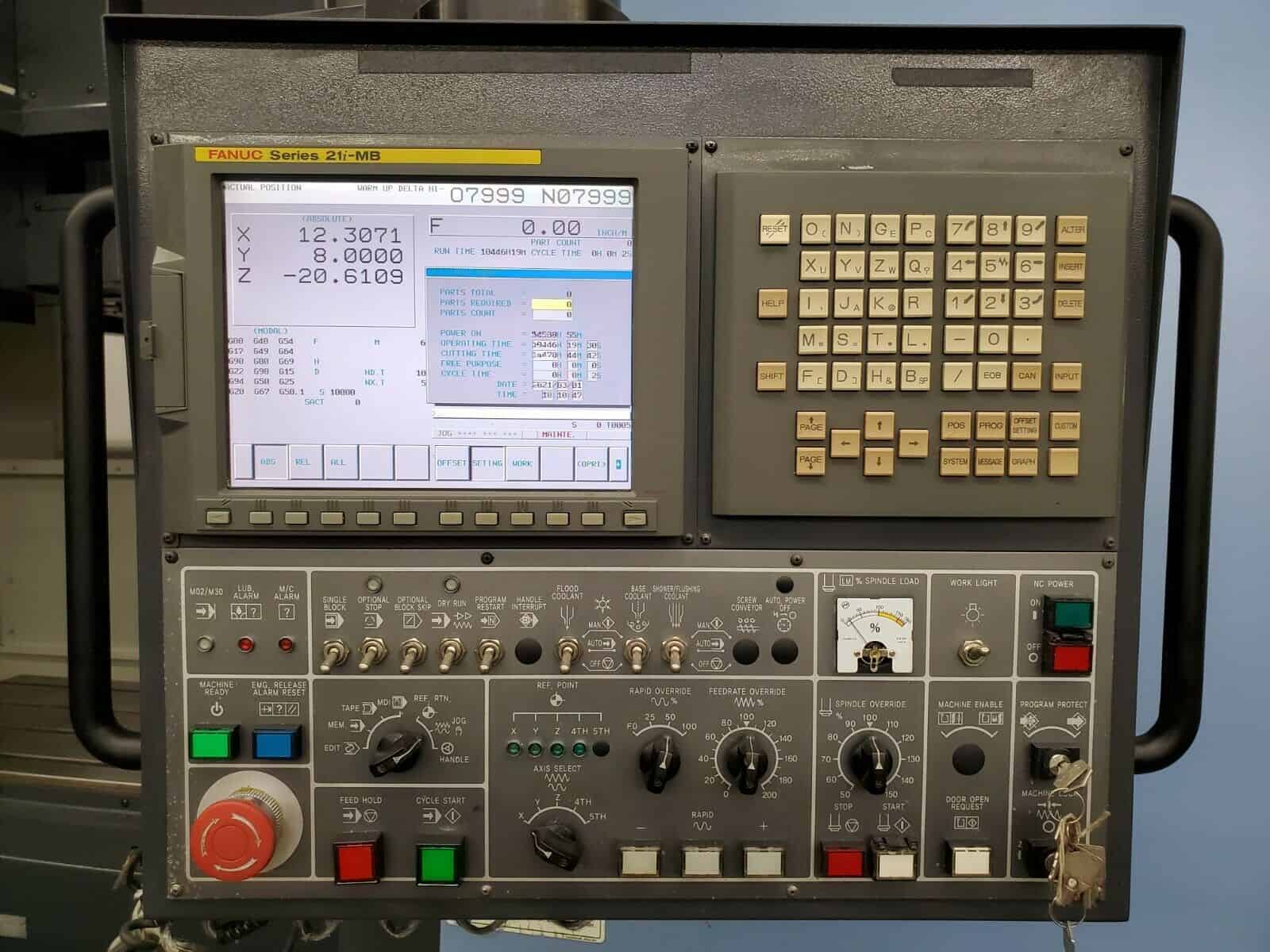

| Fanuc 21i-MB CNC Control |
| 15,000 RPM High Speed Spindle |
| Through Spindle Coolant |
| 30 Automatic high speed tool changer |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Chiller |
| High Pressure Flood Coolant |
| Telescopic way covers |
| Work Light |
| Chip Conveyor |
| Specifications: |
|---|
| Travels: |
| X-Axis: 40.2″ |
| Y-Axis: 20.1″ |
| Z-Axis: 24.6″ |
| Rapid Traverse Rates: 1890″ Per Minute |
| Cutting Feed Rates: 945″ Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″ |

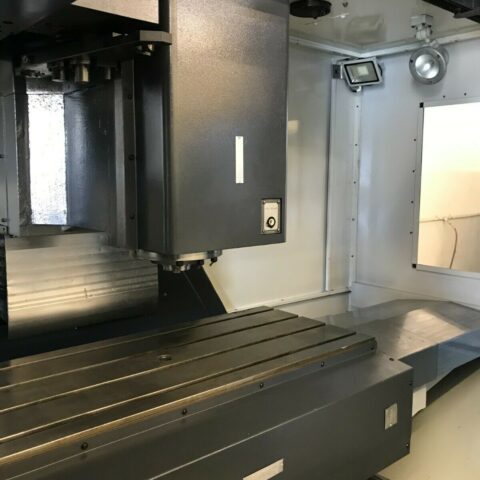

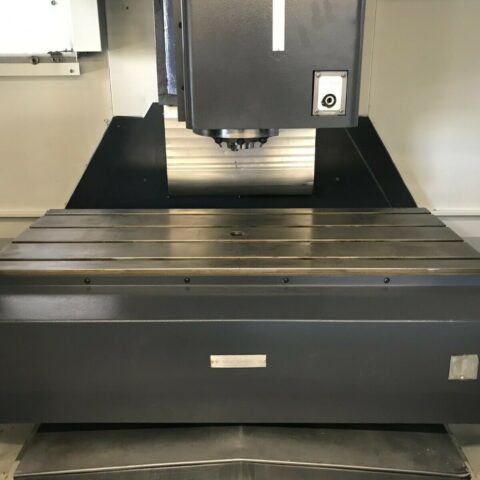

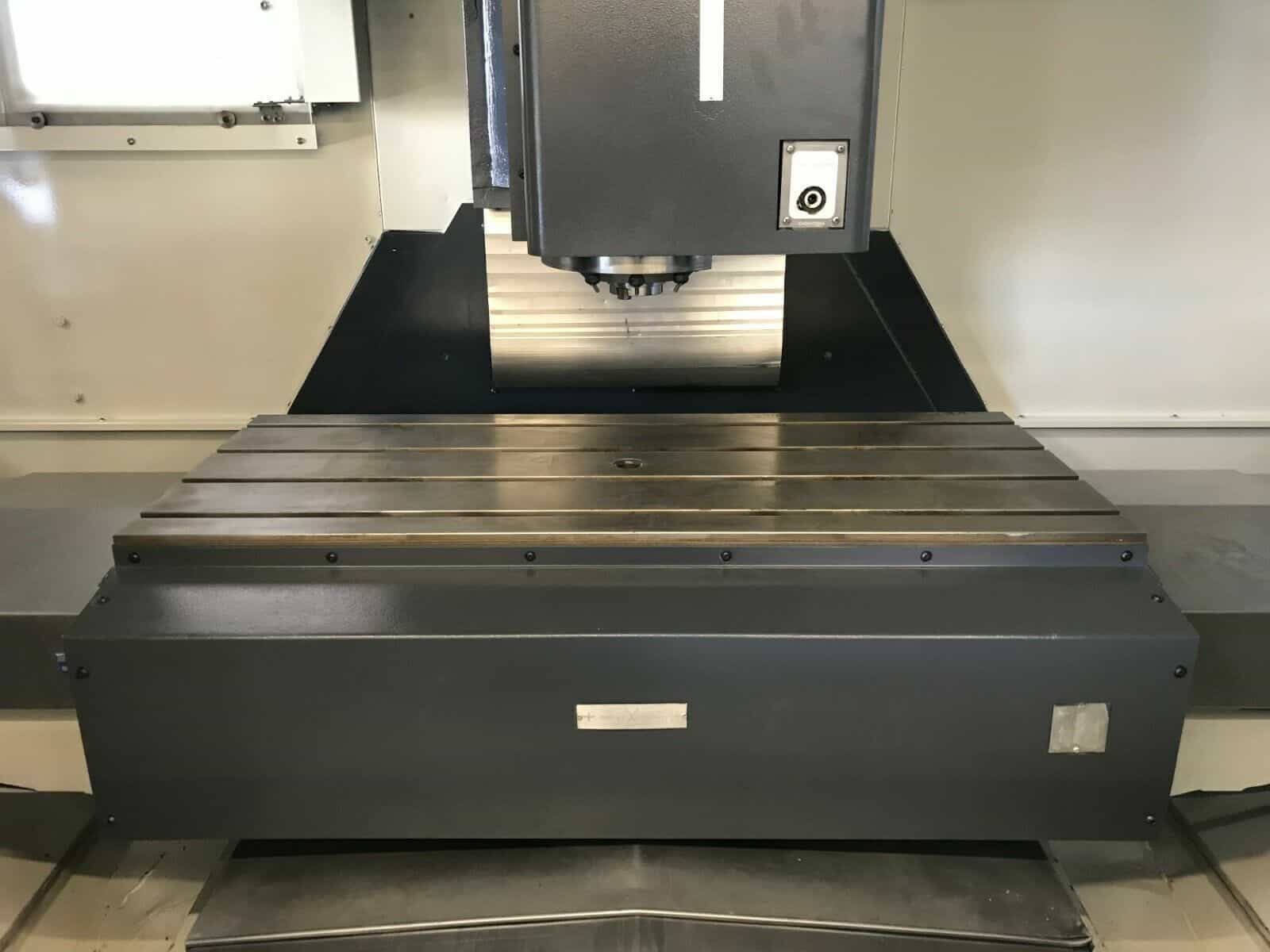

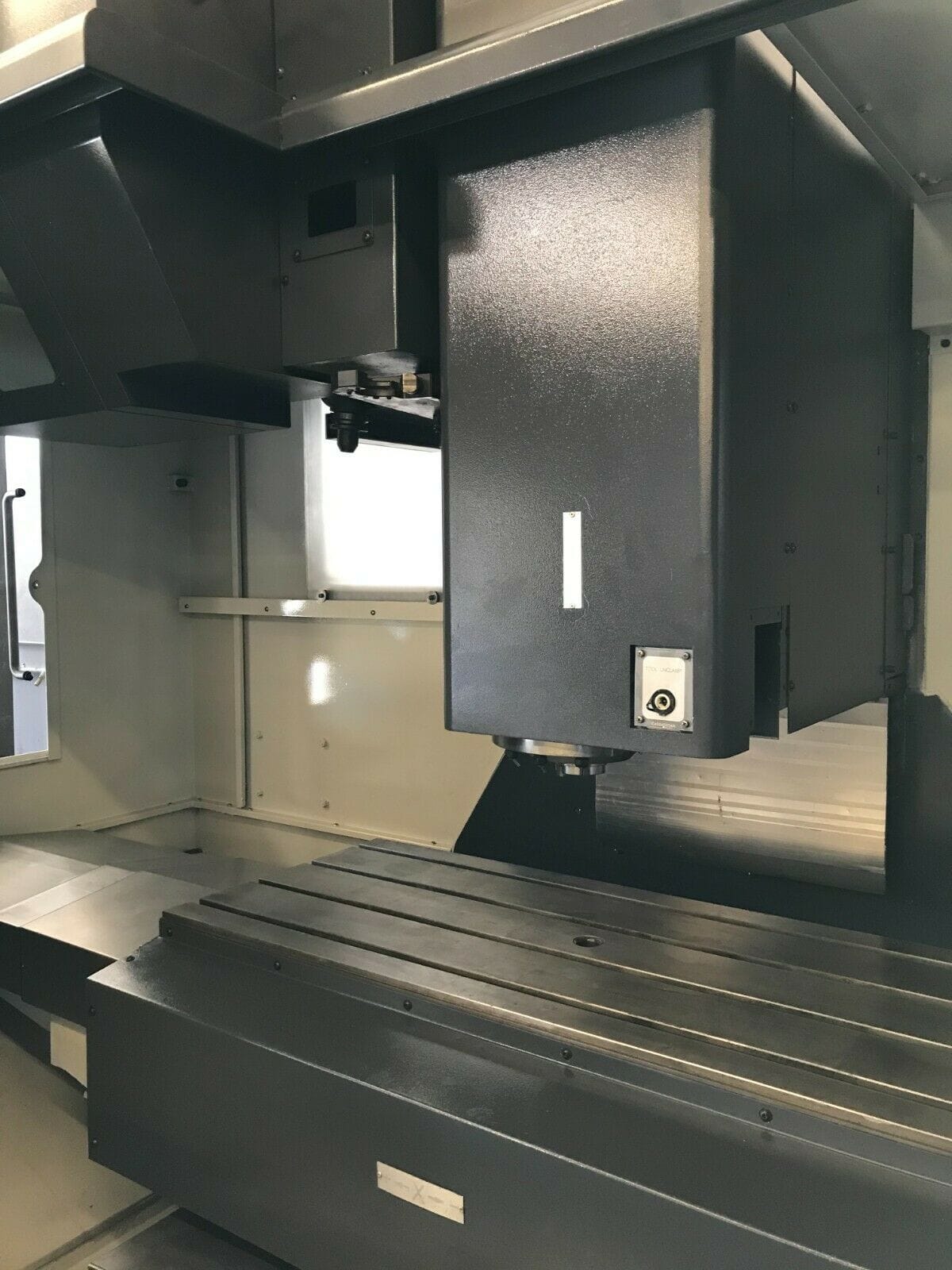

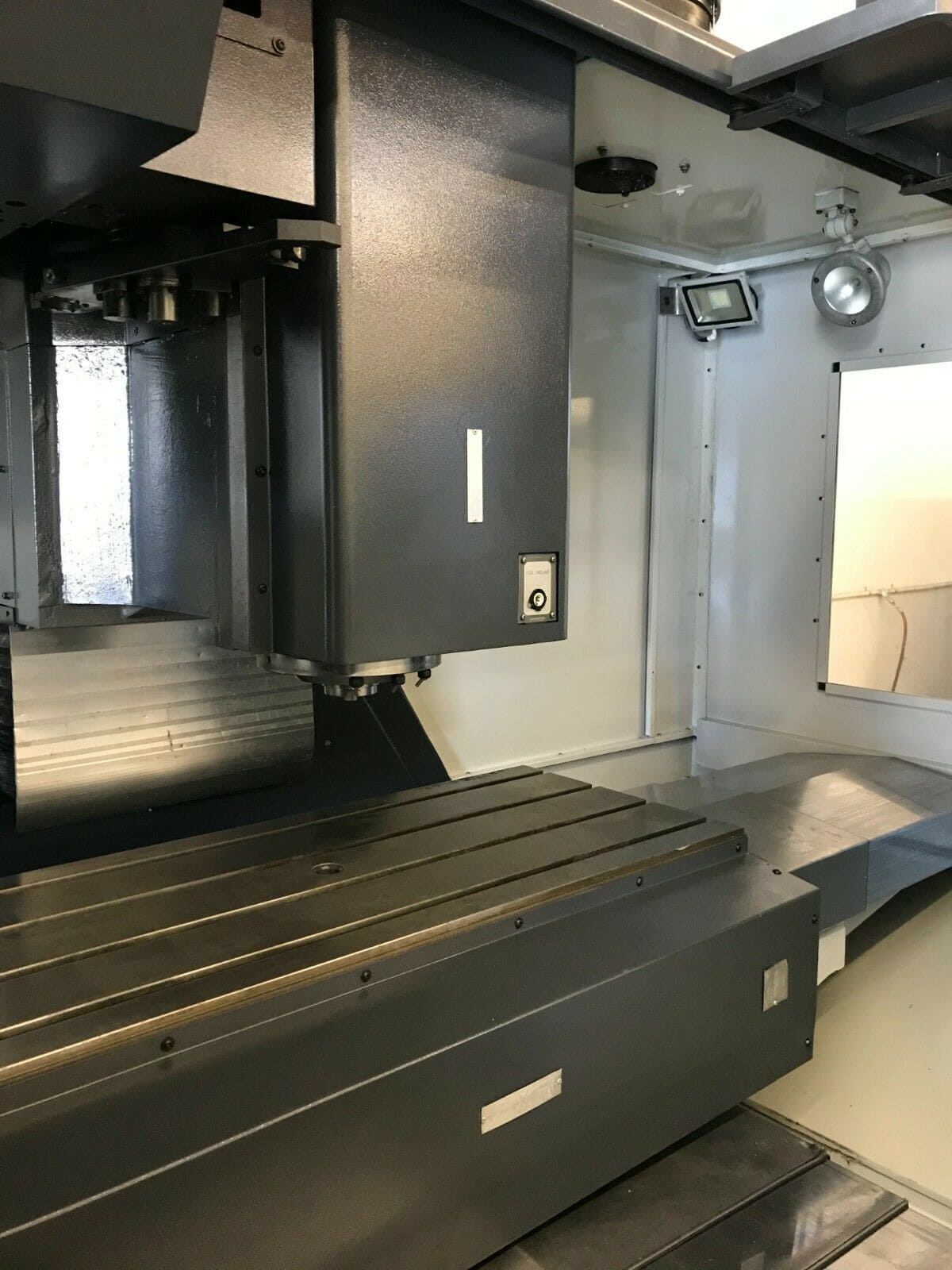

| Table: |
|---|
| Length: 47.2″ |
| Width: 19.7″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1760 lbs |

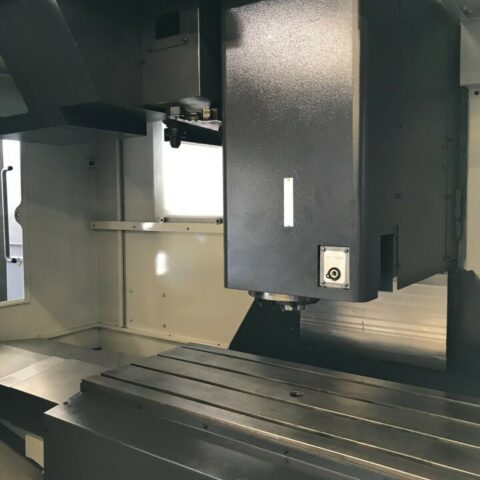

| Spindle: |
|---|
| Spindle: Taper Size: BT-40 |
| Speed Range: 0 – 15,000 RPM |
| Spindle Type: Direct Drive |
| Spindle Power: 30 HP |

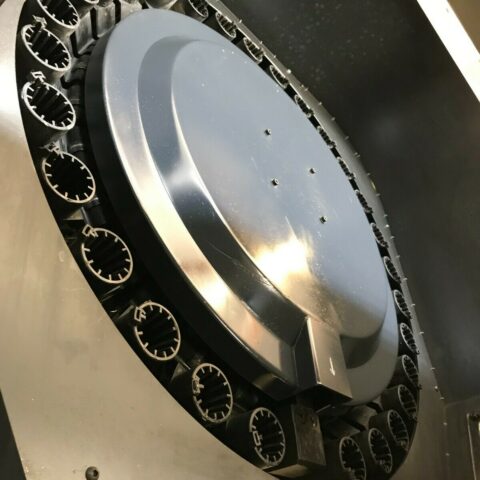

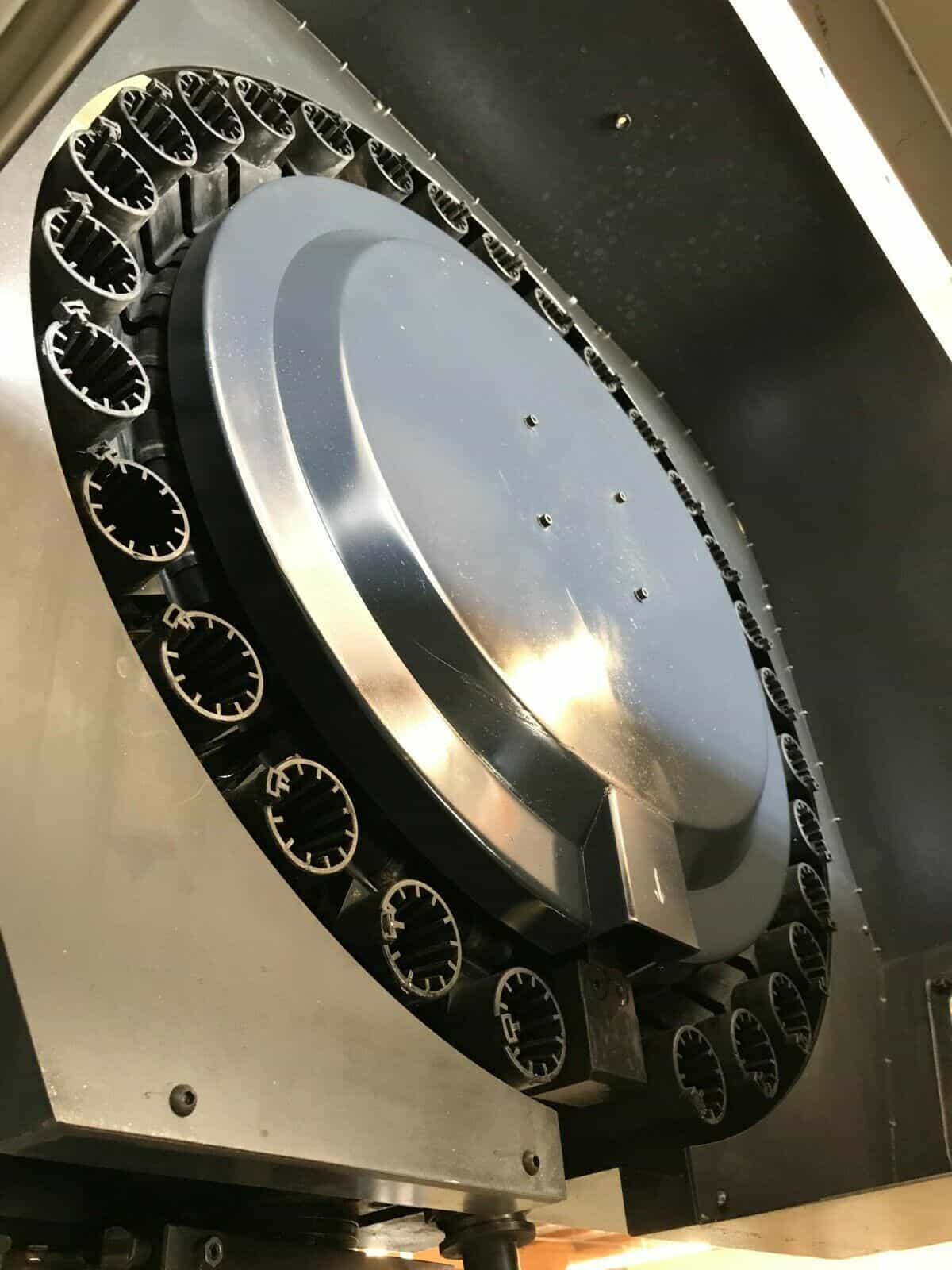

| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 35 kva / 3-Phase |
| Overall Dimensions: 140″ x 100″ x 110″ High |
| Weight: 15500 lbs |
“No Charges for loading at list Price”
