*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

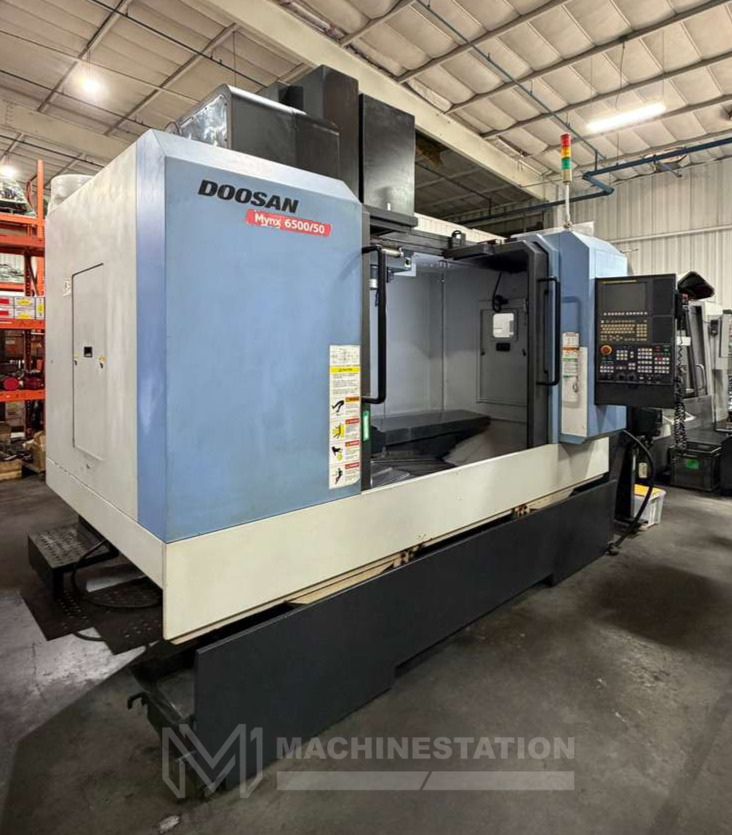

| Make: | Doosan |
| Model: | Mynx 6500/50 |
| Year: | 2014 |
| Features: |
|---|

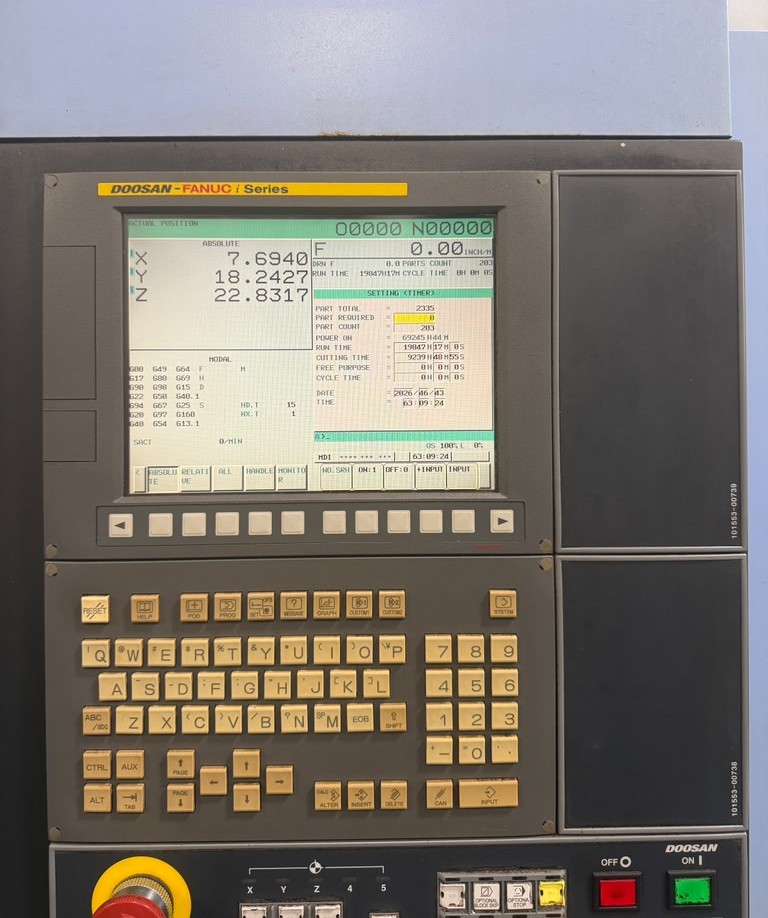

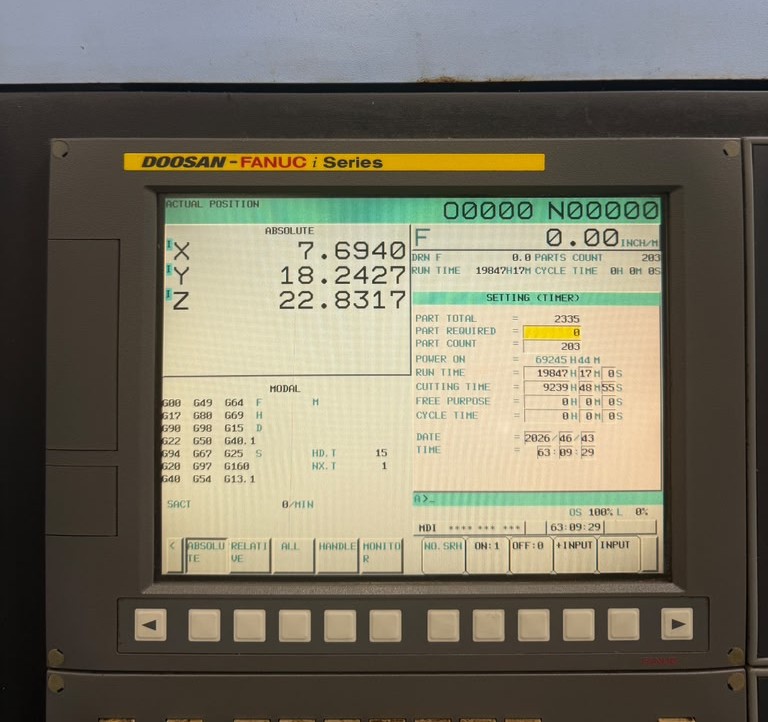

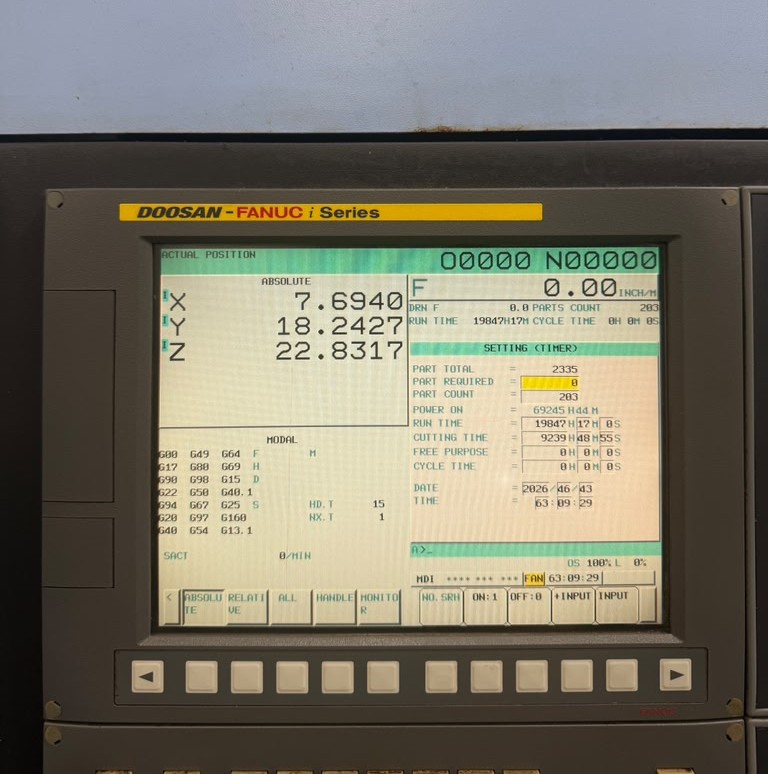

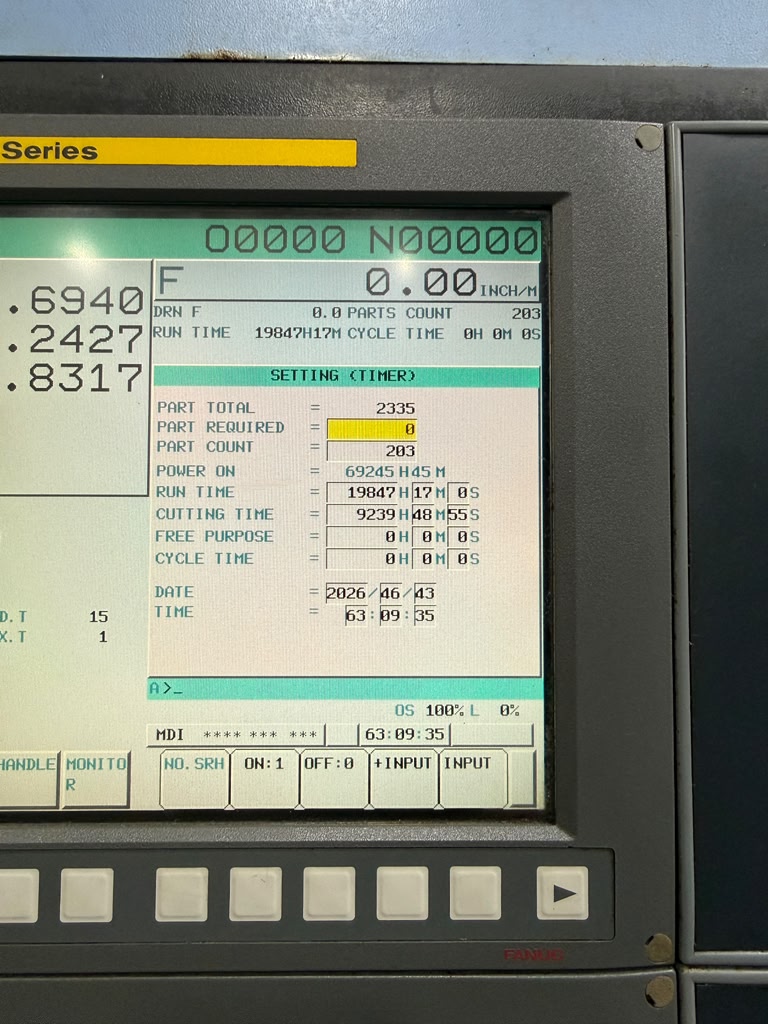

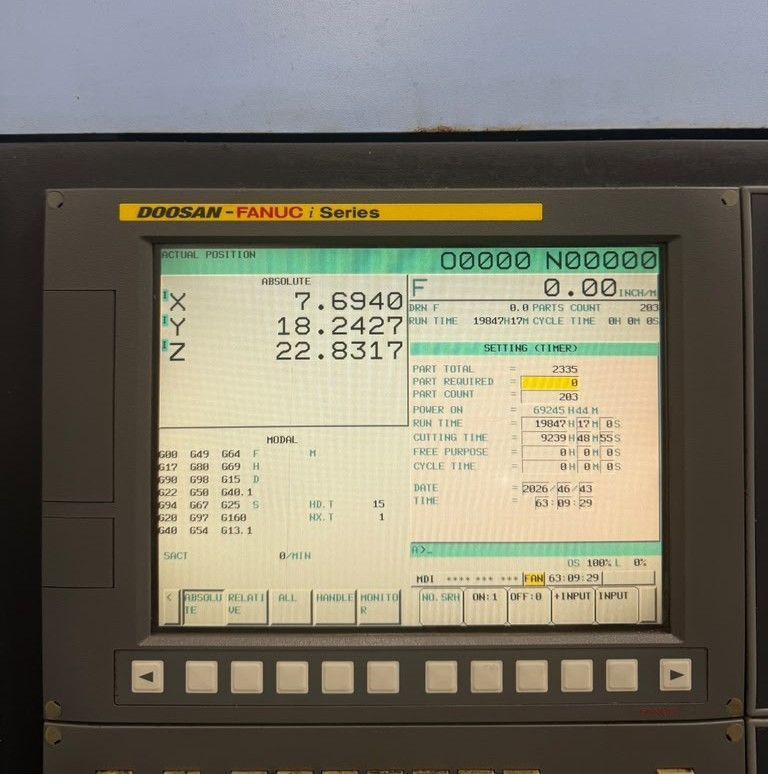

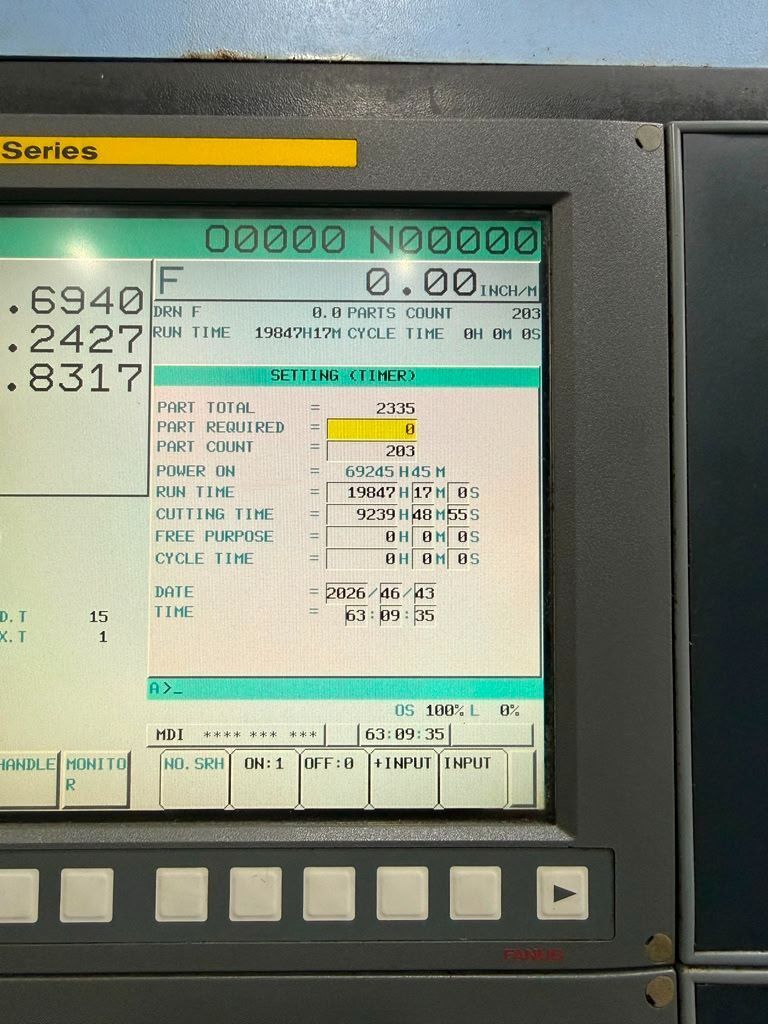

| Doosan Fanuc i-Series CNC Control |
| Box Way Construction |
| 6,000 RPM Precision Spindle |
| 30 Station Automatic Tool Changer |
| CAT-50 Taper Spindle |
| Through Spindle Coolant |

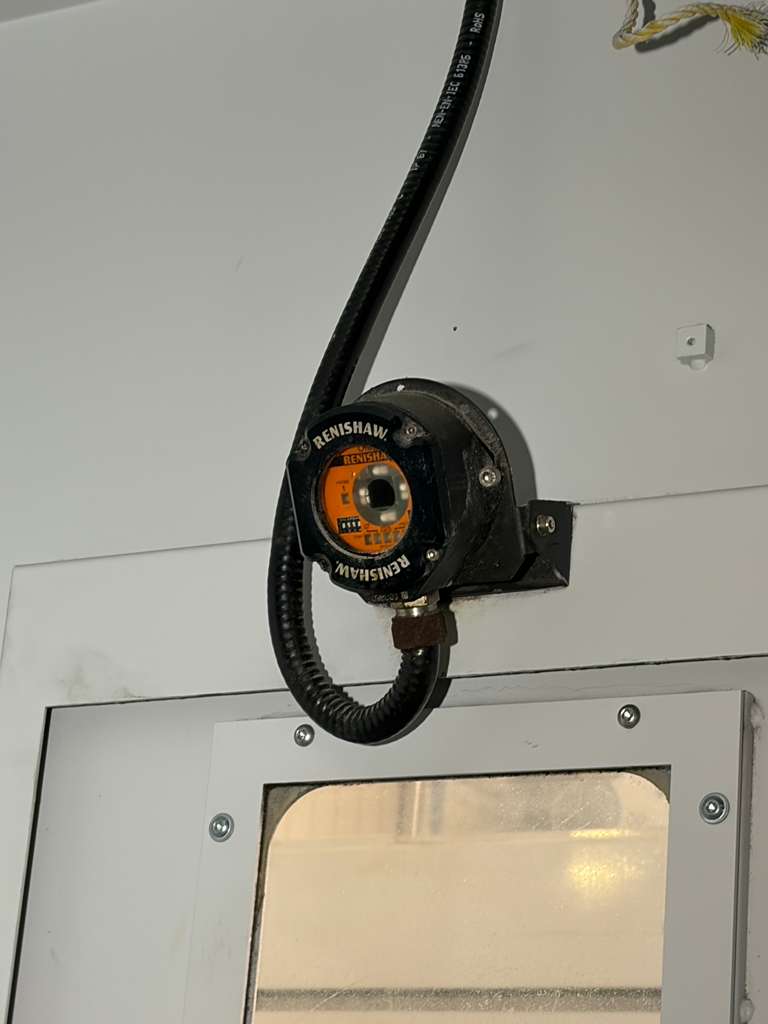

| Renishaw Receiver Installed |
| PCMCIA Interface |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| High Pressure Coolant |
| Coolant Tank |
| Spindle Chiller Unit |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 50.7″ |
| Y-Axis: 26.1″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates X & Y Axis: 1417 IPM |
| Rapid Traverse Rates Z Axis: 944 IPM |
| Cutting Feed Rates: 590 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″ |

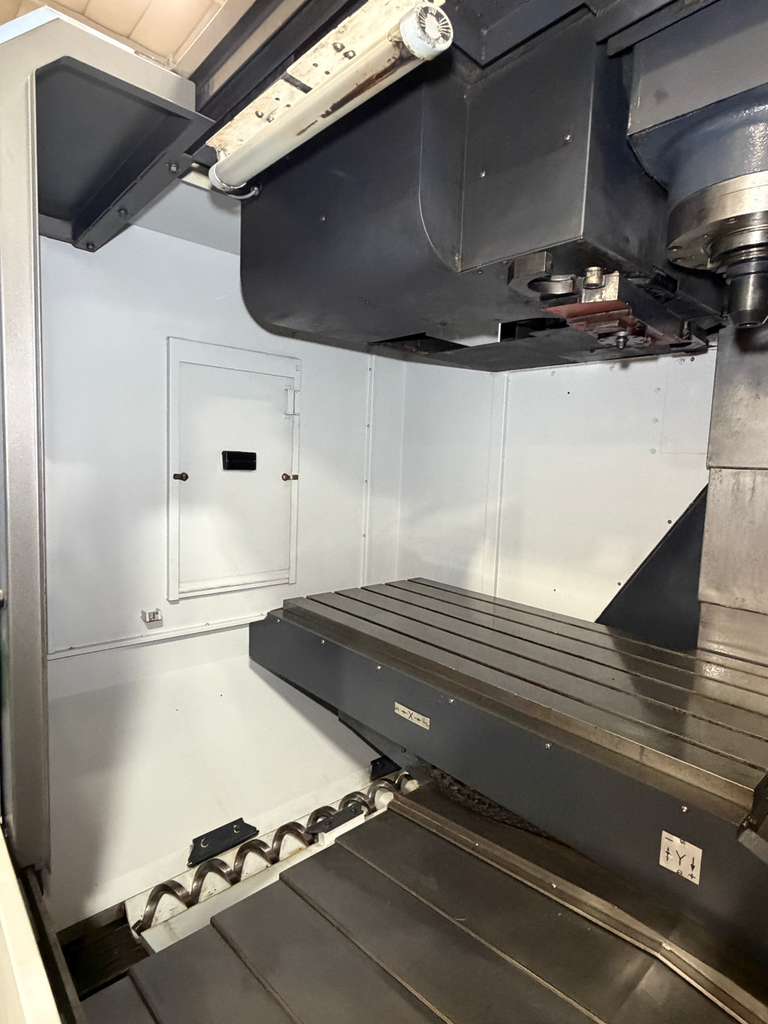

| Table: |
|---|
| Length: 51.2″ |
| Width: 26.37″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2200 lbs |

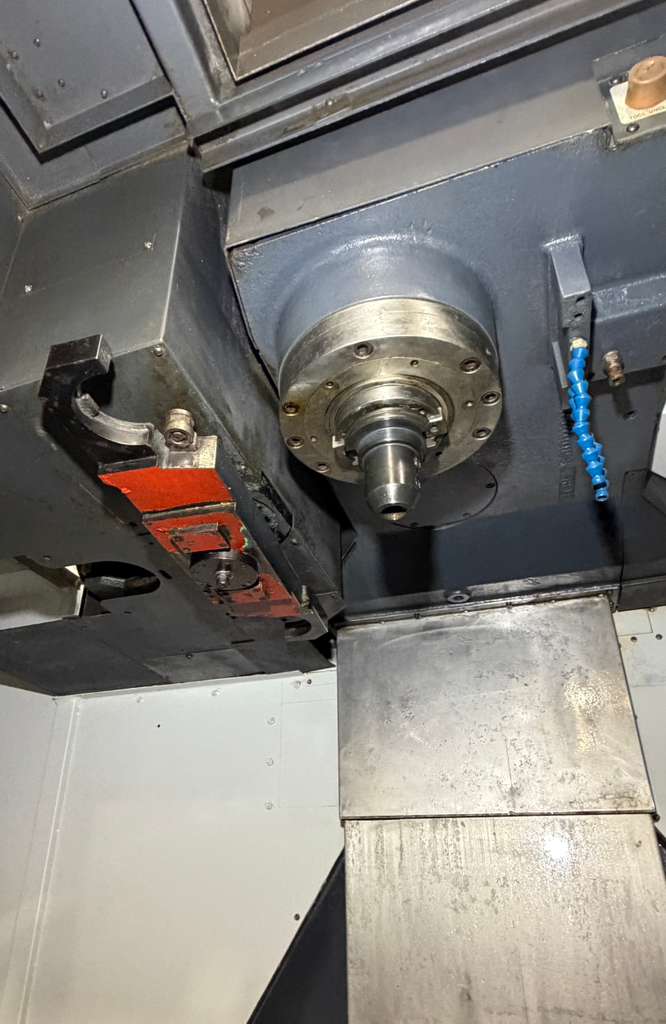

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 0 – 6,000 RPM |
| Spindle Type: Gear Head |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 220v / 48.36 kva / 3-Phase |
| Overall Dimensions: 140″ x 100″ x 110″ High Approx. |
| Weight: 19,840 lbs Approx. |
