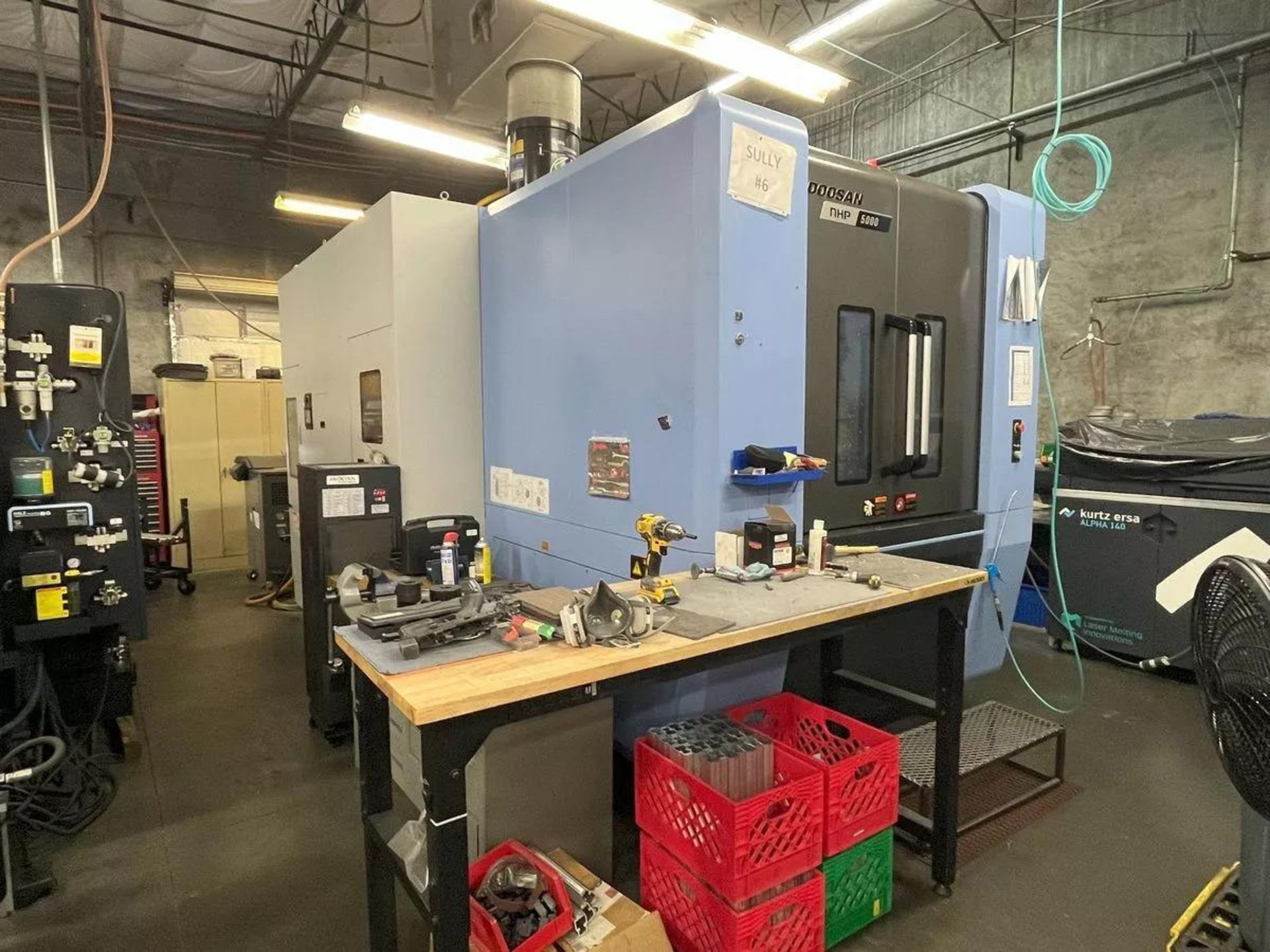

DOOSAN NHP 5000 HORIZONTAL MACHINING CENTER – 2021

Out of stock

SKU:	11022
Make/Model:	Doosan NHP 5000
Year:	2021
Condition:	Used – Good
Video:	On Request

Add to WishlistRemove from Wishlist

SKU: 11022

Share:

Description
Additional information

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

Make:	Doosan
Model:	NHP 5000
Condition:	Used

Equipped With:

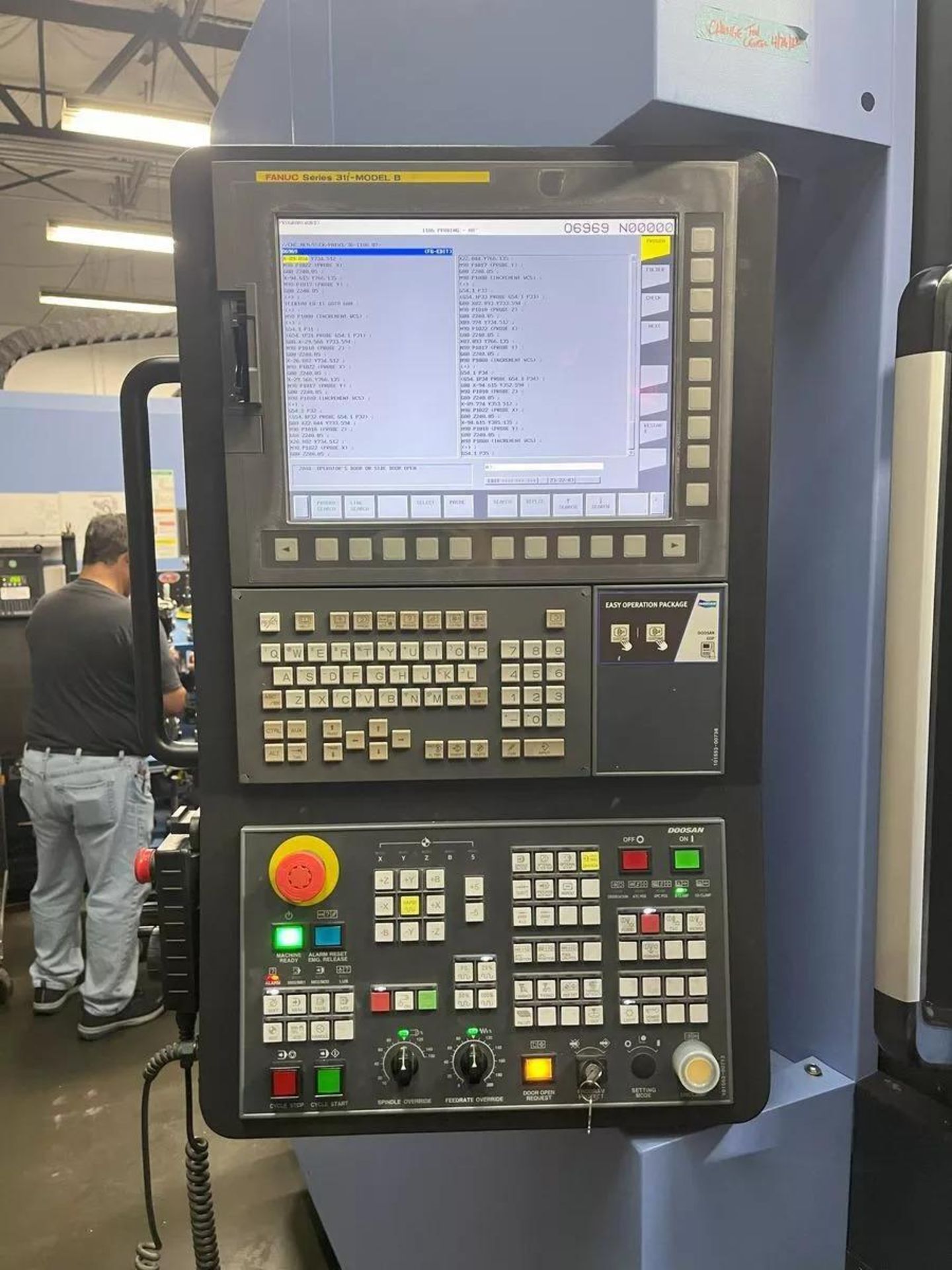

Fanuc i-Series CNC Control 2-Pallet Automatic Pallet Changer Full 4-Axis Machining Capability Box-Way / Linear Hybrid Guide System High-Torque Gear-Driven Spindle Automatic Tool Changer Coolant System Chip Conveyor Full Enclosure

Capacity:

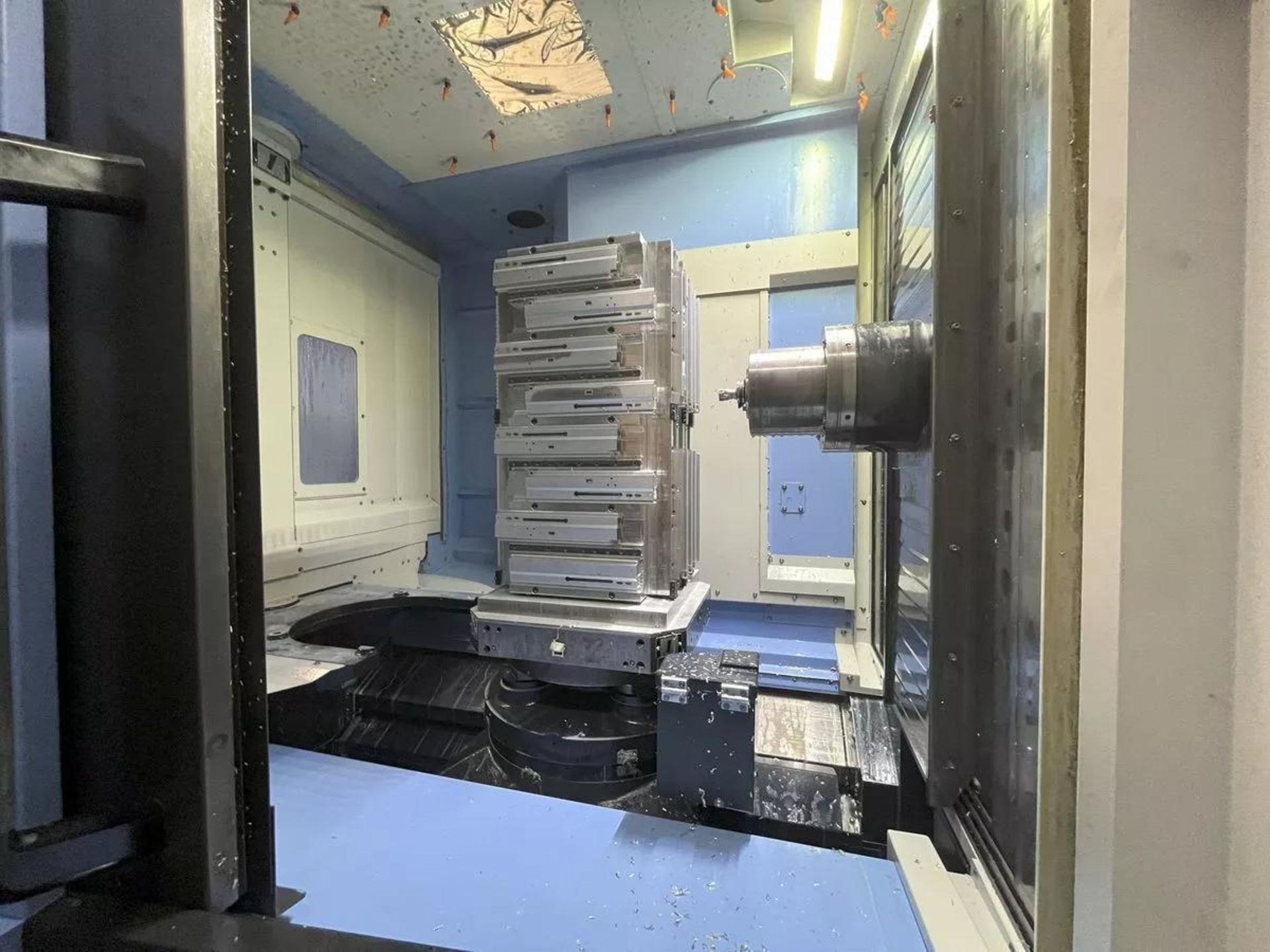

Pallet Size: 19.7″ × 19.7″ Max Workpiece Diameter: 31.5″ Max Workpiece Height: 39.4″ Max Table Load: 1,763 lbs

Travels:
X-Axis Travel: 28.7″ Y-Axis Travel: 28.7″ Z-Axis Travel: 28.7″ B-Axis Indexing: 1° (0.001° optional)

Spindle:
Spindle Taper: CAT-50 Spindle Speed: 6,000 RPM Spindle Motor: 40 HP Spindle Type: Gear-Driven

Feedrates:
Rapid Traverse X/Y/Z: 1,575 IPM Cutting Feedrate: 0 – 787 IPM

Automatic Tool Changer:
Tool Capacity: 40 Tools (Standard) Optional Tool Capacity: 60 / 90 Tools Max Tool Diameter: 6.3″ Max Tool Length: 19.7″ Max Tool Weight: 33 lbs

General:

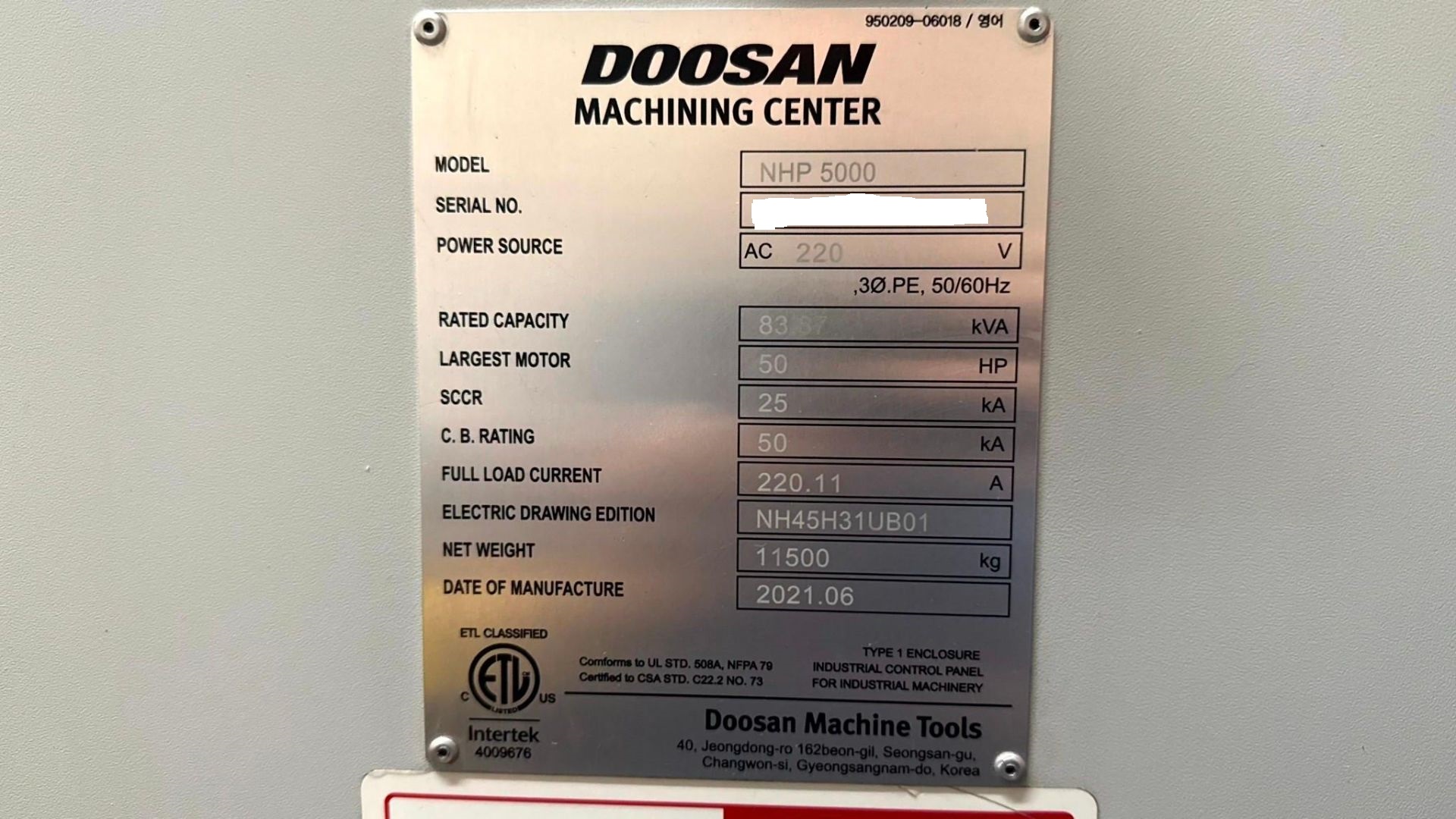

Power Requirement: 220V / 3-Phase Machine Weight (Approx.): 26,500 lbs Overall Dimensions (Approx.): 200″ × 110″ × 120″

Categories	CNC Horizontal Machining Center
Make	Doosan
Model	NHP 5000
