*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Doosan |
| Model: |
Puma 2100Y |
| Year of Manufacture: |
2013 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center |
| CNC Control: |
Fanuc i-Series CNC Control |
| Equipped With: |
| Fanuc CNC Control |
| Y-Axis Capability |
| C-Axis Spindle |
| Live Tooling |

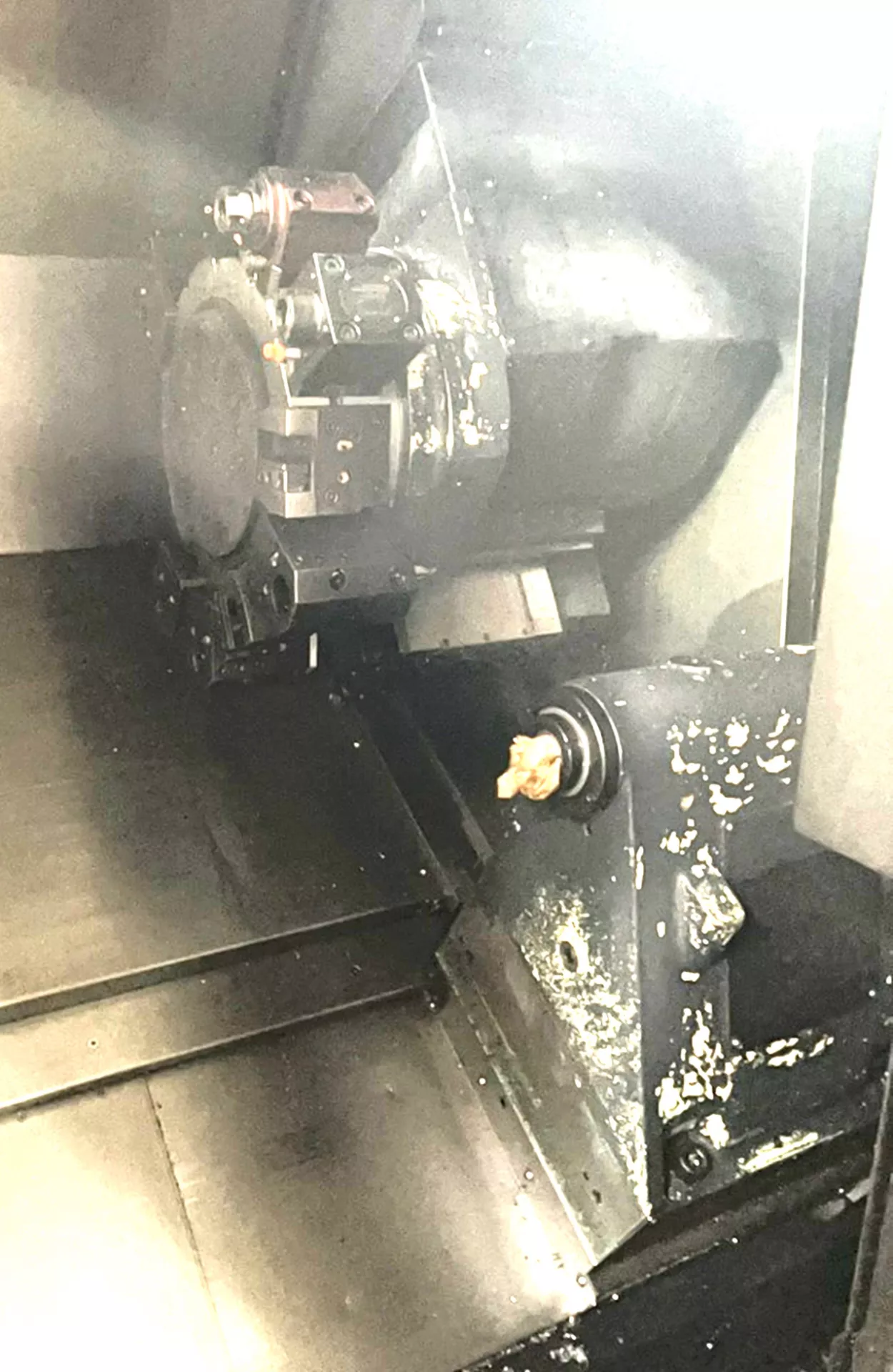

| 12-Station Turret |

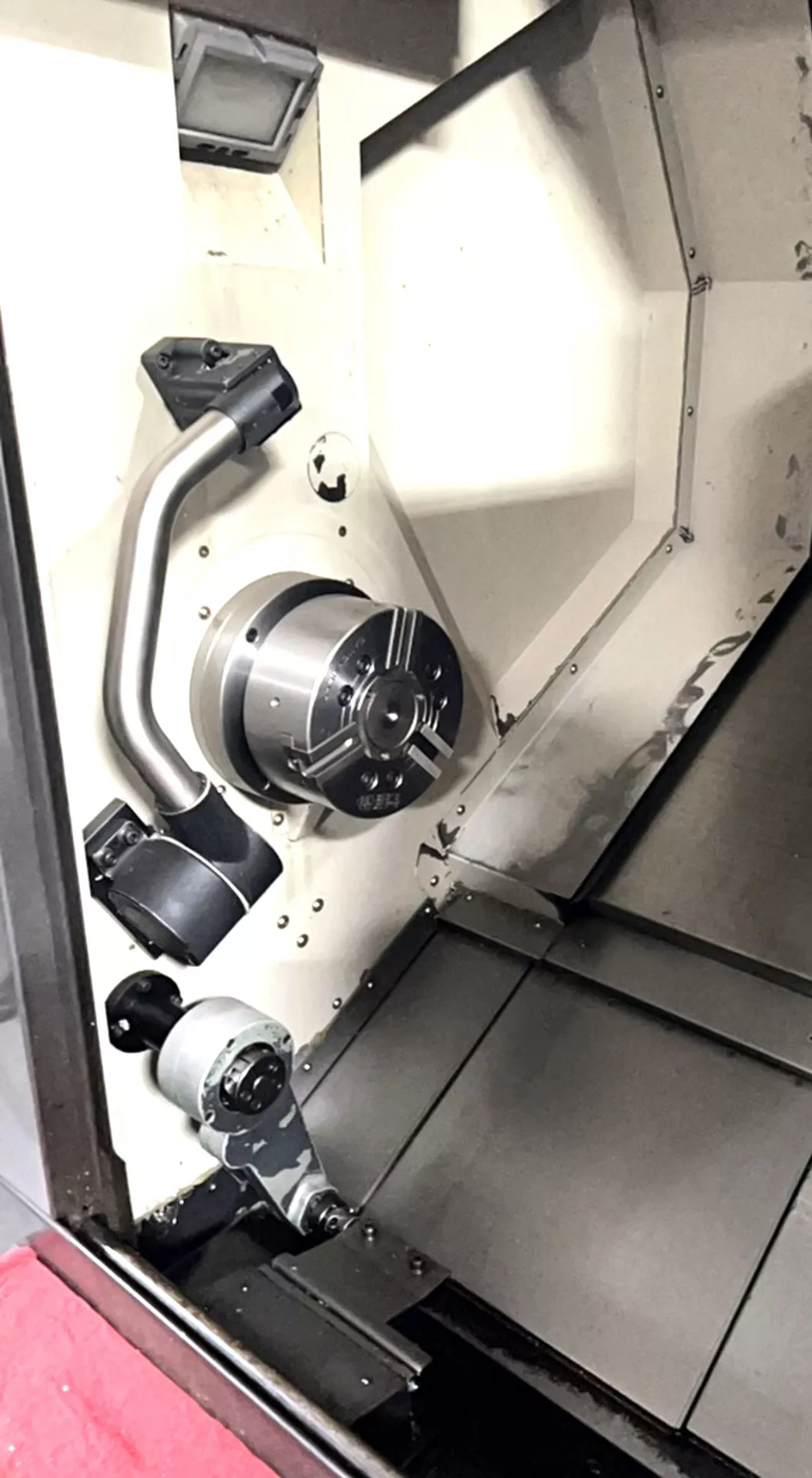

| 8″ Hydraulic Chuck / Collet Ready |
| Tailstock |
| Chip Conveyor |
| Coolant System |
| Parts Catcher |
| Tool Presetter |
| Rigid Tapping |
| USB / RS232 Interface |
| 3-Color Status Light |
| Capacity: |
| Maximum Turning Diameter: 16.0″ |
| Maximum Turning Length: 20.5″ |
| Swing Over Bed: 30.7″ |
| Swing Over Saddle: ~24.8″ |
| Bar Capacity: 2.6″ |
| Distance Between Centers: ~24″ |
| Travels: |
| X-Axis Travel: 10.2″ |
| Y-Axis Travel: ±2.6″ |
| Z-Axis Travel: 23.2″ |
| C-Axis Rotation: 360° |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Speed: Up to 5,000 RPM |
| Spindle Motor: 25 – 30 HP |
| Spindle Bore: ~3″ |
| Tooling: |
| Tool Capacity: 12 Stations |
| Live Tool Speed: Up to 5,000 RPM |
| Feed Rates: |
| Rapid Traverse: X/Z: 1,181 IPM Y: 393 IPM |
| Cutting Feedrate: Programmable |

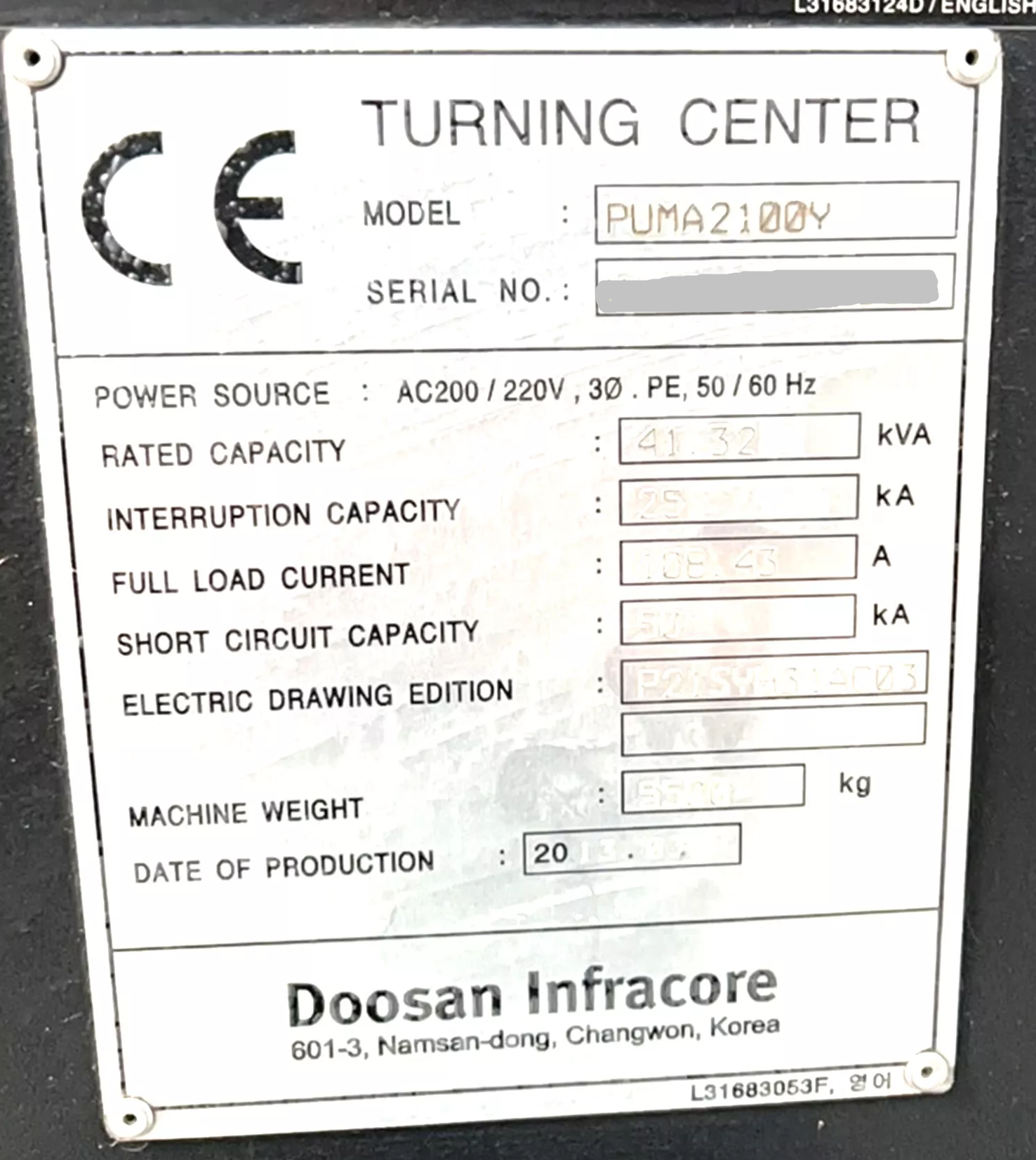

| Electrical: |
| Voltage: AC 200 / 220 V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Rated Capacity: 41.32 kVA |
| Full Load Current: 108.43 A |
| General: |
| Machine Weight: ≈11,000 – 12,000 lbs |
| Floor Space: Approx. 135″ × 77″ |
| Machine Height: Approx. 85″ |
