*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Doosan |
| Model No.: |
Puma 240B |
| Year of Manufacture: |
2012 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center |
| CNC Control: |
Fanuc CNC Control (0i / 21i Series typical) |
| Equipped With: |
| Fanuc CNC Control |

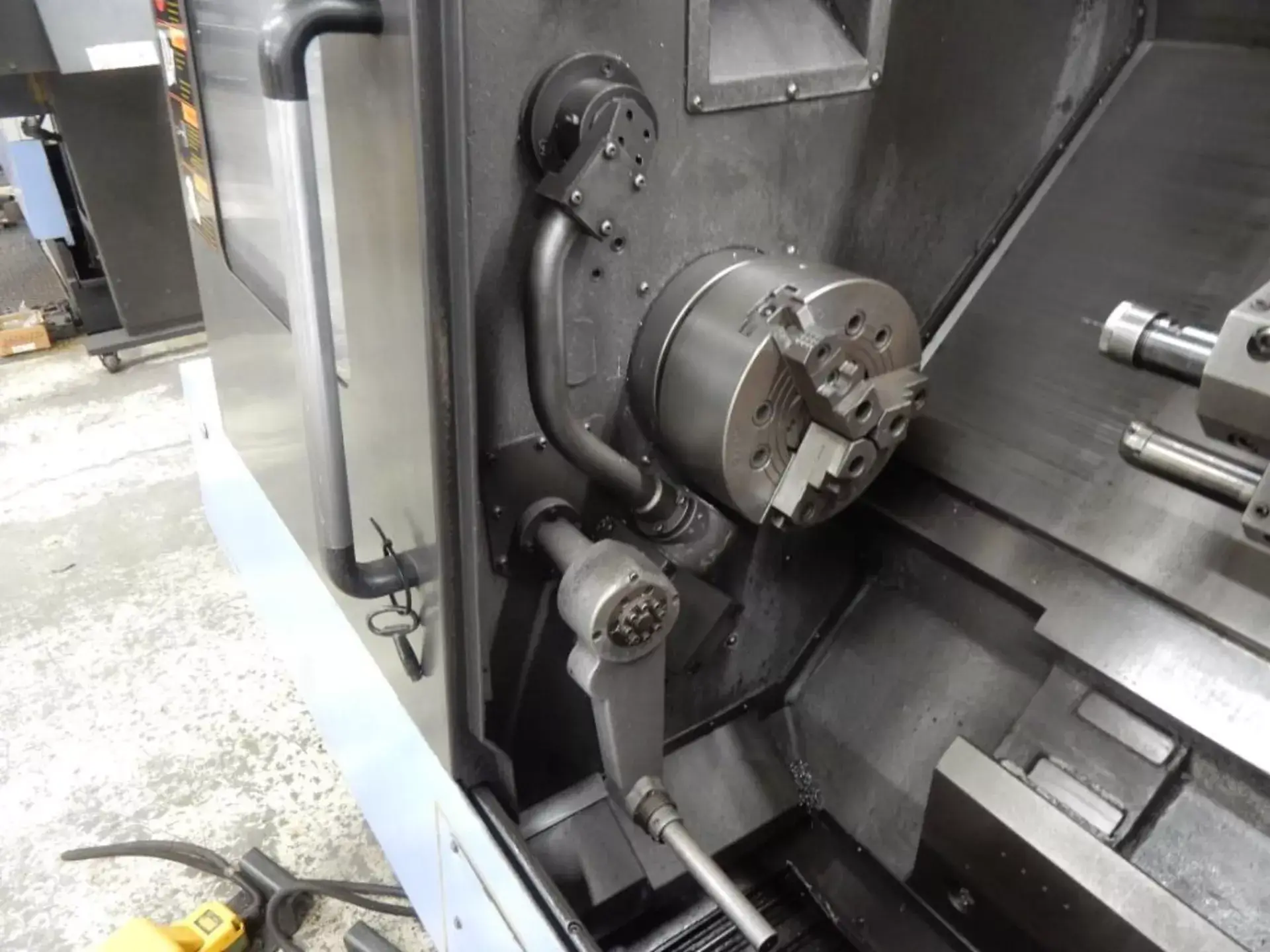

| 10” Hydraulic Chuck |
| 12-Station Turret |
| Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Parts Catcher (optional on many units) |
| Tool Presetter |
| Full Enclosure |
| Capacity: |
| Max Turning Diameter: ~350 mm (13.7”) |
| Max Turning Length: ~562 mm (22”) |
| Swing Over Bed: ~550 mm (21.6”) |
| Swing Over Cross Slide: ~390–400 mm |
| Bar Capacity: ~65 mm (2.5” – 2.6”) |
| Chuck Size: 8” – 10” (typical configuration) |
| Travels: |
| X-Axis Travel: ~240 mm (9.5”) |
| Z-Axis Travel: ~580 mm (22.8”) |
| Rapid Traverse (X): ~945 IPM |
| Rapid Traverse (Z): ~945–1180 IPM |
| Spindle: |
| Spindle Speed: Up to 4,500 RPM |
| Spindle Motor: ~15–25 HP (11–18.5 kW) |
| Spindle Nose: A2-6 / A2-8 (variant dependent) |
| Spindle Bore: ~76 mm (3”) |

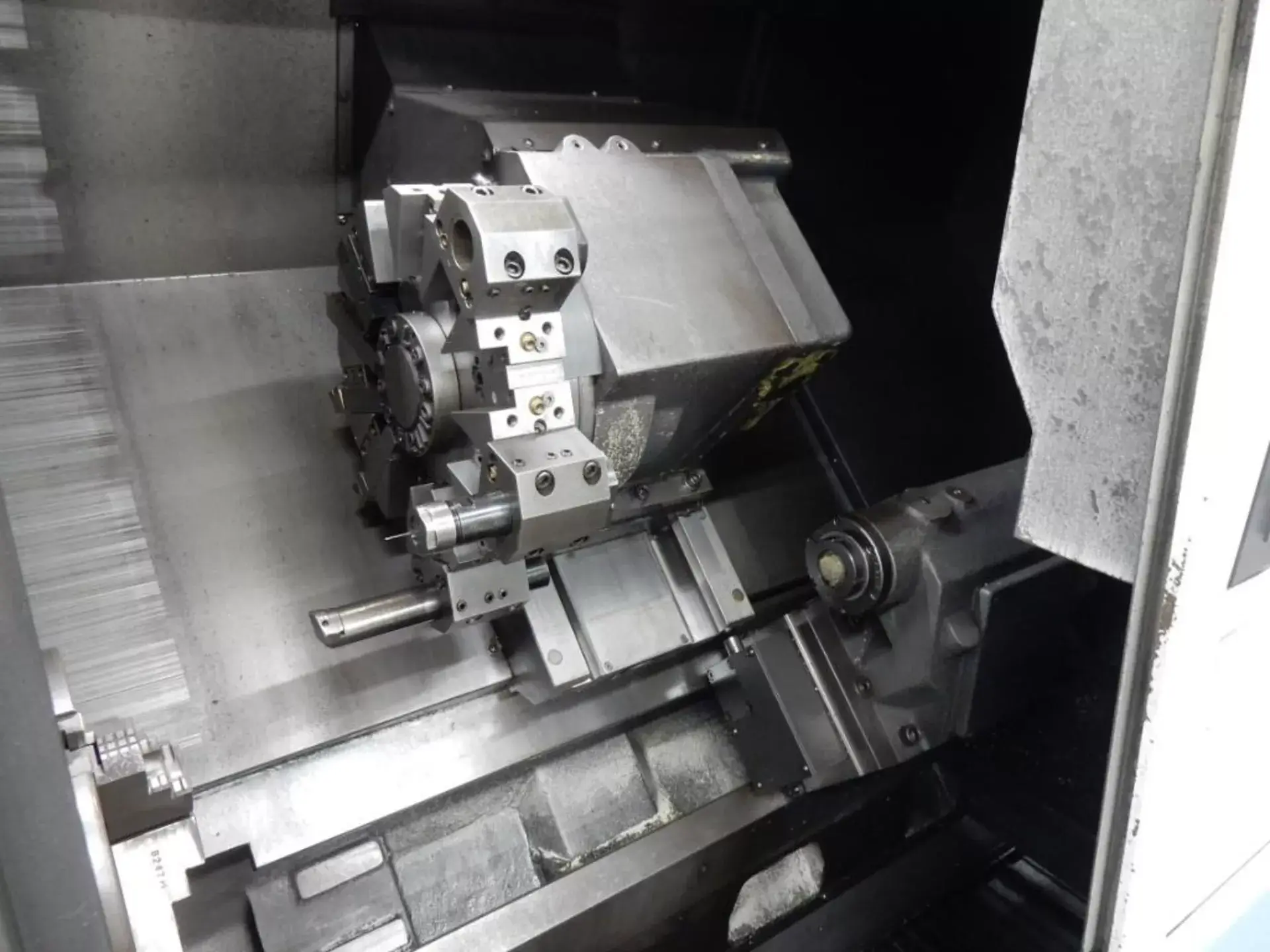

| Tooling: |
| Turret Capacity: 12 Stations |
| Turret Index Time: ~0.15 sec |
| Heavy-duty servo-driven turret |
| Systems: |
| Coolant Tank & Pump |
| Efficient Chip Evacuation System |
| Hydraulic System for Chuck & Tailstock |

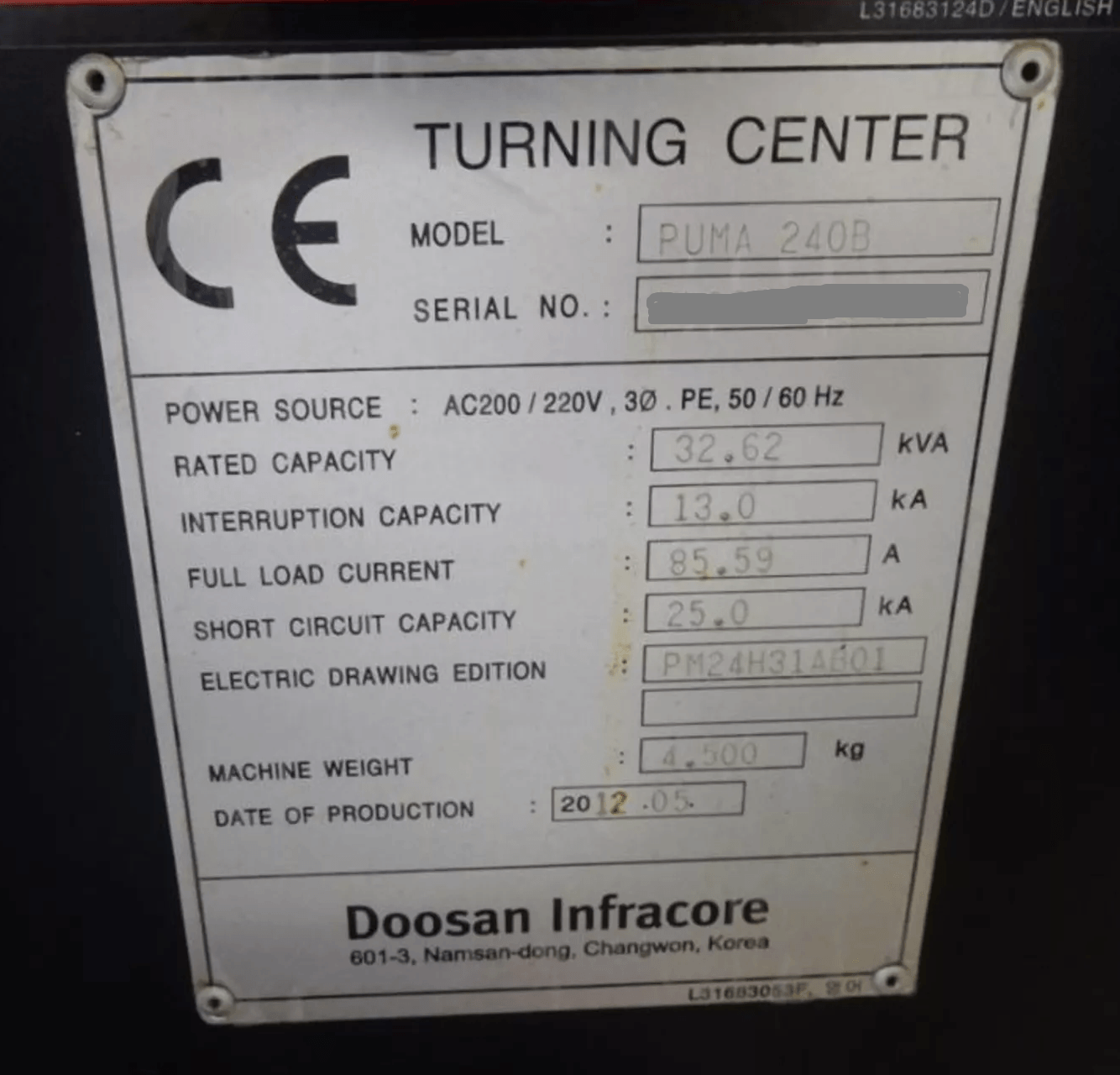

| Electrical: |
| Voltage: 200 / 220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Capacity: ~32.62 kVA |
| Full Load Current: ~85.59 A |
| General: |
| Machine Weight: ~4,000 – 4,500 kg |
| Machine Dimensions (Approx): ~3000 × 1600 × 1750 mm |
| Features: |
| Heavy-duty box way construction → excellent rigidity |
| Compact footprint with high productivity |
| High-speed turret indexing reduces cycle time |
| Fanuc control → globally supported & reliable |
| Stable machining for medium-duty production |
| Ideal for shaft, flange, and general turned parts |
