*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

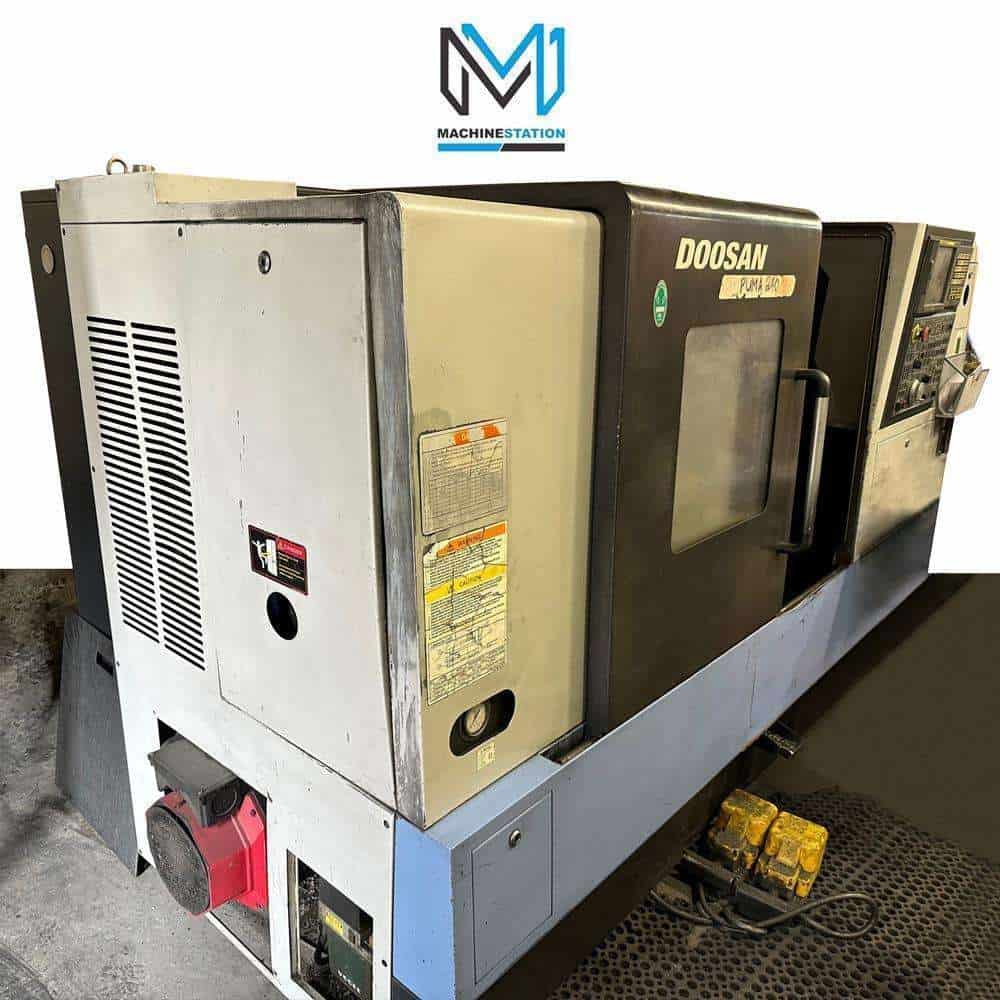

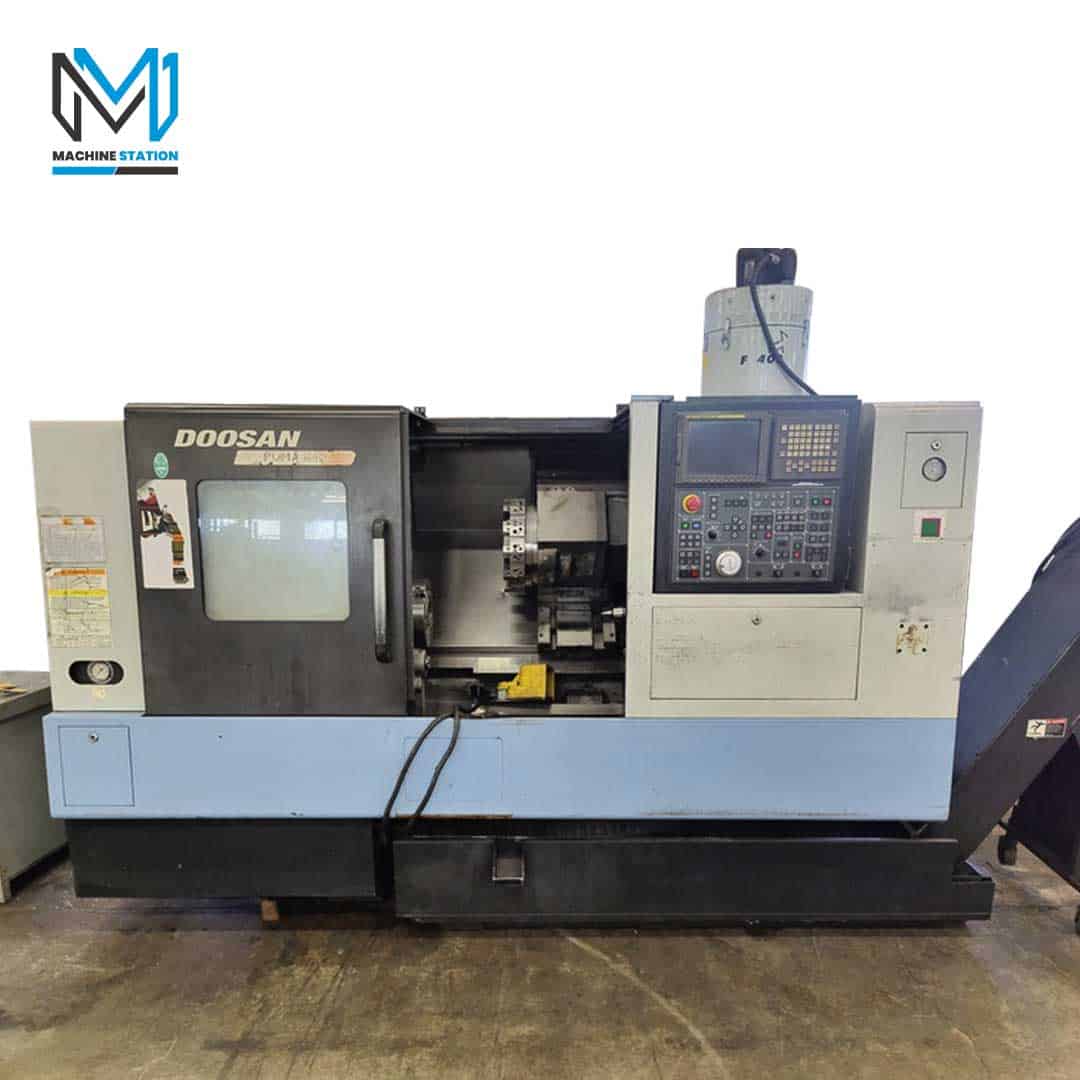

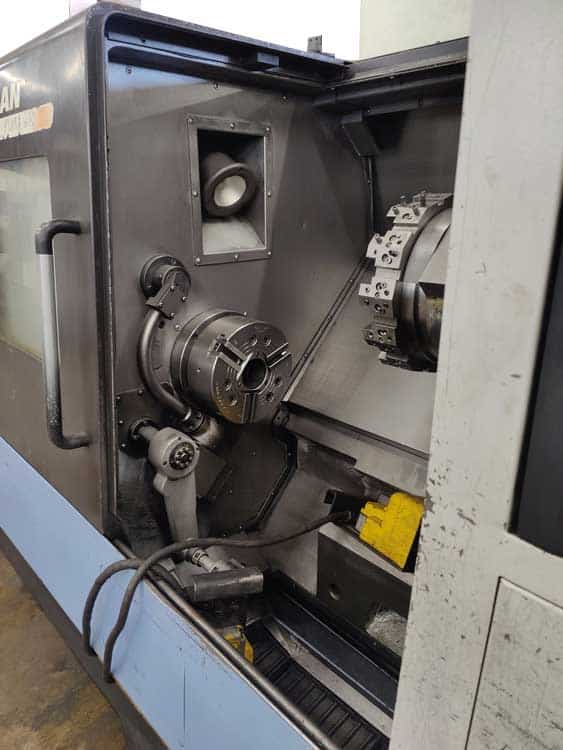

| Make: | DOOSAN |
| Model: | PUMA 240C |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

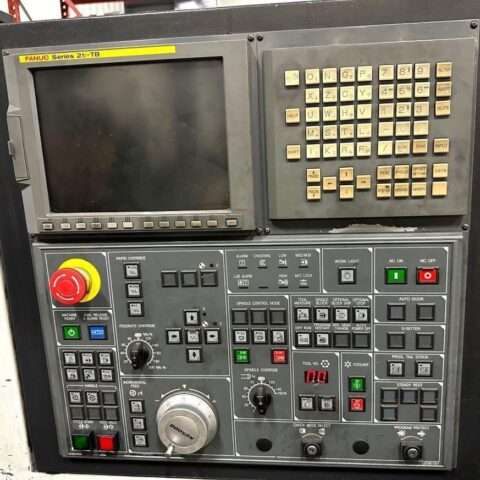

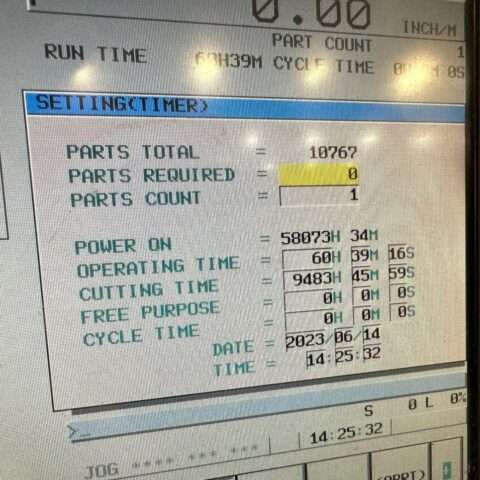

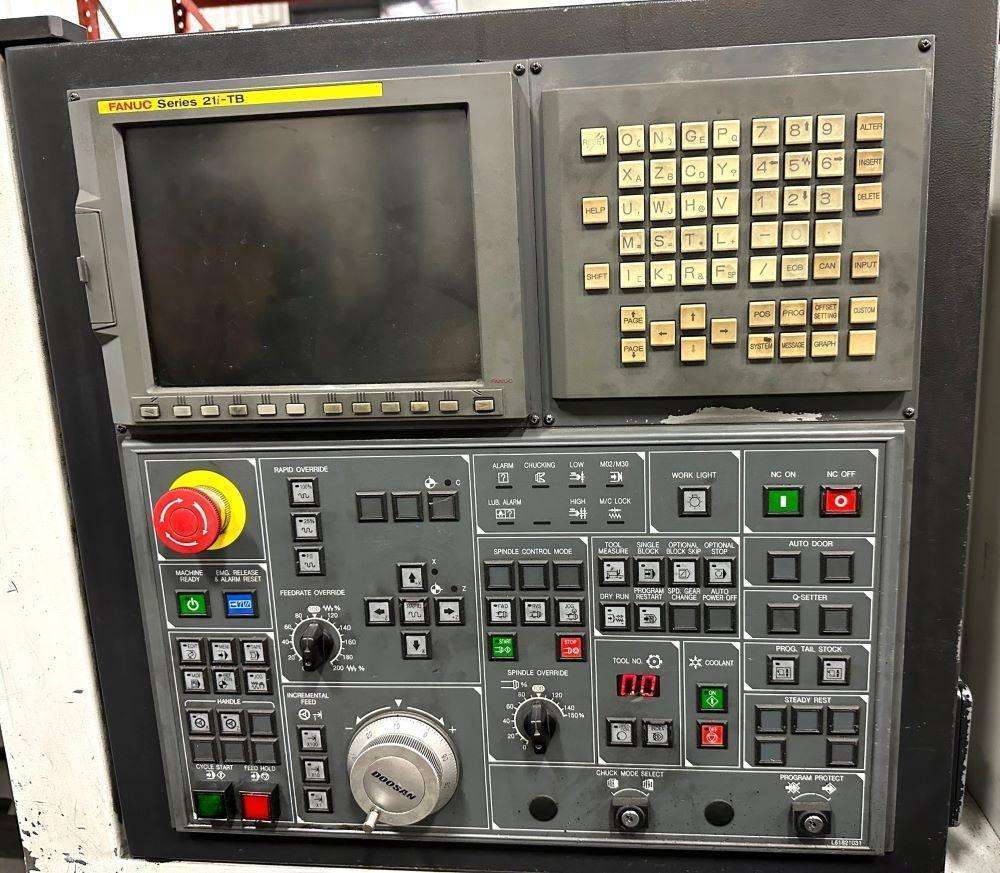

| Fanuc 21i-TB CNC Control |
| Box Way Construction |

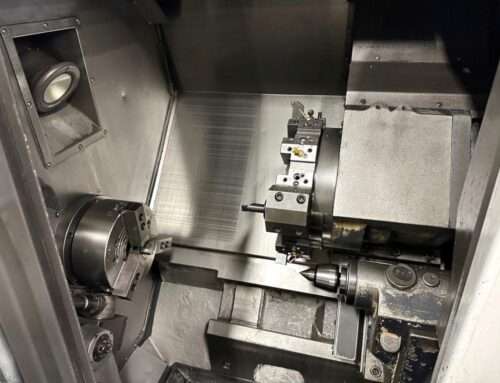

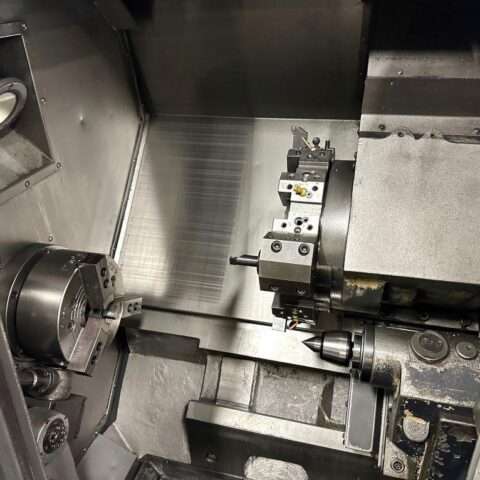

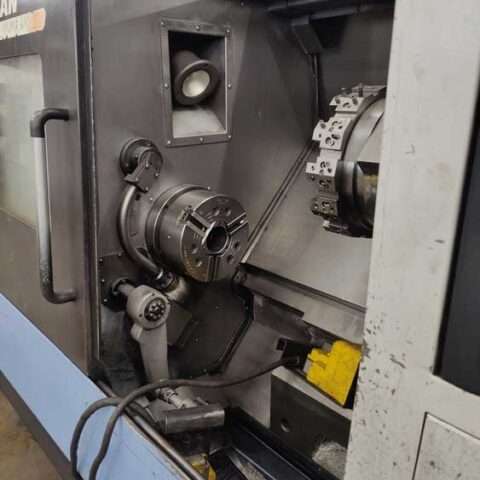

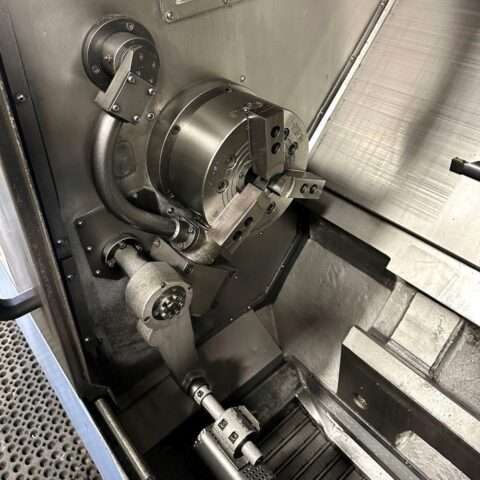

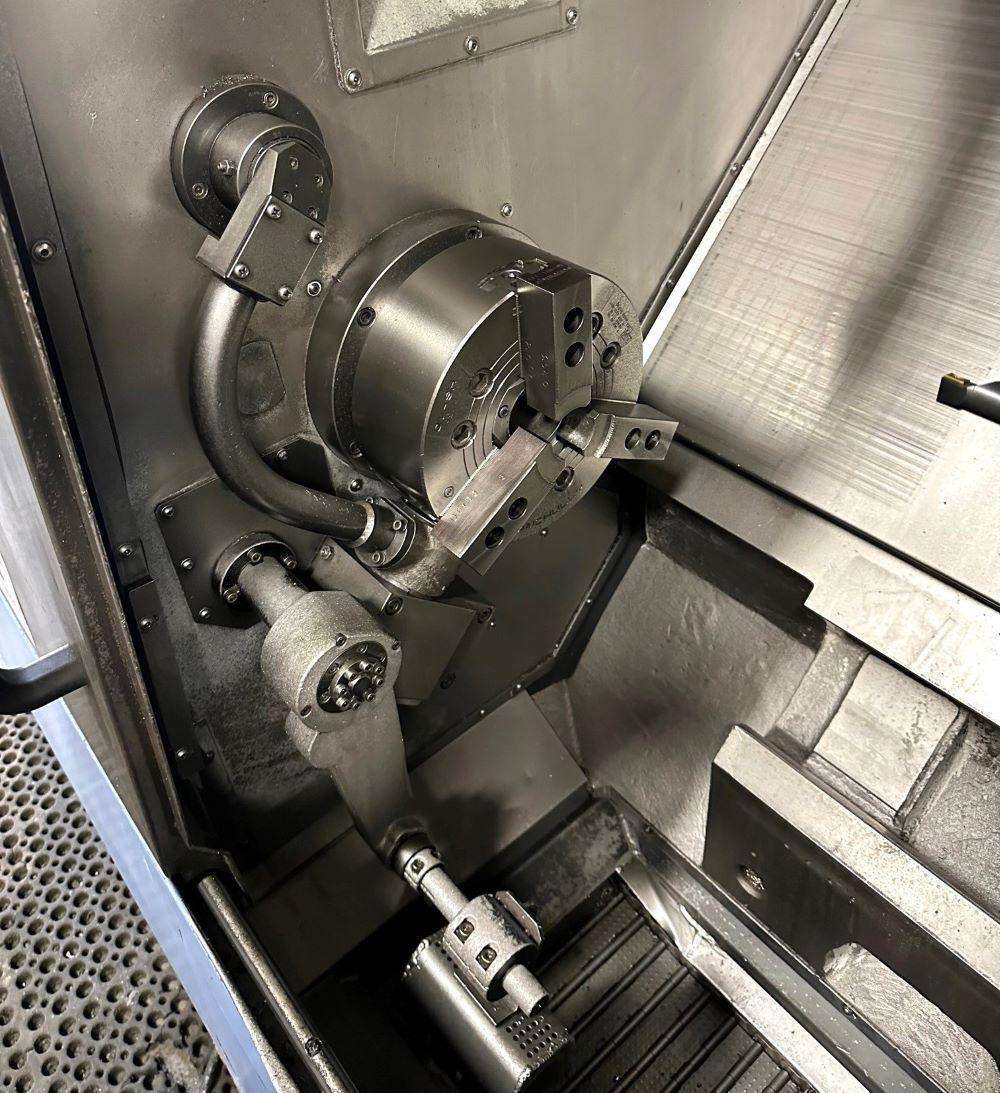

| 10″ Big Bore Chuck |
| A2-8, 3.38″ Bore Spindle |

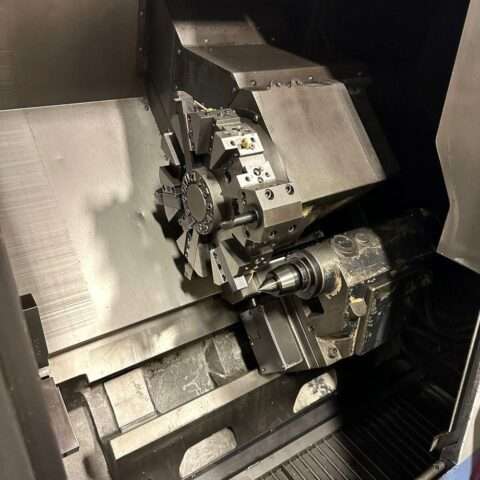

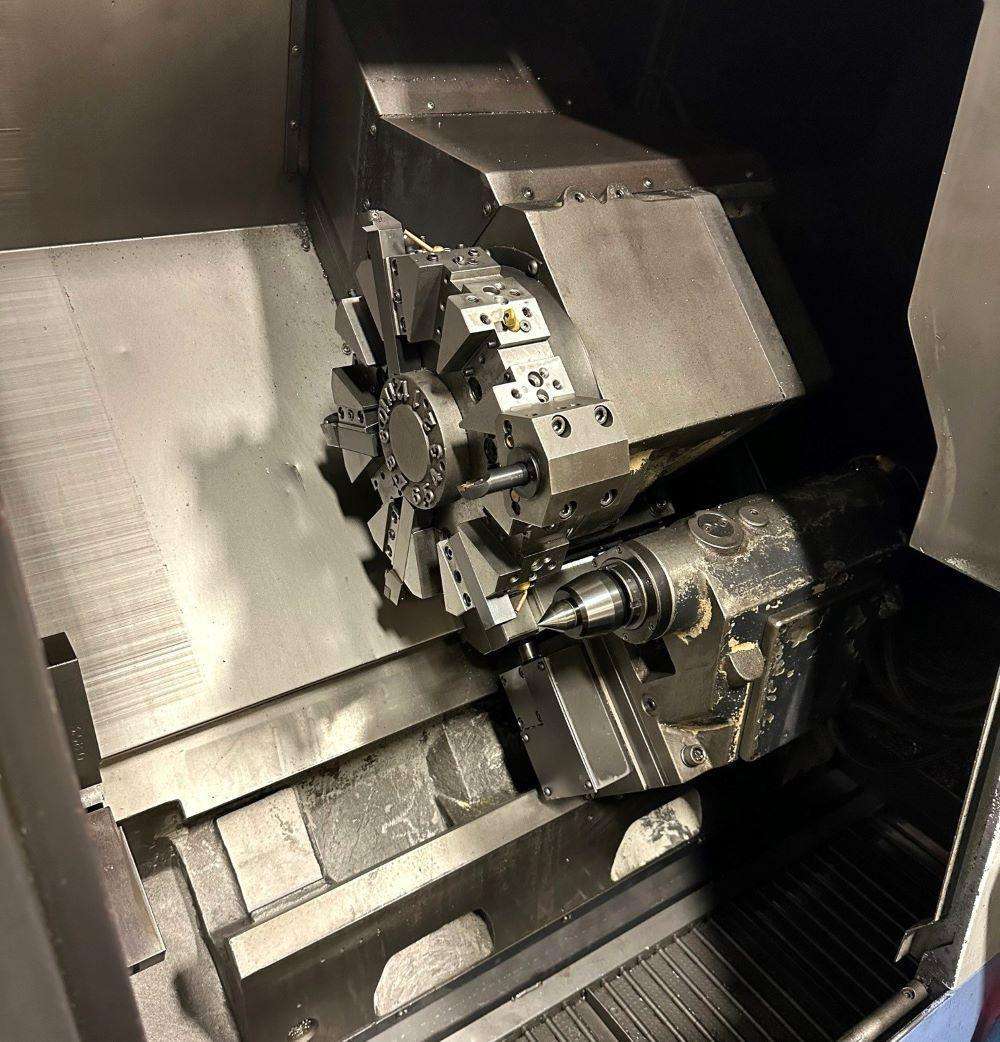

| 12 Station Automatic Turret |
| Tool Presetter |
| Parts Catcher |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| Coolant System |

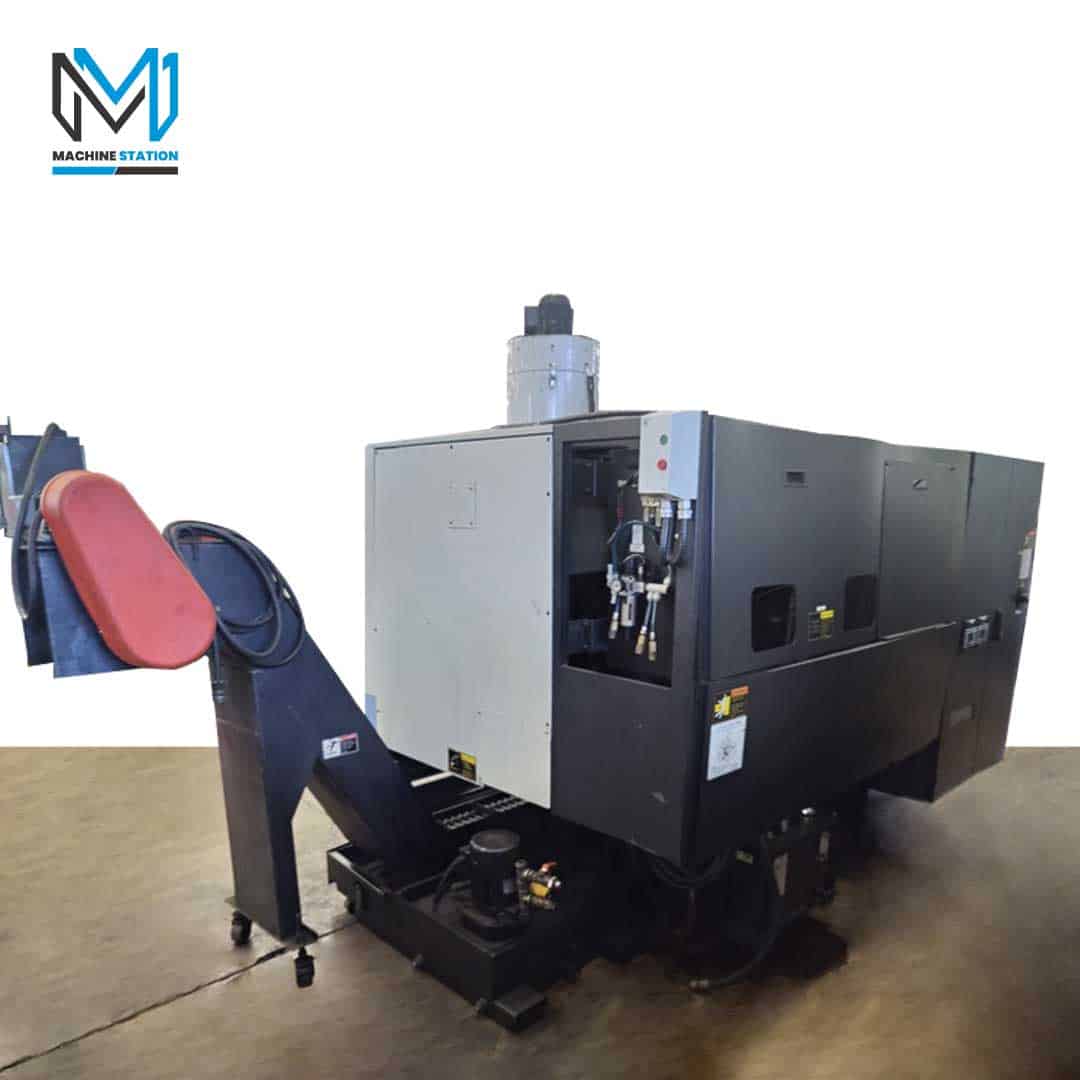

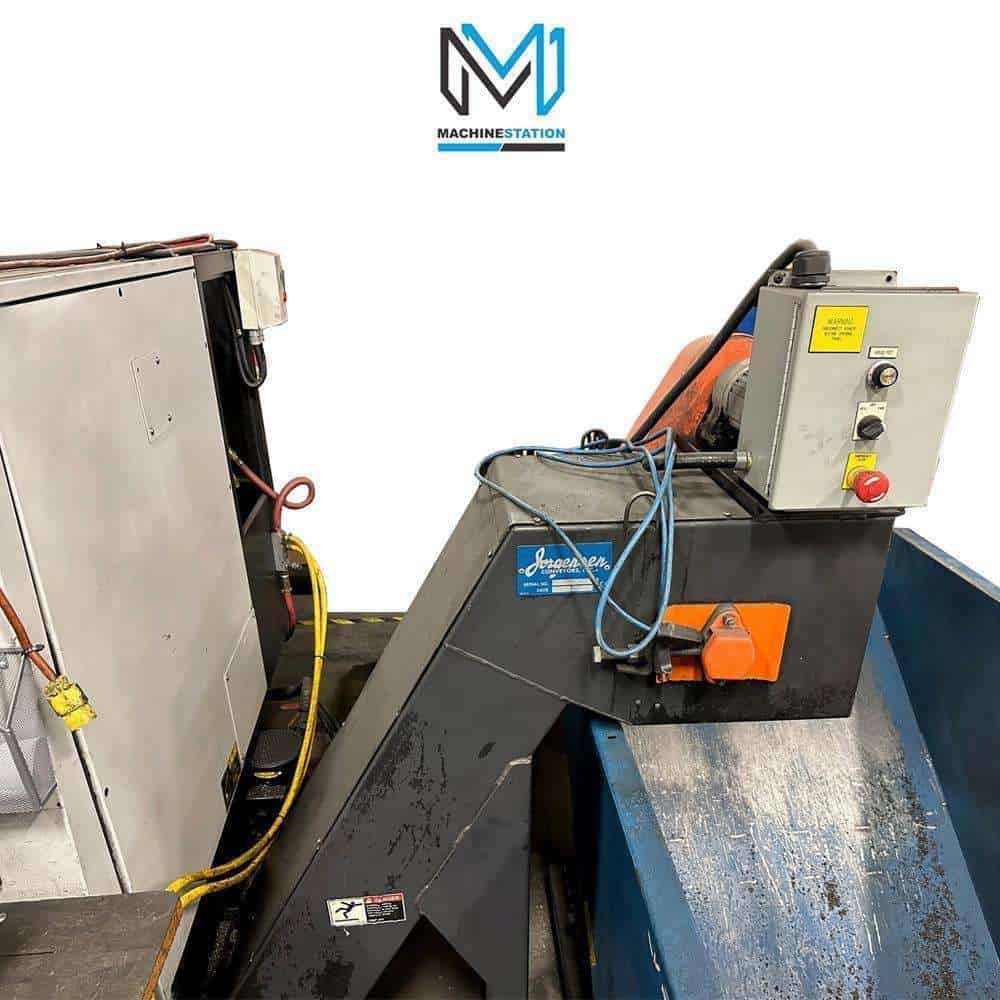

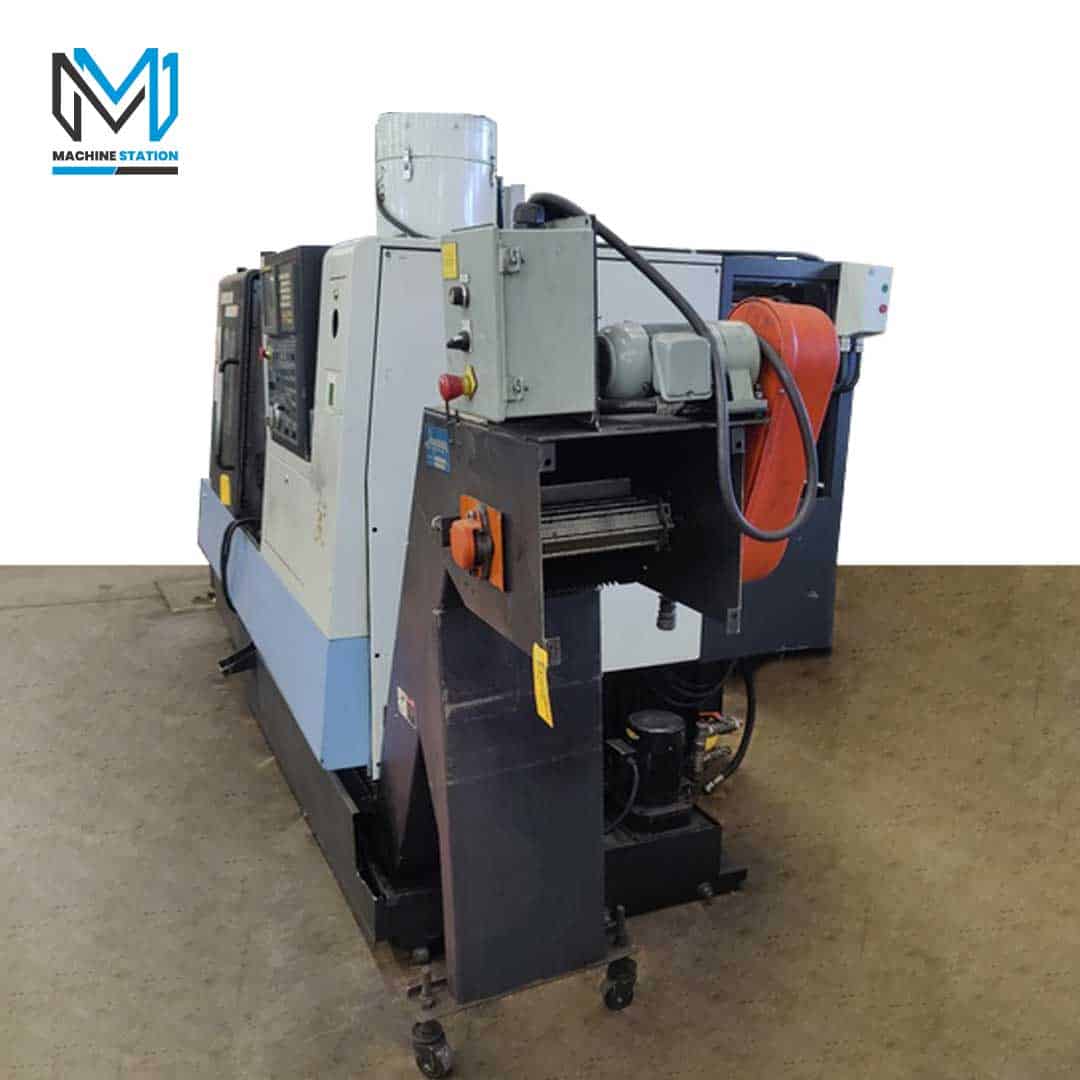

| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 13.7″ |
| Max Turning Length: 22.2″ |
| Max Bar Capacity: 3.0″ |
| Swing Over Bed: 21.65″ |
| Swing Over Carriage: 15.7″ |
| Distance Between Centers: 26.3″ |
| Travels: |
|---|
| X Axis Travel: 9.5″ |
| Z Axis Travel: 22.8″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Speed: 0-3500 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 20.5″ |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.7″ |
| Tailstock Quill Travel: 3.7″ |
| General: |
|---|

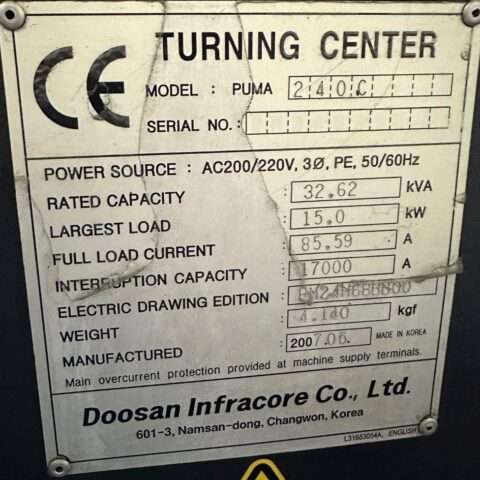

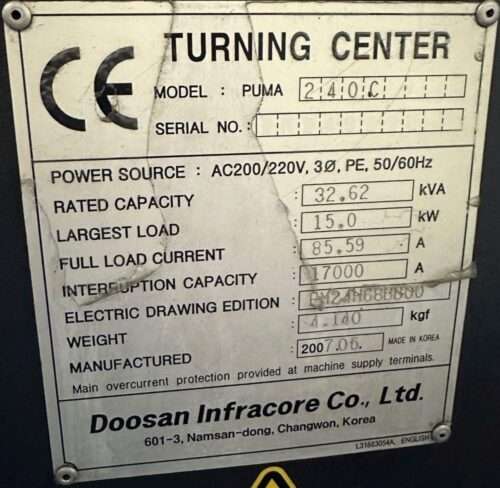

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 32.62 kva |
| Overall Dimensions: 128″ x 77″ x 80″ High |
| Weight : 9,127 lbs Approx. |
