*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112777 |

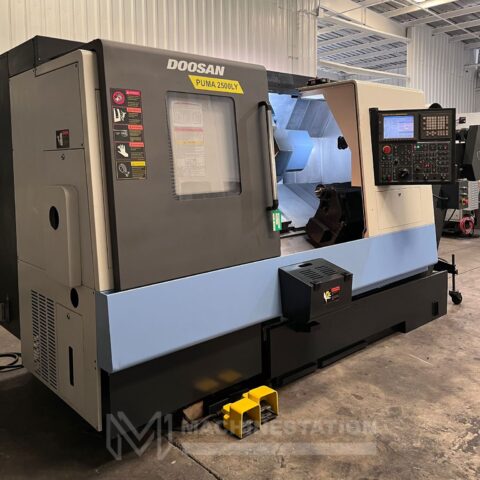

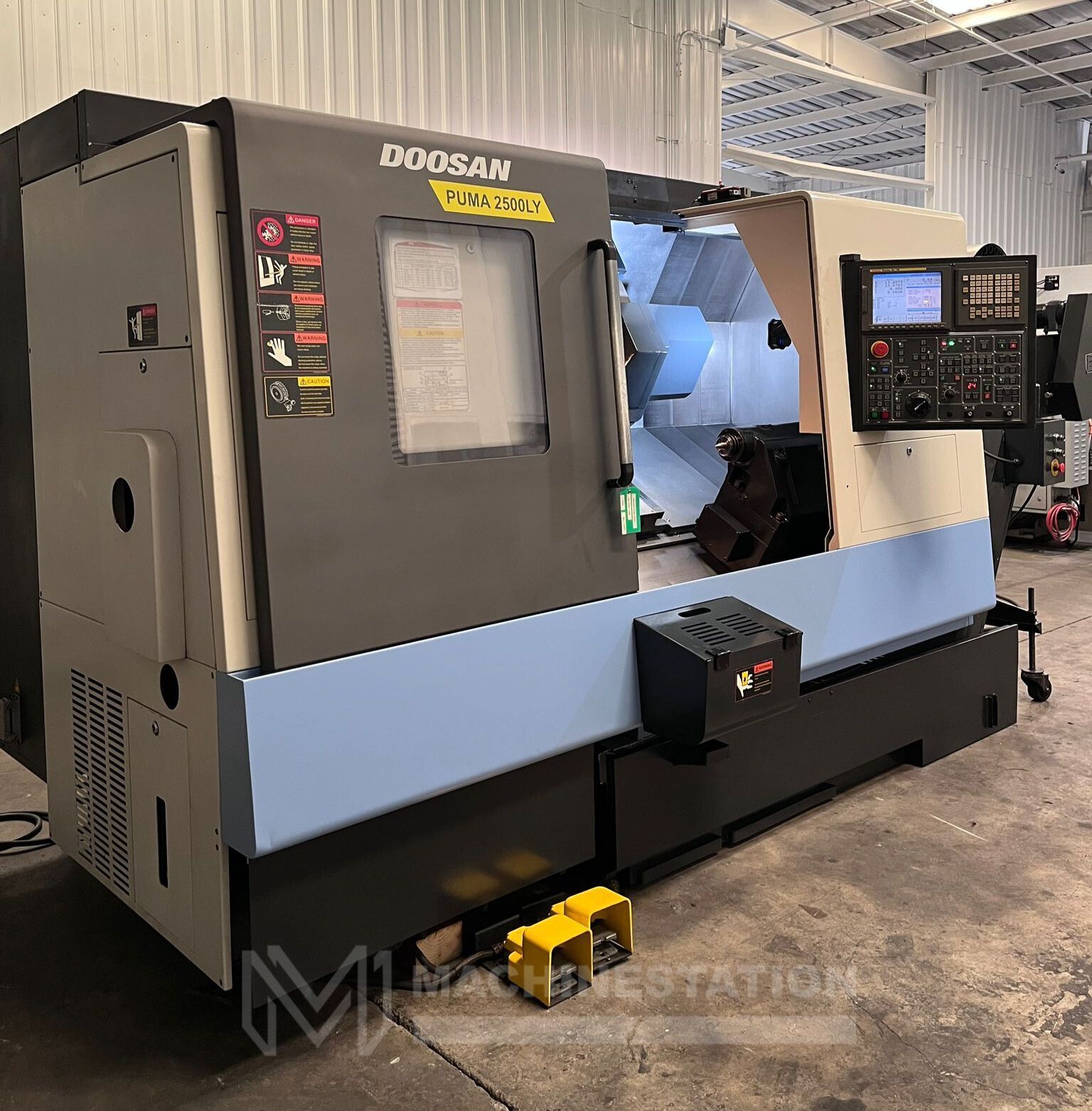

| Make: | Doosan |

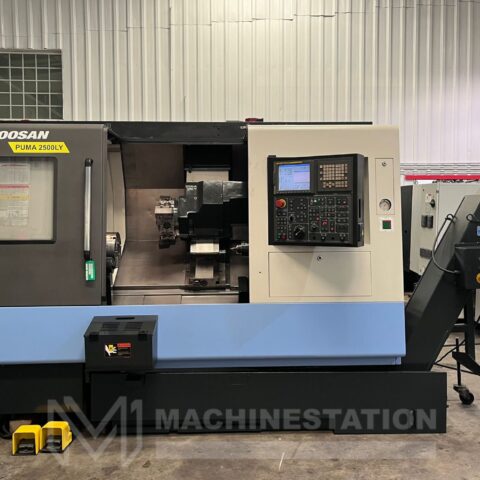

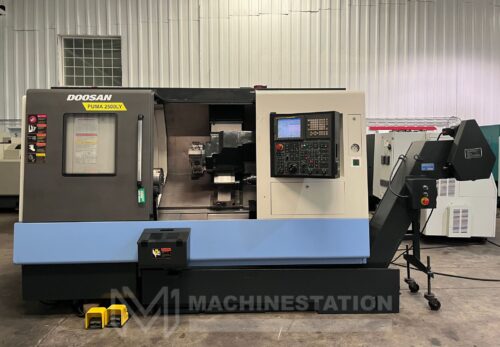

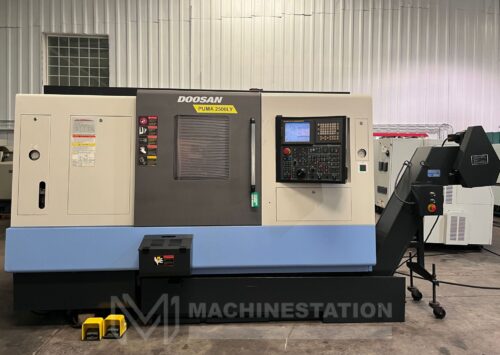

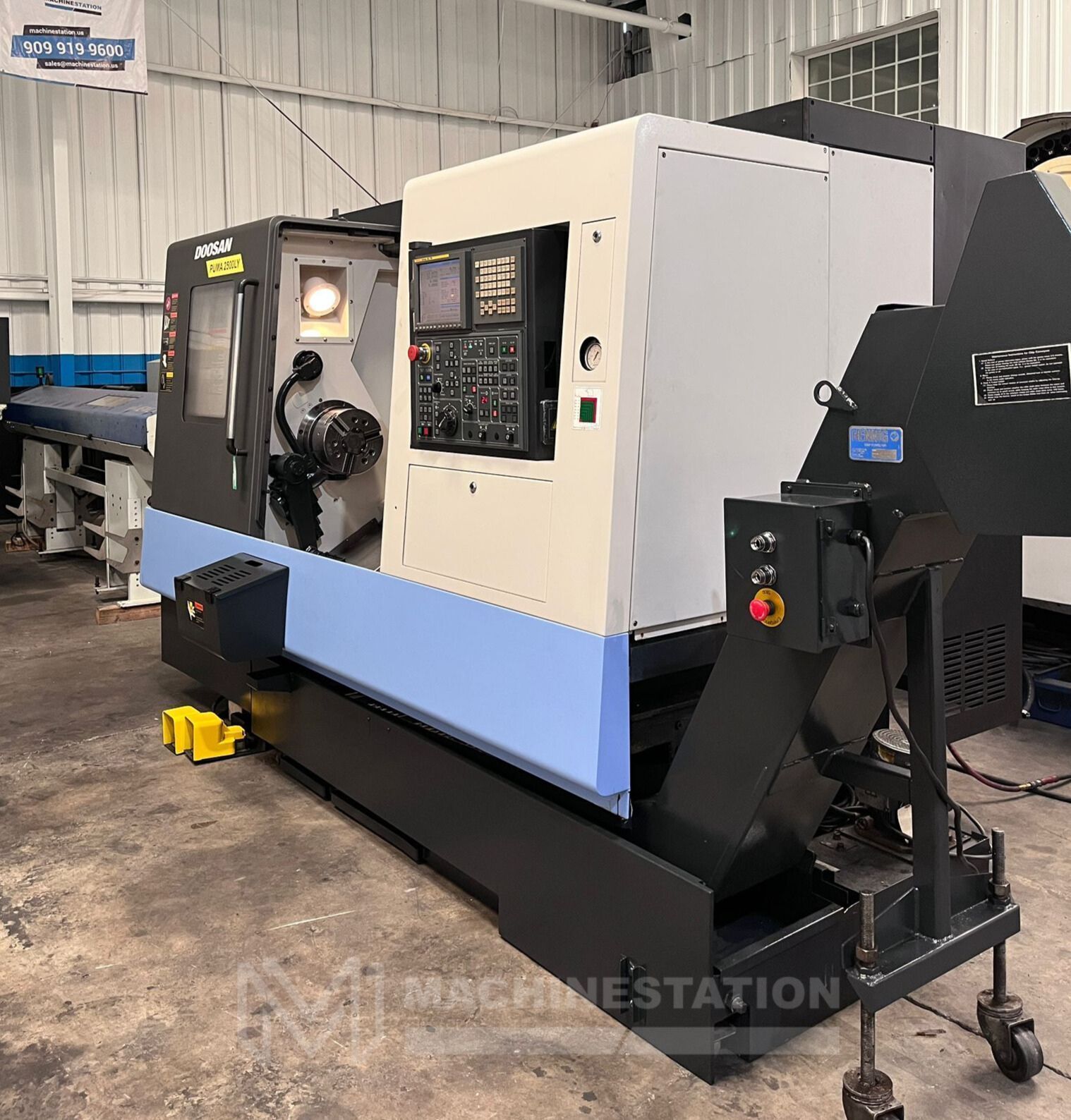

| Model: | Puma 2500LY |
| Year: | 2008 |
| Condition: | Used – Good |
| Equipped With: |
|---|

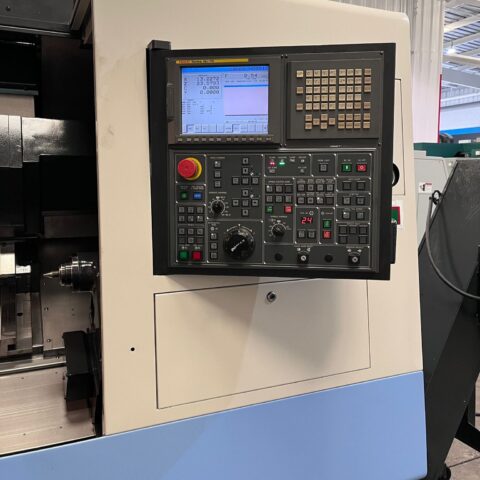

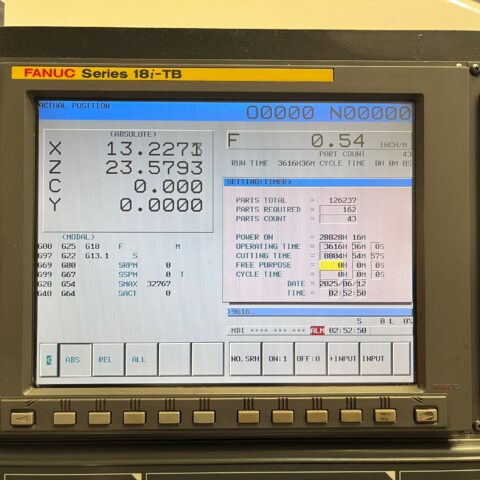

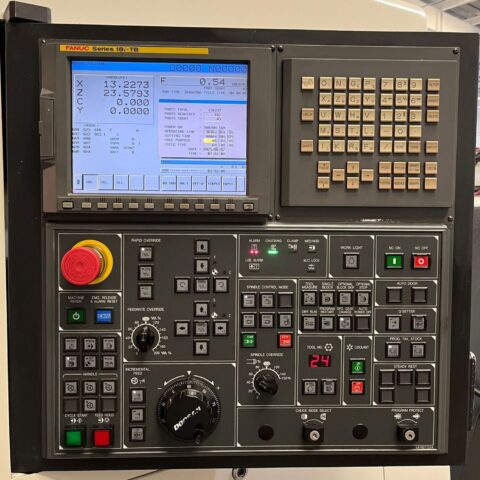

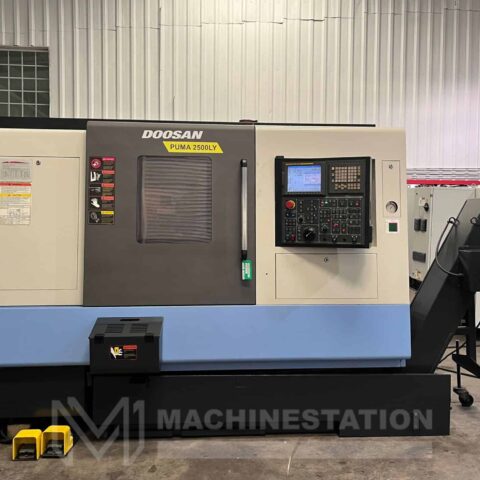

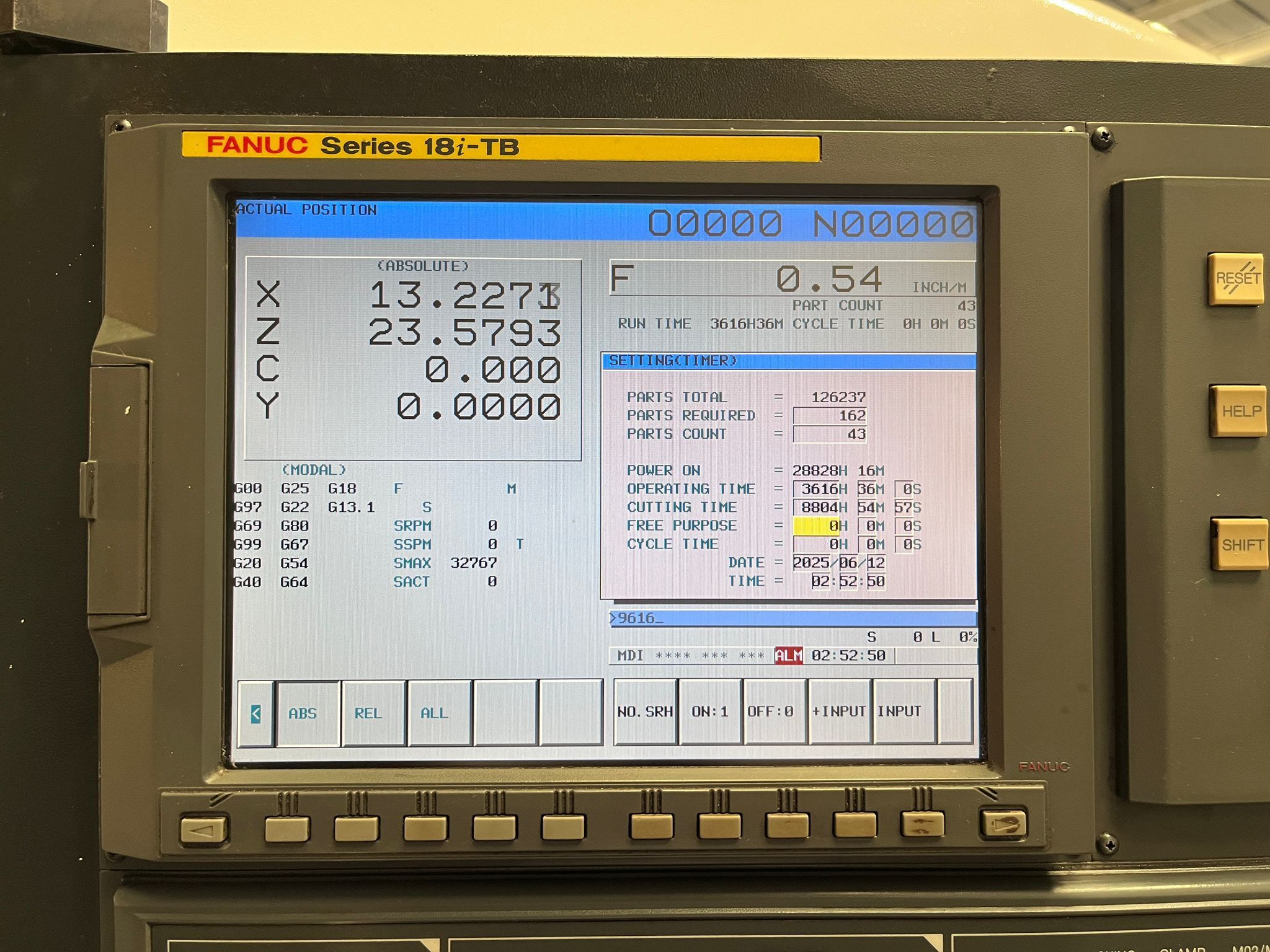

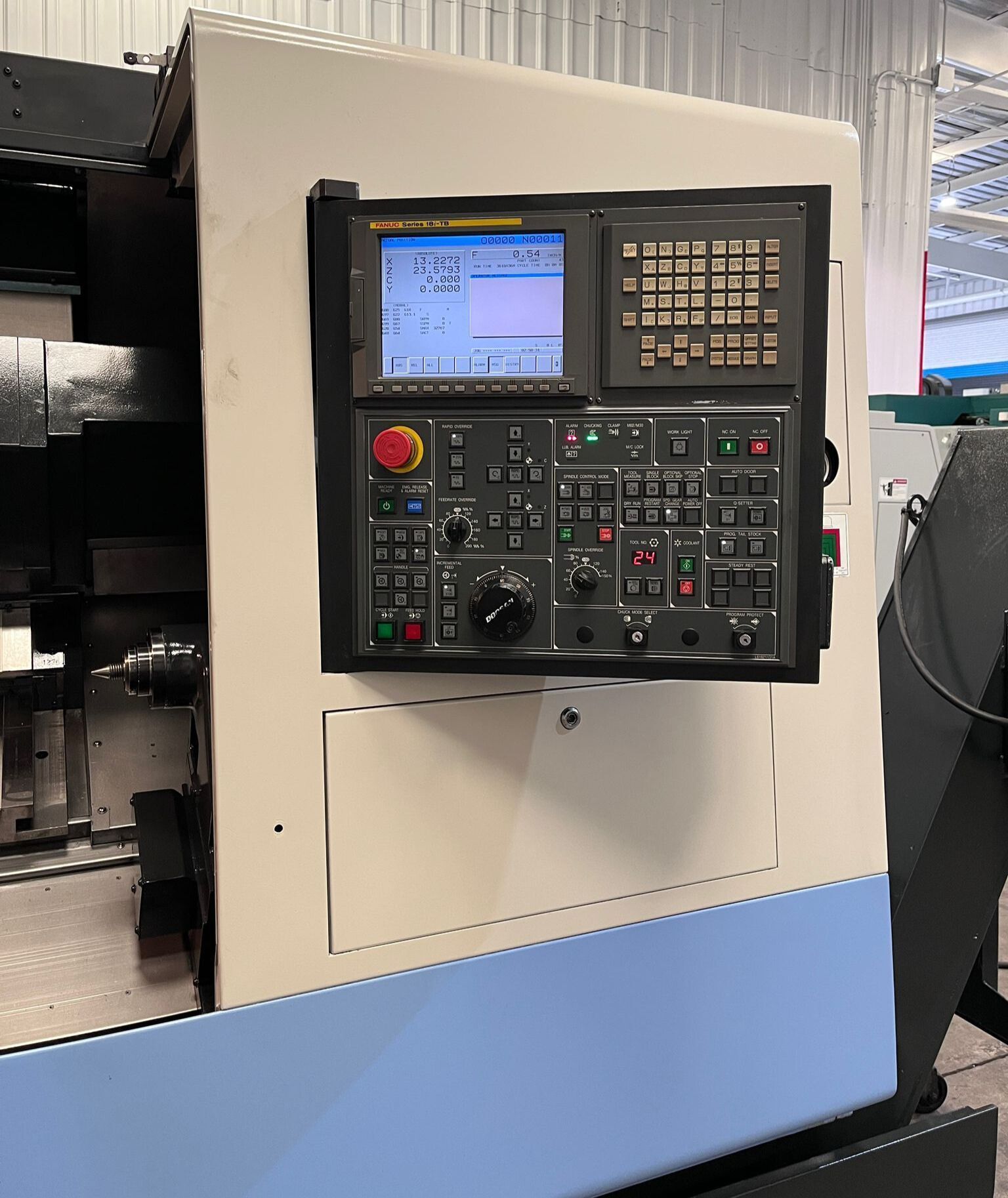

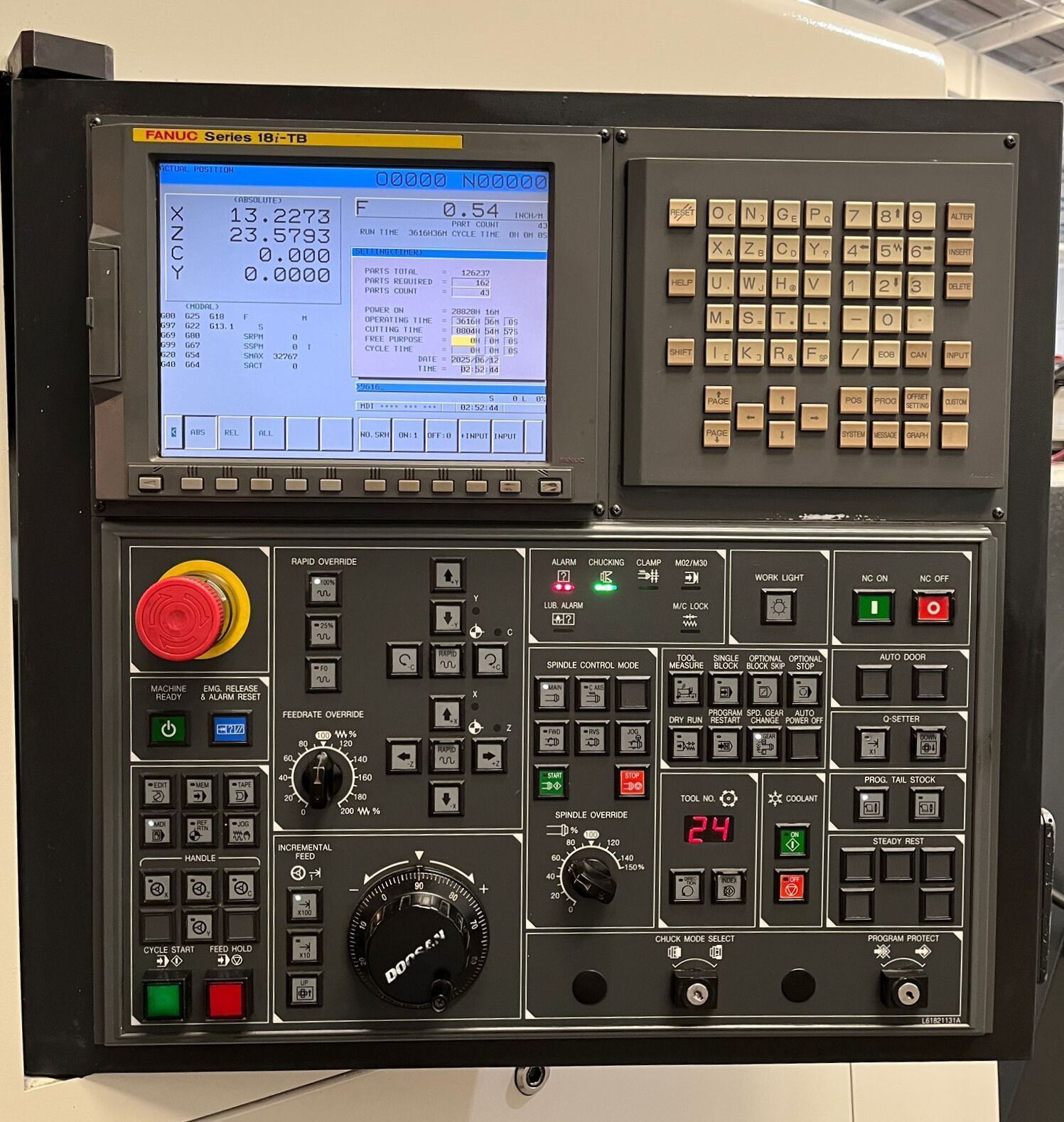

| Fanuc 18i-TB series CNC Control |

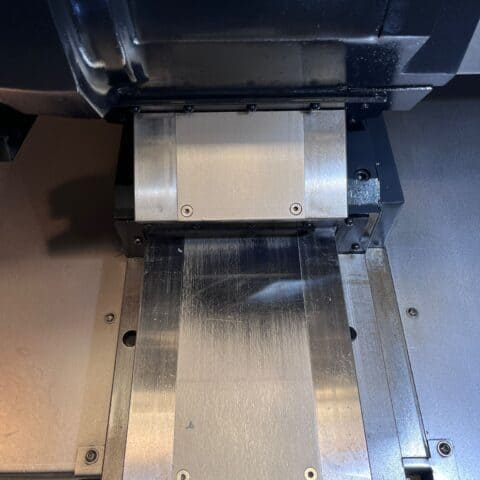

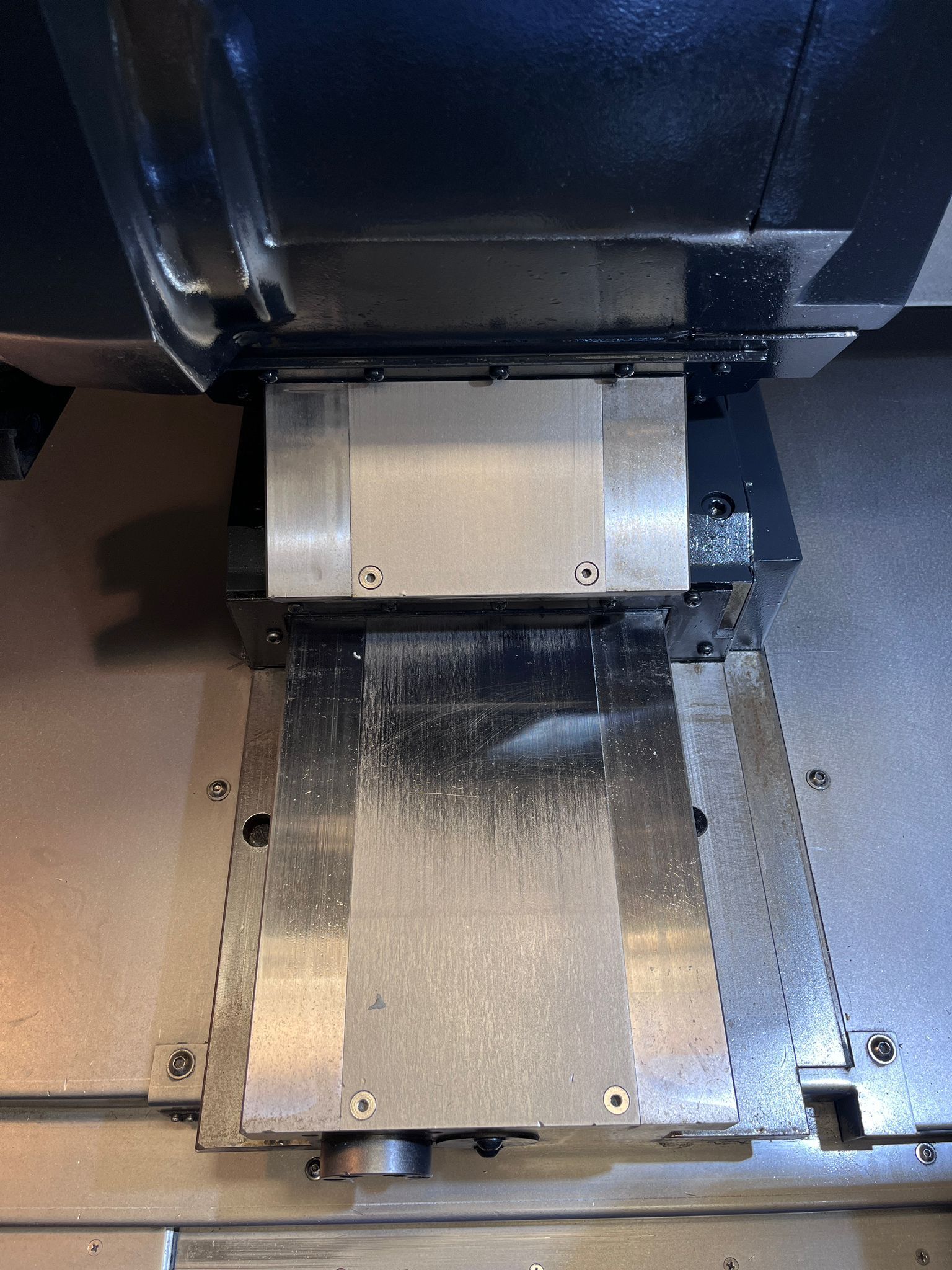

| Heavy Duty Box Way Construction |

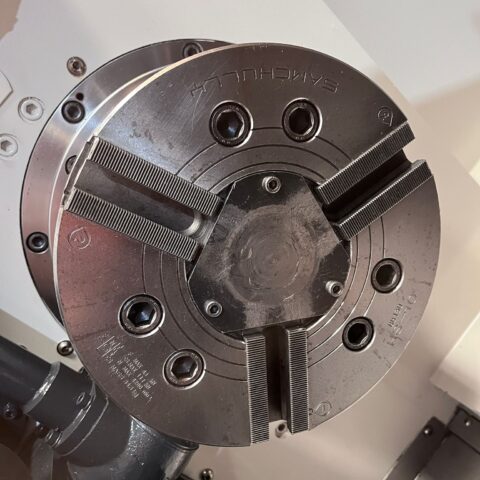

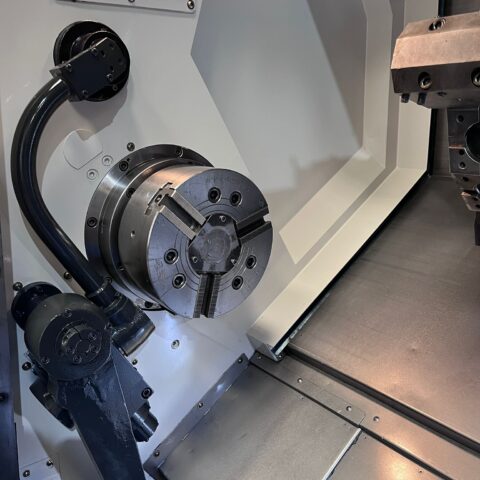

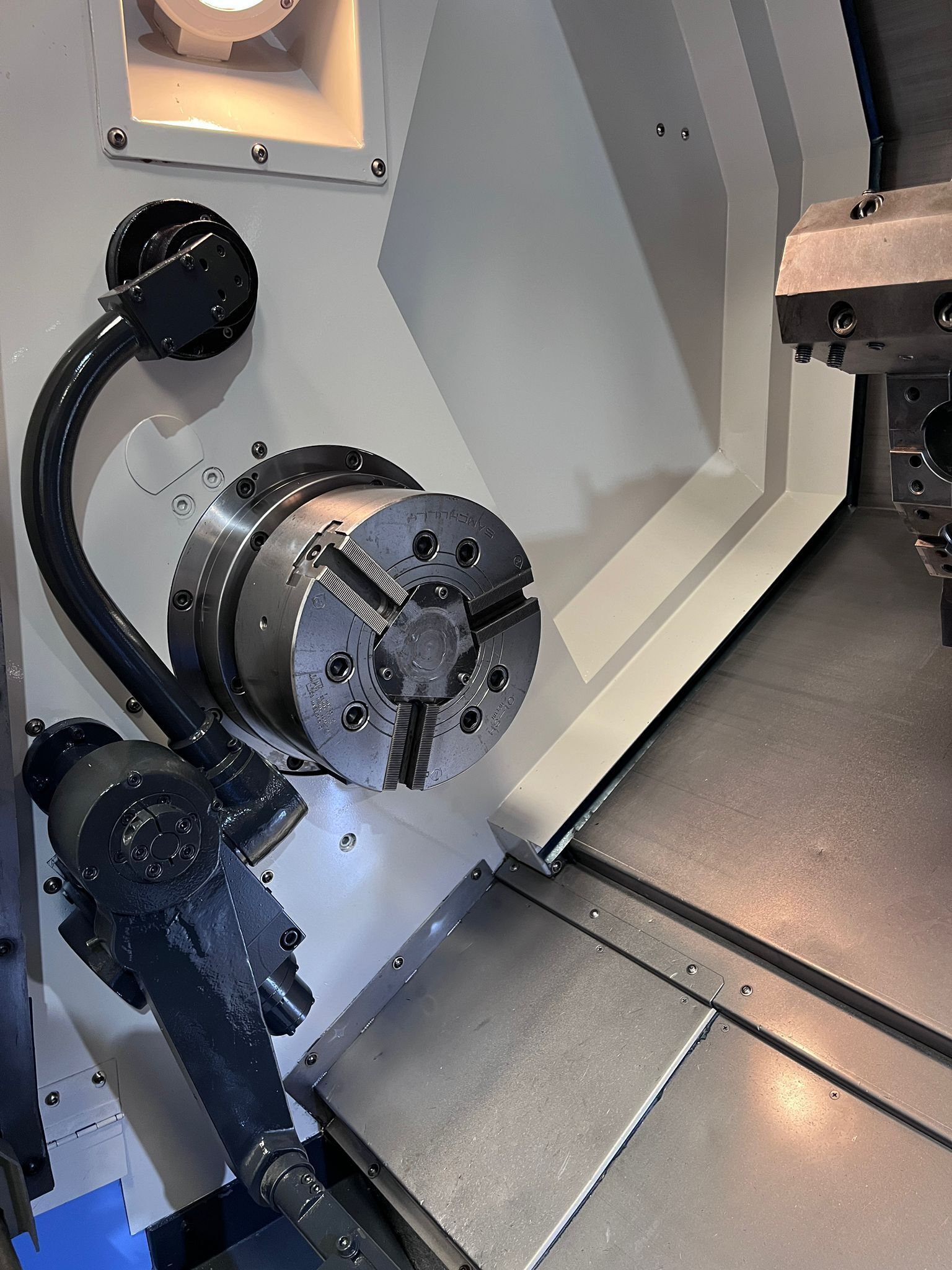

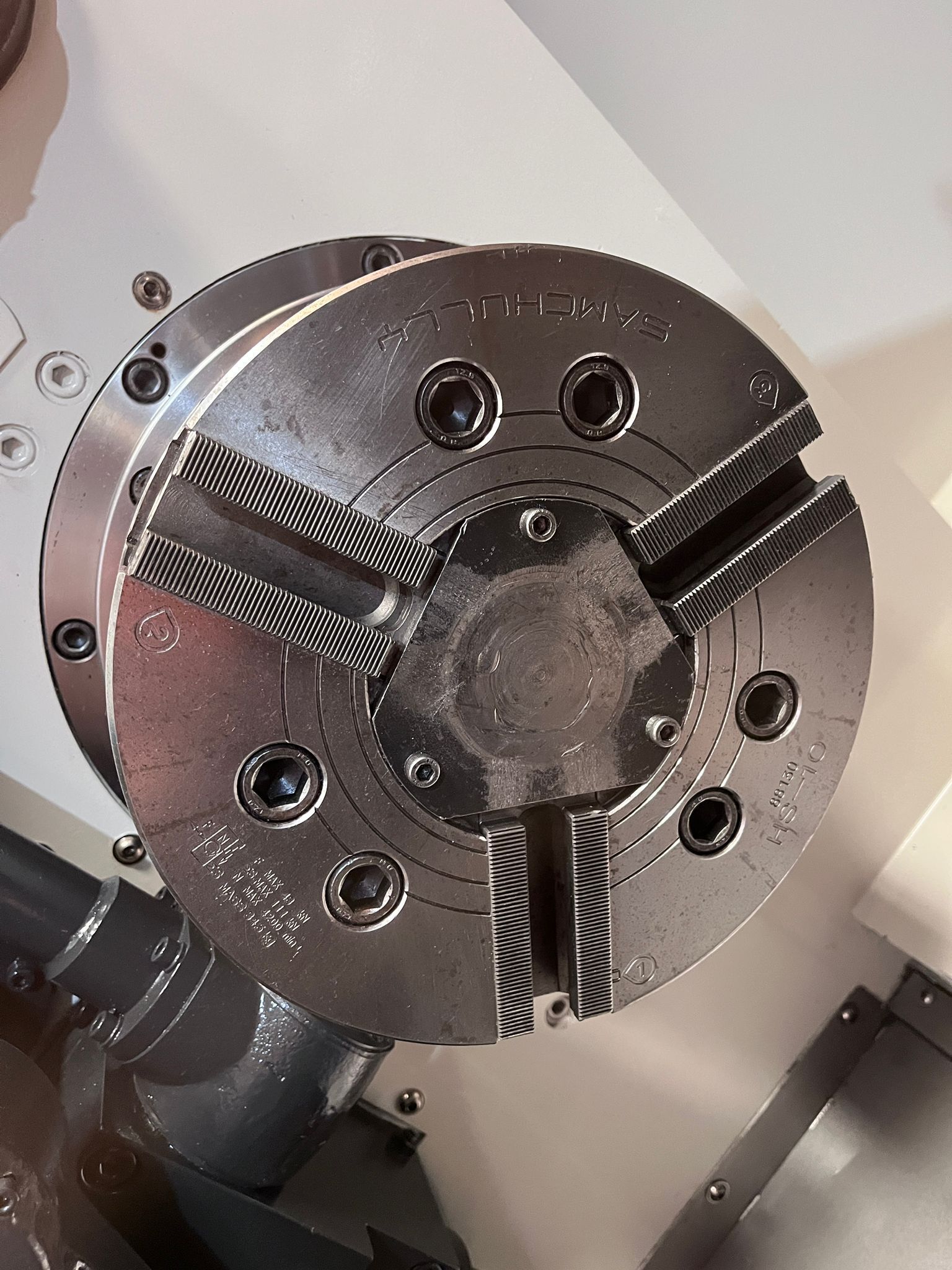

| 10″ 3-Jaw Samchully Hydraulic Chuck |
| 3.38″ Spindle Bore |
| Servo Controlled C Axis on Spindle |

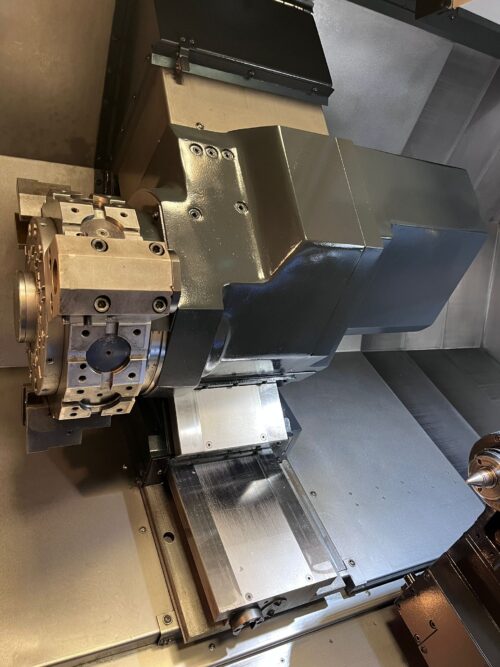

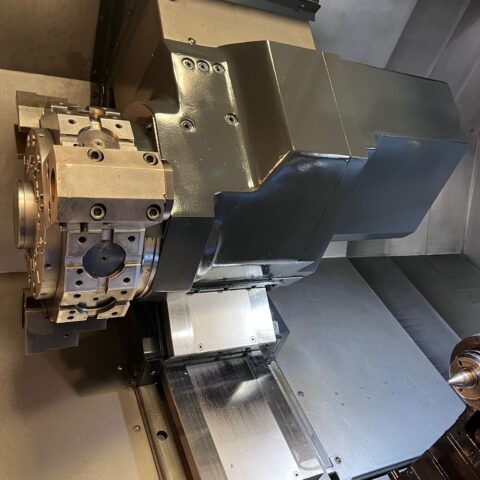

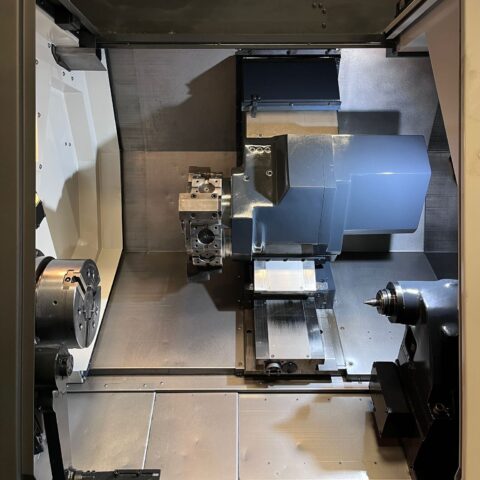

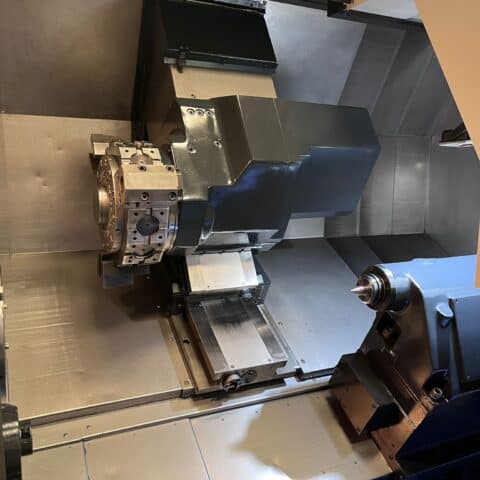

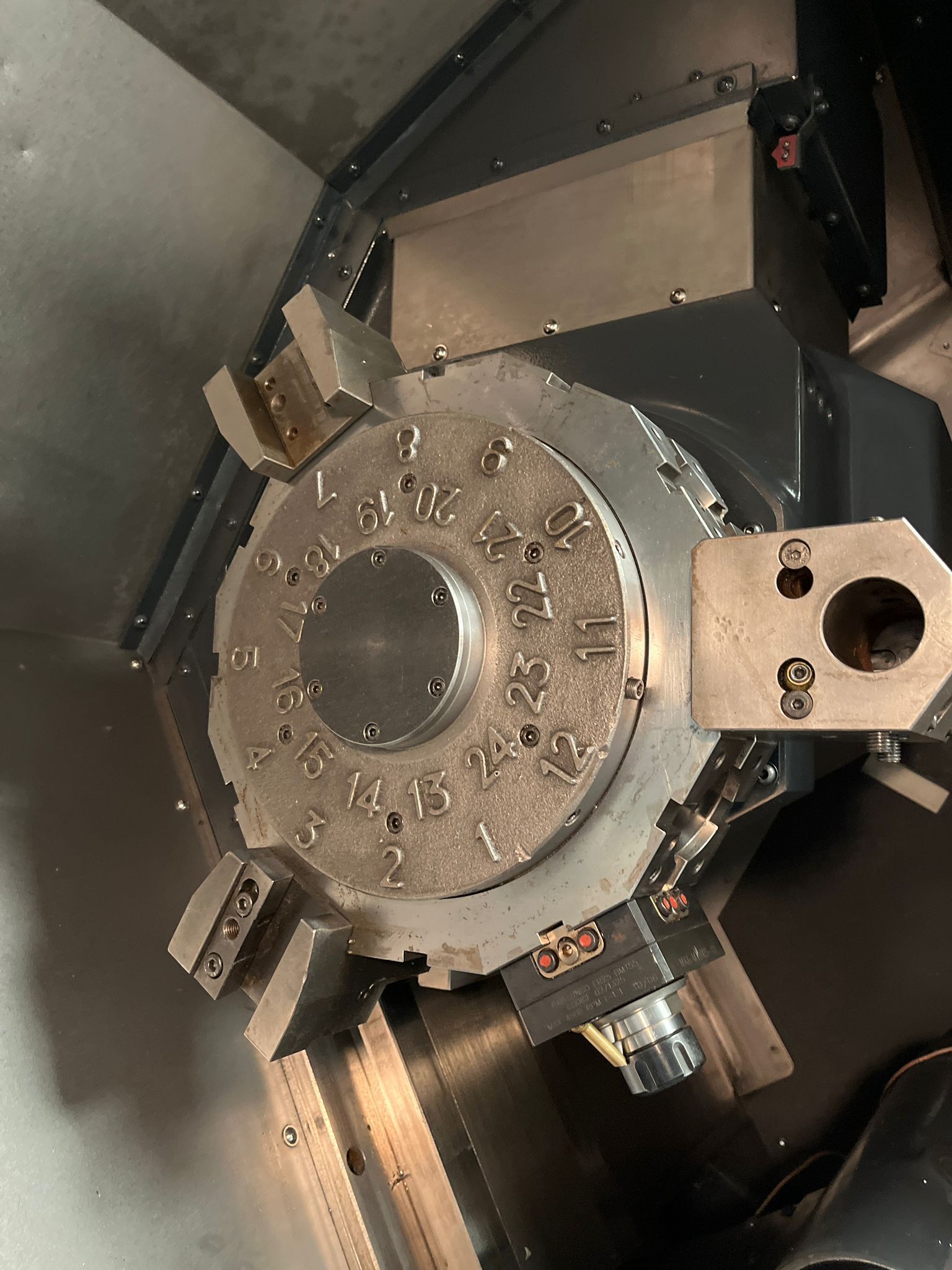

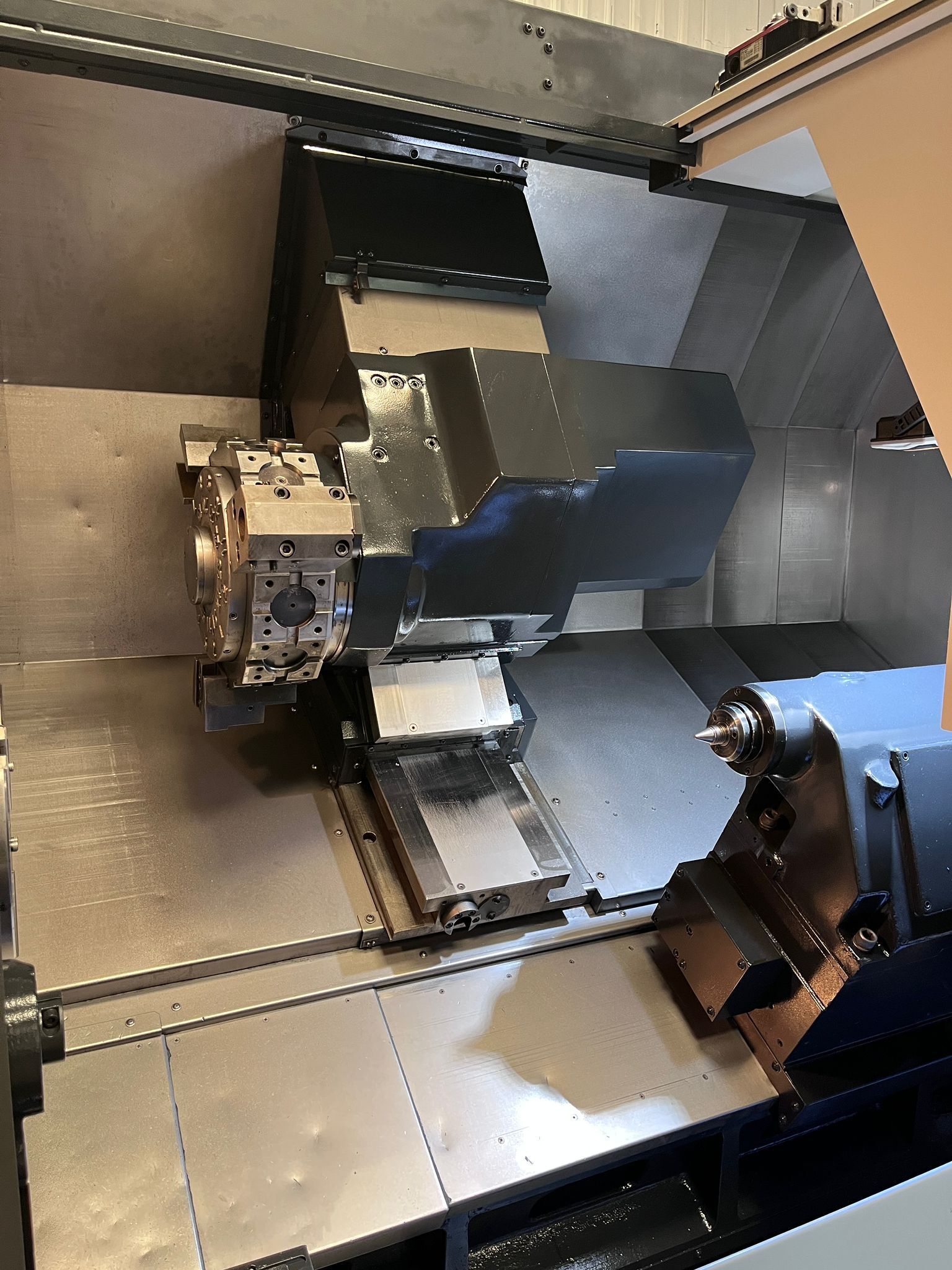

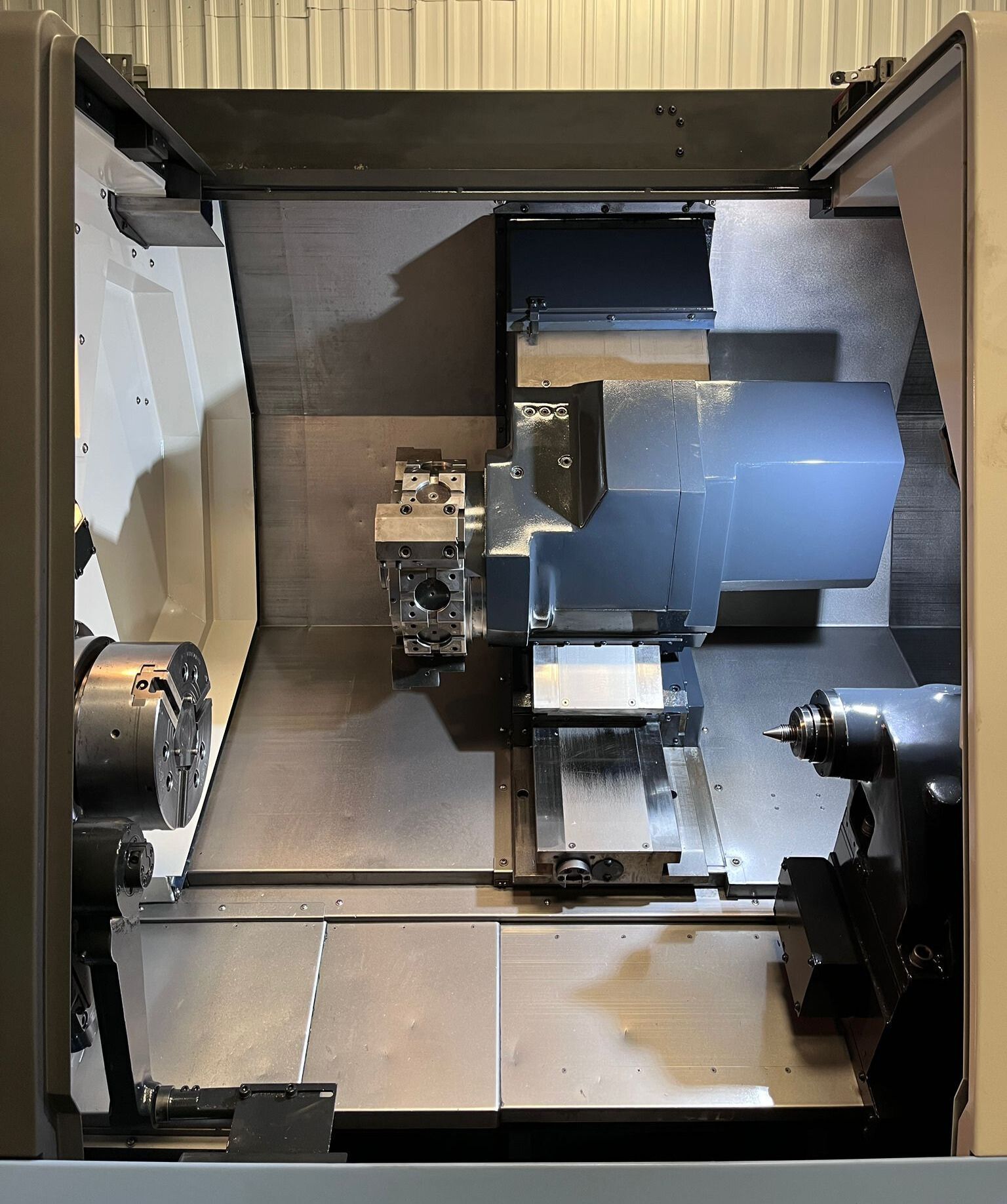

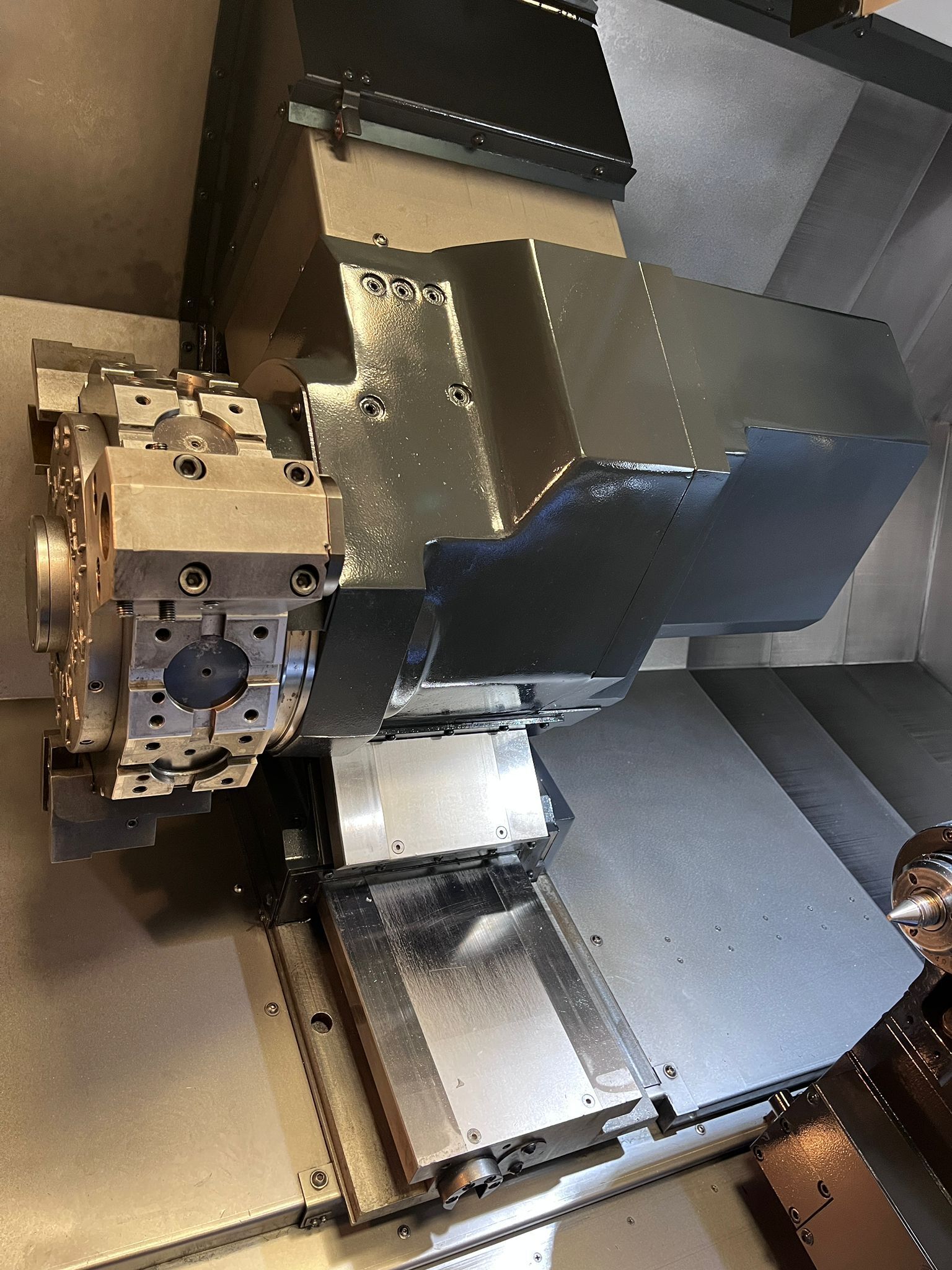

| 12 Station Live Tool Turret |
| Y Axis Capable |
| Part Catcher |
| Tool Presetter |

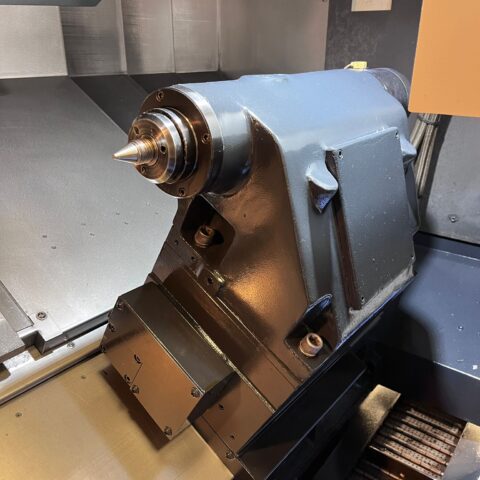

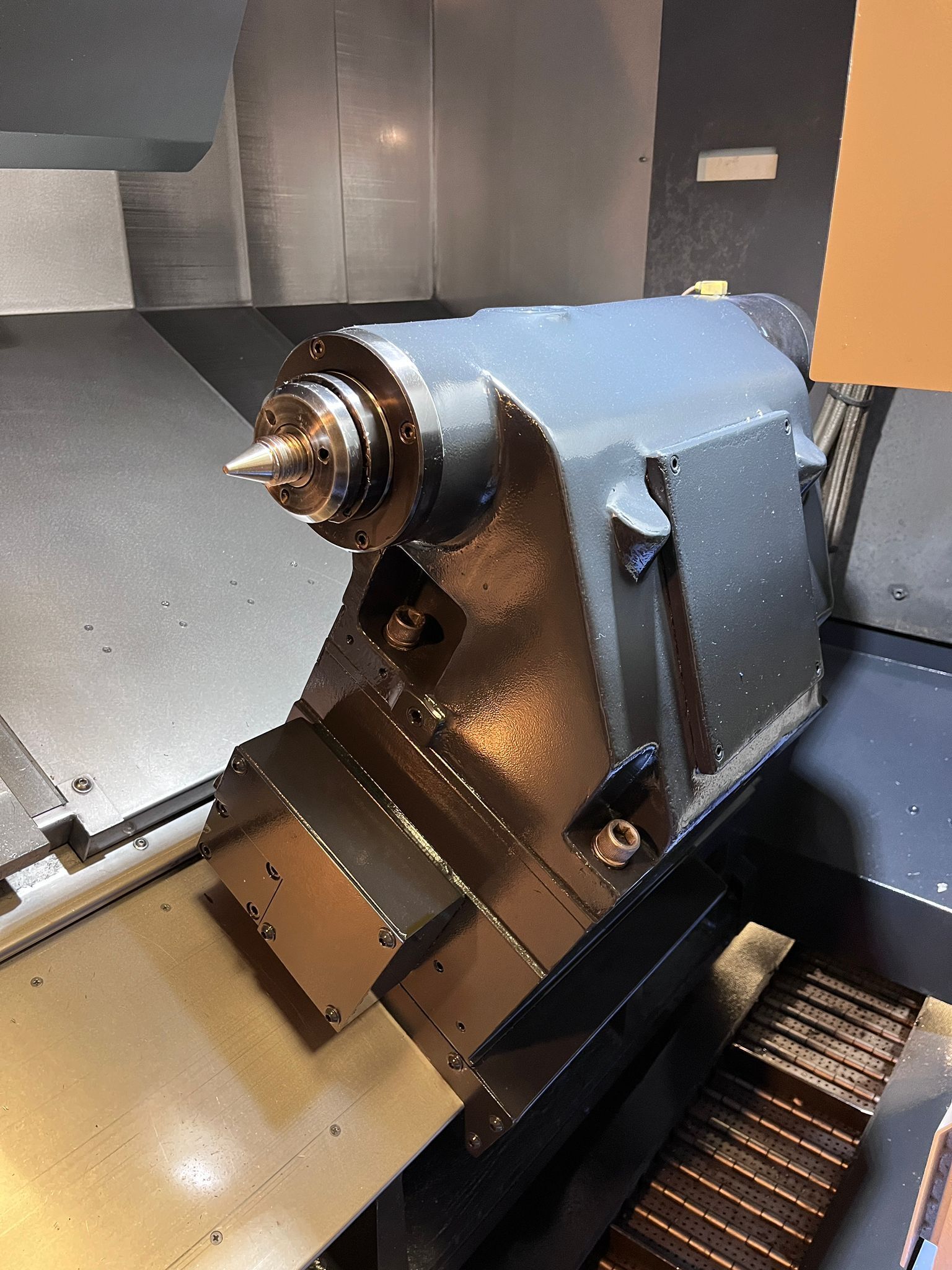

| Tailstock |
| PCMCIA Card Interface |

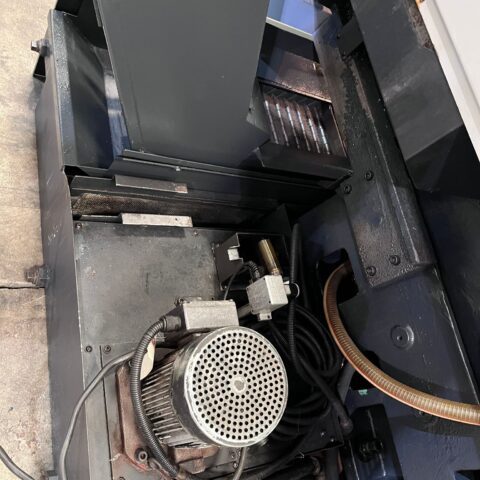

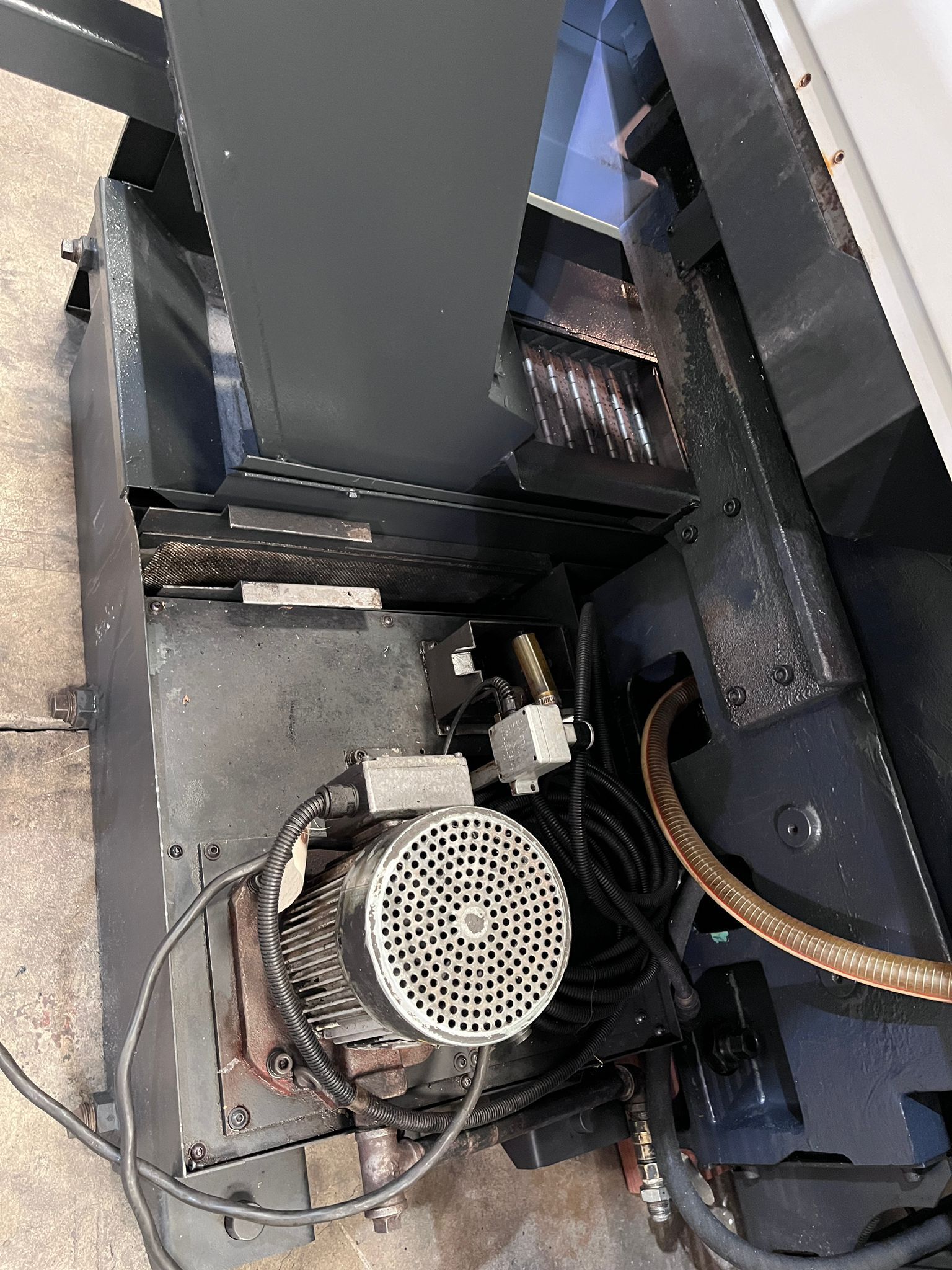

| Coolant System |

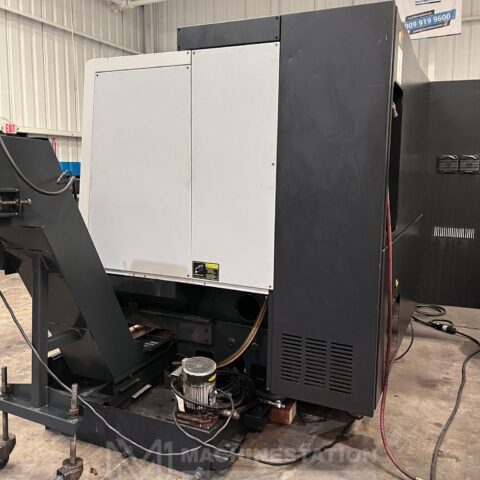

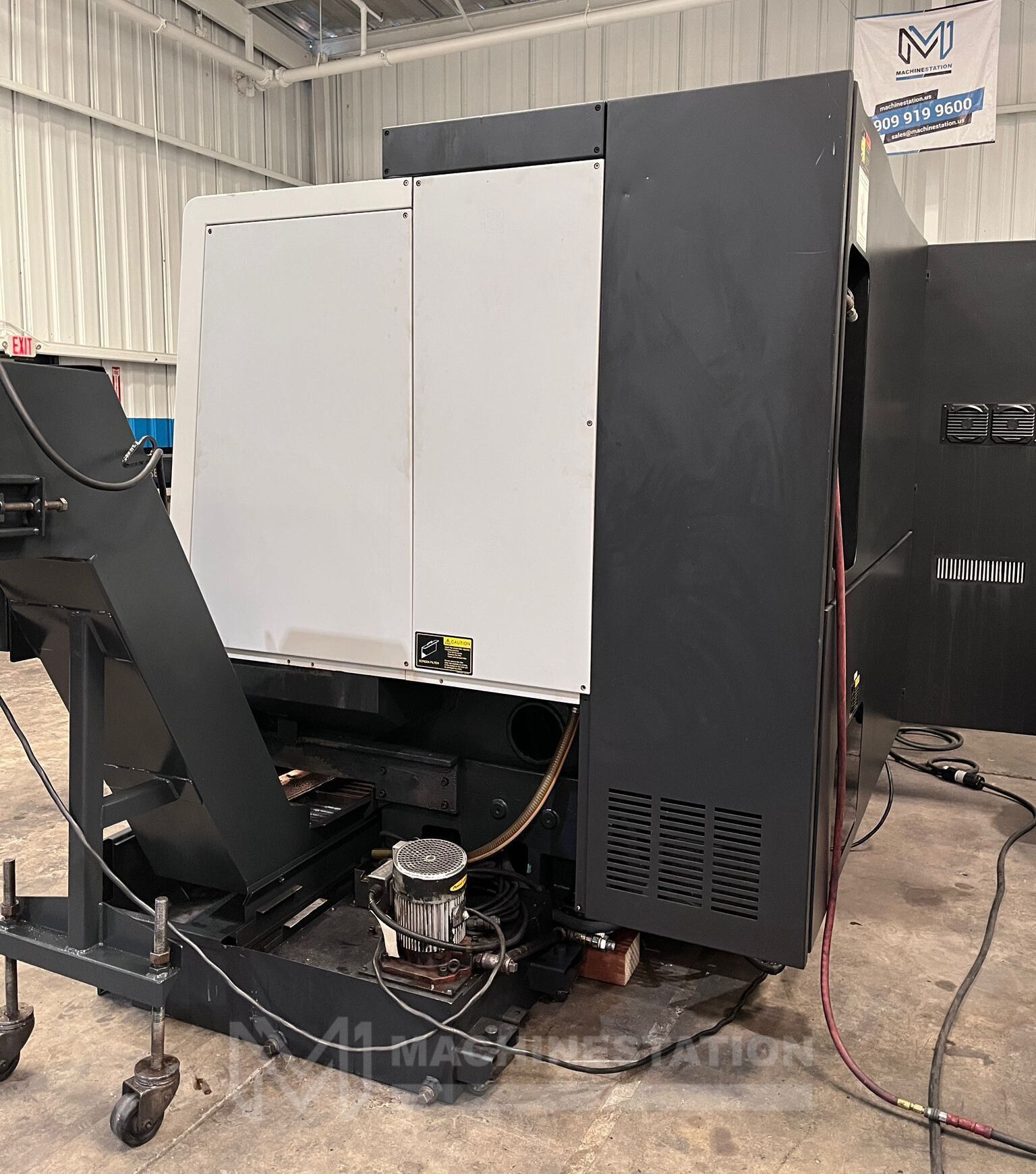

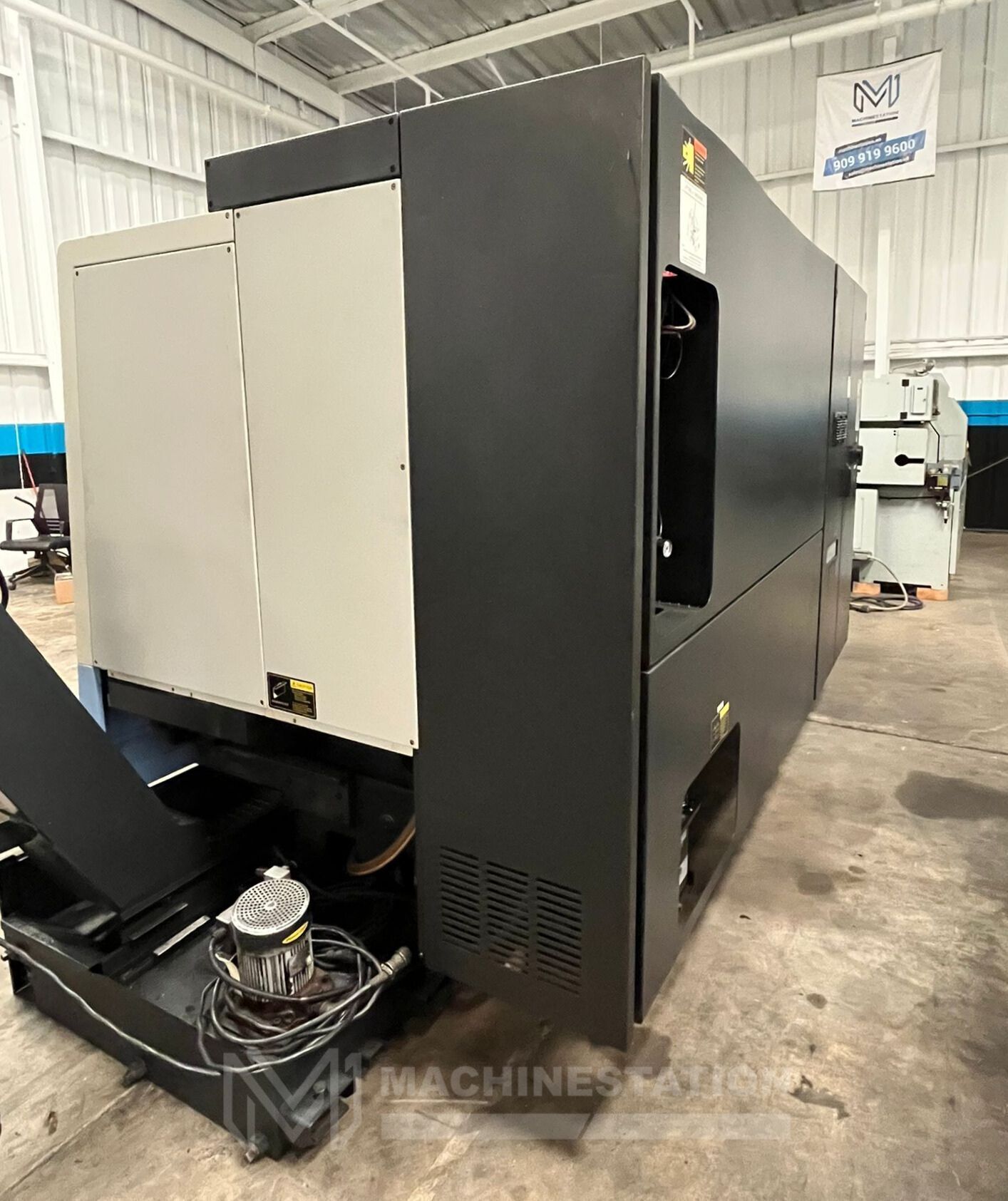

| Chip Conveyor |

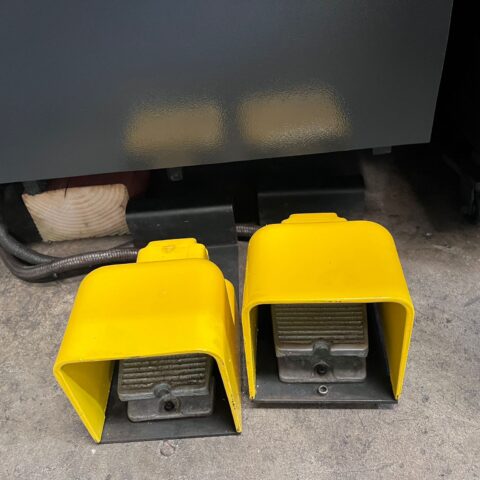

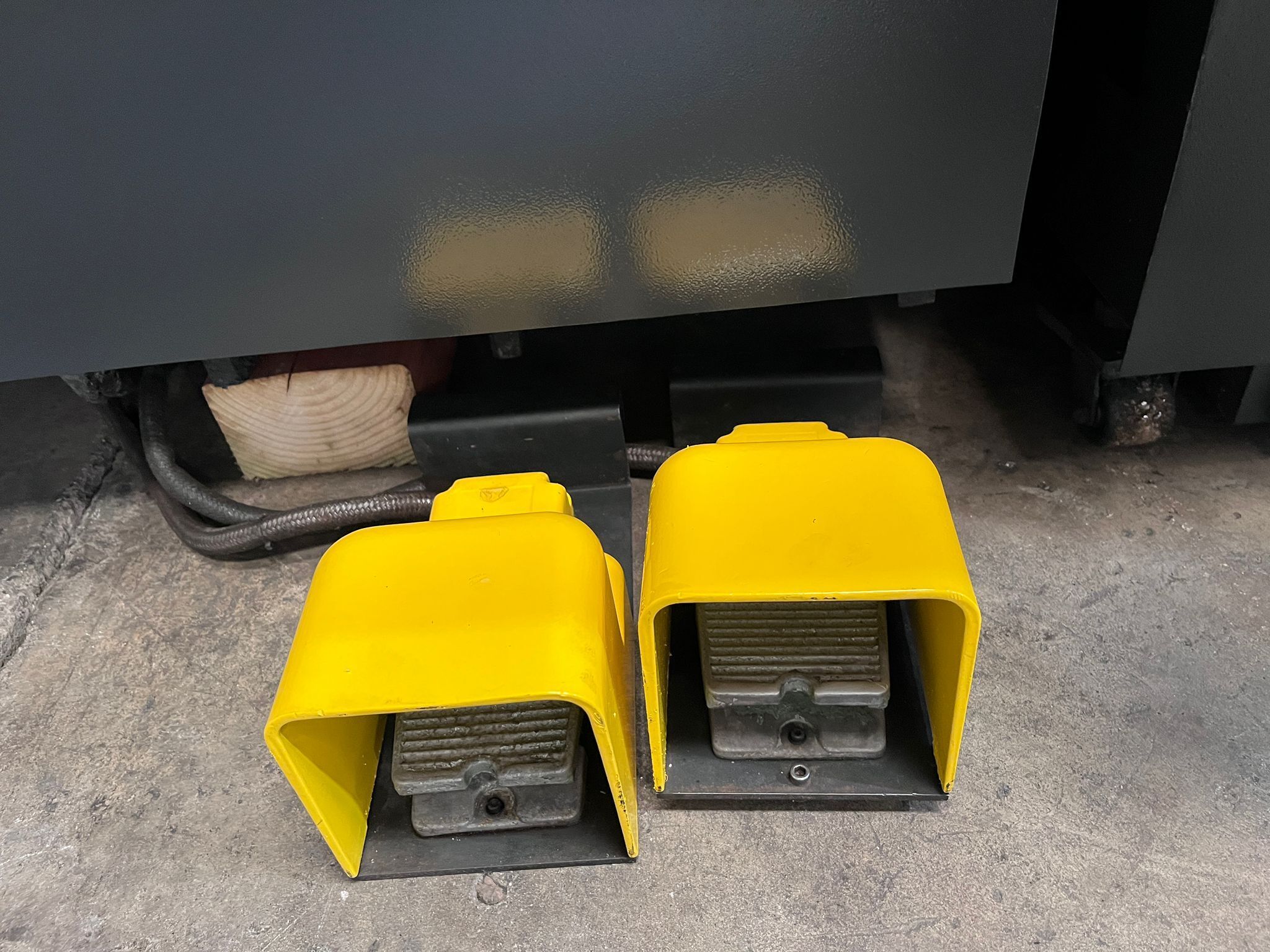

| Foot Switches |
| (2) Turning Tool Holders & (1) Boring Tool Holder (1) Live Tool Holder are Equipped on Turret (As shown in the images) |
| Specifications: |
|---|
| Max Turning Diameter: 13.0″ |
| Max Turning Length: 29.52″ |
| Swing Over Bed: 23.62″ |
| Swing Over Saddle: 21.65″ |
| Max Bar Capacity: 3.0″ |
| Travel: |
|---|
| X Axis Travel: 9.84″ |
| Z Axis Travel: 32.67″ |
| Y Axis Travel: 3.93″ (- 1.96″ + 1.96″) |
| C Axis: 0.001 Degrees |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|

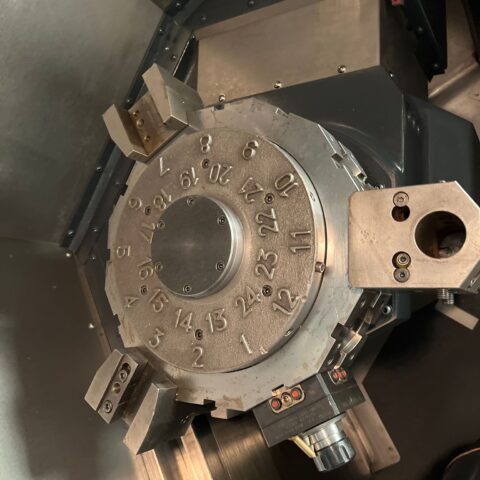

| Turret Capacity: 12 Stations (24 positions) |
| Turret Index Time: 0.15 Second |
| OD Tool Size: 1.0″ |
| Boring Bar Diameter: 1.57″ |
| Rotary Tool Speed: 5000 RPM |
| Rotary Tool Motor Power: 7.5 HP |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.14″ |
| Tailstock Quill Travel: 4.72″ |
| General: |
|---|

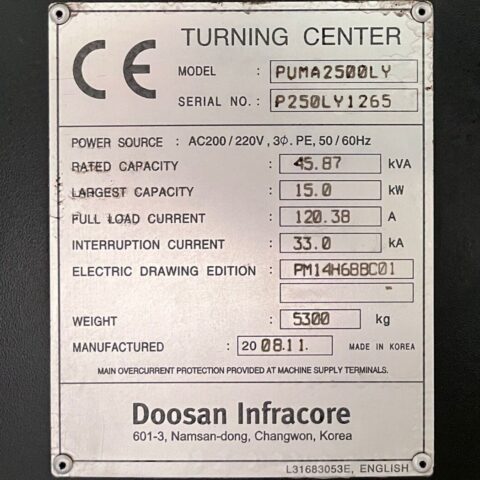

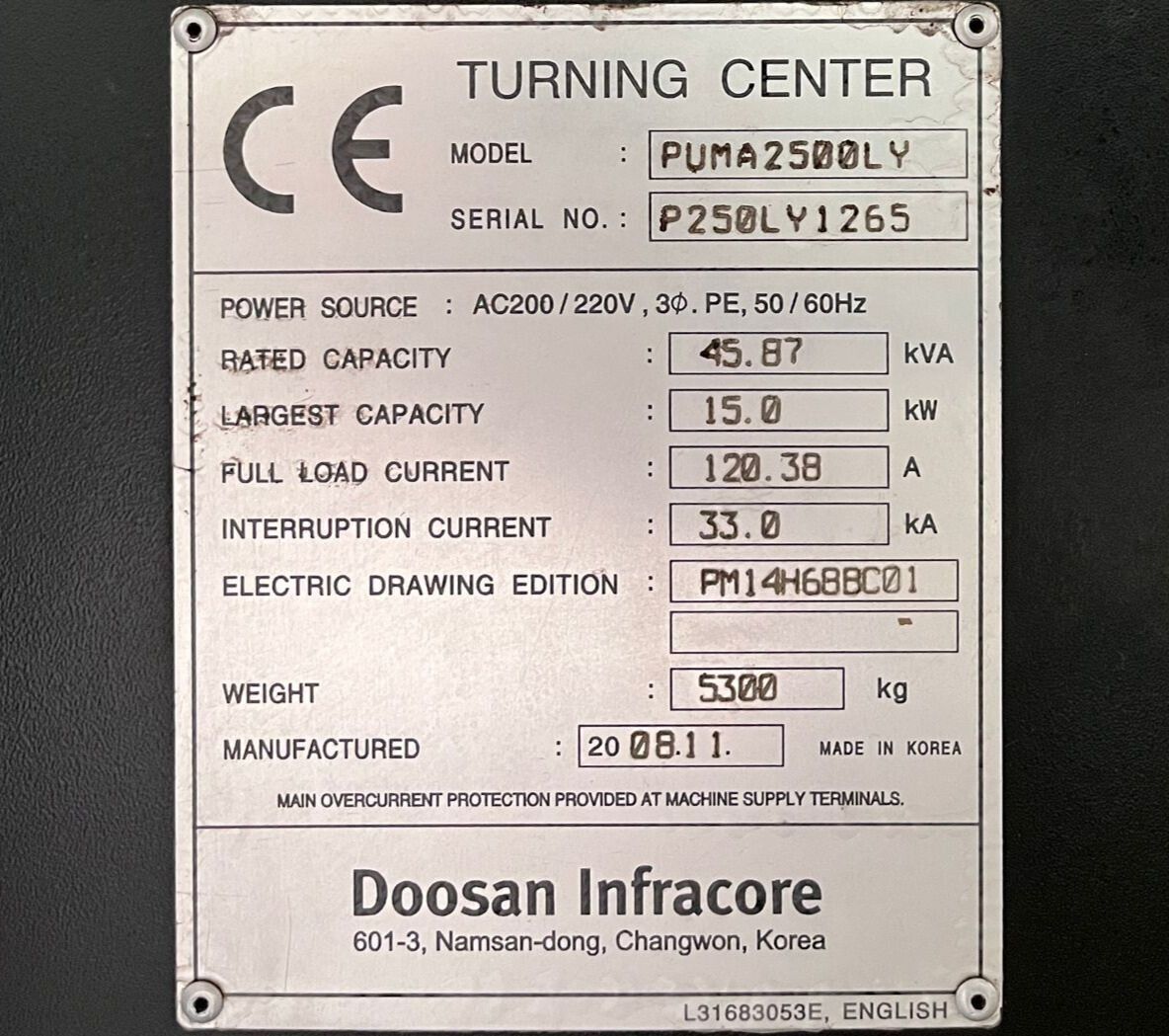

| Power: 200v – 220v / 3-Phase / 45.87 kva / 50/60 Hz |
| Overall Dimensions: 125″ x 70″ x 81″ High Approx. |
| Weight: 11,685 lbs Approx. |
