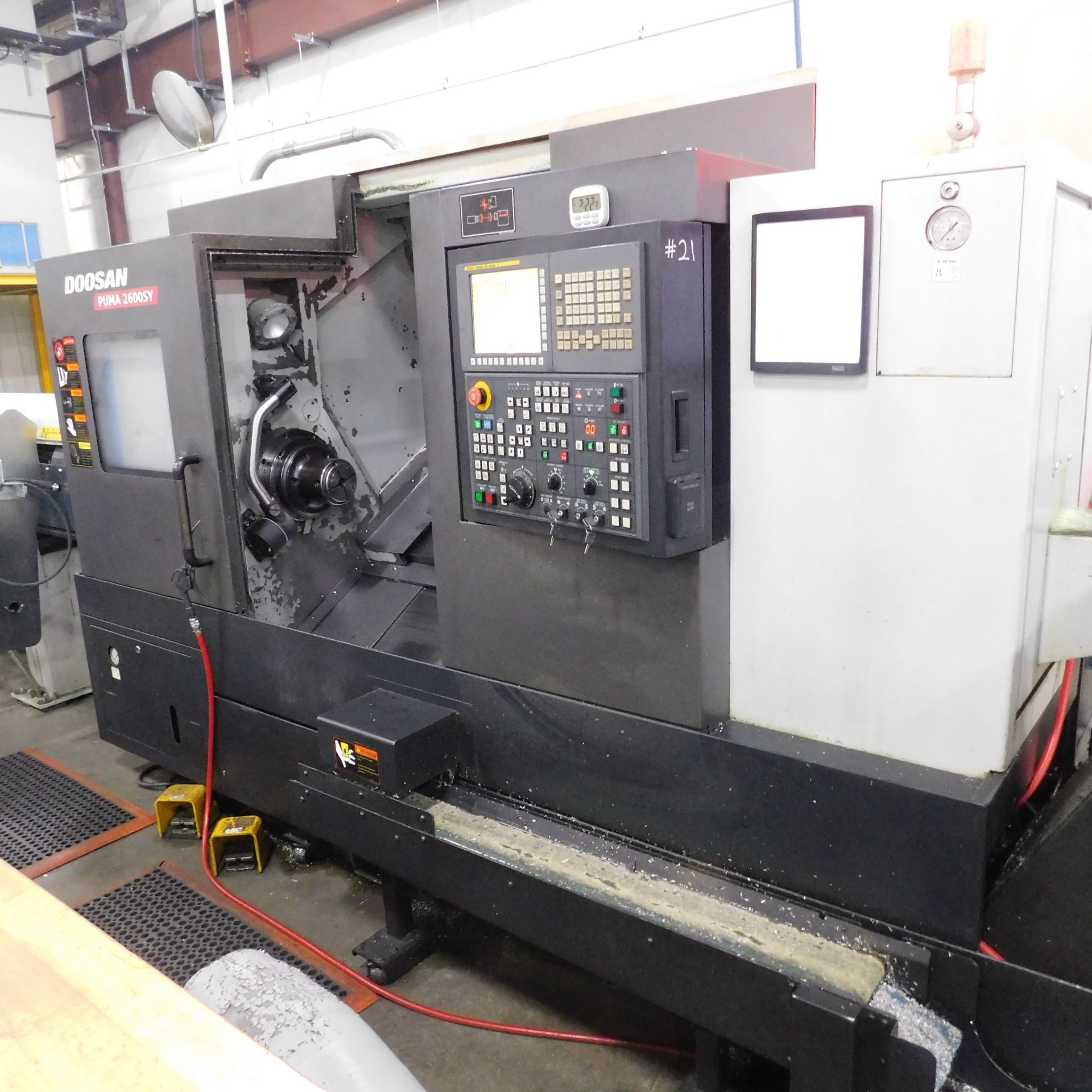

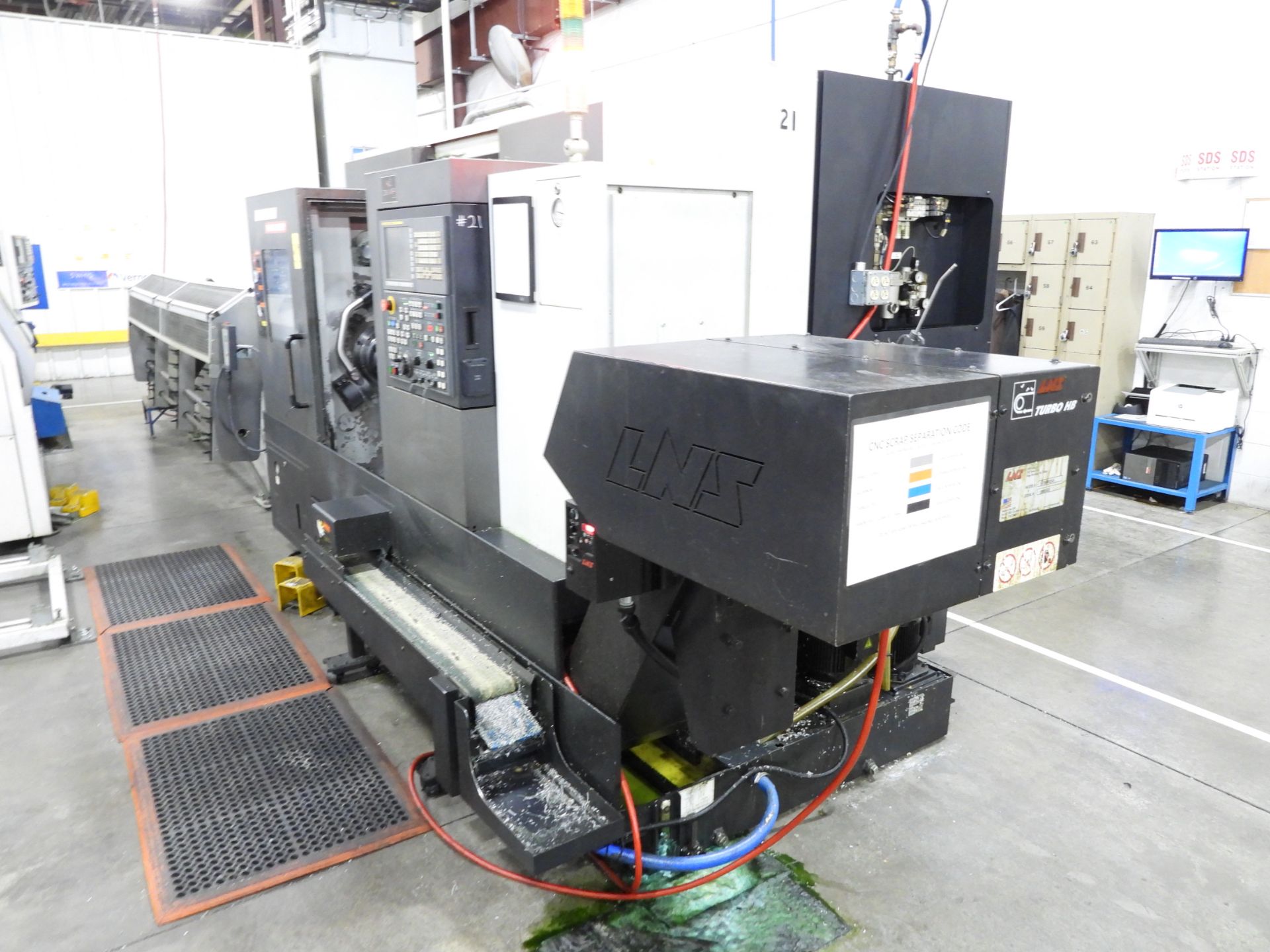

Doosan Puma 2600SY CNC Turning Center – 2011

Out of stock

SKU:	11012
Make/Model:	Doosan PUMA 2600SY
Year:	2011
Condition:	Used – Good
Video:	On Request

Add to WishlistRemove from Wishlist

SKU: 11012

Share:

Description
Additional information

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

Make:	Doosan
Model:	PUMA 2600SY
Condition:	Used

Equipped With:

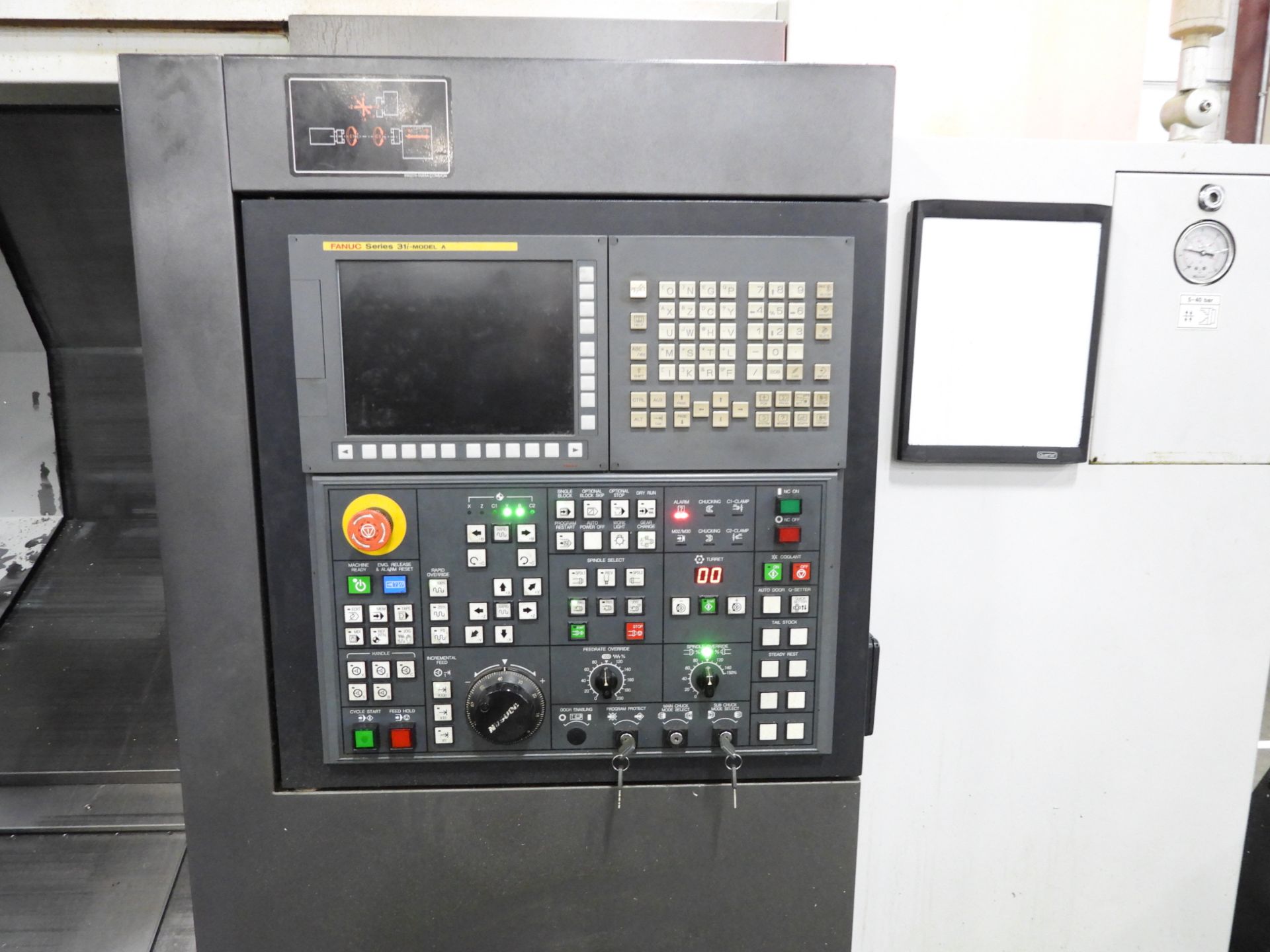

Fanuc CNC Control
Y-Axis Milling Capability
Sub-Spindle (W-Axis)
Live Tooling
C-Axis Main & Sub Spindles
12-Station Turret
Rigid Box-Way Construction
High-Pressure Coolant Ready
Full Enclosure
Chip Conveyor

Capacity:
Swing Over Bed: 25.6″
Swing Over Saddle: 18.9″
Max Turning Diameter: 14.6″
Max Turning Length: 30.0″
Max Bar Capacity: 3.0″

Travels:
X-Axis Travel: 10.2″
Y-Axis Travel: ±2.0″
Z-Axis Travel: 33.1″
W-Axis Travel (Sub-Spindle): 28.3″

Feedrates:
Rapid Traverse X-Axis: 945 IPM
Rapid Traverse Y-Axis: 590 IPM
Rapid Traverse Z-Axis: 1,181 IPM

Main Spindle:
Spindle Nose: A2-8
Spindle Speed Range: Up to 4,000 RPM
Spindle Motor: 30 HP
Spindle Bore: 3.58″

Sub-Spindle:
Spindle Speed: Up to 5,000 RPM
Spindle Motor: 15 HP
Spindle Bore: 2.44″
Fully Programmable W-Axis

Turret & Milling:
12-Station Turret
Live Tooling Capability
Milling Spindle Speed: Up to 6,000 RPM
Milling Motor Power: 10 HP
ER32 Tool Interface

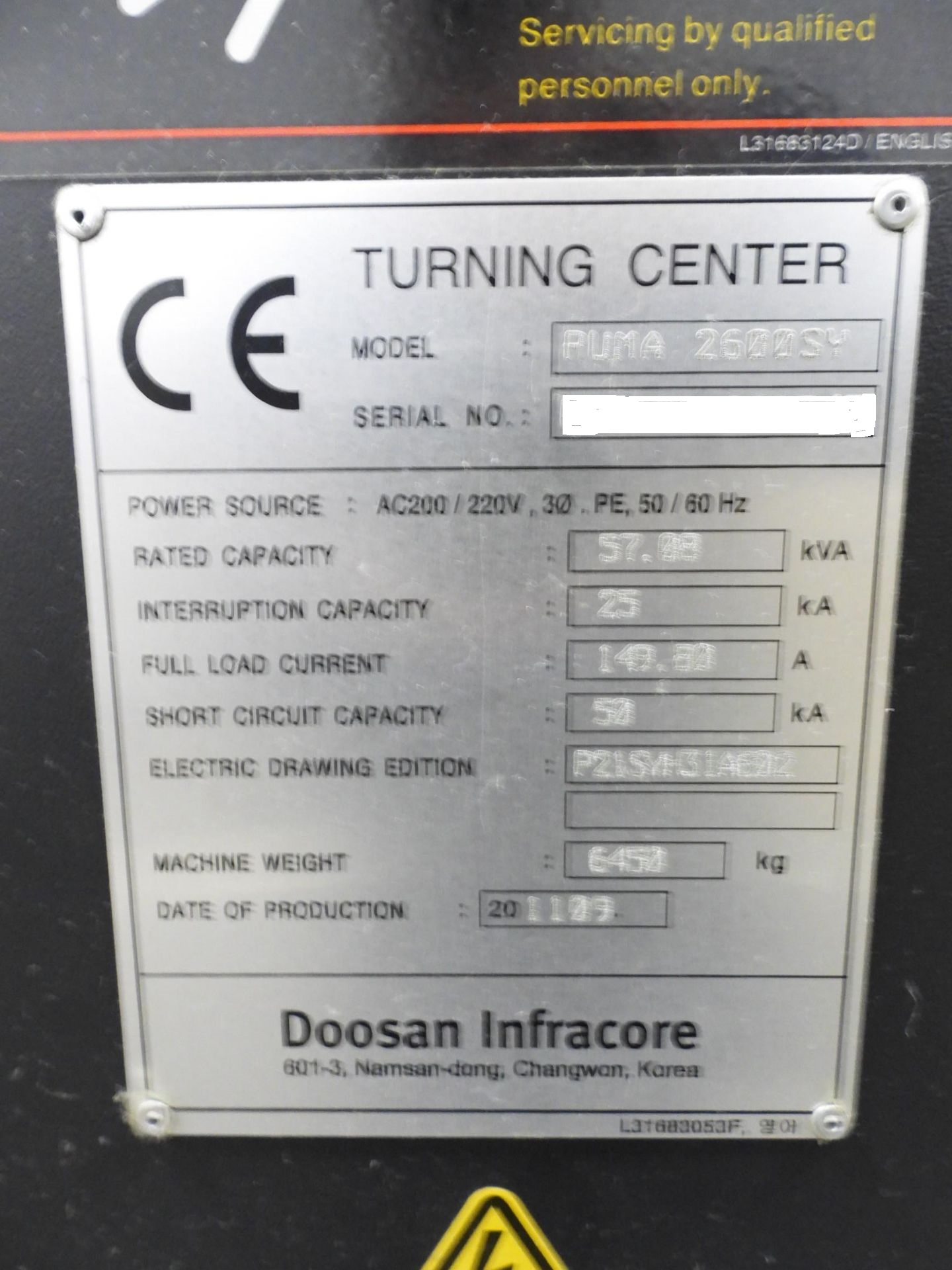

General:
Power Requirement: 220V / 3-Phase
Machine Weight (Approx.): 17,600 lbs
Overall Dimensions (Approx.): 138″ × 78″ × 84″
