*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

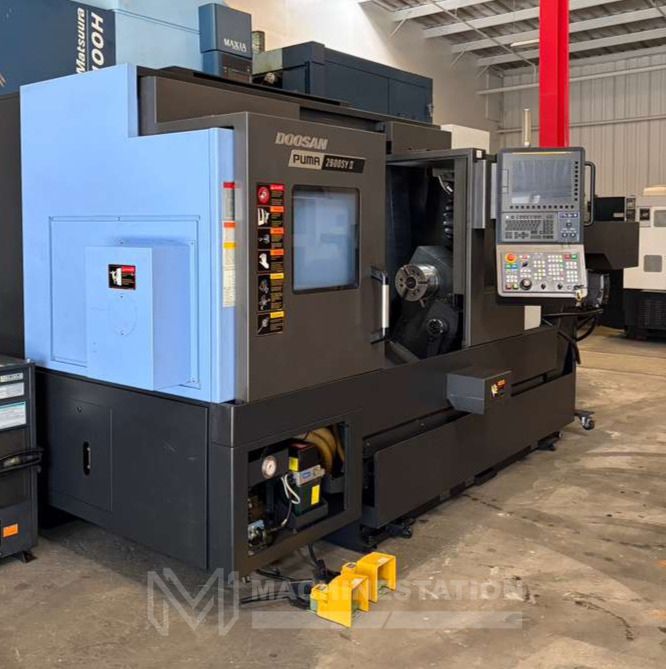

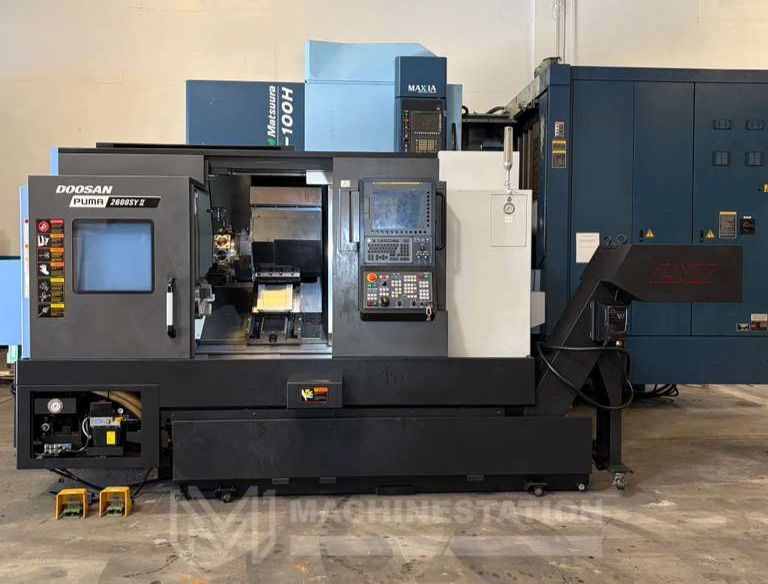

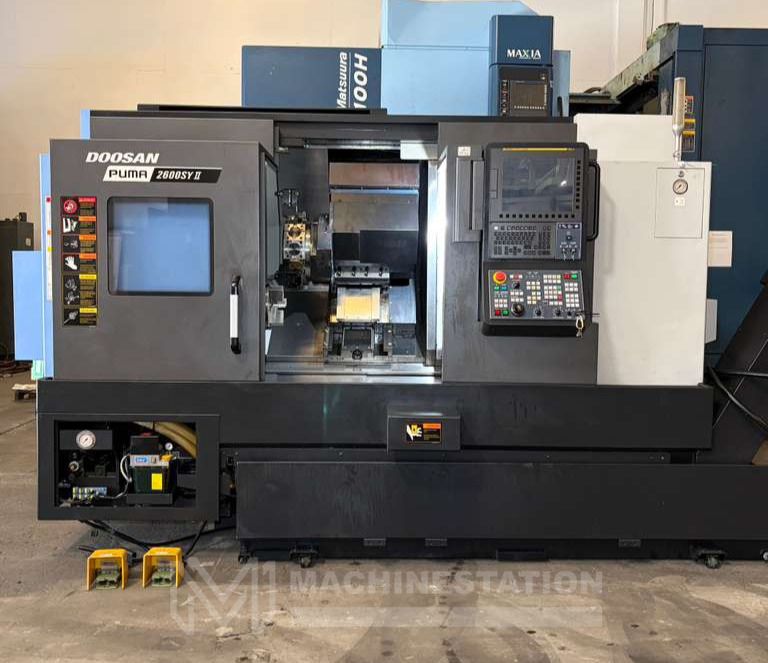

| Make: | Doosan |

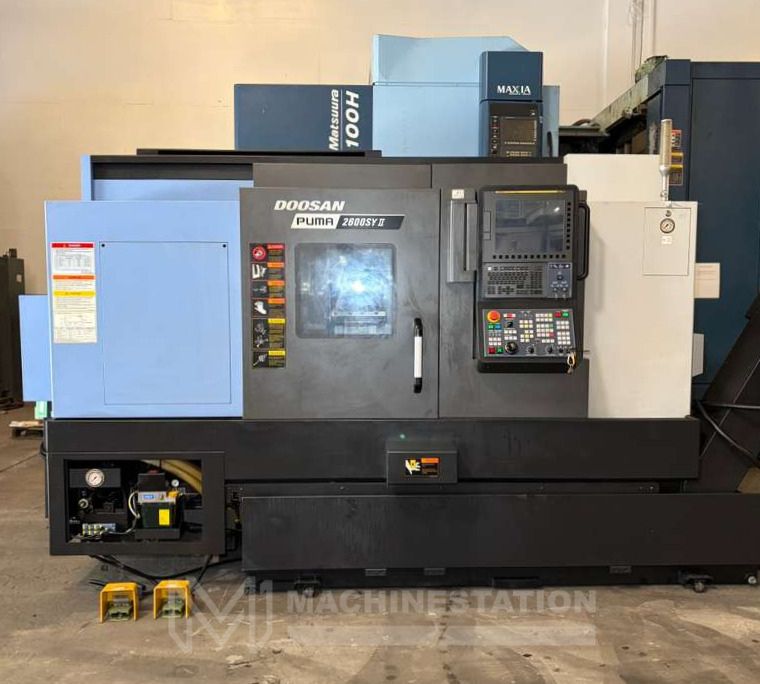

| Model: | Puma 2600SYII |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

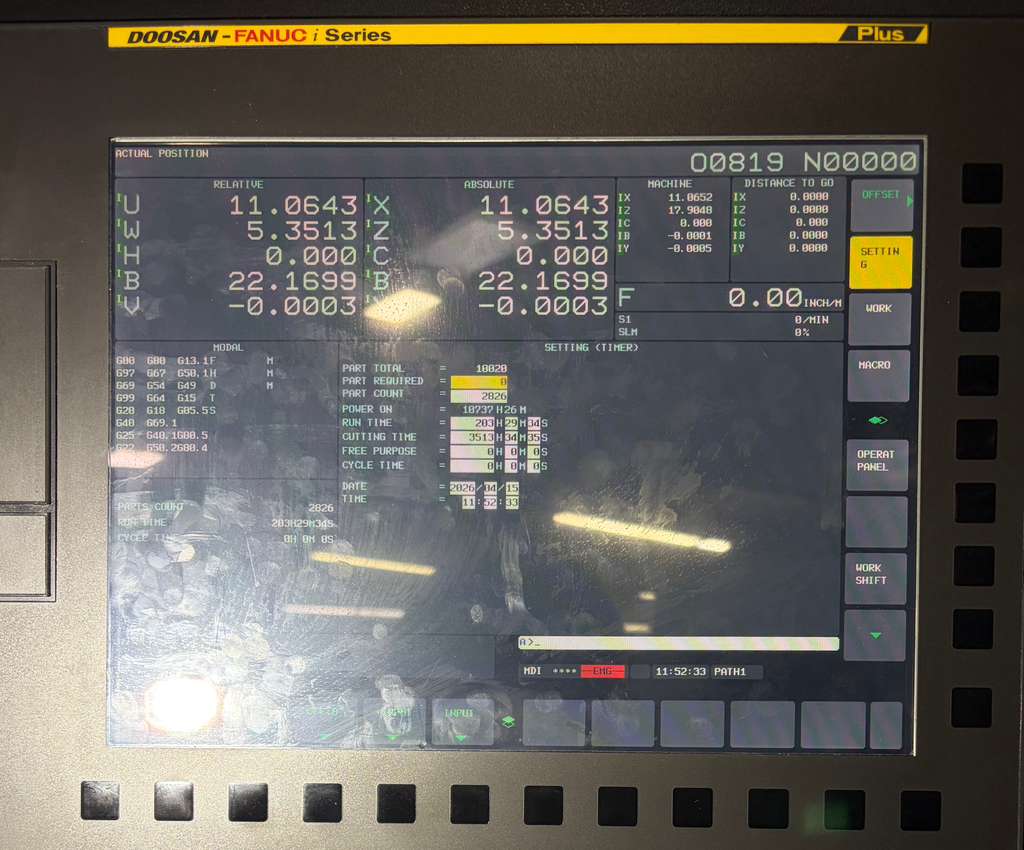

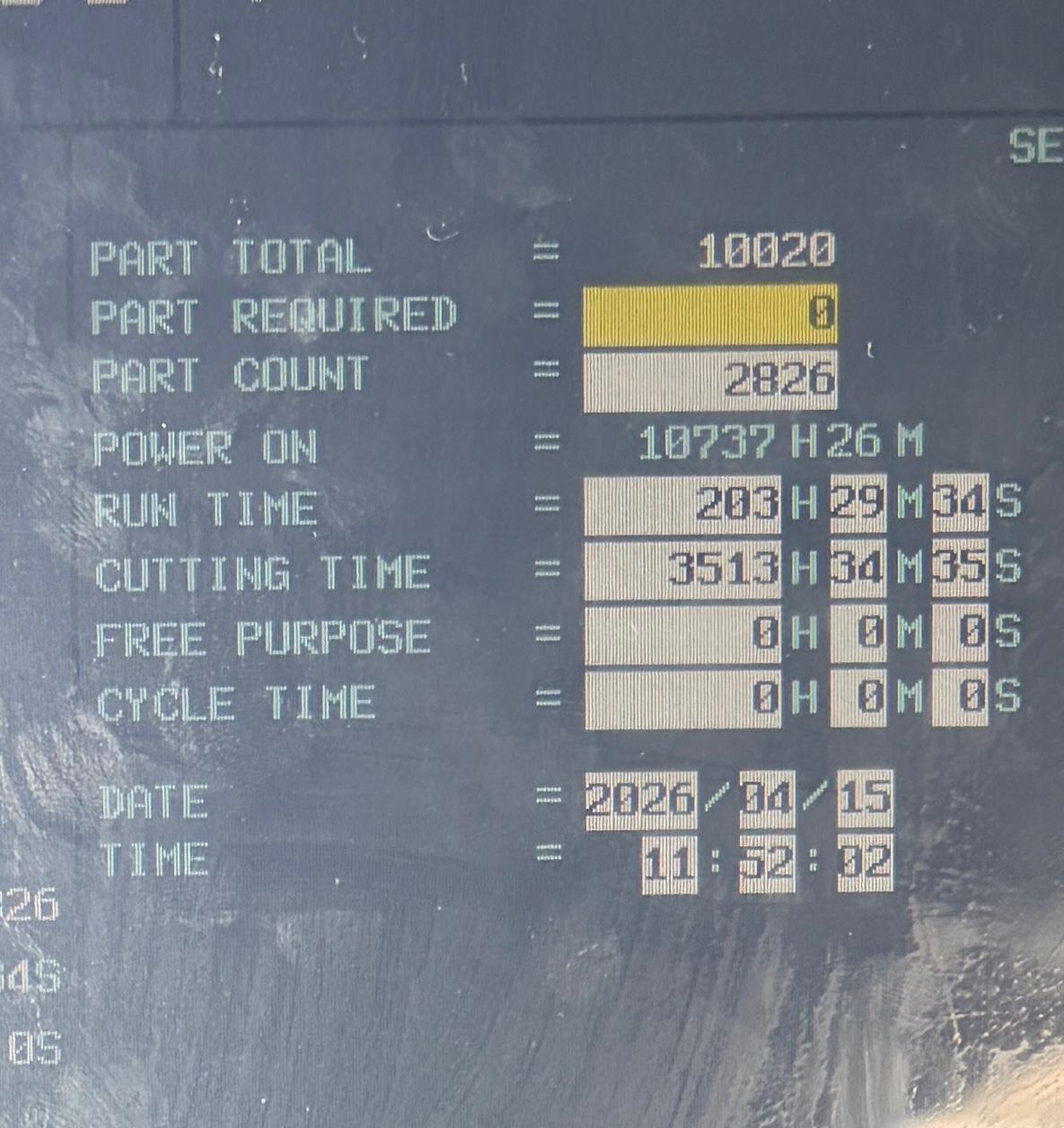

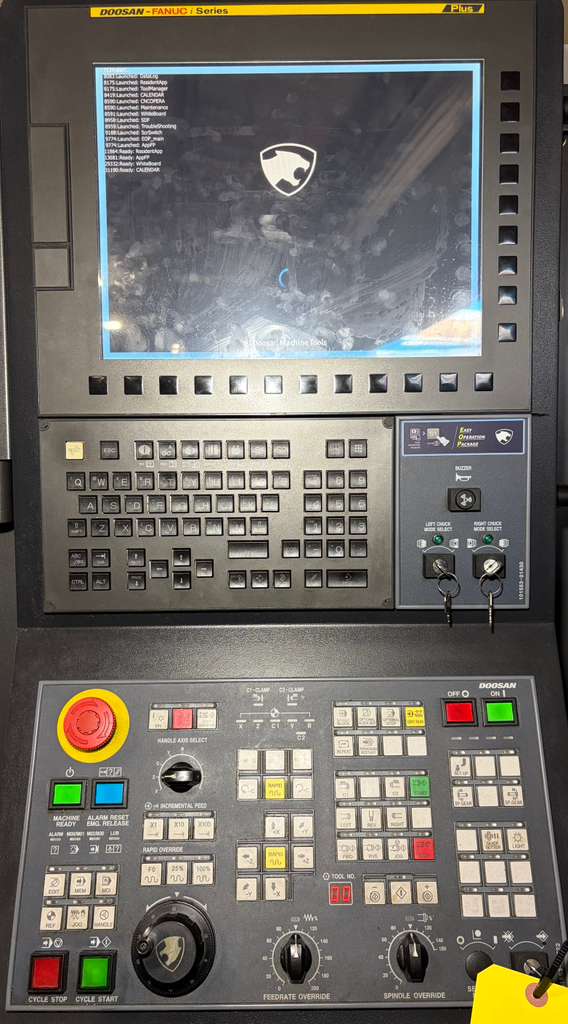

| Doosan-Fanuc i-Plus Series CNC Control |

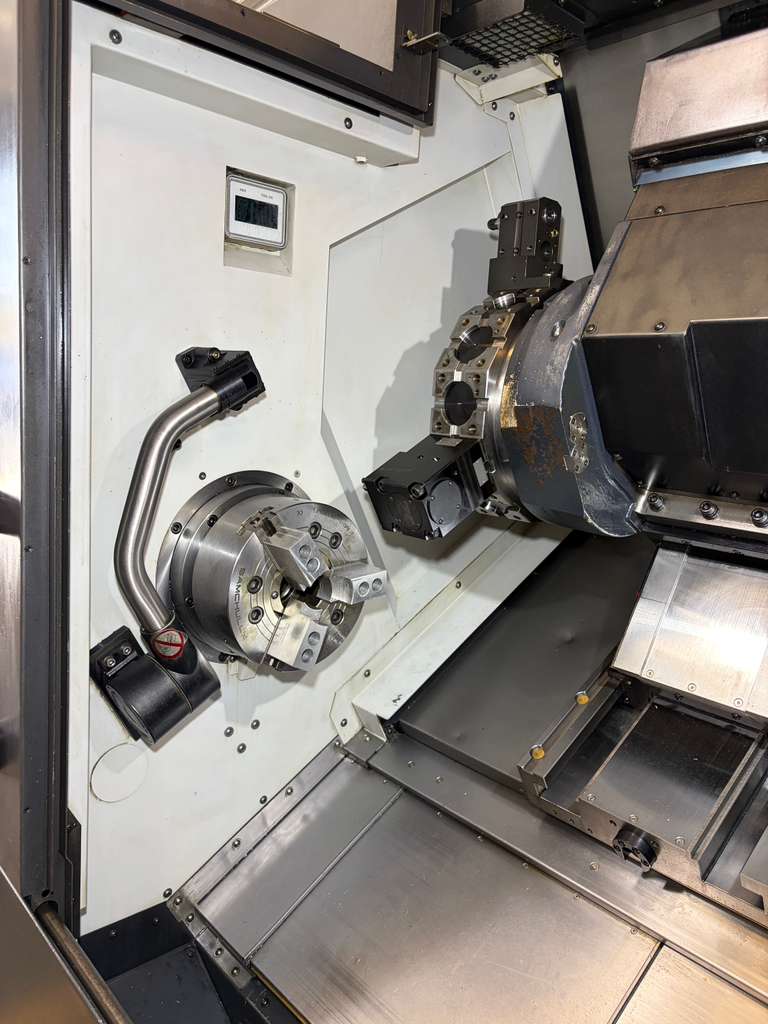

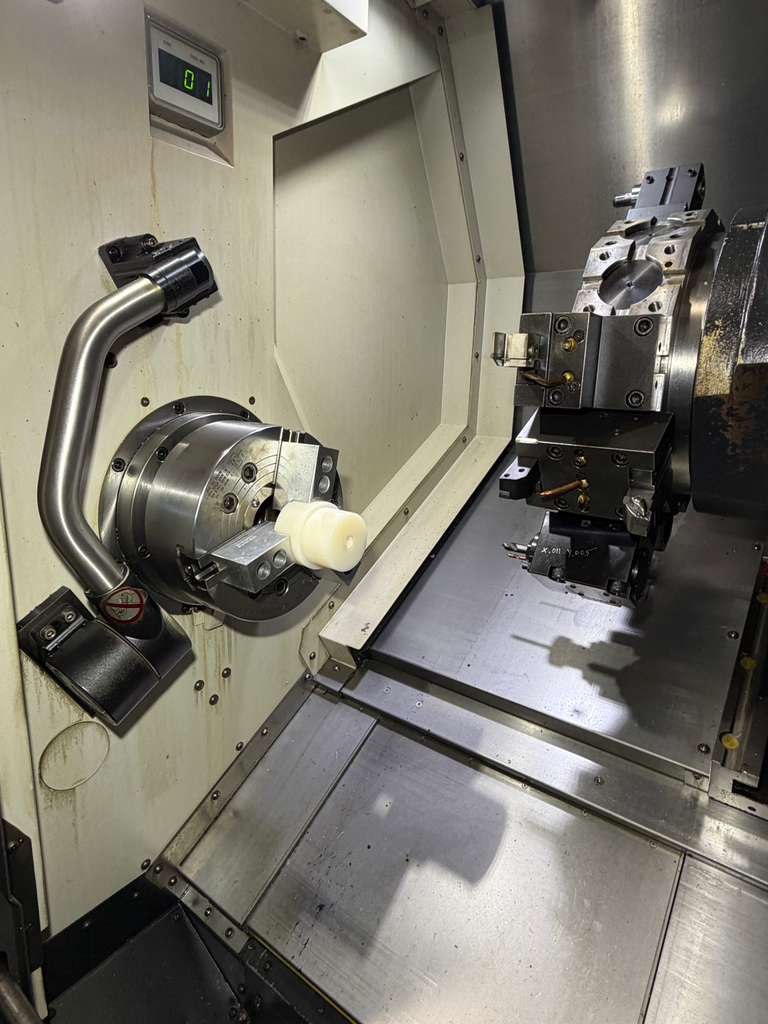

| 10″ 3-Jaw Chuck on Main Spindle |
| 8″ 3-Jaw Chuck on Sub Spindle |

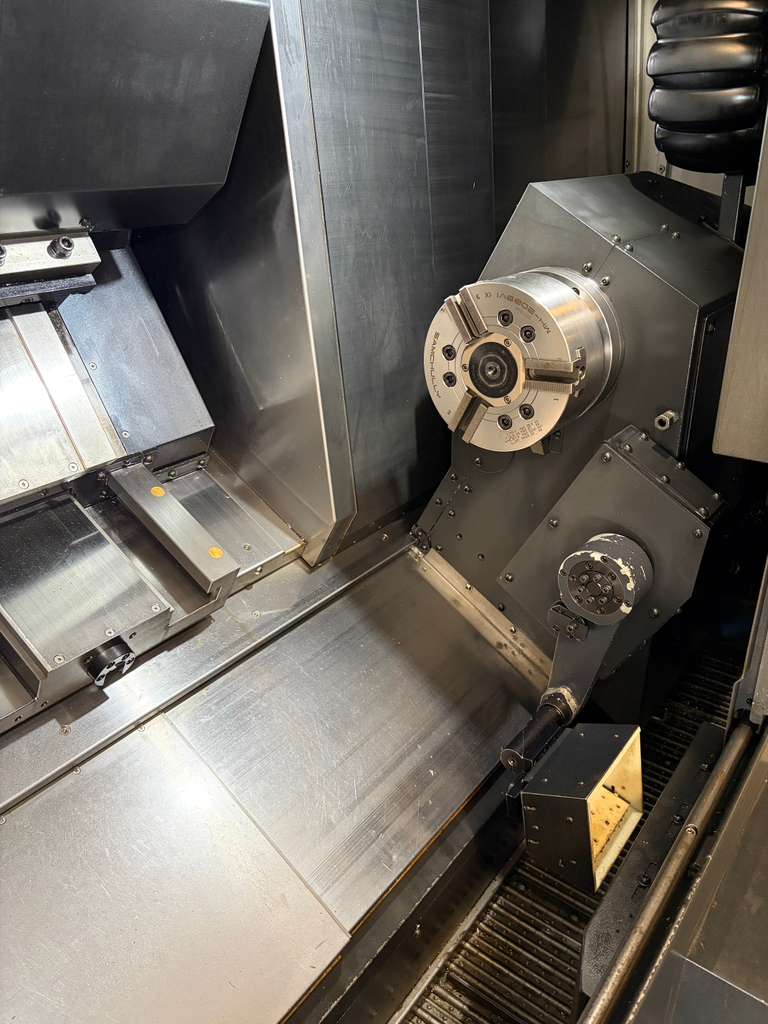

| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |

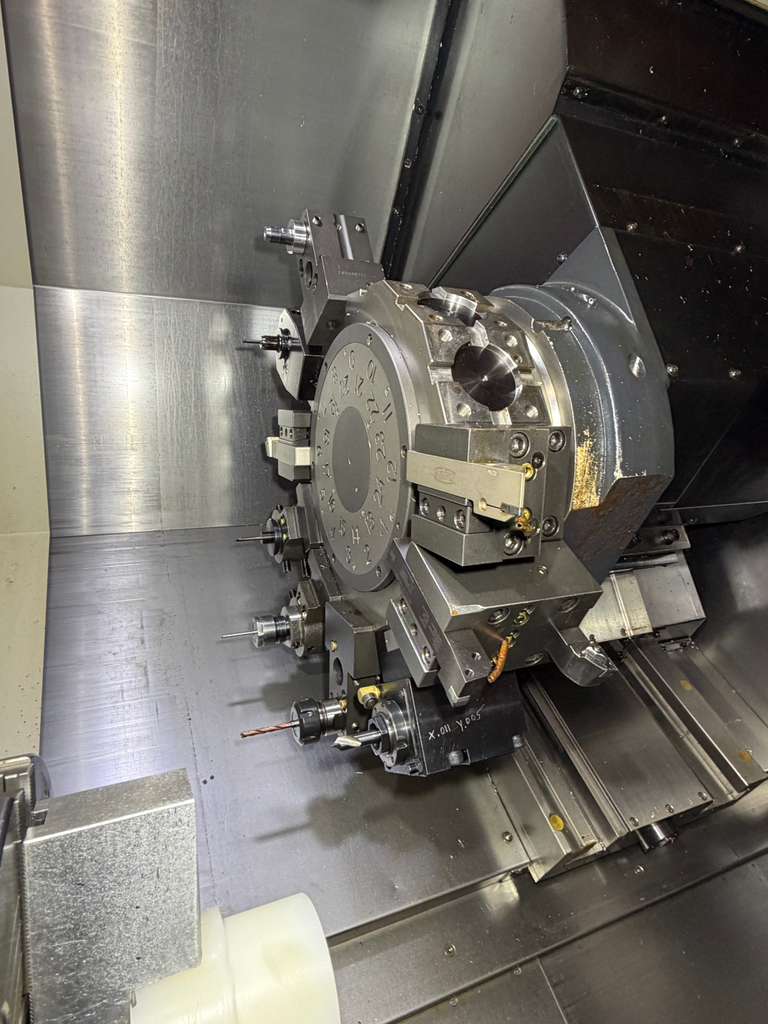

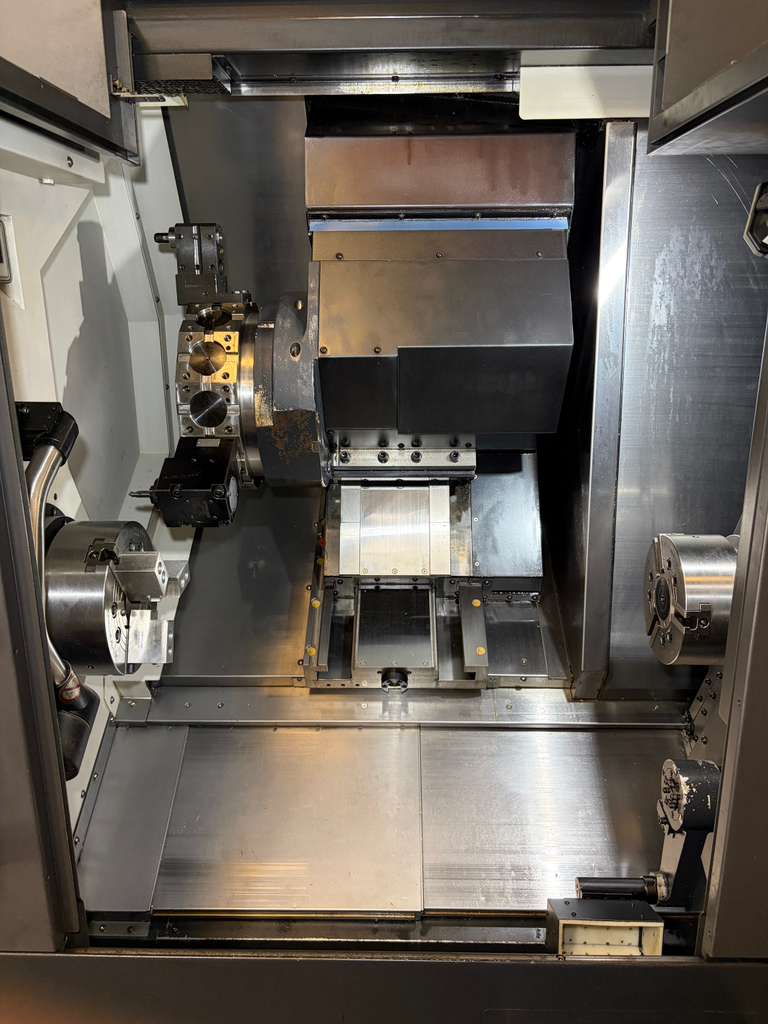

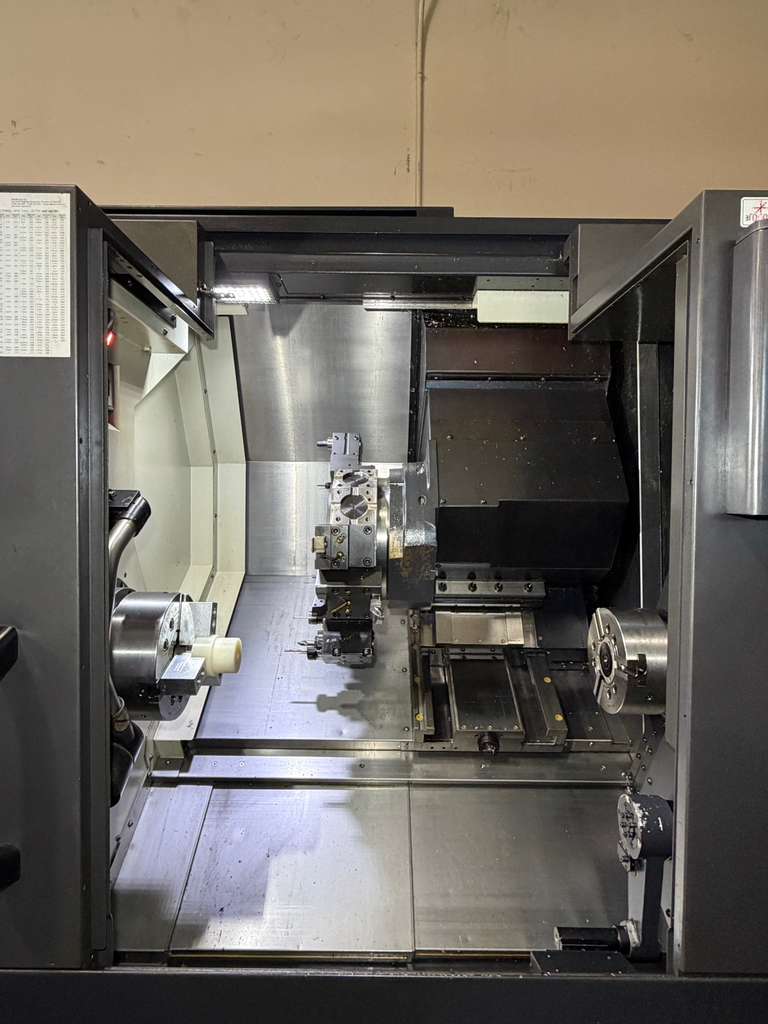

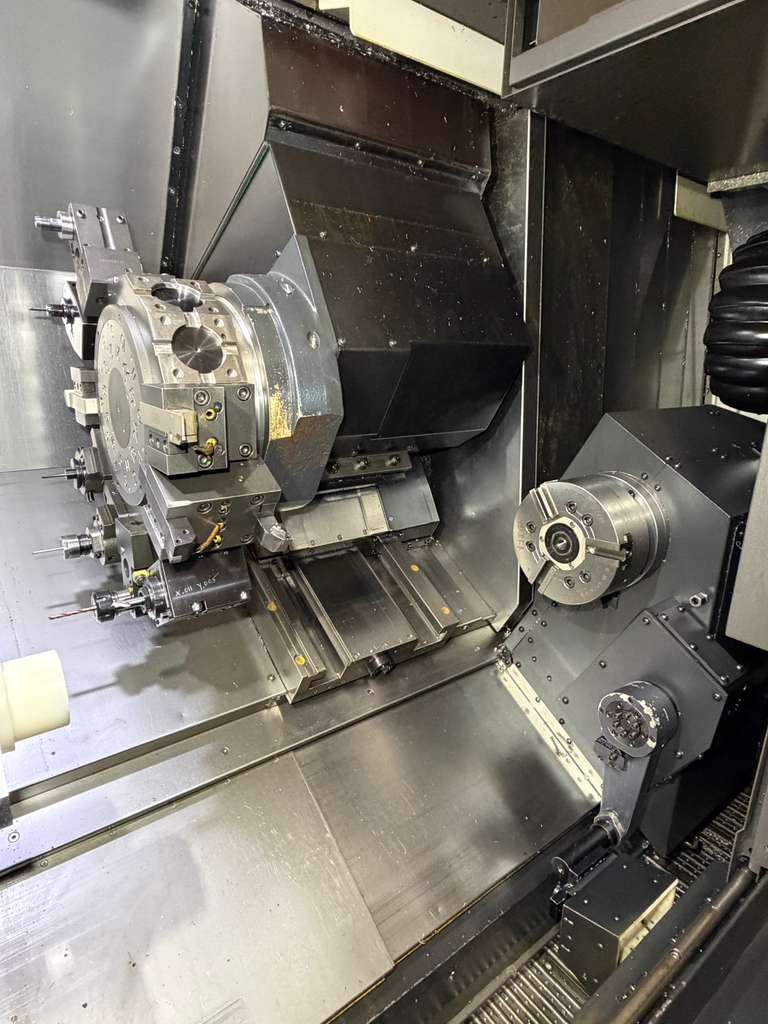

| 12-Station (24 Positions) Live Tool Turret |
| Y Axis Capable |
| Tool Presetter |
| Parts Catcher |
| Parts Conveyor |

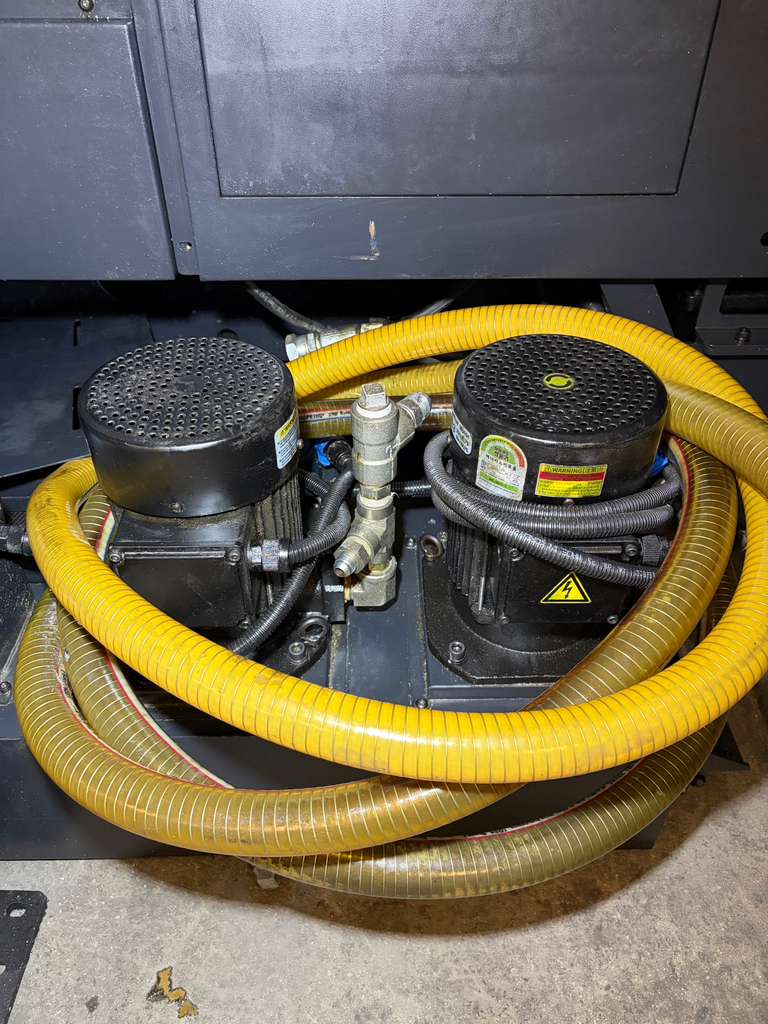

| MP Systems VR8 High Pressure Coolant System |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |

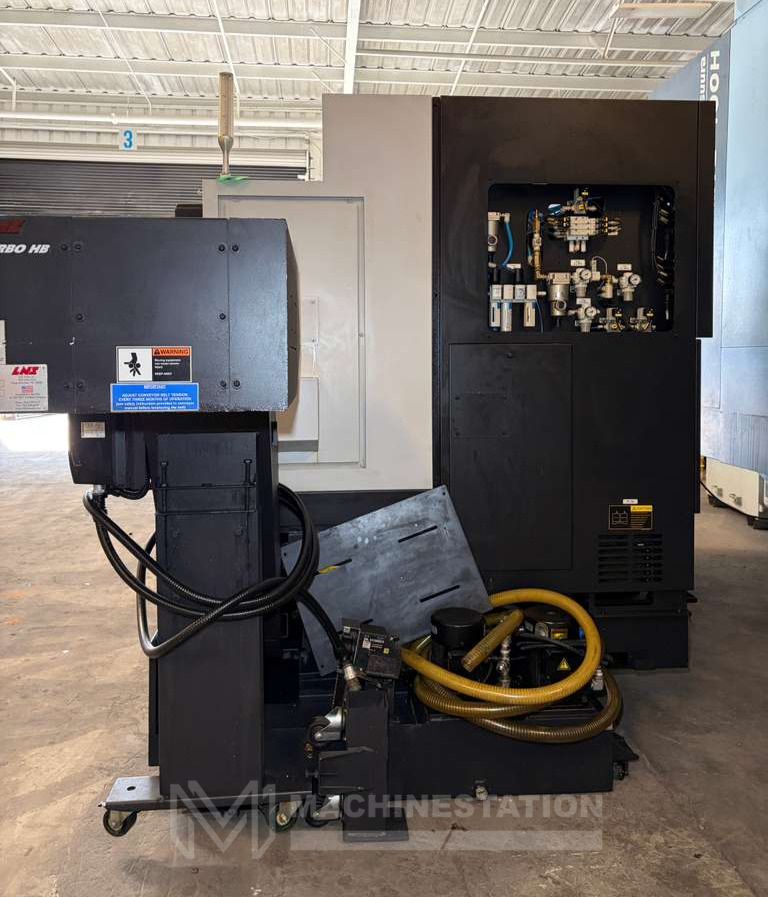

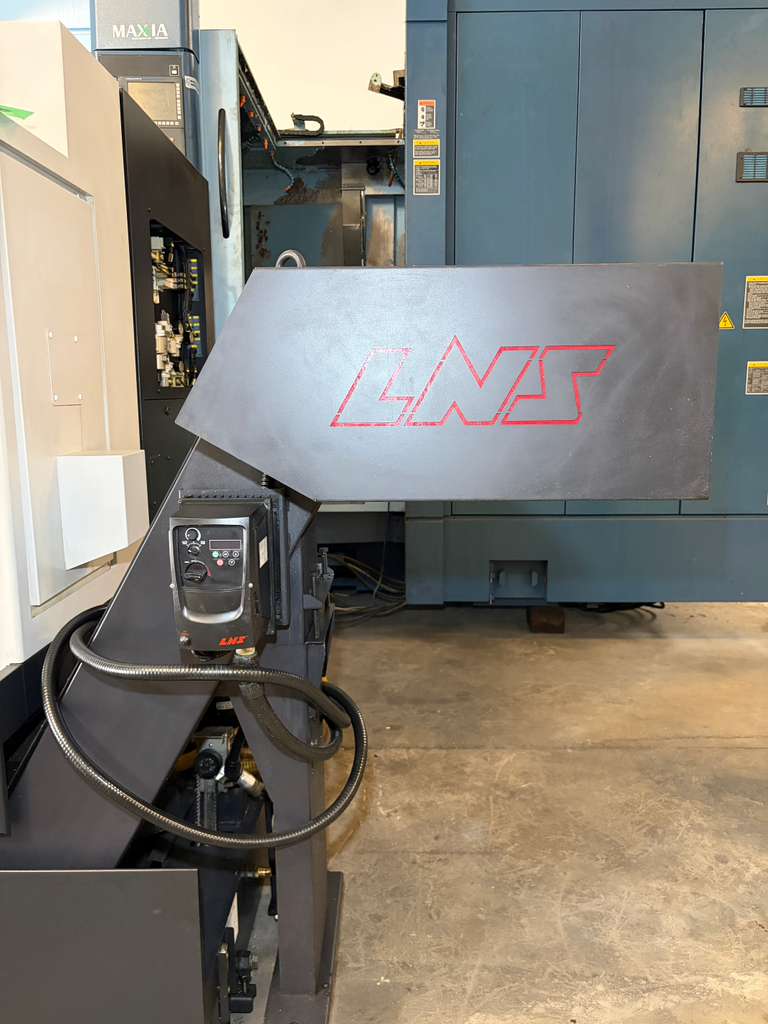

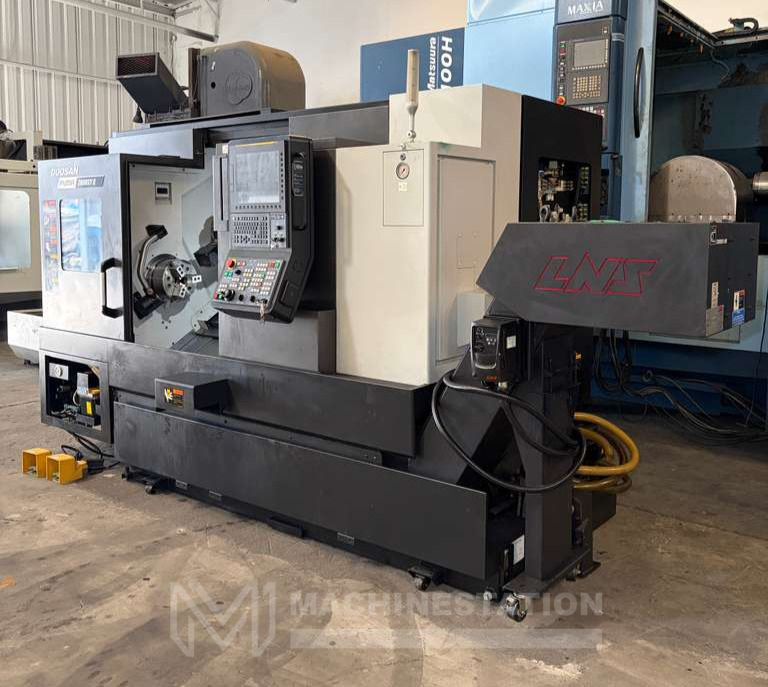

| LNS Chip Conveyor |
| Note: Tool holders are not Included with the machine |
| Capacity: |
|---|
| Max Turning Diameter: 14.80″ |
| Max Turning Length: 29.90″ |
| Swing Over Bed: 30.70″ |
| Swing over the Saddle: 24.80″ |
| Max Bar Capacity: 3.20″ |
| Travels: |
|---|
| X Axis Travel: 10.20″ |
| Z Axis Travel: 32.70″ |
| Y Axis Travel: 4.10″ (+ 2.10″ – 2.10″) |
| B Axis Travel: 32.70″ (Sub Spindle) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Rapid Traverse B Axis: 1181 IPM |
| Rapid Traverse C Axis: 200 RPM |
| Spindle: |
|---|
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.60″ |
| Main Spindle Bar Capacity: 3.20″ |
| Main Spindle Speed: 4,000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.40″ |
| Sub Spindle Bar Capacity: 1.96″ |
| Sub Spindle Speed: 6,000 RPM |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| Capacity: 12 Stations (24 Positions) |
| Turret Index Time: 0.15 Second |
| Live Tool Speed: 5,000 RPM |
| Live Tool Spindle Power: 10 HP |
| Tool Holders Type: BMT-65 |
| General: |
|---|

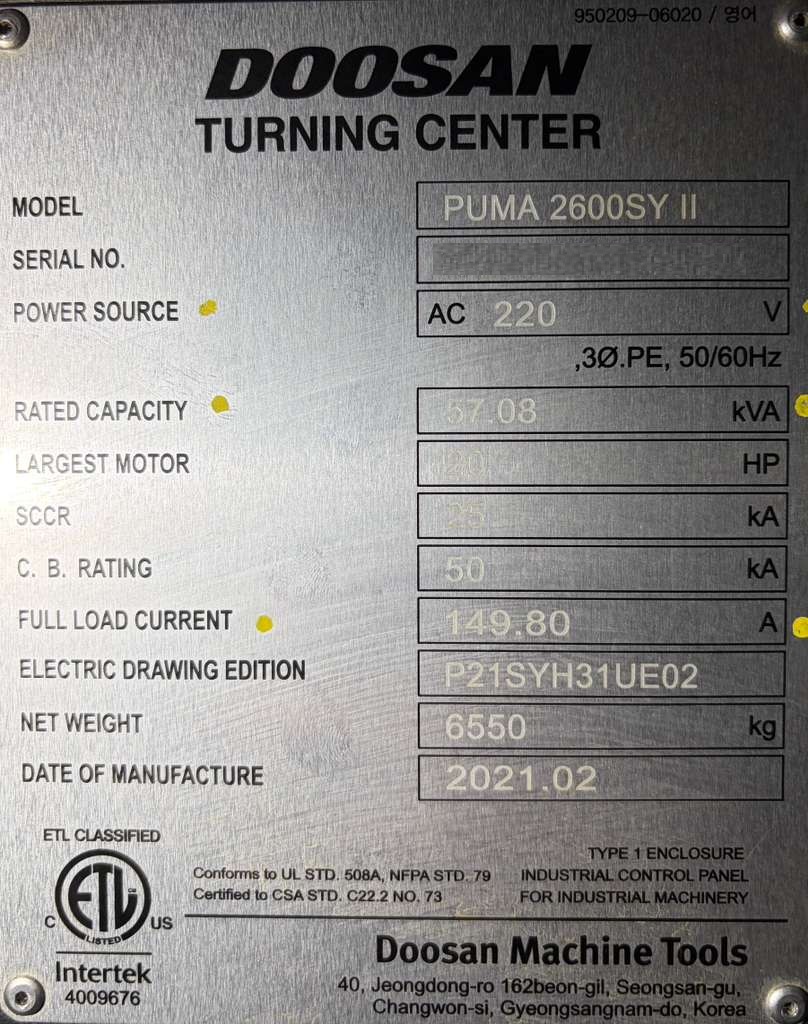

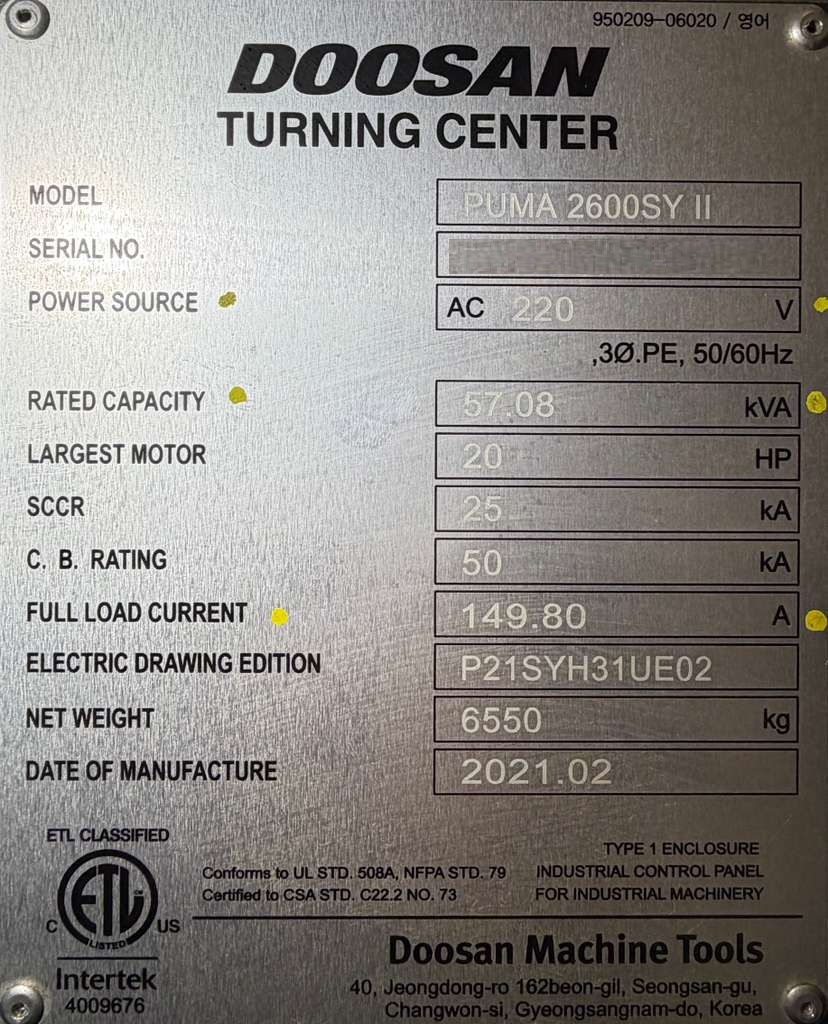

| Power Source: 220v / 3-Phase / 60 Hz/ 57.08 kva |
| Overall Dimensions: 142″ x 75″ x 85″ High Approx. |
| Weight: 14,220 lbs Approx. |
