*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

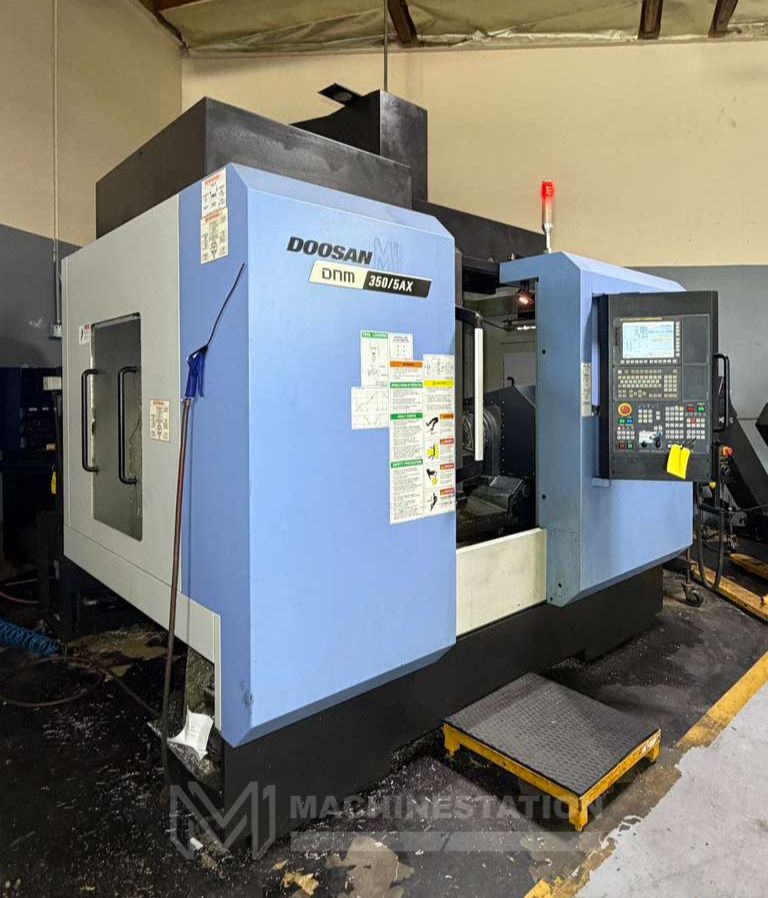

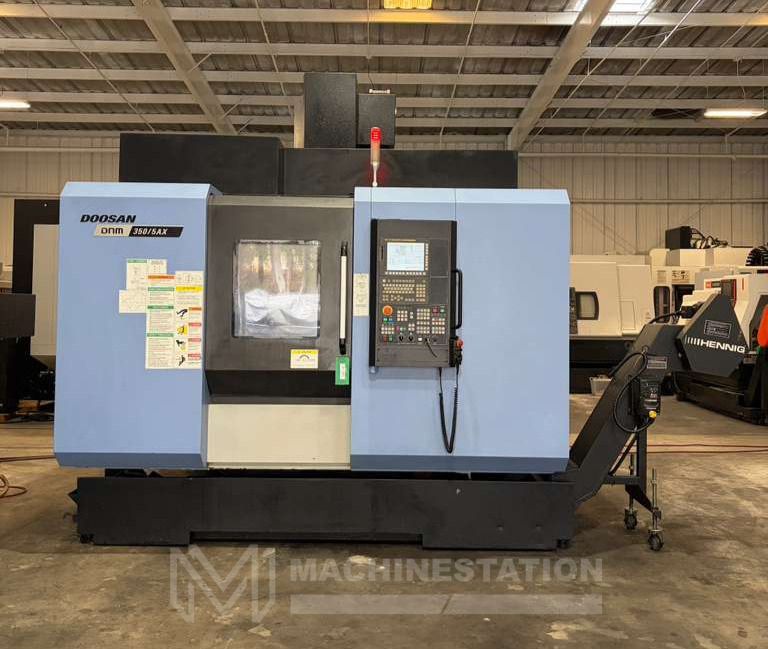

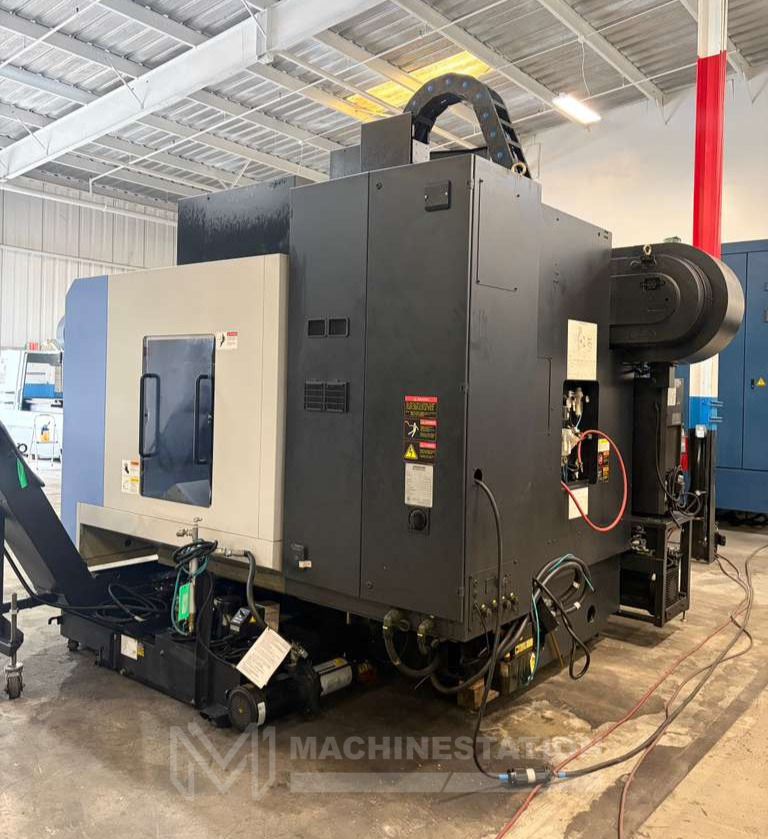

| Make: | Doosan |

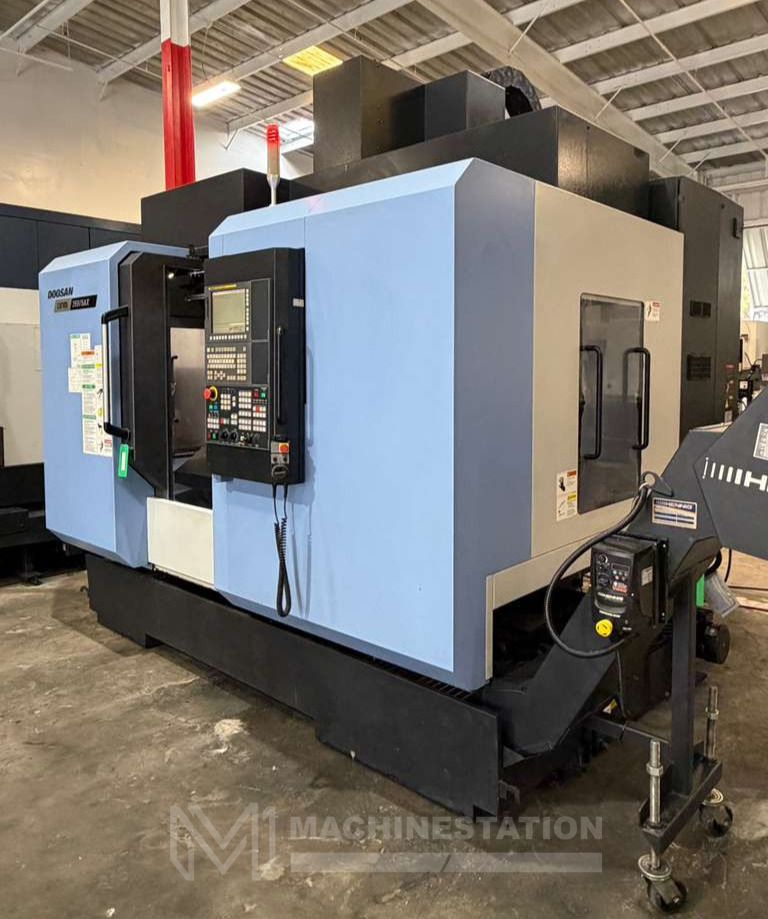

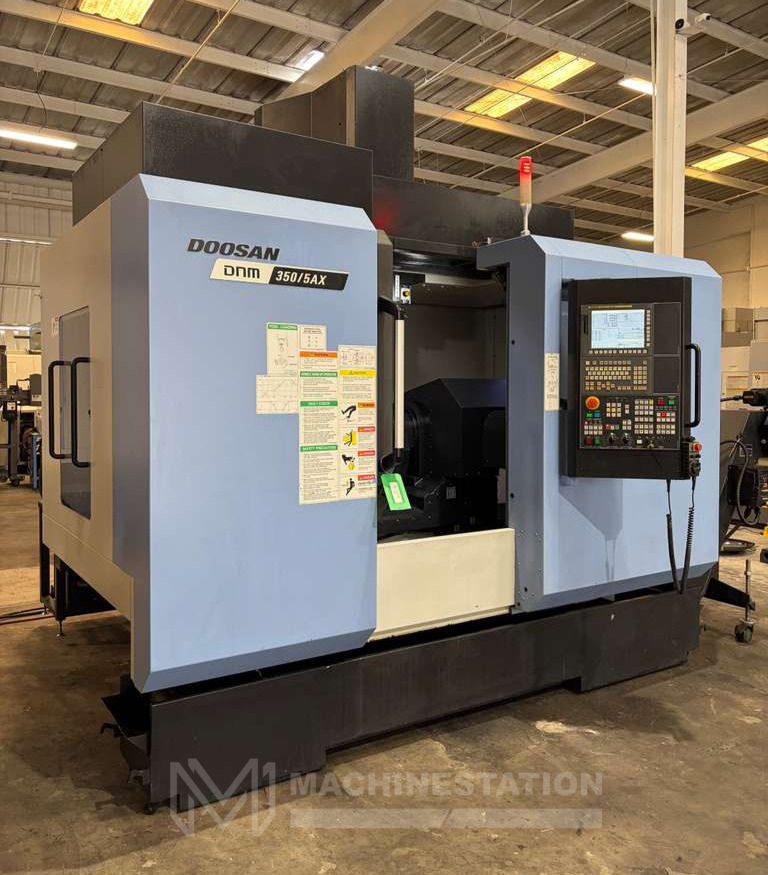

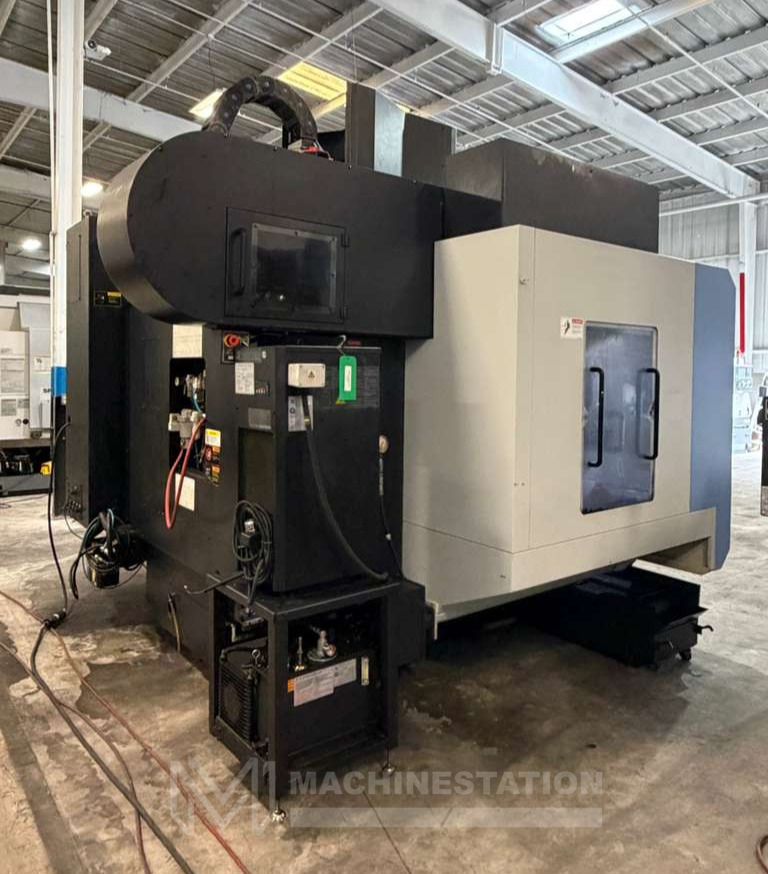

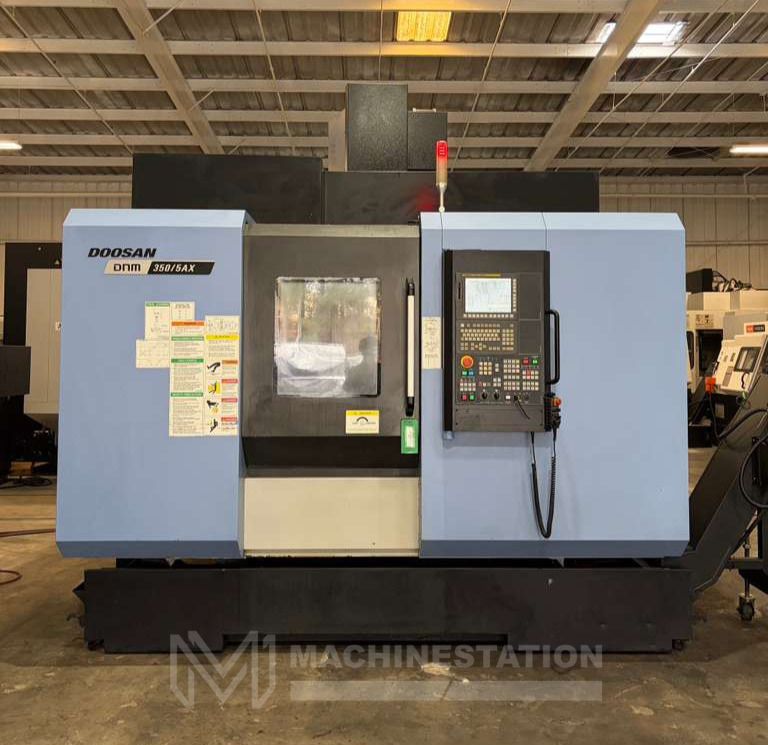

| Model: | DNM 350/5AX |
| Year: | 2017 |
| Condition: | Used – Excellent |
| Features: |
|---|

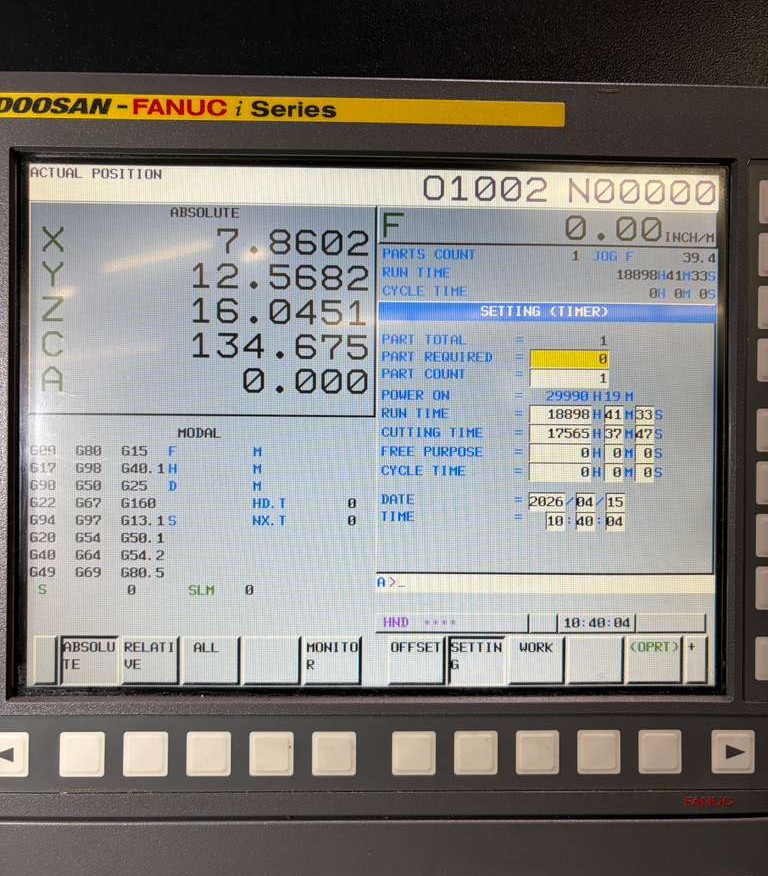

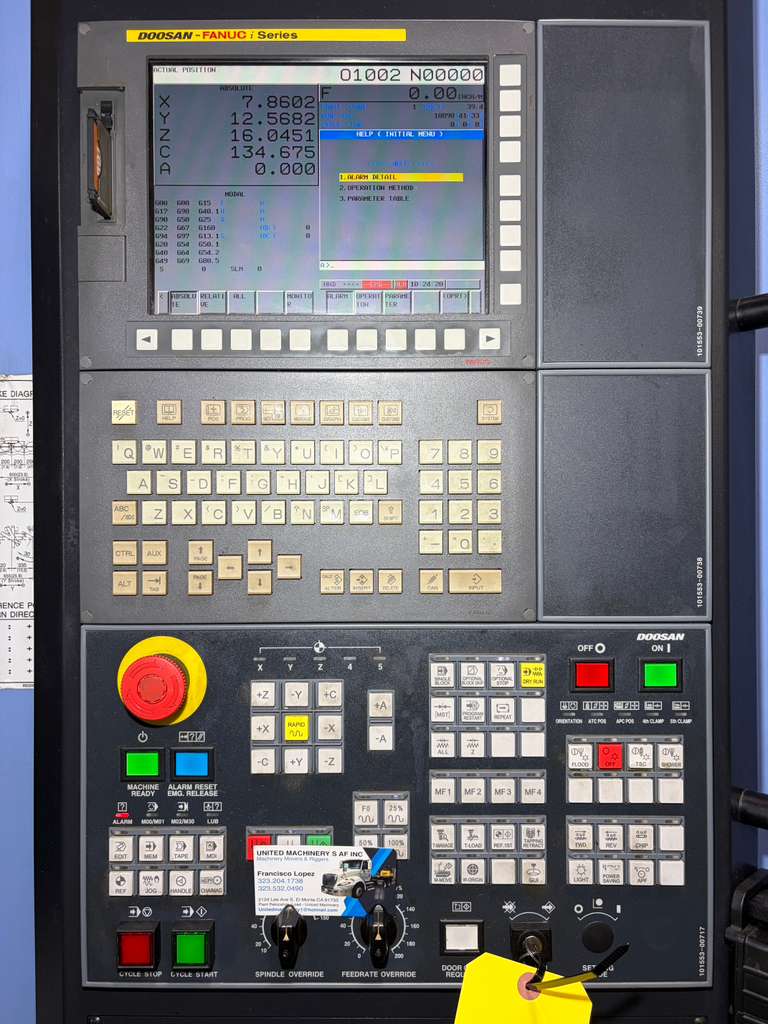

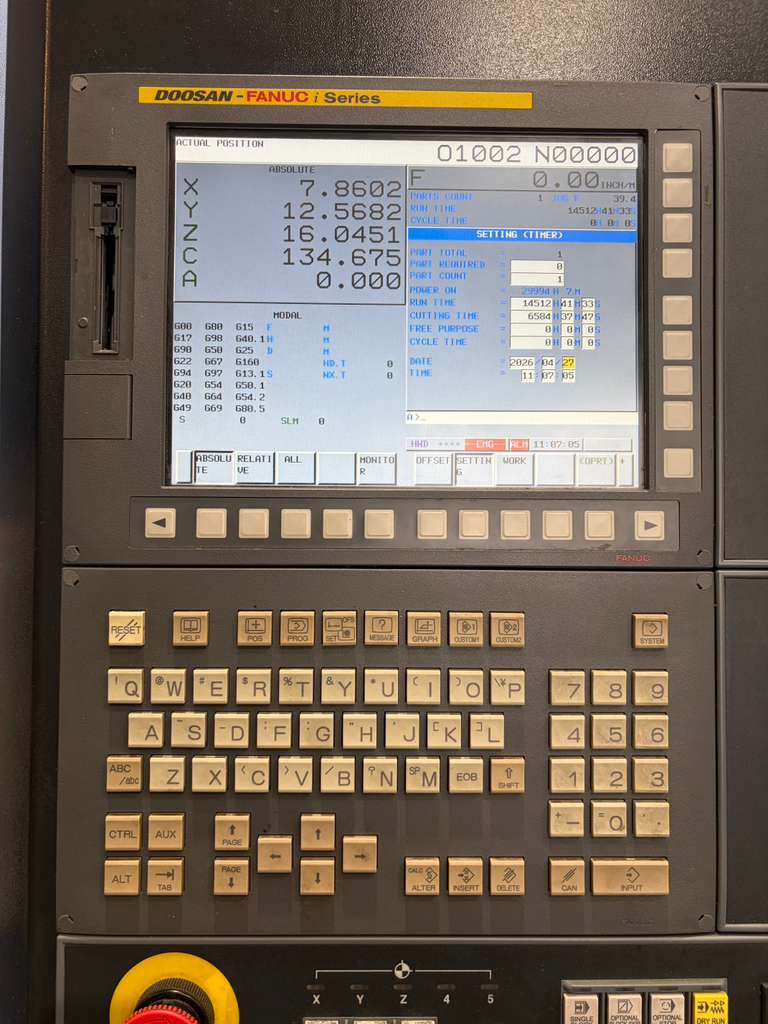

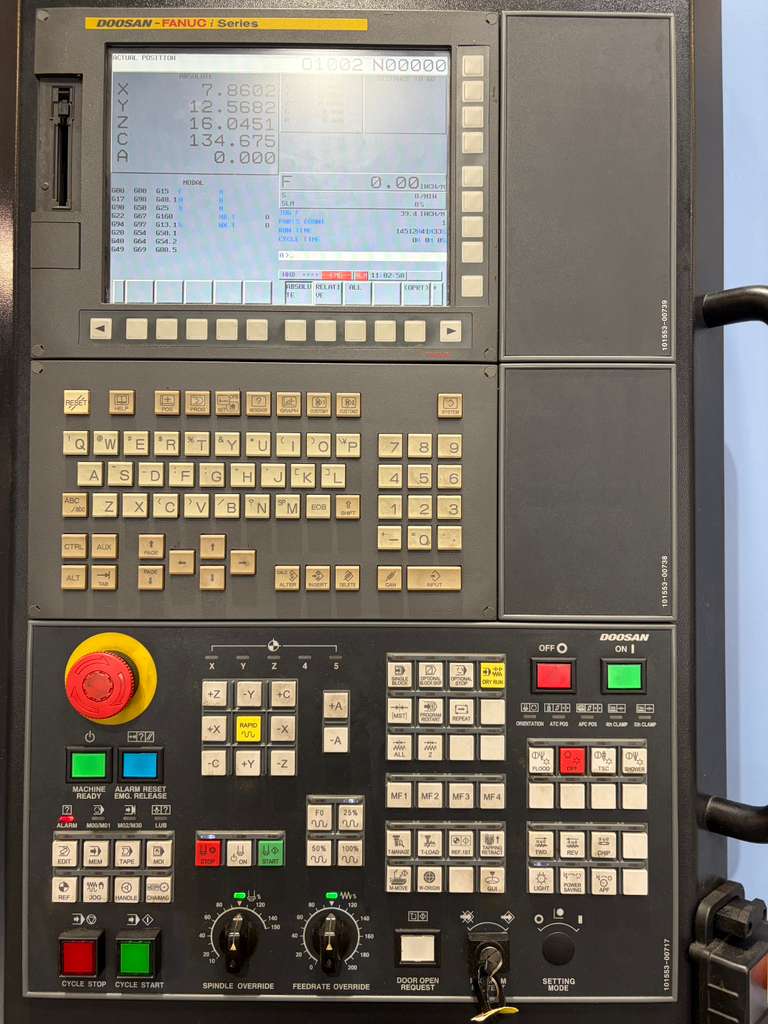

| Doosan-Fanuc i-Series CNC Control |
| 5 Axis Machining (4 + 1) |

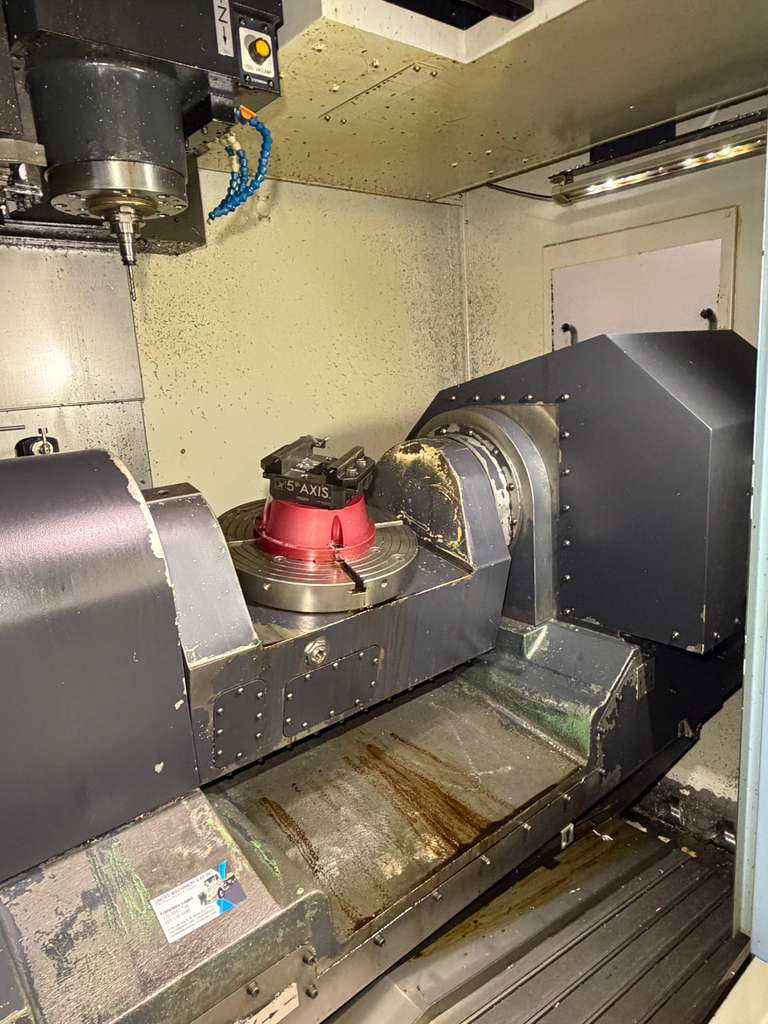

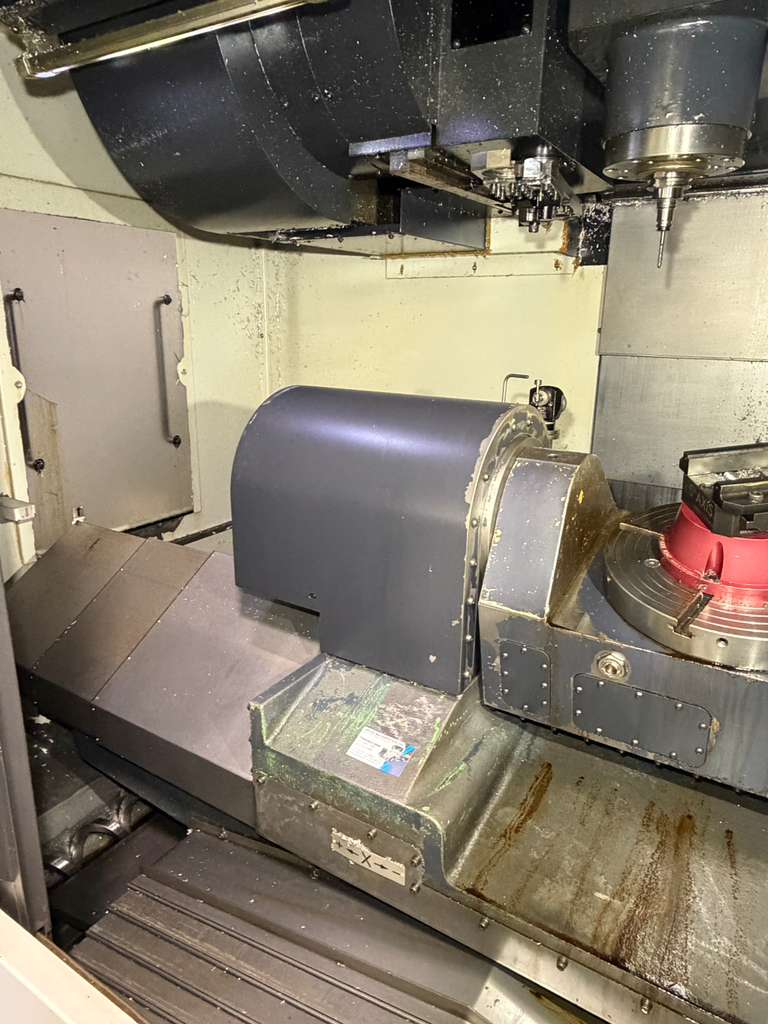

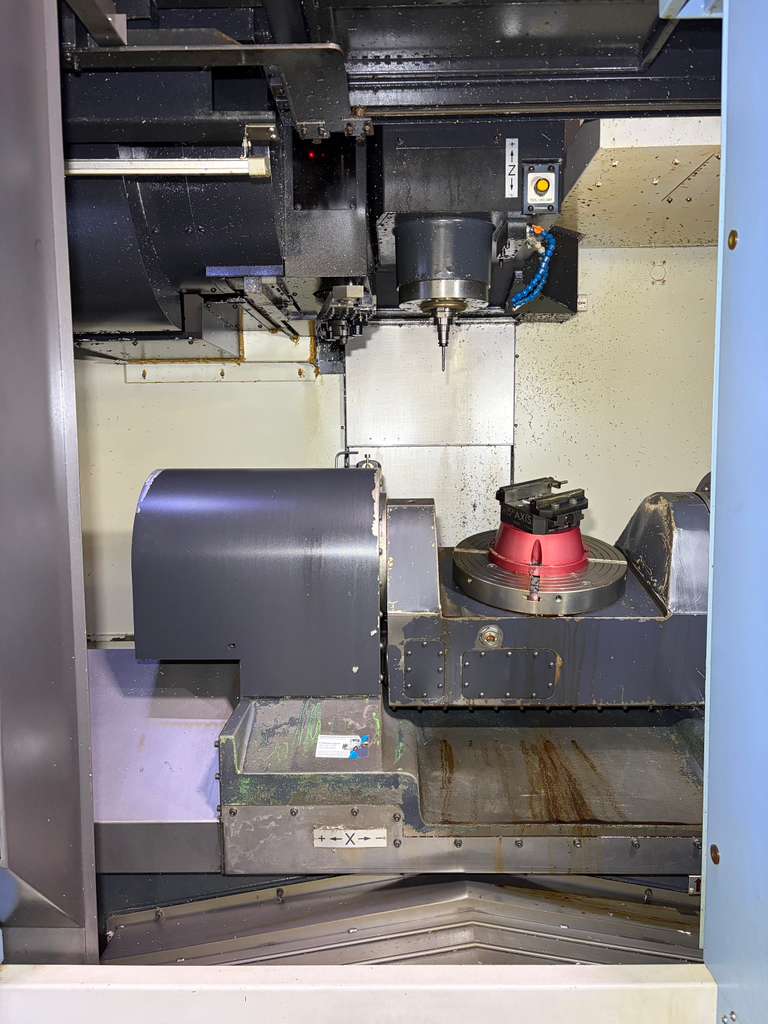

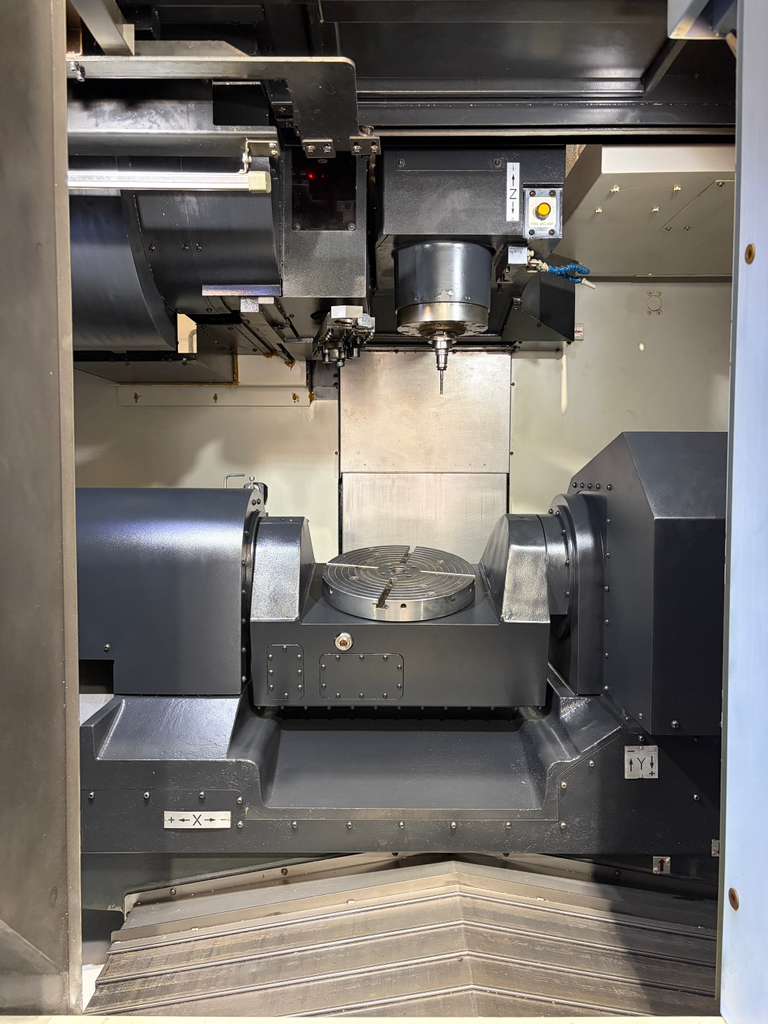

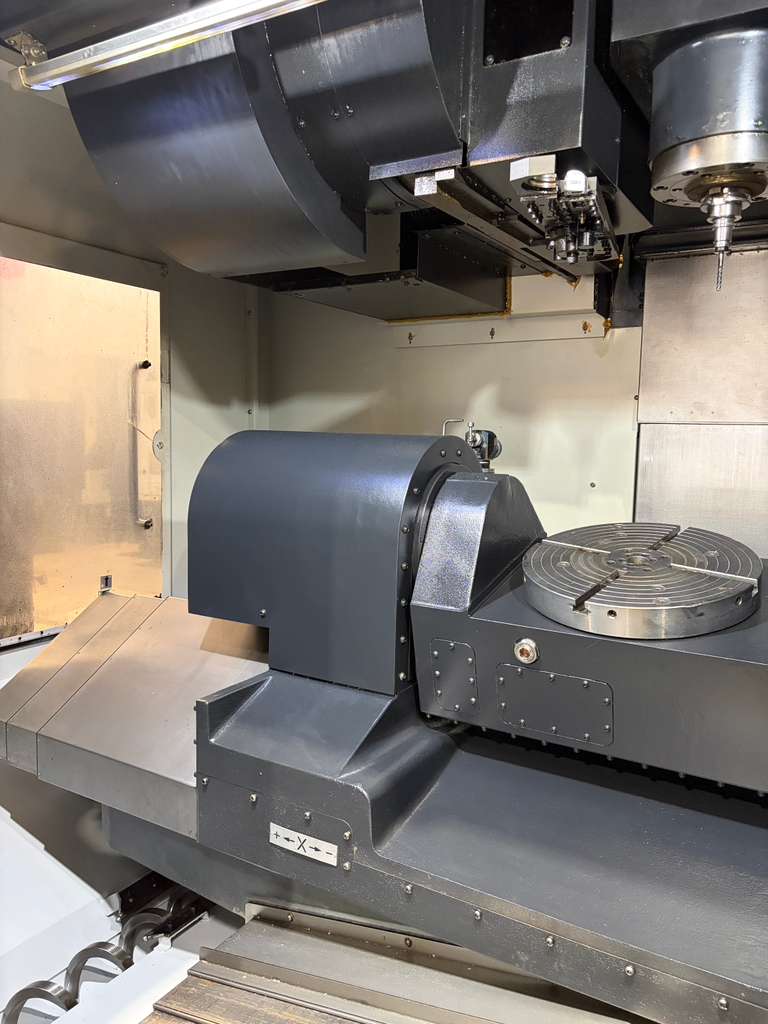

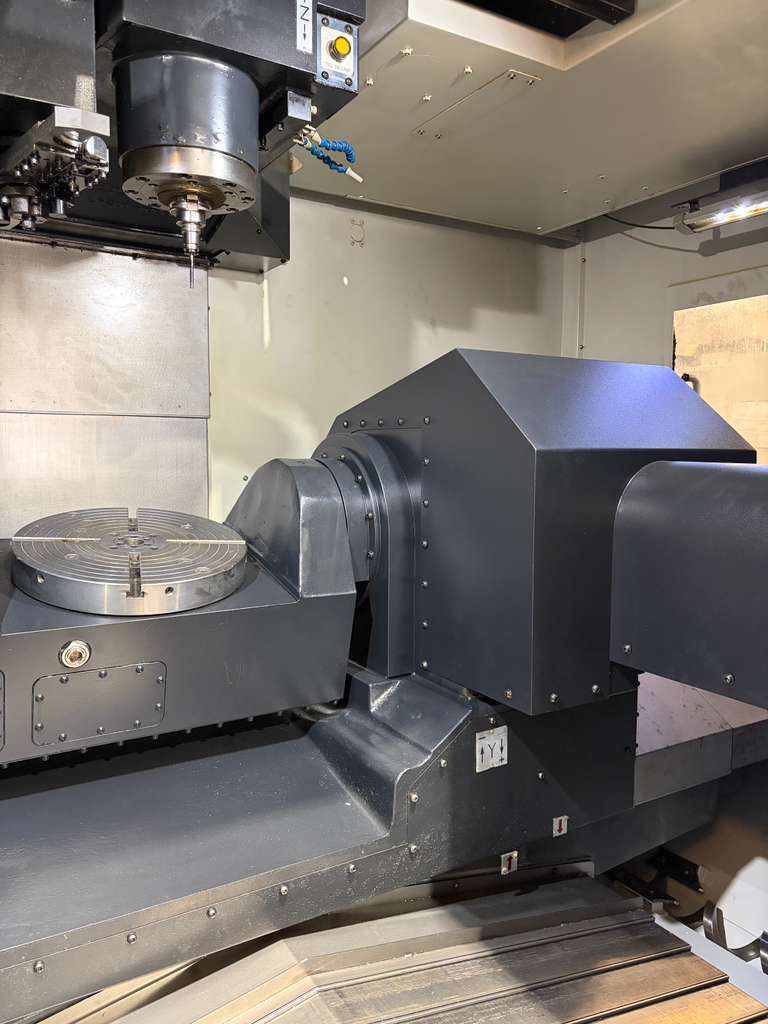

| ø 13.8″ Trunnion Table |
| 12,000 RPM High Precision Spindle |

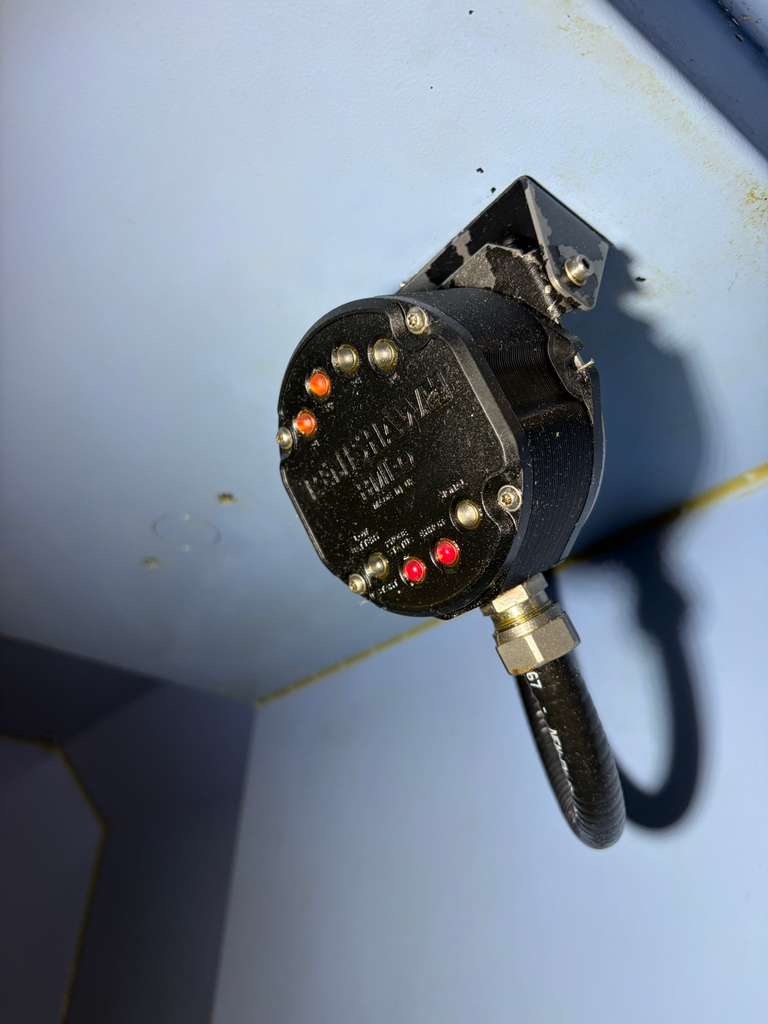

| Renishaw Reciever Installed |

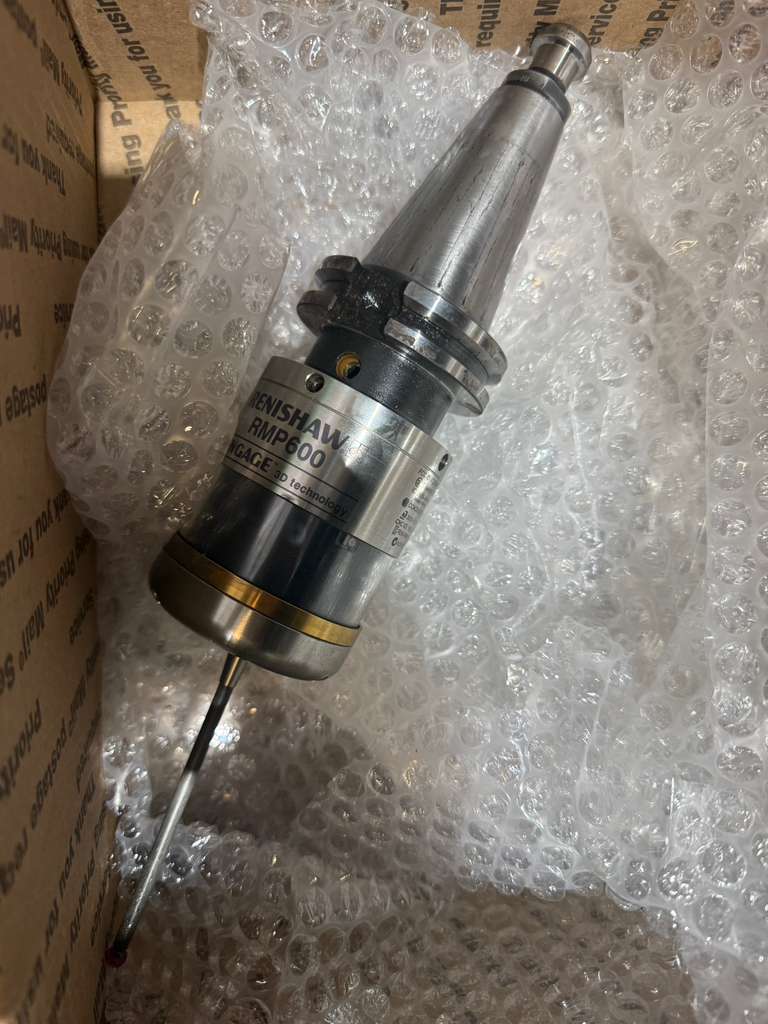

| Renishaw RMP 600 Tool Probe |

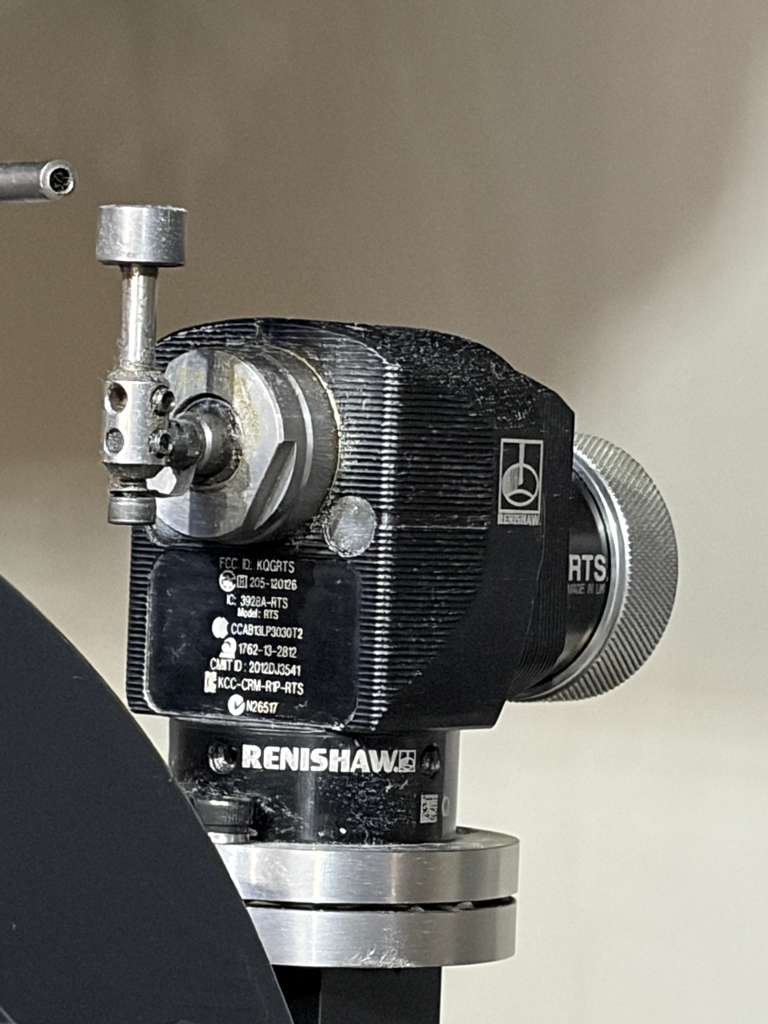

| Tool Presetter |
| 60 Station Automatic Tool Changer |
| Through Spindle Coolant |

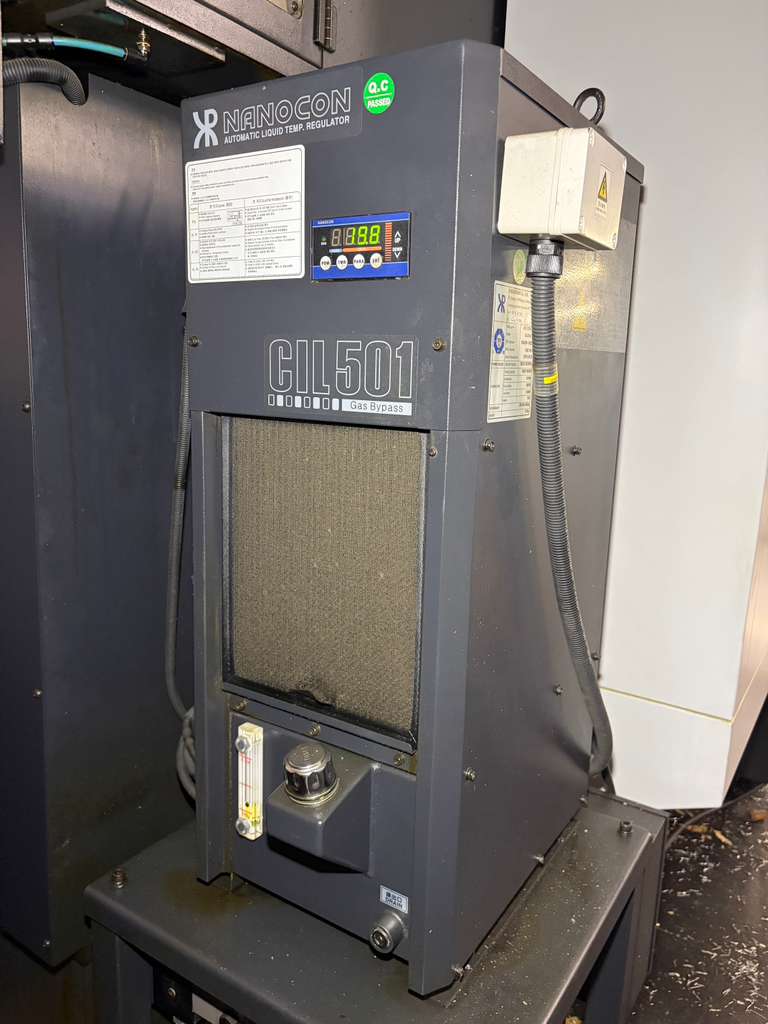

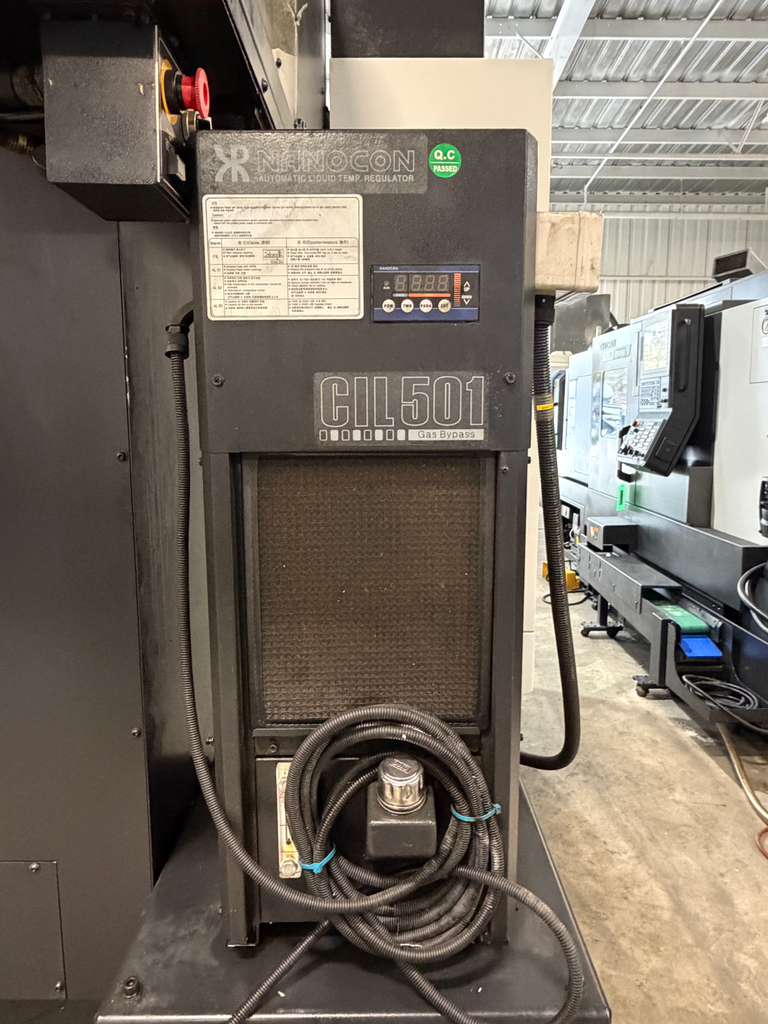

| Spindle Chiller Unit |
| MPG Handwheel Control |
| PCMCIA Card Slot |
| Spindle Orientation |

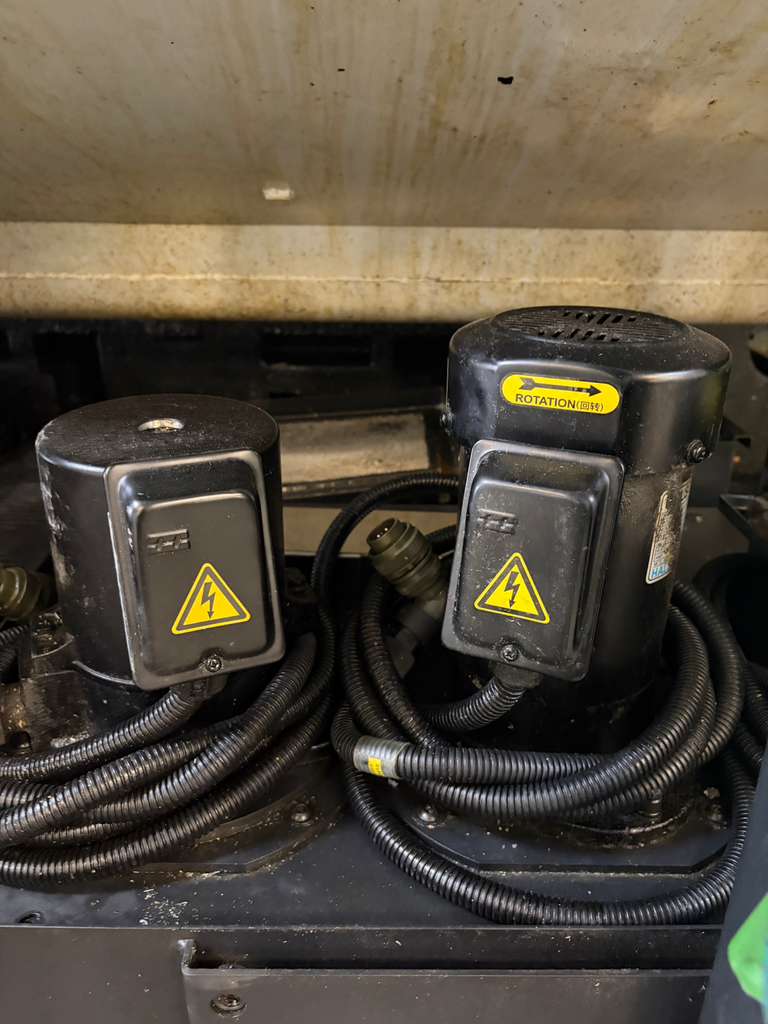

| Coolant System |

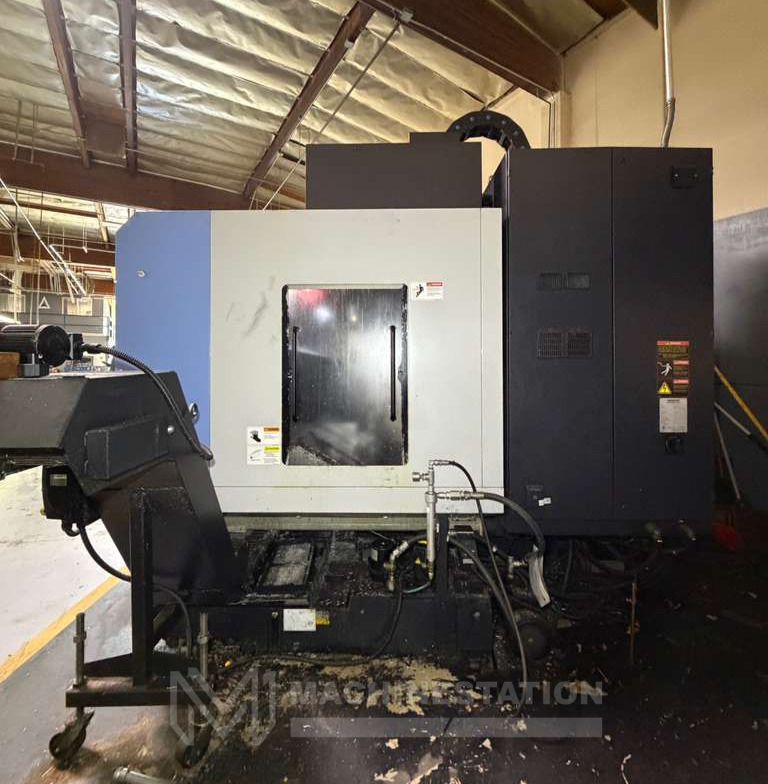

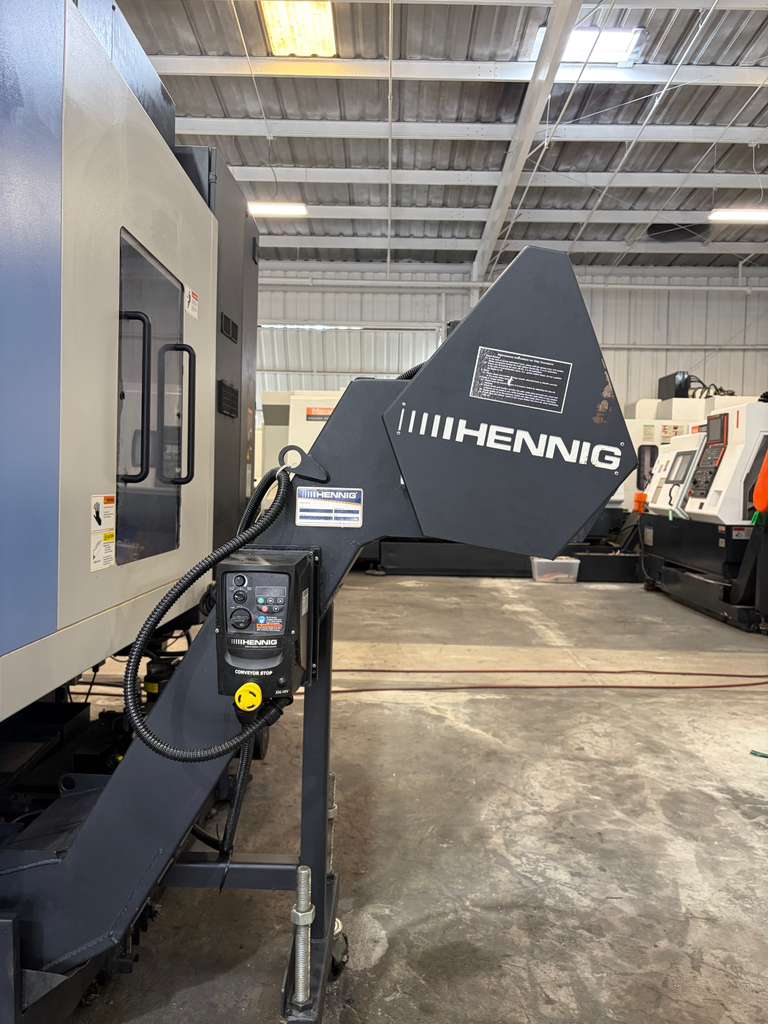

| Chip Conveyor |

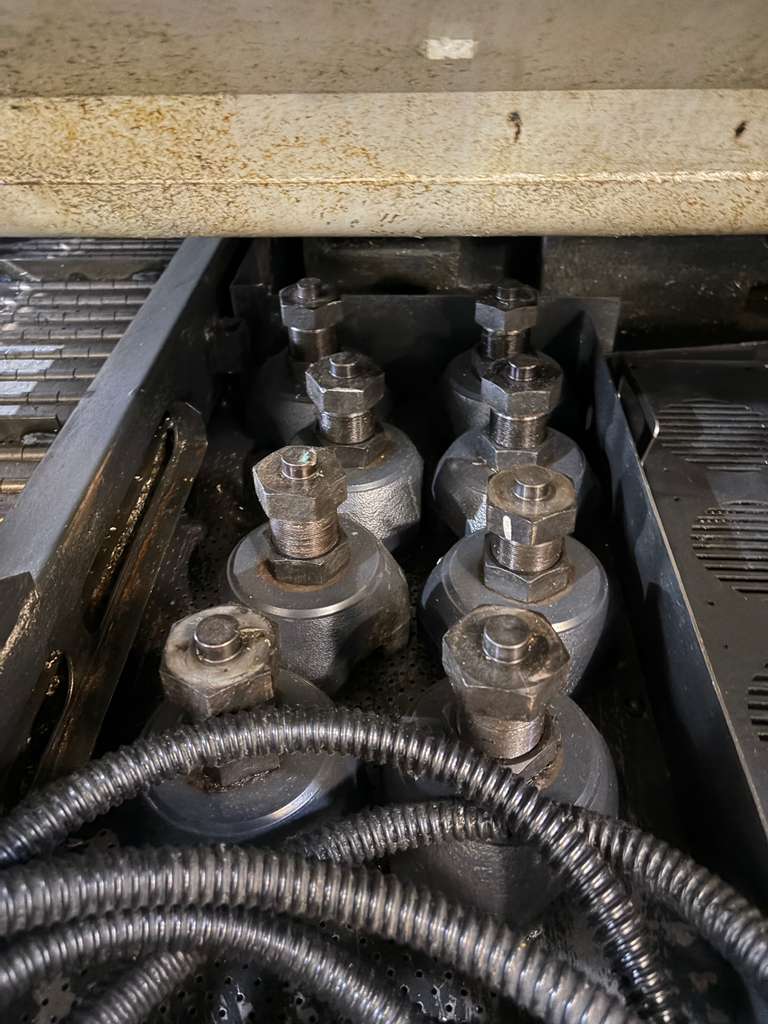

| Levelling Pads |
| Table: |
|---|
| Table size: ø 13.8″ |
| Max Part Diameter: 15.7″ |
| Max Part Height: 13.2″ |
| Max Weight on Table: 551.1 lbs |
| Travel: |
|---|
| X Axis: 23.6″ |
| Y Axis: 25.8″ |
| Z Axis: 19.7″ |
| B Axis: +30° -120° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |

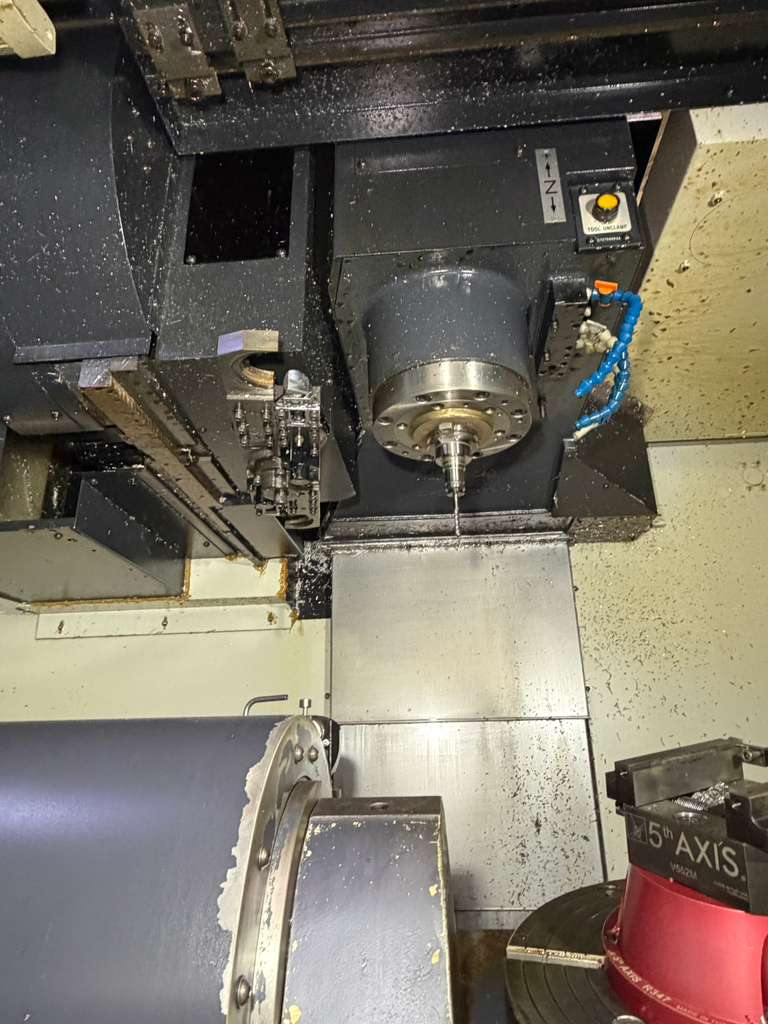

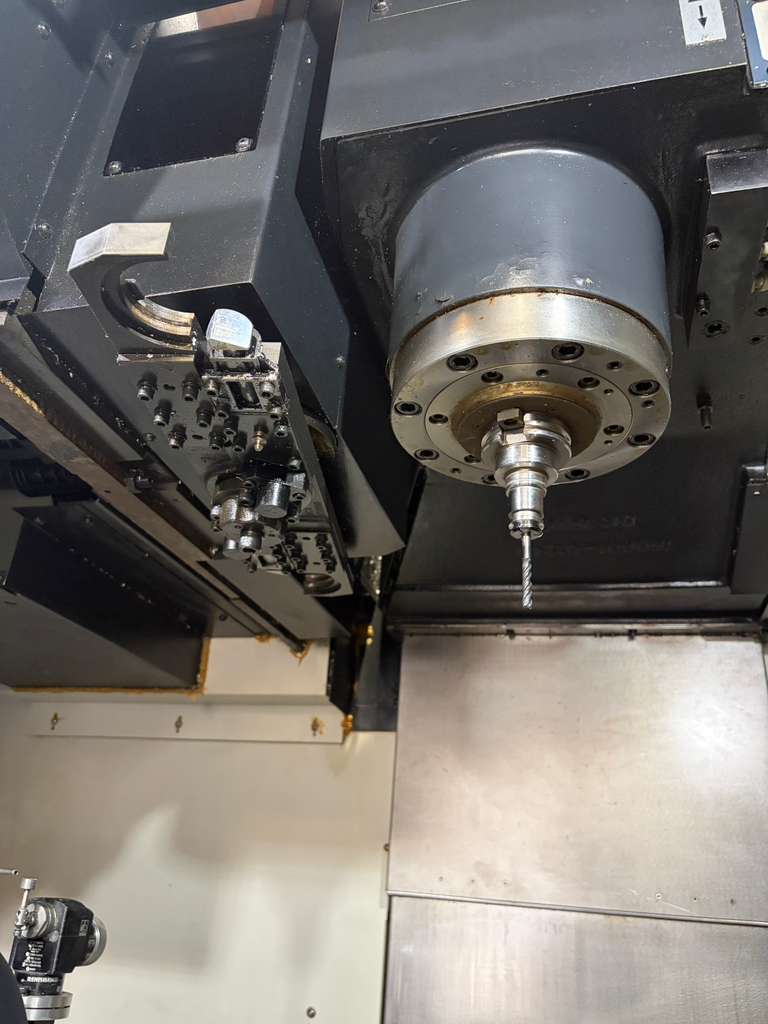

| Spindle: |
|---|
| Taper Size: CAT-40 Big Plus |
| Speed Range: 12,000 RPM |
| Spindle Power: 25 HP |
| Feed Rates: |
|---|
| Rapid X & Y: 1417 Inch Per Minute |
| Rapid Z : 1181 Inch Per Minute |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: CAT-40 Big Plus |
| Max Tool Diameter: 4.9″ |
| Max Tool Height: 10.6″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

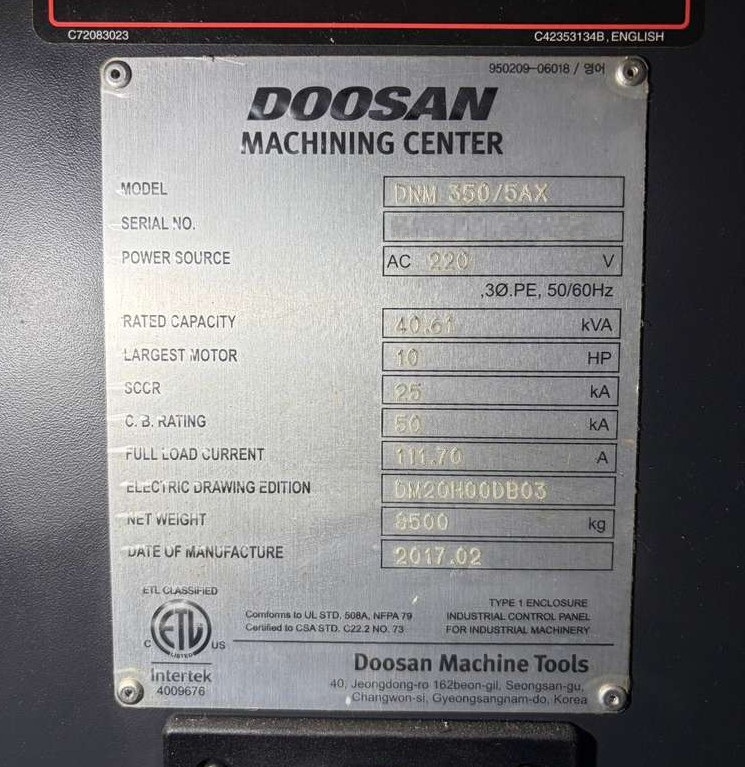

| Power: 40.60 kva / 220v / 3-Phase |
| Overall Dimensions: 126″ x 124″ x 125″ High |
| Weight: 18,740 lbs |
