Features:
- Haas CNC Control
- Visual Part Programming System
- User Definable Macros
- Early Power-Failure Detection Module
- Rigid Tapping
- Spindle Orientation
- Haas Connect: Remote Monitoring
- Media Display
- 1GB Max Memory
- Ethernet Interface
- WiFi Connection For Haas Control
- Inch Measurement Units
- Coolant Tank
-
Capacity:
- Max Turning Diameter : 11.0″
- Max Swing Over Bed : 16.5″
- Max Turning Length: 16.0″
- Max Bar Capacity : 2.5″
-
Travels:
- X Axis Travel : 7.88″
- Y Axis Travel : ± 2.0″
- Z Axis Travel : 16.00″
- C Axis : 0.001 Degree
- Feedrate:
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Y Axis: 472 IPM
- Rapid Traverse Z Axis: 1200 IPM
-
Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 3.5″
- Spindle Speed: 4000 RPM
- Spindle Motor: 20 HP
-

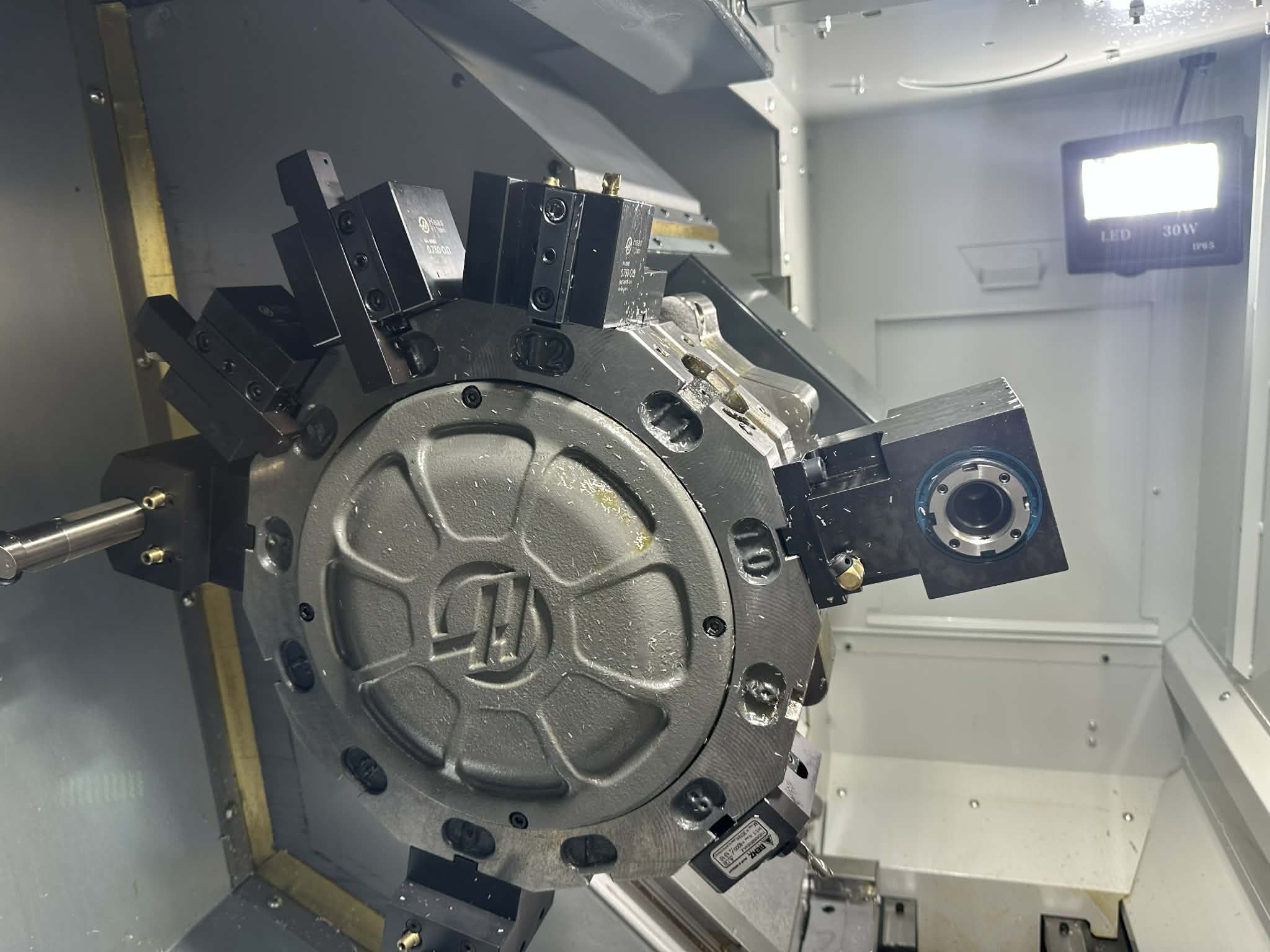

Turret:
- Turret Capacity: 12 Stations
- Live Tool Speed: 4000 RPM

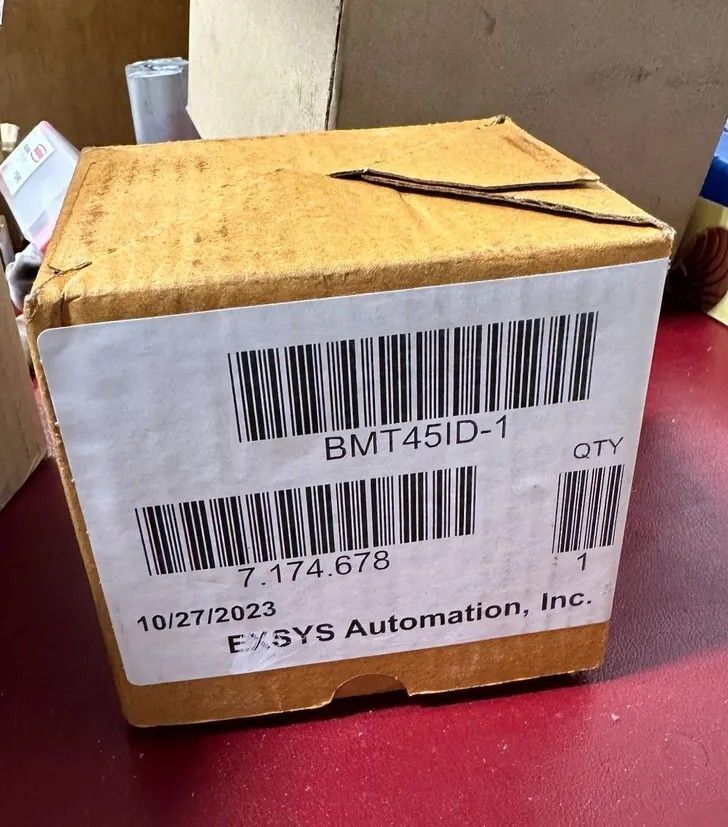

- Turret Type: BMT-45
-
General:
- Air Requirement: 4 scfm @ 100 psi
- Machine Dimensions: 126″ x 70.0″ x 81.0″ High
- Machine Weight:7,900 lbs Approx.
