*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | DS-30Y |
| Year: | 2023 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|
| Haas CNC Control |

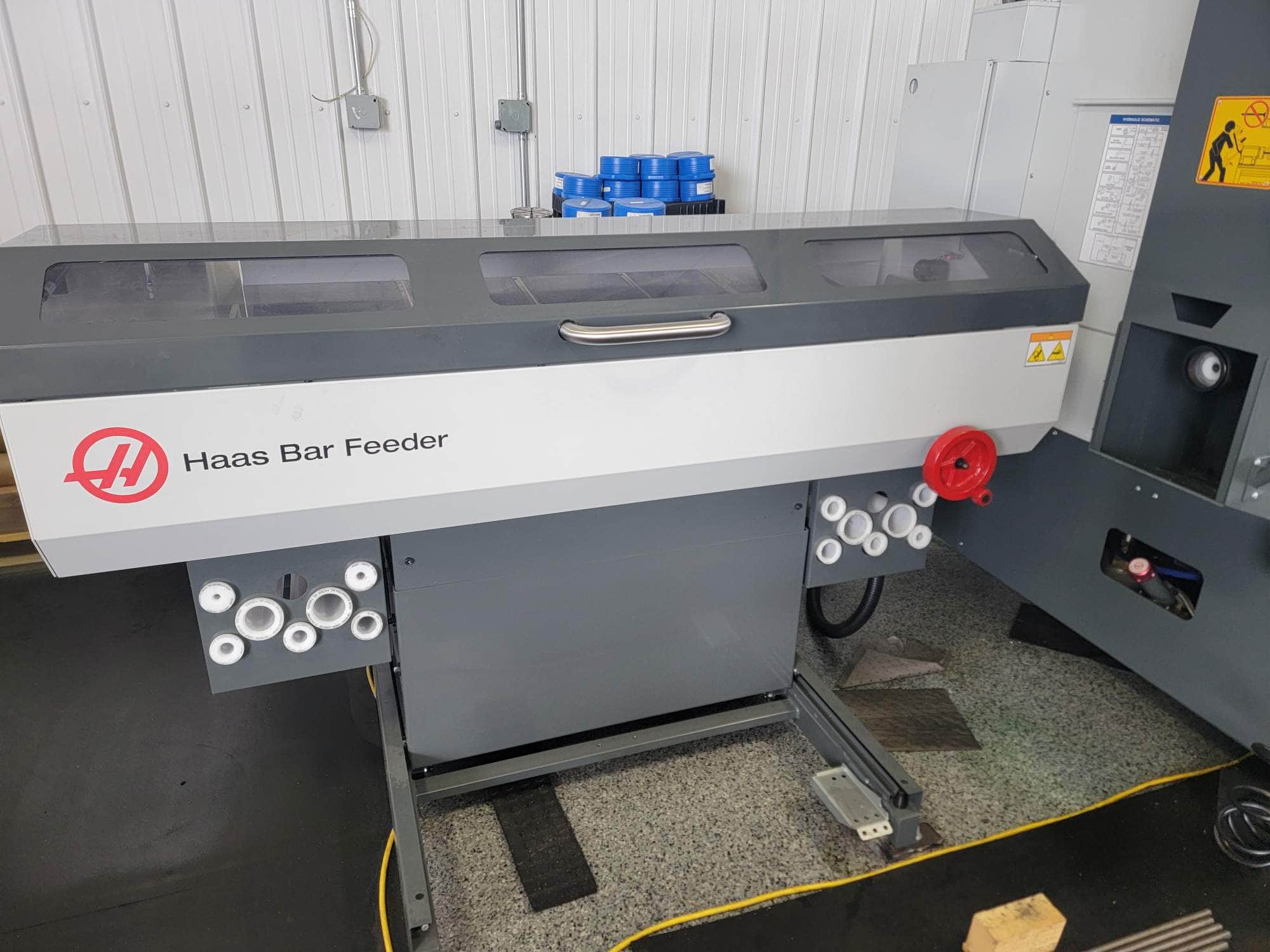

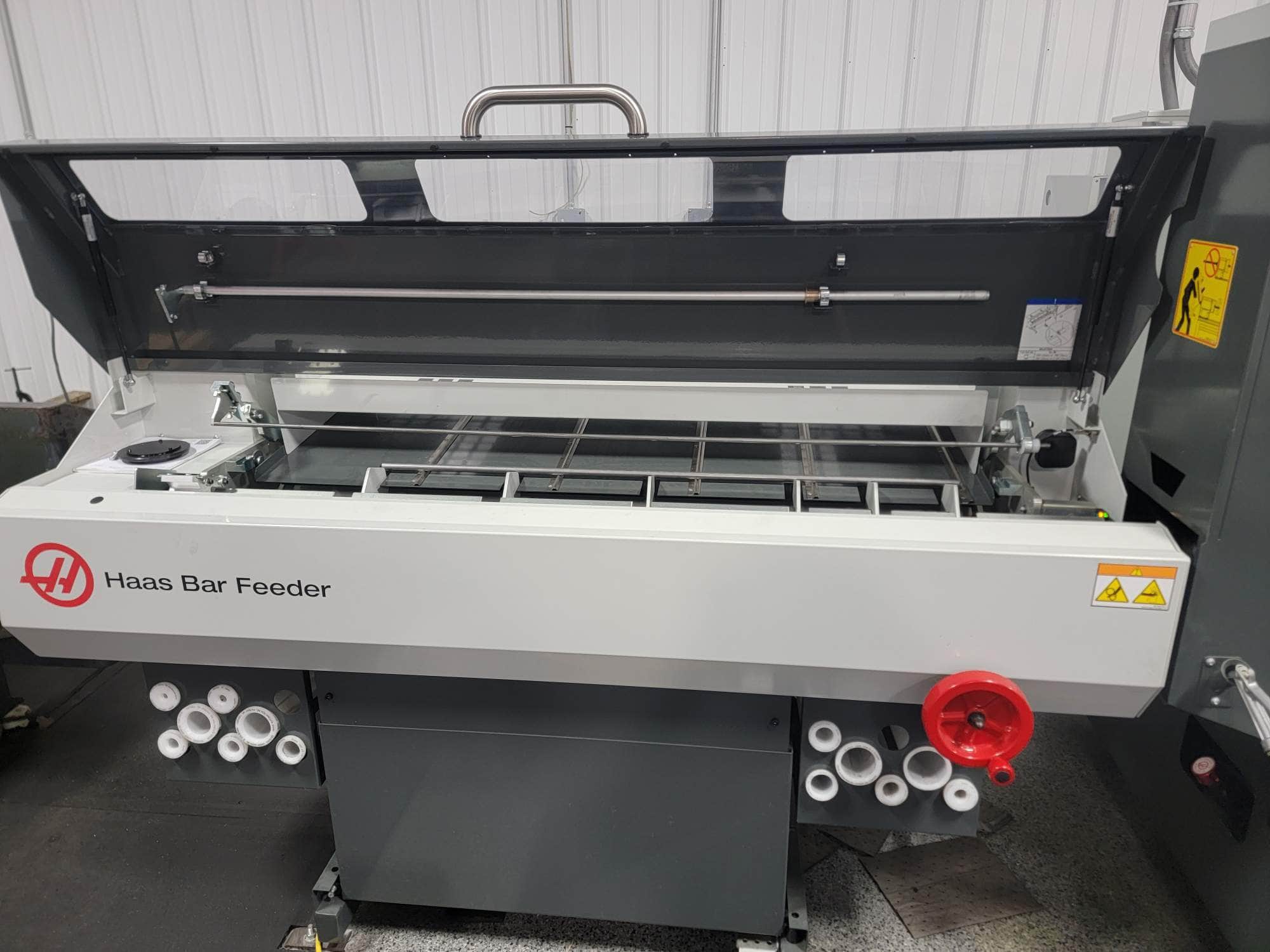

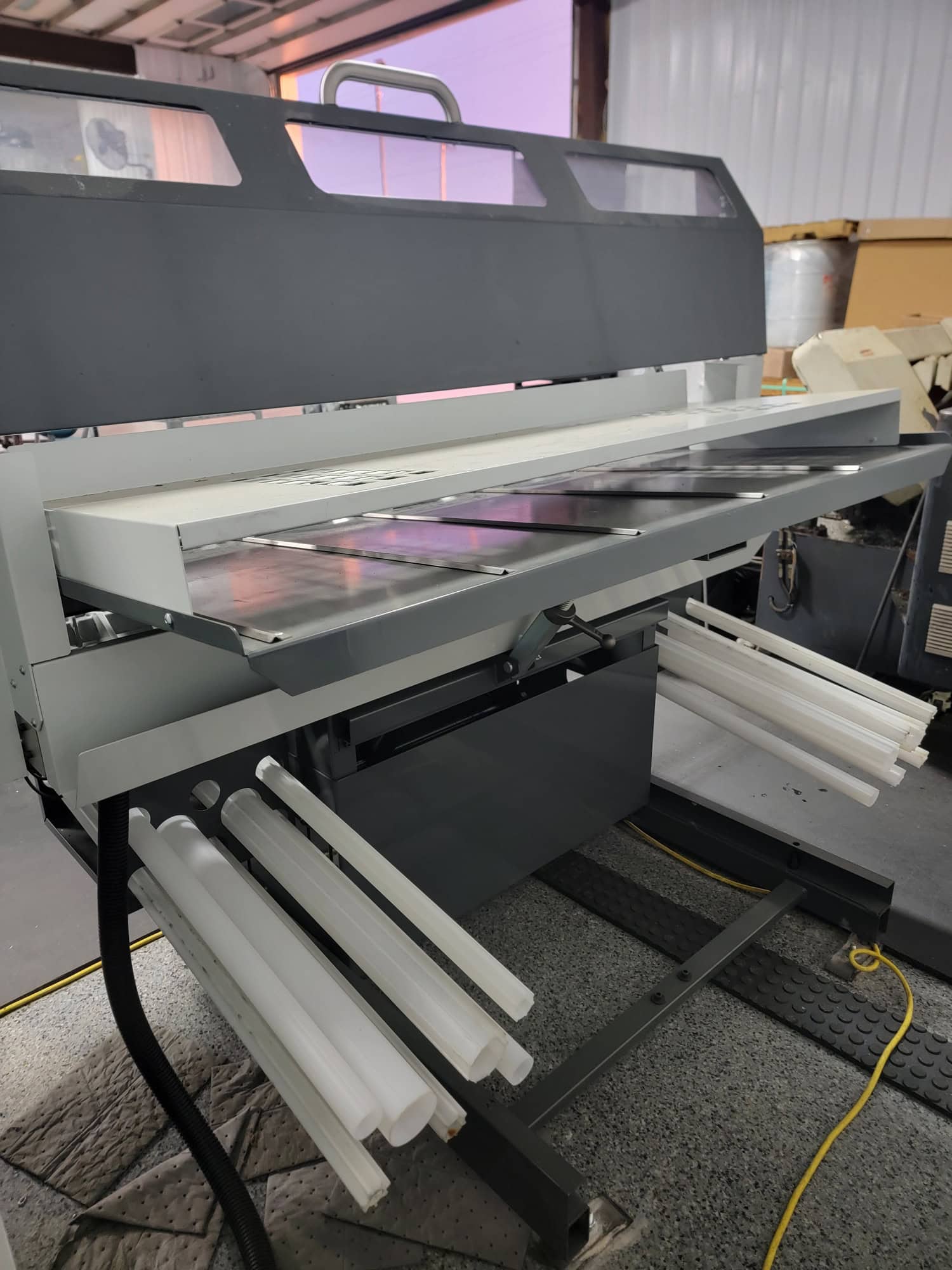

| Haas Bar Feeder |

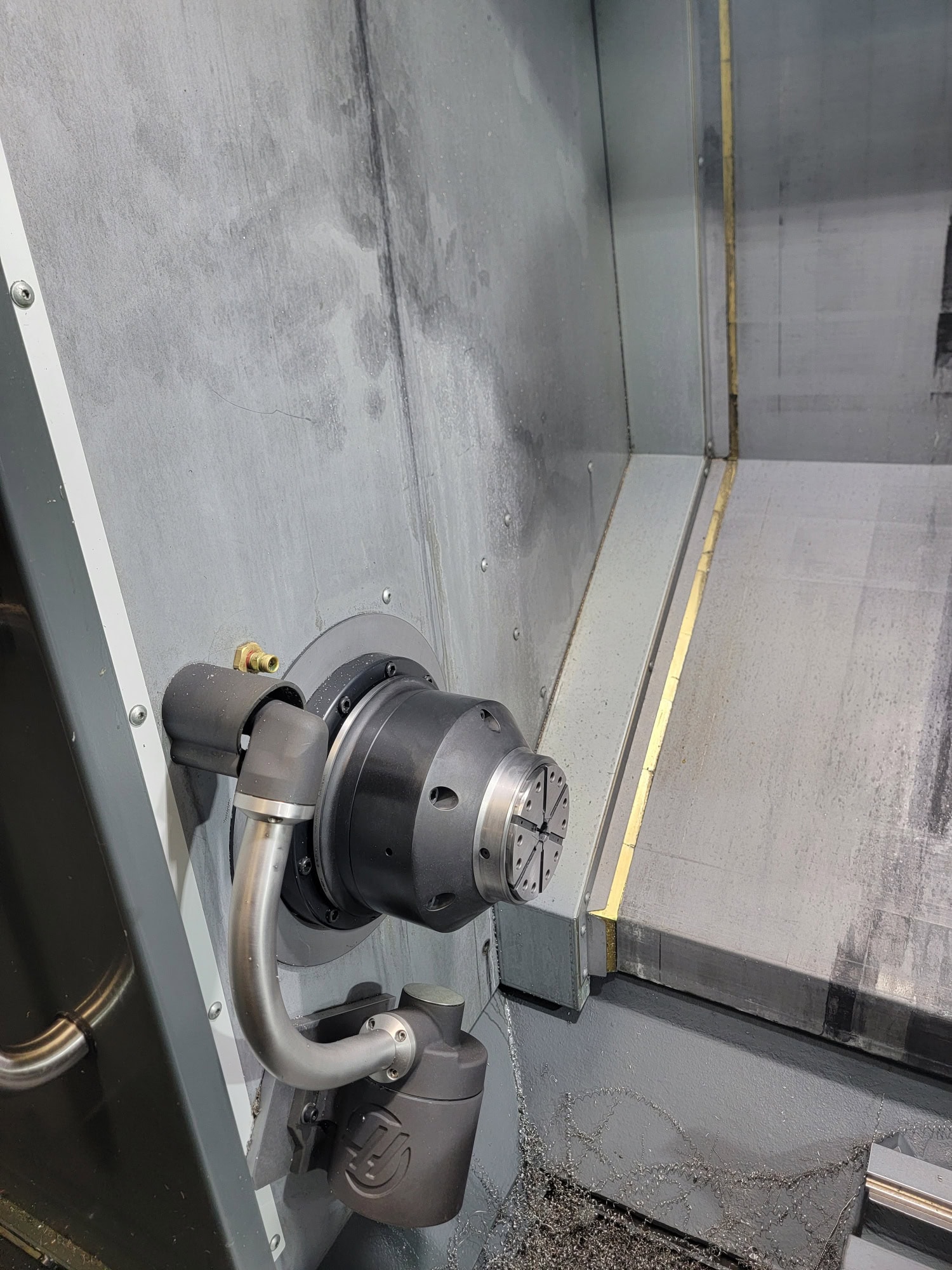

| Sub Spindle |
| Chuck Air Blast |
| 12 Station Live Tool Turret – 24 Positions |
| C & Y Axis Capability |
| 4,000 RPM Live Tool Spindle Speed |
| Tool Presetter |
| Parts Catcher |
| Sub Spindle Air Blast |
| Enclosure Exhaust System |
| Rigid Tapping |
| Spindle Orientation |
| Visual Part Programming System & User-Definable Macro |
| Media Display |
| 1 GB Max Memory |
| Compensation Tables |
| Wireless Networking |
| High Pressure Coolant – 300 psi |
| Coolant Tank |
| Oil Skimmer |
| Belt Type Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter : 13.75″ |
| Max Swing Over Bed : 21.0″ |
| Max Turning Length: 32.5″ |
| Max Bar Capacity : 3.0″ |
| Travels: |
|---|
| X Axis Travel : 9.4″ |
| Y Axis Travel : ± 2.0″ |
| Z Axis Travel : 32.5″ |
| C Axis : 0.01 ° |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Y Axis: 472 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Main Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 30 HP |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.31″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 15 HP |

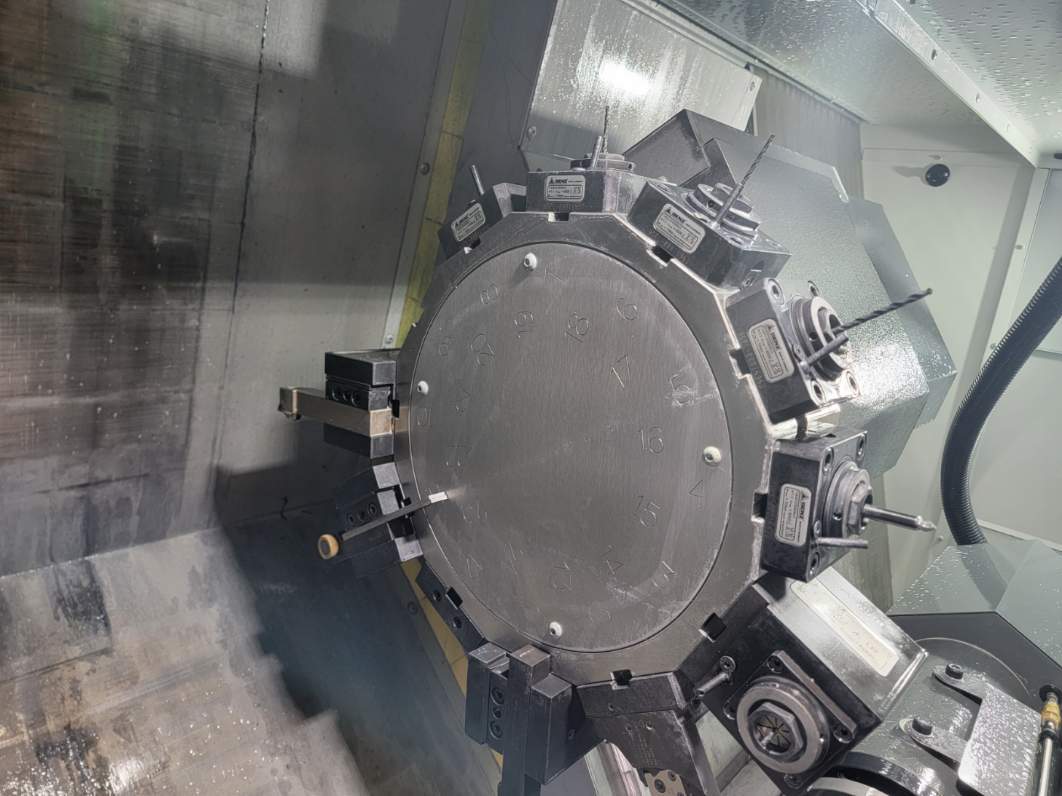

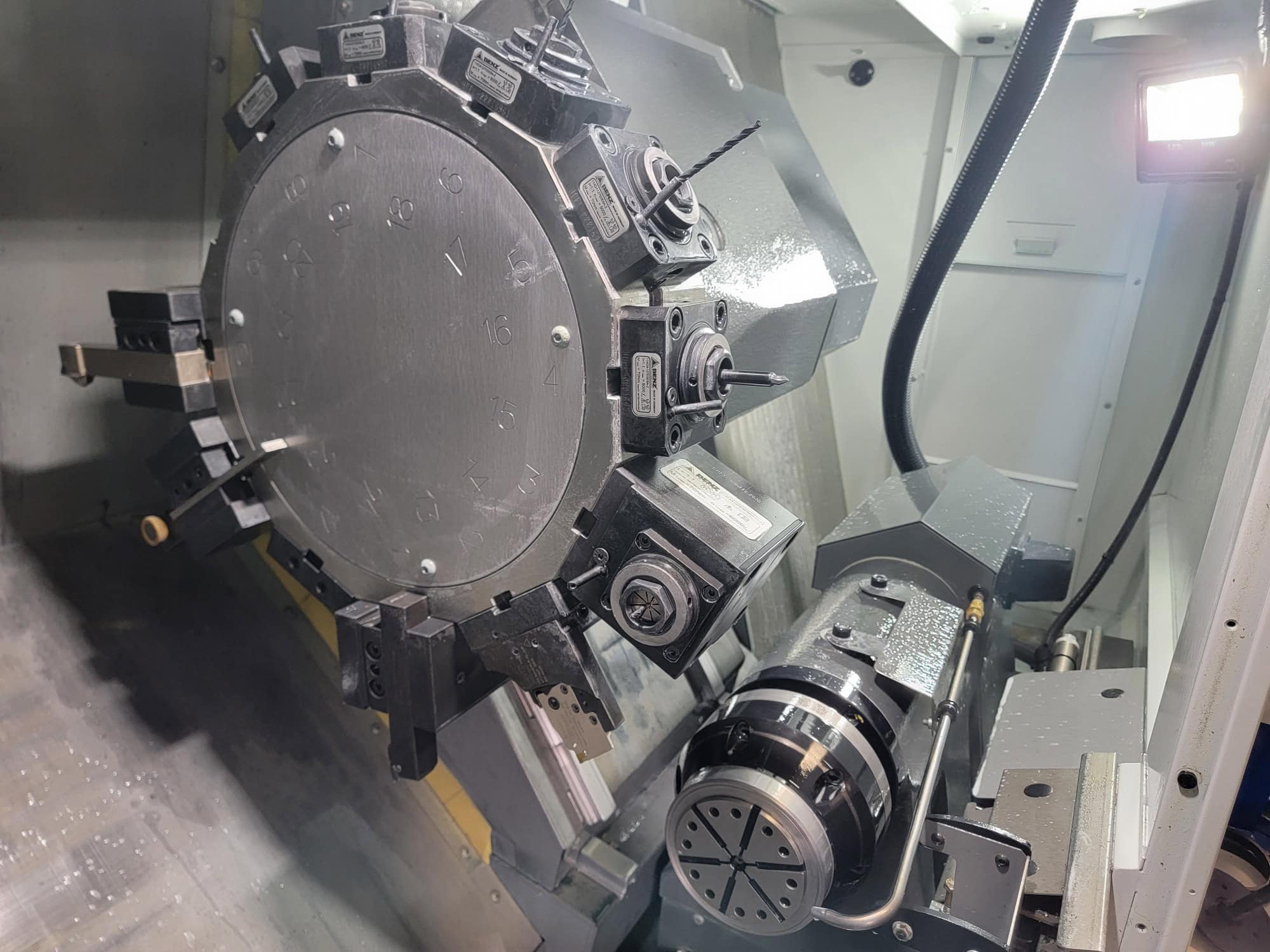

| Turret: |
|---|
| Turret Capacity: 12 Stations – 24 Positions |
| Live Tool Speed: 4,000 RPM |
| Turret Type: BMT-65 |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 170″ x 90″ x 98″ High Approx. |
| Machine Weight: 12,200 lbs Approx. |
