*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

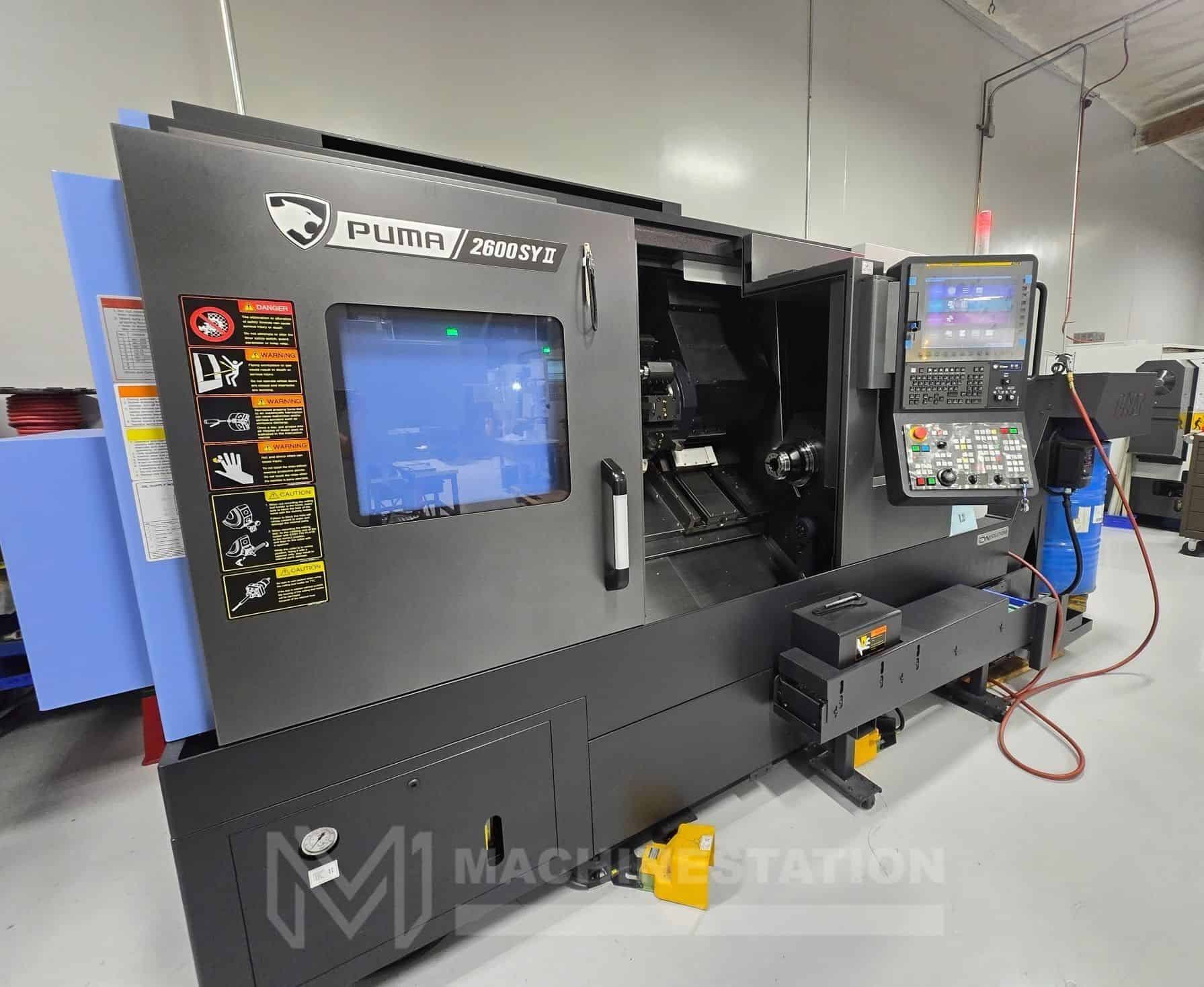

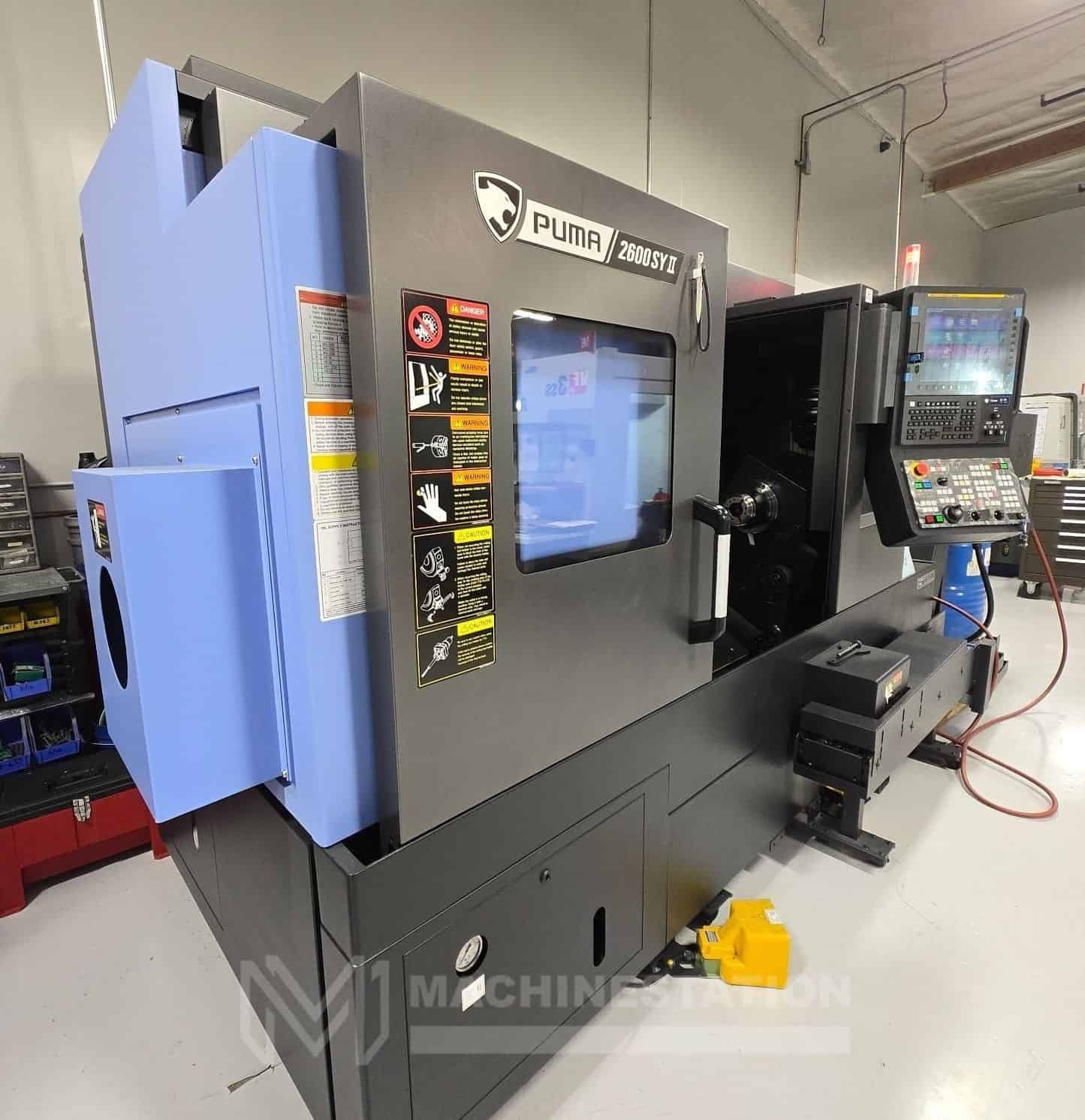

| Make: | Doosan |
| Model: | Puma 2600SYII |
| Year: | 2022 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

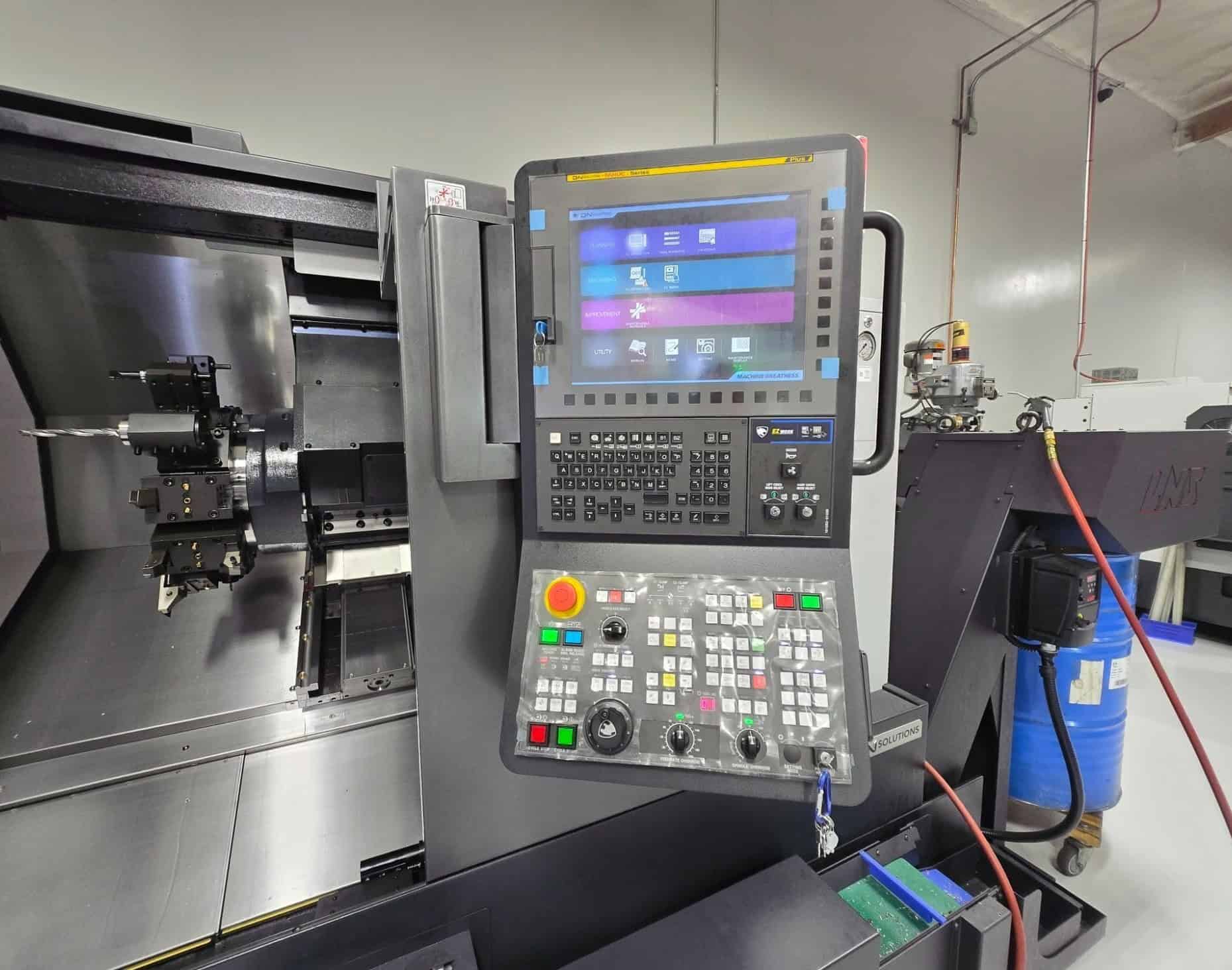

- Fanuc i-series Plus CNC Control
- Color Monitor

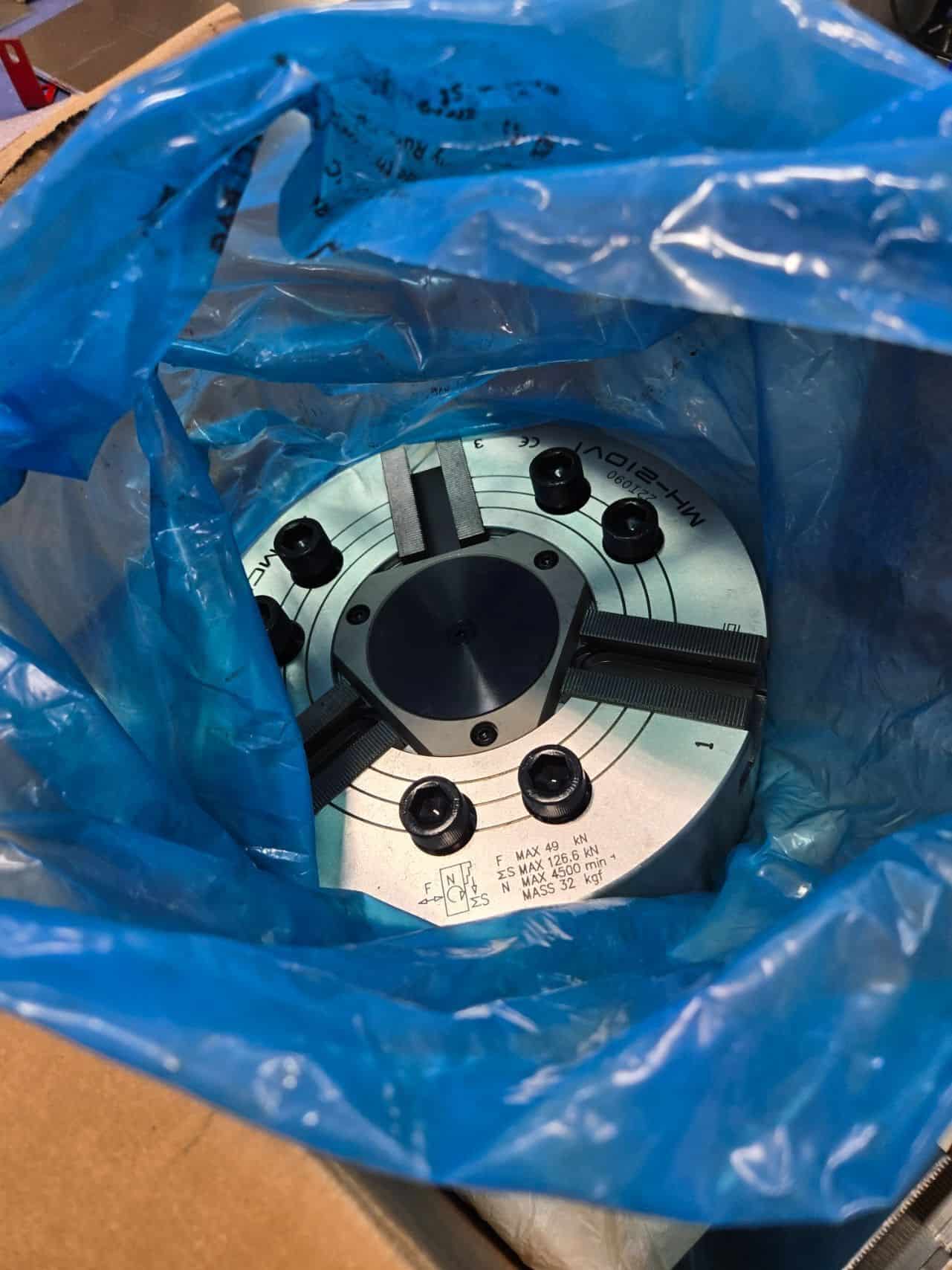

- 10″ 3-Jaw Chuck Main Spindle

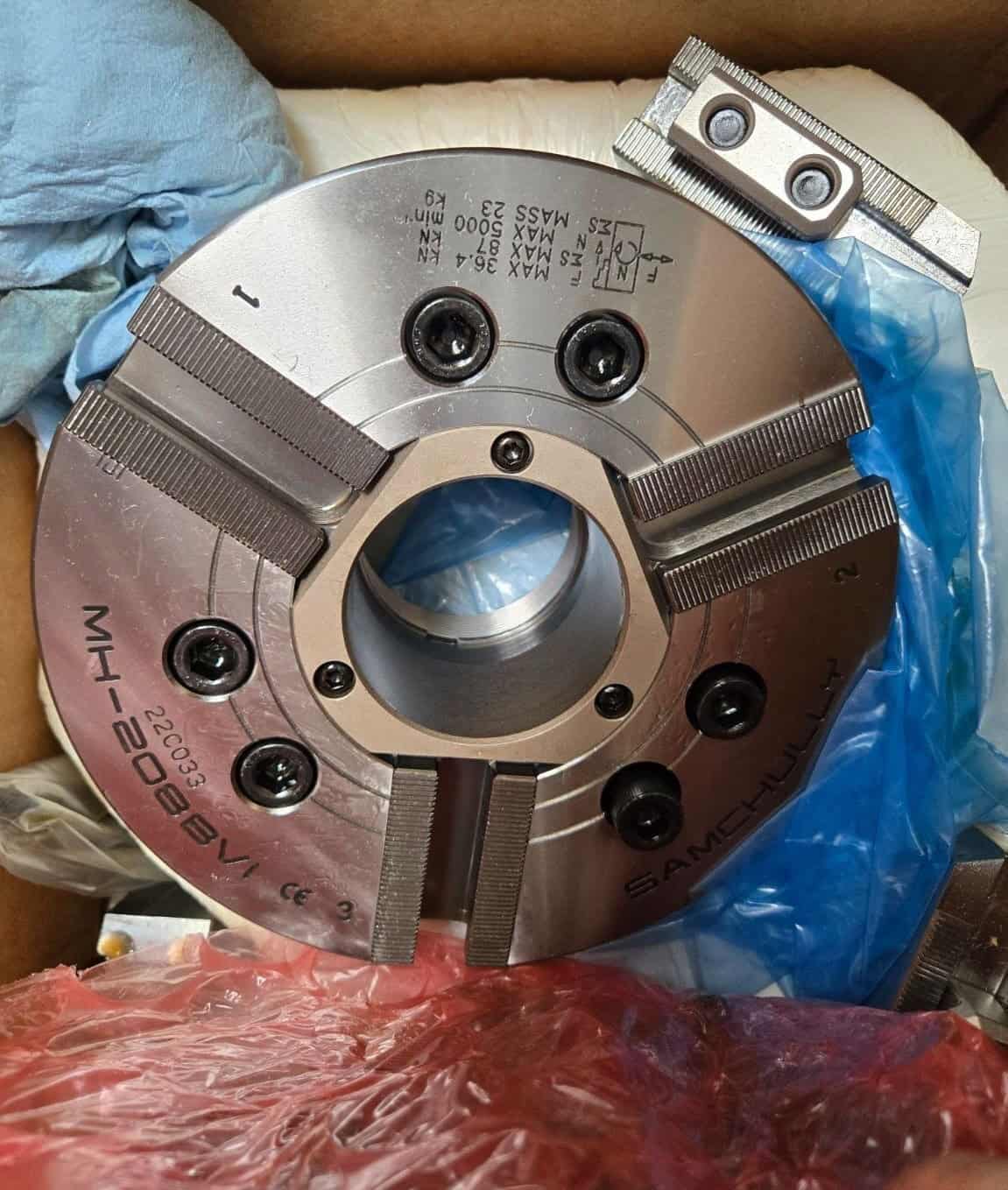

- 8″ 3-Jaw Chuck Sub Spindle
- Servo Controlled Full C-Axis on Both Spindles

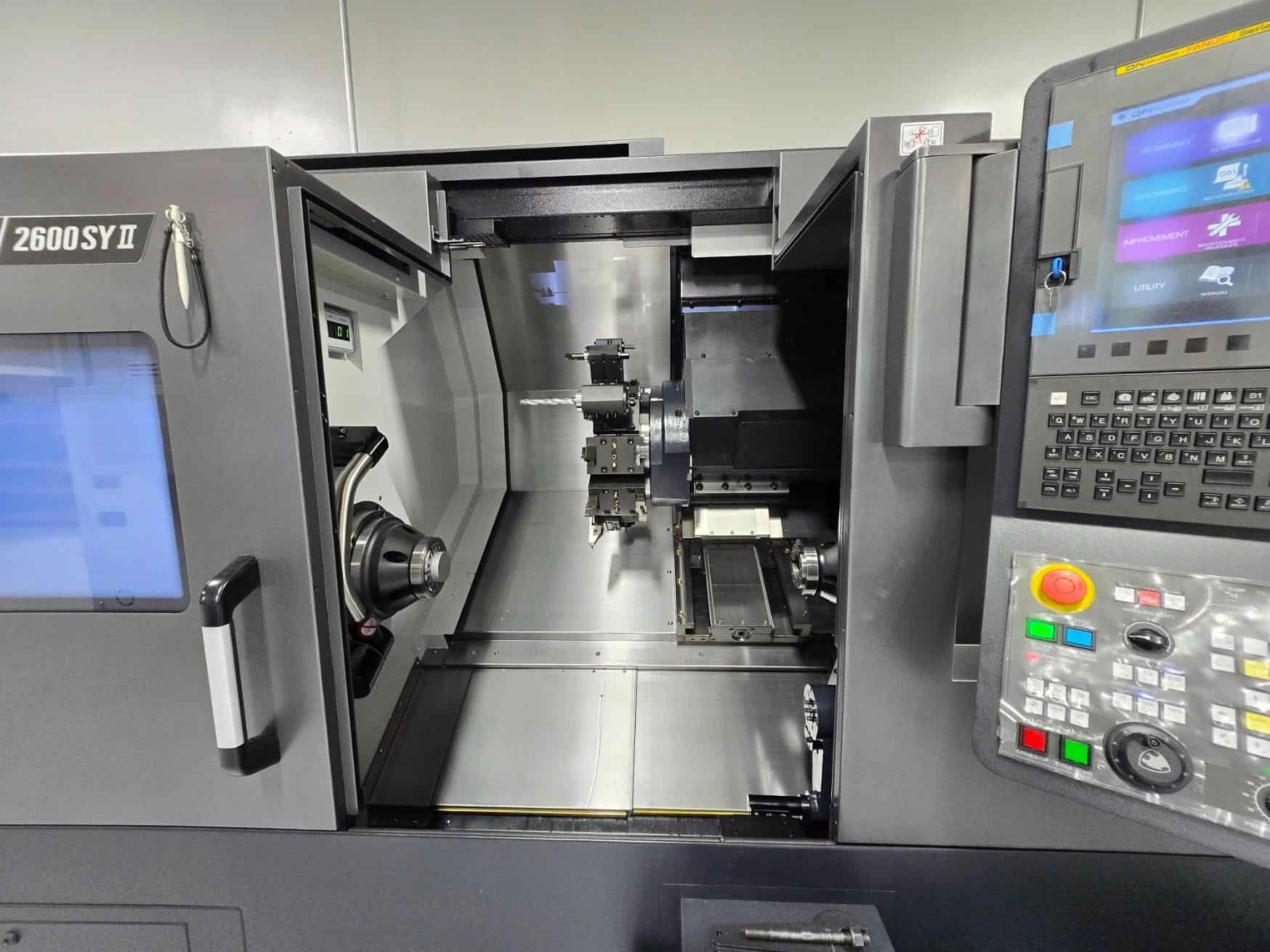

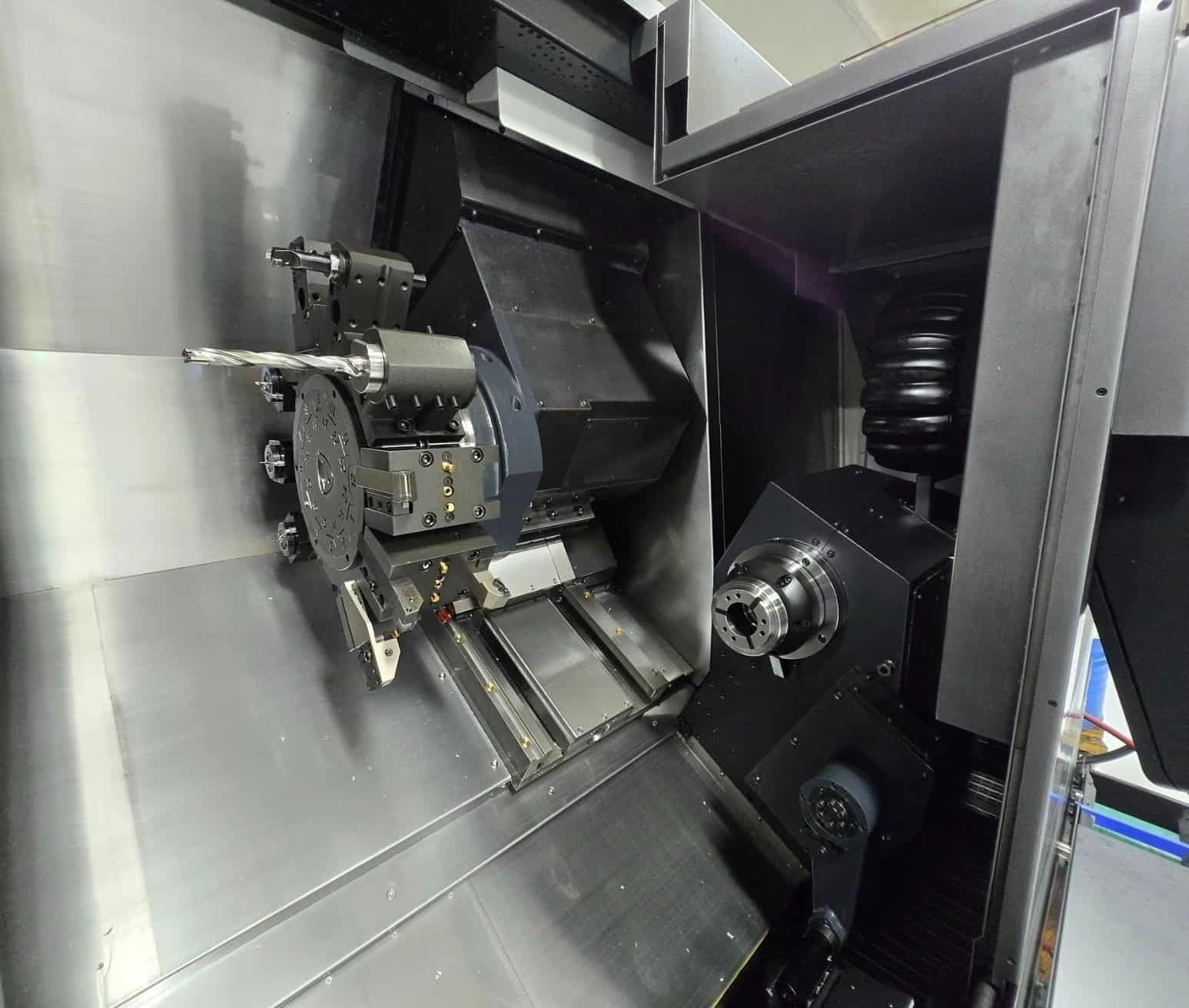

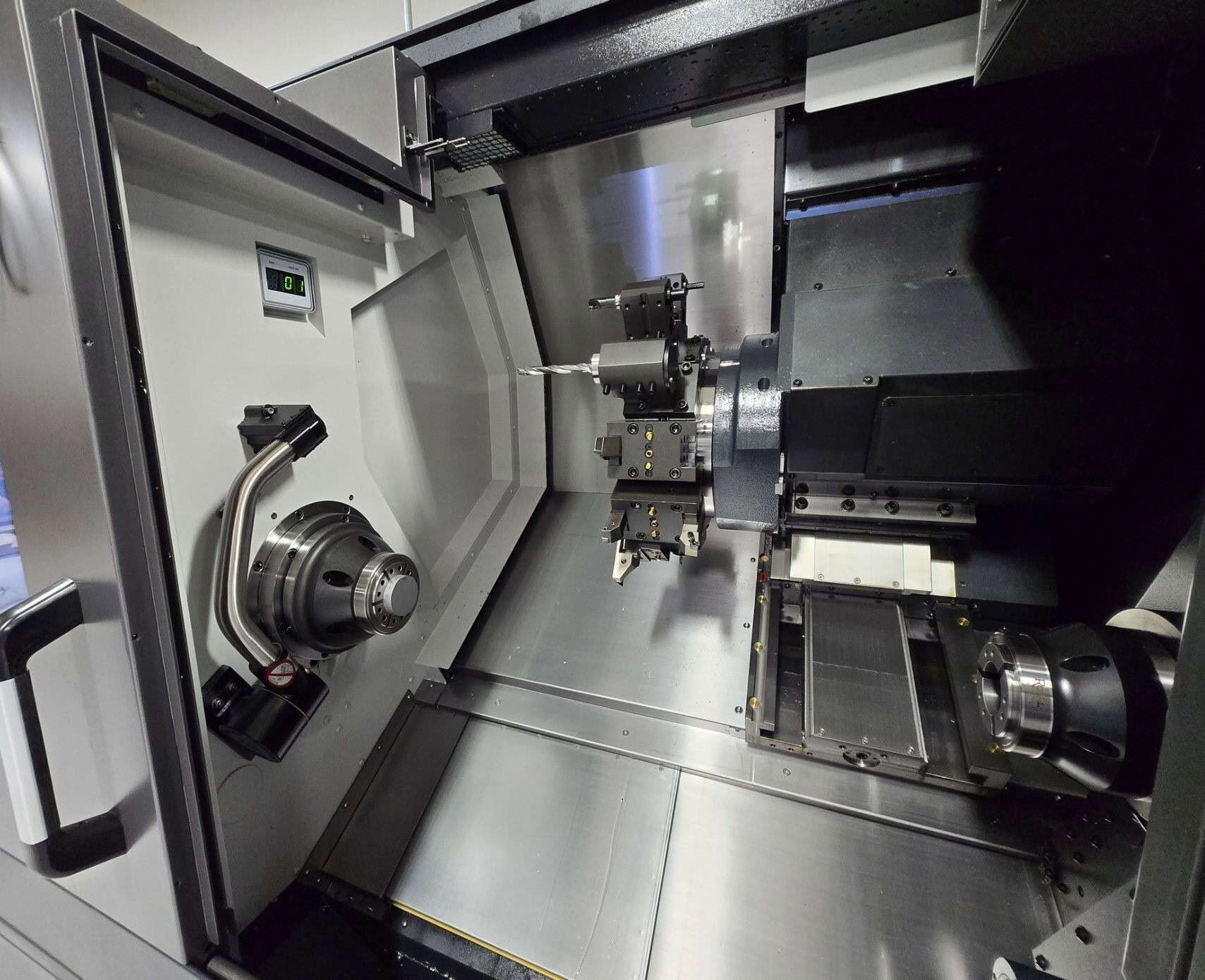

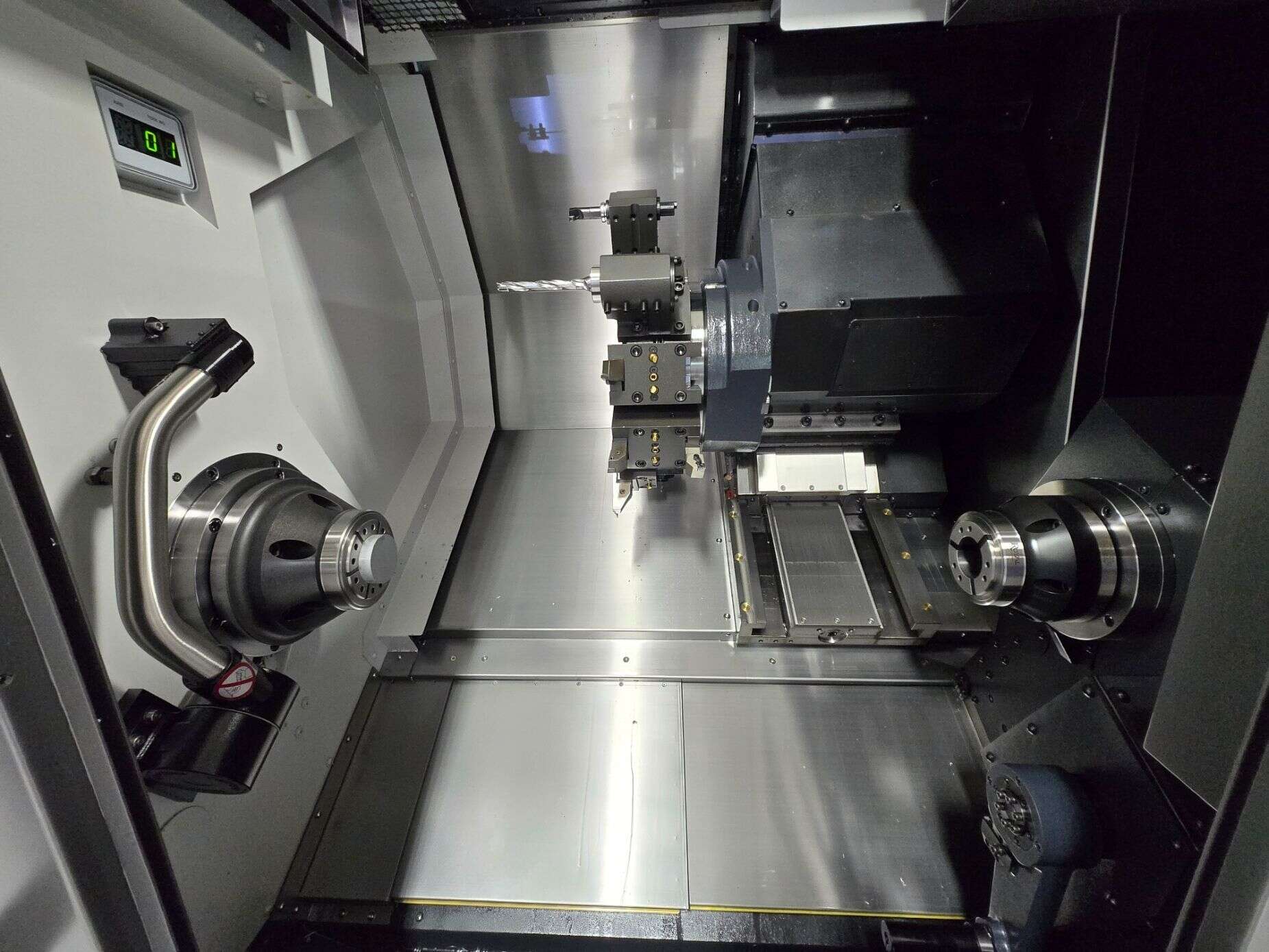

- 12-Station Turret – Live / Rotary Tools
- Y Axis Capable
- iHMi Touch Screen with Integral Spindle
- Thermal Growth Compensation
- M-Code
- Tool Presetter
- Parts Catcher
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- LNS Turbo Chip Conveyor

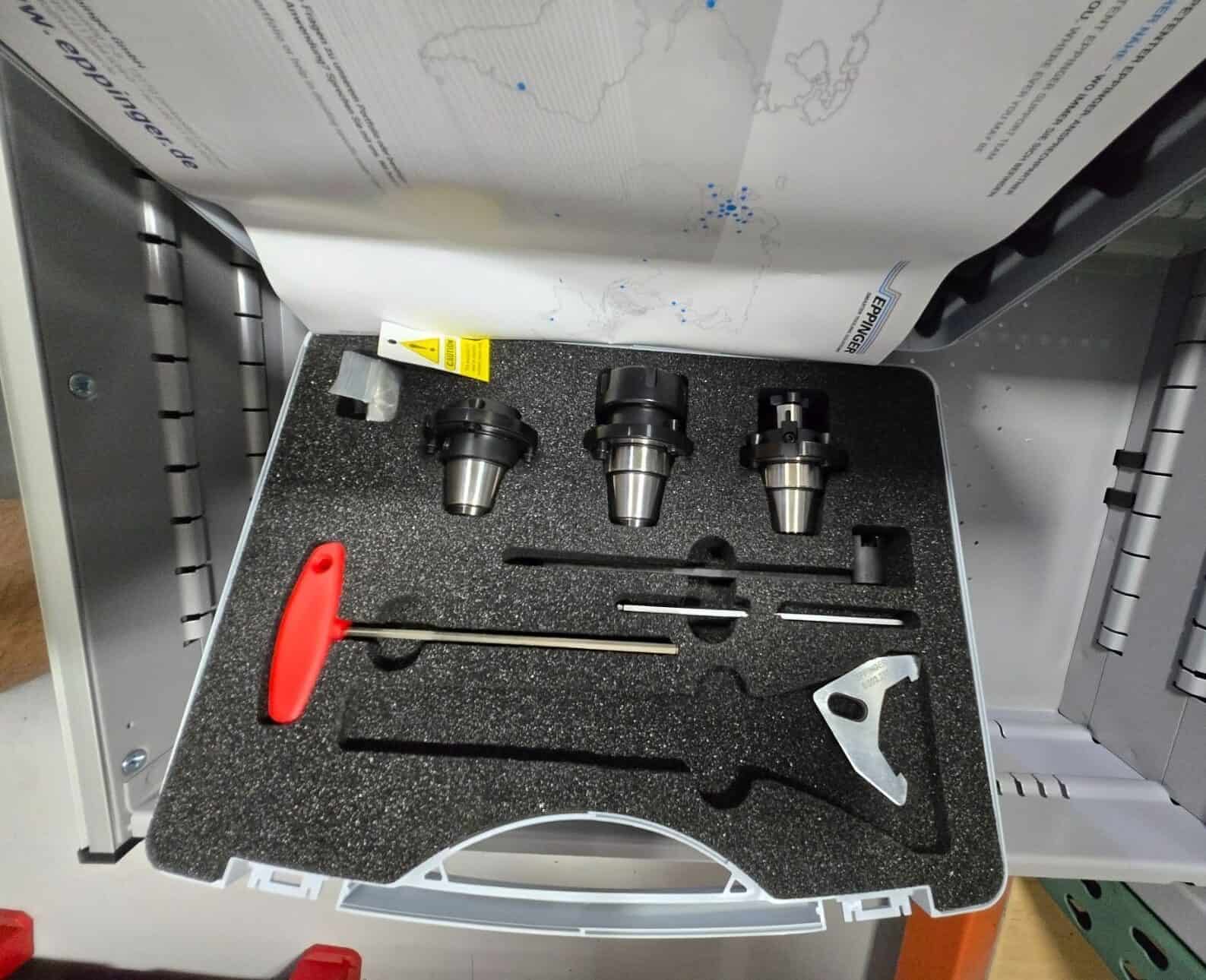

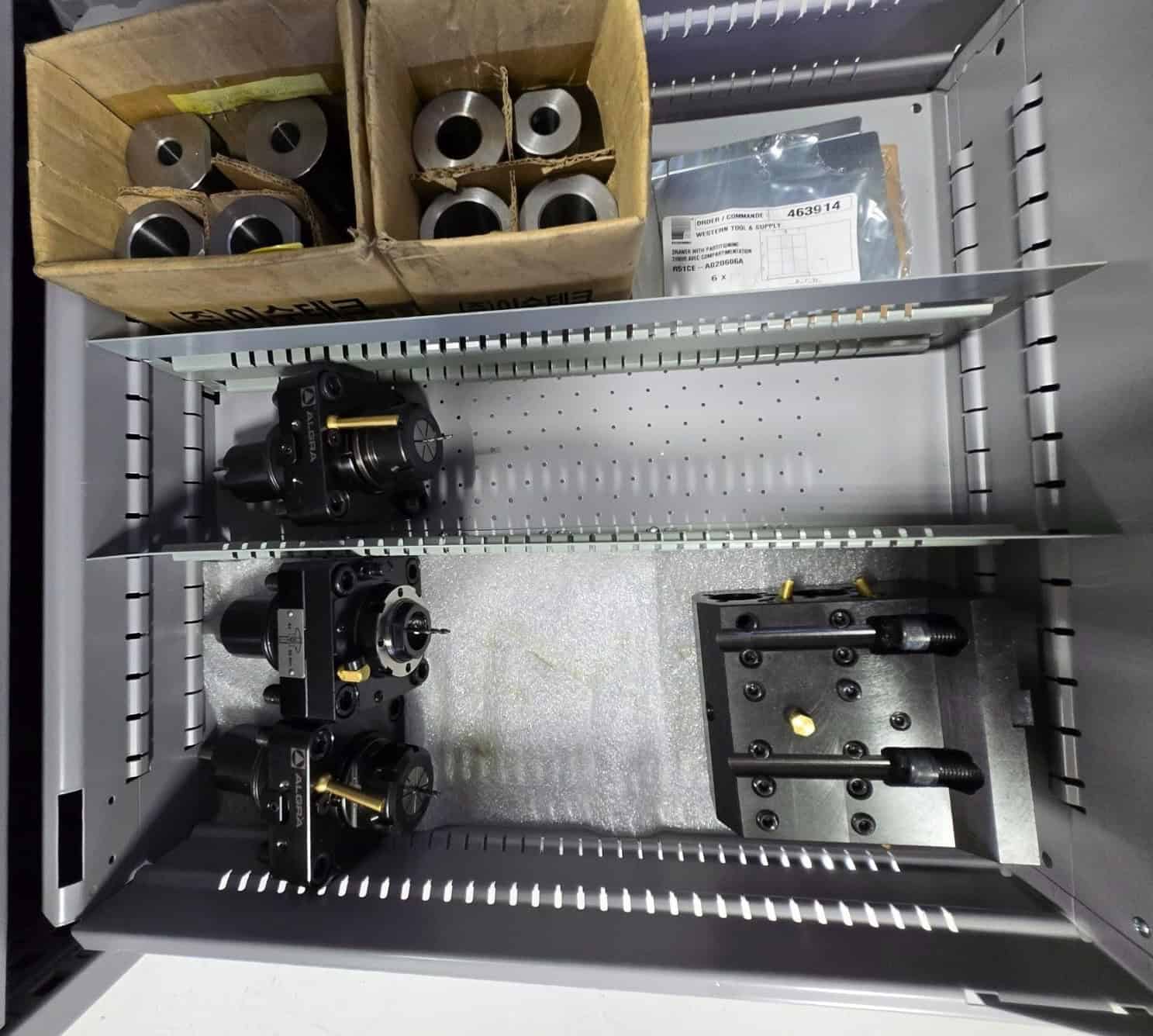

- Misc. Live Tools Holders & Static Tool Holders (As shown in the images)

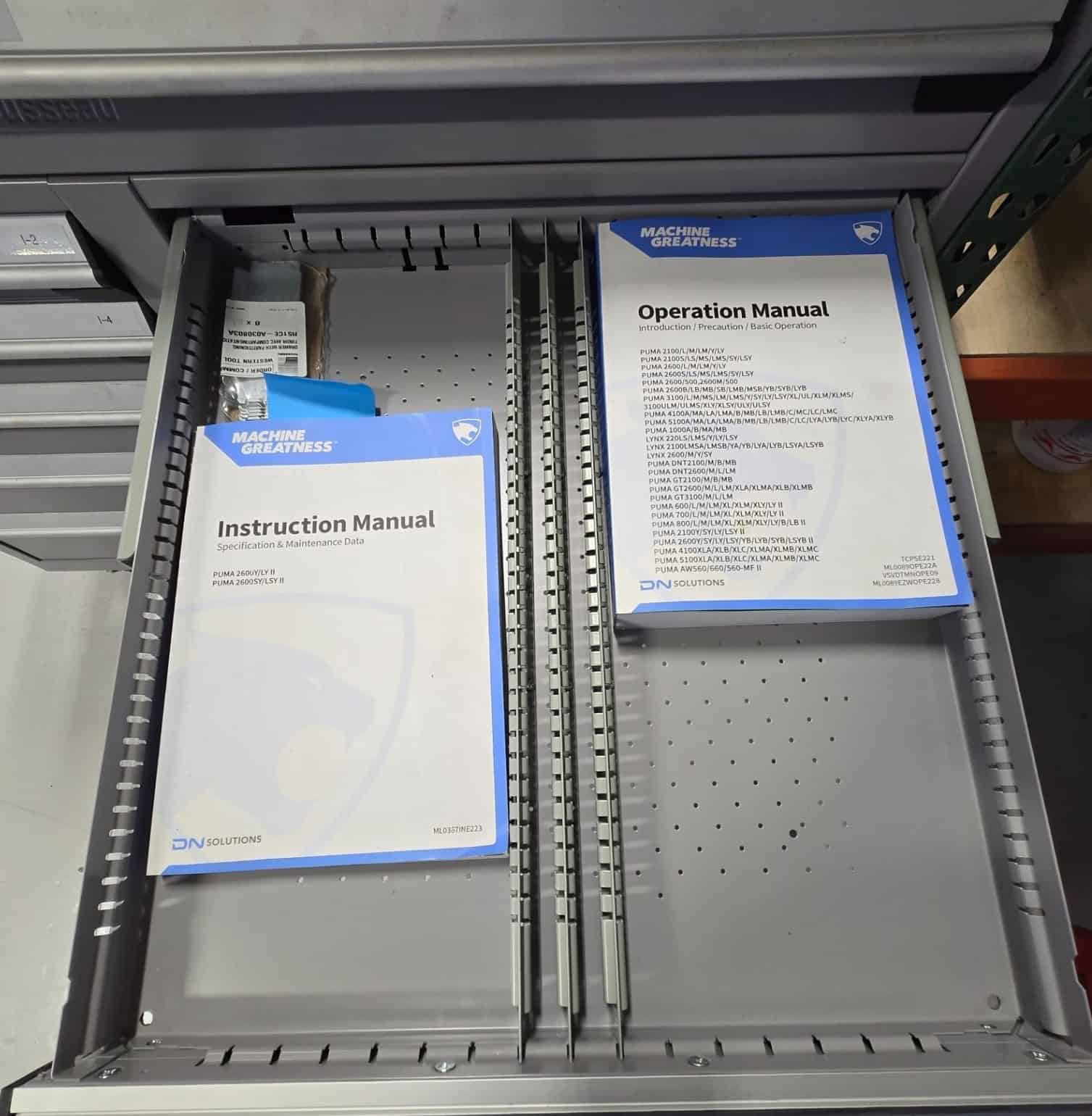

- Books & Manuals
|
| Capacity: |
|---|
- Max Turning Diameter: 14.80″
- Max Turning Length: 29.90″
- Swing Over Bed: 30.70″
- Swing over the Saddle: 24.80″
- Max Bar Capacity: 3.20″
- Distance Between Spindles: 30.00″
|
| Travels: |
|---|
- X Axis Travel: 10.20″
- Z Axis Travel: 32.70″
- Y Axis Travel: 4.10″ (+ 2.10″ – 2.10″)
- B Axis Travel: 32.70″ (Sub Spindle)
- C Axis: 360° (0.001°) Both Spindle
|
| Feedrate: |
|---|
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1181 IPM
- Rapid Traverse Y Axis: 394 IPM
- Rapid Traverse B Axis: 1181 IPM
- Rapid Traverse C Axis: 200 RPM
|
| Spindle: |
|---|
- Main Spindle Nose: A2-8
- Main Spindle Bore: 3.60″
- Main Spindle Bar Capacity: 3.20″
- Main Spindle Speed: 4,000 RPM
- Main Spindle Power: 30 HP
|
| Sub Spindle: |
|---|
- Sub Spindle Nose: A2-5
- Sub Spindle Bore: 2.40″
- Sub Spindle Bar Capacity: 1.96″
- Sub Spindle Speed: 6,000 RPM
- Sub Spindle Power: 20 HP
|
| Turret: |
|---|
- Capacity: 12 Live Stations
- Turret Index Time: 0.15 Second
- Live Tool Speed: 5,000 RPM
- Live Tool Spindle Power: 10 HP
- Tool Holders Type: BMT-65
|
| General: |
|---|
- Power Source: 220v / 3-Phase / 60 Hz
- Overall Dimensions: 142″ x 75″ x 85″ High
- Weight: 14,400 lbs
|
