All specifications are approximations and are subject to verification.

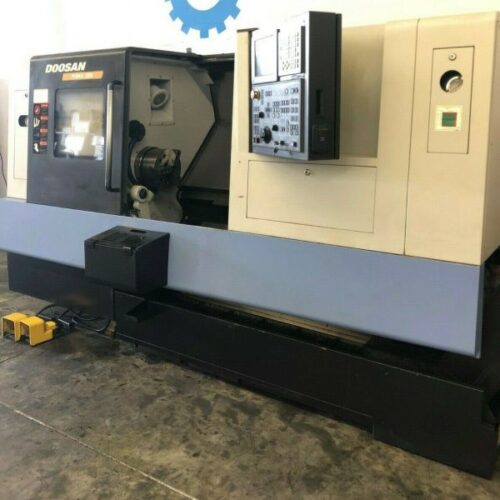

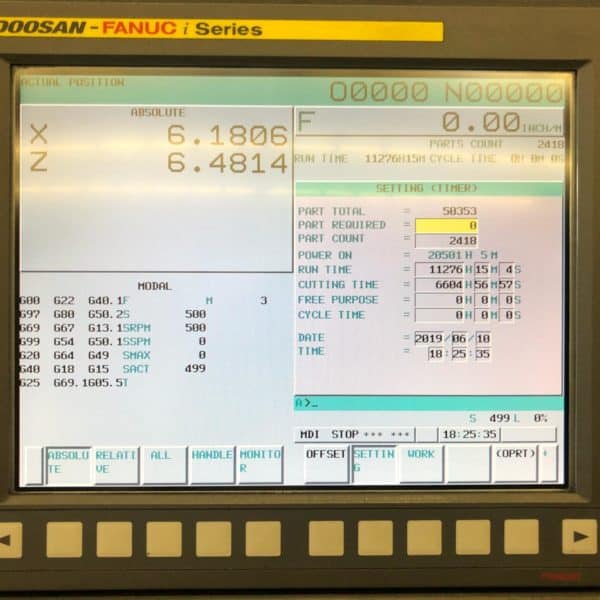

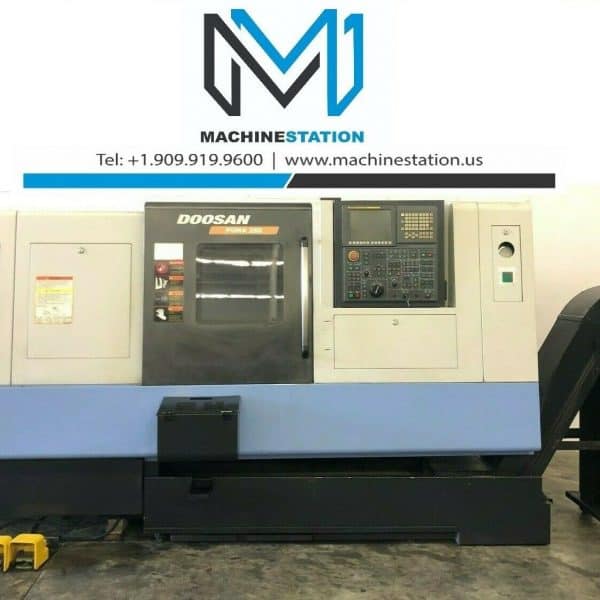

“One Owner machine excellent running condition, only 6604 cutting hours. It is equipped with 10″ Chuck, 12 tool turret & Programmable Hydraulic Tailstock, Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”
| Make | Doosan |
| Model No. | Puma 280 |
| Year | 2010, Installed: 2011 |

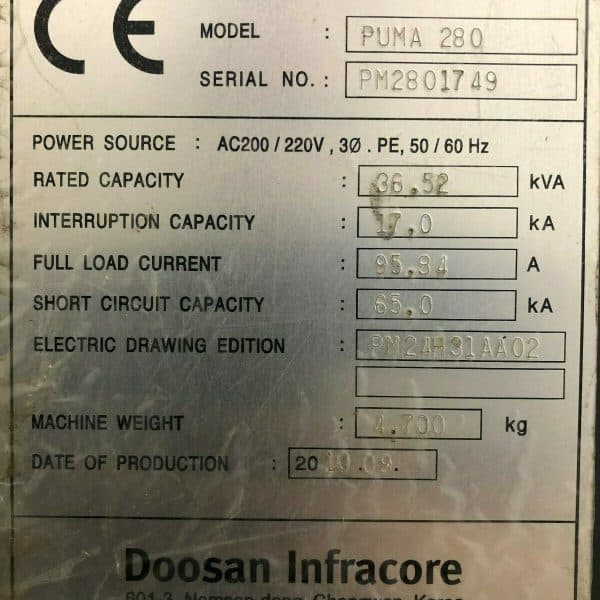

| Serial # | PM2801749 |
| Condition | Very Good |
| Doosan Puma 280 Equipped With: |
|---|

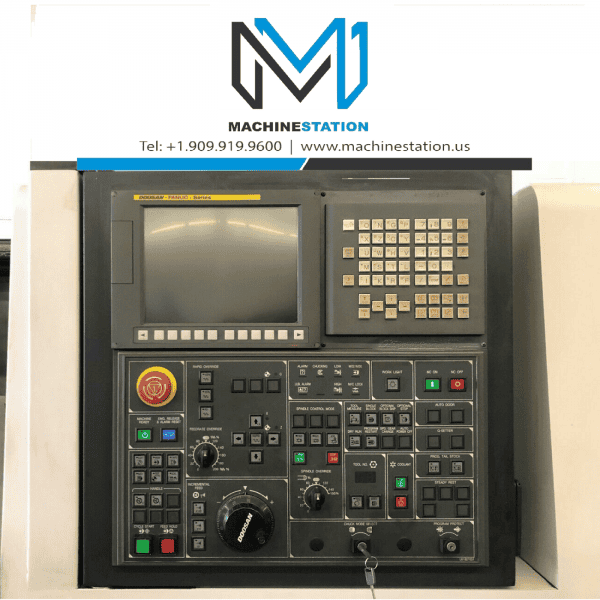

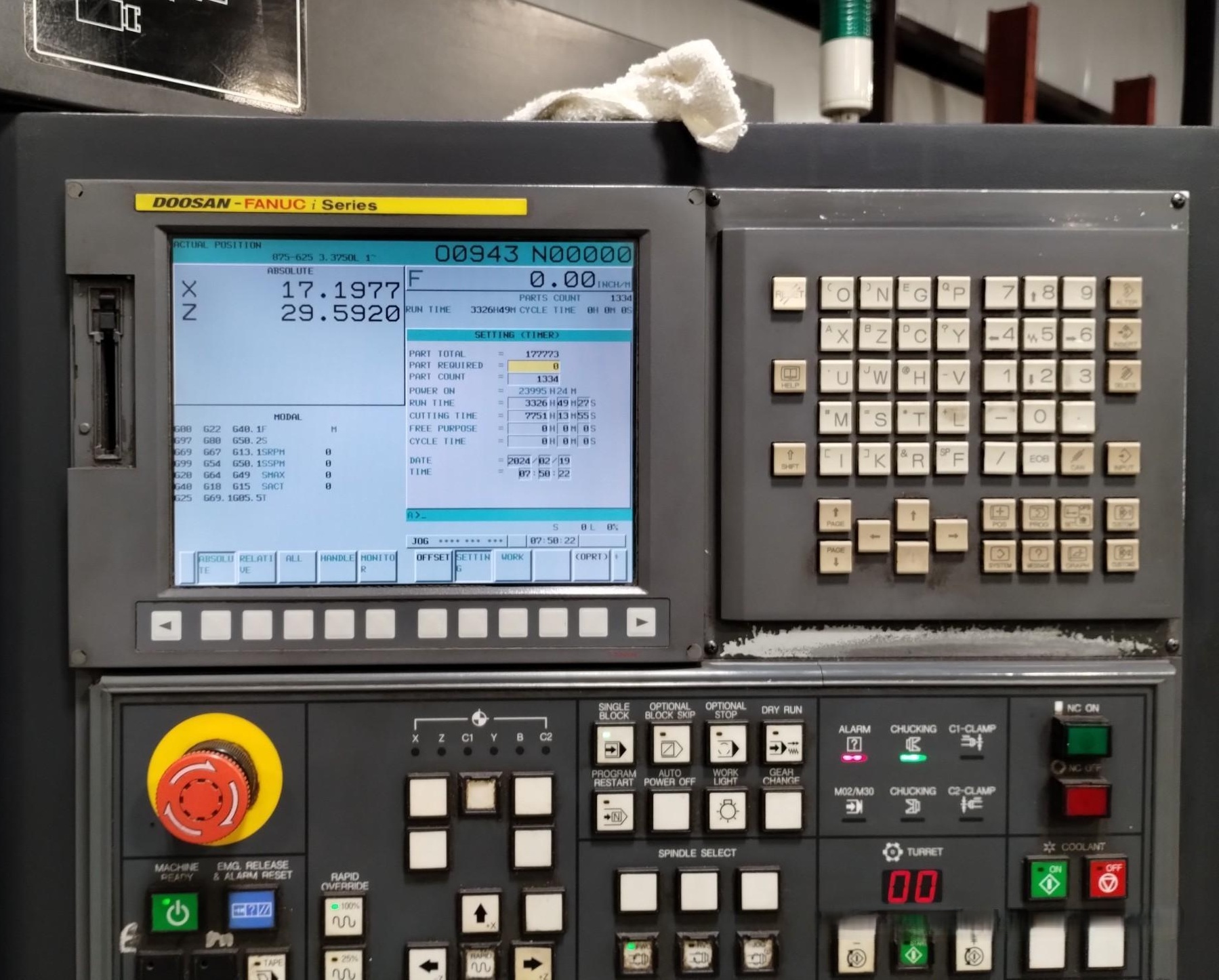

| Doosan Fanuc i series CNC Control |
| Box way construction |
| Rigid Tapping |

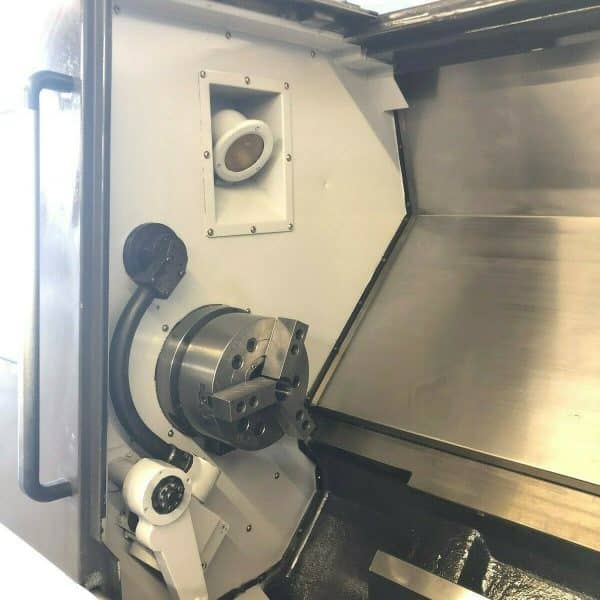

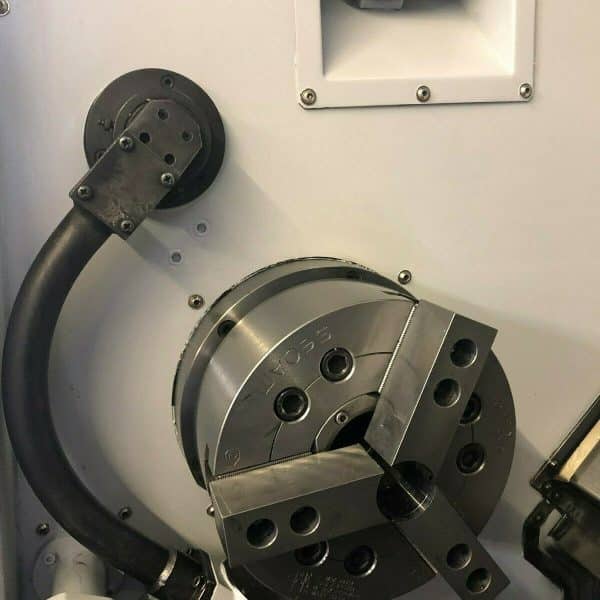

| 10″ 3 Jaw Hydraulic Chuck |
| A2-8 Gear Head Spindle |
| Tool Presetter |
| Parts Catcher |
| Hydraulic Programmable Tailstock and Quill |
| PCMCIA Card Slot |
| RS-232 & LAN connectivity |
| Coolant System |
| Barfeed Interface |

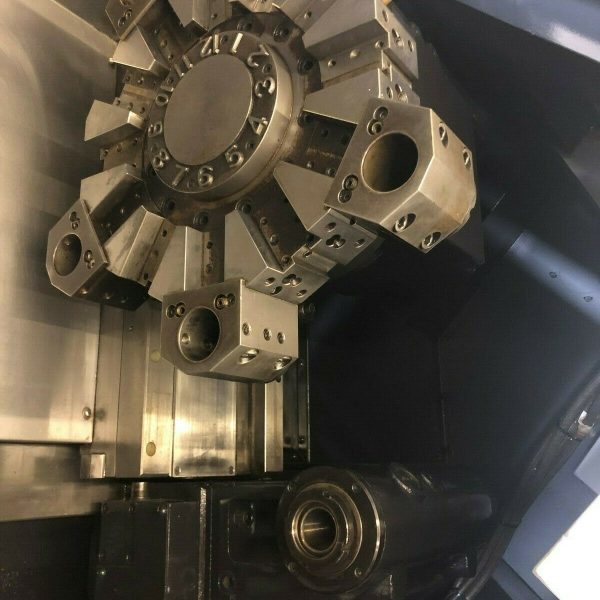

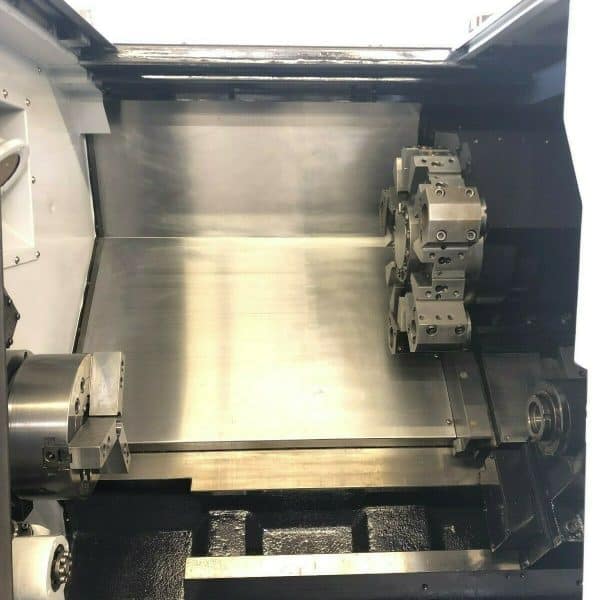

| 12 Station Automatic Turret |
| Foot Switch |
| Turbo Chip Conveyor |
| General: |
|---|
| Power: 45 kva, 220v / 3-Phase |
| Overall Dimensions: 130″ x 77″ x 80″ High |
| Overall Dimensions: 148″ x 77″ x 80″ High with Chip Conveyor |
| Weight: 12600 lbs |
| Doosan Puma 280 Specifications: |
|---|
| Capacity |
| Max Turning Diameter: 16.14″ |
| Max Turning Length: 24.8″ |
| Max Bar Capacity: 3.04″ |
| Swing Over Bed: 24.8″ |
| Swing Over Carriage: 17.7″ |
| Distance Between Centers: 27.8″ |
| X Axis Travel: 9.53″ |
| Z Axis Travel: 26.8″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 0 – 3500 RPM |
| Spindle Motor: 30 HP |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.97″ |
| Tailstock Quill Travel: 4.7″ |
Doosan Puma 280 Comes as shown in pictures..MachineStation is a global trading company located in California, USA. We specialize in the buying and selling of New & Used CNC Machines. Used Machine Dealer focused in All Kinds of CNC & Manual Metalworking machines.
