Doosan Puma 280 CNC Turning Center (2010) | Fanuc | 10” Chuck | 3.5” Bore
Out of stock
| SKU: | 11221 |
| Make/Model: | Doosan Puma 280 |
| Year: | 2010 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model No.: | Puma 280 |
| Year of Manufacture: | 2010 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |
| CNC Control: | Fanuc i-Series CNC Control |
| Equipped With: |
|---|
| Fanuc CNC Control with Color Display |
| 12-Station Automatic Turret |
| 10″ Hydraulic Chuck |
| Programmable Hydraulic Tailstock |
| Automatic Lubrication System |
| Flood Coolant System |
| Chip Conveyor |
| Fully Enclosed Splash Guard |
| Rigid Tapping Capability |
| Foot Pedal Control |
| High-Speed Rapid Traverse Axes |
| Capacity: |
|---|
| Maximum Turning Diameter: 410 mm (16.1″) |
| Maximum Turning Length: 610 – 630 mm (24″ – 25″) |
| Swing Over Bed: 630 mm (24.8″) |
| Swing Over Cross Slide: 450 – 500 mm (17.7″ – 19.6″) |
| Bar Capacity: 76 – 86 mm (3.0″ – 3.4″) |

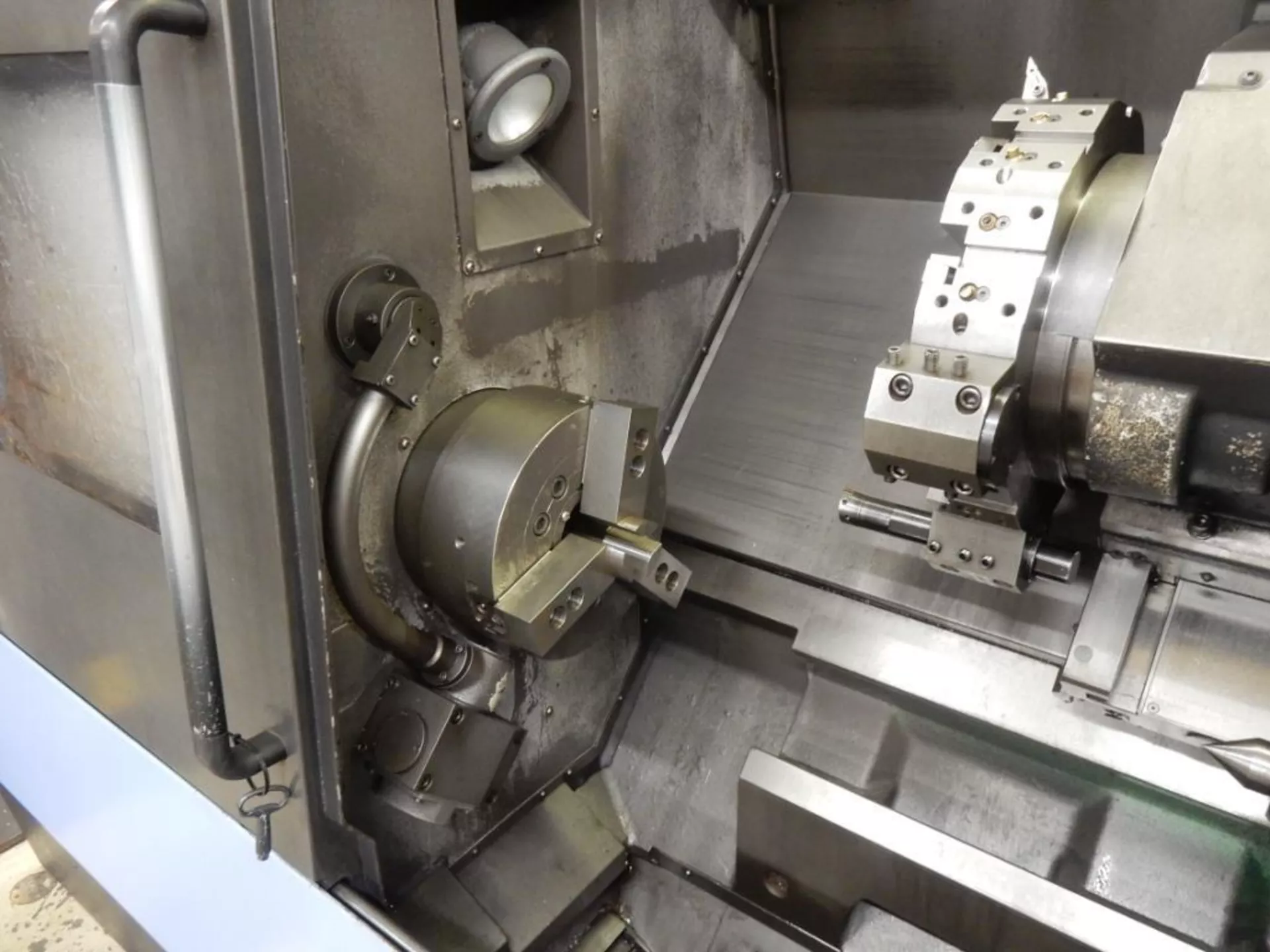

| Chuck Size: 10″ Hydraulic Chuck |
| Travels: |
|---|
| X-Axis Travel: 242 mm (9.5″) |
| Z-Axis Travel: 680 mm (26.8″) |
| Rapid Traverse (X-Axis): 20 m/min (787 IPM approx.) |
| Rapid Traverse (Z-Axis): 24 m/min (945 IPM approx.) |
| Spindle: |
|---|
| Maximum Spindle Speed: 3,500 RPM |
| Spindle Motor Power: 22 kW / 30 HP (Approx.) |
| Spindle Nose: A2-8 |
| Spindle Bore: 86 mm (3.4″) |
| Spindle Torque: High Torque Gearbox Type |

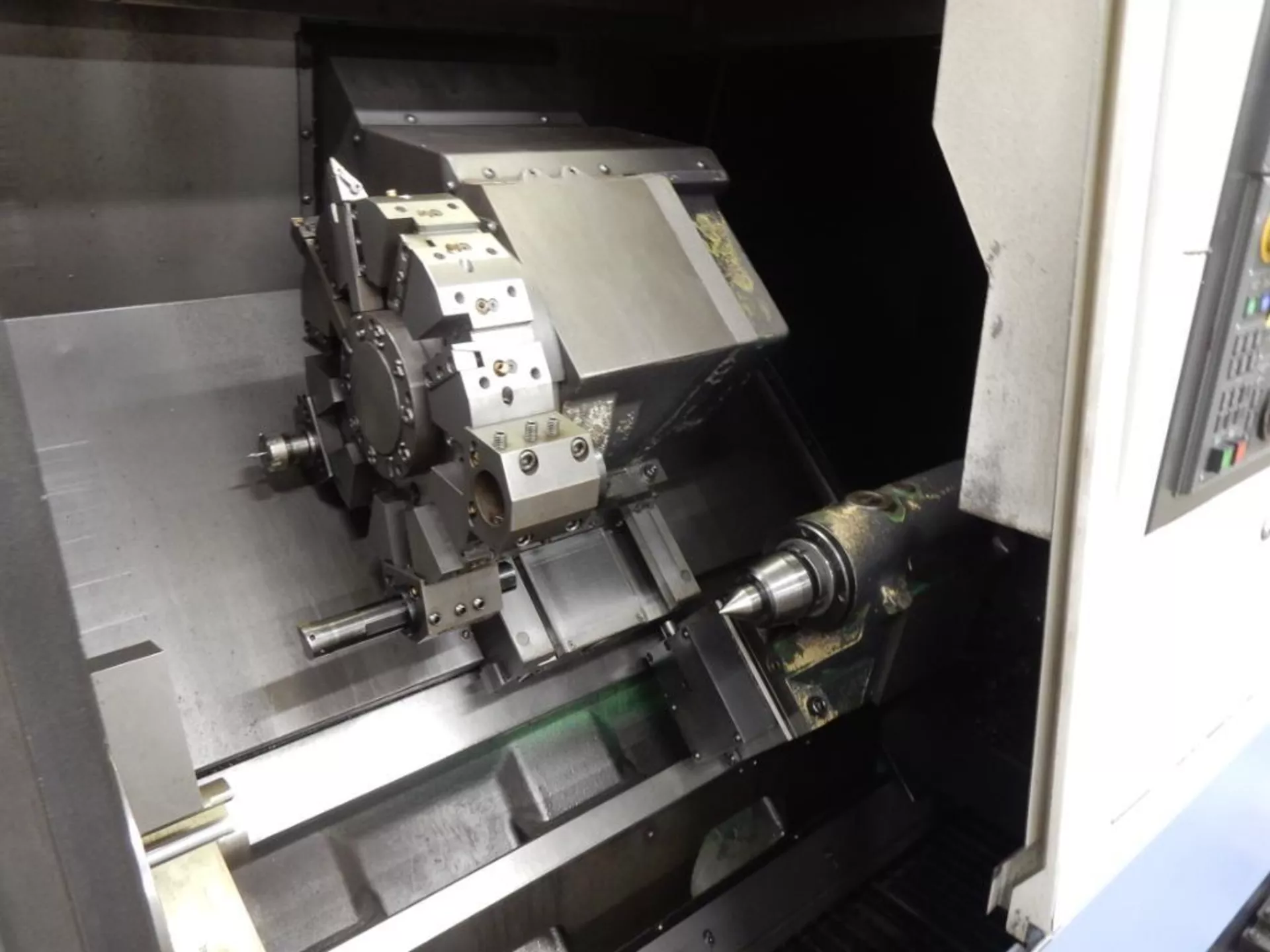

| Turret: |
|---|
| Turret Type: Servo-Driven Turret |
| Turret Capacity: 12 Stations |
| Index Time: Approx. 0.15 sec |
| Turning Tool Size: 25 mm |
| Boring Bar Capacity: 50 mm |
| Tailstock: |
|---|
| Type: Programmable Hydraulic Tailstock |
| Quill Taper: MT #4 |
| Tailstock Quill Diameter: Approx. 80 mm |
| Tailstock Travel: Approx. 100 mm |
| Machine Construction: |
|---|
| Slant Bed Box-Way Design for Heavy Cutting |
| High-Rigidity Cast Iron Base |
| Hardened and Ground Guideways |
| Heavy-Duty Turret with Curvic Coupling |
| Gear Head Spindle for High Torque Applications |
| Compact Footprint for Production Environments |

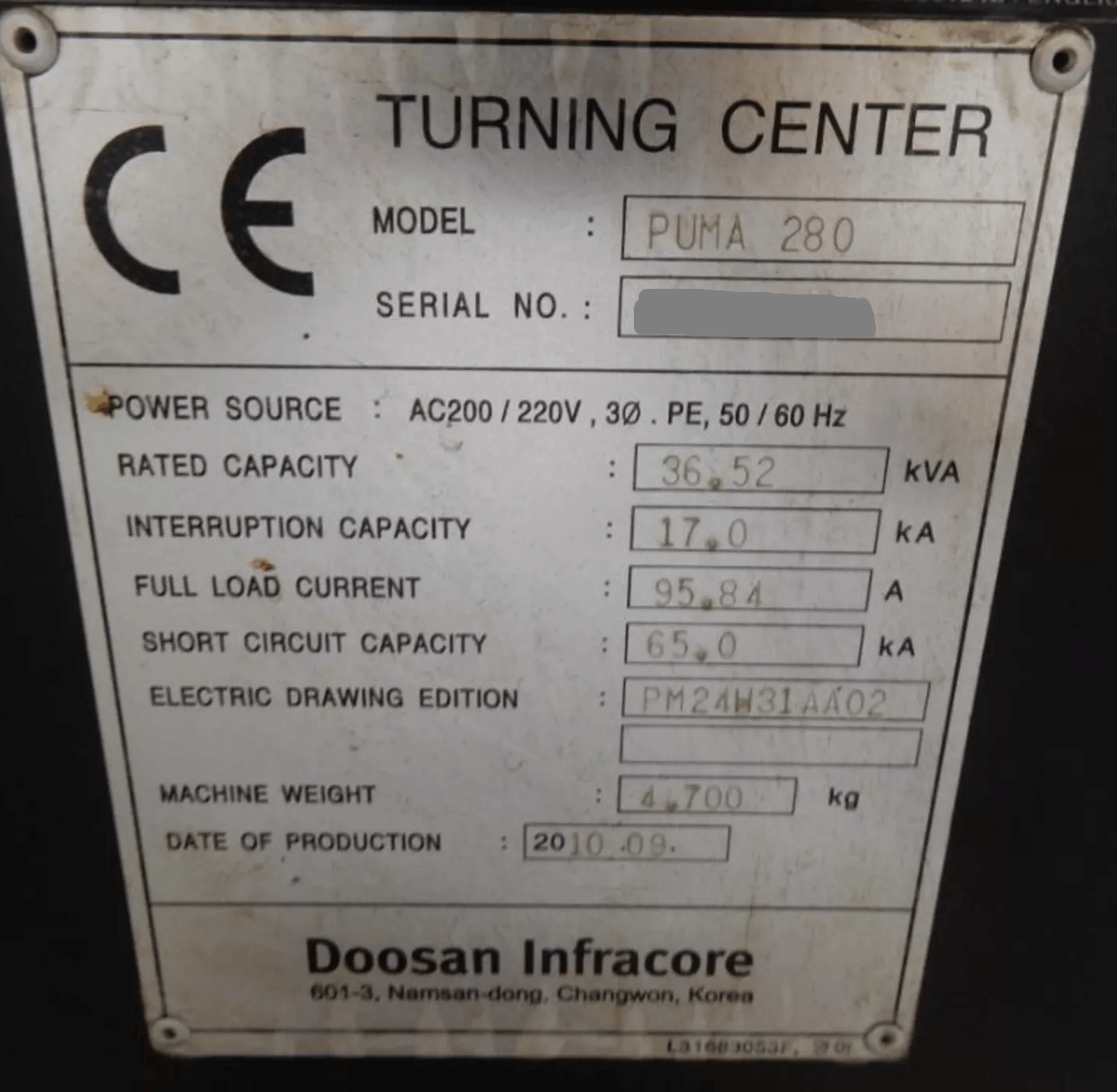

| Electrical: |
|---|
| Voltage: 200 / 220V (Typical) |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| General: |
|---|
| Machine Dimensions: Approx. 3400 × 1670 × 1735 mm |
| Machine Weight: Approx. 4,700 – 5,700 kg (10,300 – 12,500 lbs) |
| Optional Features: |
|---|
| Live Tooling Turret (Puma 280M Version) |
| C-Axis Spindle Indexing |
| Parts Catcher |
| Bar Feeder Integration |
| Chip Conveyor (if not already equipped) |
| Tool Presetter / Tool Eye |
| High-Pressure Coolant System |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | Puma 280 |
