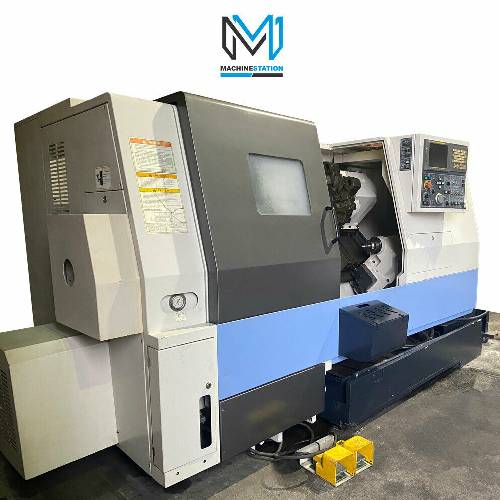

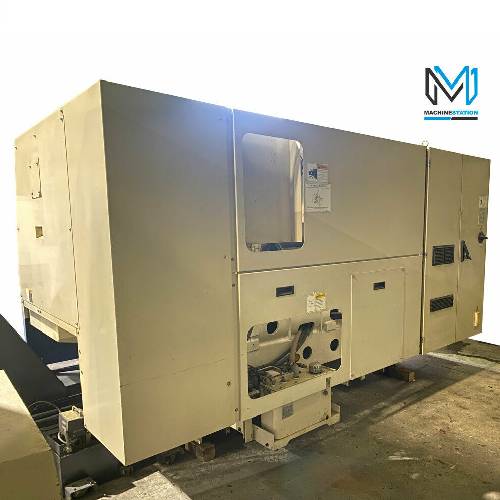

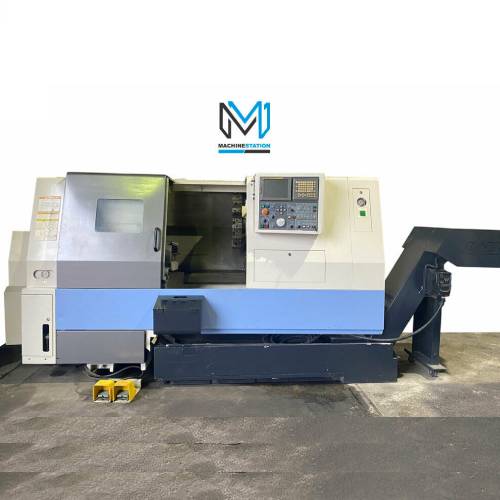

Doosan Puma 300C CNC Turning Center
Out of stock

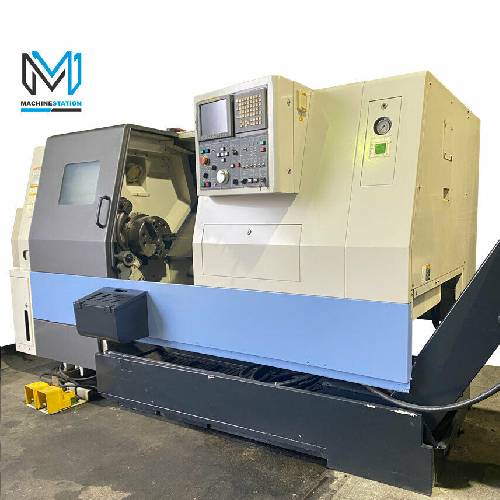

Used Doosan Puma 300C CNC Turning Center for Sale. This Doosan Puma 300C has minimal cutting hours and is in almost new condition.
| Location: | Houston, TX |
| SKU: | 2064 |
| Make/Model: | Doosan Puma 300C |
| Video: |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2064 |
| Make: | Doosan |
| Model: | Puma 300C |

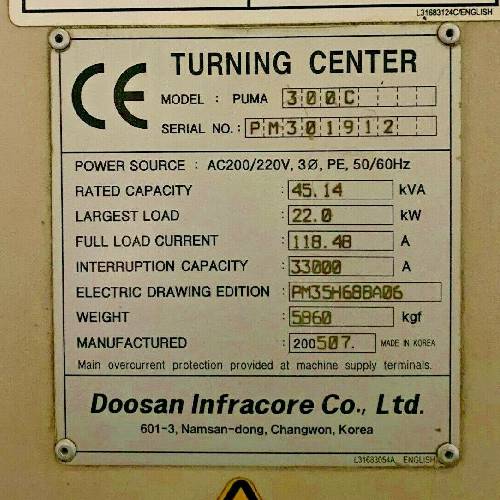

| Serial: | PM301912 |
| Year: | 2005 |

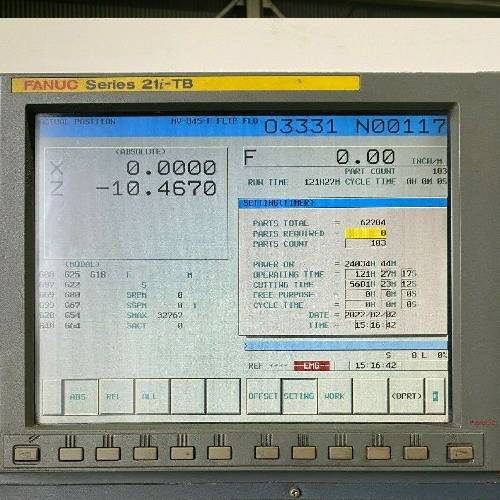

| Cutting Hours: | 5681 |
| Condition: | Very Good |
| Equipped With: |
|---|

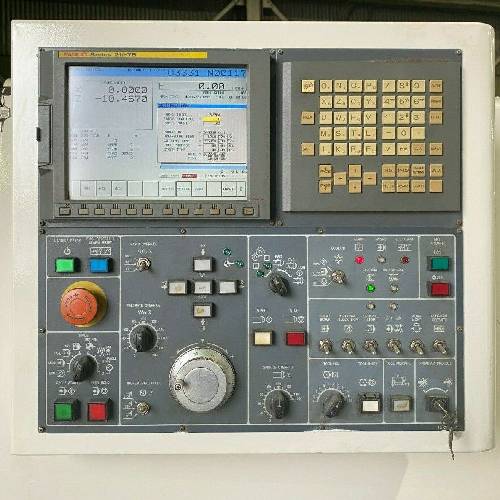

| Fanuc 21i-TB CNC Control |

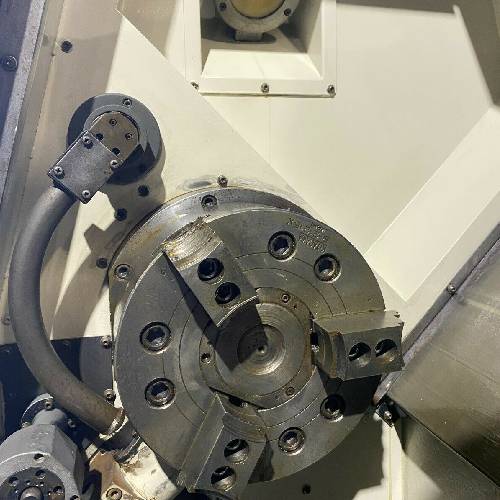

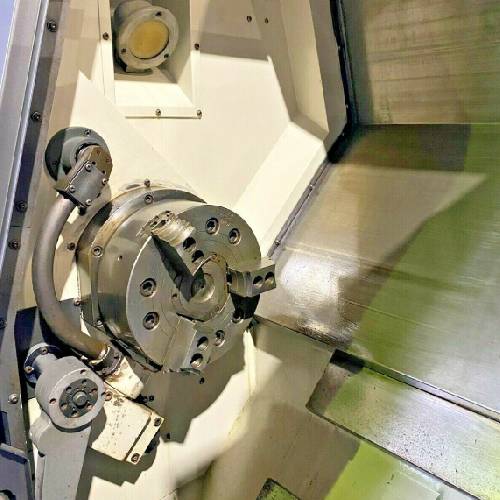

| 12″ Kitagawa Big Bore Hydraulic Chuck |
| 4.5″ Bore A2-11 Spindle |
| Tool Presetter |
| Programmable Hydraulic Tailstock |
| PCMCIA Card Interface |

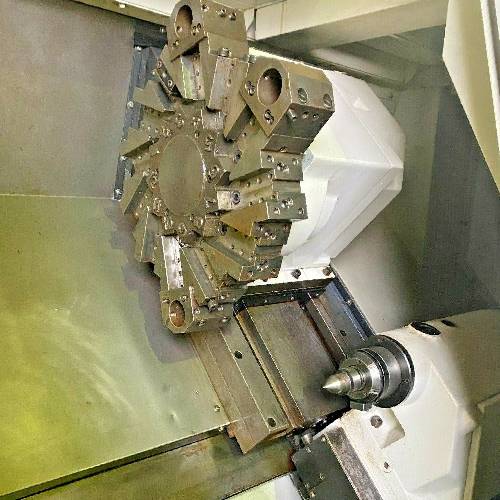

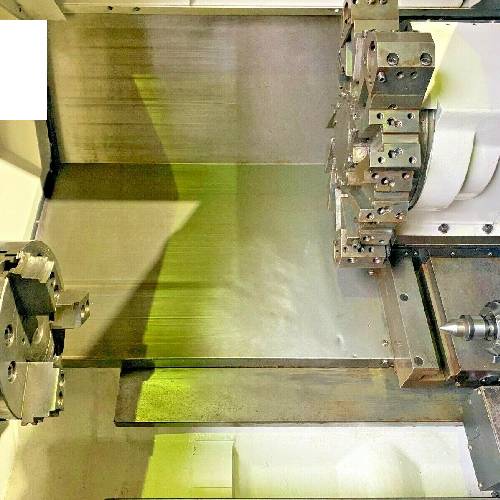

| 12 Station Automatic Turret |
| Foot Switch |
| Oil Skimmer |
| Coolant System with pump |
| Chip Conveyor |
| Specifications: |
|---|
| Max Turning Diameter: 15.7″ |
| Max Turning Length: 24.8″ |
| Max Bar Capacity: 4.05″ |
| Swing Over Bed: 22.4″ |
| Swing Over Carriage: 17.7″ |
| Distance Between Centers: 32.0” |
| Travel: |
|---|
| X Axis Travel: 11.1″ |
| Z Axis Travel: 26.8″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore: 4.5″ |
| Spindle Speed: 15 – 2800 RPM |
| Spindle Motor: 35 hp |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 2.4″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 20.5″ |
| Tailstock Quill Dia.: 3.7″ |
| Tailstock Quill Travel: 3.7″ |
| General: |
|---|
| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: 148″ x 87″ x 90″ High |
| Weight: 12800 lbs |
