| DOOSAN PUMA 300C CNC TURNING CENTER BIG BORE LATHE | |
|---|---|
| Make | Doosan |
| Model No. | Puma 300C |
| Year | 07/09 |
| Serial # | PM30-2787 |
| Condition | Very Good |
| Comes with 12″ Chuck, Tailstock & Chip Conveyor | |
All specifications are approximations and are subject to verification.
“This machine is in very Good running condition. It is equipped with 12″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor & Chip Blaster Unit.. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.”
- Doosan Puma 300C Equipped With:

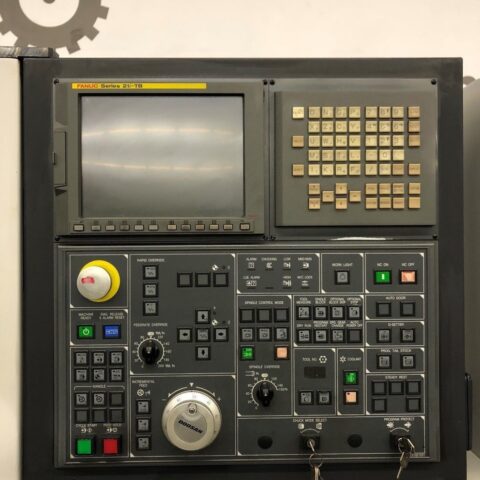

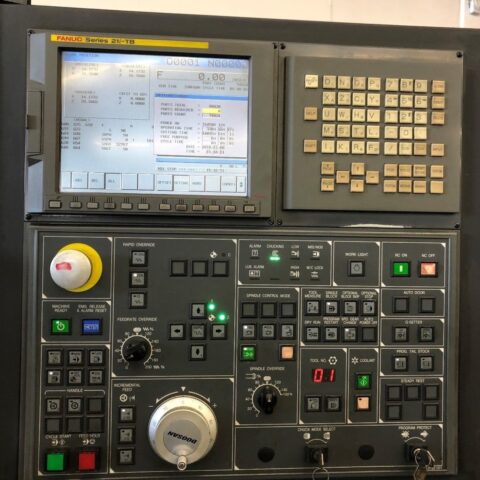

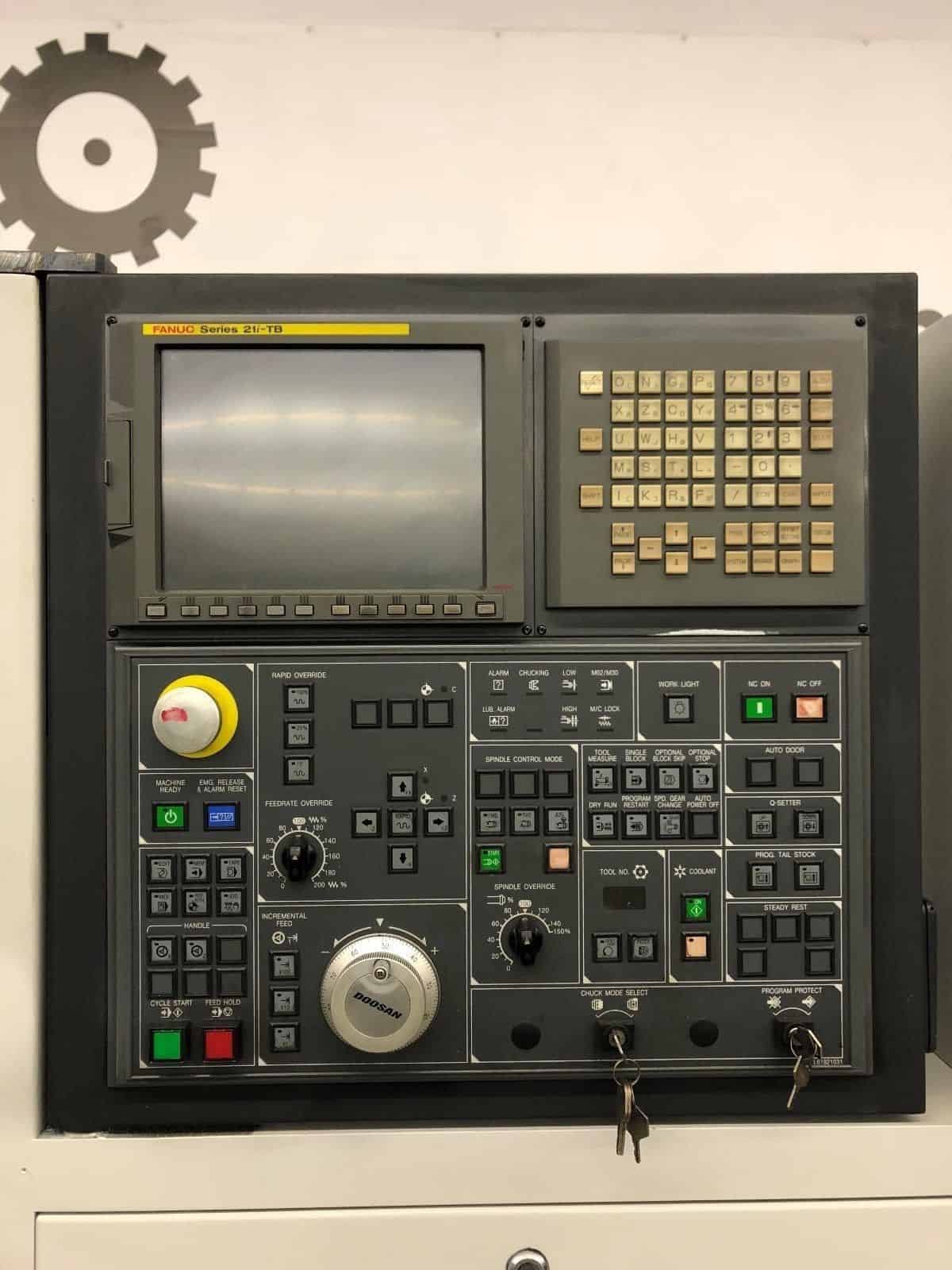

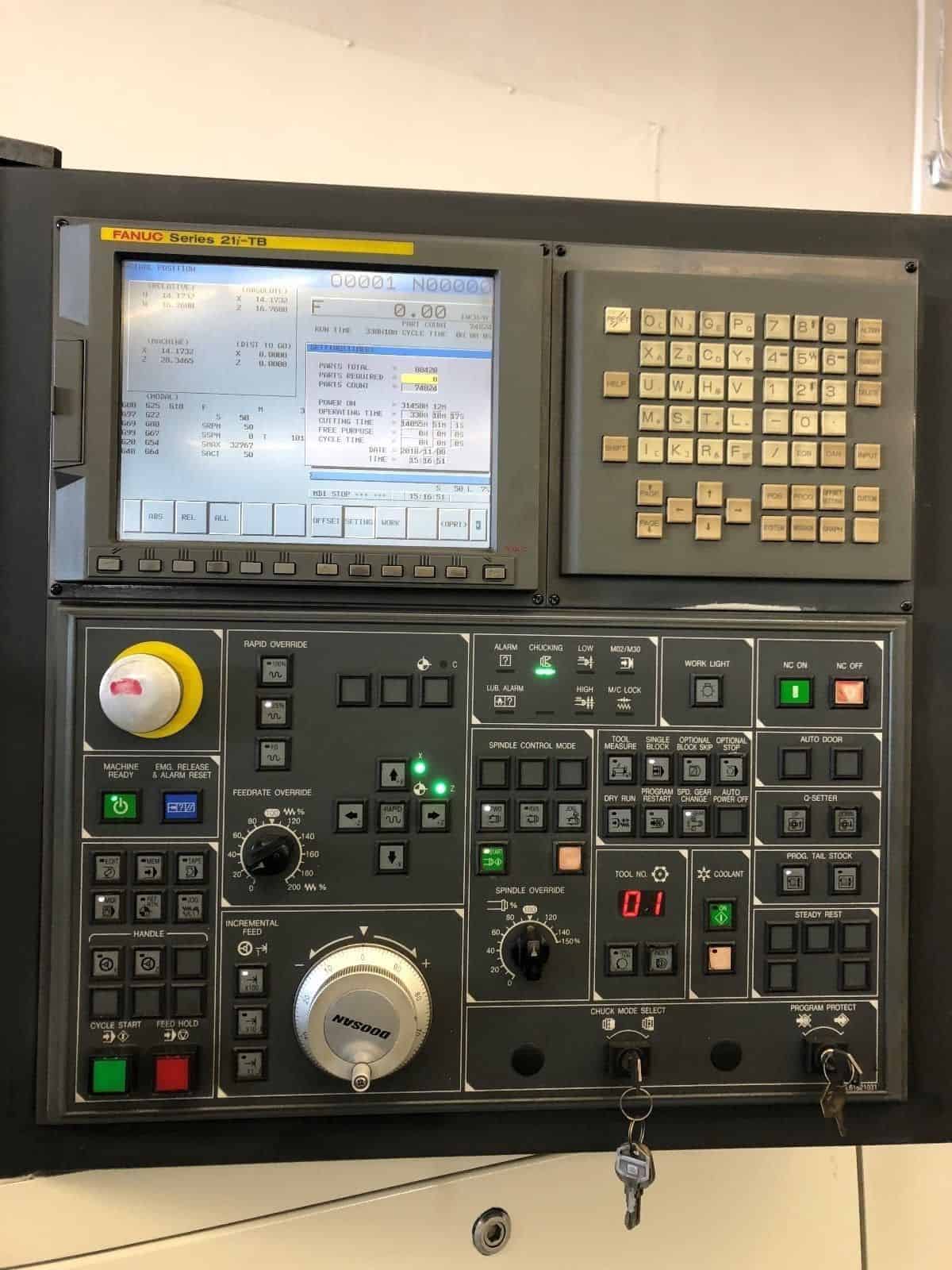

- Fanuc 21i-TB series CNC Control
- Box way construction
- Rigid Tapping

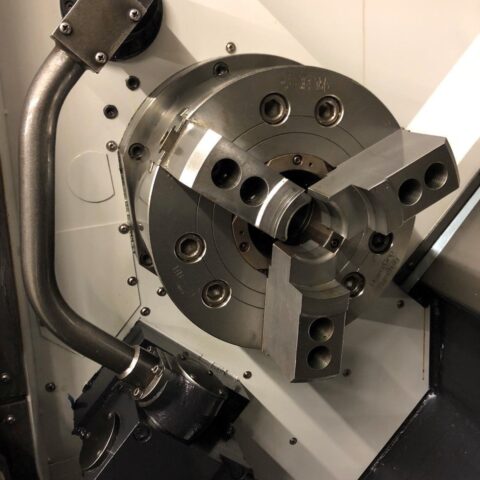

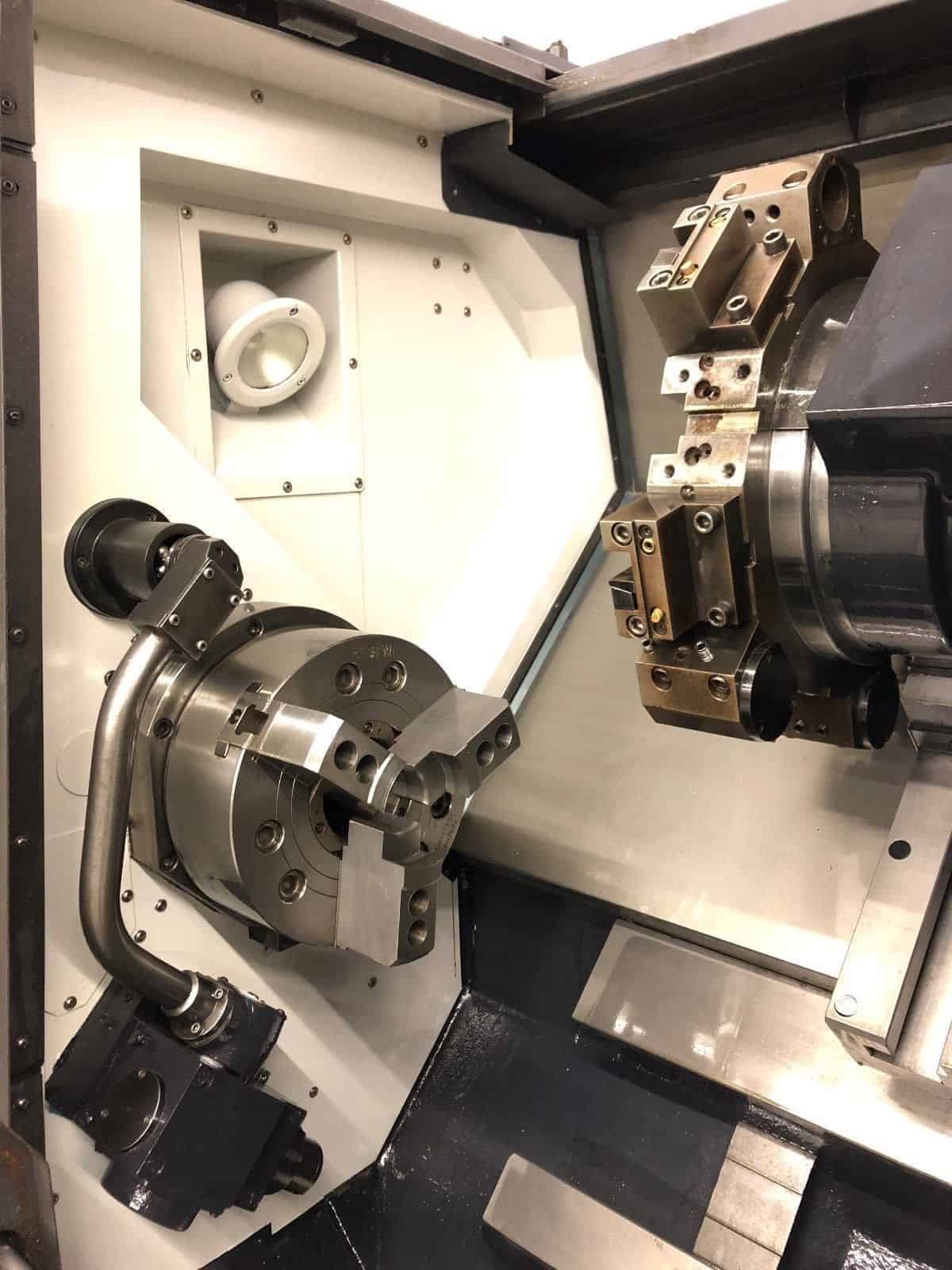

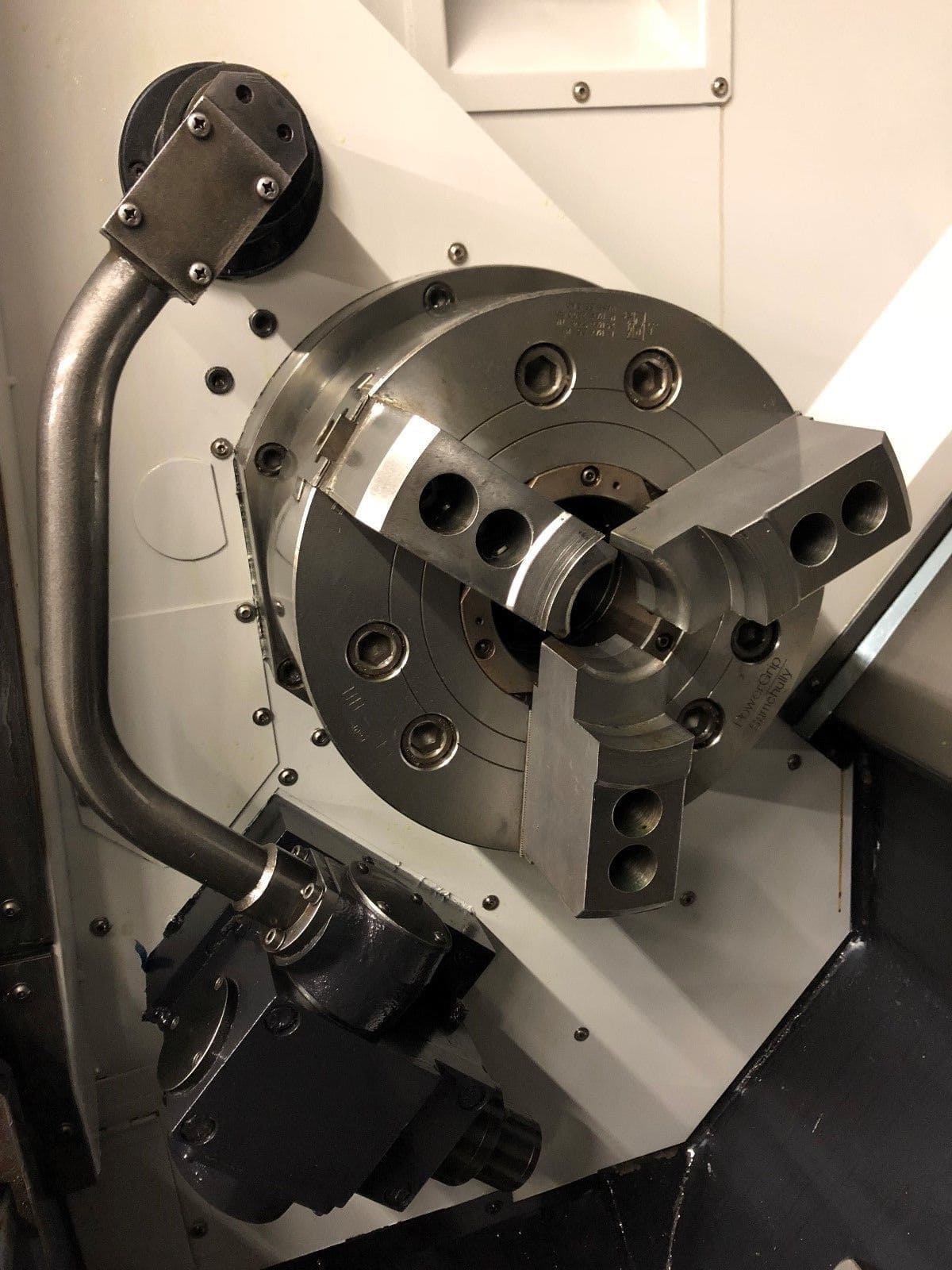

- 12″ 3 Jaw Hydraulic Chuck
- A2-11 Gear Head Spindle
- Auto Tool Presetter

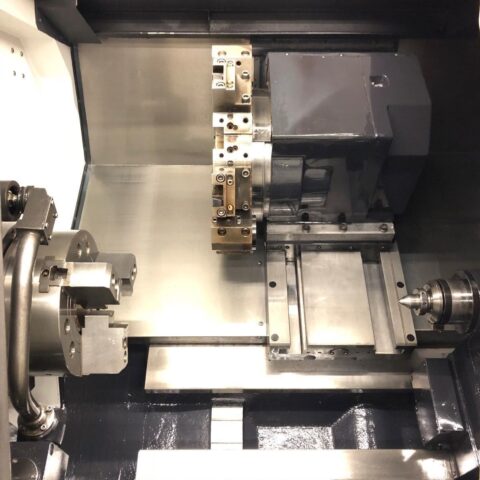

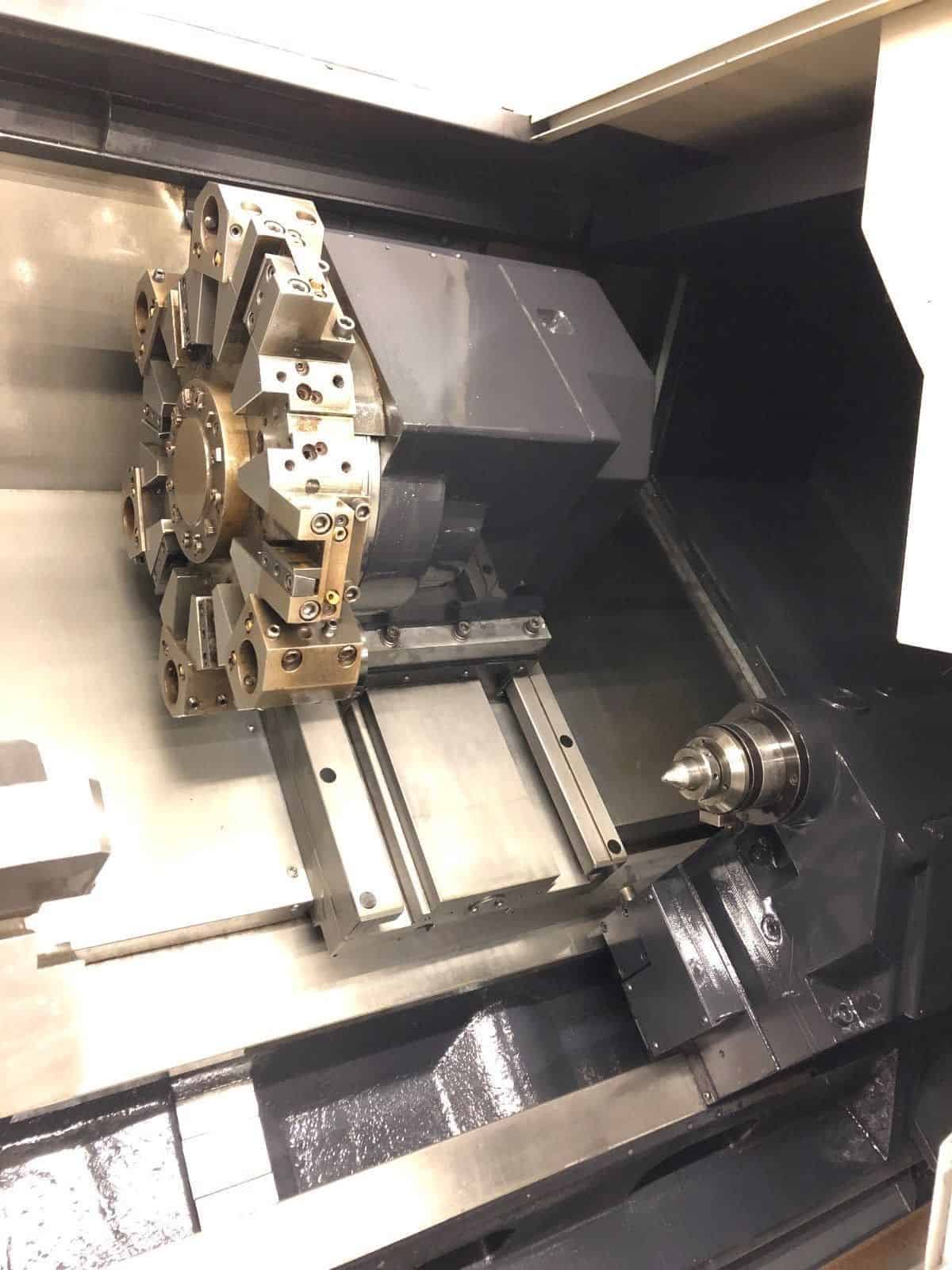

- Hydraulic Programmable Tailstock and Quill
- PCMCIA Card Slot
- Coolant System
- Barfeed Interface

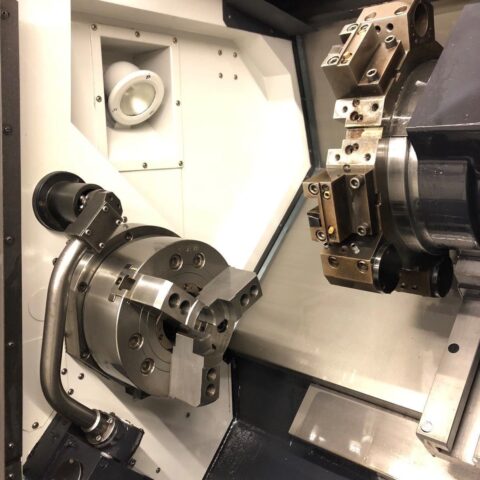

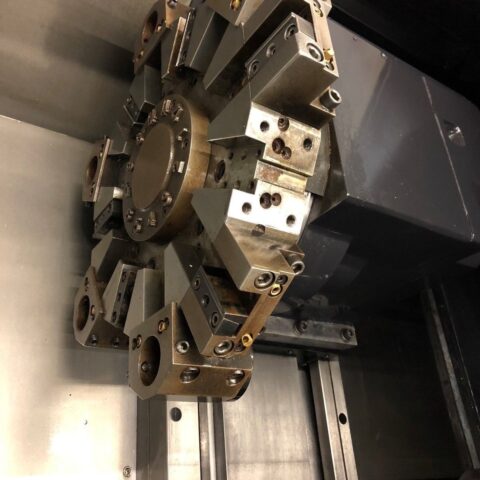

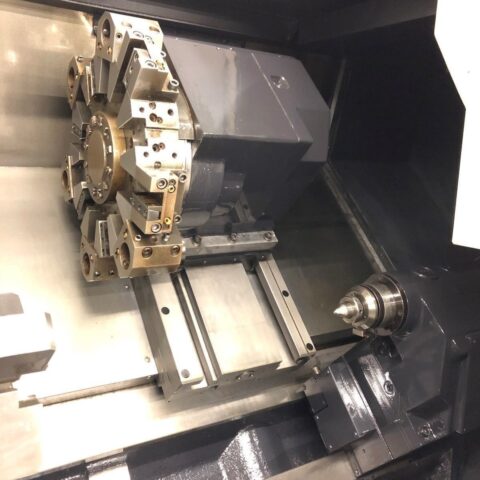

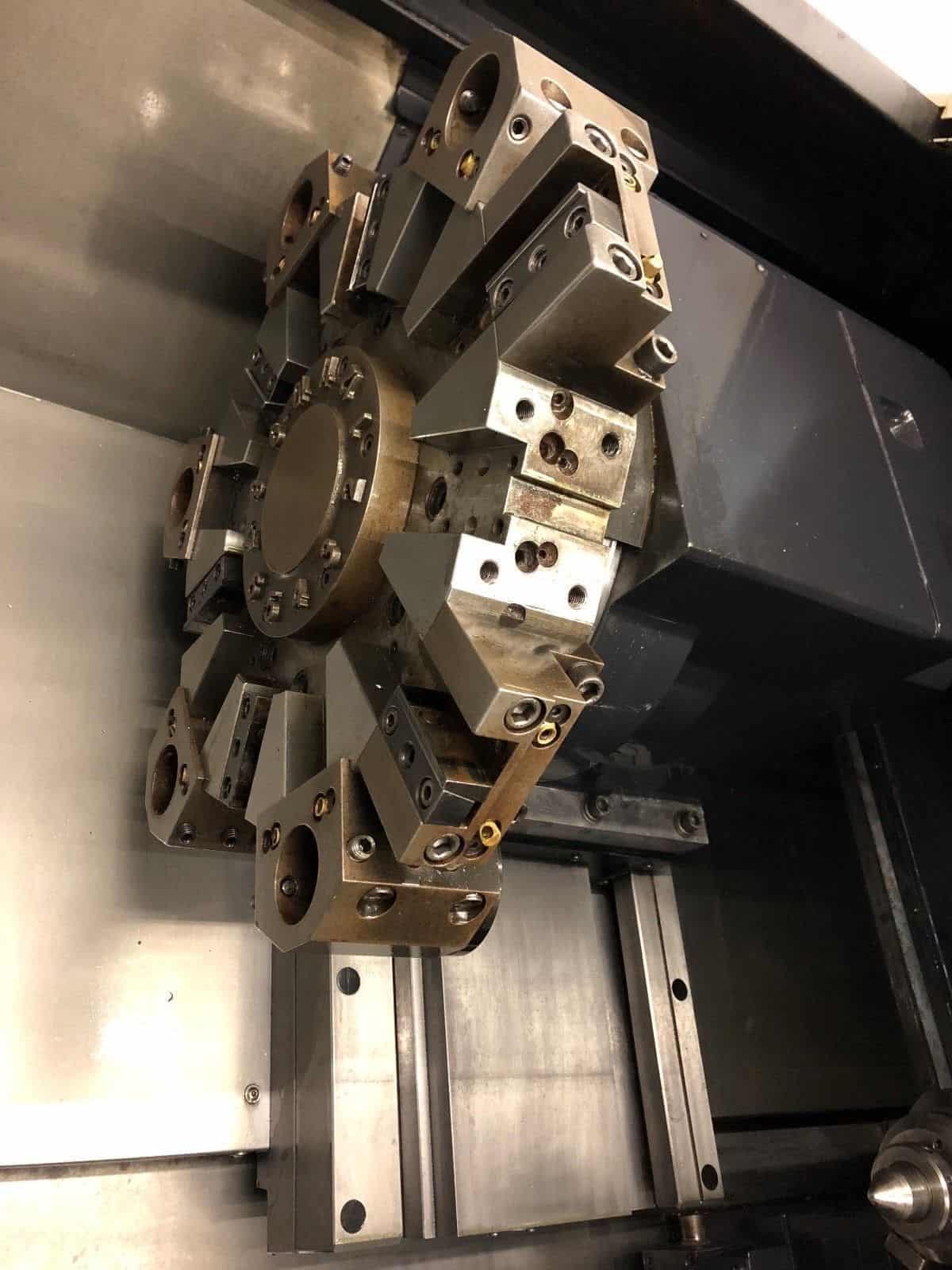

- 12 Station Automatic Turret
- Foot Switch

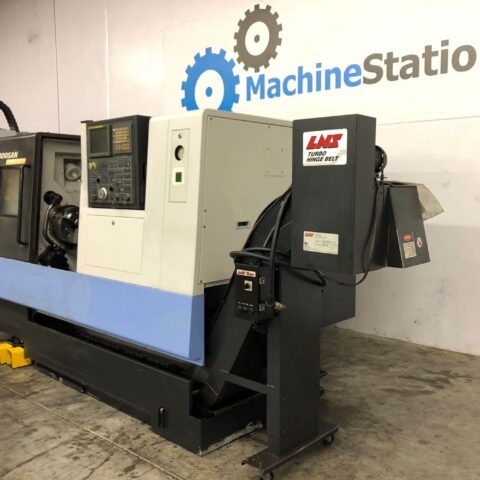

- Turbo Chip Conveyor
- Chip Blaster Unit
- General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 130″ x 77″ x 80″ High
- Overall Dimensions: 148″ x 77″ x 80″ High with Chip Conveyor
- Weight: 12600 lbs
- Doosan Puma 300C Specifications:
- Capacity:
- Max Turning Diameter: 15.7″
- Max Turning Length: 24.8″
- Max Bar Capacity: 4.05″
- Swing Over Bed: 22.4″
- Swing Over Carriage: 17.7″
- Distance Between Centers: 27.8″
- X Axis Travel: 11.1″
- Z Axis Travel: 26.8″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-11
- Spindle Bore: 4.5″
- Spindle Speed: 0 – 2800 RPM
- Spindle Motor: 35 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 4.7″

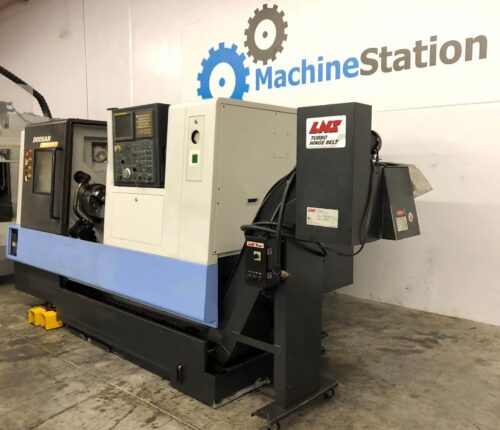

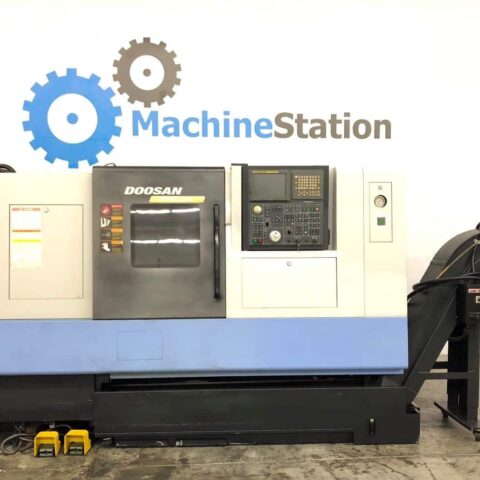

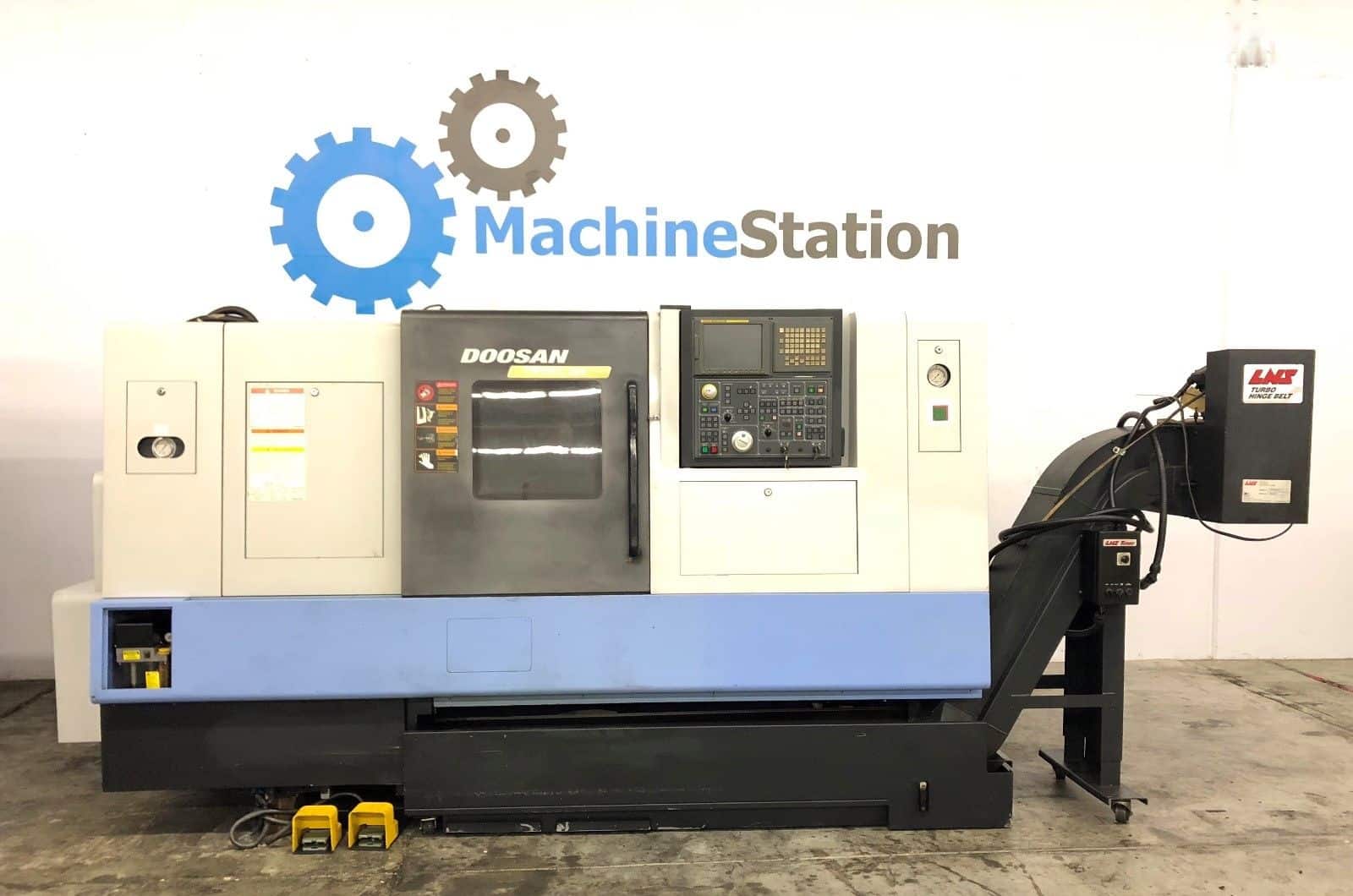

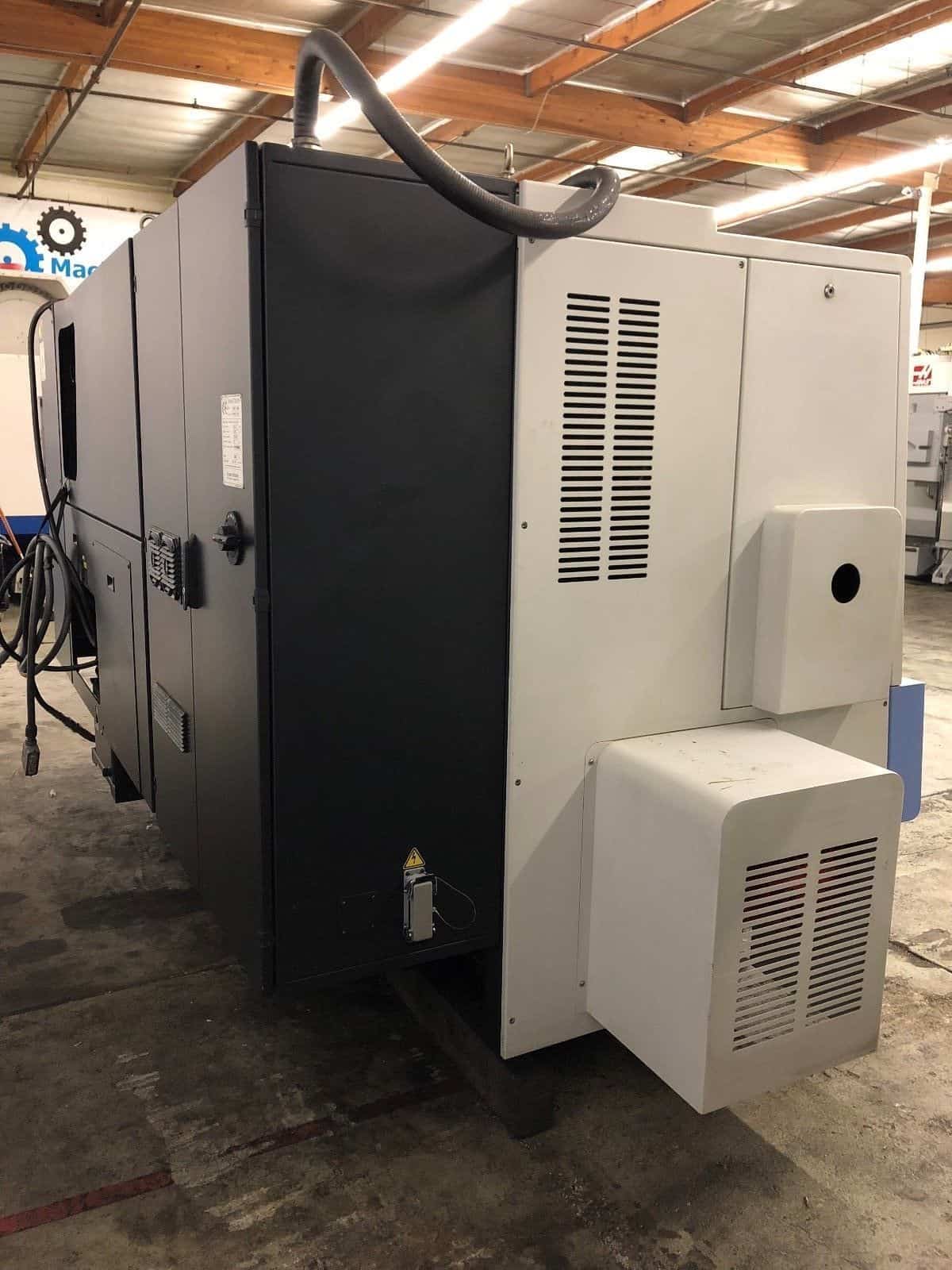

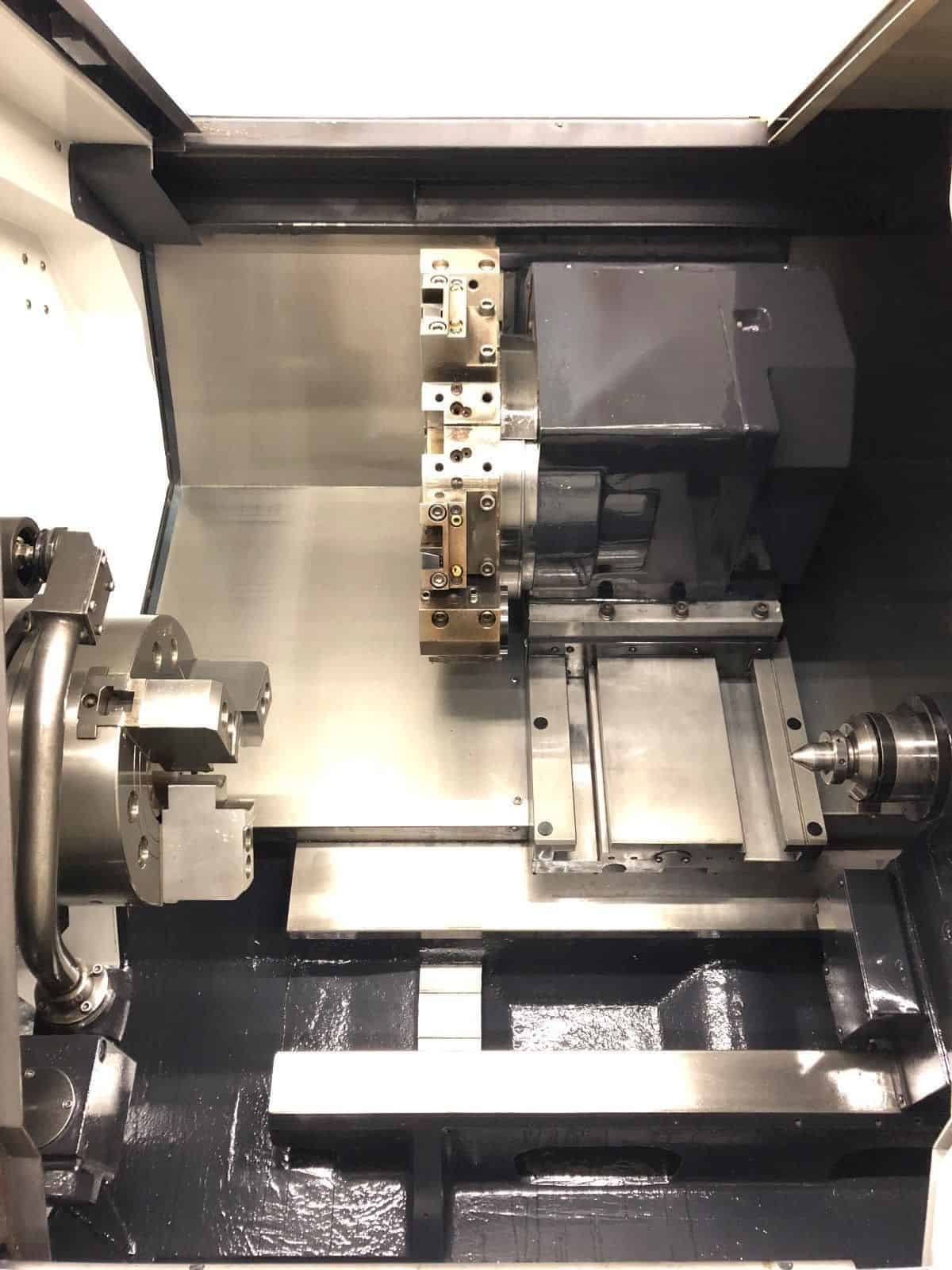

Doosan Puma 300C Comes as shown in pictures..
