All specifications are approximations and are subject to verification.
| SKU | 1991 |

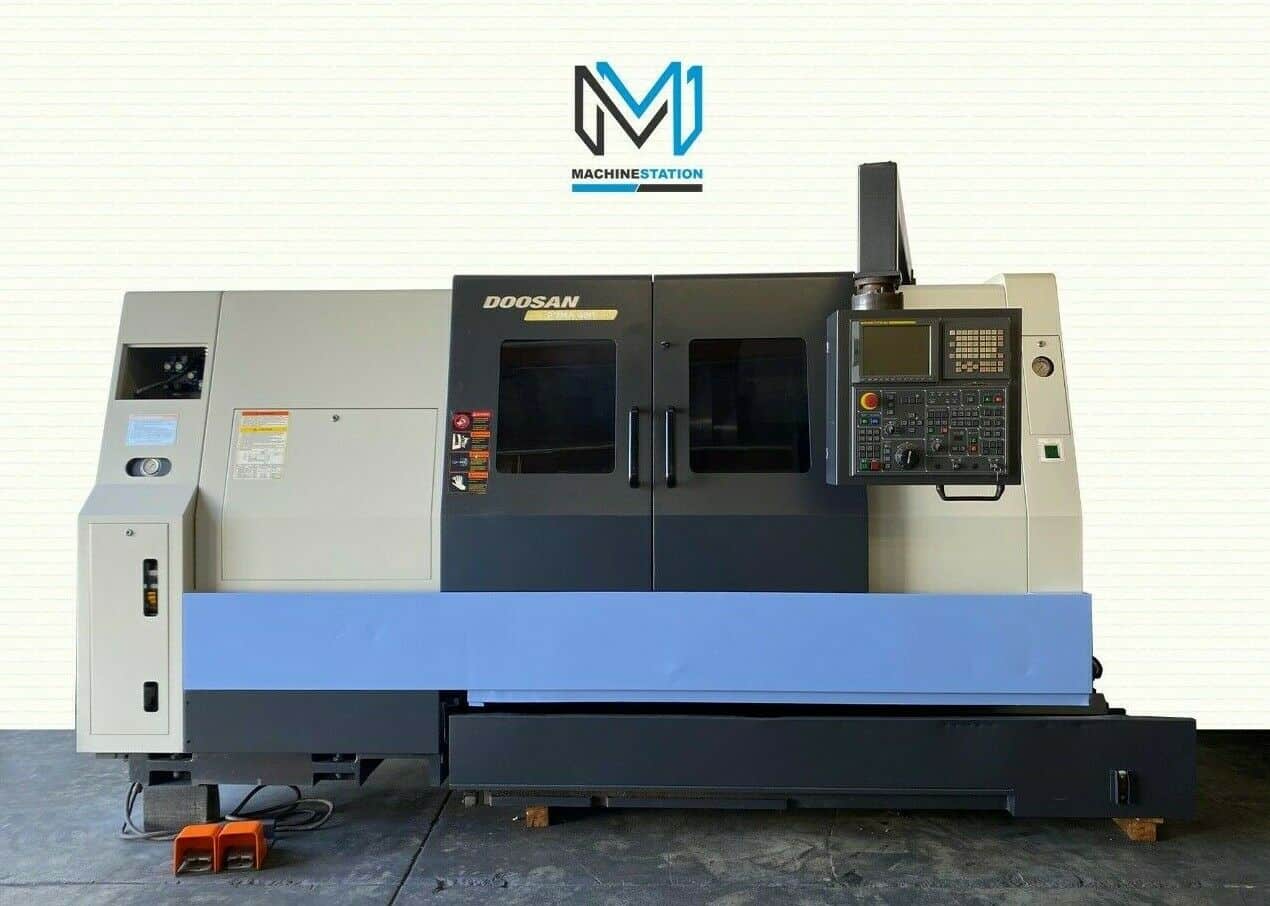

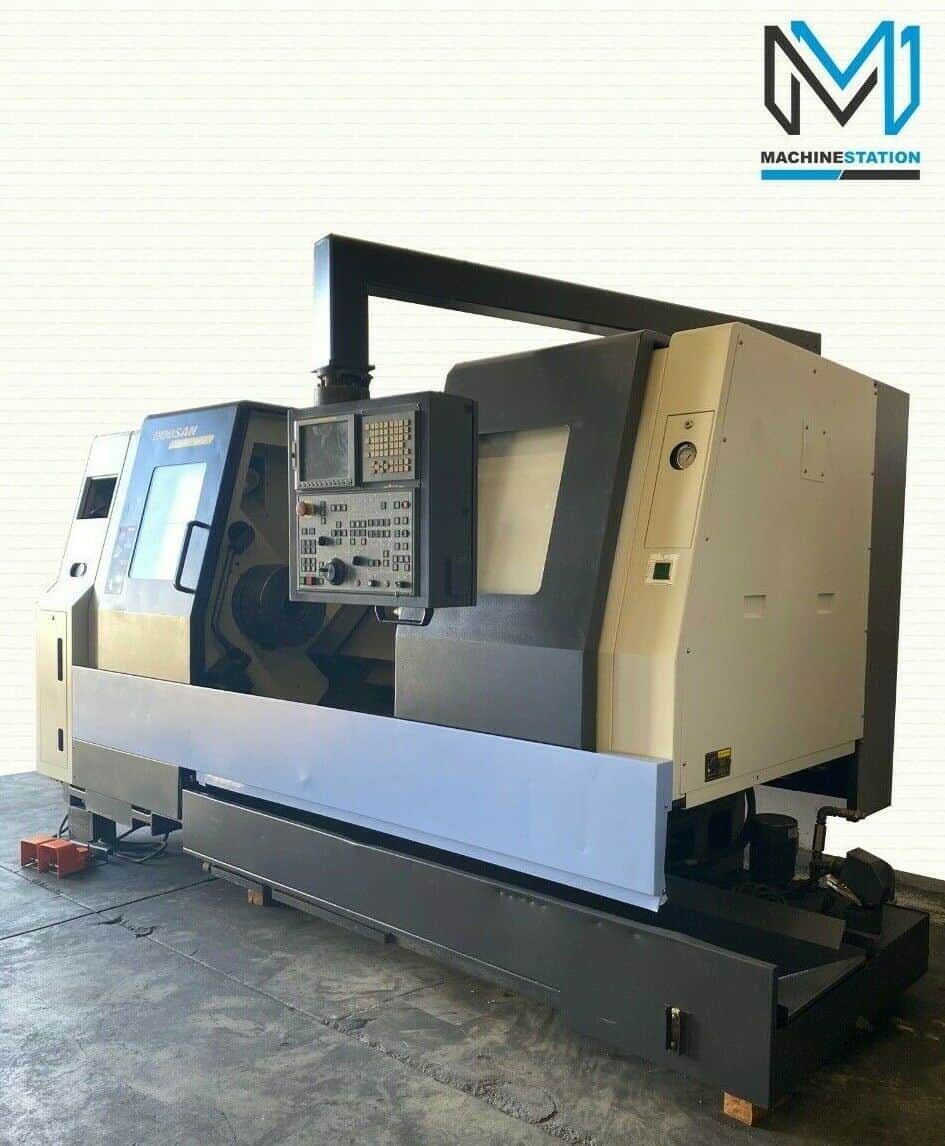

| Make | Doosan |
| Model No. | PUMA 400B |
| Year | 2008 |

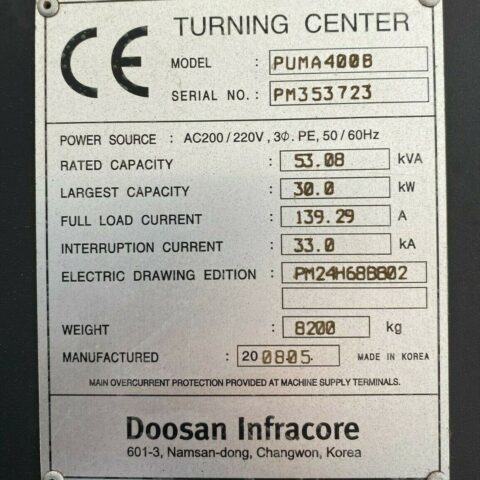

| Serial # | PM353723 |
| Condition | Very Good |
| Cutting Time | Hours |

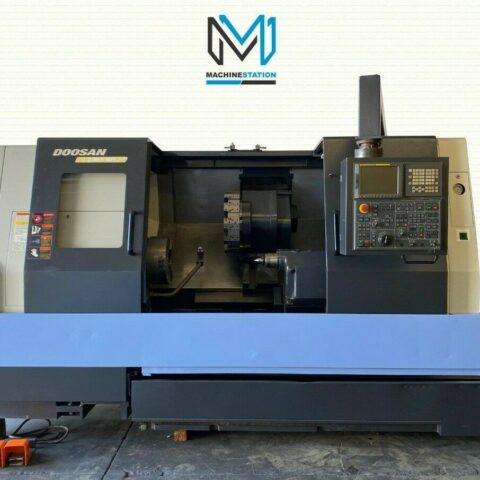

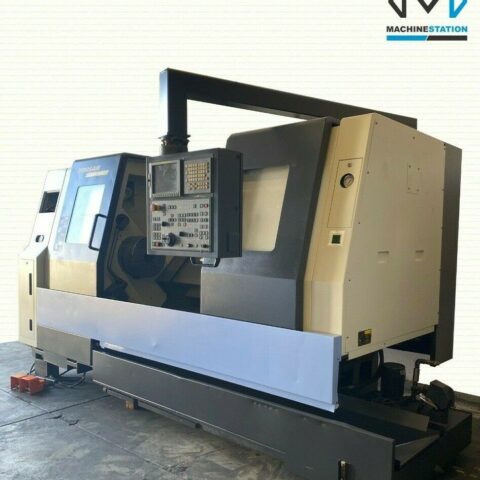

| Doosan PUMA 400B Equipped With: |
|---|

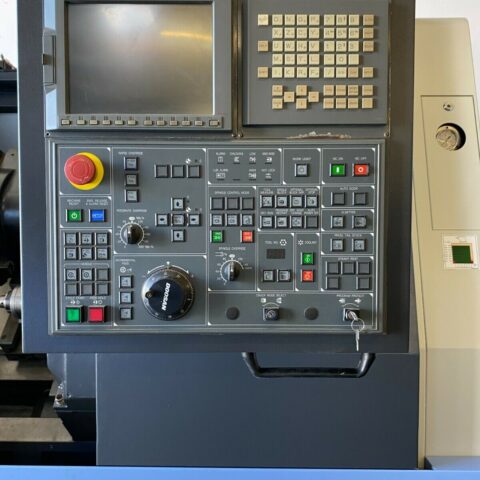

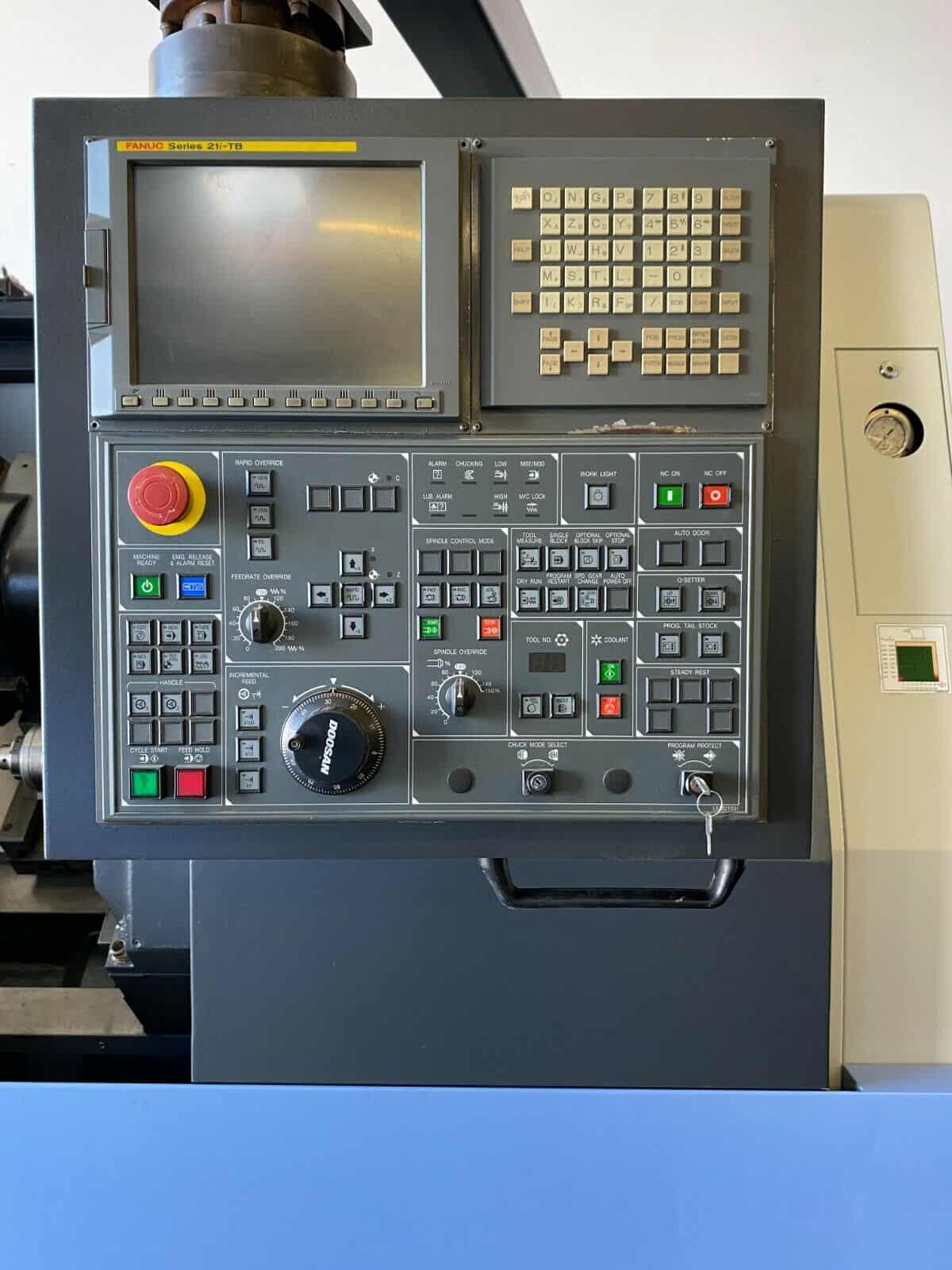

| Fanuc 21i-TB CNC Control |

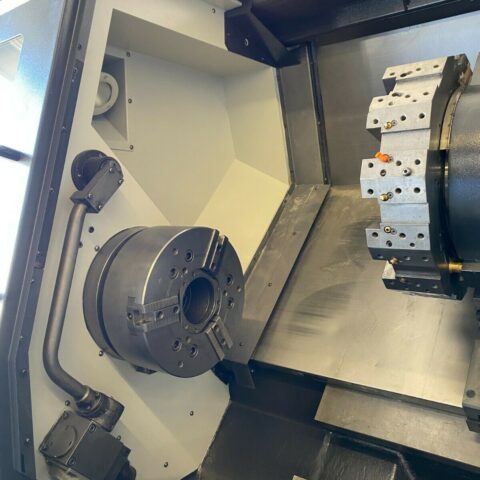

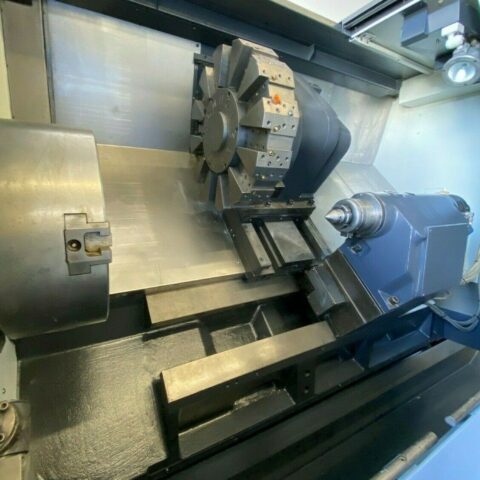

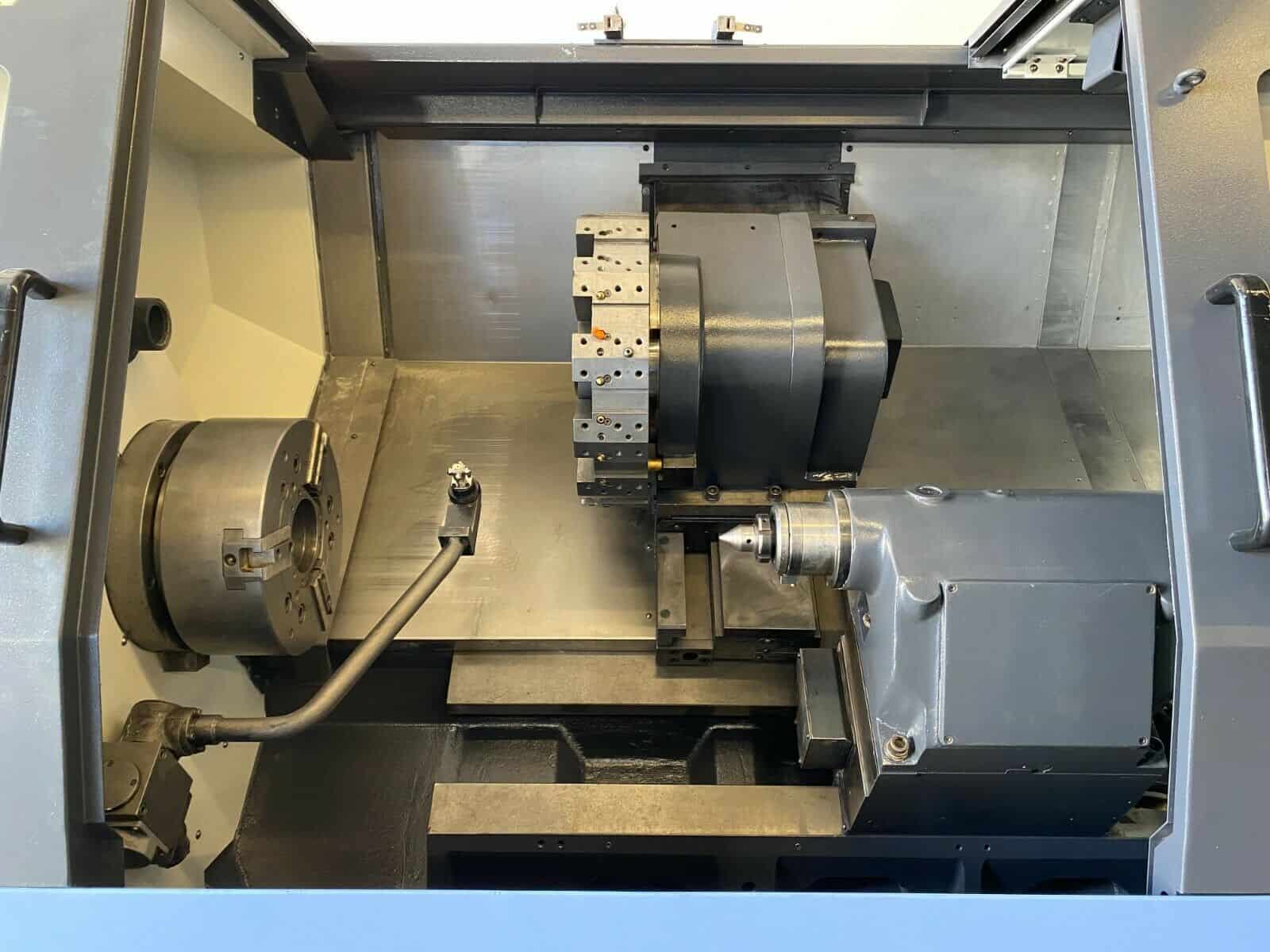

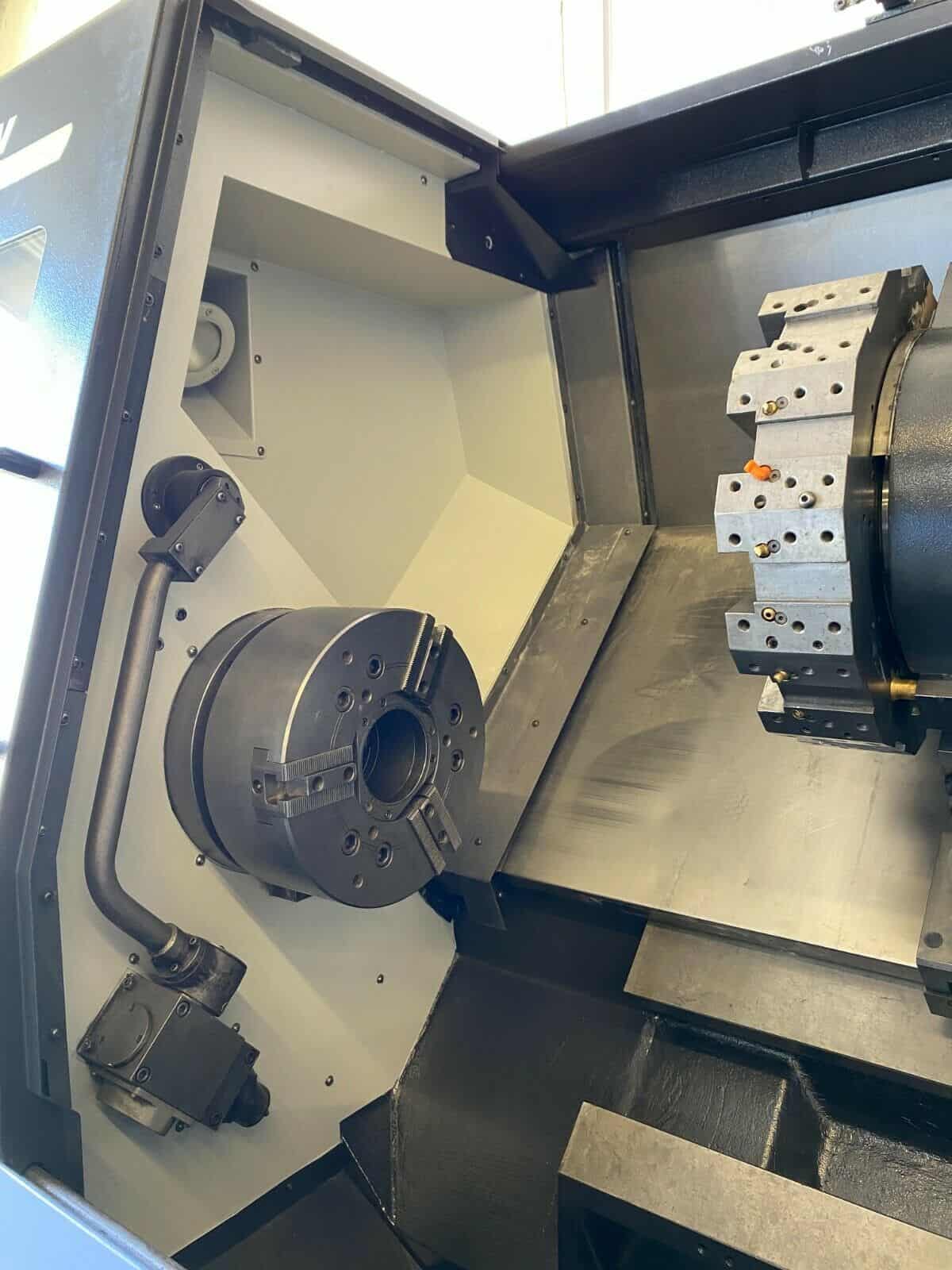

| 15″ 3 Jaw Big Bore Hydraulic Chuck |
| 5.2″ Bore A2-11 Spindle |
| Tool Presetter |

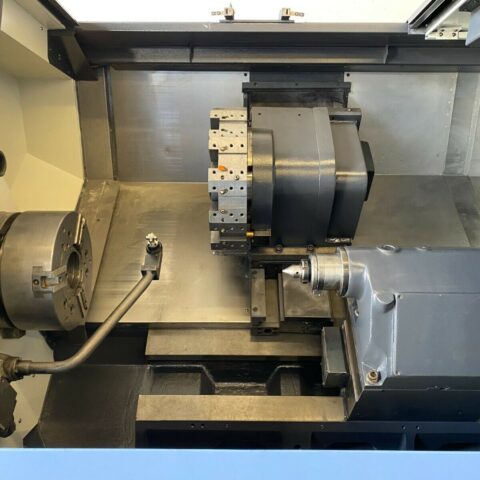

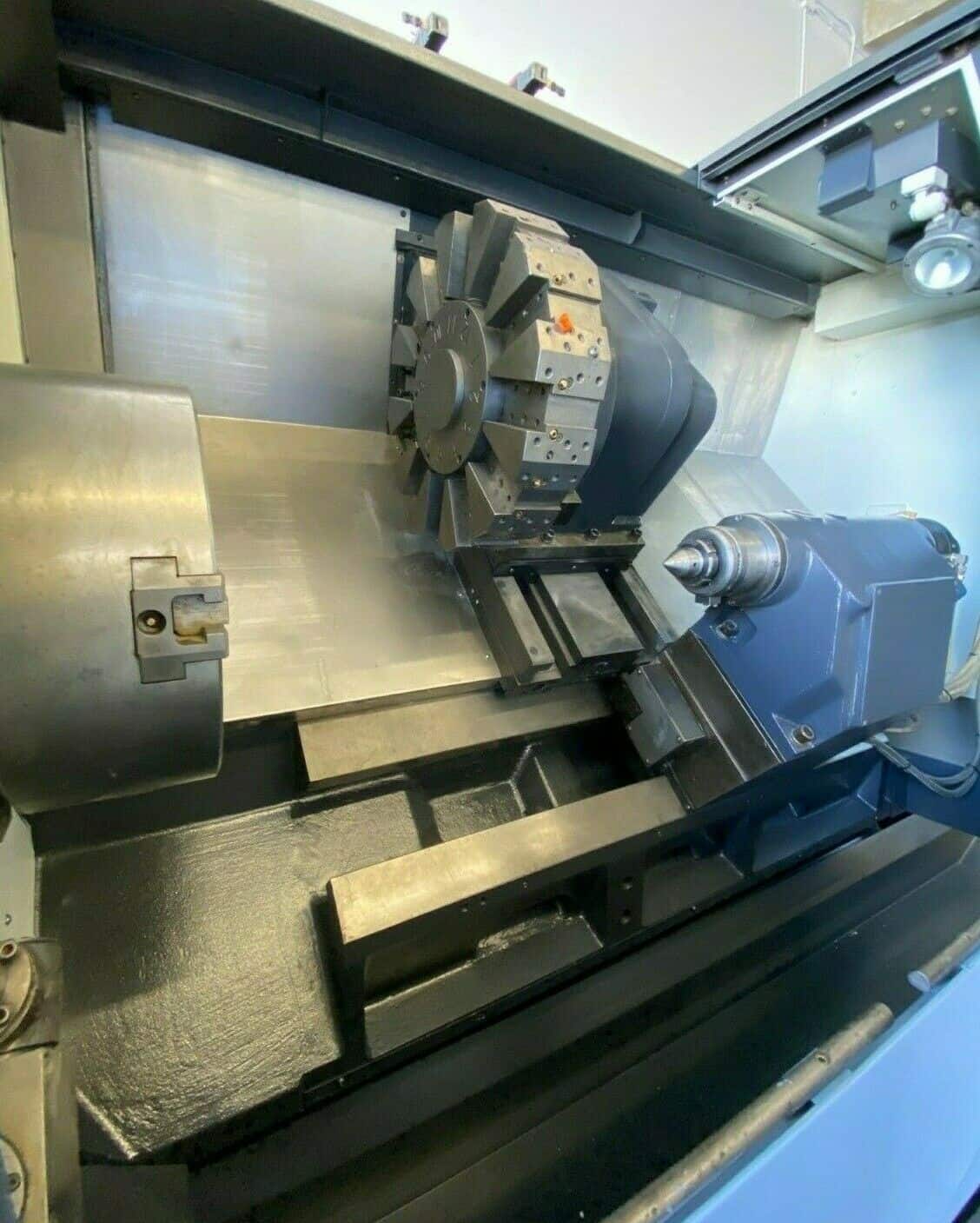

| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |

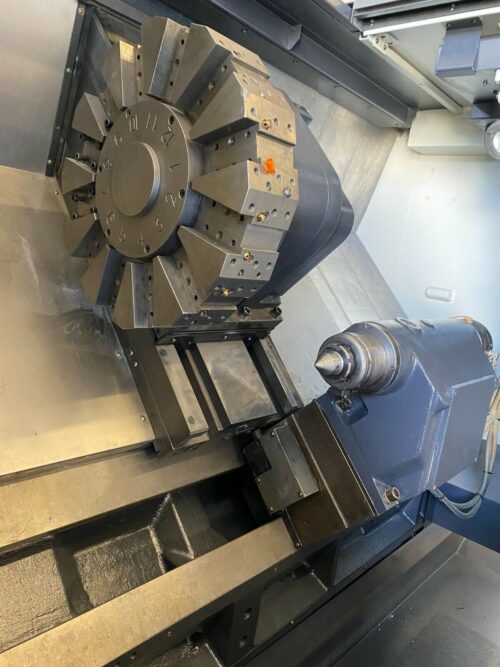

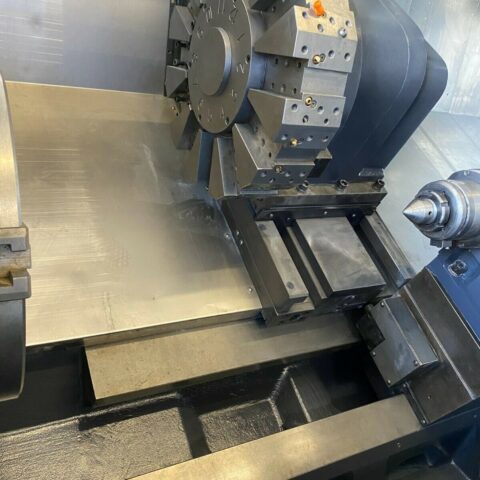

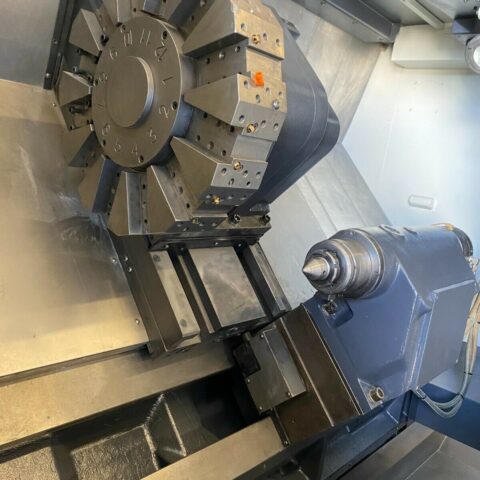

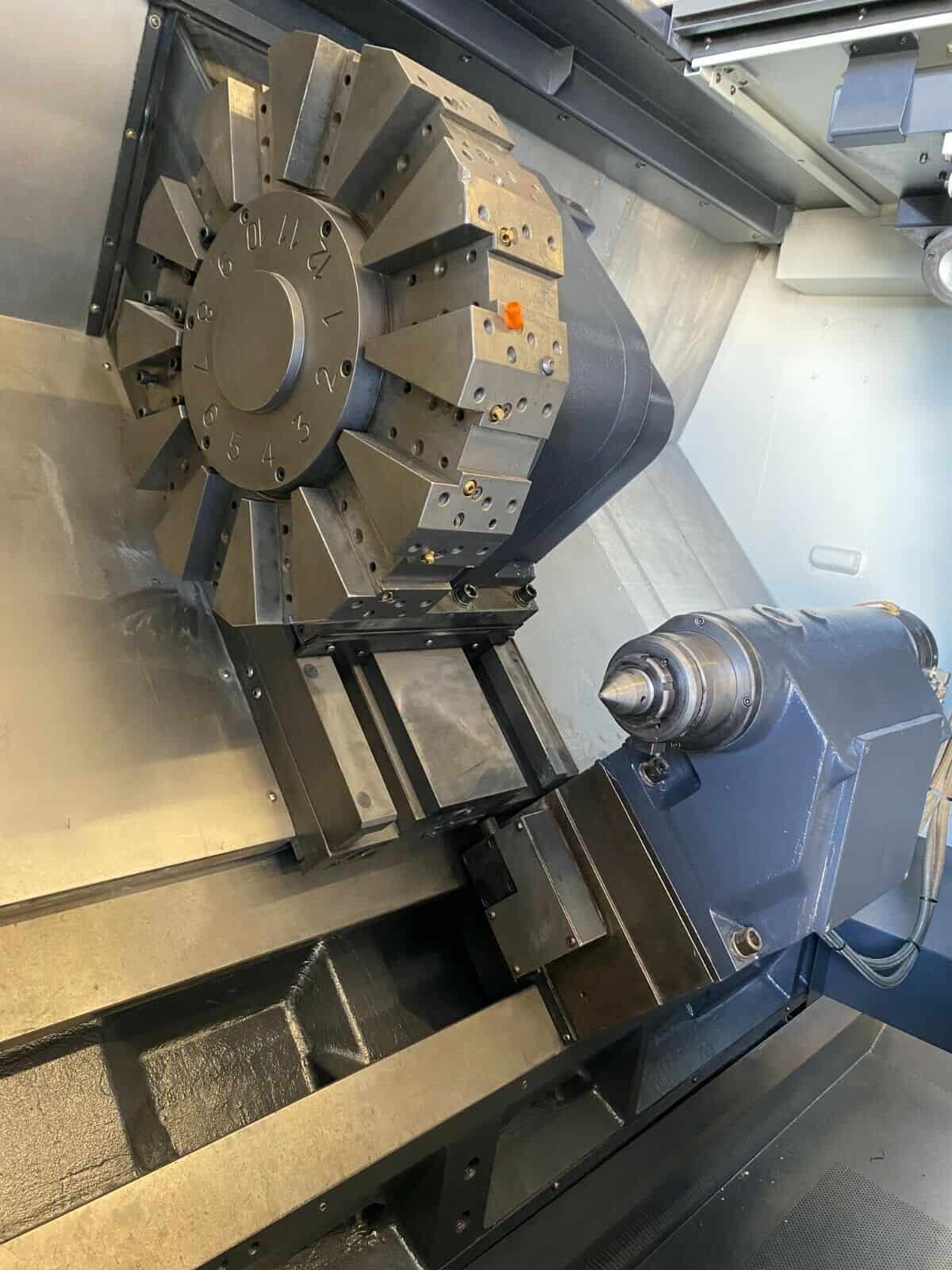

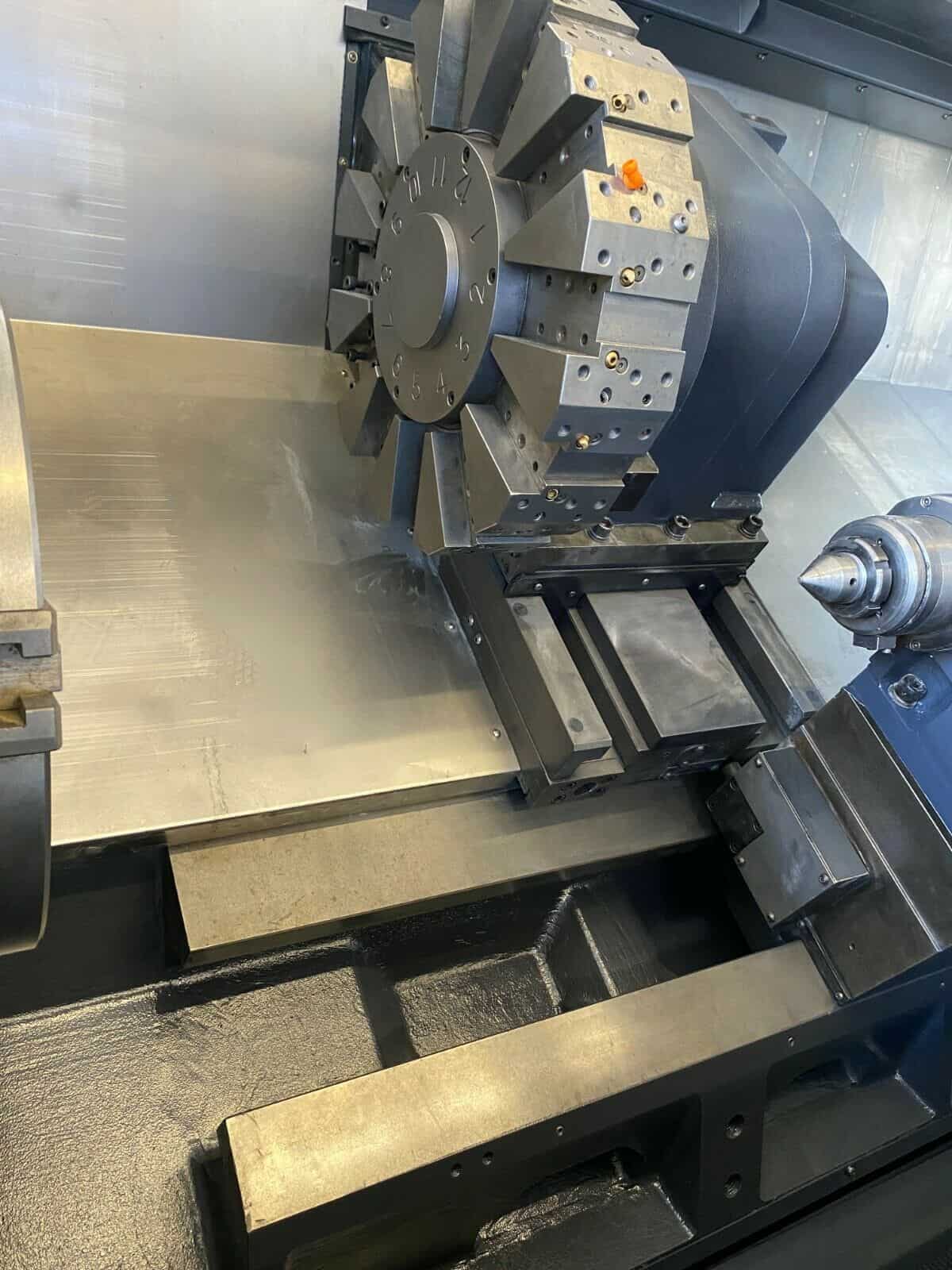

| 12 Station Automatic Turret |
| Foot Switch |
| Oil Skimmer |
| Coolant System |
| Barfeed Interface |
| Doosan PUMA 400B Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 21.7″ |
| Max Turning Length: 40.3″ |
| Max Bar Capacity: 4.62″ |
| Swing Over Bed: 30.3″ |
| Swing Over Carriage: 23.3″ |
| Distance Between Centers: 44.7” |
| Travel: |
|---|
| X Axis Travel: 14.2″ |
| Z Axis Travel: 14.5″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 790 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 5.2″ |
| Spindle Speed: 15 – 2000 RPM |
| Spindle Motor: 50 hp |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 2.4″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 40.5″ |
| Tailstock Quill Dia.: 4.7″ |
| Tailstock Quill Travel: 4.7″ |
| General: |
|---|

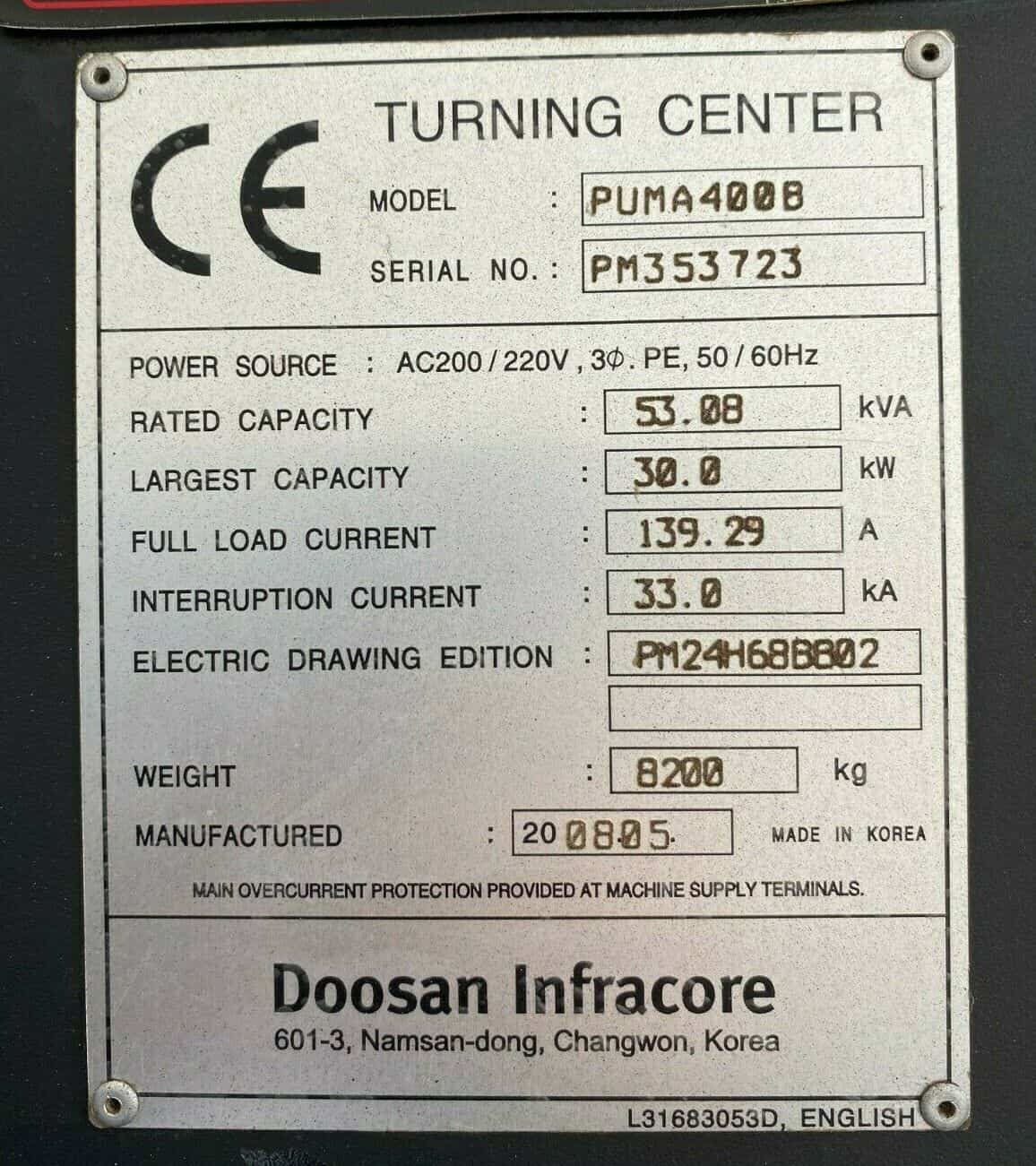

| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: ″ x 87″ x 90″ High |
| Weight: 22,000 lbs |
“No Charges for loading at list Price”

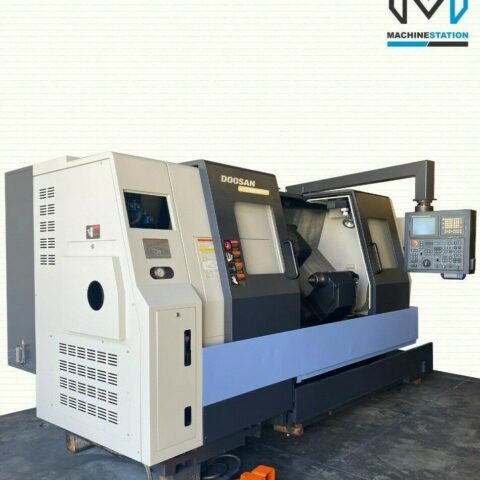

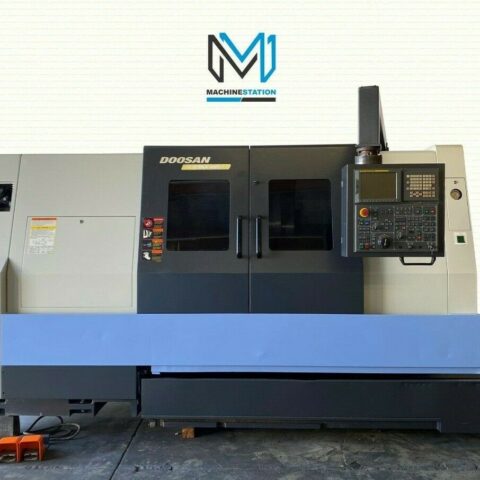

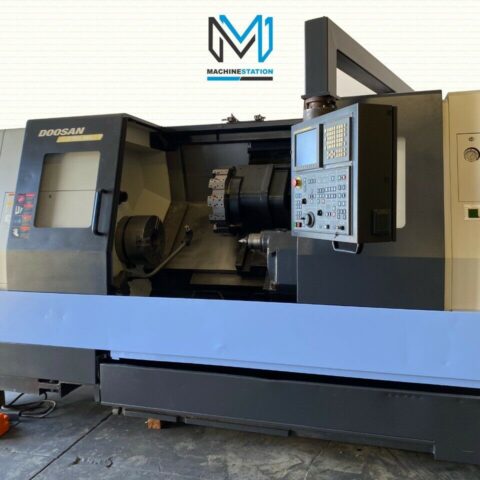

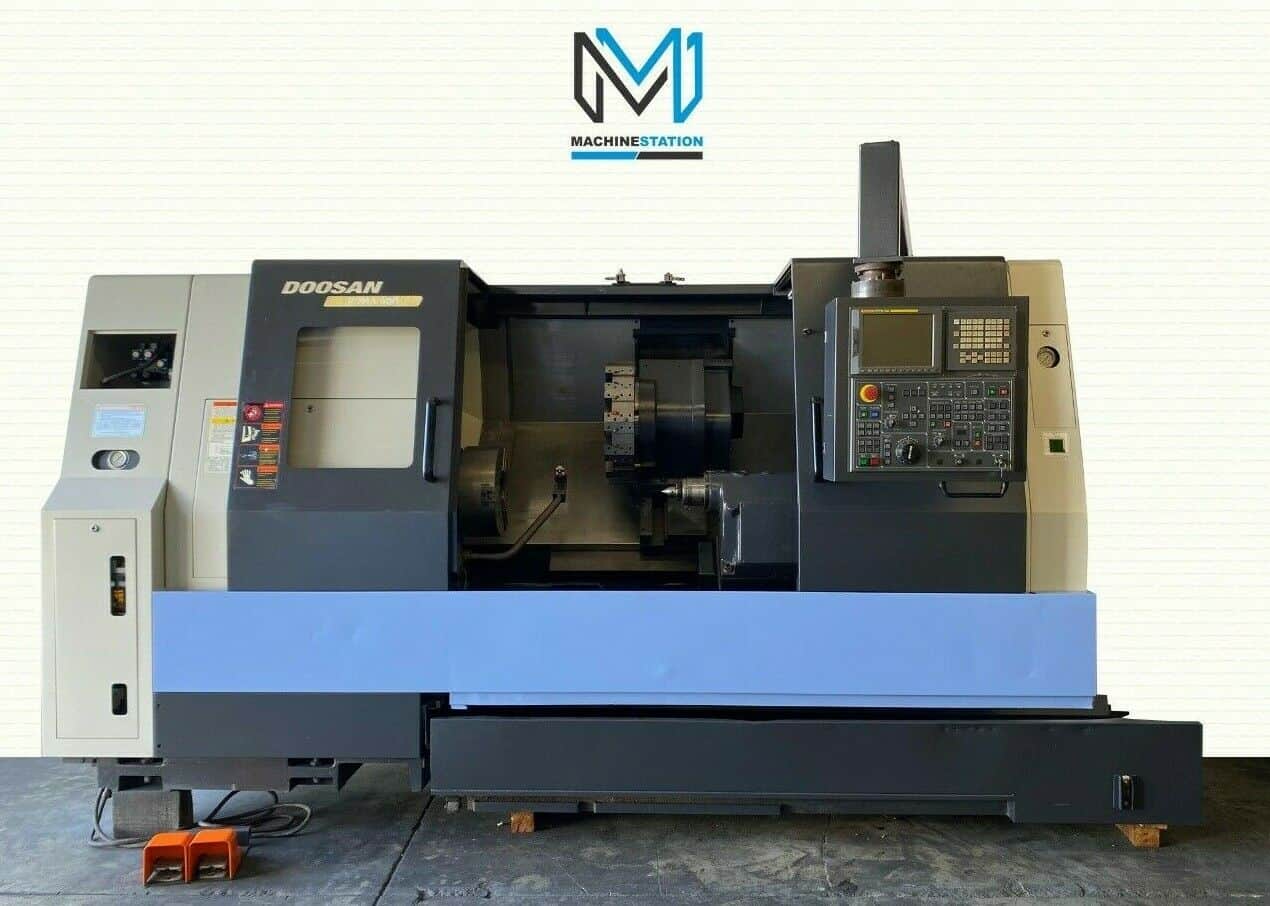

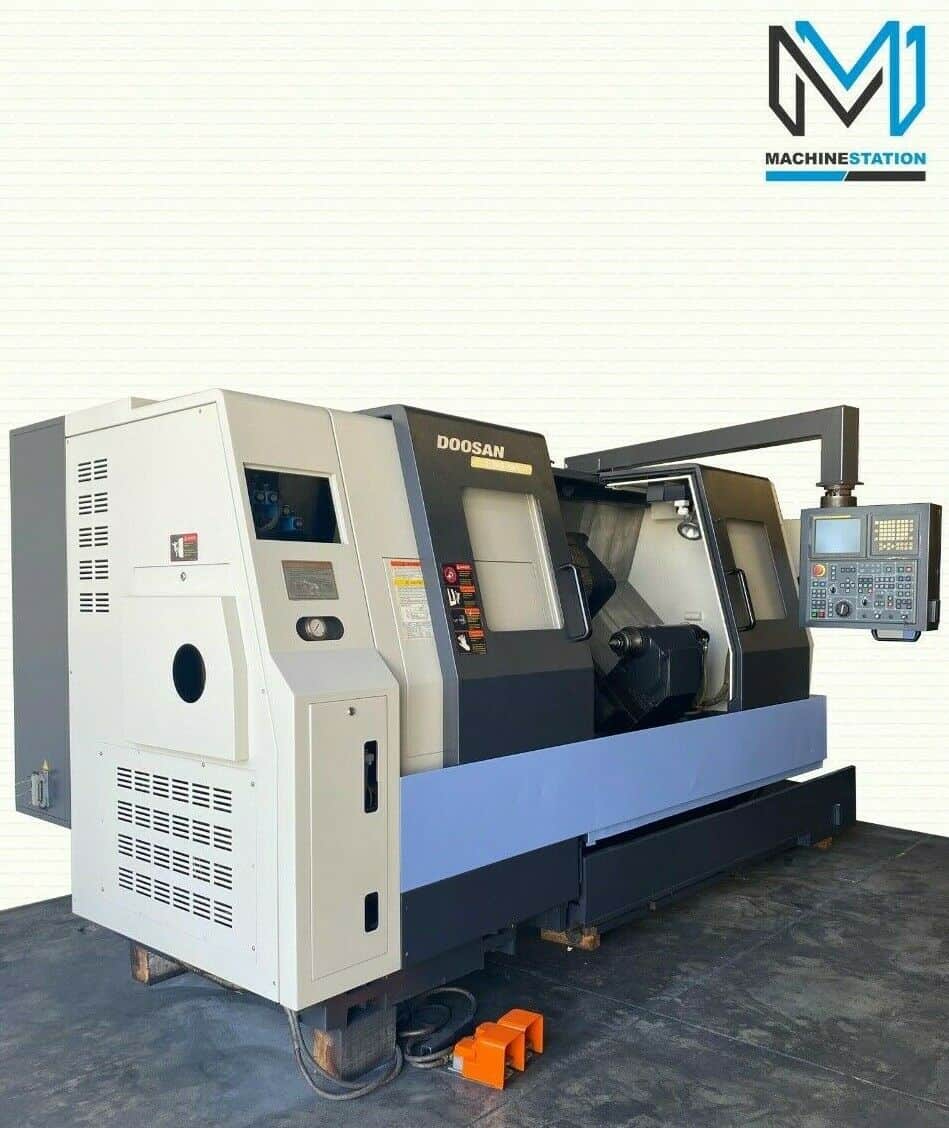

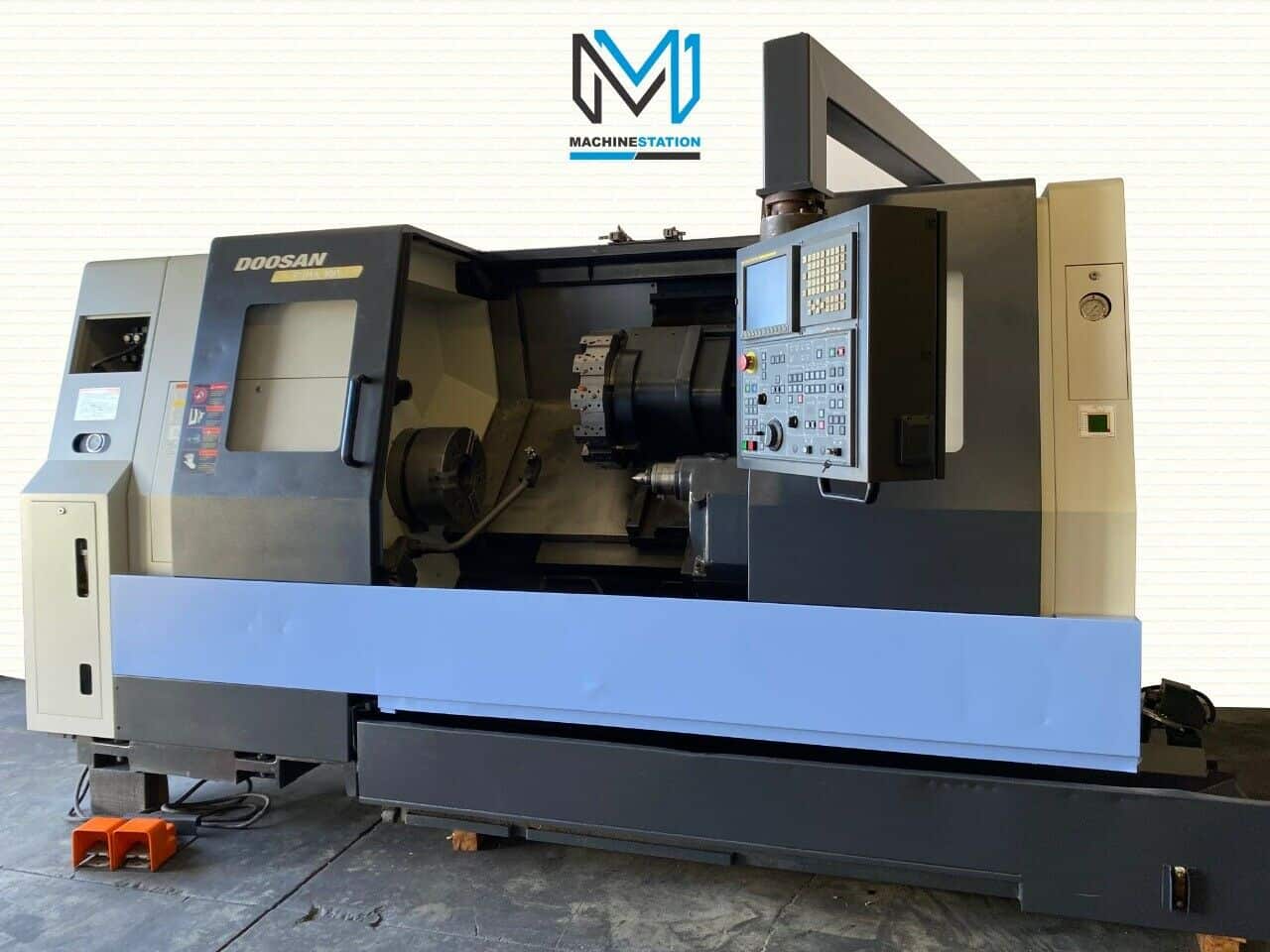

Comes as shown in pictures….
