*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan |
| Model: | PUMA 4100LB |
| Condition: | Used |
| Equipped With: |
|---|
| Fanuc Series 0i-TF Plus CNC Control |
| 15″ Hydrautdc Chuck |
| 12-Station Servo Turret |
| Programmable Tailstock |
| Automatic Tool Presetter |
| Parts Catcher |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 25.6″ |
| Max Turning Length: 80.0″ |
| Bar Capacity: 4.1″ |
| Swing Over Bed: 33.9″ |
| Swing Over Saddle: 24.0″ |
| Travels: |
|---|
| X-Axis Travel: 14.6″ |
| Z-Axis Travel: 82.7″ |
| Rapid Traverse X-Axis: 945 IPM |
| Rapid Traverse Z-Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.9″ |
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 40 HP |
| Feedrates: |
|---|
| Rapid Traverse X/Z: 945 IPM |
| Cutting Feedrate: 0.00004″ – 472″/min |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Size (OD): 1.57″ × 1.57″ |
| Tool Size (Boring Bar): 3.15″ |
| Index Time: 0.2 Second |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Quill Diameter: 5.1″ |
| Quill Taper: MT#6 |
| General: |
|---|

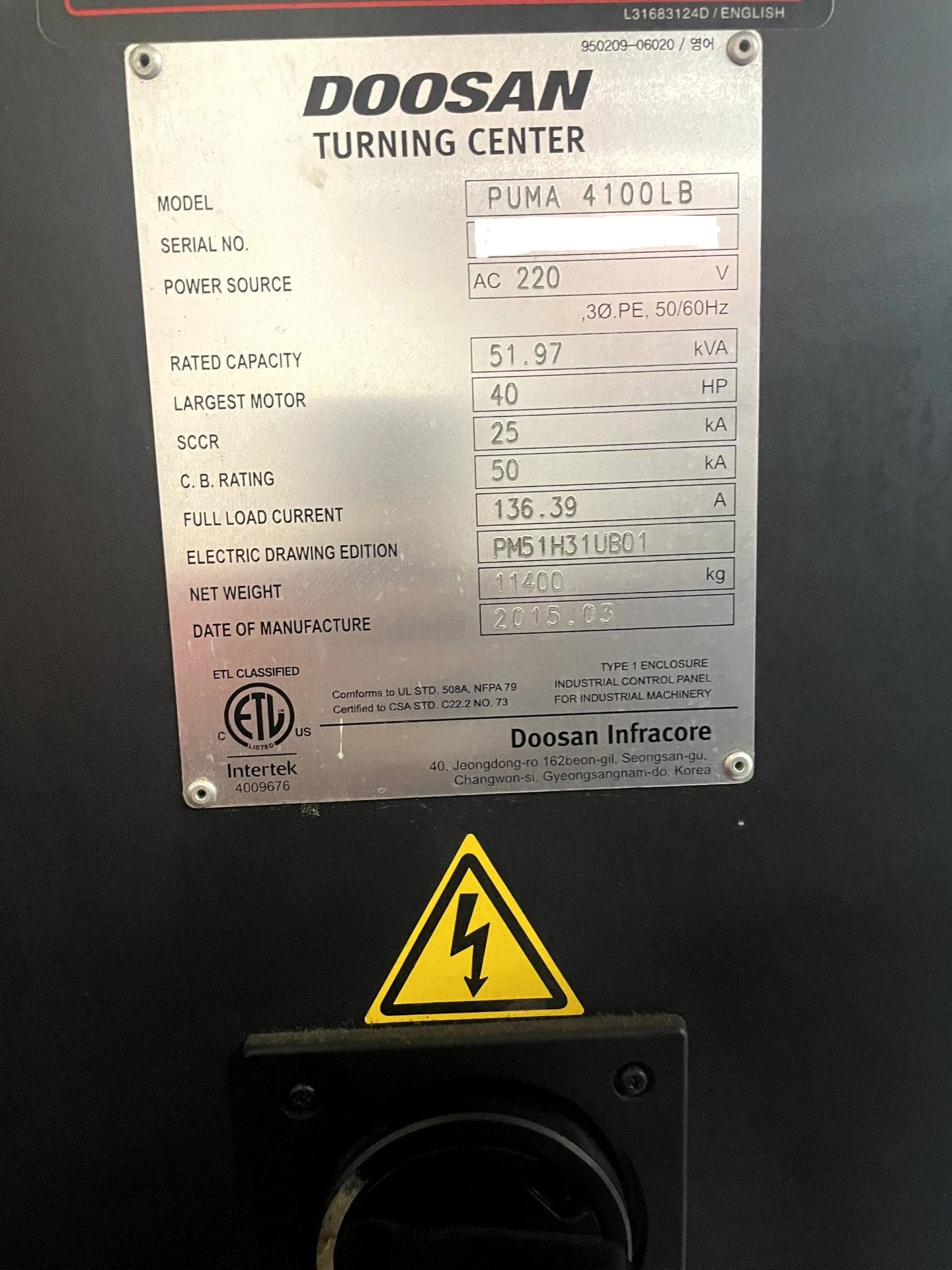

| Power: 220V / 3-Phase |
| Machine Dimensions (Approx.): 205″ L × 91″ W × 94″ H |
| Machine Weight (Approx.): 30,865 lbs |
