*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

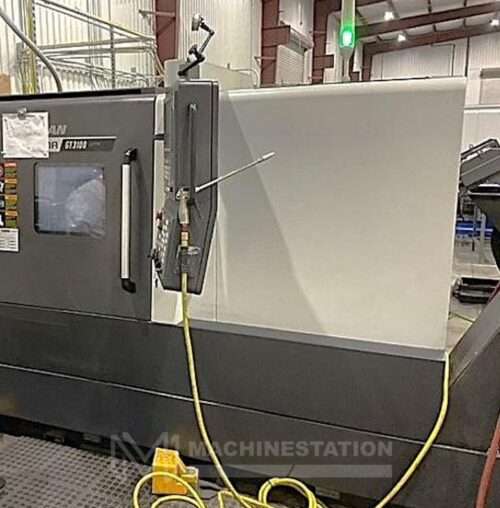

| Make: | Doosan |
| Model: | Puma GT3100 |
| Year: | 2018 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

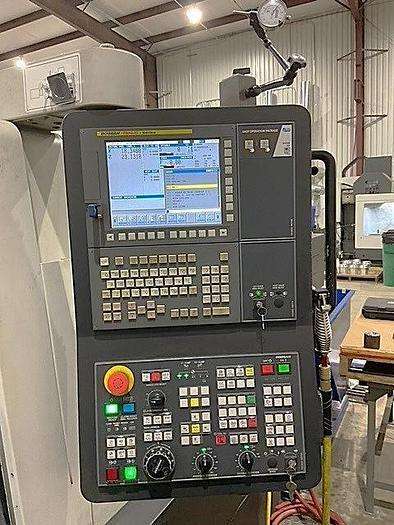

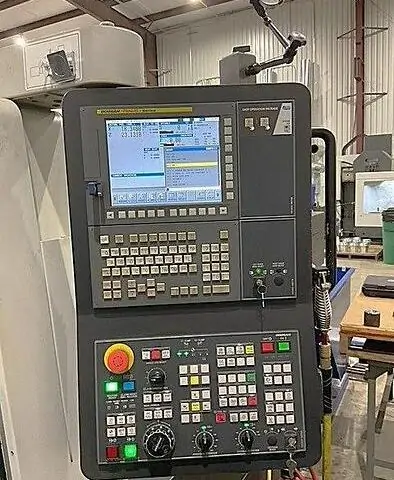

| Fanuc i series CNC Control |
| Boxed Way Design |

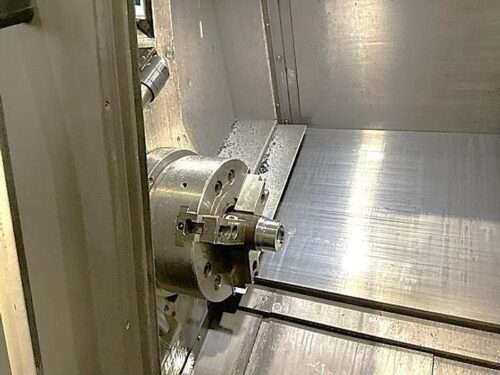

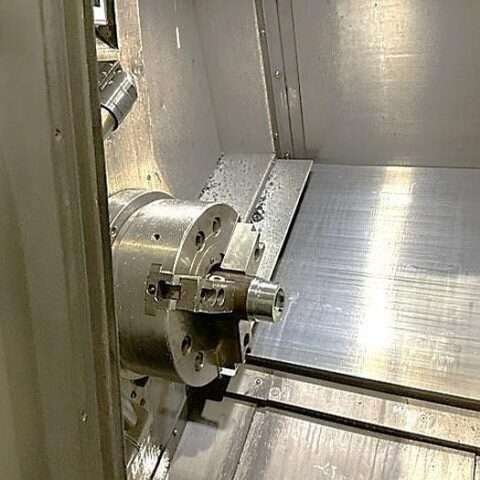

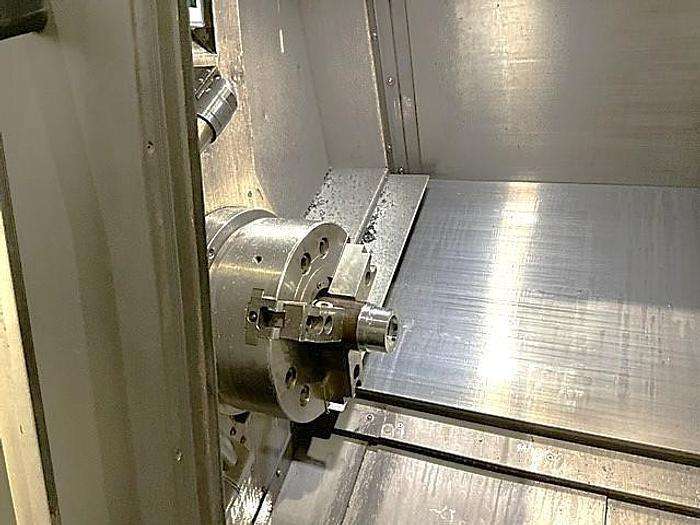

| 12″ 3 Jaw Hydraulic Chuck |
| A2-11 2 Speed Gear Head Spindle |

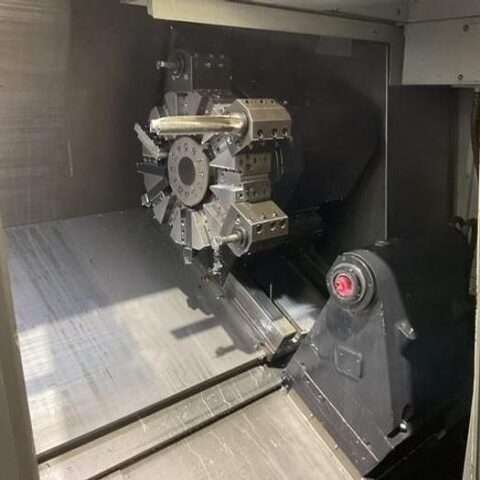

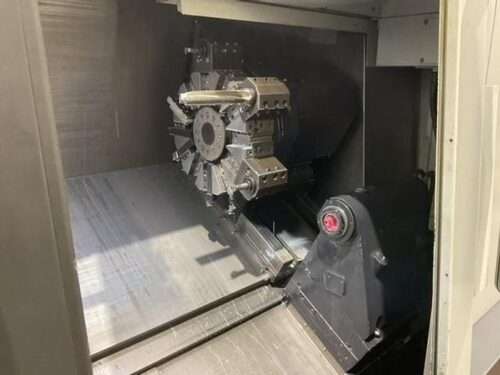

| 12 Station Automatic Turret |

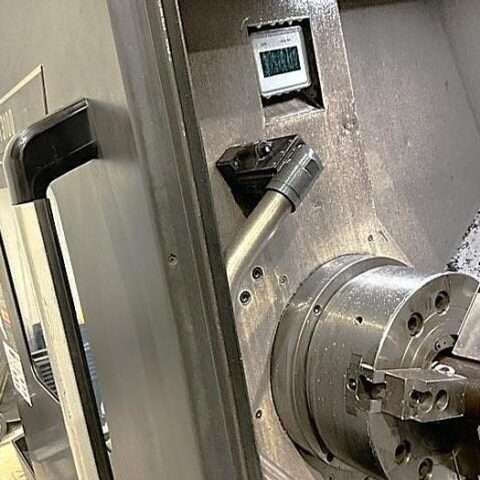

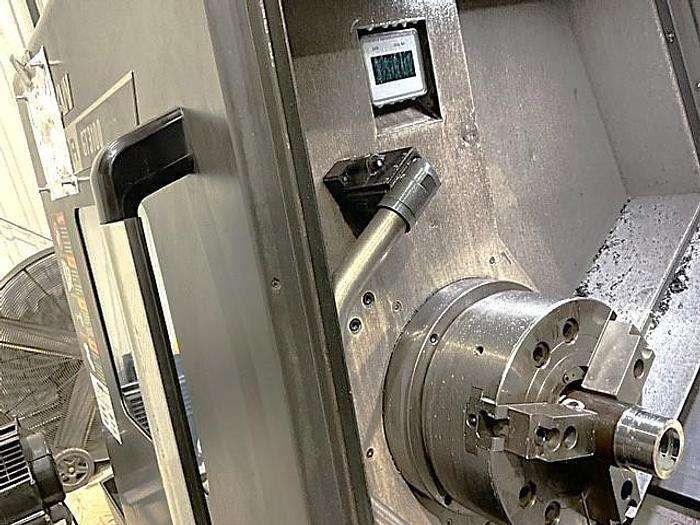

| Tool Presetter |
| Programmable Tailstock |
| Rigid Tapping |
| PCMCIA Card Interface |
| USB Port |
| Coolant Tank with Pump |
| Chip Conveyor |
| EZ Guide I |
| Assorted Tool Blocks |
| Foot Switch |
| Capacity: |
|---|
| Maximum Turning Diameter: 18.9″ |
| Maximum Swing over Bed: 28.3″ |
| Maximum Swing Over Saddle: 23.2″ |
| Maximum Turning Length: 29.7″ |
| Maximum Bar Capacity: 4.0″ |
| Travels: |
|---|
| X-Axis Travel:10.2″ |
| Z-Axis Travel: 32.7″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.53″ |
| Spindle Speed: 2800 RPM |
| Spindle Motor: 45 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Travel: 26.8″ |
| Quill Diameter: 3.9″ |
| Quill Travel: 3.9″ |
| Taper Size: MT-4 |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 161″ x 83″ x 76″ High Approx. |
| Machine Weight :12,100 lbs. Approx. |
