*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

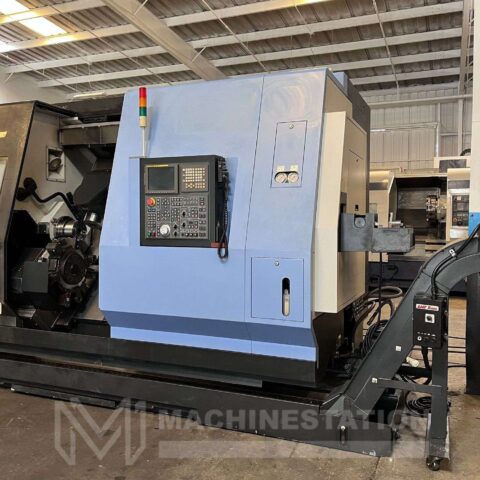

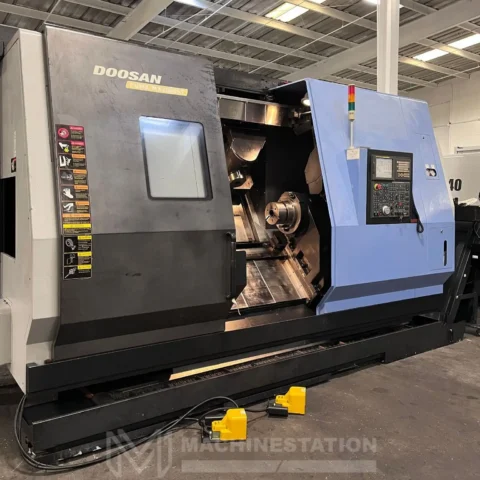

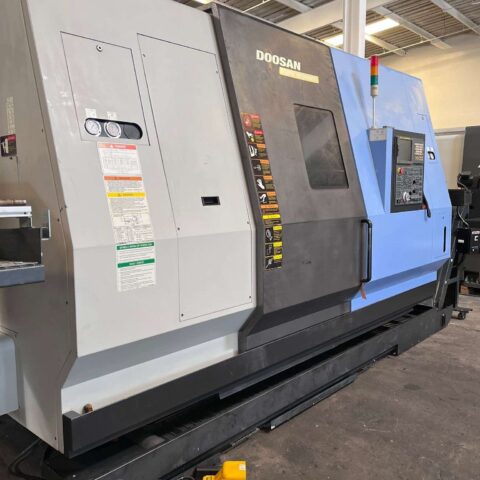

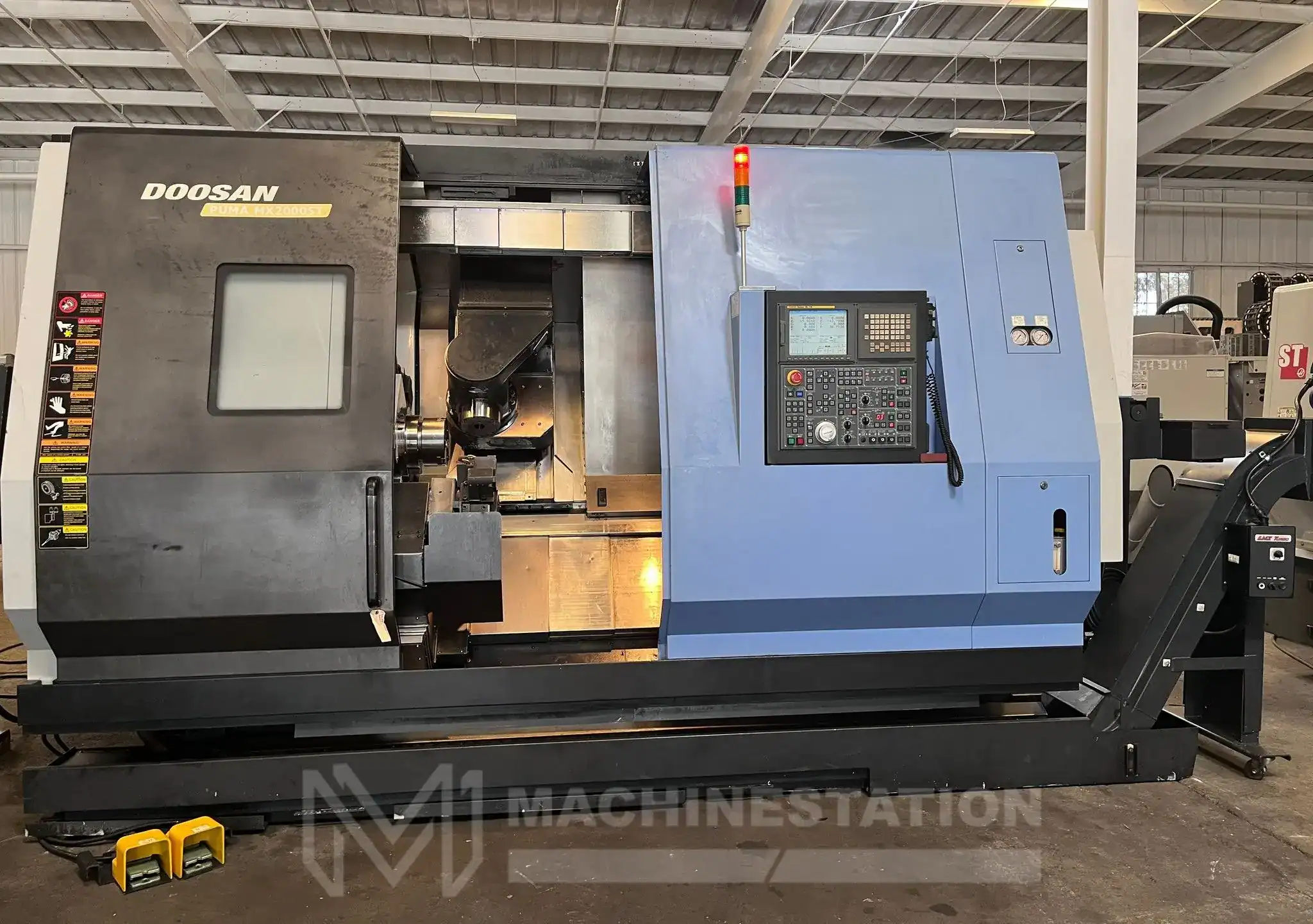

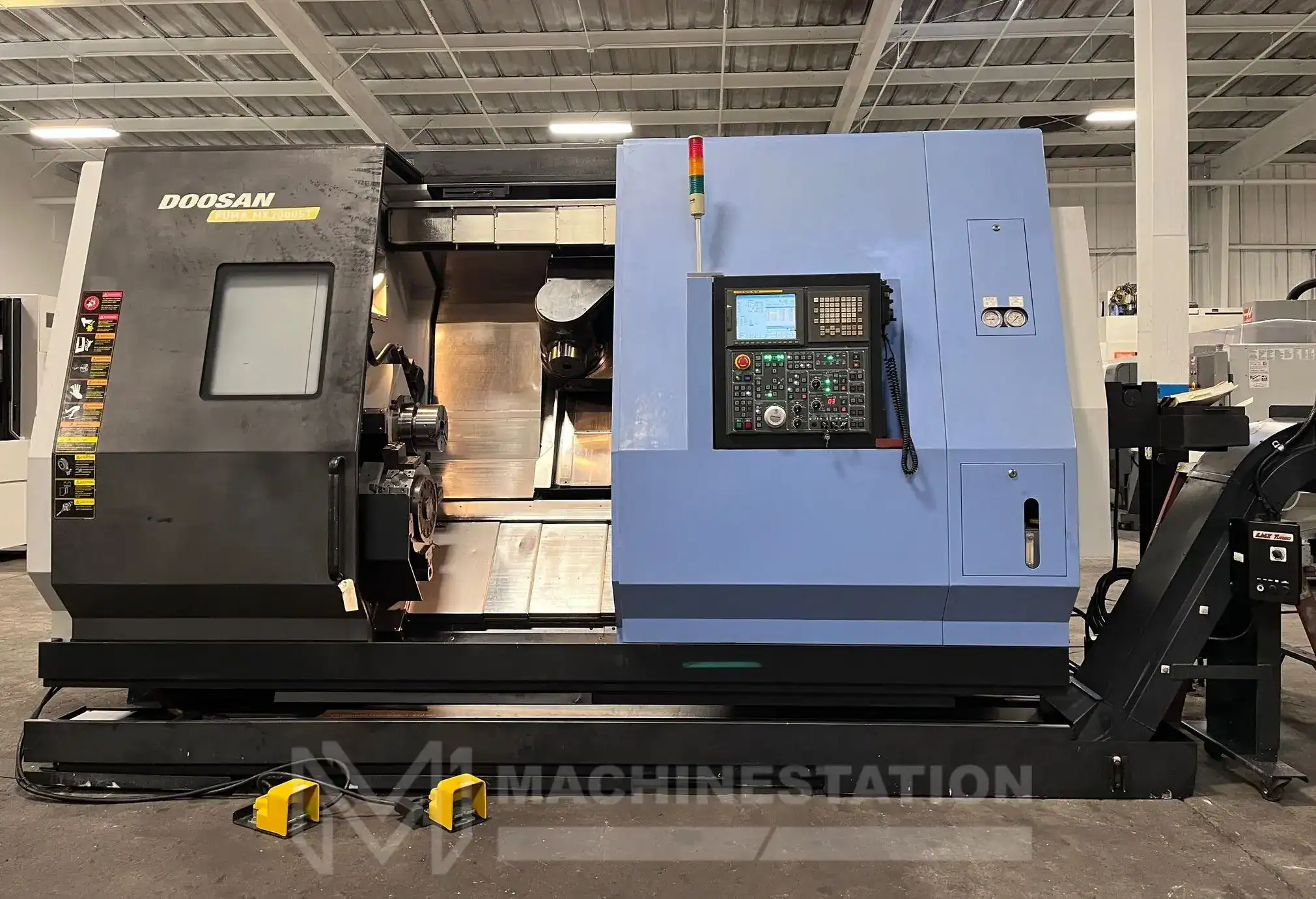

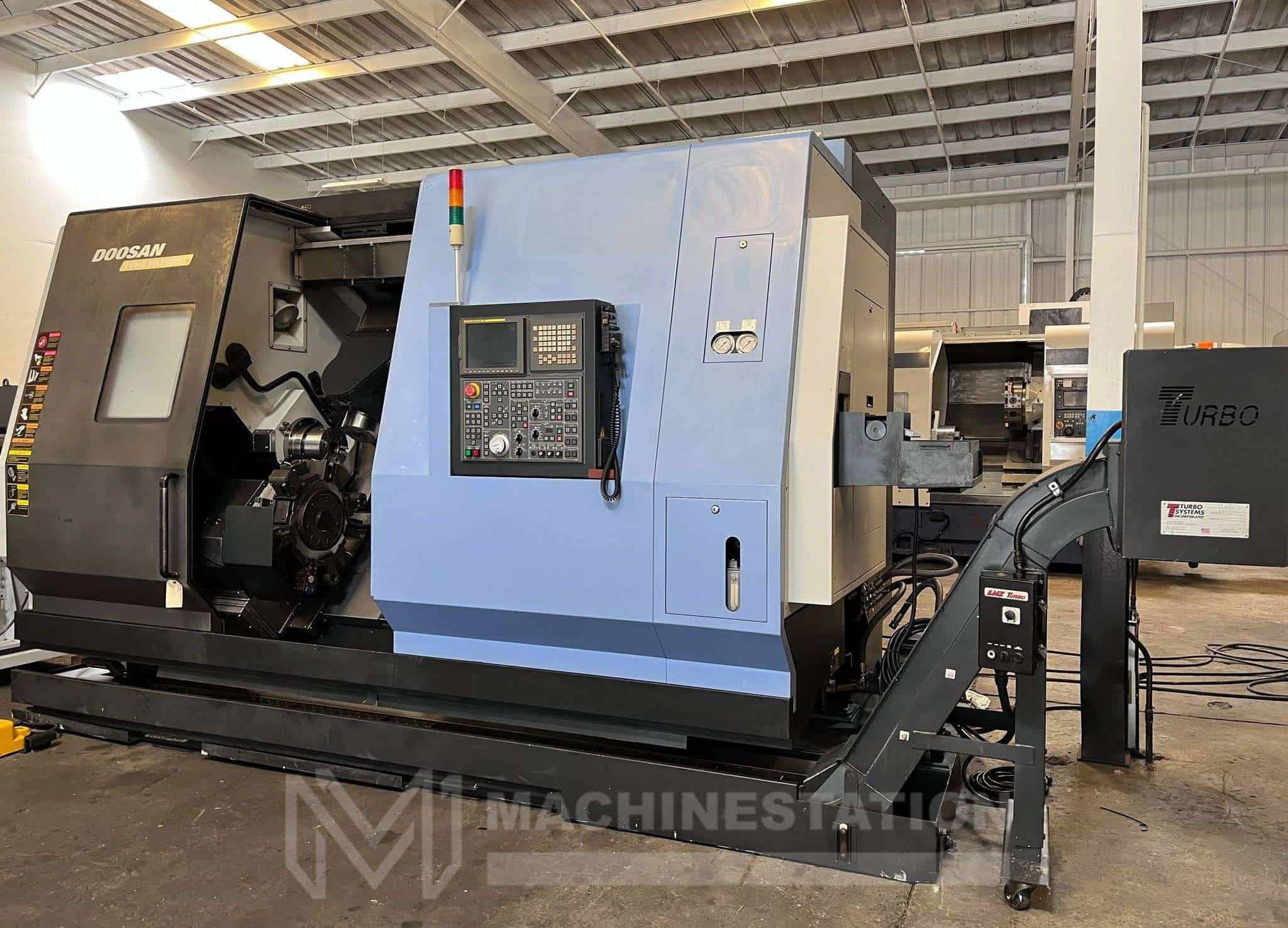

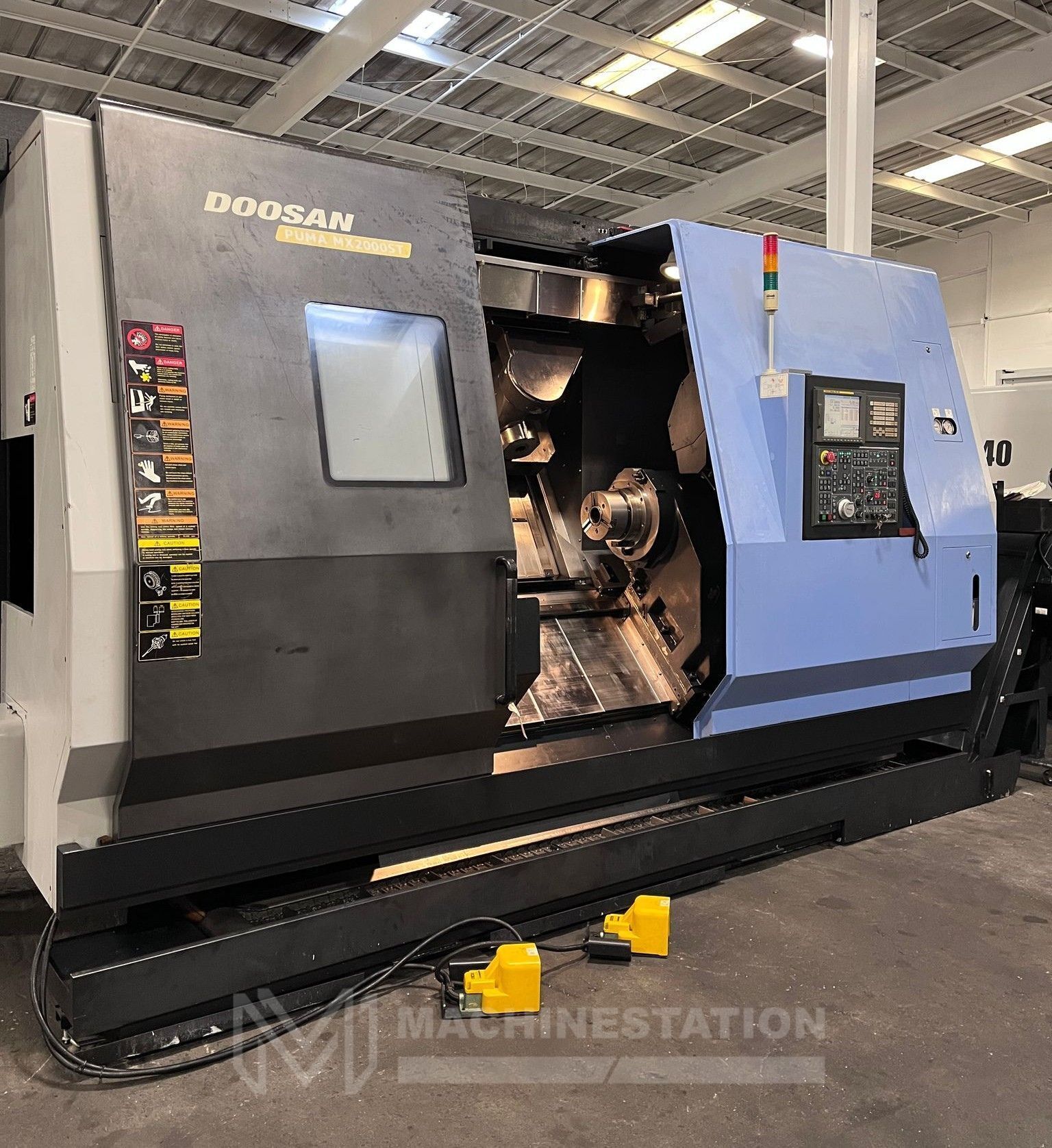

| Make: | Doosan |

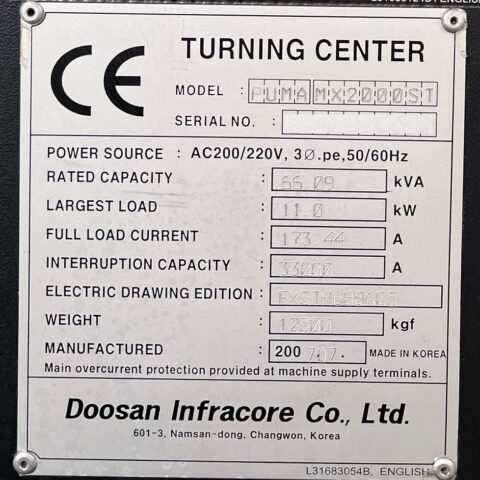

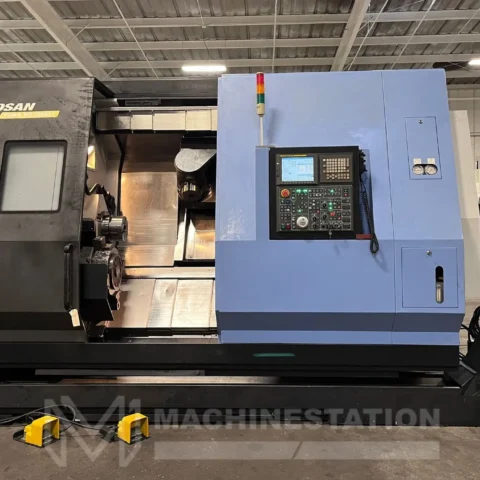

| Model No.: | Puma MX2000ST |

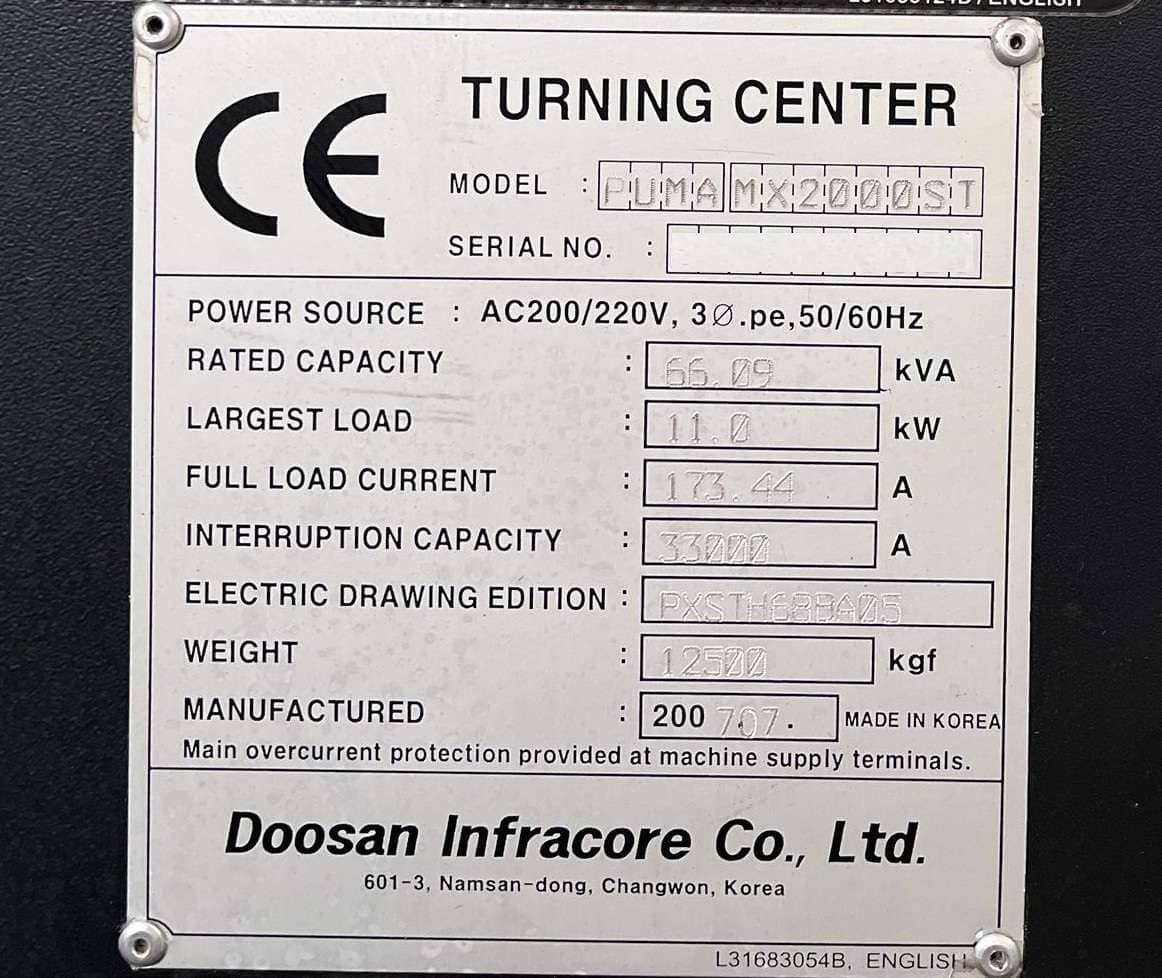

| Year of Manufacture: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

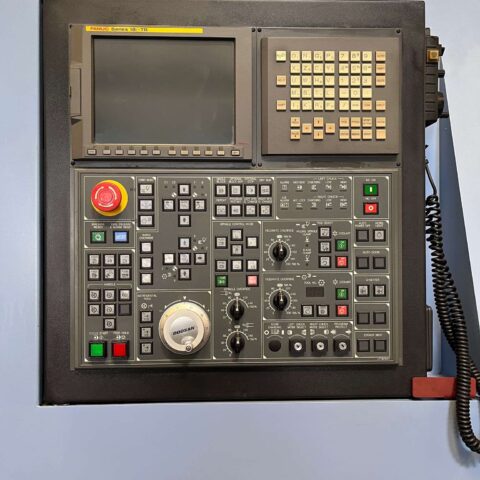

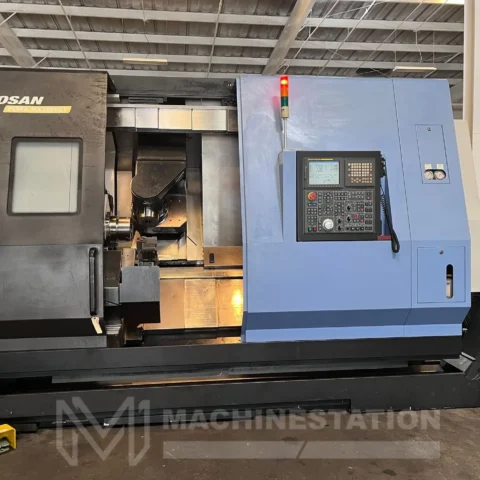

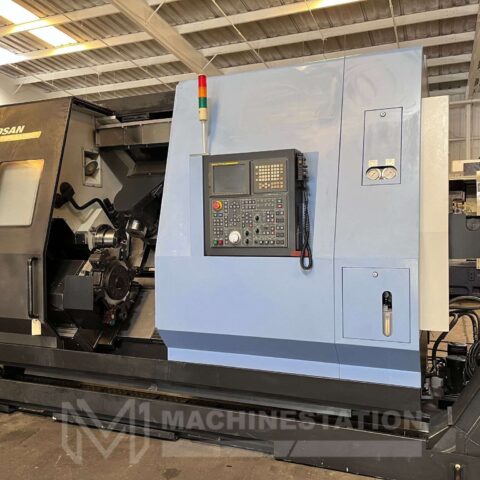

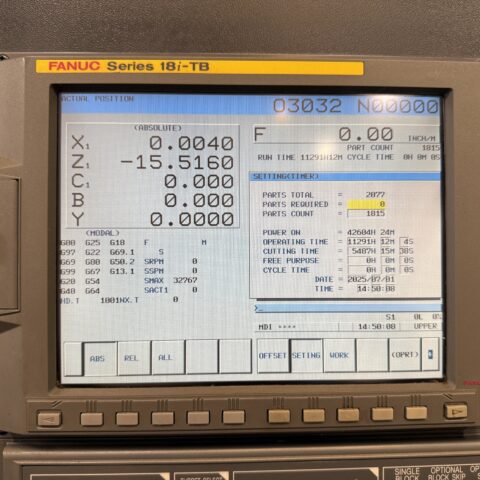

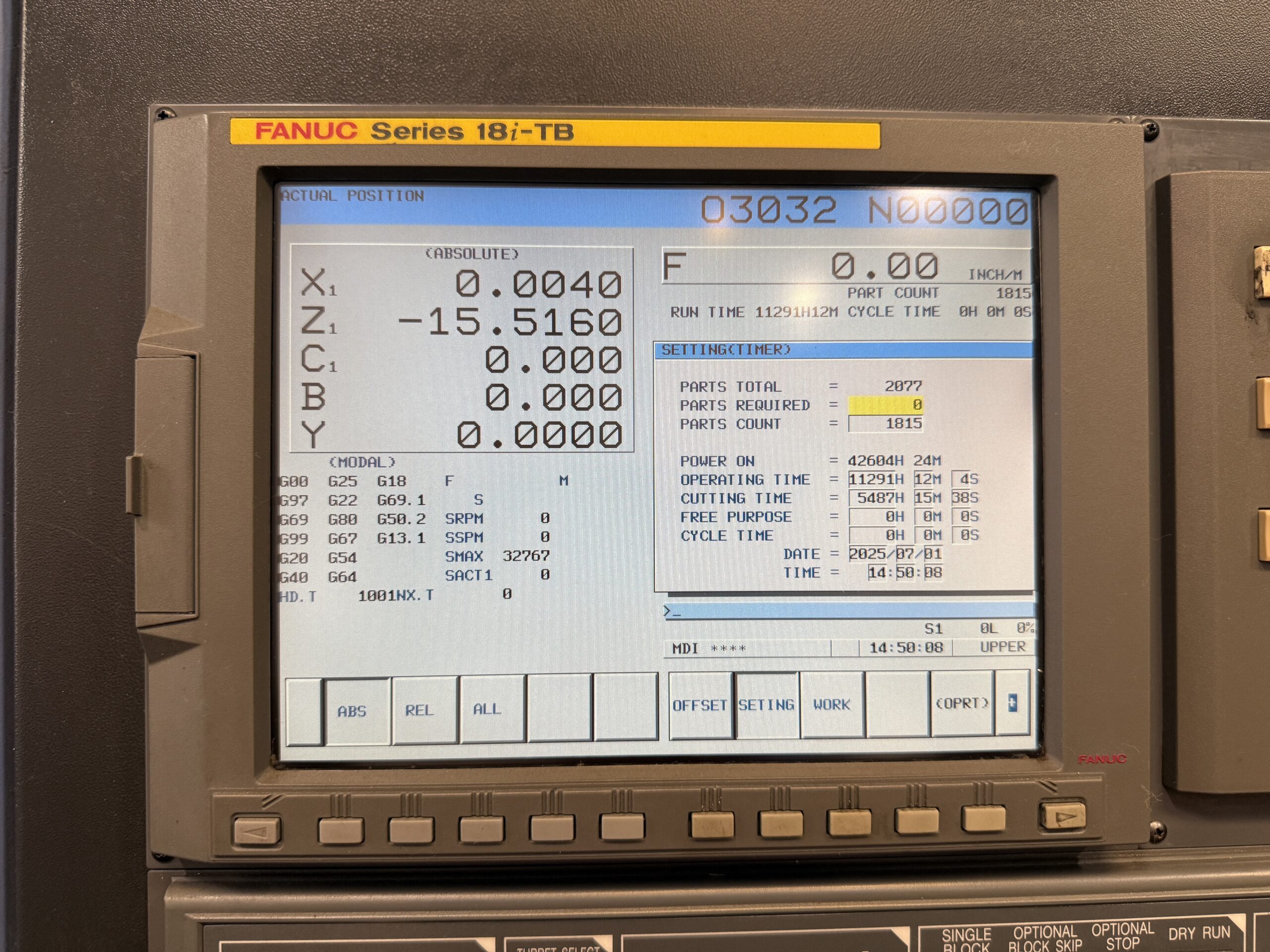

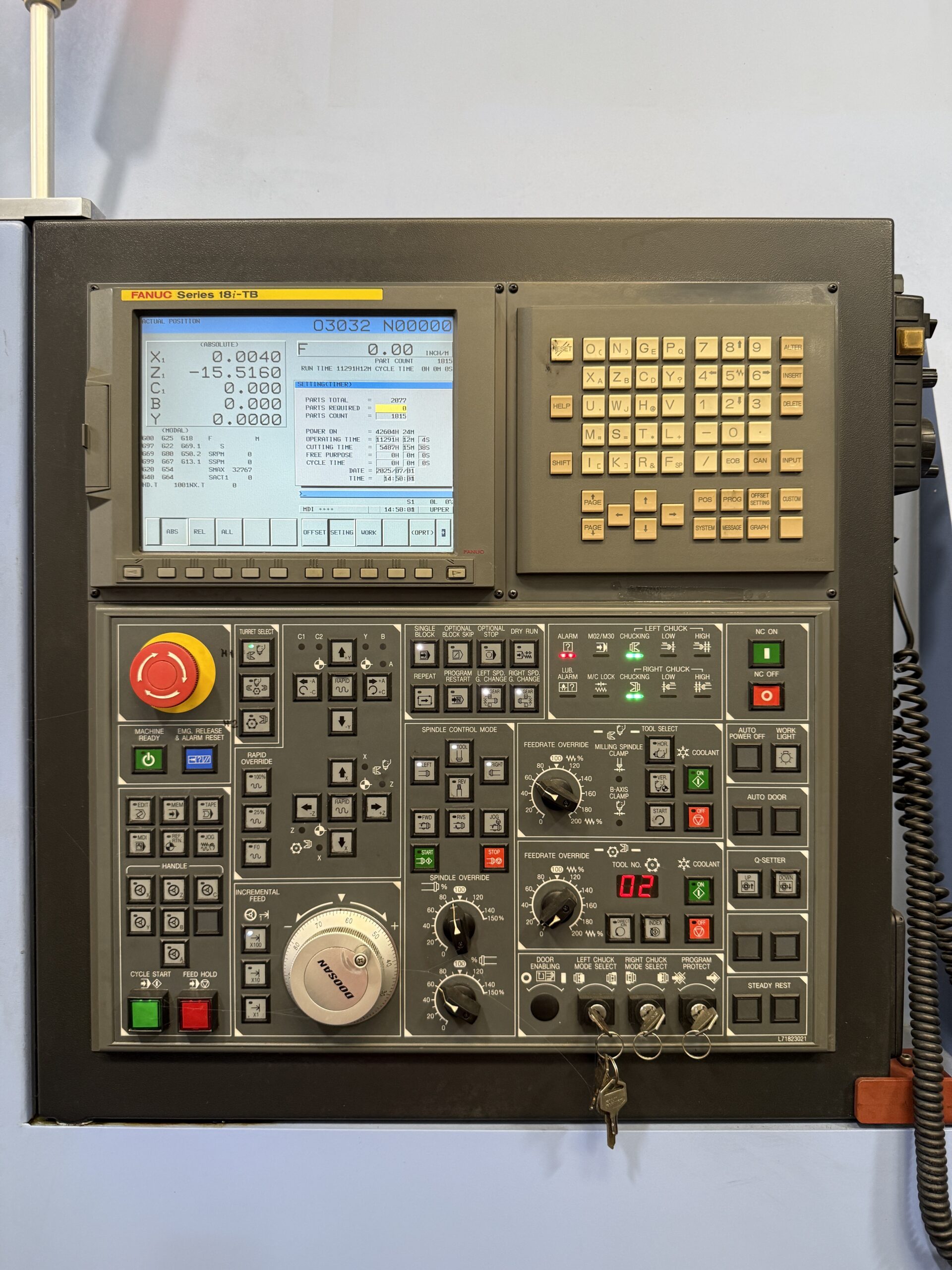

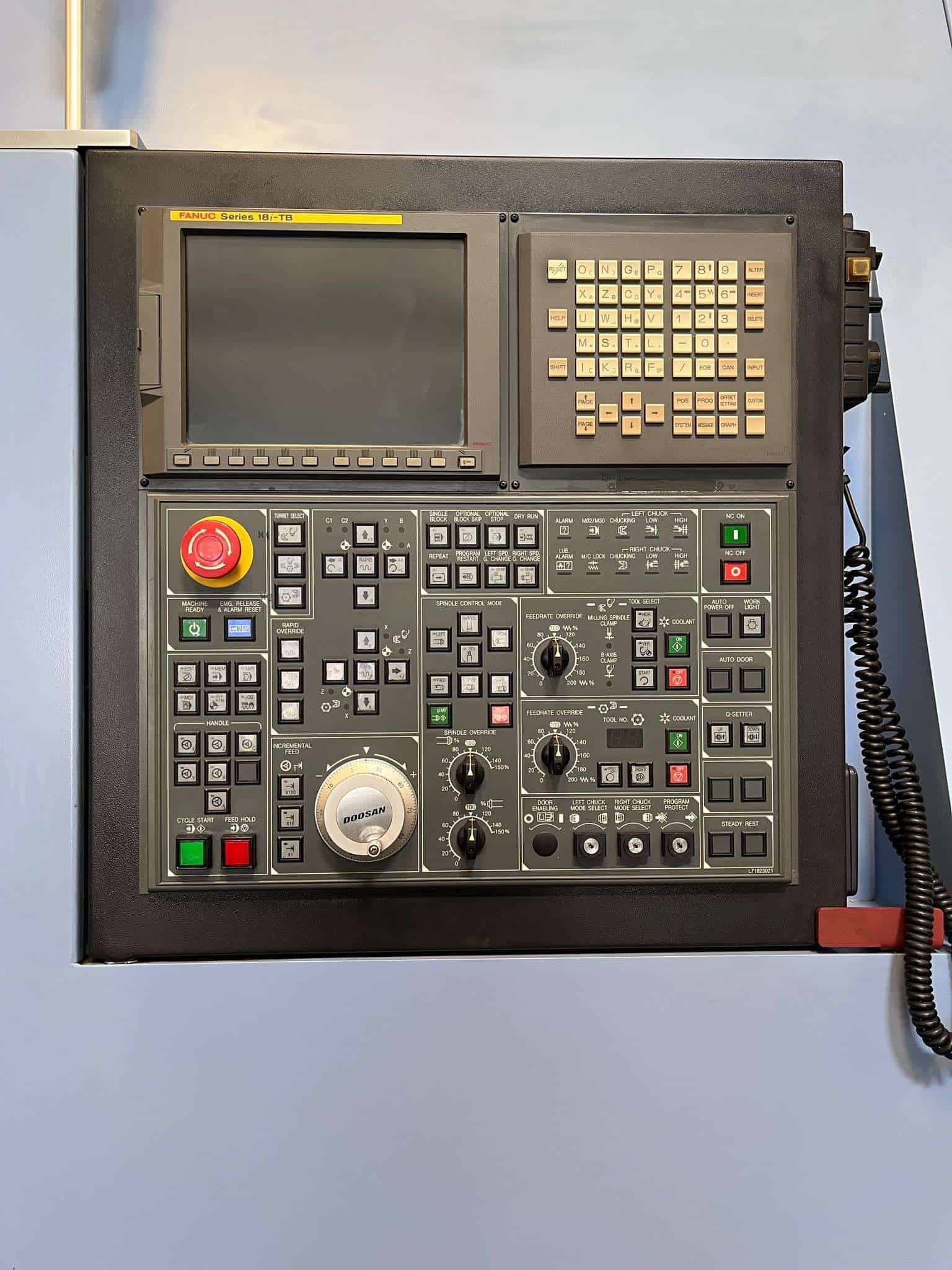

| Fanuc 18i-TB series CNC Control |

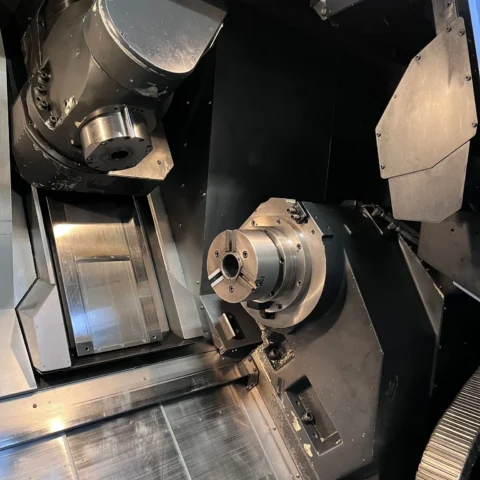

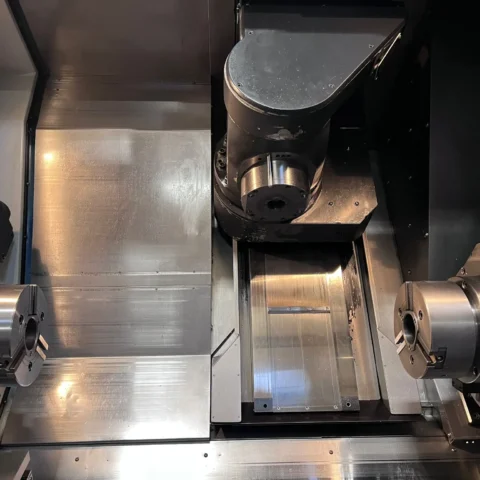

| 10,000 RPM Pendulum Milling Head |

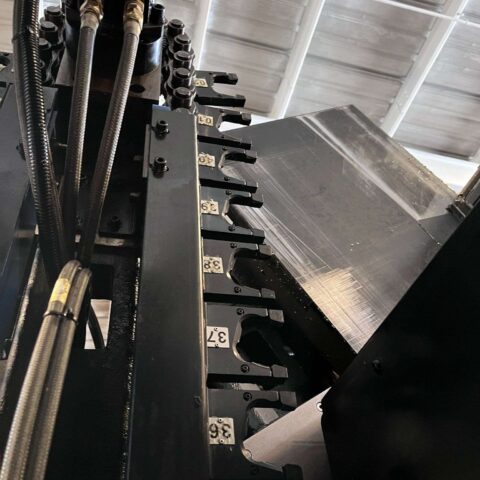

| 40 Station Tool Magazine |
| 12 Station Lower Turret |

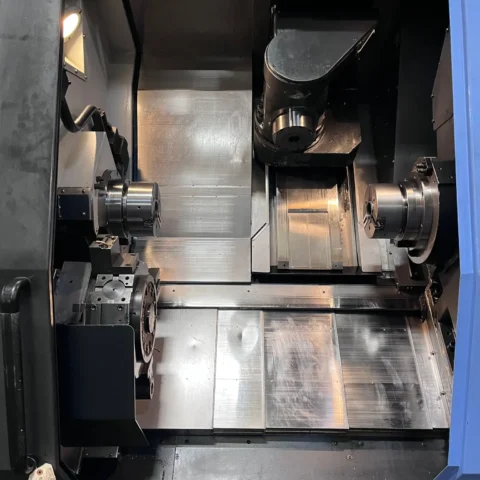

| Sub Spindle |

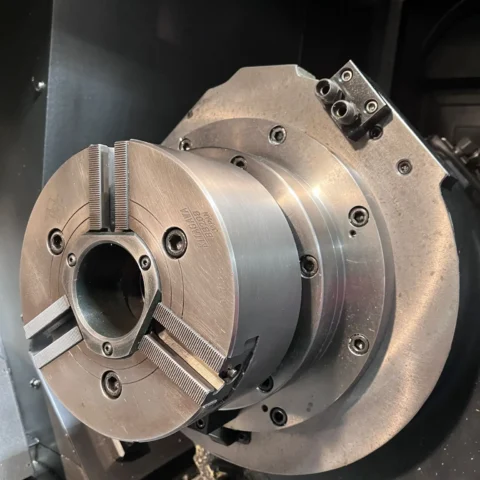

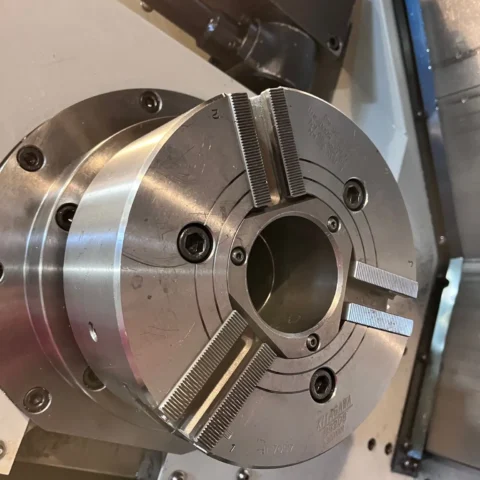

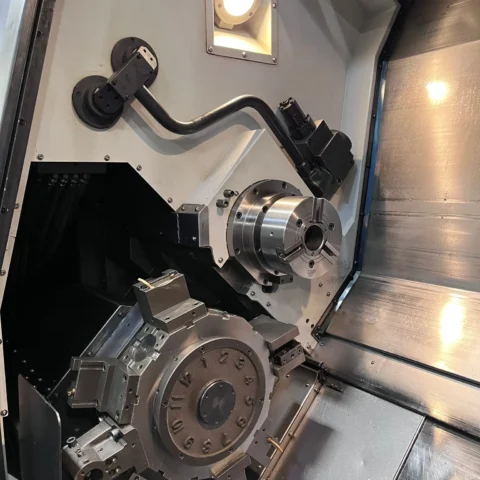

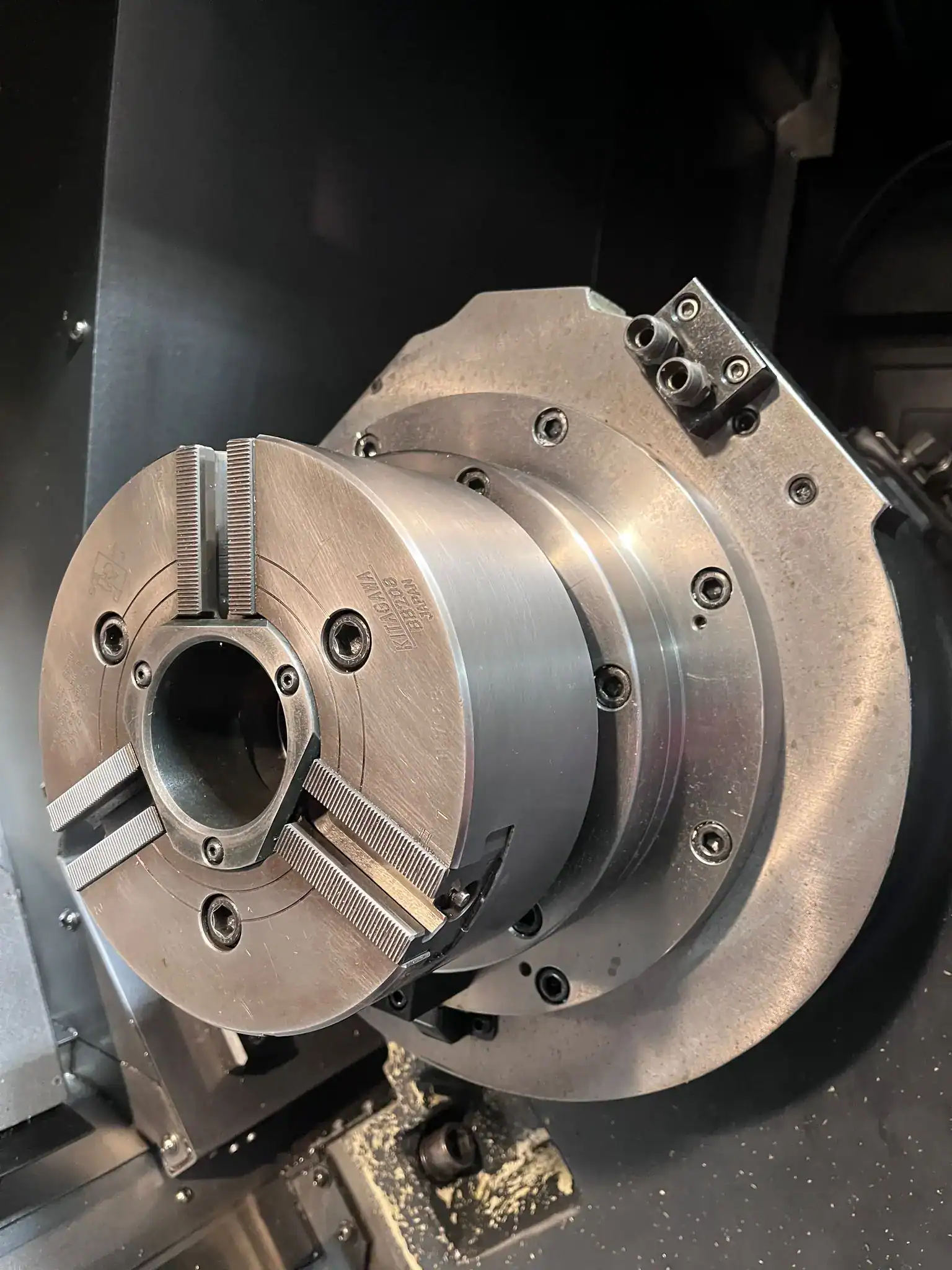

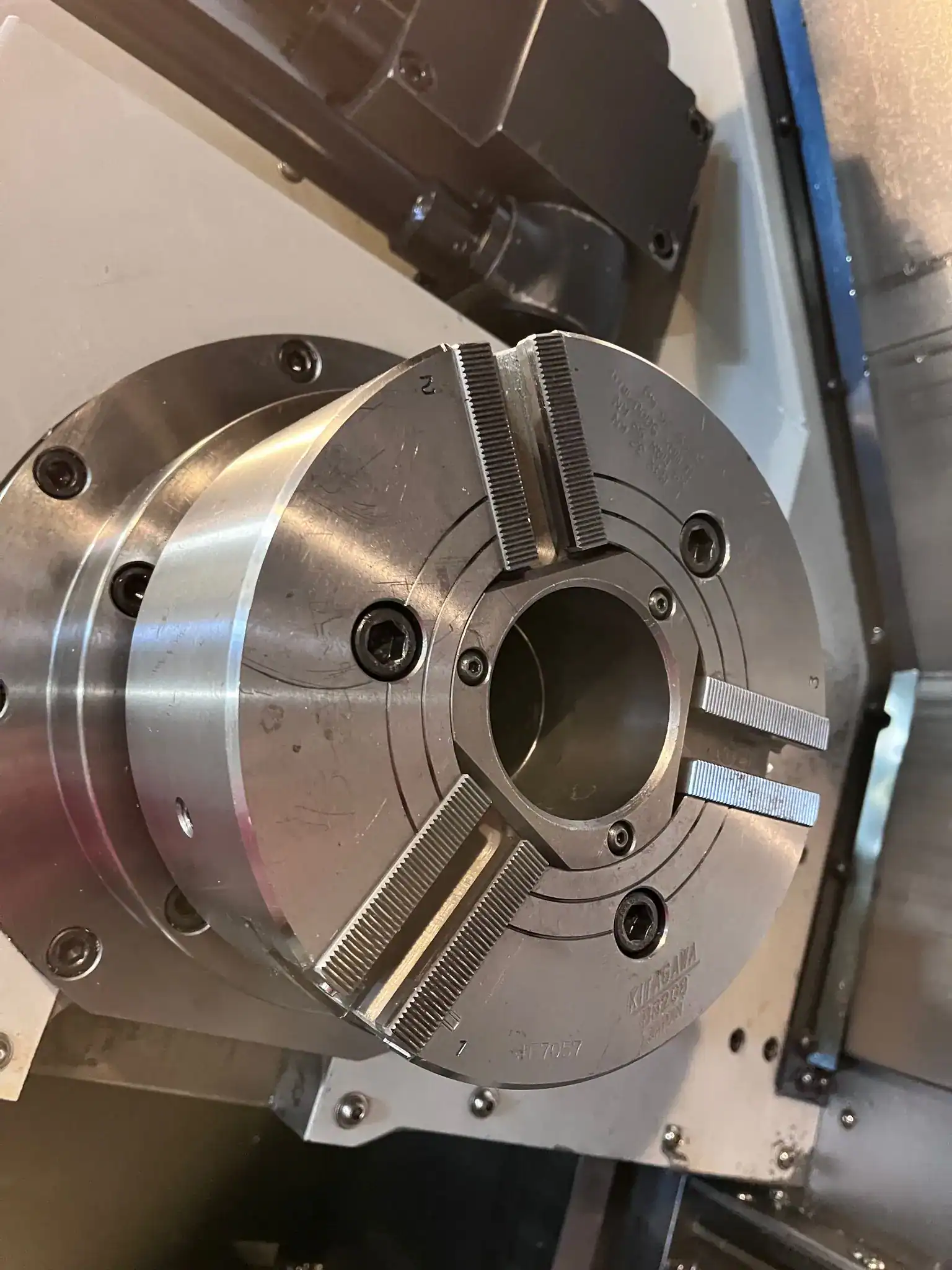

| 8″ 3-Jaw BB-208 Kitagawa Big Bore Chucks on Main & Sub spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Y-Axis on Upper Turret (Milling Head) |
| Tool Presetter |
| Rigid Tapping on Both Spindles |

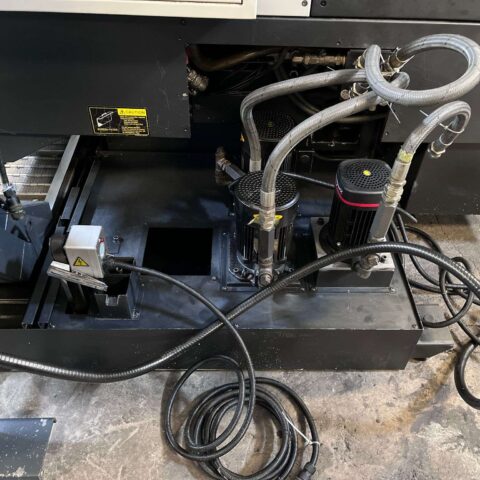

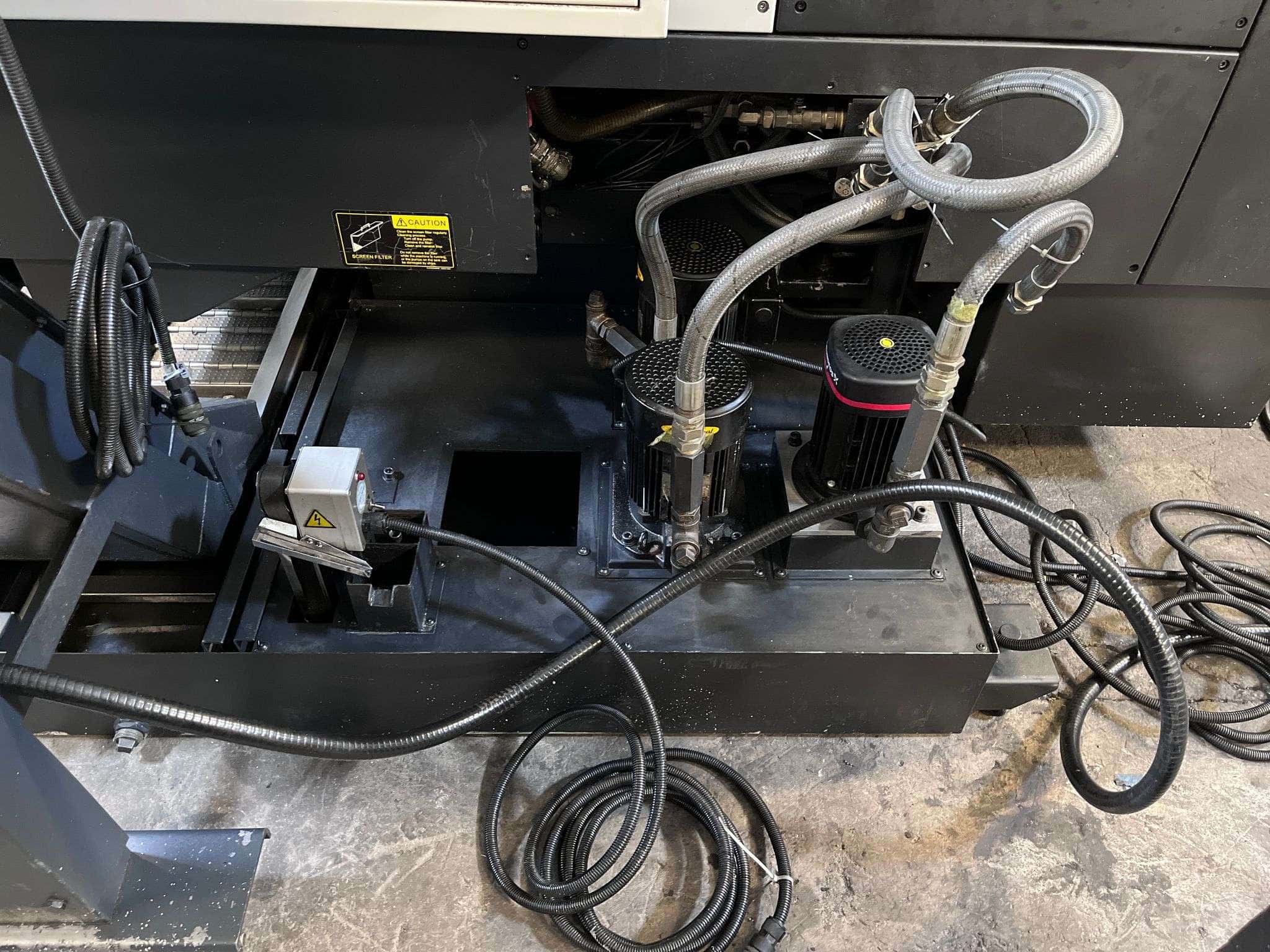

| High Pressure Coolant System |
| Bar Feeder Interface |
| Chip Conveyor |
| Books & Manuals |

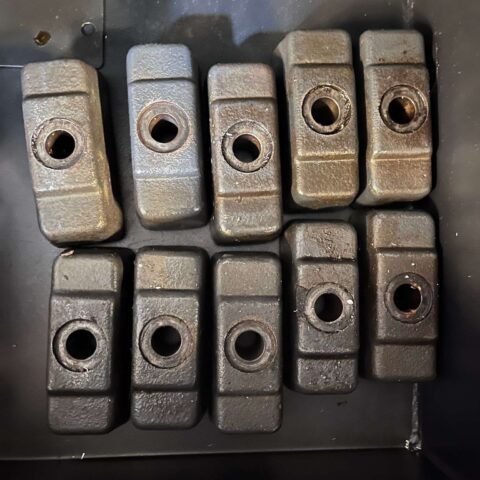

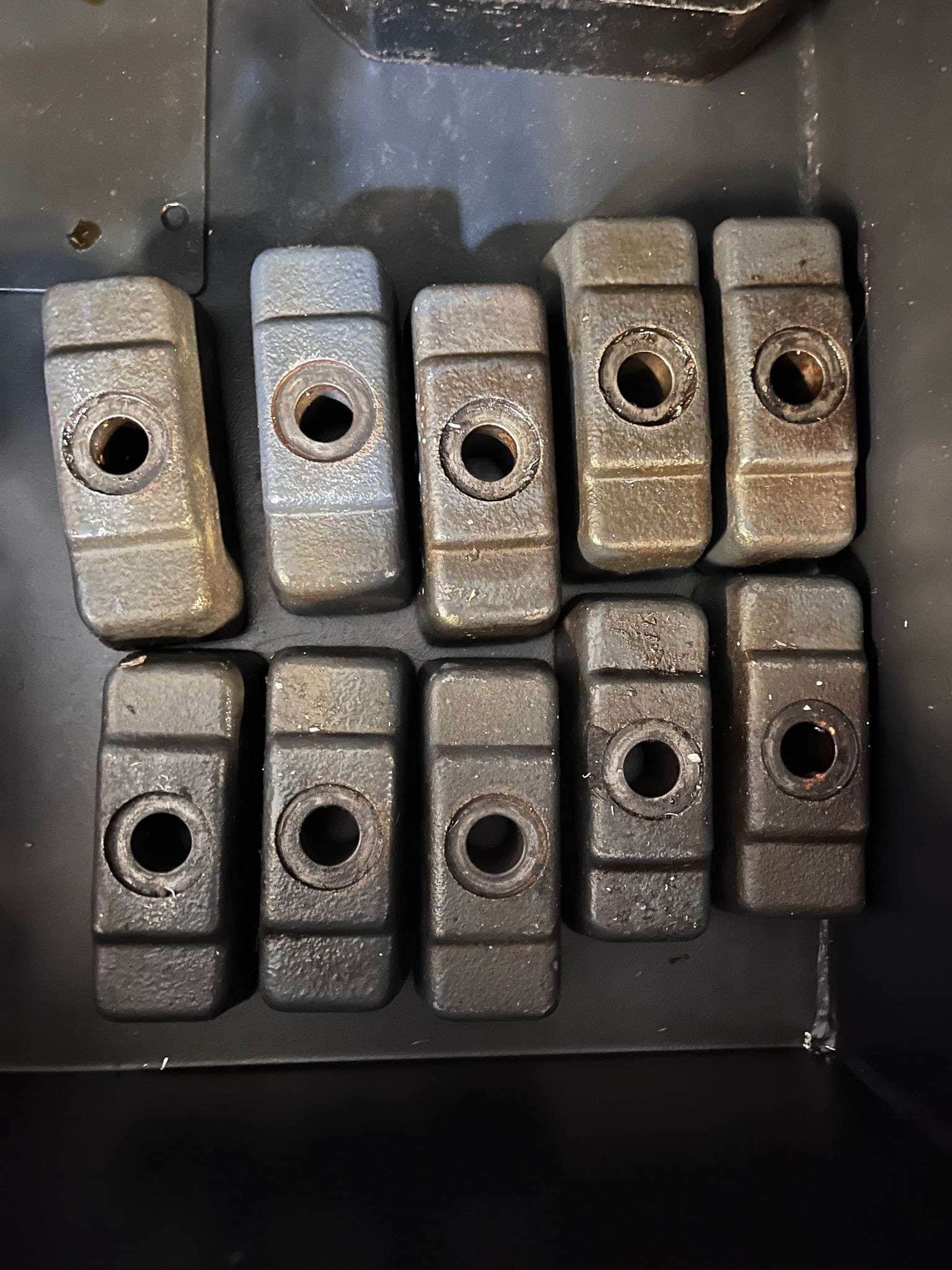

| Levelling Pads |

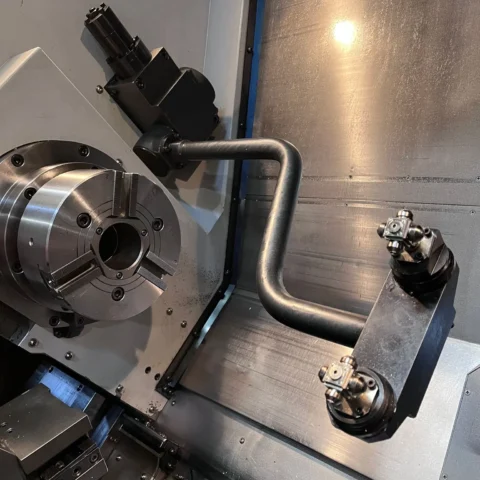

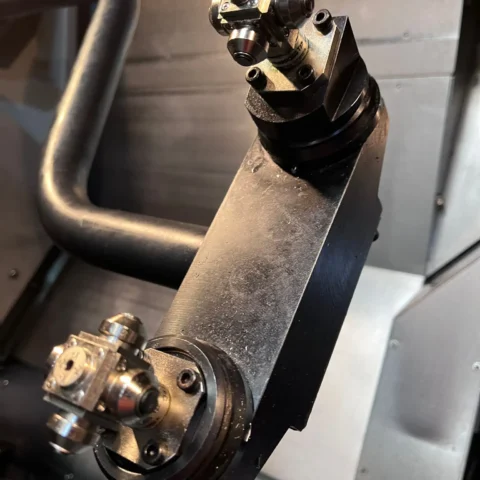

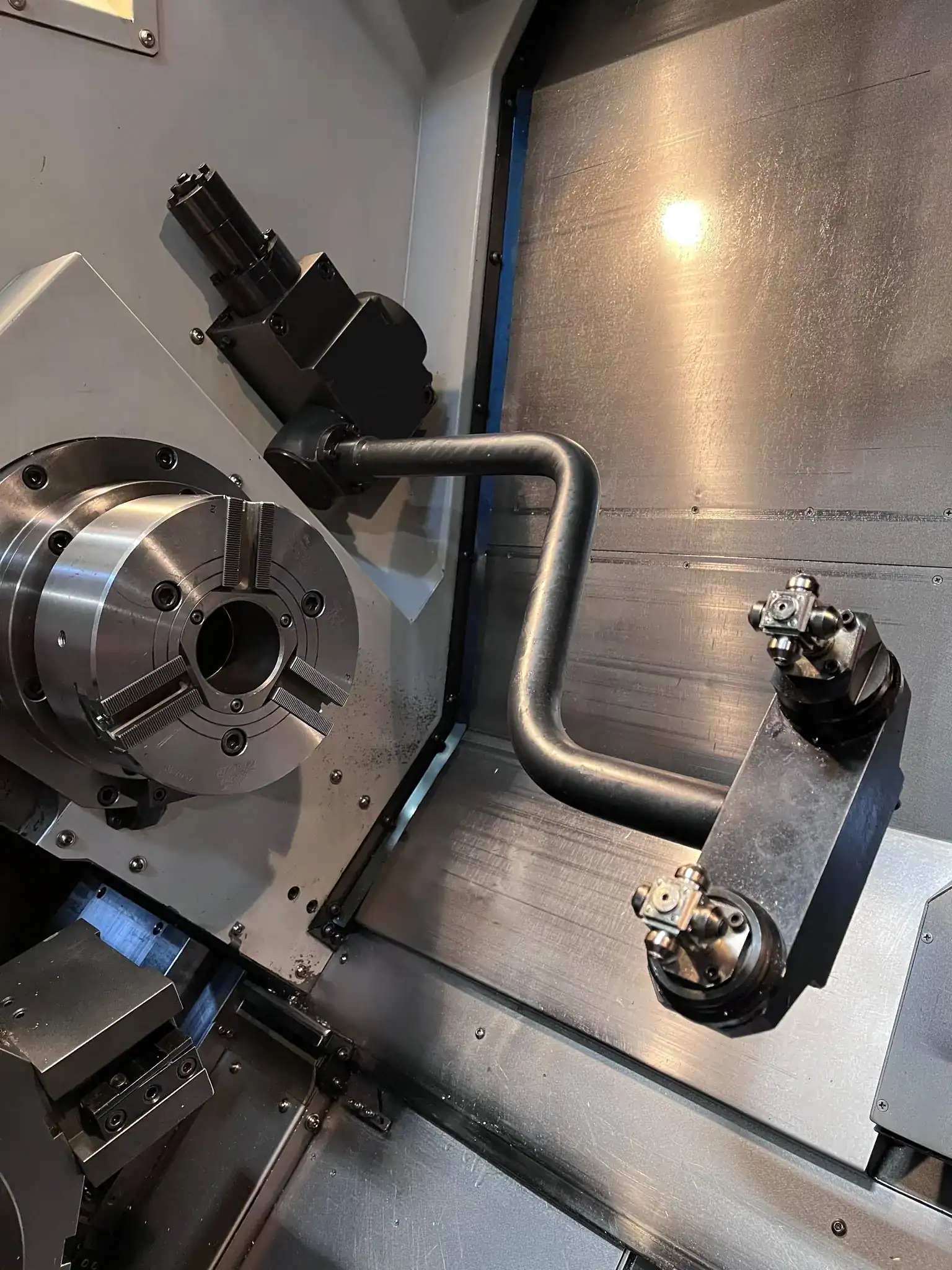

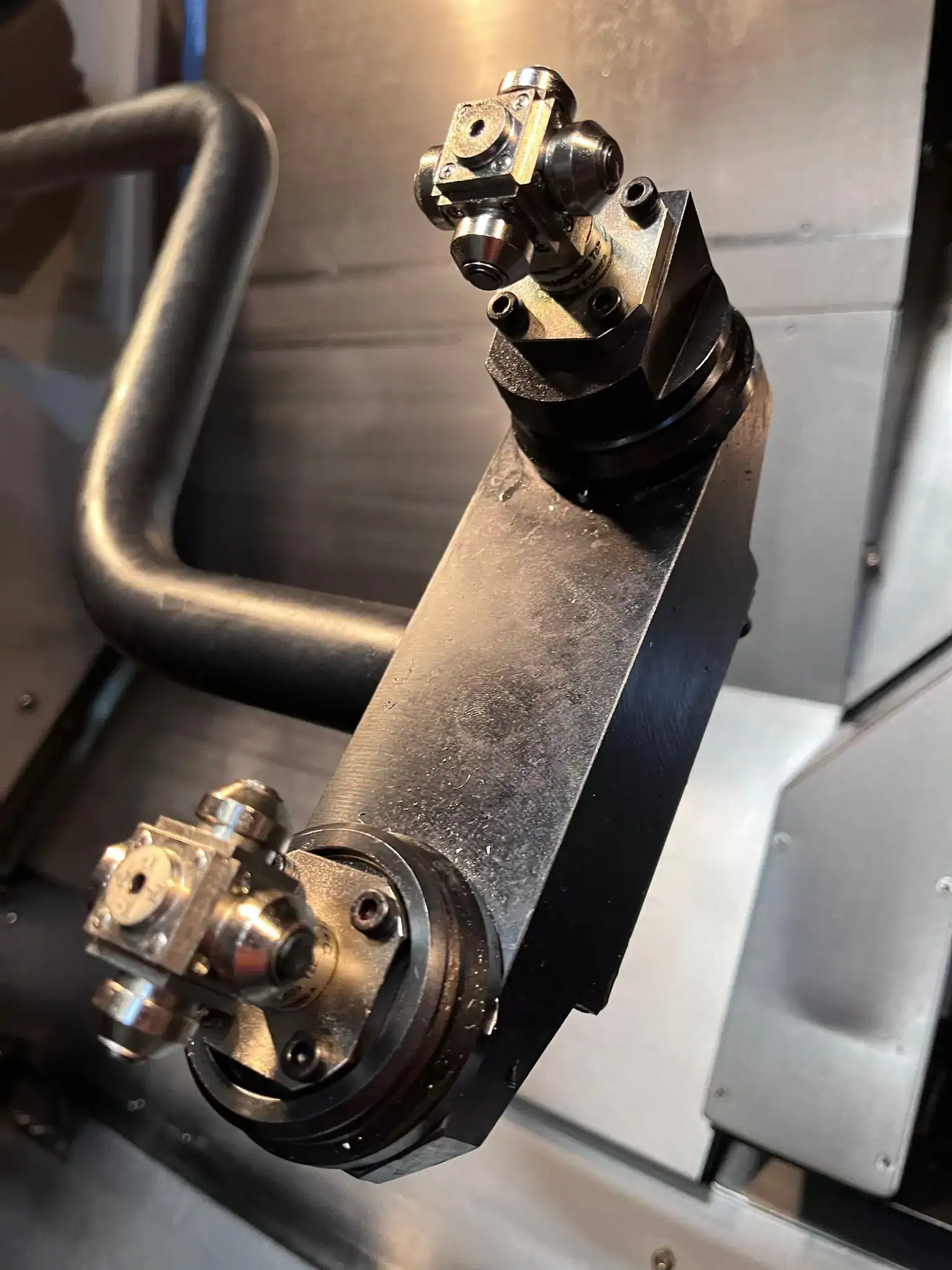

| (4) Turning Tool Holders (2) Boring Tool Holders (Mounted on Turret As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 21.65″ |
| Max Turning Length: 40.15″ |
| Max Swing Over Bed: 29.5″ |
| Max Swing over the Carriage: 23.6″ |
| Max Bar Capacity: 2.55″ |
| Travel: |
|---|
| X1/X2 Axis Travel: 21.85″ / 7.28″ |
| Z1/Z2 Axis Travel: 43.11″ / 44.88″ |
| Y Axis Travel: 6.29″ (+/- 3.14″) |
| A Axis Travel: 40.15″ (Sub Spindle) |
| B Axis Travel: 240 Degree |
| C Axis: 360° (0.001°) Both Spindle |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Rapid Traverse Y Axis: 630 IPM |
| Rapid Traverse A Axis: 945 IPM |

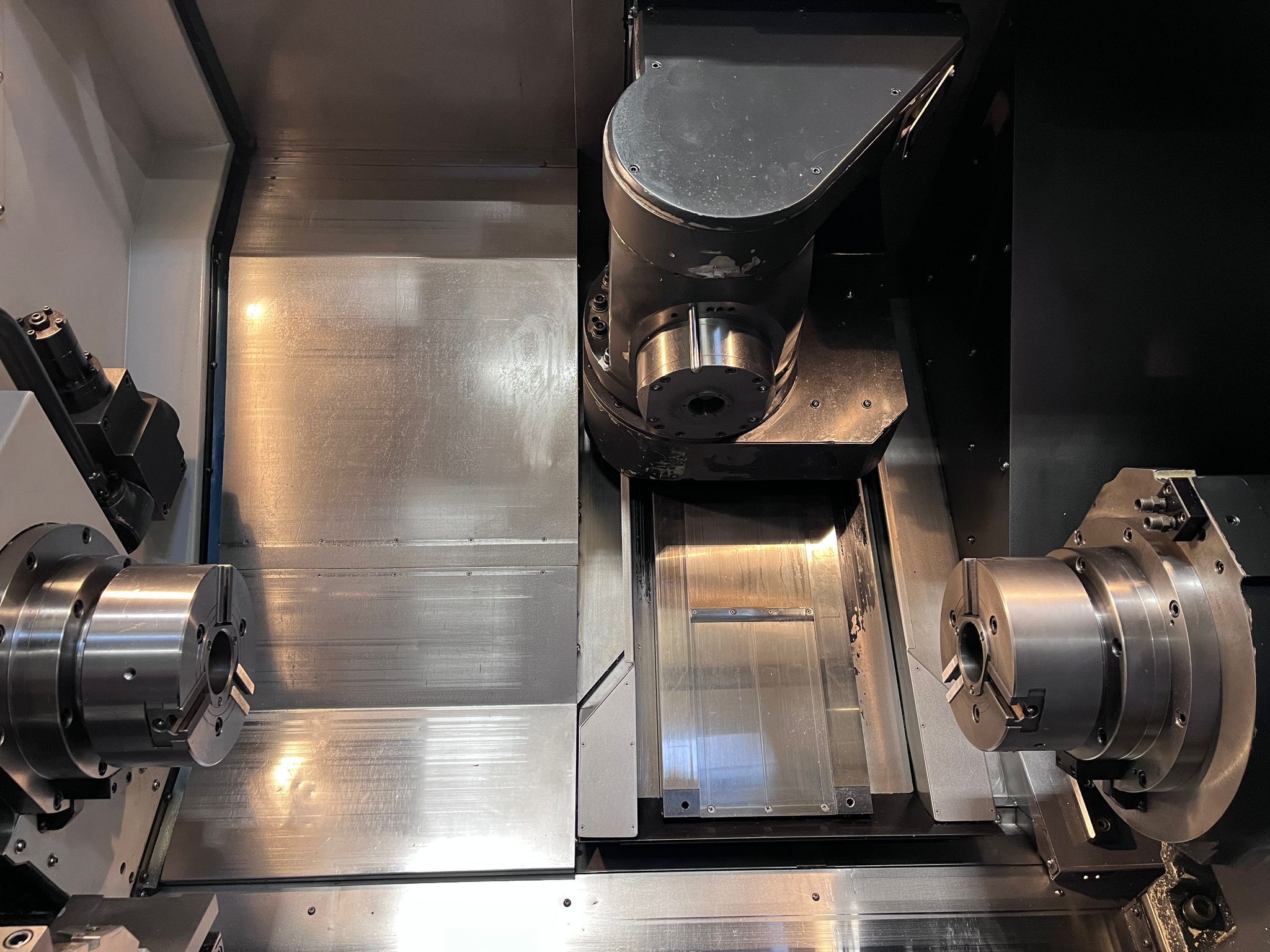

| Main & Sub Spindle: |
|---|
| Main & Sub Spindle Nose: A2-6 |
| Main & Sub Spindle Bore: 2.99″ |
| Main & Sub Spindle Bar Capacity: 2.55″ |
| Main & Sub Spindle Speed: 5,000 RPM |
| Main & Sub Spindle Power: 30 HP |

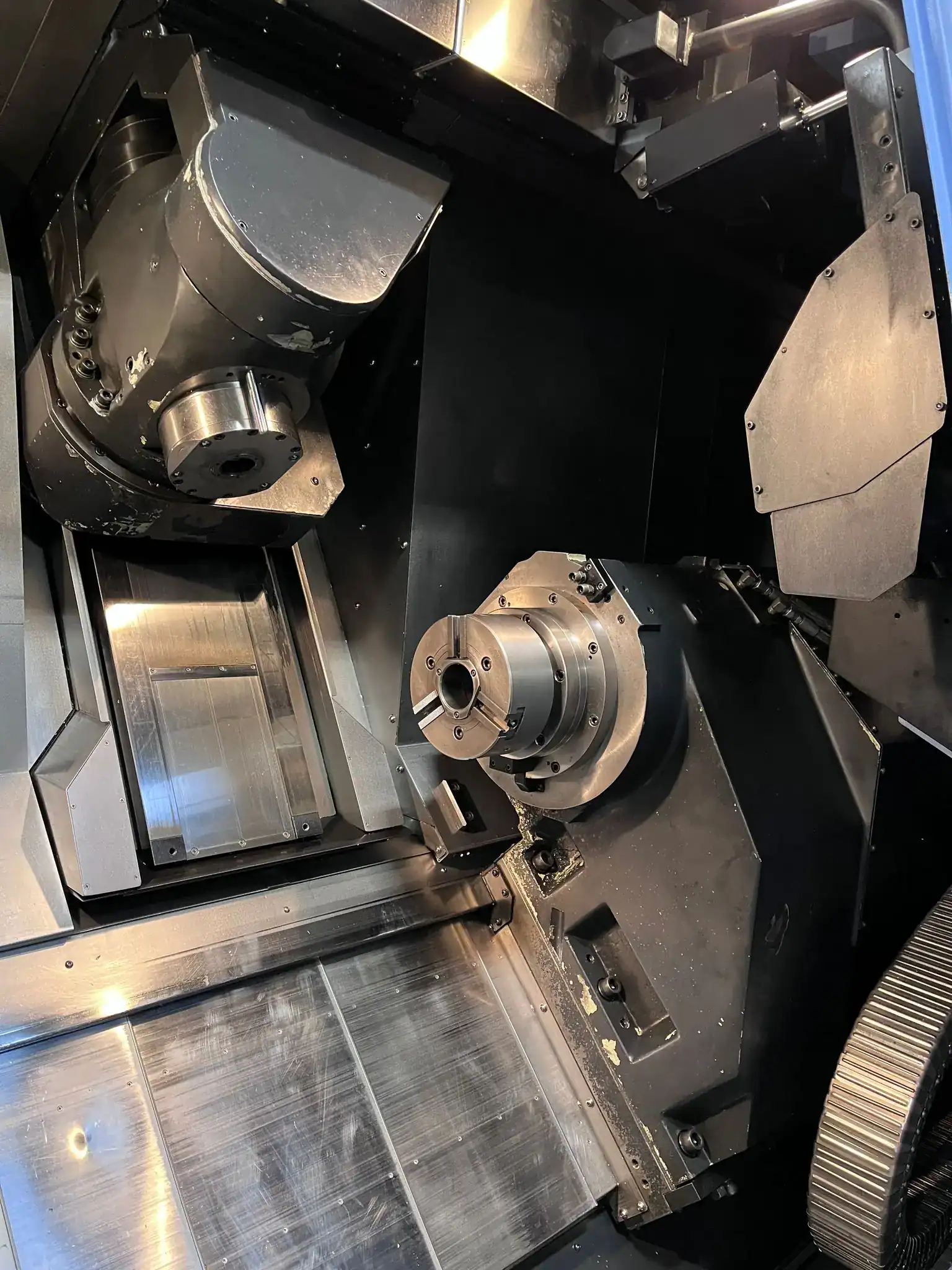

| Milling Head: |
|---|
| Single Station Pendulum Head with 40 ATC |
| B Axis Indexing: 240(±120), 0.001 Degree |
| Tool Type: CAPTO C6 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 20 HP |

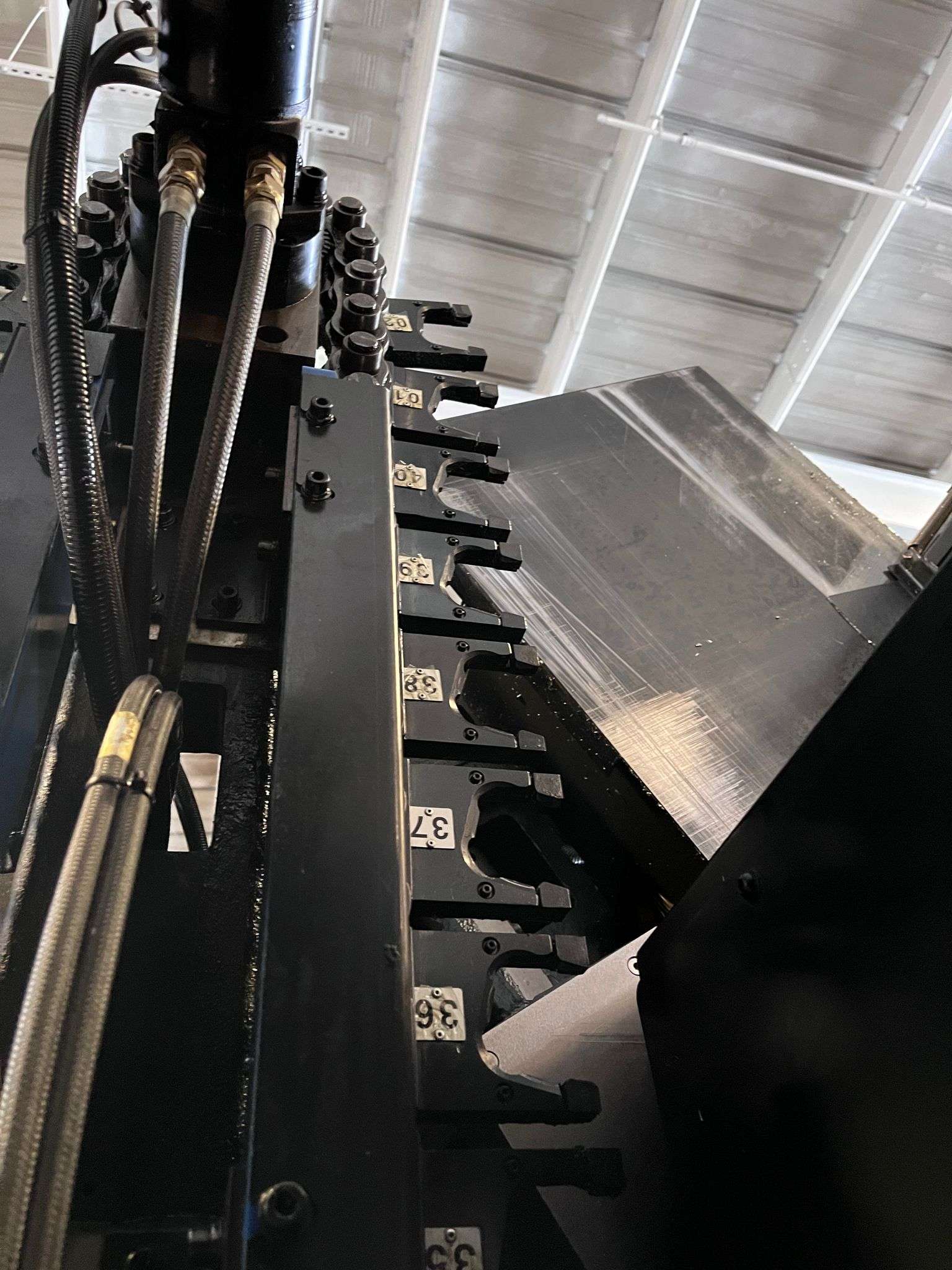

| Automatic Tool Changer: |
|---|
| Capacity: 40 Tools |
| Tool Type: CAPTO C6 |
| Max Tool Diameter: 3.54″ – 4.72″ |
| Max Tool Length: 11.81″ |
| Max Tool Weight: 17.63 lbs |
| Tool Change Time: 1.5 Seconds |

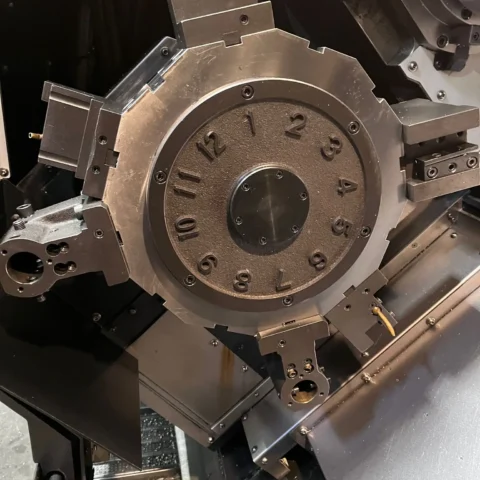

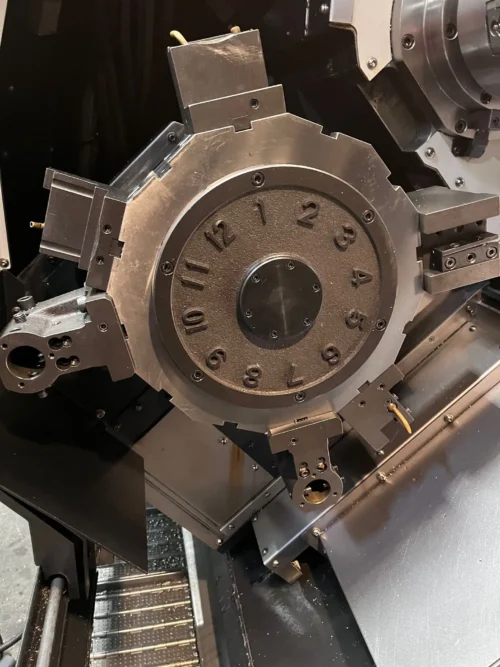

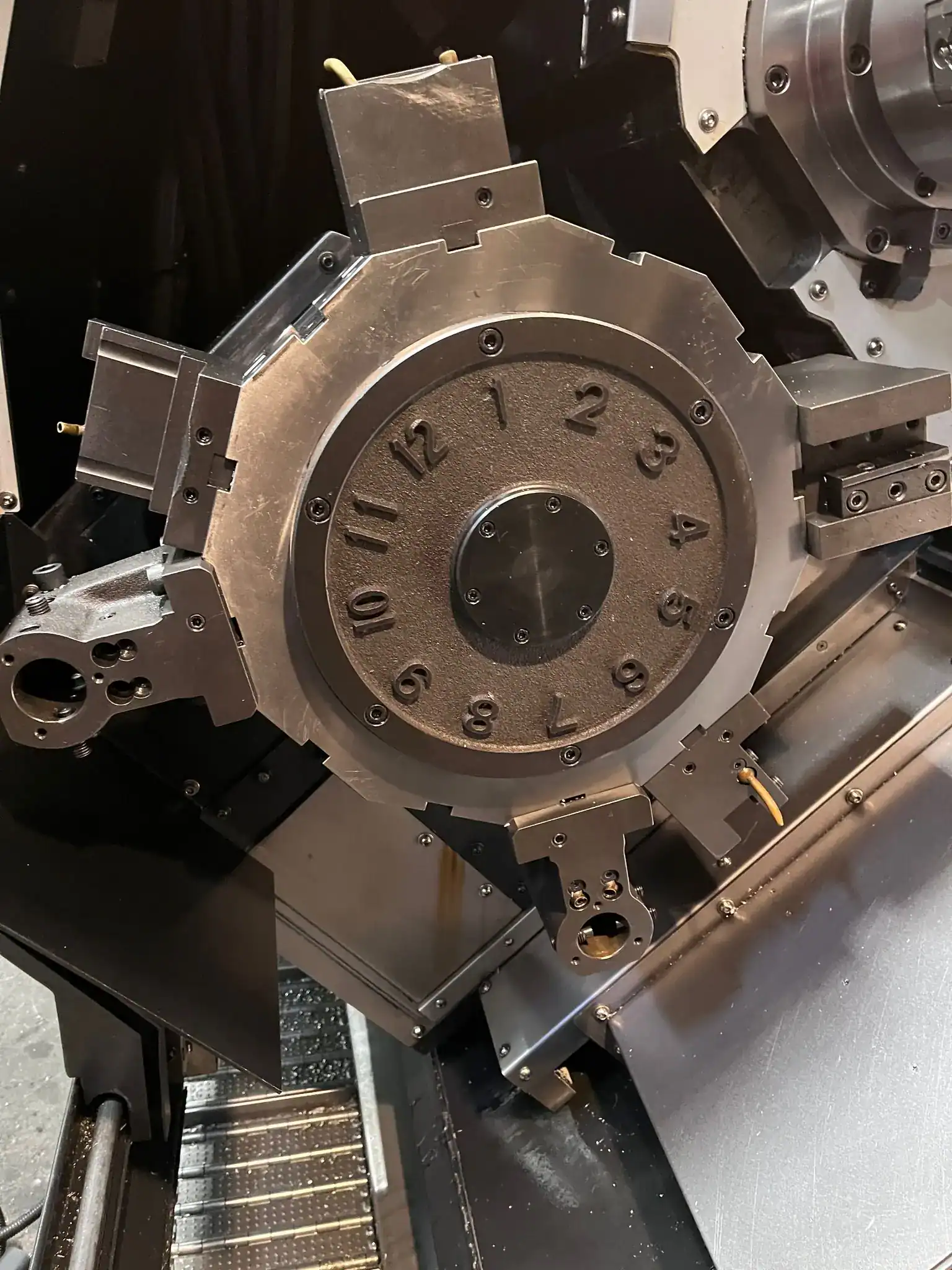

| Lower Turret: |
|---|
| Turret Capacity: 12 Stations |
| OD Tool Size: 1″ |
| Boring Bar Diameter: 1.57″ |
| Turret Index Time: 0.2 Second |
| Live Tool Speed: 4,000 RPM |
| Live Tool Spindle Power: 7.5 HP |
| Tool Holders Type: BMT-65P |

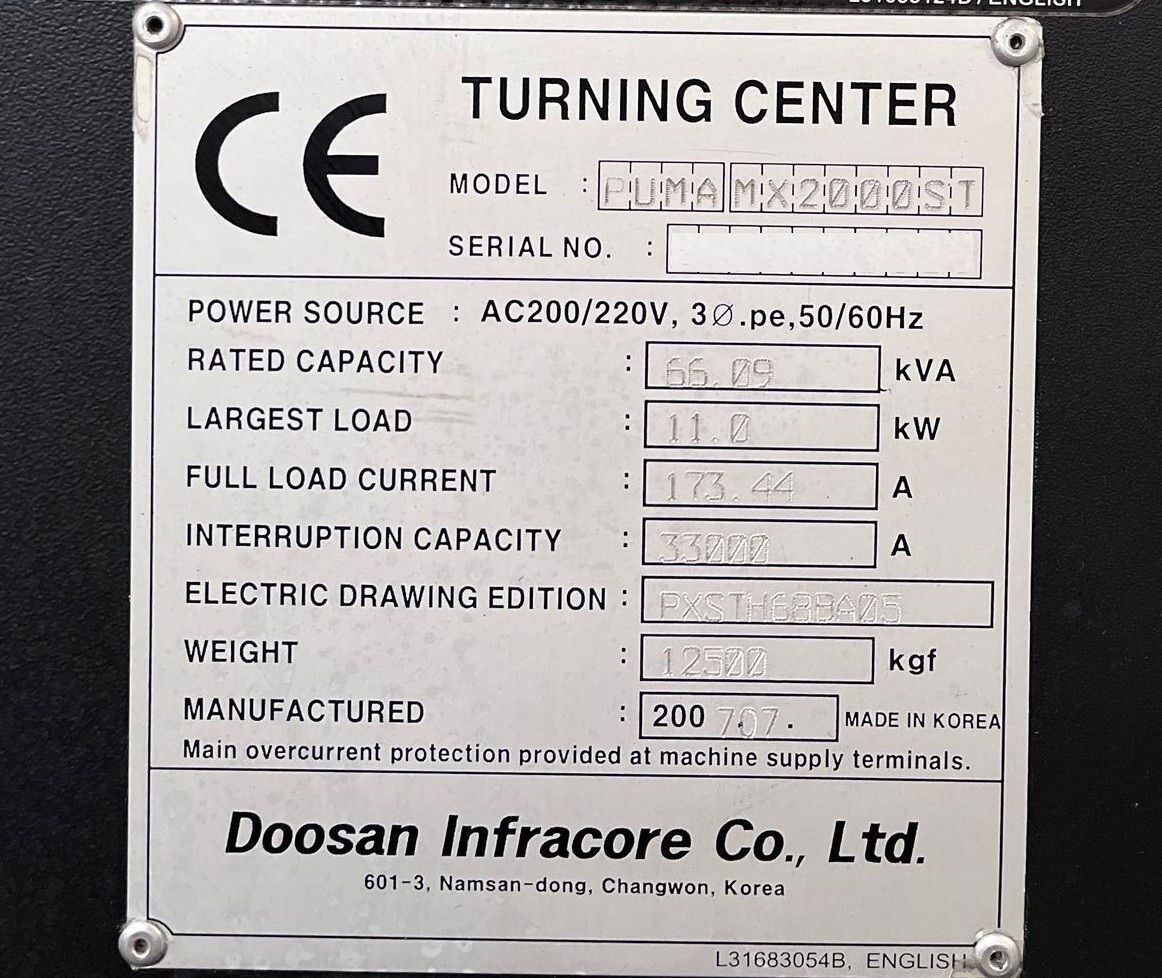

| General: |
|---|
| Power Source: 220v / 3-Phase / 60 Hz |
| Power Requirement: 60.1 kva |
| Overall Dimensions: 178″ x 90.6″ x 102.4″ High |
| Weight: 27,558 lbs Approx. |
