*All specifications are approximations and are subject to verification.
| SKU | 105990 |
| Make | Doosan |

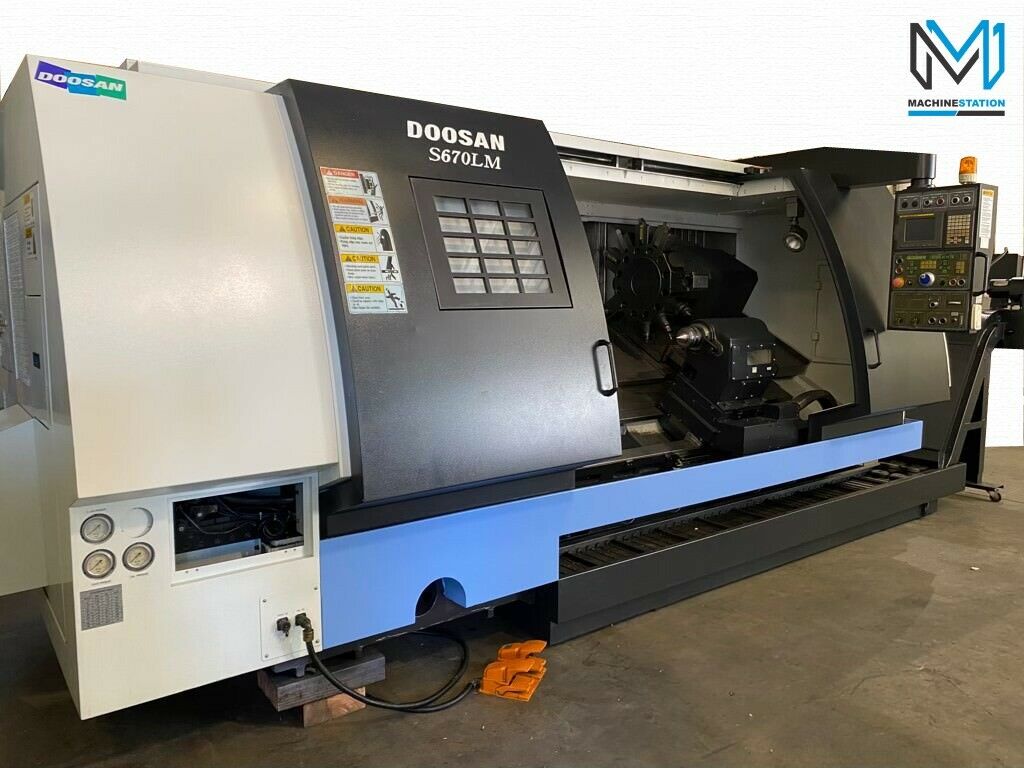

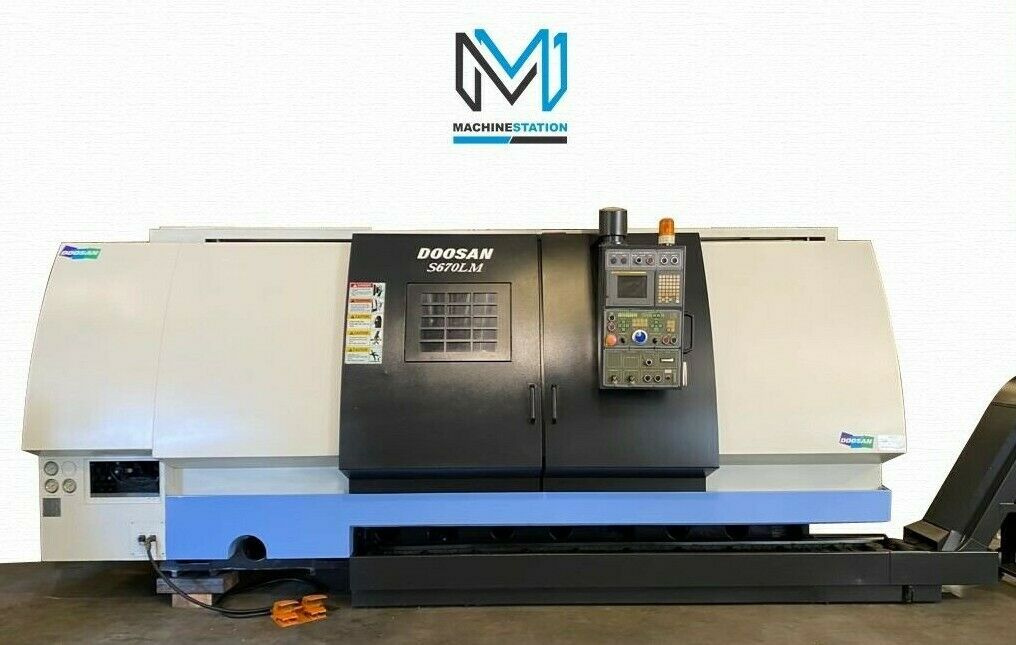

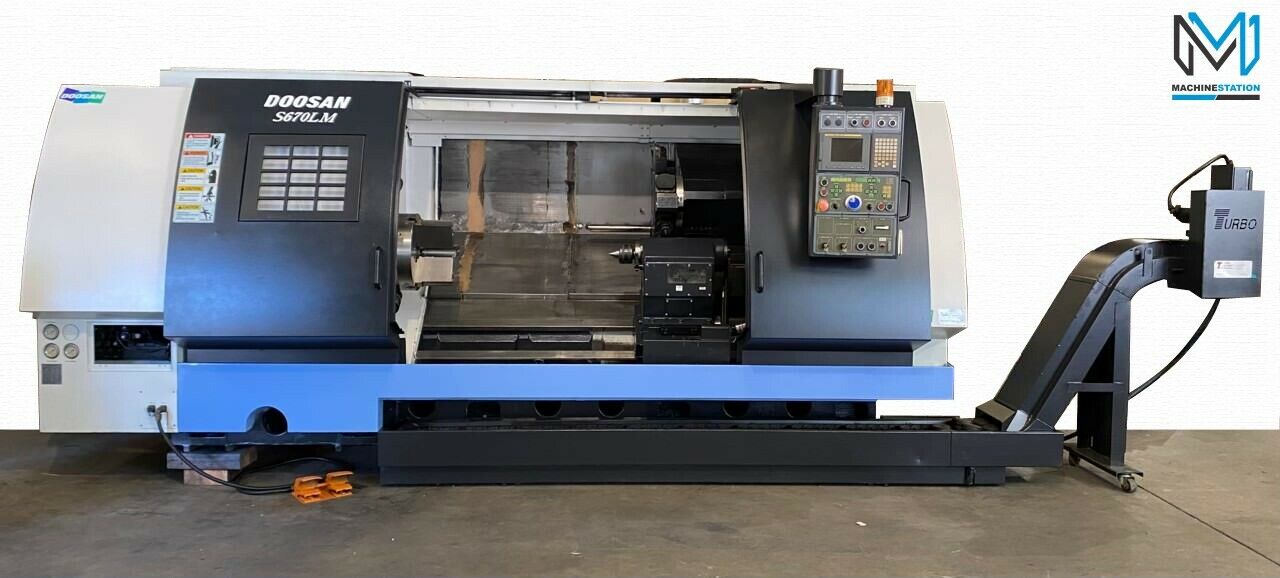

| Model No. | PUMA S670LM |
| Year | 2006/2005 |
| Condition | Used-Good |

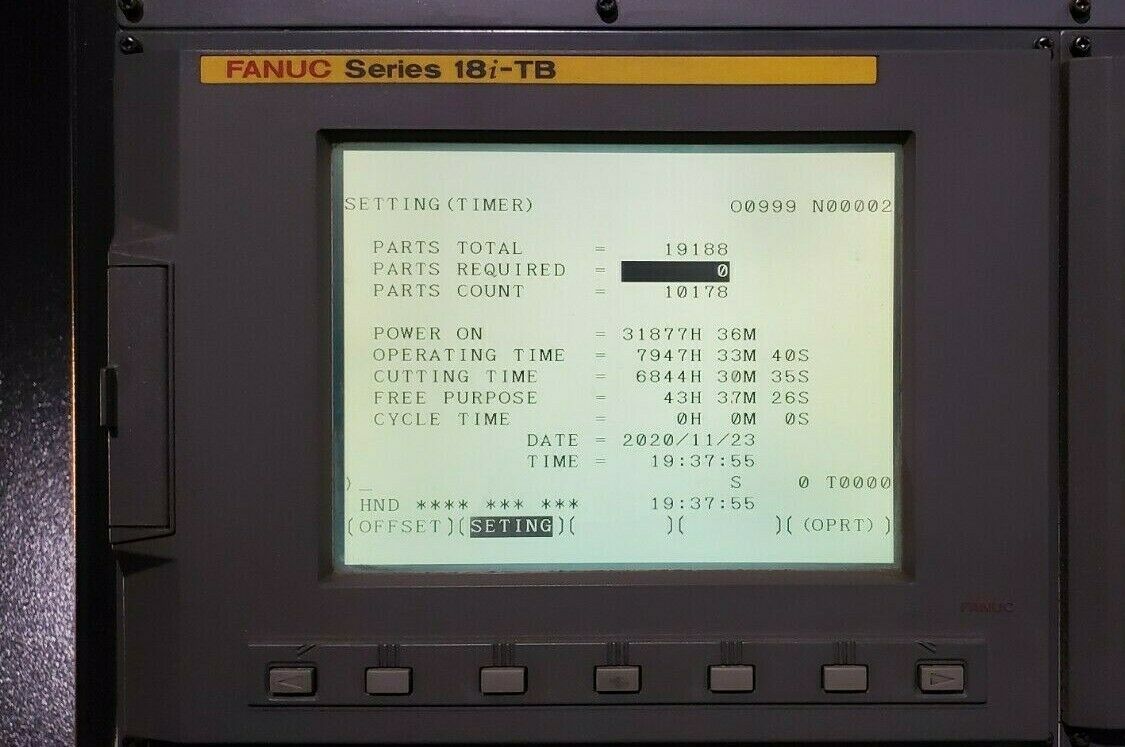

| Cutting Hours: | 6844 Hours |
| Replacement Cost over $300,000.00 as equipped. |

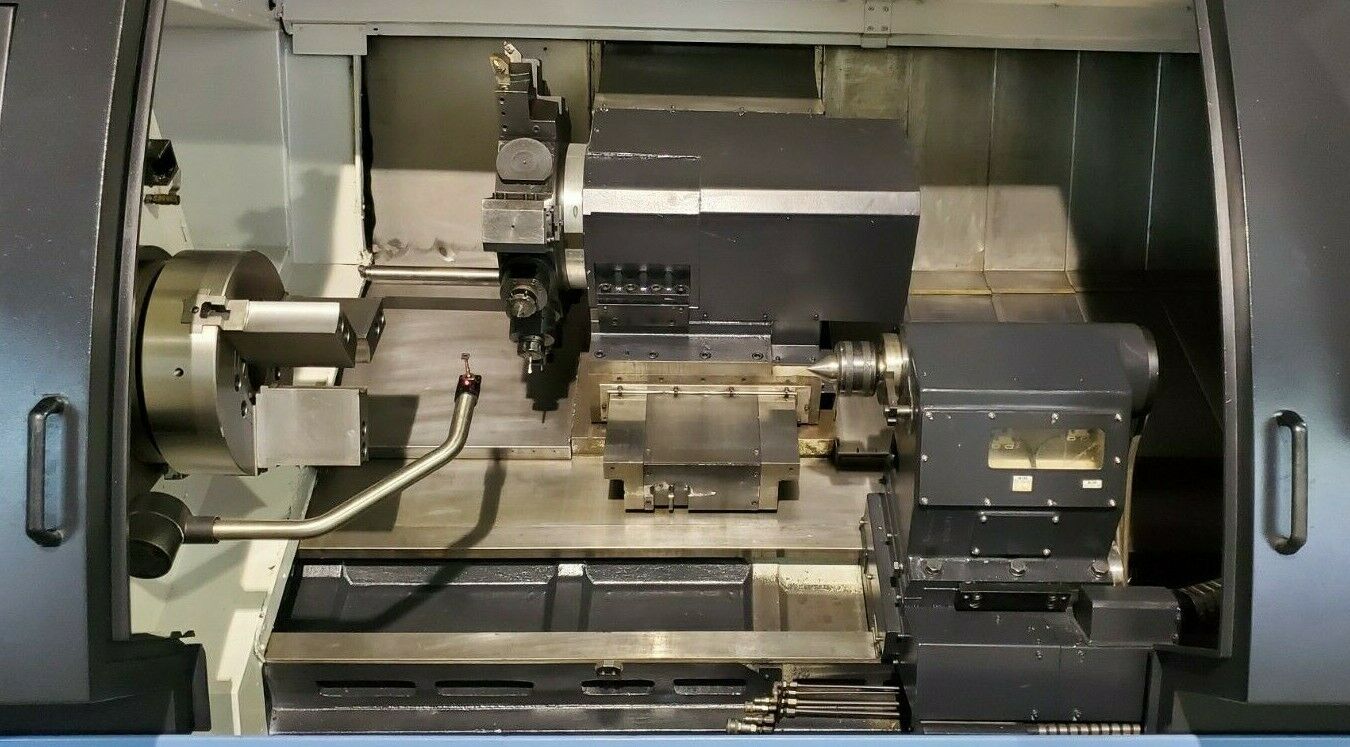

| DOOSAN PUMA S670LM Equipped With: |
|---|

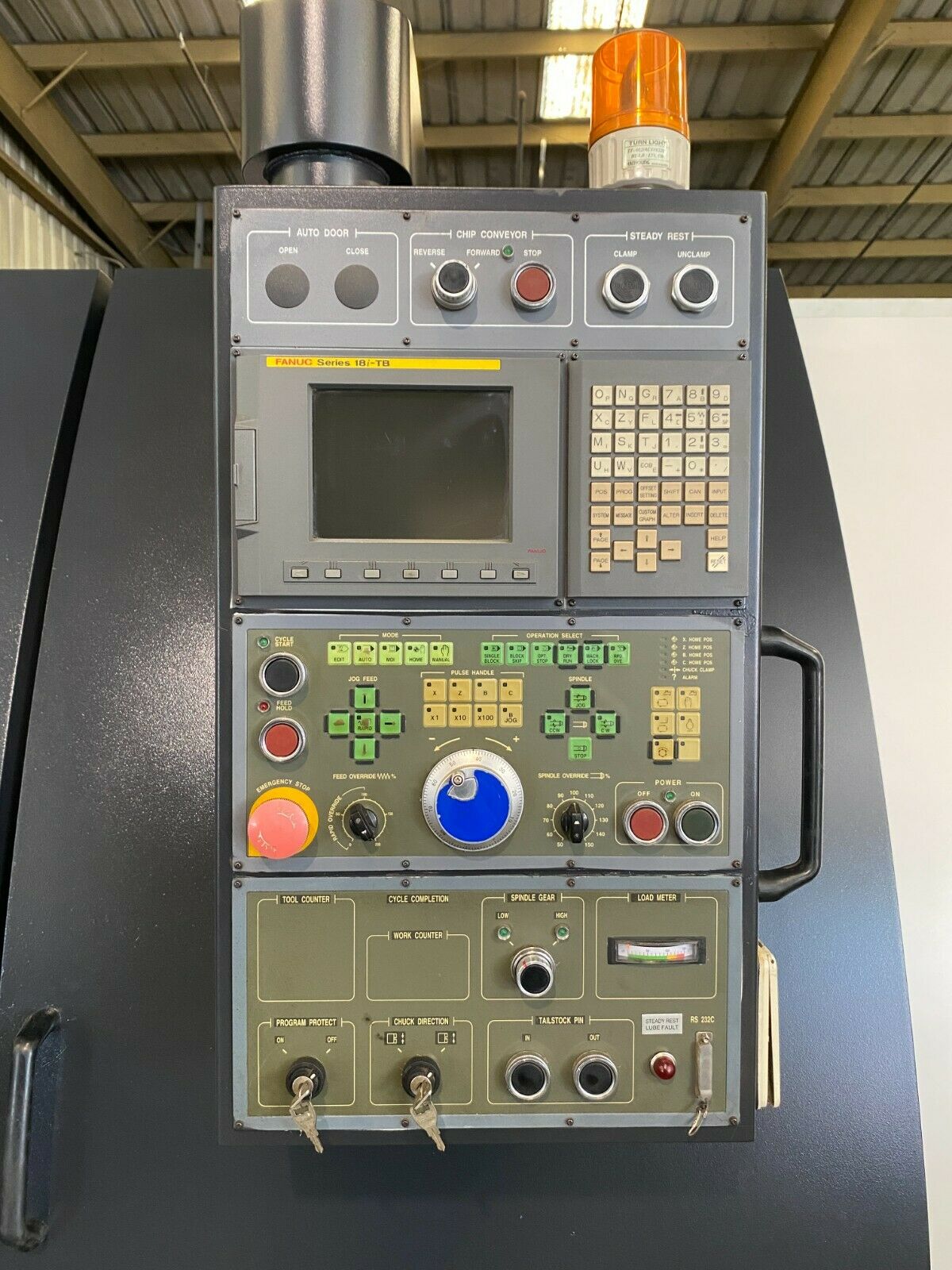

| Fanuc 18i-TB CNC Control |
| 20″ 3 Jaw Big Bore Hydraulic Chuck ( $12,600 Option ) |
| Full C Axis |

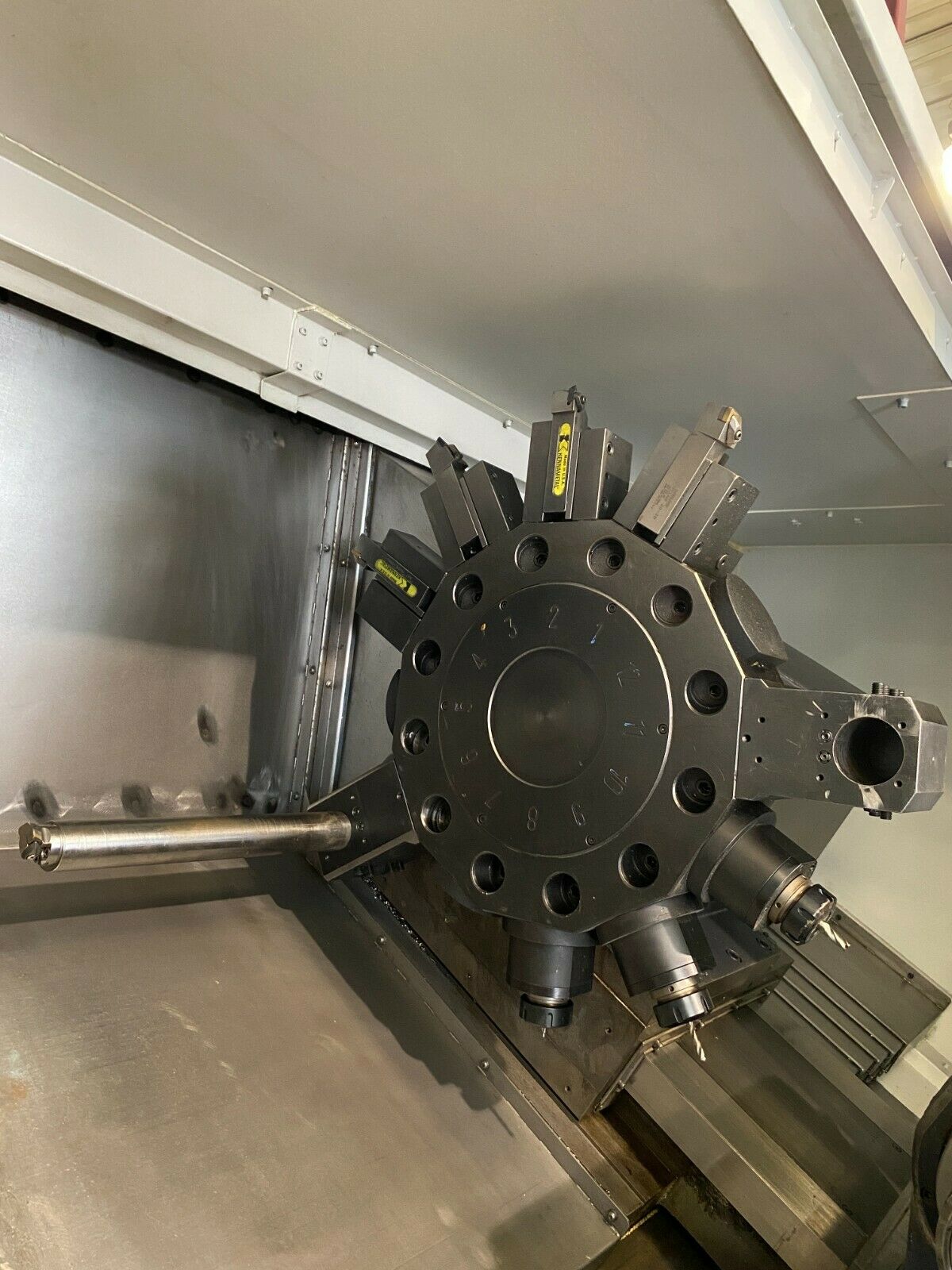

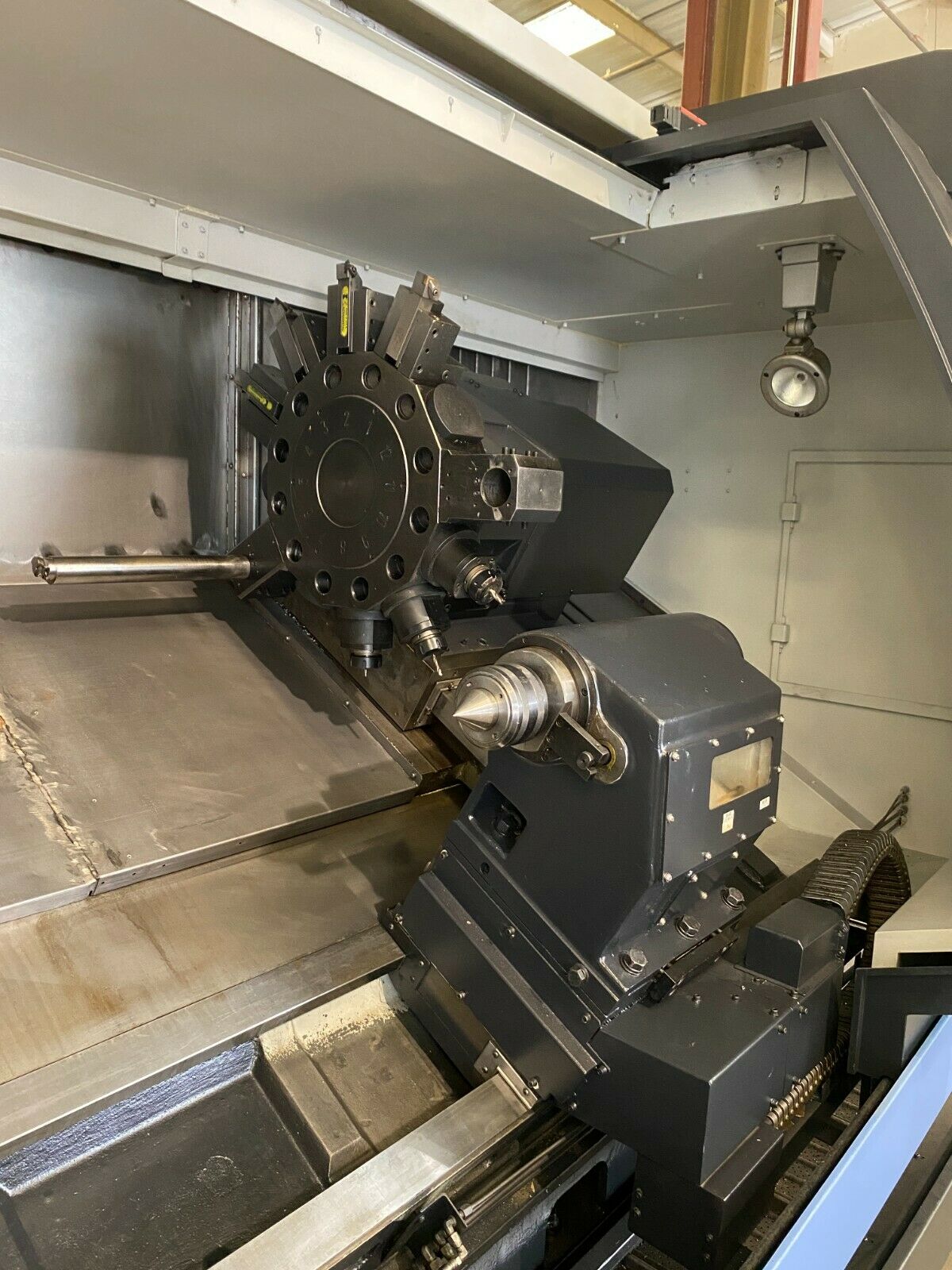

| 12 Station Live Tool Turret ( $27,900 Option ) |
| 5.1″ Bore A2-11 Spindle |
| Tool Presetter |

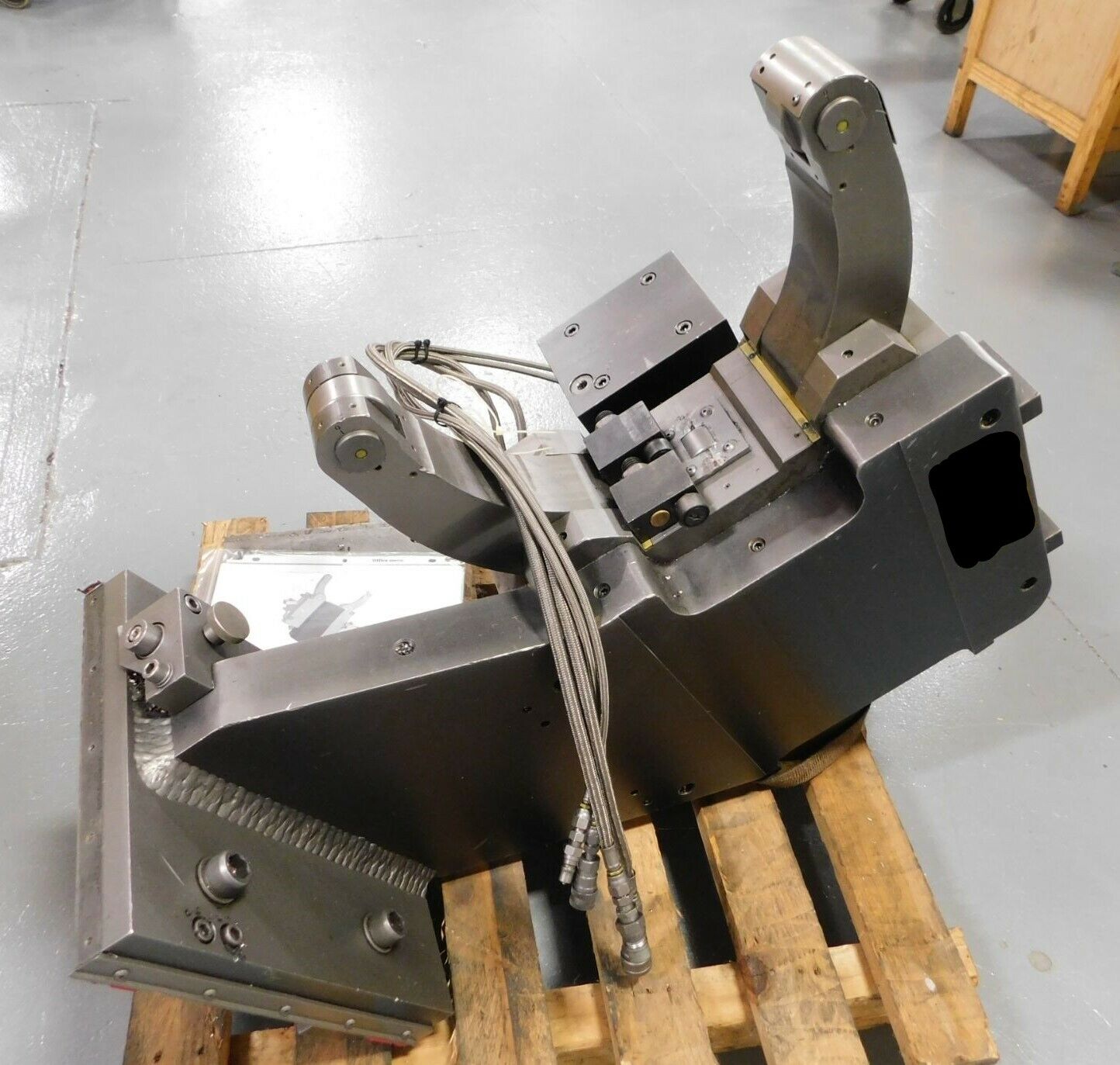

| Hydraulic Programmable Steady Rest ( $27,000 Option ) |

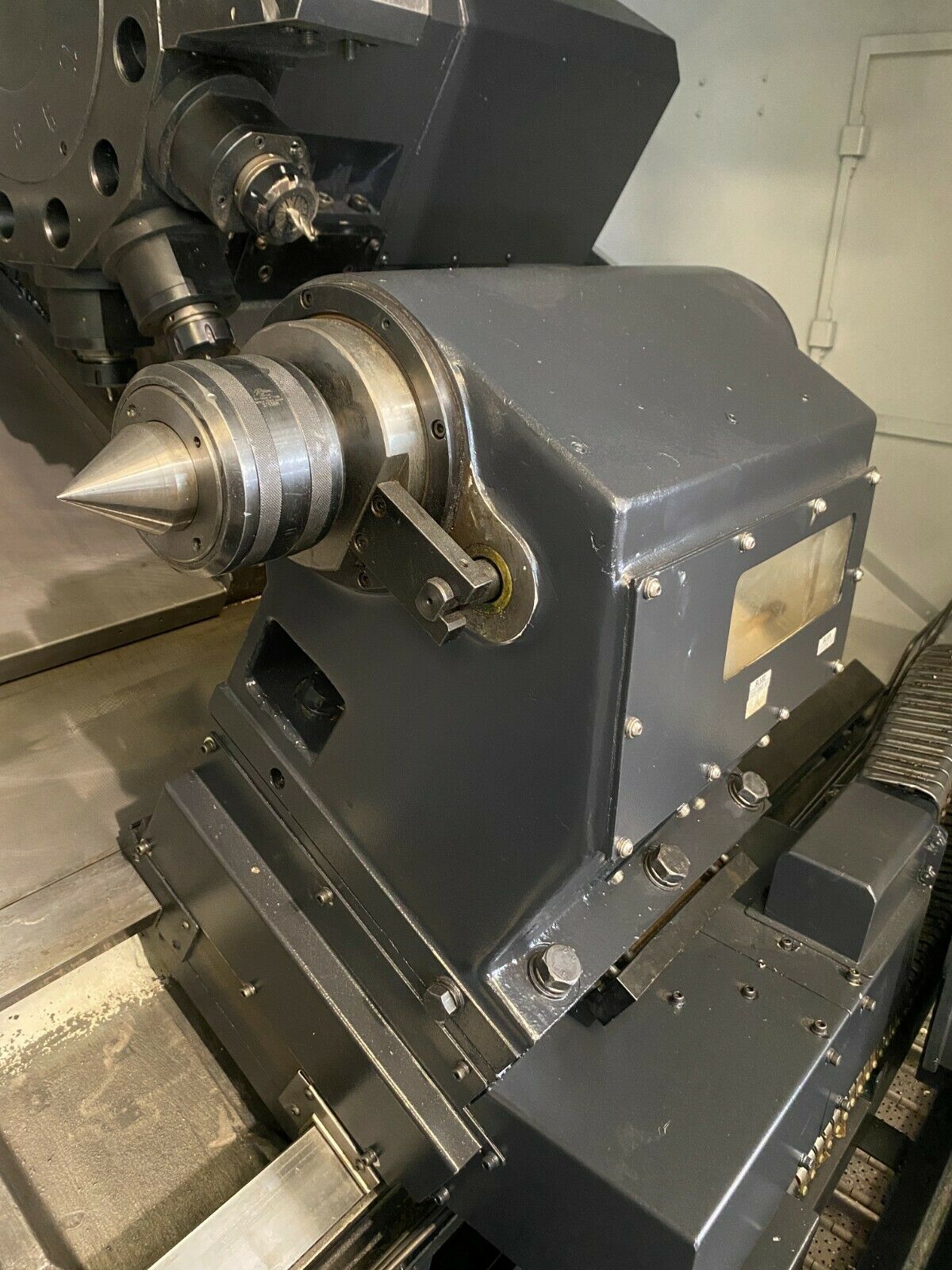

| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| Foot Switch |
| Coolant System |

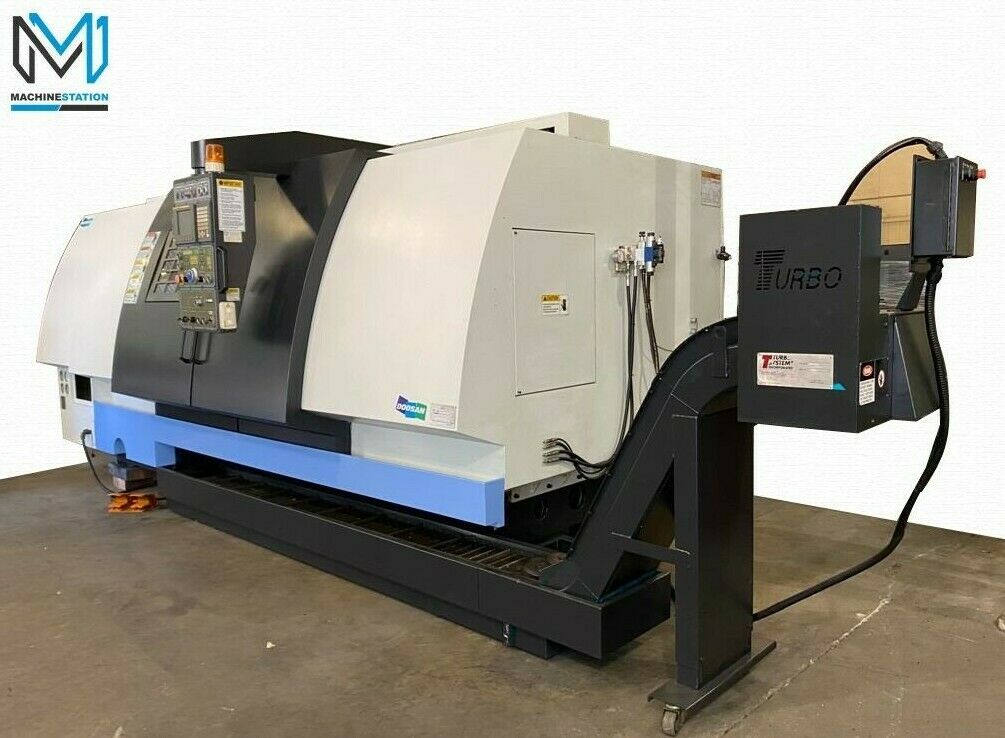

| Chip Conveyor ( $ 14,000 Option ) |
| Comes with 3Live Tools, Statis Tools, Long Boring Bar ($22,500 Value) |
| DOOSAN PUMA S670LM Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 26.37″ |
| Max Turning Length: 70.86″ |
| Max Bar Capacity: 5.1″ |
| Swing Over Bed: 35.8″ |
| Swing Over Carriage: 33.3″ |
| Distance Between Centers: 76.0” |
| Travel: |
|---|
| X Axis Travel: ″ |
| Z Axis Travel: ″ |
| C Axis : 360° (0.001°) |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 790 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 6.1″ |
| Spindle Speed: 15 – 1500 RPM |
| Spindle Motor: 50hp |
| Turret: |
|---|
| Turret Capacity: 12 Live Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 2.4″ |
| Live Tool Speed: |
|---|
| Live Tool Motor: 10 HP |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 60.5″ |
| Tailstock Quill Dia.: 4.7″ |
| Tailstock Quill Travel: 4.7″ |
| General: |
|---|
| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: 200″ x 87″ x 90″ High |
| Weight: 31,000 lbs |
“No Charges for loading at list Price”
Comes as shown in pictures….
