*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

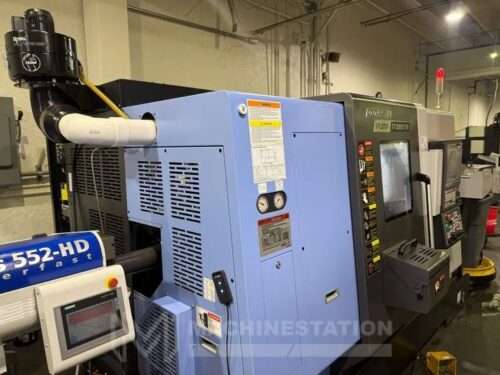

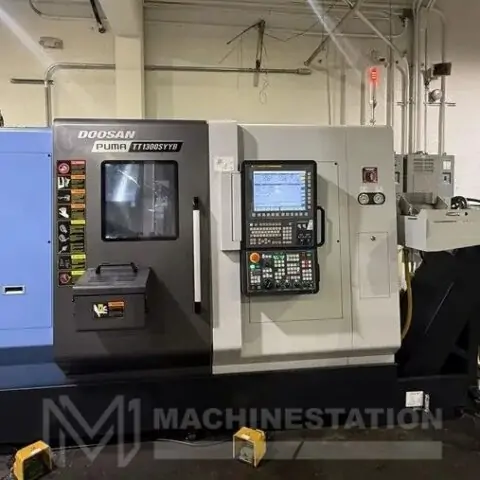

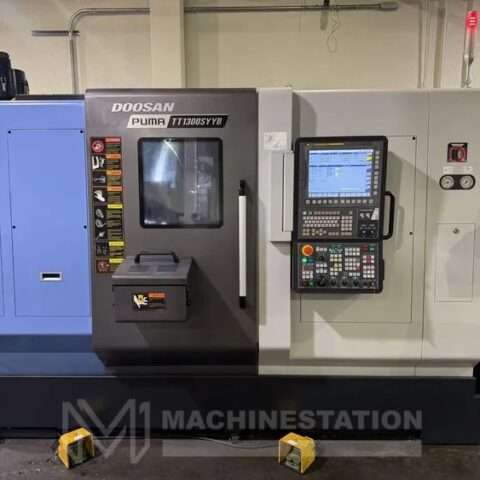

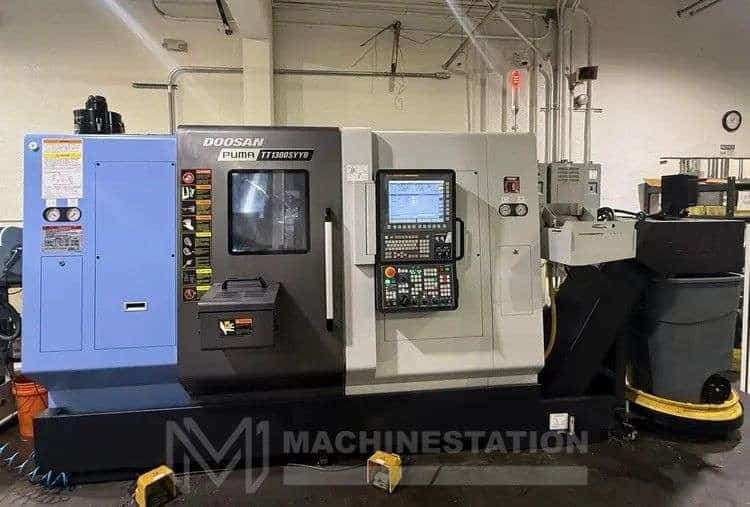

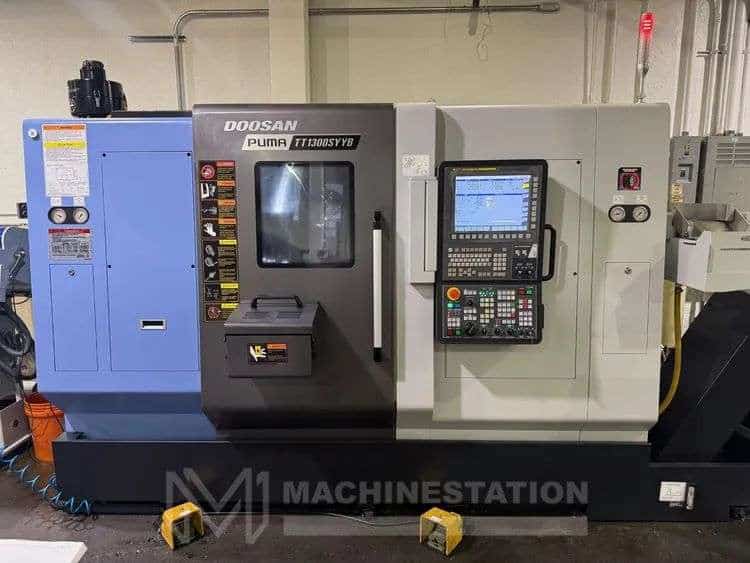

| Make: | Doosan |
| Model: | Puma TT1300SYYB |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

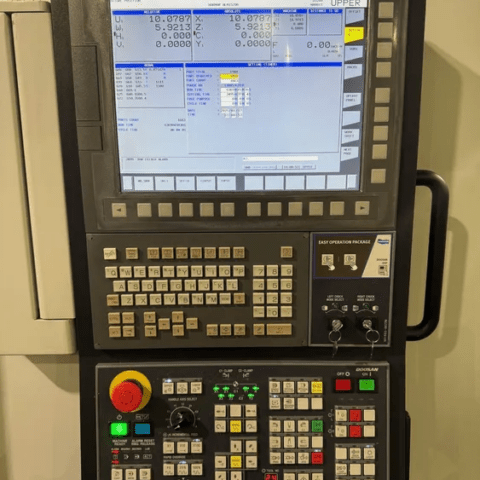

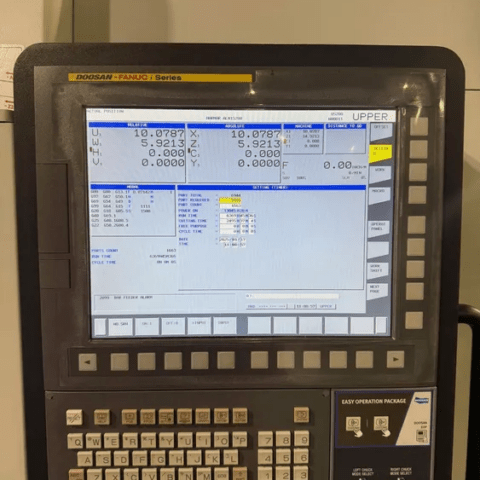

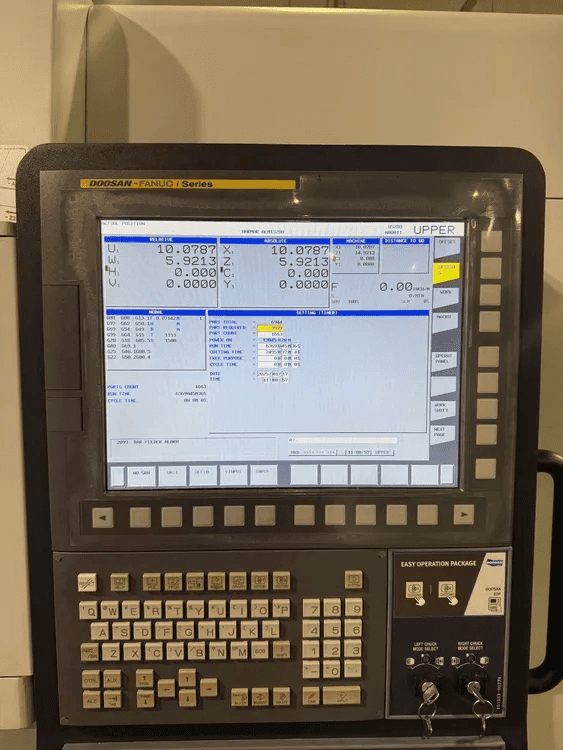

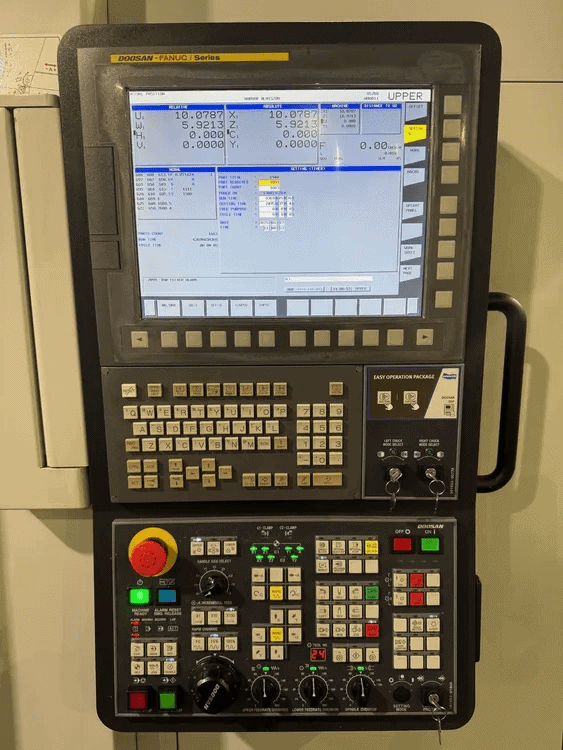

| Fanuc i-series CNC Control |

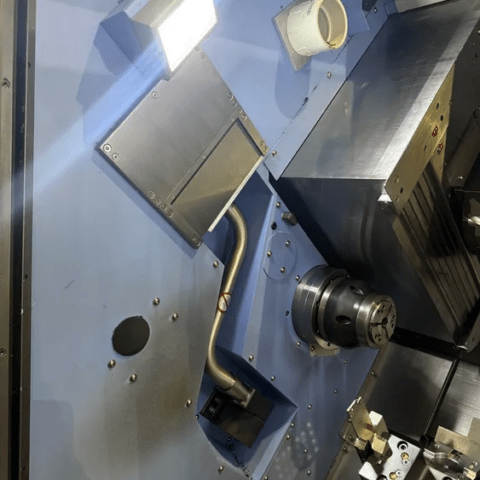

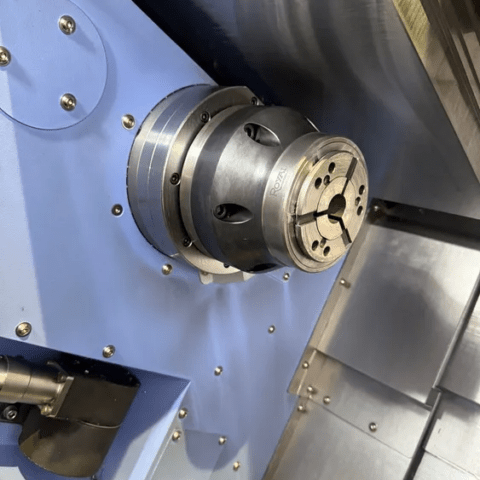

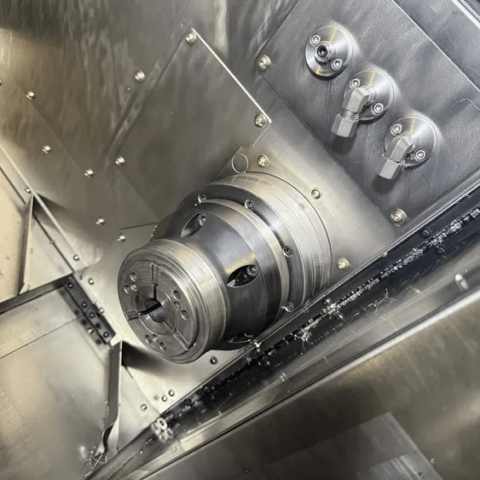

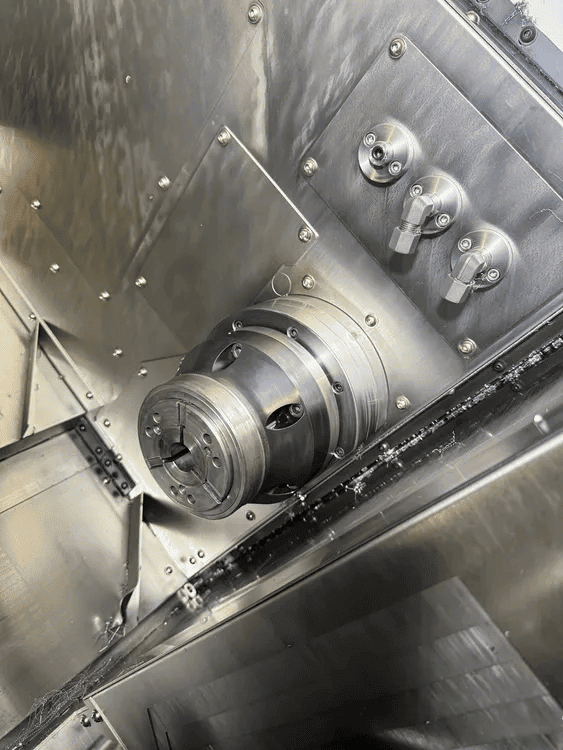

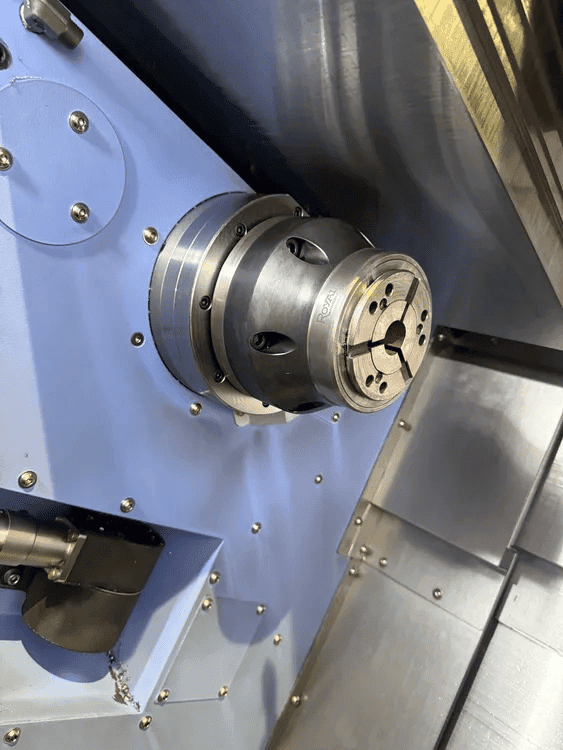

| Royal Collet Chucks on Main & Sub spindle |
| Servo Controlled Full C-Axis on Both Spindles |

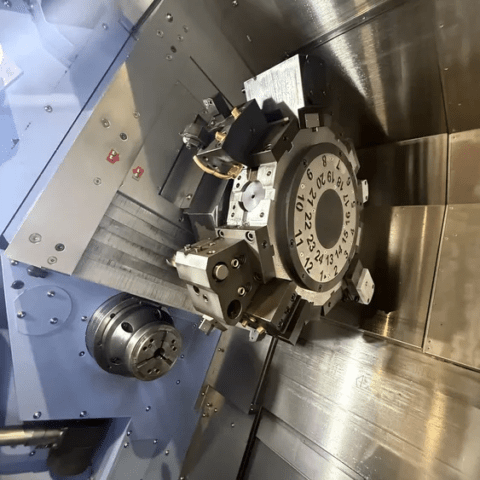

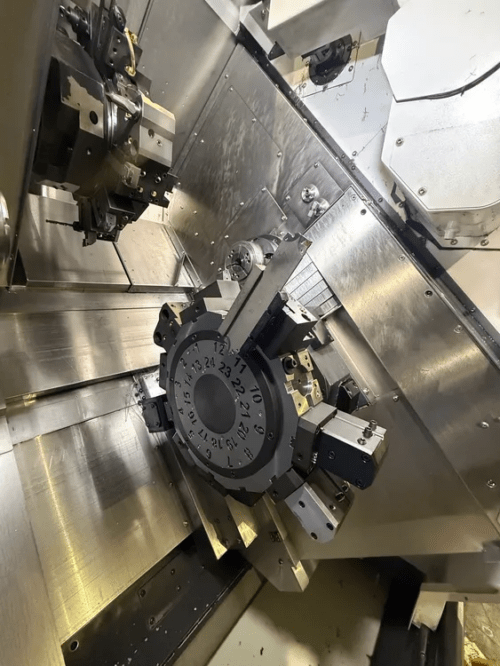

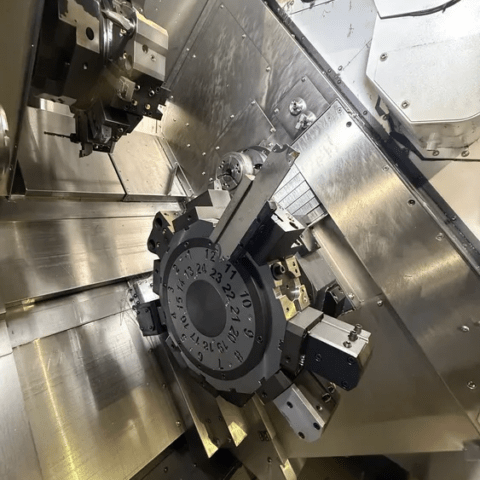

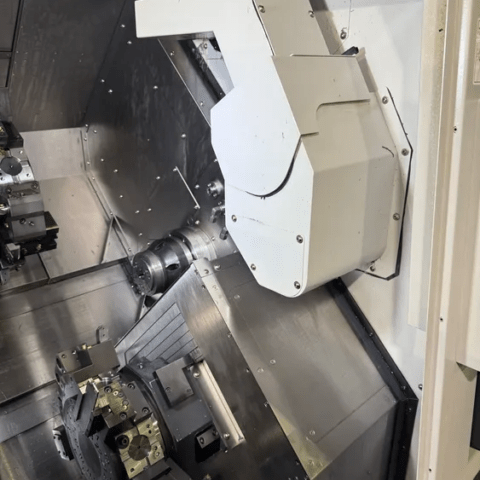

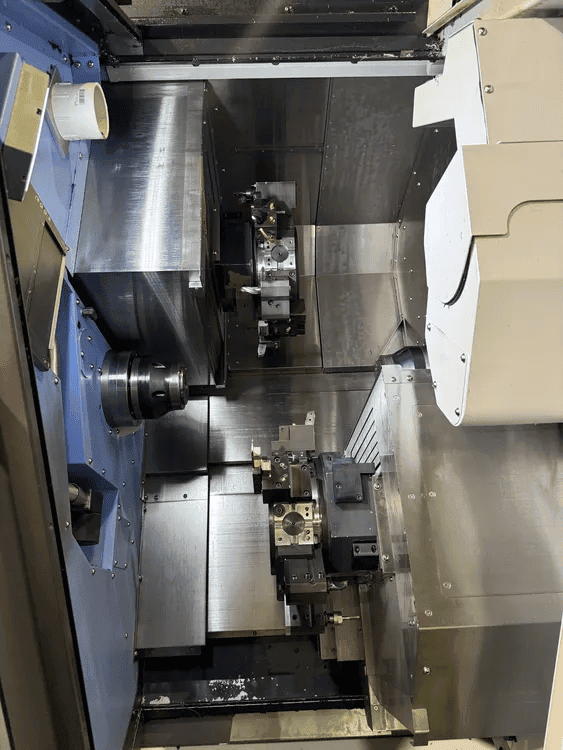

| 24 -Positions Upper & Lower Turret – Live / Rotary Tools |

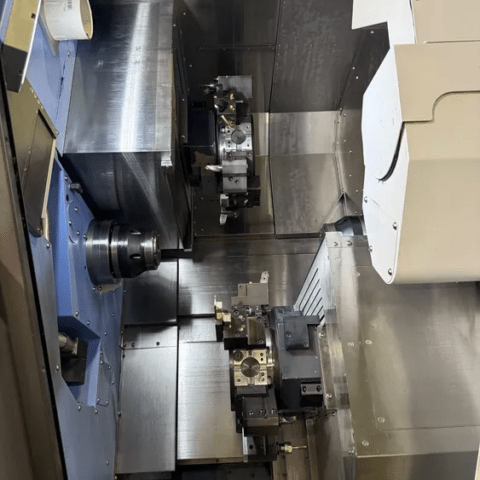

| Y Axis Upper & Lower Turret |
| Tool Presetter |
| Parts Catcher & Conveyor |
| Rigid Tapping on Both Spindles |

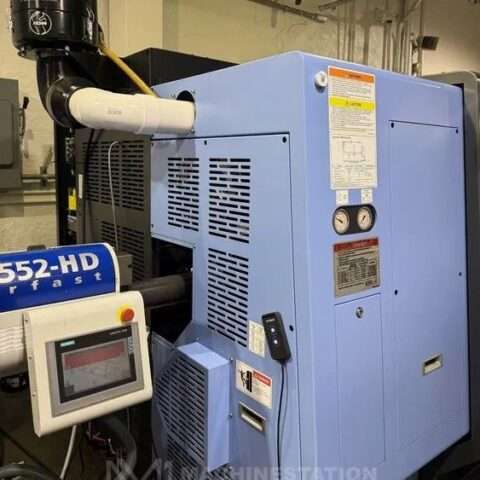

| (2) High Pressure Coolant Pumps |
| (2) Coolant Pumps |
| Foot Switches |

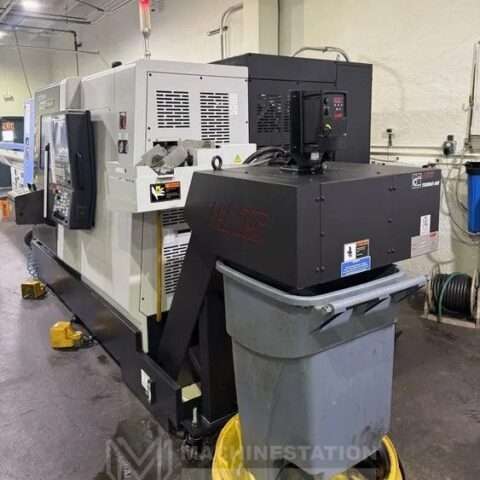

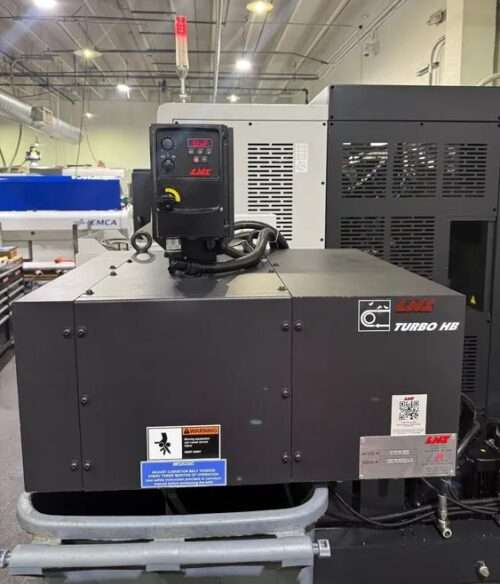

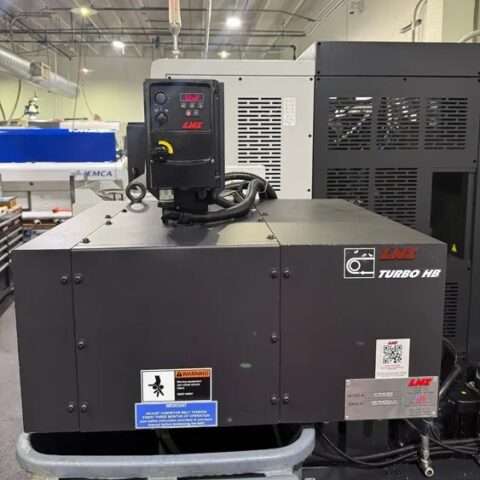

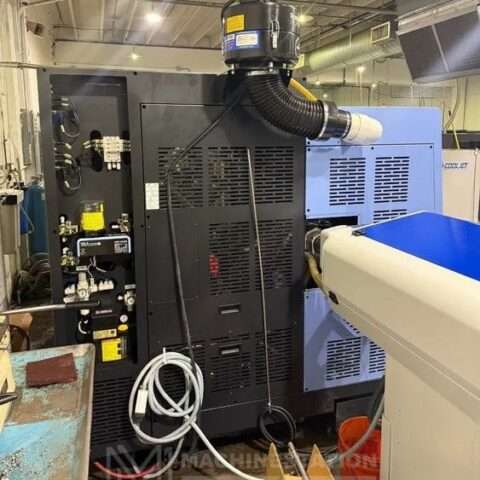

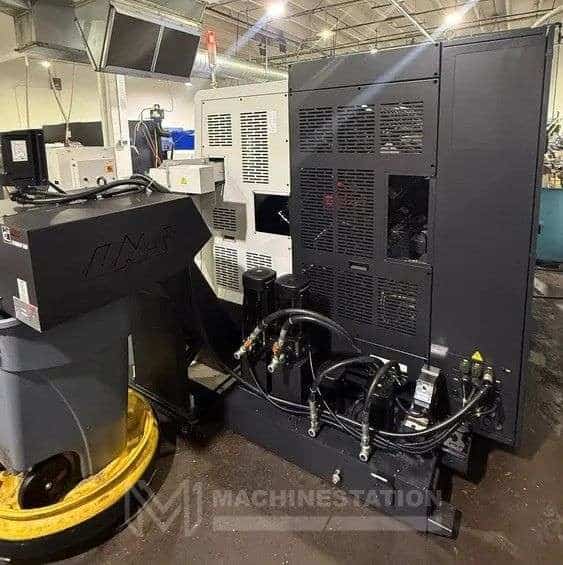

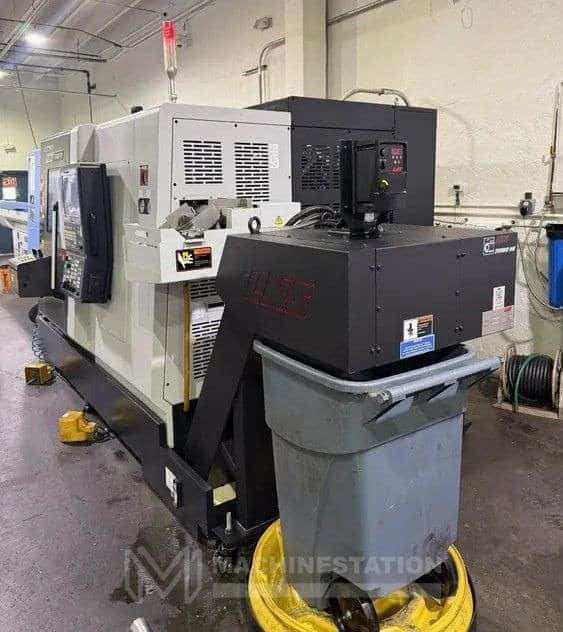

| LNS Turbo HB Chip Conveyor |
| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 6.9″ |
| Max Turning Length: 4.7″ |
| Swing Over Bed: 6.9″ |
| Swing over the Saddle: 6.9″ |
| Max Bar Capacity: 1.7″ |
| Travels: |
|---|
| X1/X2 Axis Travel: 5.3″ |
| Z 1/Z2 Axis Travel: 20.9″ |
| Y Axis Travel: 3.1″ (+ 1.6″ – 1.6″) |
| B Axis Travel: 21.3″ (Sub Spindle) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1574 IPM |
| Rapid Traverse Y Axis: 590 IPM |
| Rapid Traverse B Axis: 1574 IPM |
| Spindle: |
|---|
| Main Spindle Nose: A2-5 |
| Main Spindle Bore: 2.4″ |
| Main Spindle Bar Capacity: 1.7″ |
| Main Spindle Speed: 6,000 RPM |
| Main Spindle Power: 15 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.1″ |
| Sub Spindle Bar Capacity: 1.4″ |
| Sub Spindle Speed: 6,000 RPM |
| Sub Spindle Power: 10 HP |
| Turrets: |
|---|

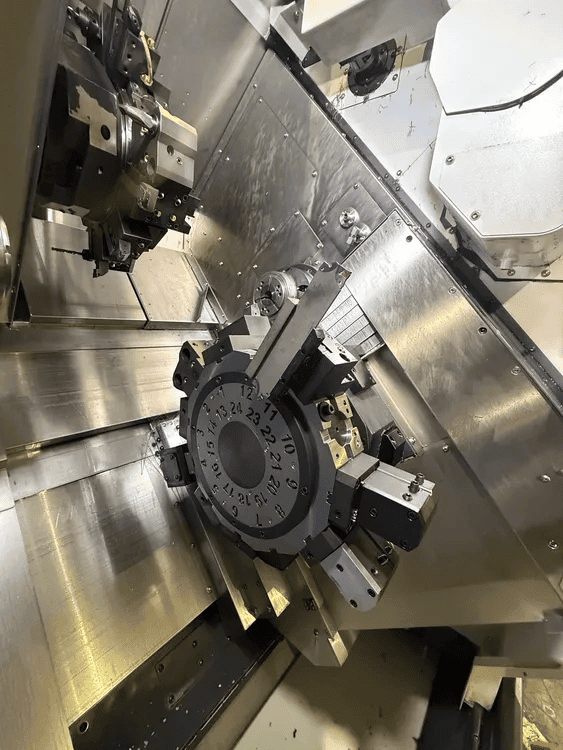

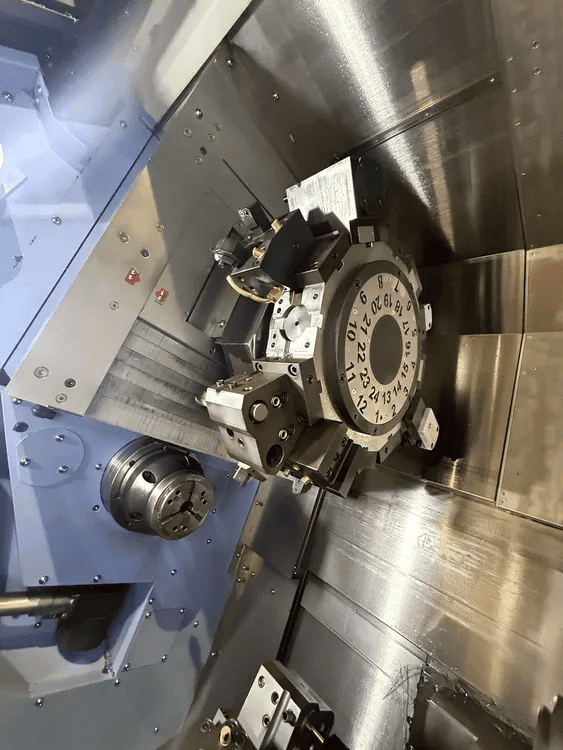

| Turret Capacity (Upper + Lower) : 24 + 24 Positions |
| Turret Index Time: 0.12 Second |
| Live Tool Speed: 6,000 RPM |
| Live Tool Spindle Power: 5 HP |
| Tool Holders Type: BMT-45P |
| General: |
|---|
| Power Source: 220v / 3-Phase / 60 Hz / 52.17 kva |
| Overall Dimensions: 138.2″ x 90.6″ x 81.5″ High |
| Weight: 17,857 lbs |
