*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan |

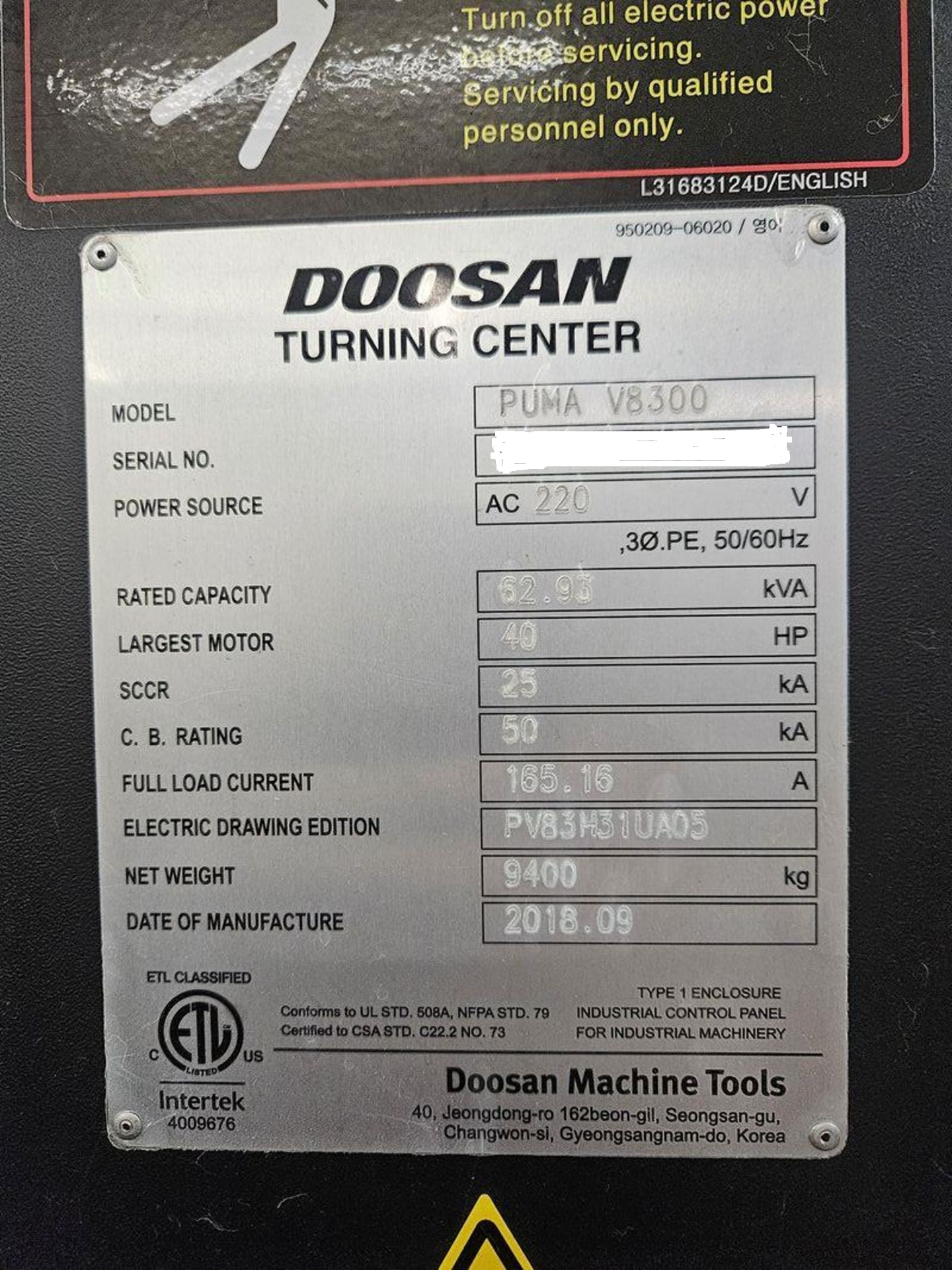

| Model: | Puma V8300 |
| Condition: | Used |
| Standard Features: |
|---|

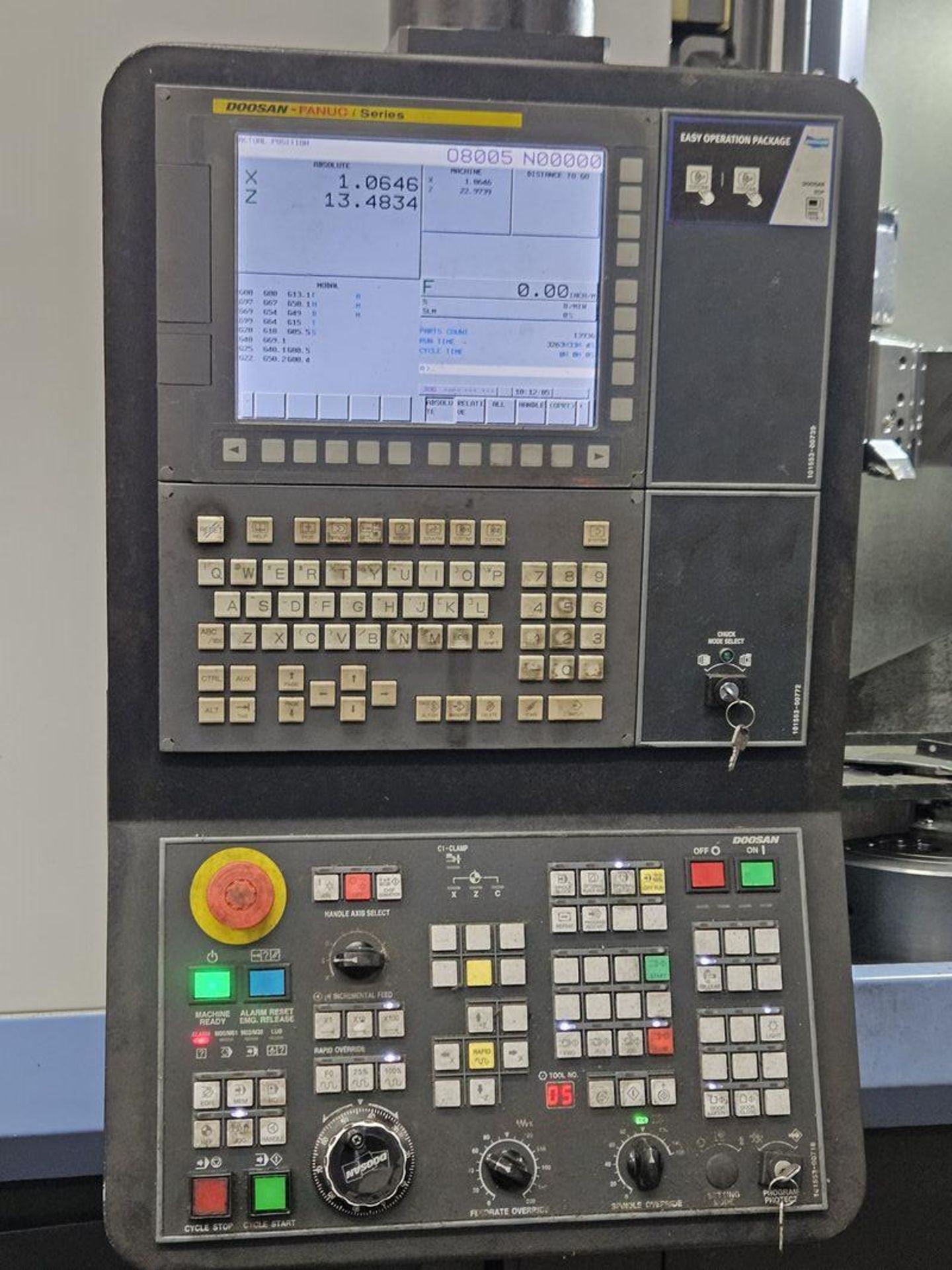

| Doosan Fanuc i Plus CNC Control |
| Vertical Turning Center Design |
| Box Guideway Construction |
| Servo Driven Turret |
| Hydraulic Chuck |

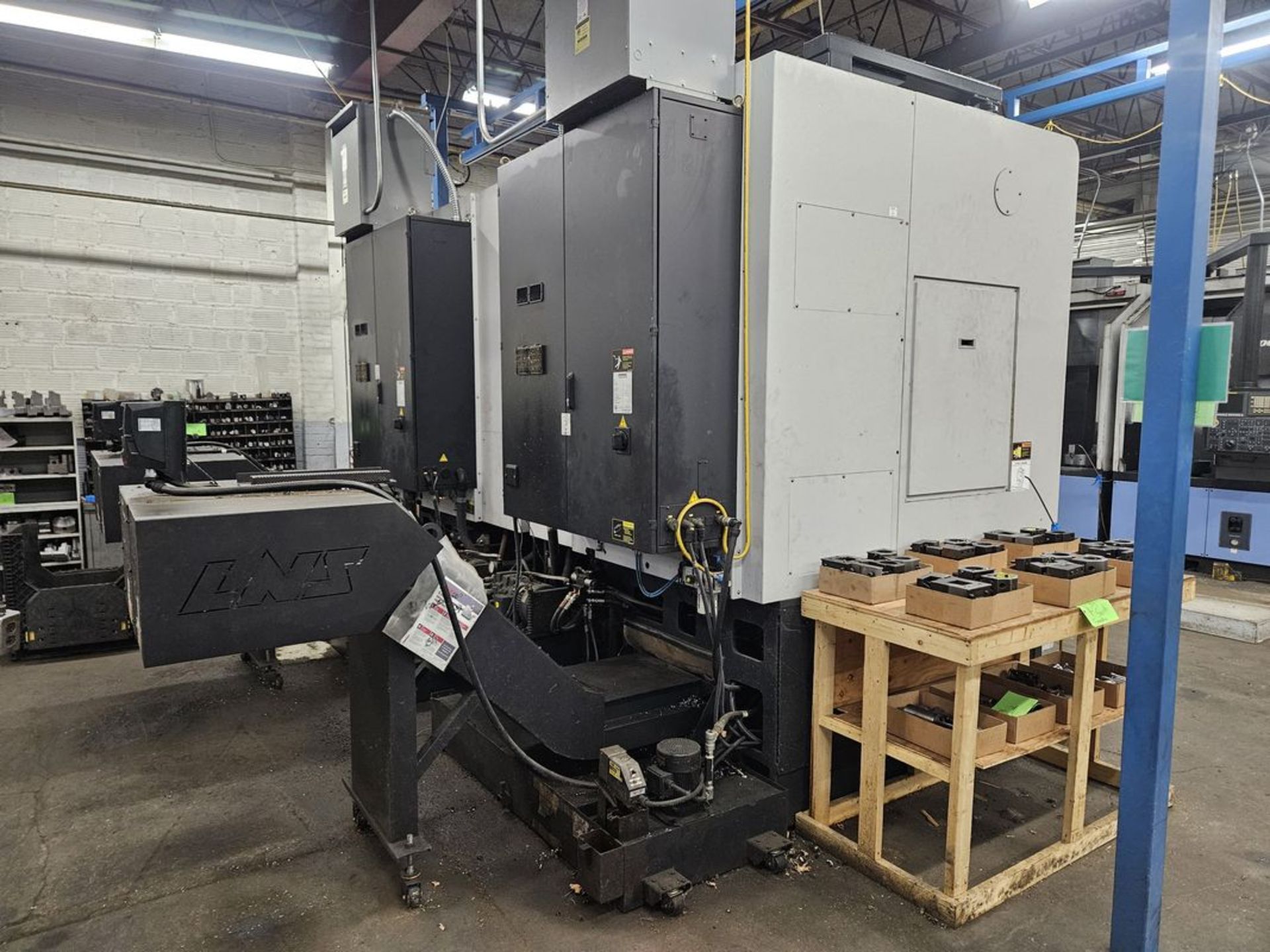

| Chip Conveyor (Rear Type) |
| Coolant System |
| Automatic Lubrication System |
| Full Enclosure |
| Work Light |
| Leveling Pads |
| Operation & Maintenance Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 32.7″ (830 mm) |
| Max Turning Height: 30.7″ (780 mm) |
| Swing Over Bed: 36.2″ (920 mm) |
| Swing Over Saddle: 29.1″ (740 mm) |
| Chuck Size: 15″ |
| Travels: |
|---|
| X-Axis Travel: 19.5″ (495 mm) |
| Z-Axis Travel: 30.7″ (780 mm) |
| Rapid Traverse X/Z: 787 IPM |
| Spindle: |
|---|
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 49.6 HP (37 kW) |
| Spindle Torque: 1,659 Nm |
| Spindle Nose: ASA A2-11 |
| Turret: |
|---|
| Turret Stations: 12 |
| Turret Index Time: 0.25 Sec |
| Max Tool Size: 1.3″ x 1.3″ |
| General: |
|---|
| Power Requirement: Approx. 62 kVA |
| Machine Dimensions: 78.9″ x 106.9″ x 143.1″ High |
| Machine Weight: Approx. 20,700 lbs |
