*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

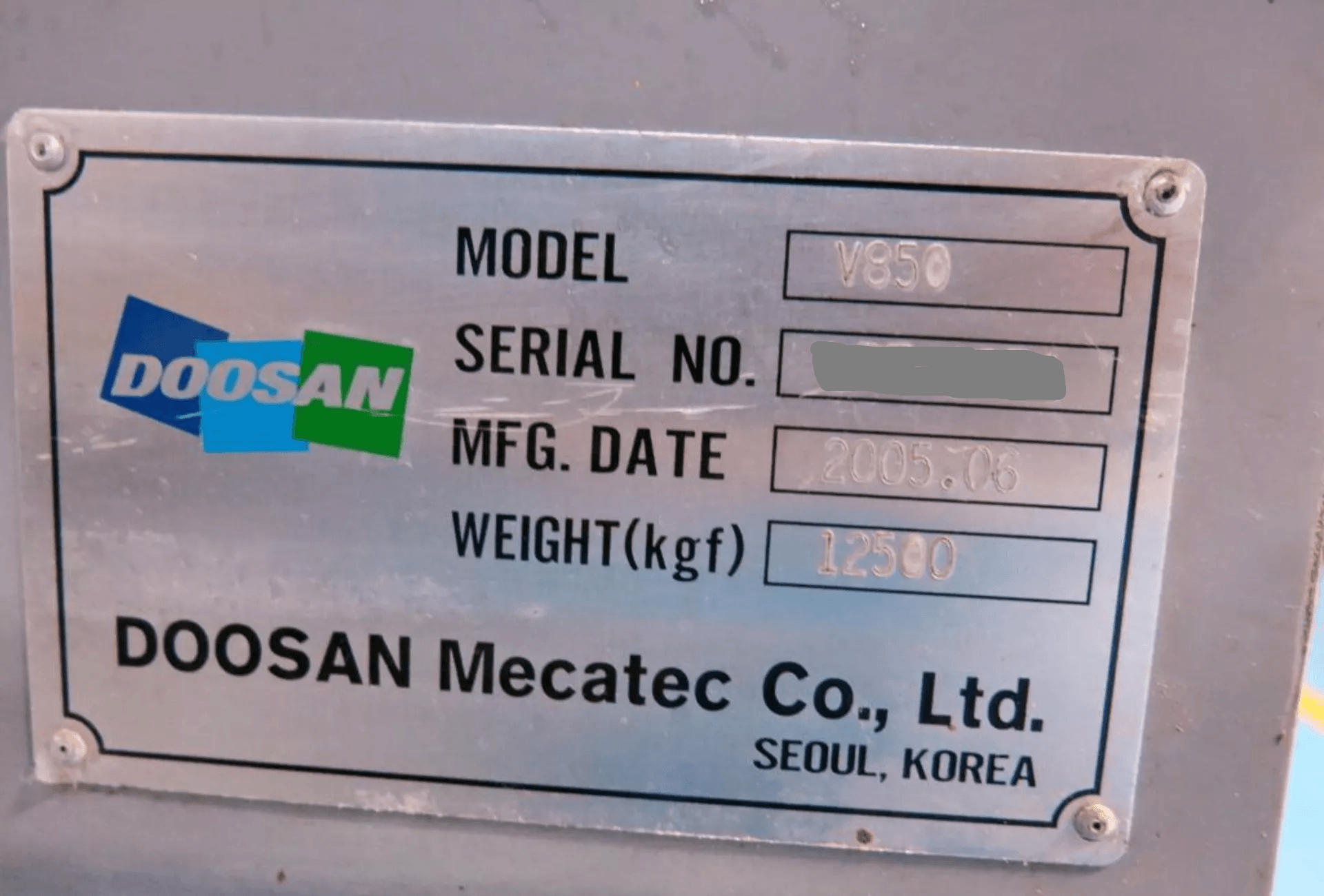

| Make: | Doosan |
| Model No.: | V850 |
| Year of Manufacture: | 2005 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Turret Lathe (VTL) |
| CNC Control: | Fanuc CNC Control |
| Country of Origin: | South Korea |
| Equipped With: |
|---|
| Fanuc CNC Control |

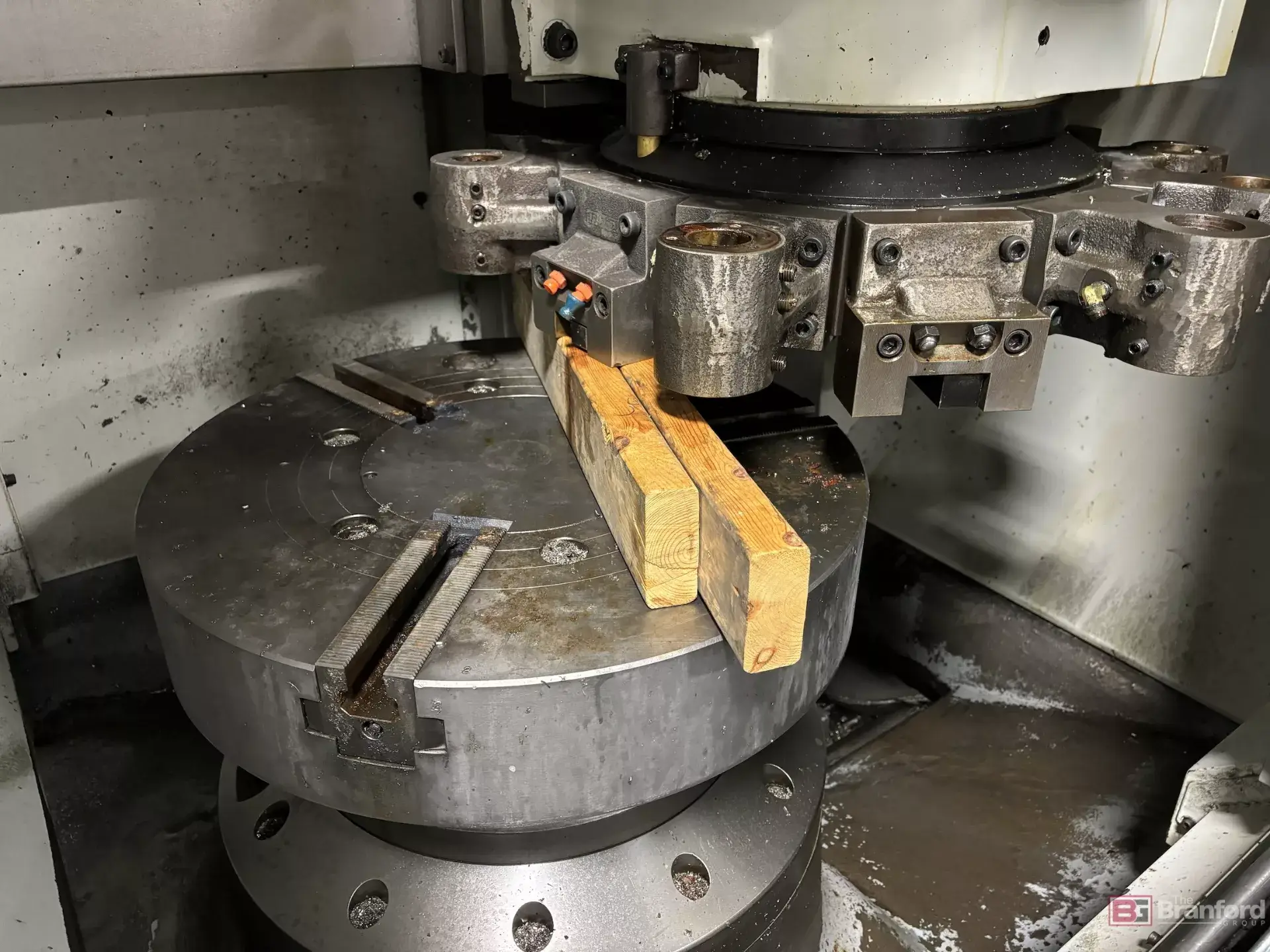

| Hydraulic Chuck System |
| Automatic Tool Turret |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Manual Pulse Generator (MPG) |
| Work Light |
| Capacity: |
|---|
| Max Turning Diameter: 33.5″ (850 mm) |
| Max Swing Diameter: 35.4″ (900 mm) |
| Max Turning Height: 27.5″ (700 mm) |
| Table Diameter: 31.5″ (800 mm) |
| Max Workpiece Weight: 3,300 – 4,400 lbs (Approx.) |
| Travels: |
|---|
| X-Axis Travel: 17.7″ (450 mm) |
| Z-Axis Travel: 27.5″ (700 mm) |
| Spindle: |
|---|
| Spindle Speed: 2 – 400 RPM |
| Spindle Motor: 40 / 50 HP |
| Table Type: Integrated Vertical Table |
| Tooling: |
|---|

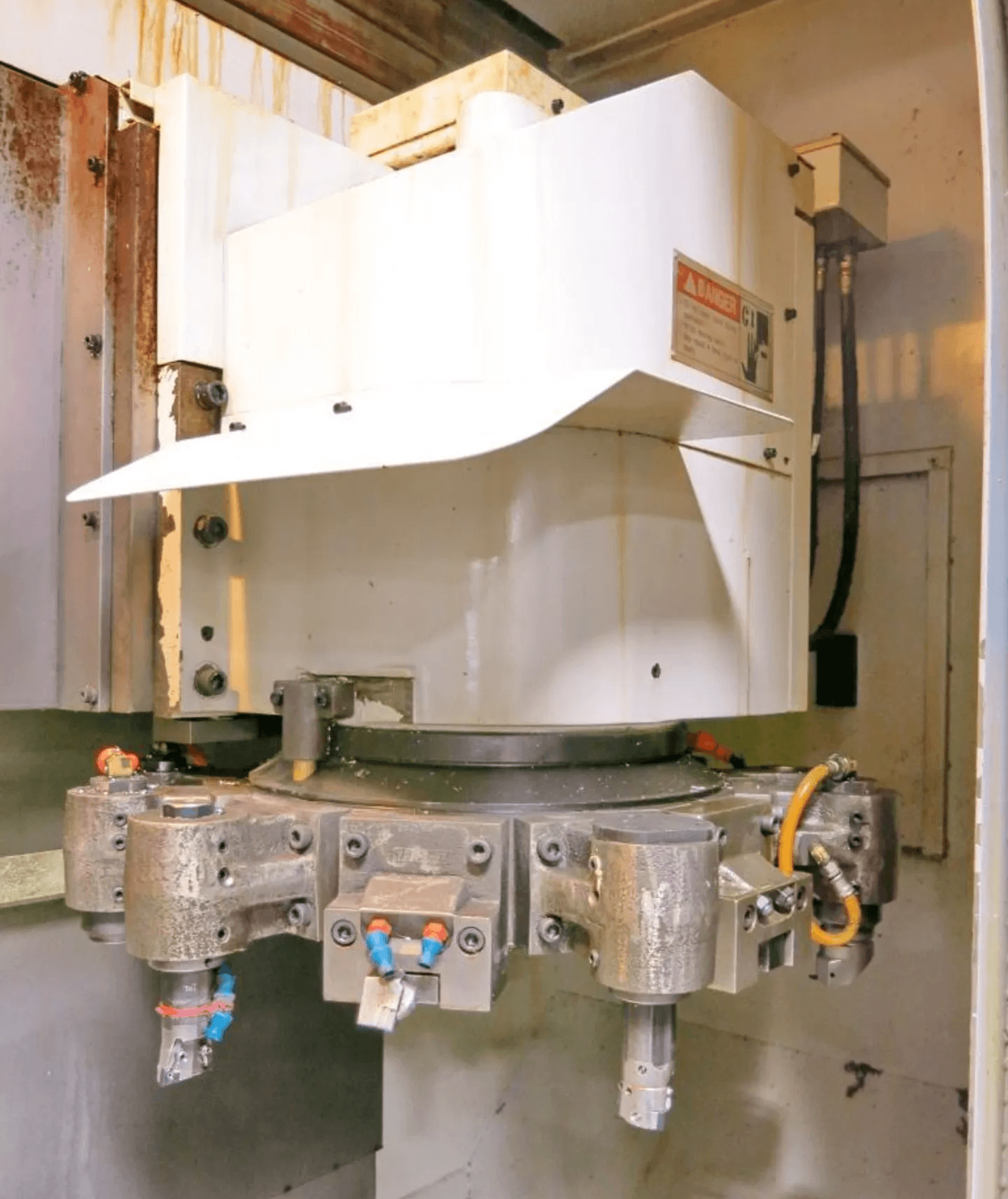

| Turret Type: Hydraulic Indexing |
| Tool Stations: 8 / 12 Position |
| Feed Rates: |
|---|
| Rapid Traverse (X): 630 IPM |
| Rapid Traverse (Z): 787 IPM |
| Cutting Feed Rate: Programmable |
| Accuracy: |
|---|
| Positioning Accuracy: ±0.0004″ |
| Repeatability: ±0.0002″ |
| Electrical: |
|---|
| Power: 220V, 3-Phase (or 380–480V) |
| Frequency: 50 / 60 Hz |
| General: |
|---|
| Overall Dimensions: ~110″ x 100″ x 118″ High |
| Weight: ~27,500 lbs |
