*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | VC 3600 |
| Year: | 2017 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| Country of Origin: | Korea |
| Features: |
|---|
- High-Rigidity Box-Type Structure
- High-Torque Inline Spindle
- Rigid Tapping
- Thermal Compensation System
- Linear Guideways on All Axes
- Automatic Central Lubrication System

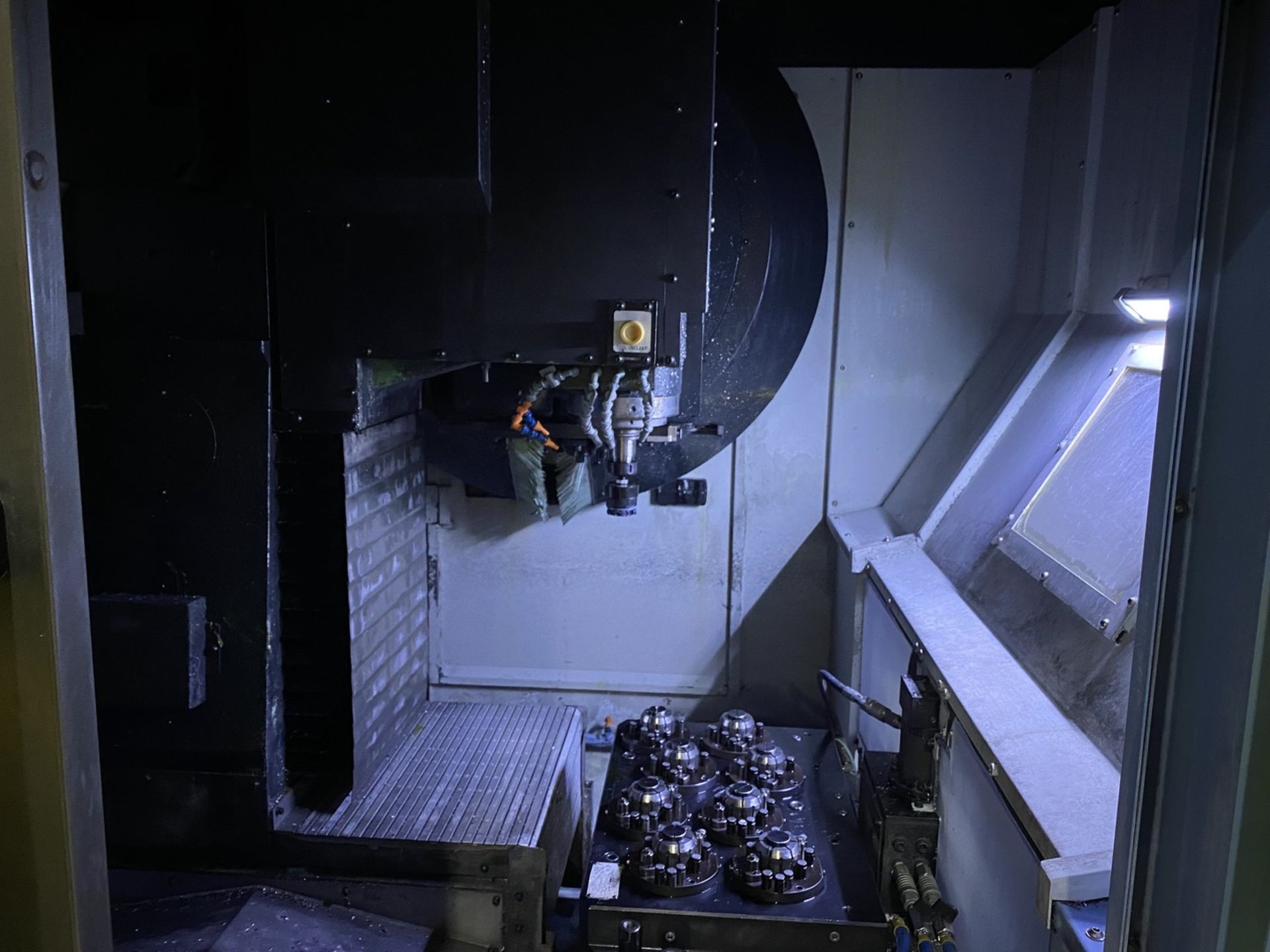

- Fully Enclosed Machining Area
- Large Work Envelope for Heavy Cutting
|
| Travels: |
|---|
- X-Axis Travel: 36.2″
- Y-Axis Travel: 20.1″
- Z-Axis Travel: 20.1″
- Spindle Nose to Table: 5.9″ – 26.0″
|
| Table: |
|---|
- Table Size: 44.1″ × 20.1″
- Max Table Load: 1,764 lbs
- T-Slots: 5 × 0.71″
|
| Spindle: |
|---|
- Spindle Taper: BT40
- Spindle Speed: 10,000 RPM
- Spindle Motor: 25 HP
- Max Spindle Torque: 199 ft-lbs
- Inline Spindle Design
- Spindle Cooling System
|
| Feedrates: |
|---|
- Rapid Traverse X / Y / Z: 1,181 IPM
- Max Cutting Feedrate: 787 IPM
- High-Precision Ballscrews
- High-Accuracy Servo Drives
|
| Automatic Tool Changer: |
|---|
- Tool Changer Type: Arm-Type
- Tool Capacity: 24 Tools
- Tool-to-Tool Time: 1.8 sec
- Chip-to-Chip Time: 3.0 sec
- Max Tool Diameter: 3.1″ (Adjacent) / 6.3″ (No Adjacent)
- Max Tool Length: 11.8″
- Max Tool Weight: 17.6 lbs
|
| Coolant System: |
|---|
- Flood Coolant System
- Through-Spindle Coolant: Optional
- Coolant Tank Capacity: 132 Gallons
- Coolant Gun & Air Gun
|
| Chip Management: |
|---|
- Auger-Type Chip Removal
- Hinged Belt Chip Conveyor (Optional)
- Oil Skimmer & Mist Collector (Optional)
|

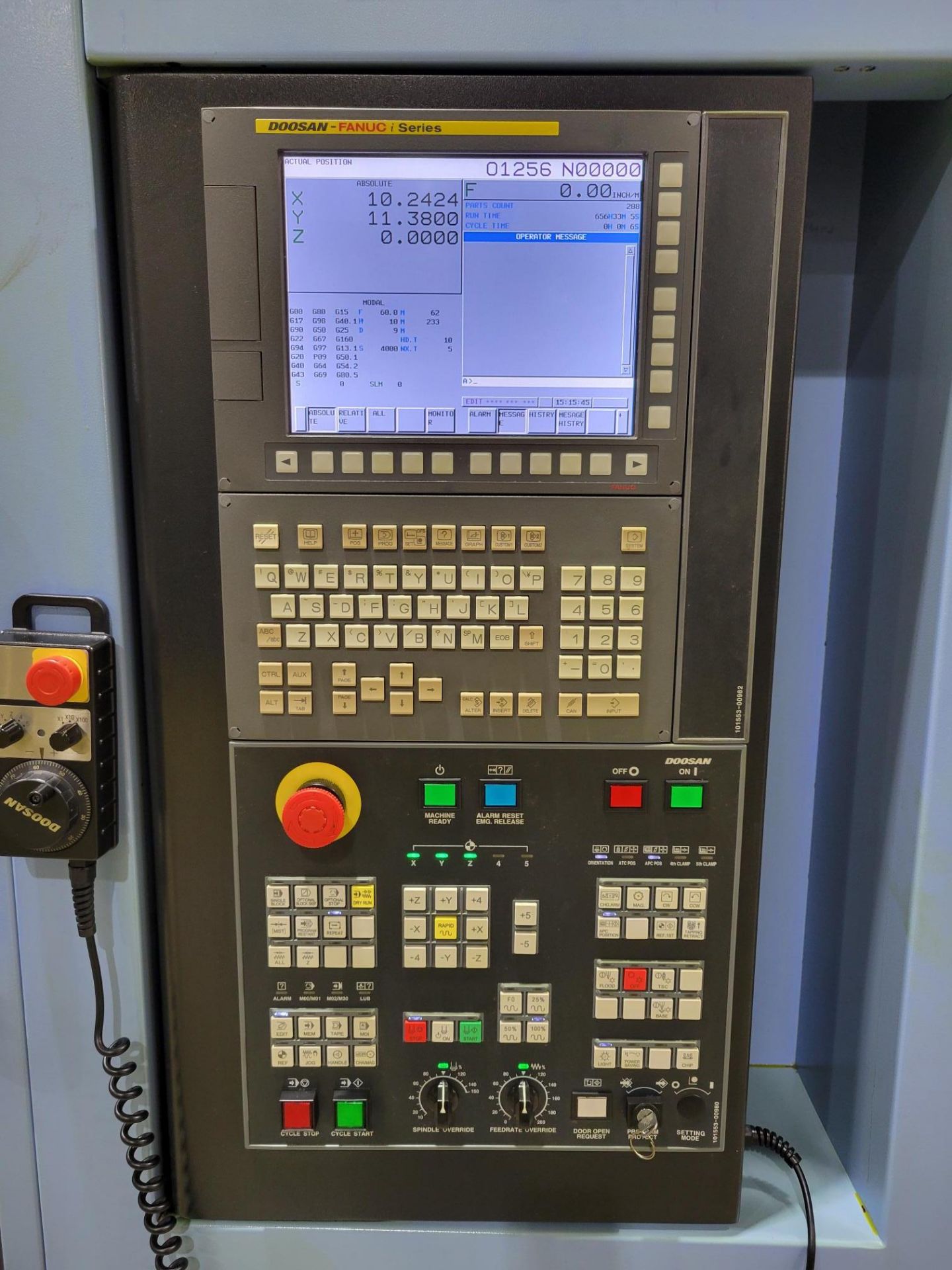

| CNC Control: |
|---|
- FANUC CNC Control (Typical Configuration)
- Color LCD Display
- Rigid Tapping & High-Speed Machining Cycles
- USB, Ethernet & RS-232 Connectivity
|
| Electrical & General: |
|---|
- Power Supply: AC 220V / 3-Phase / 50–60 Hz
- Connected Load: Approx. 35 kVA
- Machine Dimensions: 118″ L × 102″ W × 108″ H
- Machine Weight: Approx. 14,330 lbs
|
