*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

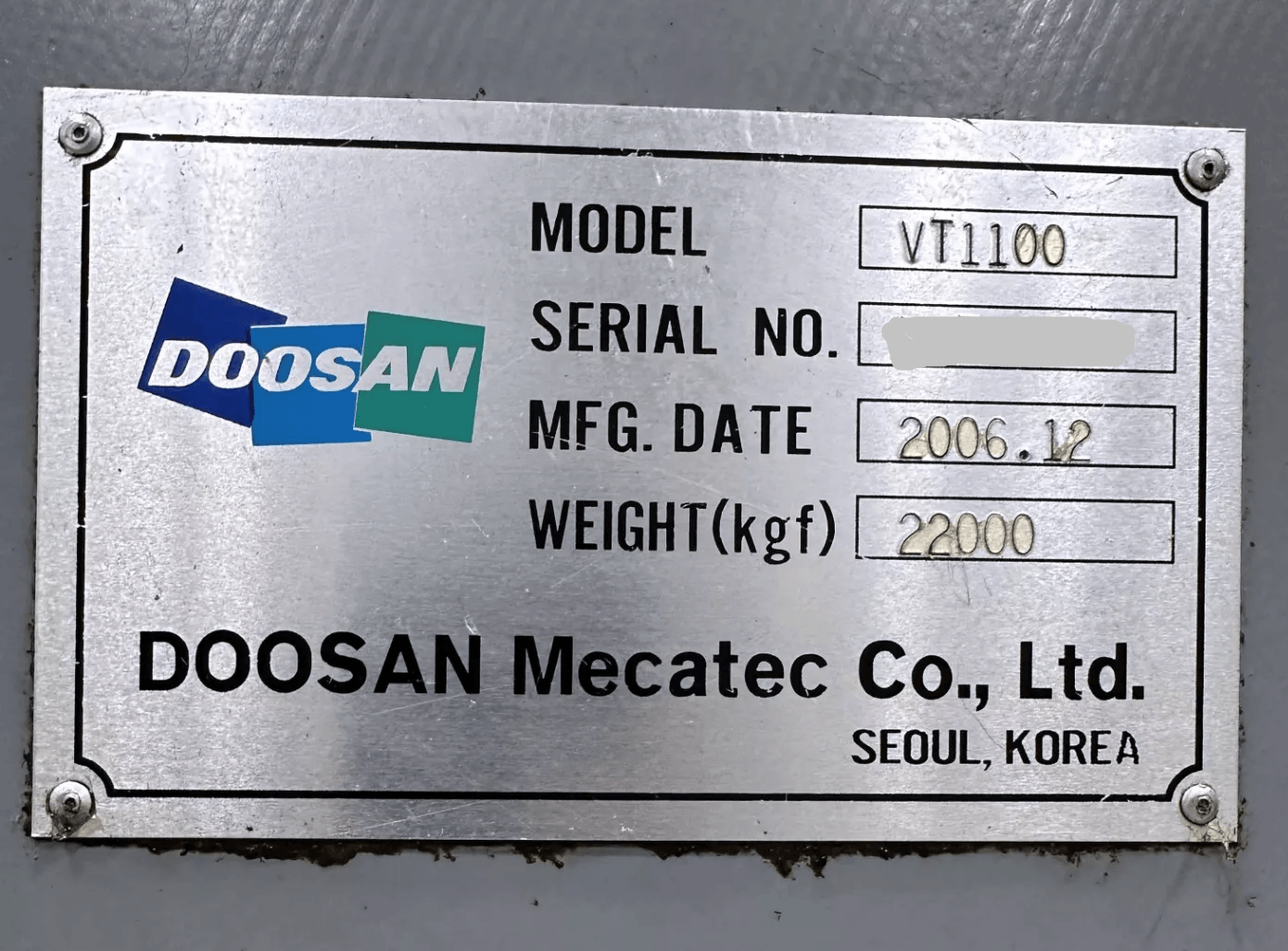

| Make: |
Doosan |
| Model No.: |
VT1100 |
| Year of Manufacture: |
2006 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Turret Lathe (VTL) |
| CNC Control: |

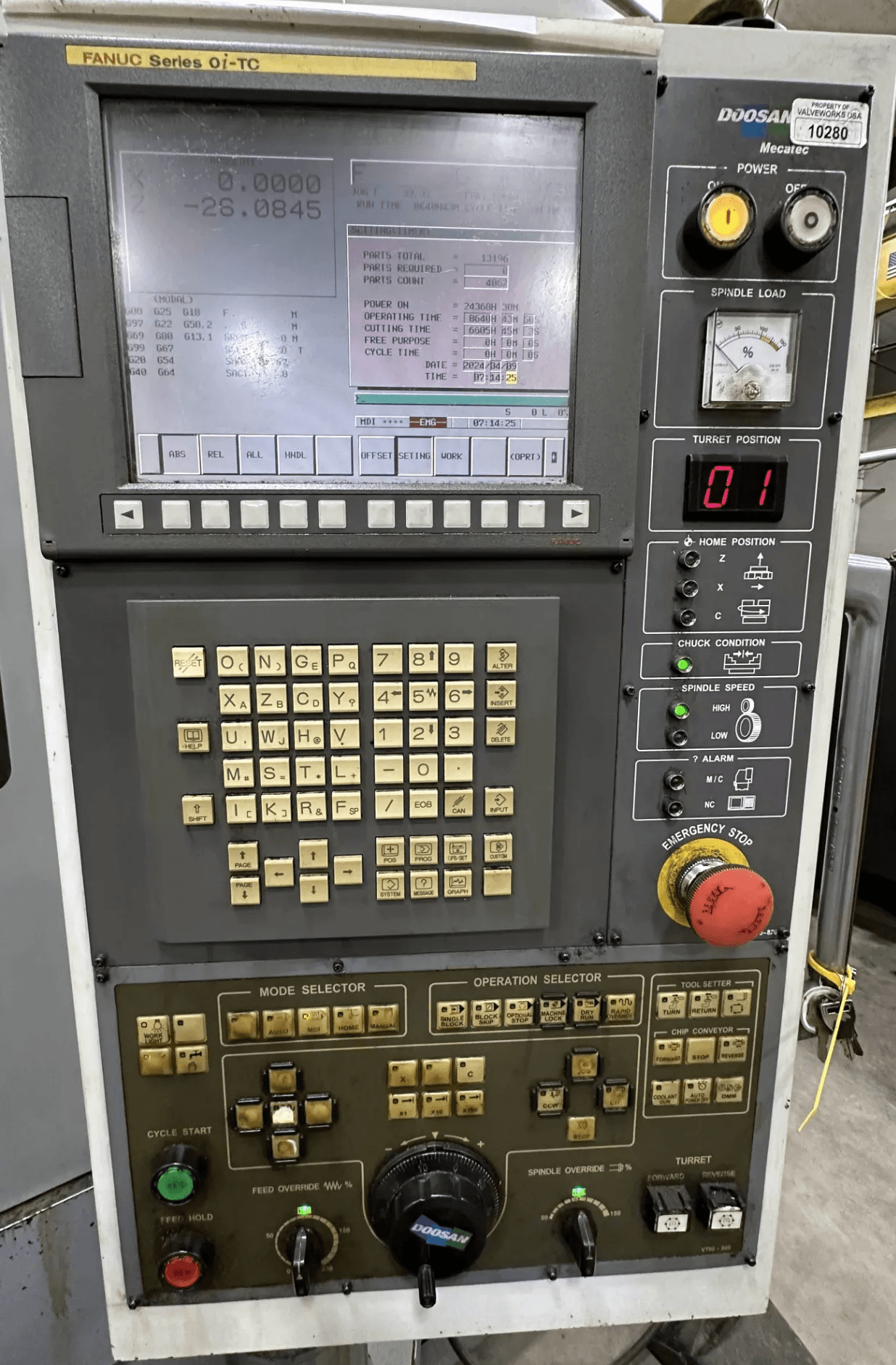

Fanuc Series 0i-TC CNC Control |
| Equipped With: |
| Fanuc CNC Control |
| 12-Station Turret |
| Hydraulic Chuck (Large Diameter) |
| Chip Conveyor |
| Coolant System |
| Manual Pulse Generator (Handwheel) |
| Auto Lubrication System |
| Heavy-Duty Cast Iron Structure |
| Capacity: |
| Maximum Turning Diameter: ~43″ – 55″ (1,100 – 1,400 mm approx.) |
| Maximum Turning Height: ~35″ (900 mm approx.) |
| Maximum Workpiece Weight: ~4,400 – 6,600 lbs (2,000 – 3,000 kg approx.) |
| Chuck Size: ~32″ – 40″ (Optional / Config Dependent) |
| Travels: |
| X-Axis Travel: ~22″ (560 mm approx.) |
| Z-Axis Travel: ~35″ (900 mm approx.) |
| Spindle: |
| Spindle Speed: Up to ~250 – 500 RPM |
| Spindle Motor: ~30 – 50 HP |
| Spindle Type: Gear Driven High Torque |
| Tooling: |
| Tool Capacity: 12 Stations |
| Turret Type: Hydraulic Indexing Turret |
| Tool Type: Heavy Duty VTL Tooling |
| Feed Rates: |
| Rapid Traverse (X/Z): ~400 – 600 IPM |
| Cutting Feedrate: Programmable |
| Electrical: |
| Voltage: 220 / 380 / 440V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| General: |
| Machine Weight: ≈48,000 lbs (≈22,000 kg) |
| Floor Space: Approx. 160″ × 140″ |
| Machine Height: ≈150″ |
| Features: |
| Heavy-duty vertical turning lathe designed for large diameter parts |
| High torque spindle ideal for roughing and heavy material removal |
| Vertical design allows stable machining of heavy workpieces |
| Fanuc control ensures reliable operation and easy programming |
| Large chuck capacity suitable for oil & gas, aerospace, and energy industries |
| Rigid box construction for vibration-free cutting |
| Excellent for flanges, rings, and large cast components |
