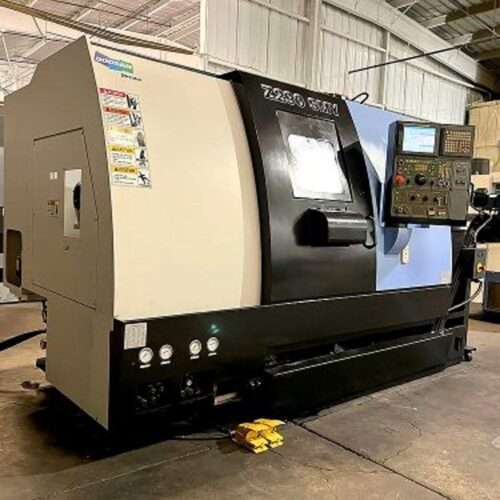

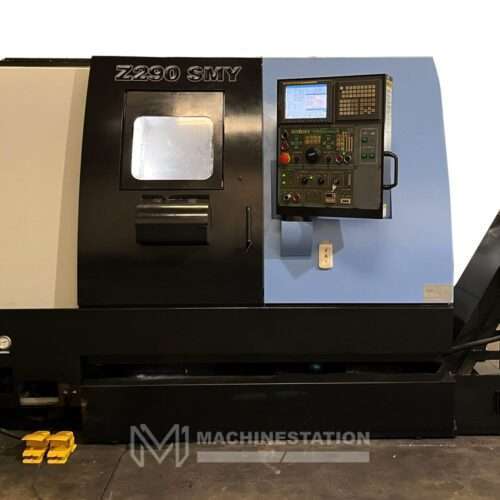

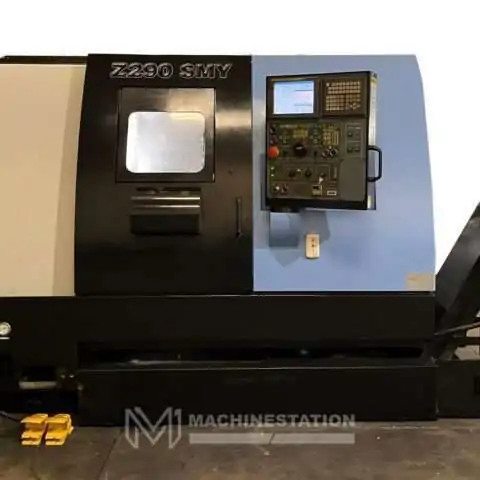

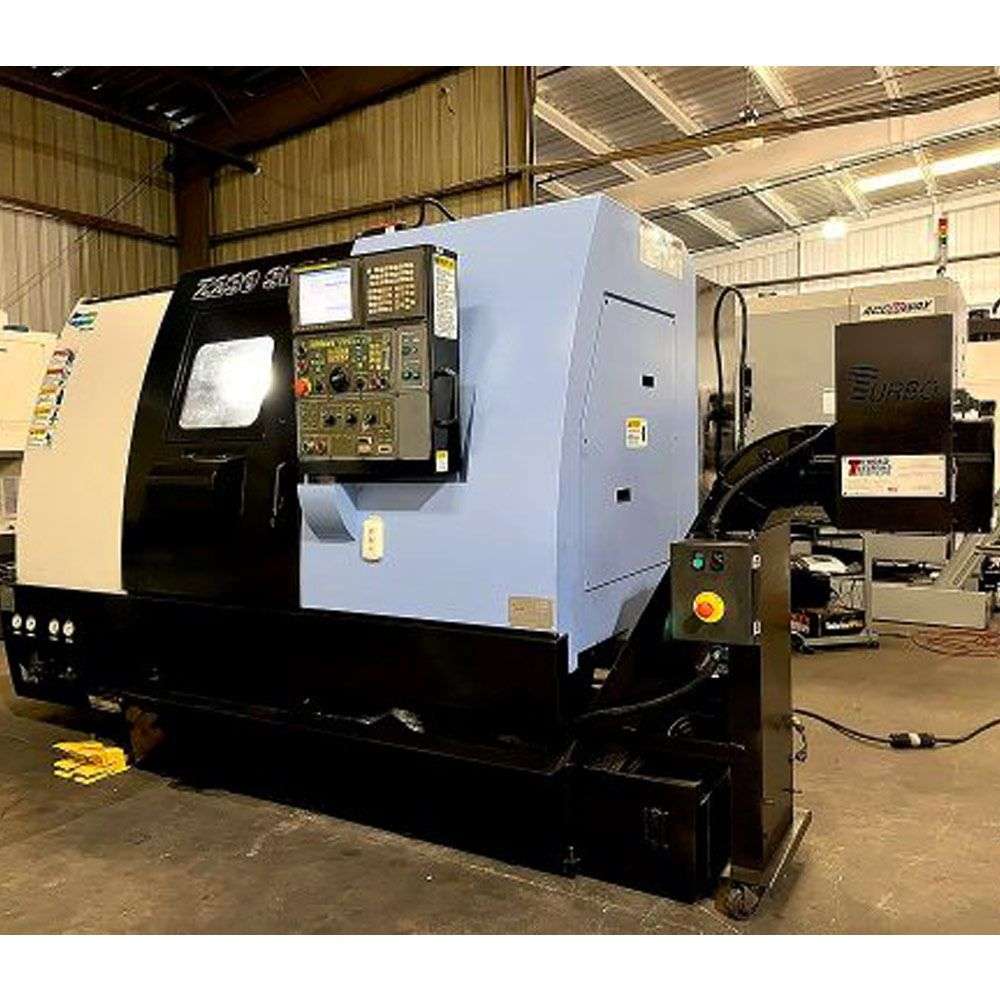

Doosan Z290SMY Multi Axis CNC Turn Mill
Out of stock
Used Doosan Z290SMY Multi Axis CNC Turn Mill for Sale. This Doosan Z290SMY has minimal cutting hours and is in good condition.
| Location: | Lake Elsinore, CA |
| SKU: | 105374 |
| Make/Model: | Doosan Z290SMY |
| Condition: | Used-Good |
| Video: |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | Z290SMY |
| Year: | 2006 |
| Condition: | Used-Good |
| Cutting Hours: | 2172 |
| Equipped With: |
|---|

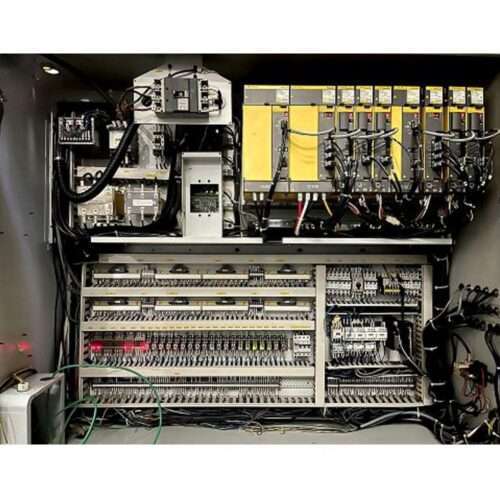

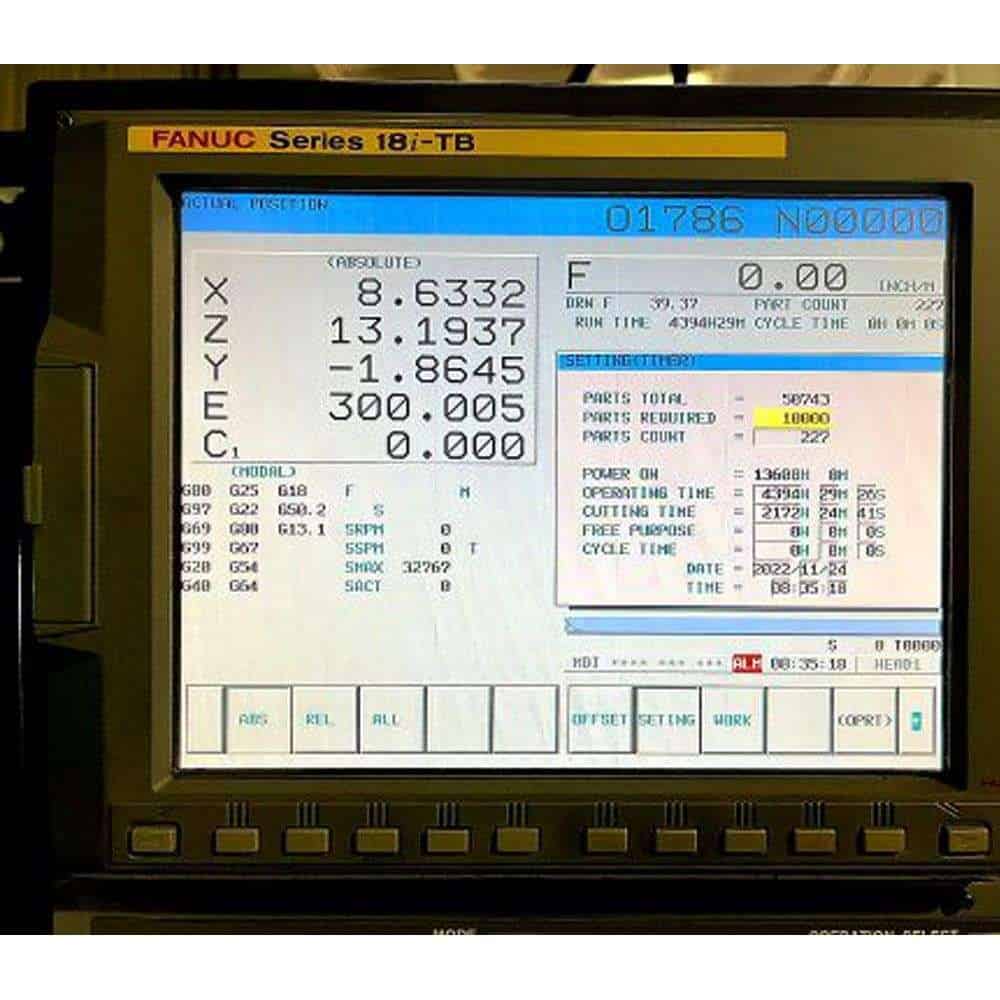

| Fanuc 18i-TB Series Multi Axis CNC Control |

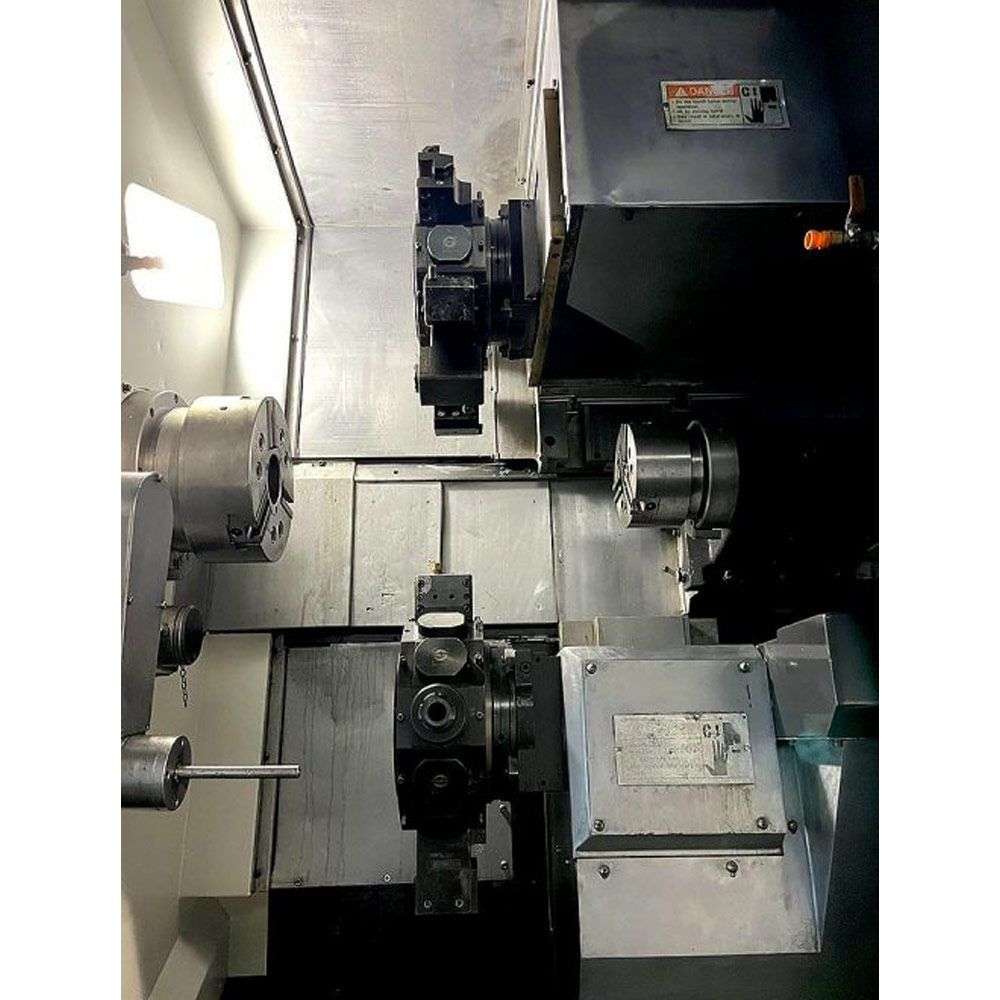

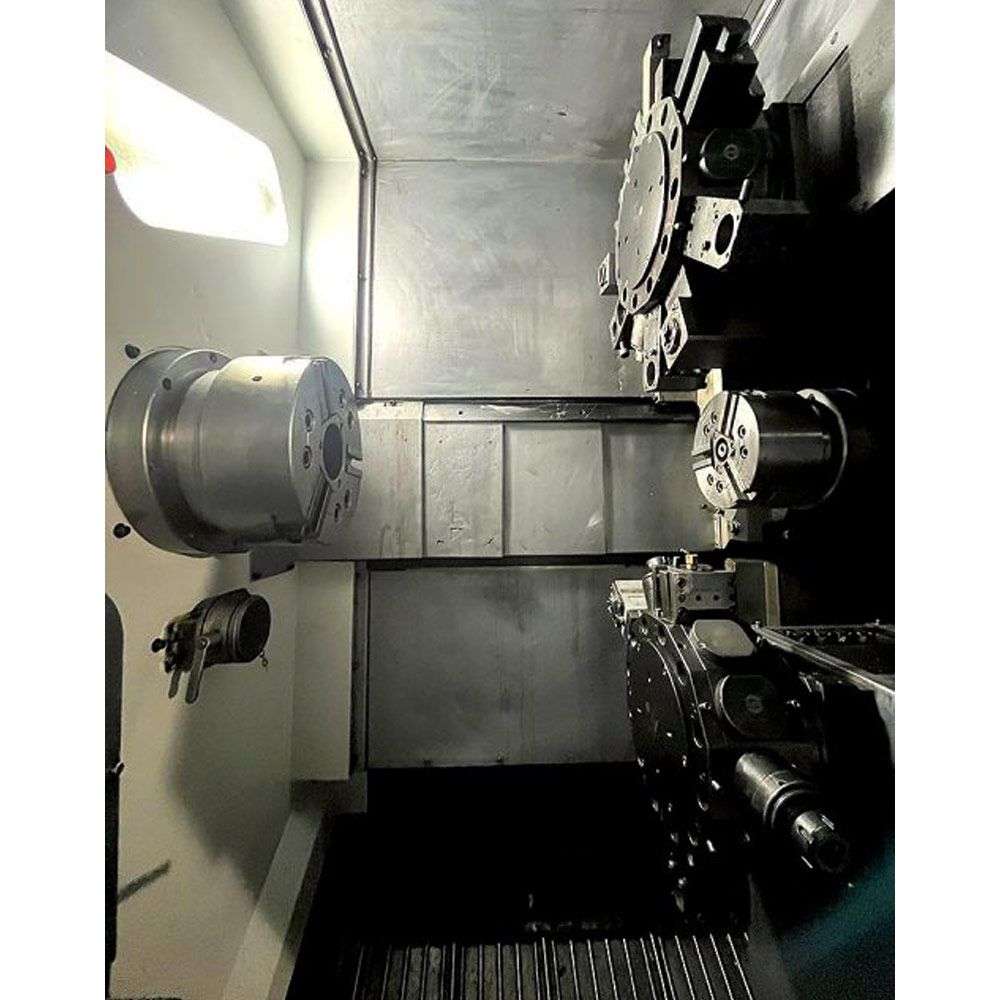

| Twin Turrets with Live Tools |
| Radial and Axial Live Tooling on Both Turrets |
| Servo Controlled Full C-Axis on Both Spindles |
| Y Axis Capability on Upper Turret |

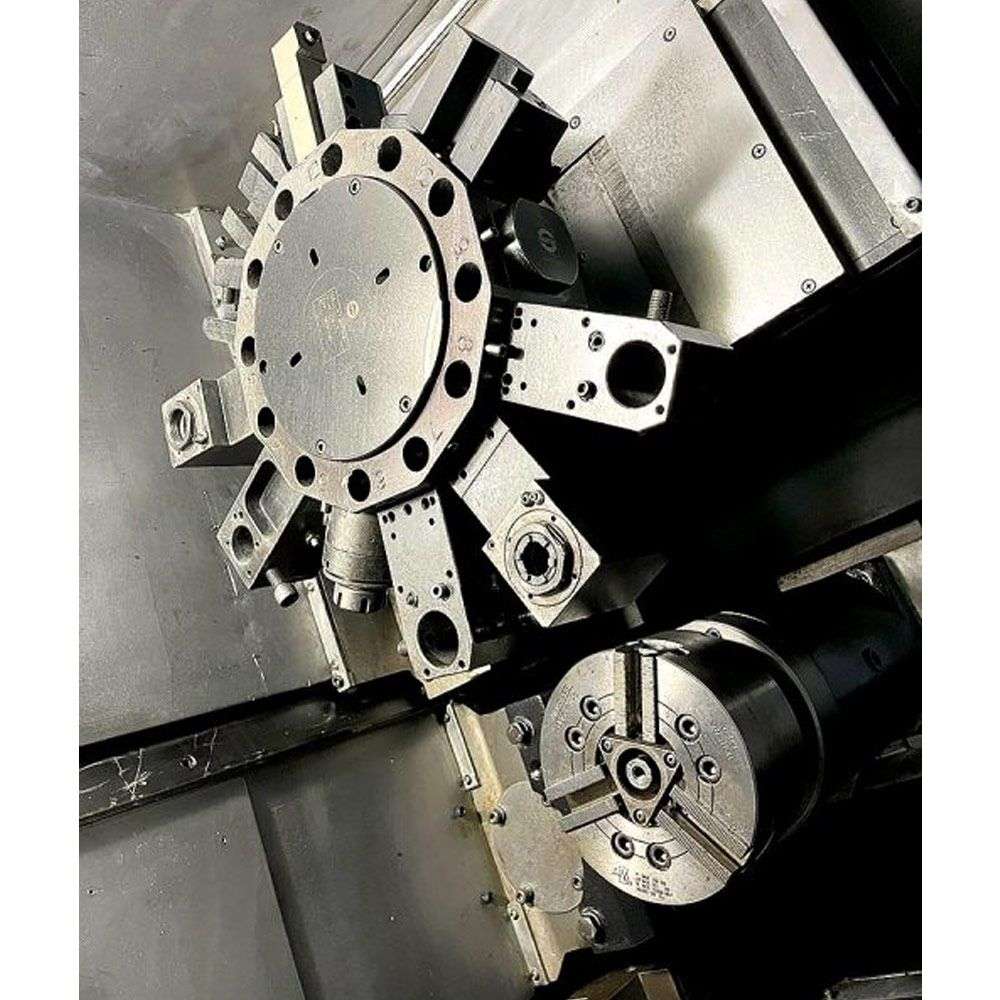

| 24 Station Upper Turret |
| 24 Station Lower Turret |
| Both Spindle Synchronization |

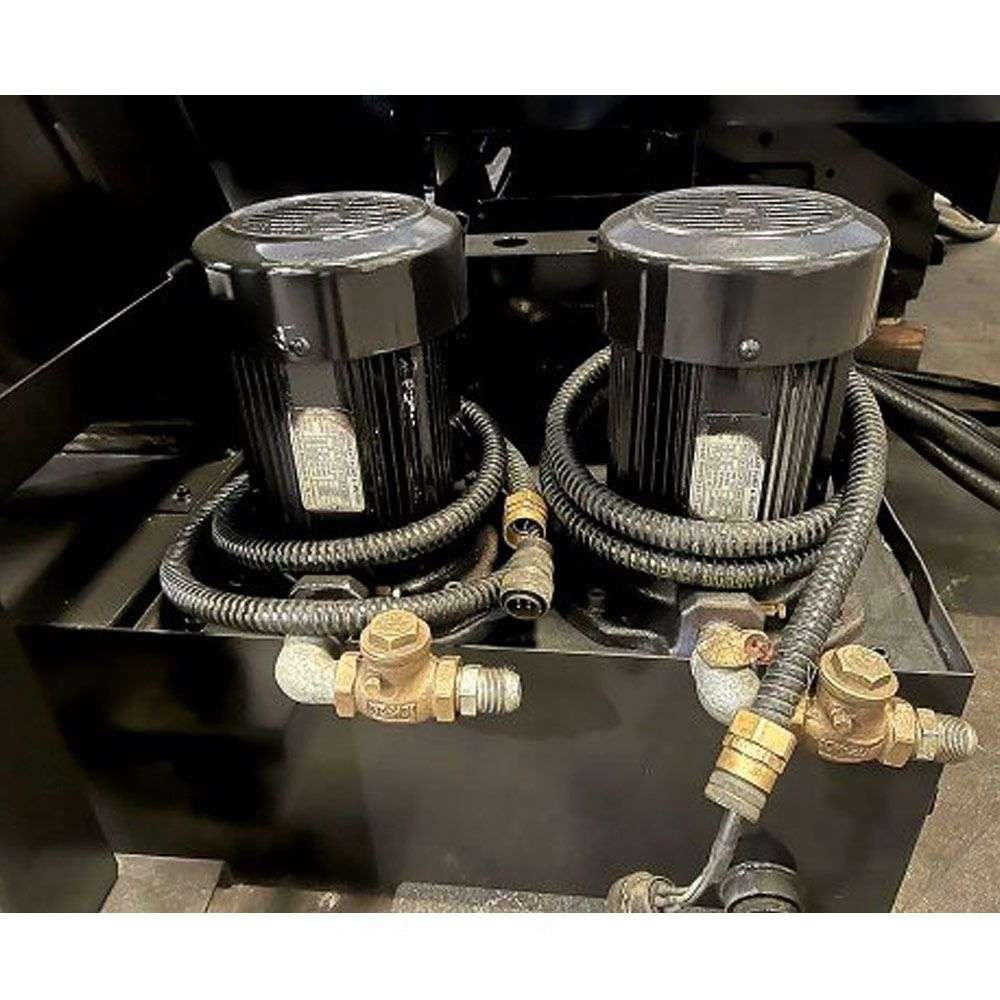

| High Pressure Coolant System |
| Foot Switches |

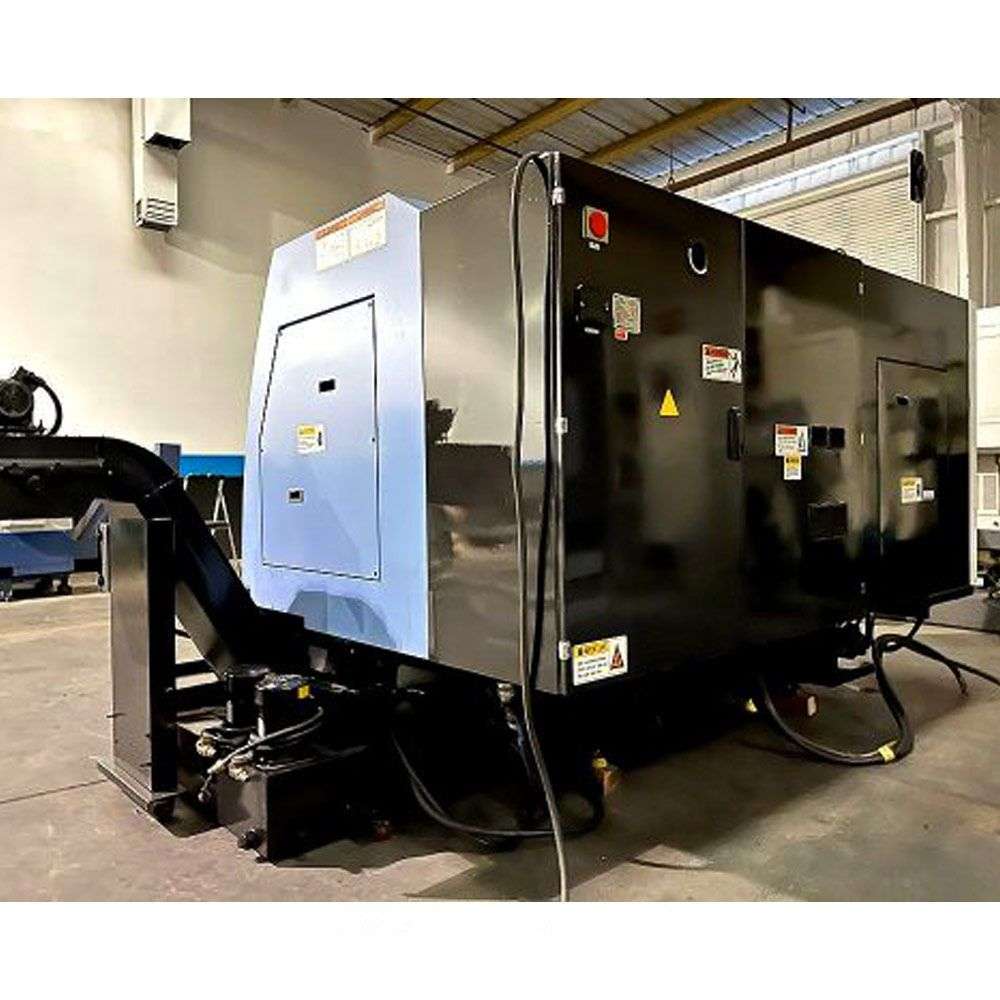

| Chip Conveyor |
| Coolant Tank |
| Books and Manuals |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret : 11.41″ |
| Max Turning Diameter Lower Turret : 11.41″ |
| Max Swing : 18.11″ |
| Max Turning Length: 22.04″ |
| Max Bar Capacity Main Spindle : 2.56″ |
| Max Bar Capacity Sub Spindle : 1.37″ |
| Distance Between Spindles: 23.62″ |
| Travel: |
|---|
| X1 Axis Travel Upper Turret: 6.49″ |
| X2 Axis Travel Lower Turret : 6.49″ |
| Z1 Axis Travel Upper : 23.62″ |
| Z2 Axis Travel Lower : 23.62″ |
| Y Axis Travel Upper Turret: 3.14″ (+/-1.57″) |
| B Axis Travel: 22.44″ (Sub Spindle) |
| C Axis: 360° (0.001°) Both Spindle |
| X Axis Rapid Traverse: 945 IPM |
| Y Axis Rapid Traverse: 295 IPM |
| Z Axis Rapid Traverse: 1181 IPM |
| B Axis Rapid Traverse: 1181 IPM |
| Spindle: |
|---|
| Taper Size: 40 Big Plus |
| Sub Spindle Bore: 1.89″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 4000 RPM |
| Sub Spindle Speed: 4500 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 7.5 HP |
| Turret: |
|---|
| Upper Turret Capacity: 24 Stations |
| Lower Turret Capacity: 24 Stations |
| Live Milling Speed: 3000 RPM |
| Live Milling Motor: 5.5 HP |
| General: |
|---|

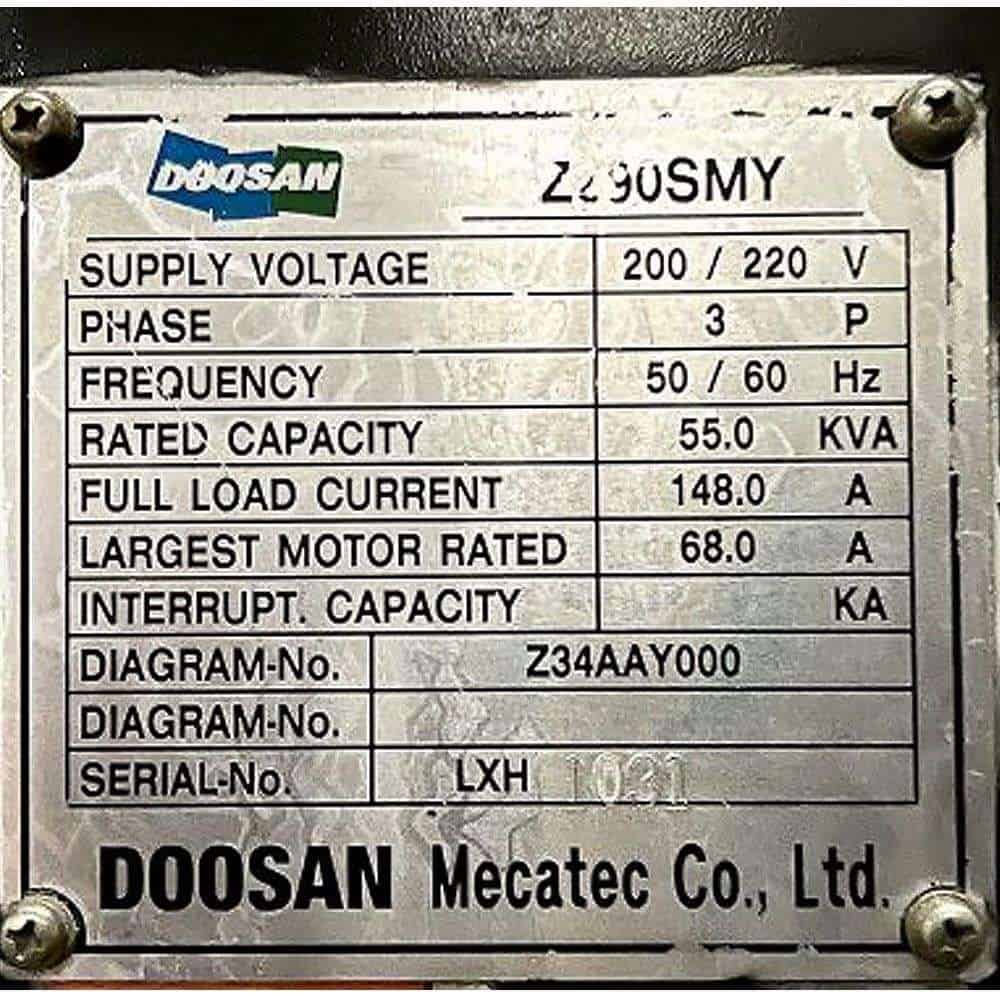

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 55 kva |
| Machine Dimensions: 122″ x 91″ x 88″ High |
| Weight: 12,125 lbs |
| Model | Z290SMY |
|---|---|
| Make |
