*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

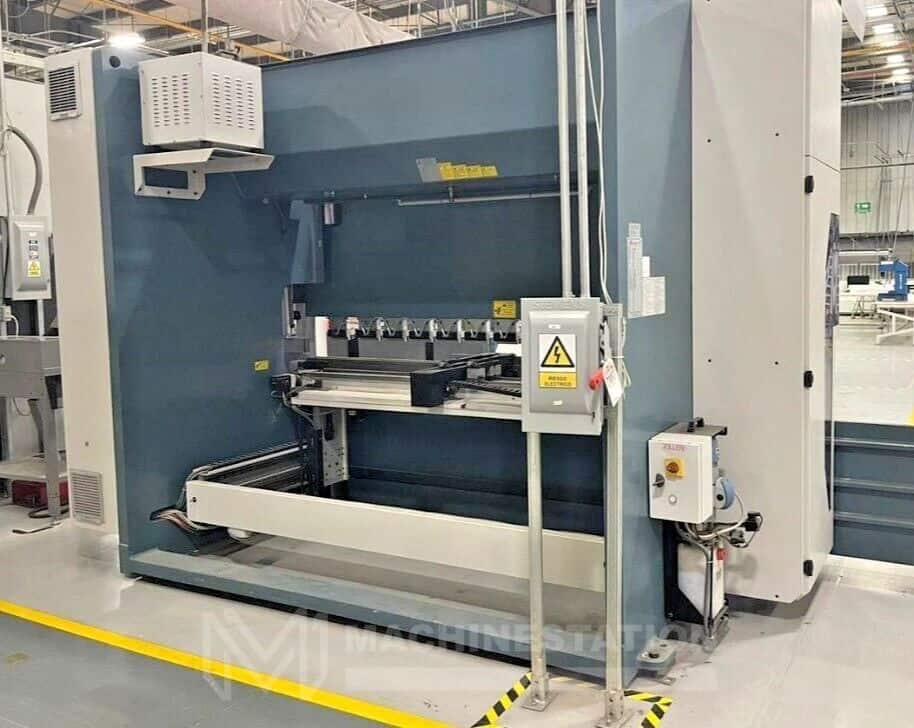

| SKU: | 115082 |

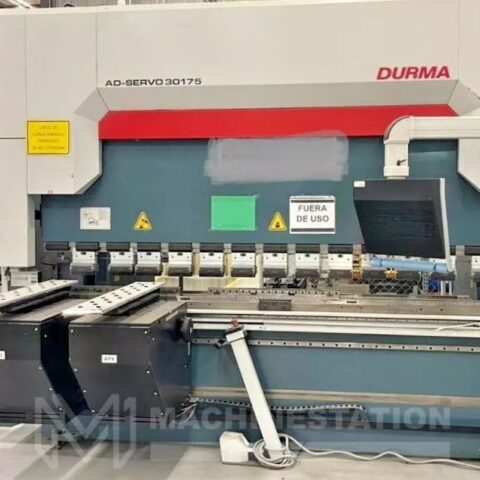

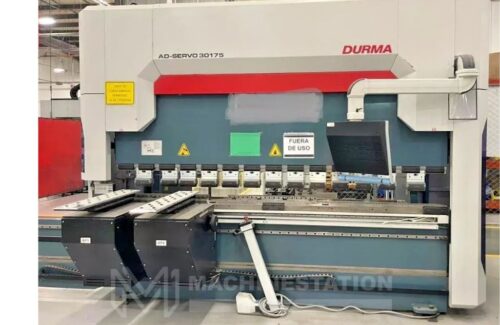

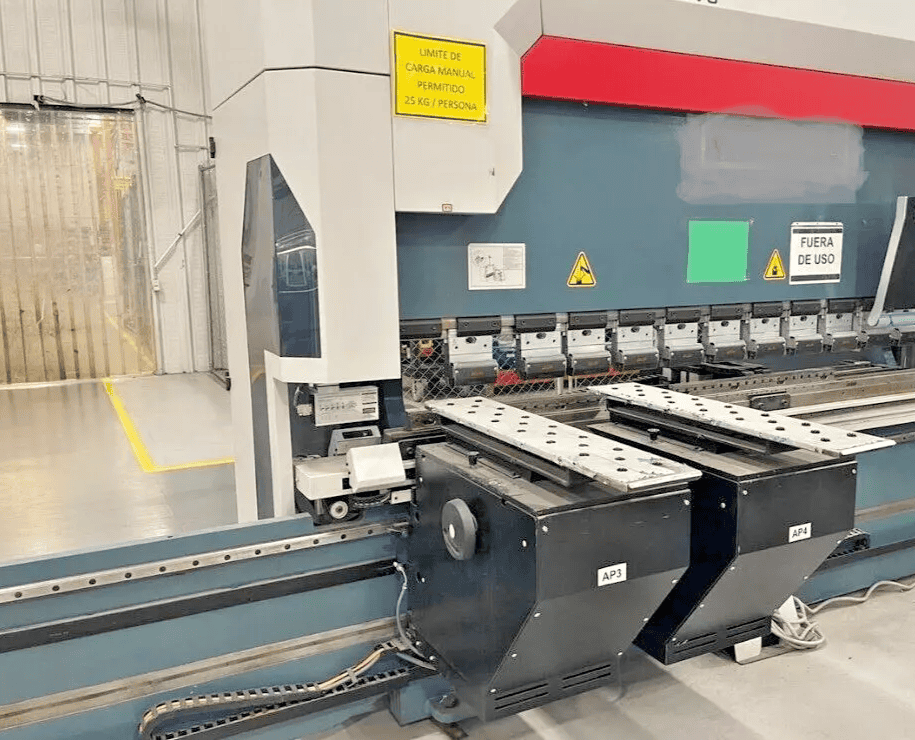

| Make: | Durmazlar |
| Model: | ADS 30175 |
| Condition: | Used – Excellent (As Like New) |
| Features: |
|---|

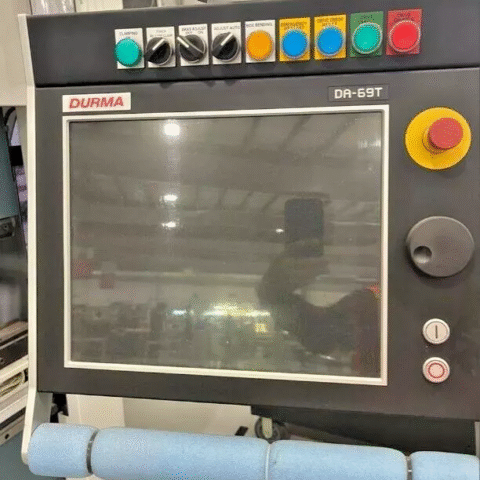

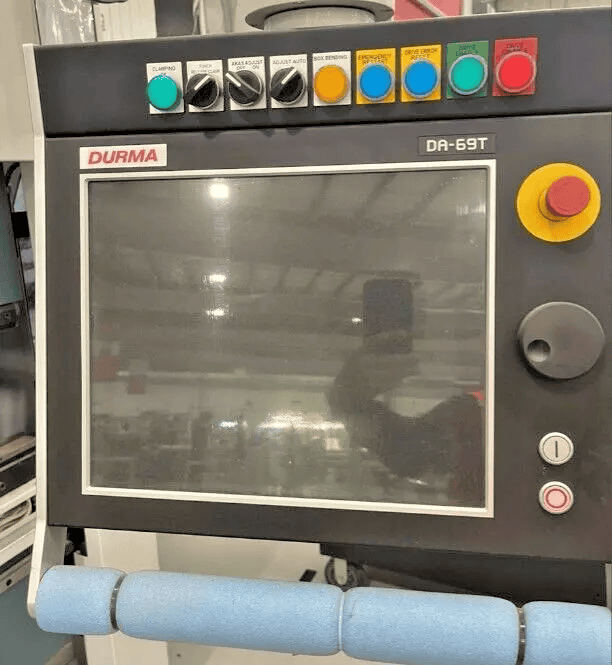

| Durma DA-69T CNC Control |
| 3D and 2D Graphical Touch Screen Programming Mode |

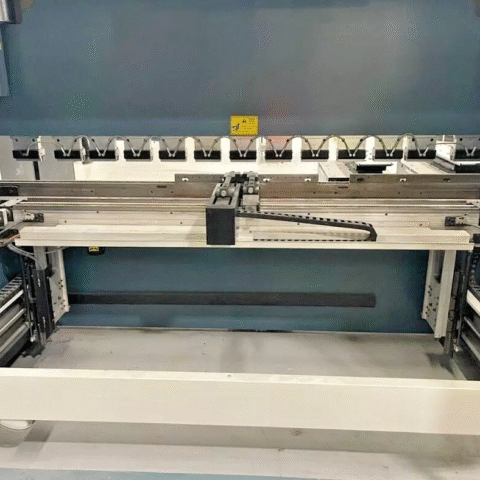

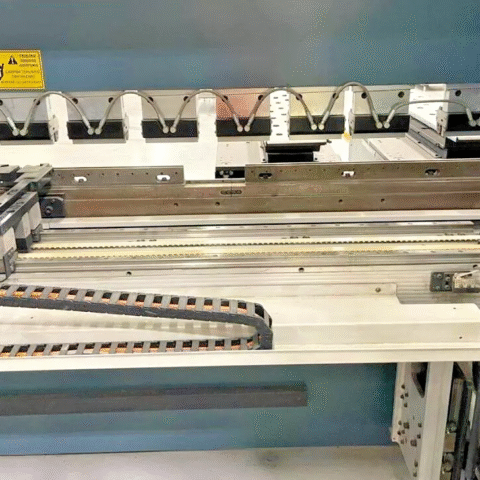

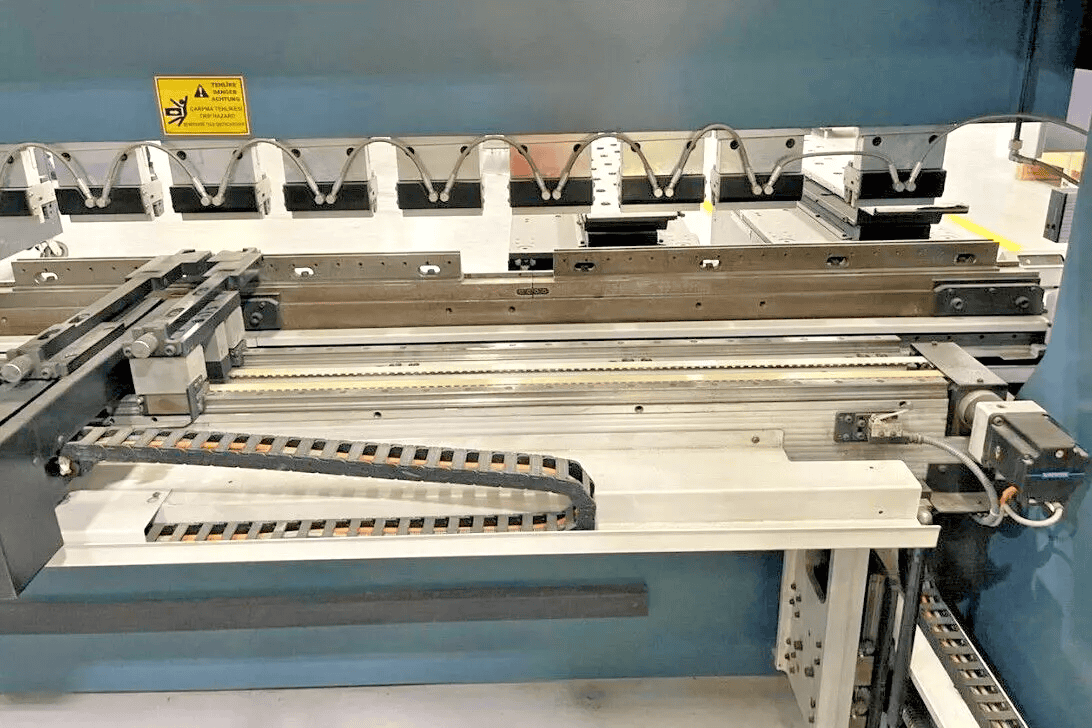

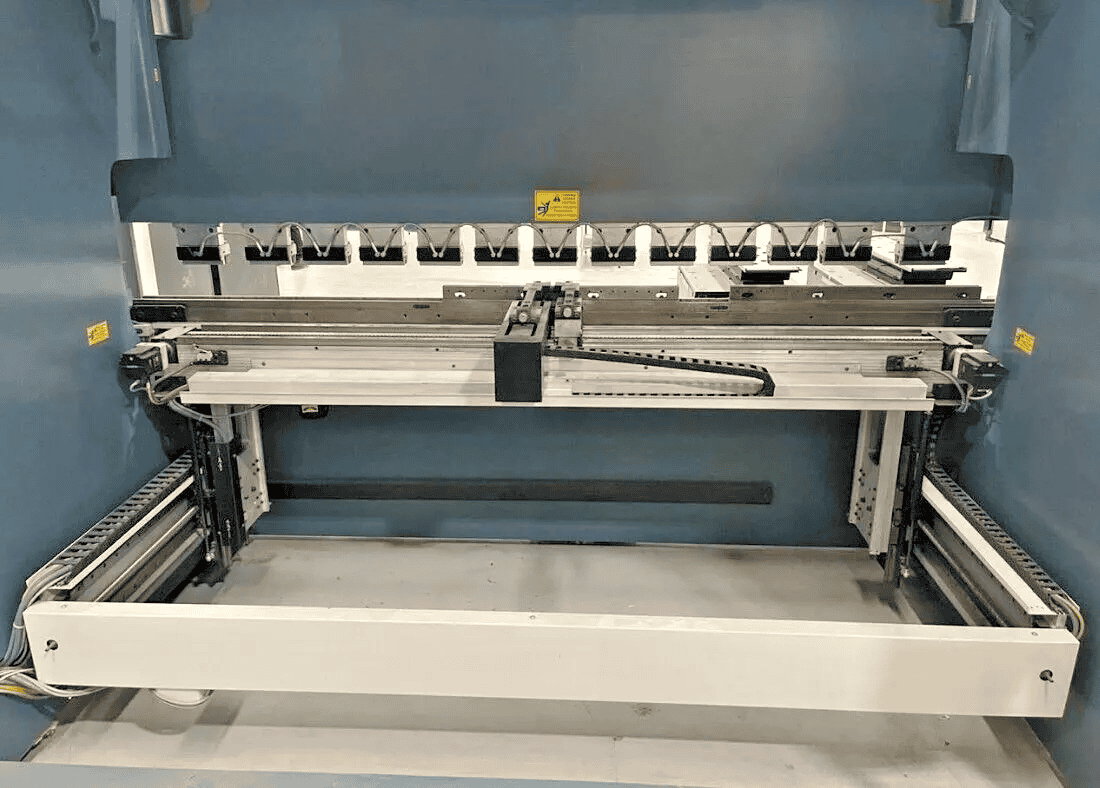

| (5) Axis Back Gauge |

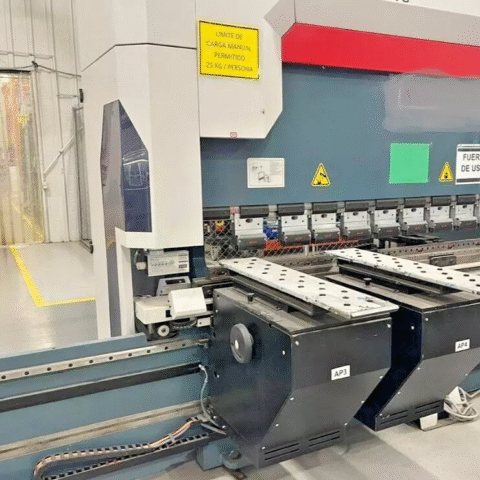

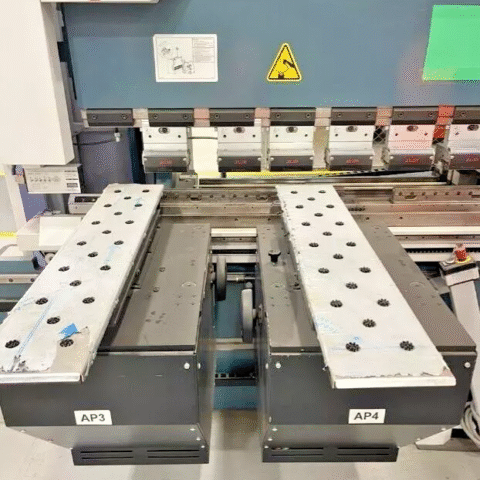

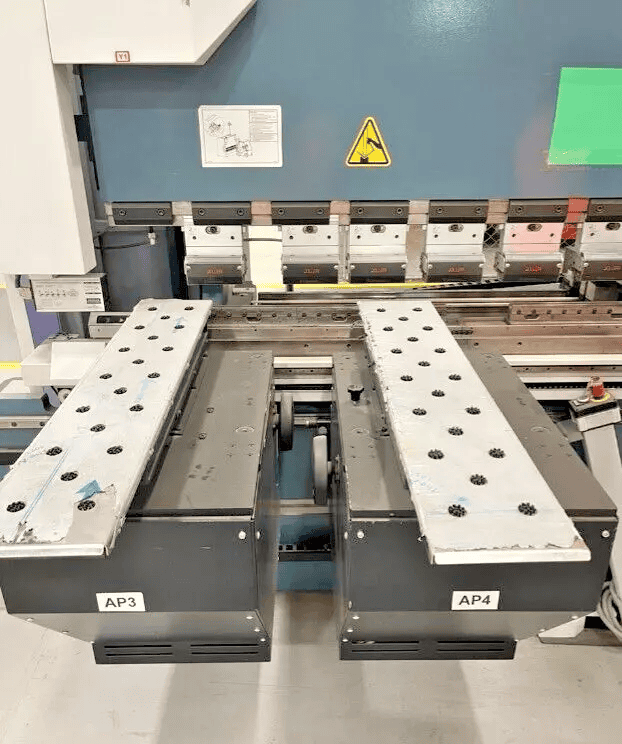

| Linear Guide Front Sheet Support |
| Crowing System |
| Laser Guarding System |

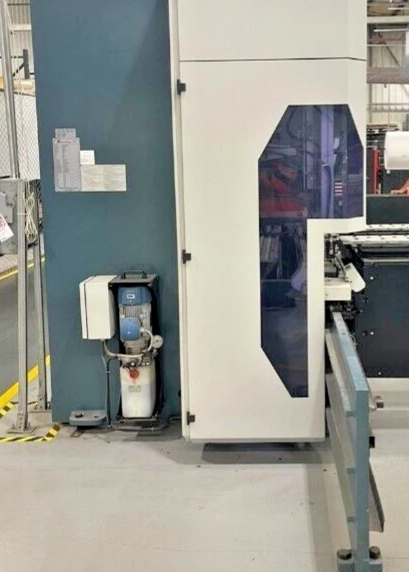

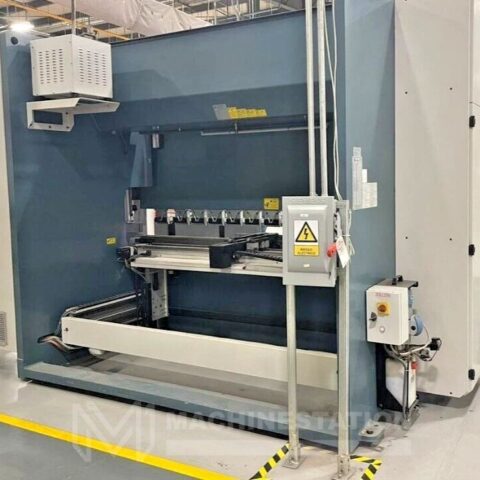

| Side & Rear Safety Guards |
| Pedestal Control with Electric Foot Pedal |
| Specifications: |
|---|

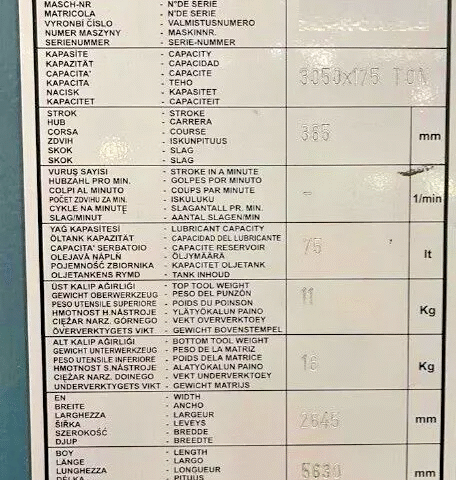

| Capacity: 175 Tons |
| Maximum Bending Length: 120″ |
| Inside Distance Between Side Frames: 102.3″ |
| Stroke Length: 10.43″ |
| Daylight: 20.86″ |
| Throat Depth: 17.7″ |
| Rapid Speed Y-Axis: 7.9” Per Second |
| Working Speed Y-Axis: 0.5” Per Second |
| Retraction Speed Y-Axis: 7.9” Per Second |
| Back Guage Speed X-Axis: 19.68” Per Second |
| Back Guage Speed R-Axis: 13.77” Per Second |
| Working Speed Z-Axis: 39.4” Per Second |
| Working Distance Z-Axis: 78.3” |
| Table Height: 35.43” |
| Table Width: 4.09” |
| General: |
|---|

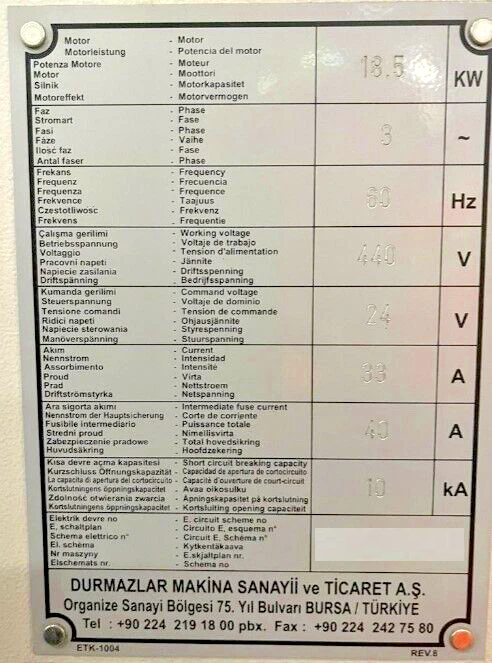

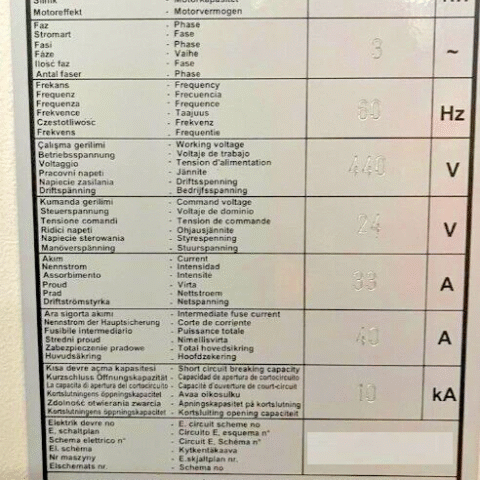

| Power Source: 440 V, Three Phase, 60 Hz |

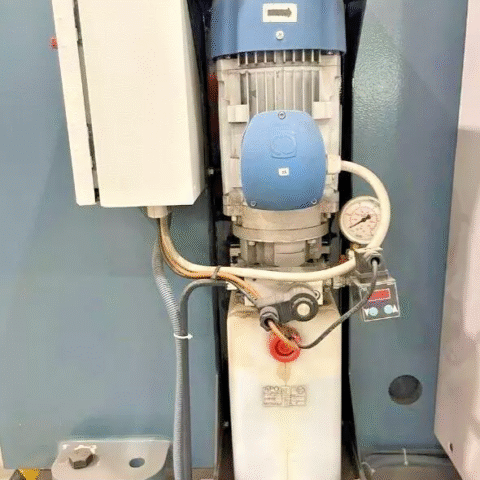

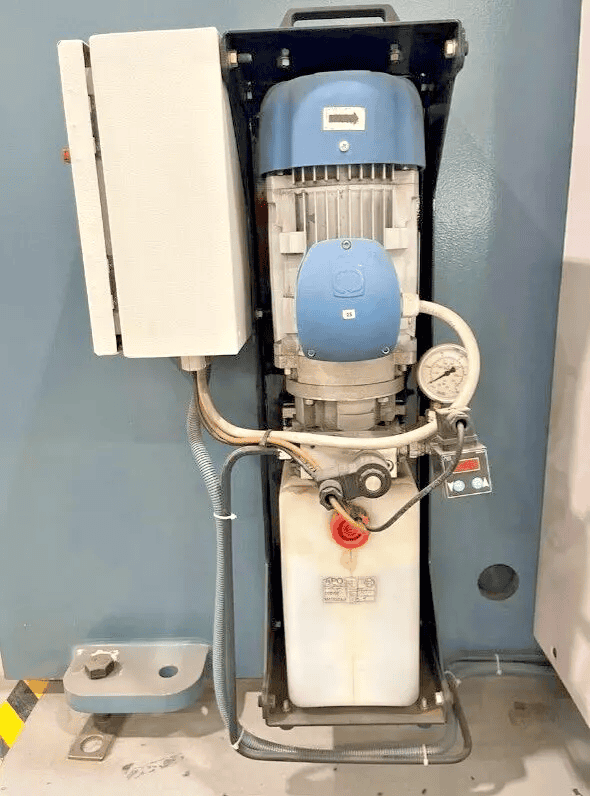

| Motor: 18.5 Kw |
| Overall Dimensions: 221″ X 101″ x 108″ High Approx. |
| Weight : 26,235 lbs Approx. |
