*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112582 |
| Make: | Amada |
| Model: | RG50 |
| Condition: | Used – Good |
| Features: |
|---|

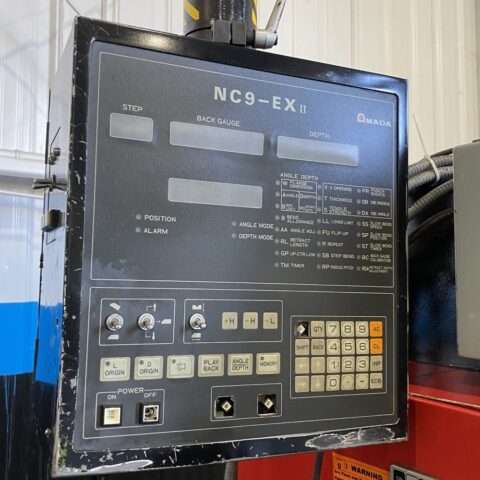

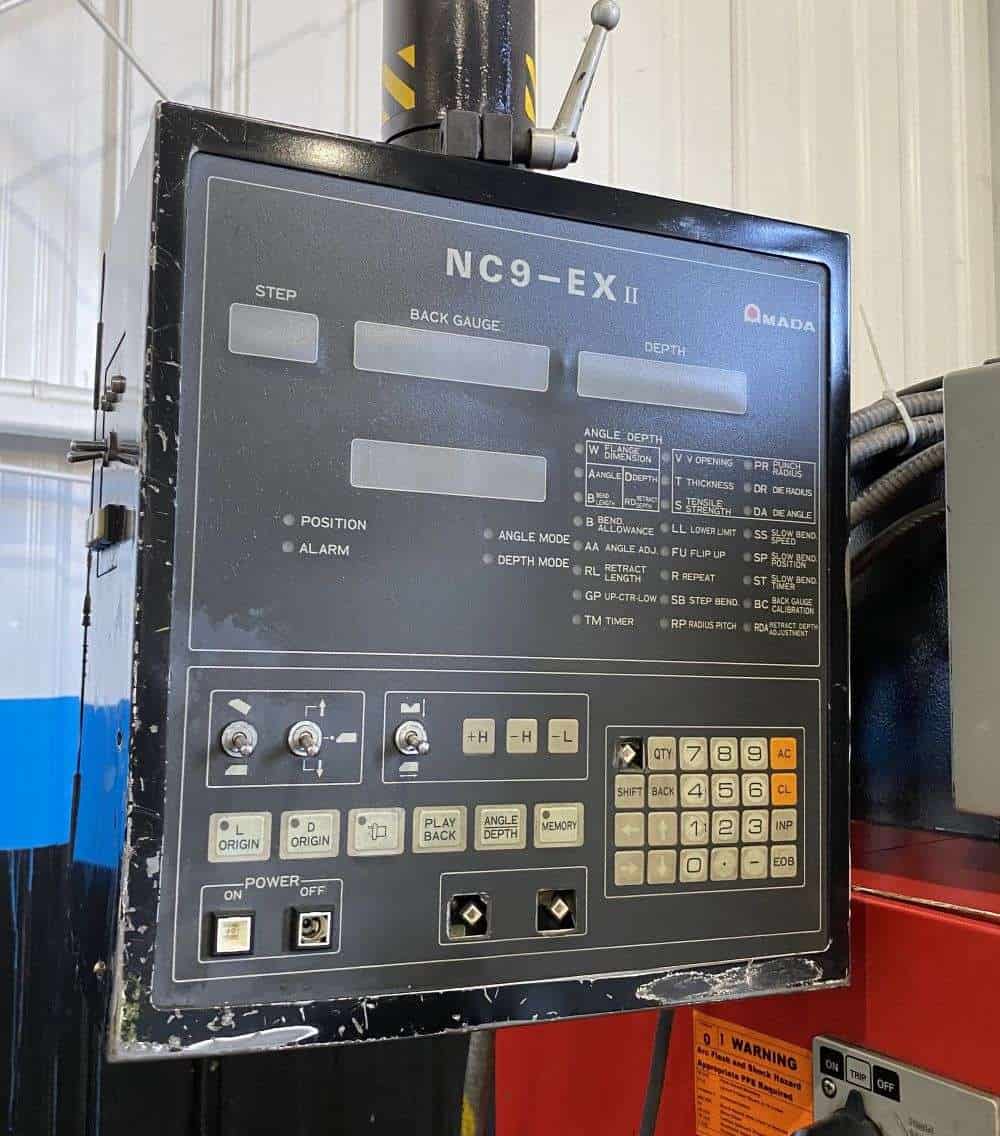

| NC9-EXII CNC Control |
| Back Gauge |
| Remote Handwheel Depth Control |

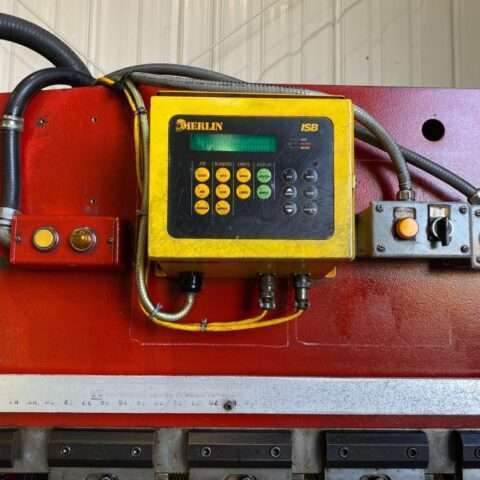

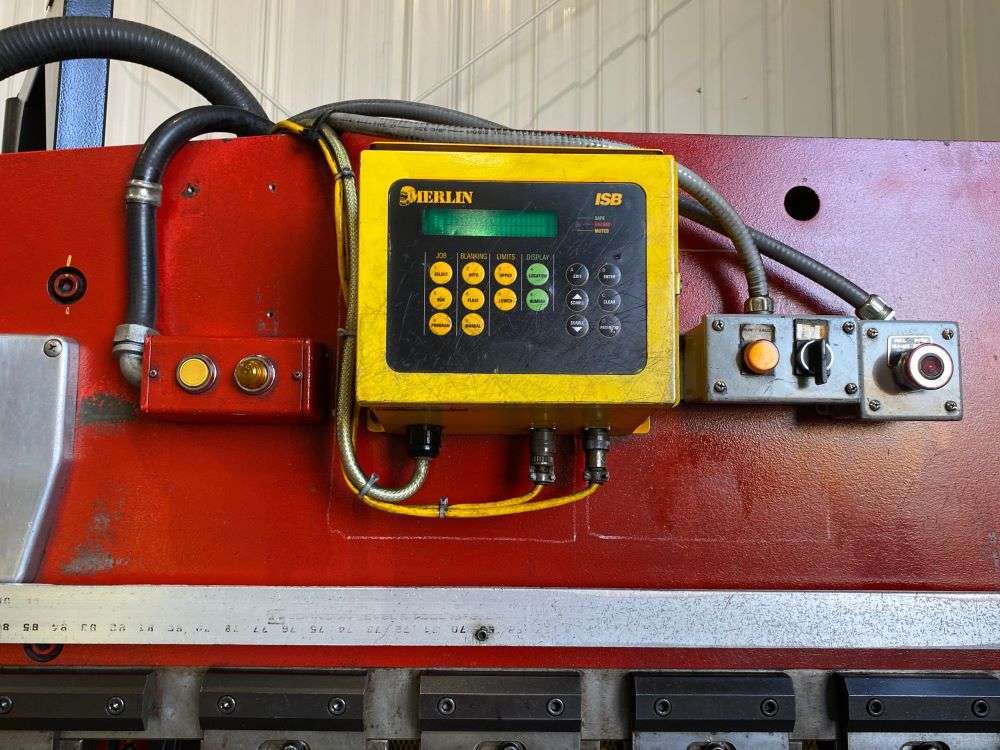

| ISB Laser Safety System |
| Pneumatic Fingers |
| Foot Treadle |
| Pressure Gauge |

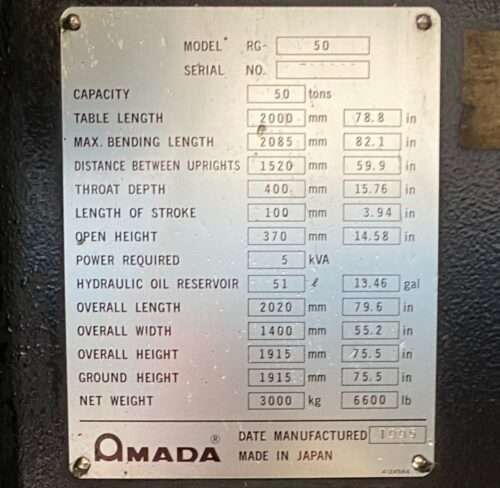

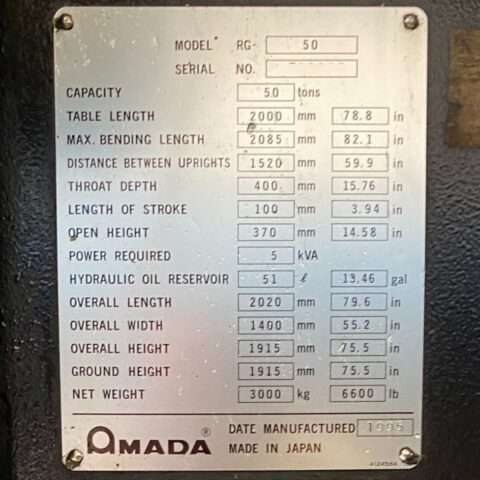

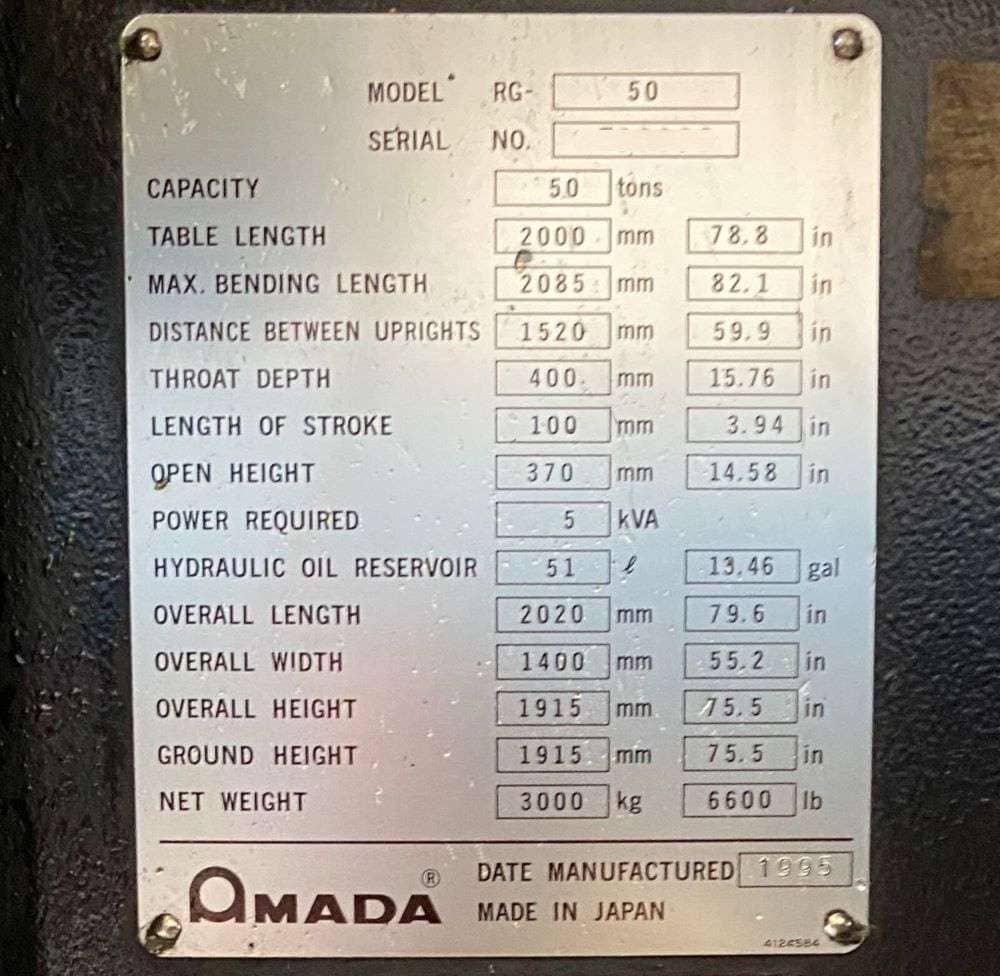

| Specifications: |
|---|
| Capacity: 50 Ton |
| Table Length : 78.8″ |
| Maximum Bending Length: 82.1″ |
| Distance Between Uprights: 59.9″ |
| Length of Stroke: 3.94″ |
| Open Height: 14.58″ |
| Shut Height: 10.67″ |
| Throat Depth: 15.76″ |
| Approach Speed: 2.04” Per Second |
| Bending Speed: 0.39” Per Second |
| Return Speed: 2.32” Per Second |
| General: |
|---|

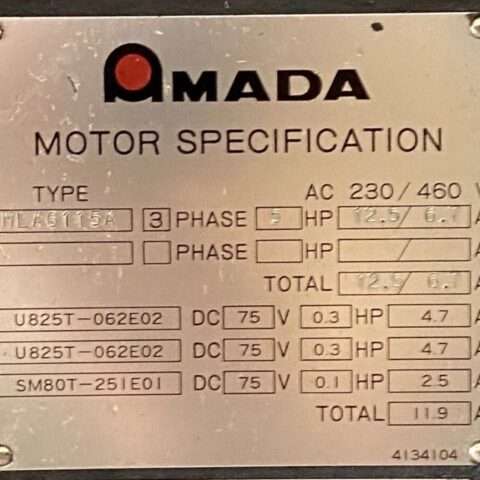

| Power Source: AC 460 V, Three Phase, 60 Hz |
| Power Requirement: 5 KVA |
| Overall Dimensions: 79.6″ X 55.2″ x 75.5″ High |
| Weight : 6,600 lbs Approx. |

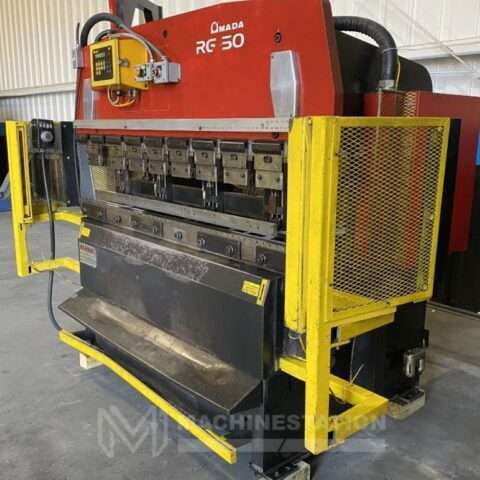

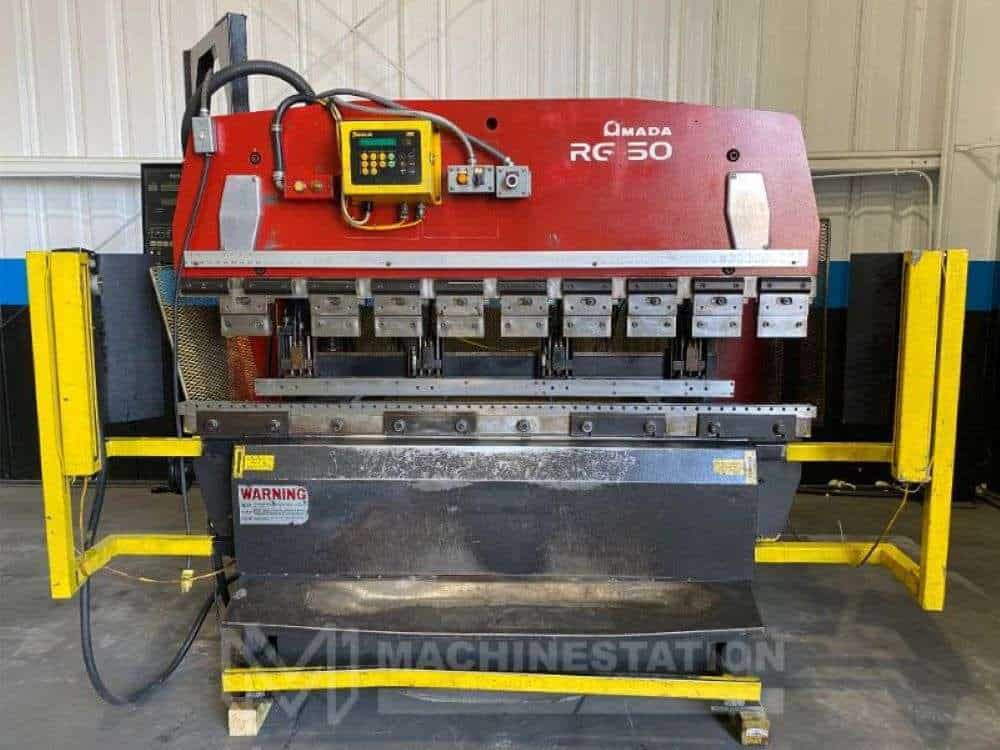

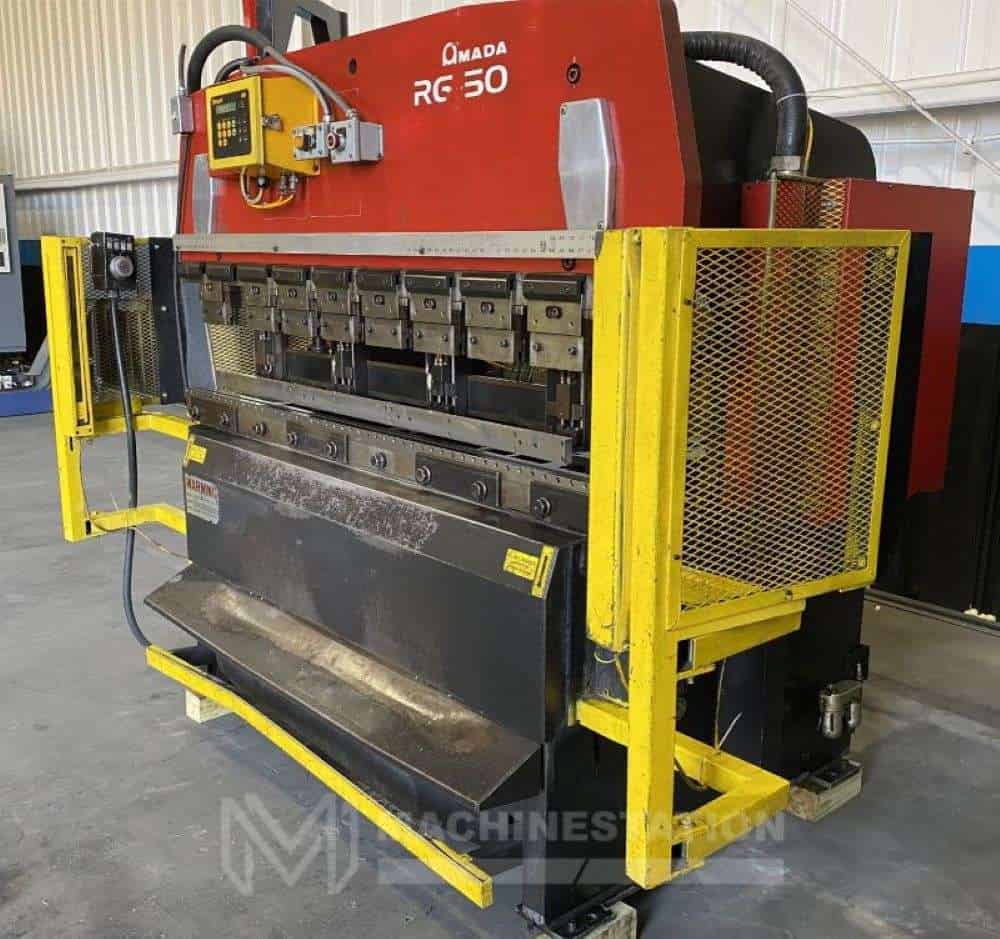

If you’re in search of a press break machine then this is one of the best products out there for you. Amada RG-50 is a press brake machine with a capacity of 50 tons, a bending length of 82.1 inches, and a table length of 78.8 inches. The distance between the uprights of the machine is 59.9 inches. Amada Rg50 also has an approach speed of 106 inches per minute, a bending speed of 2 to 19 inches per minute, and a return speed of 122 inches per minute. The machine’s weight is around 6,600 lbs. Amada RG50 also offers you a back gauge feature that helps in the accurate positioning of the workpiece which further helps in consistent bending results. The NC9-EXII CNC Control system of this press brake machine allows you good control over the machining process which helps in getting more accurate product results. The foot treadle feature of the machine helps you with hands free operation, which helps in improving the overall efficiency during the bending process. The pressure gauge feature of the Amada RG50 helps in monitoring hydraulic pressure and ensuring optimal performance of the machine and good safety levels too.
