*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

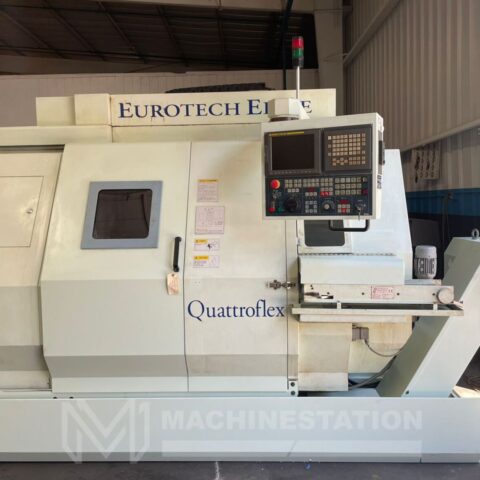

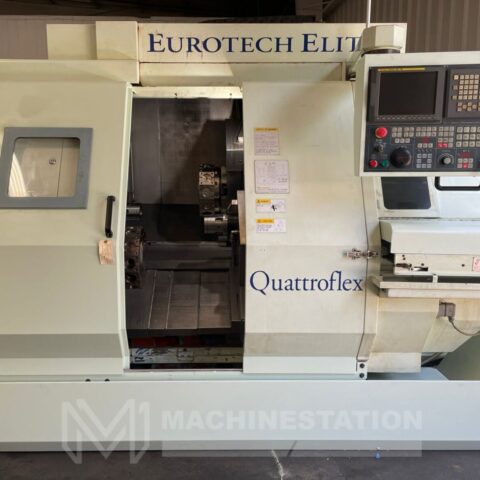

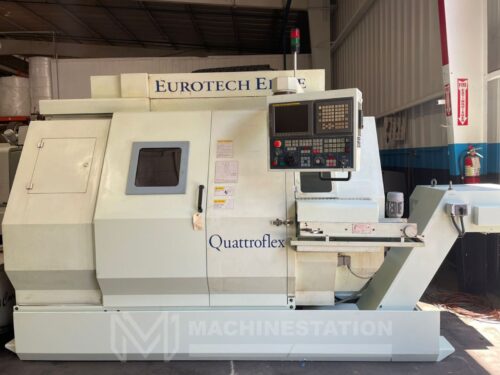

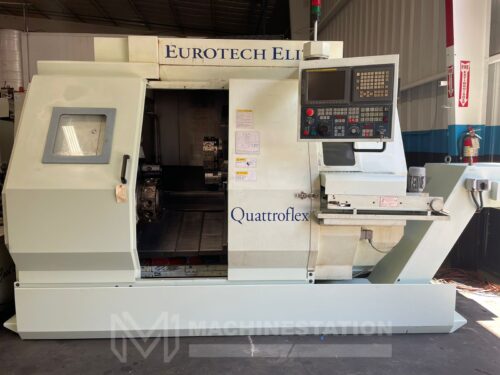

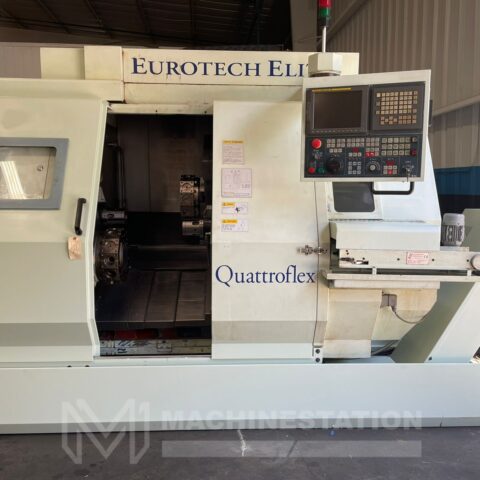

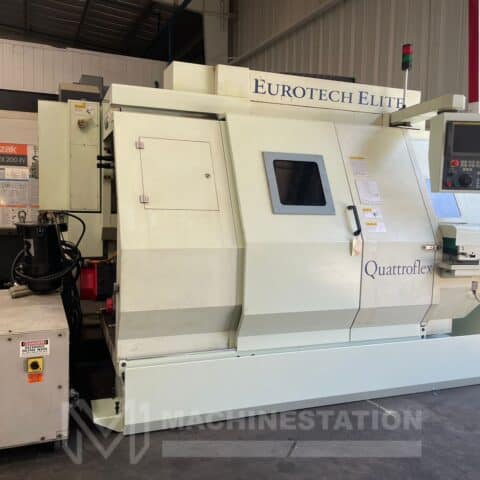

| Make: | Eurotech |

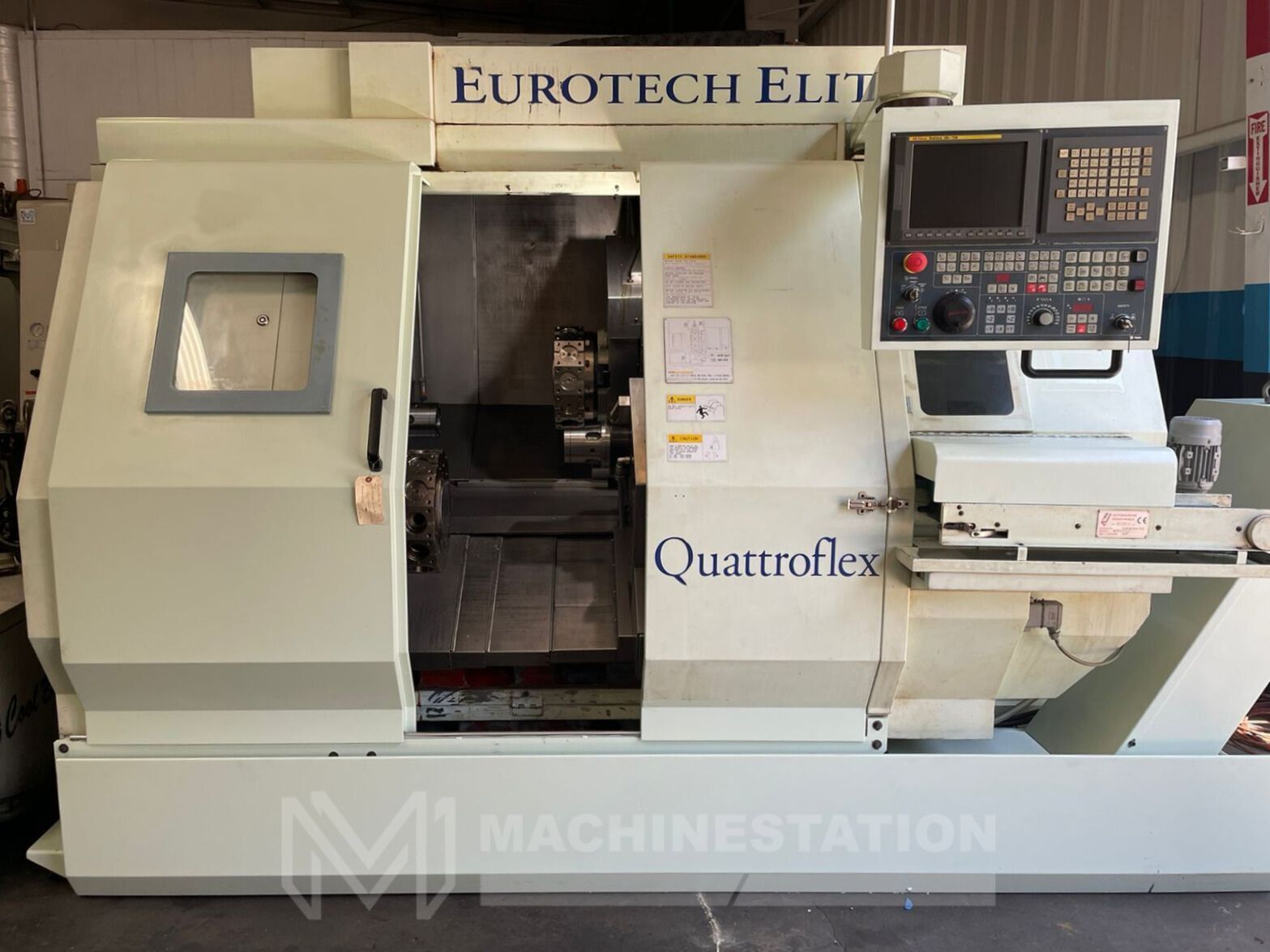

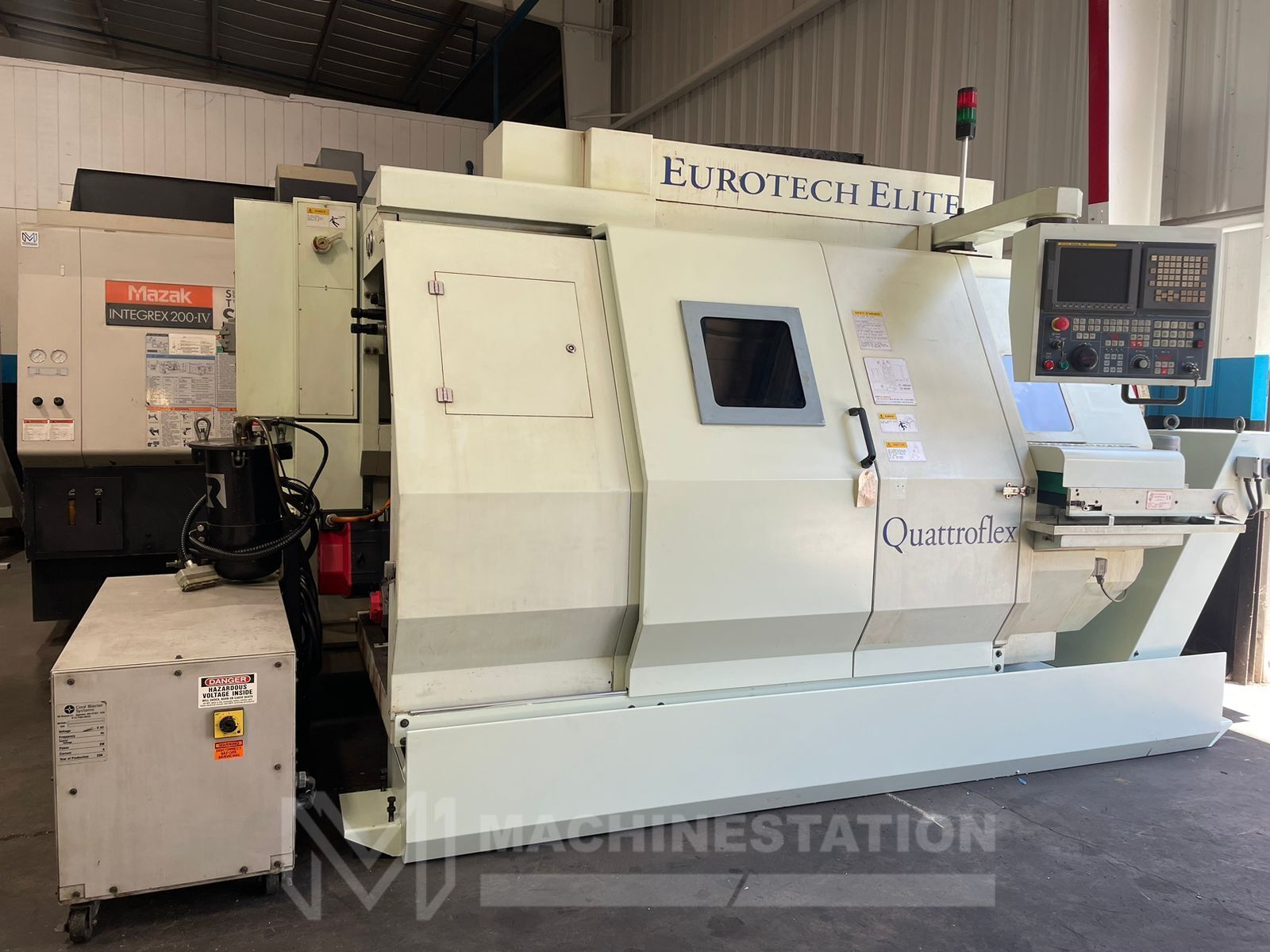

| Model: | Elite Quattroflex 420SLLY |

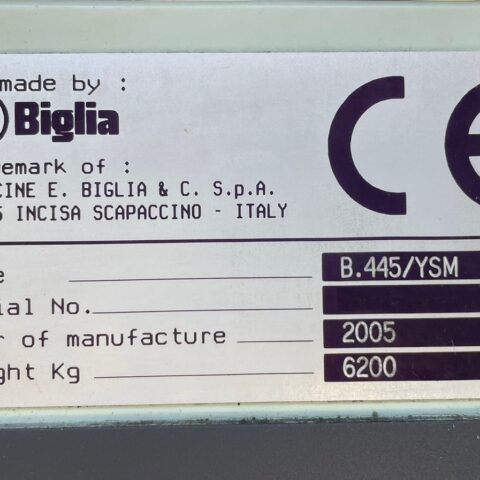

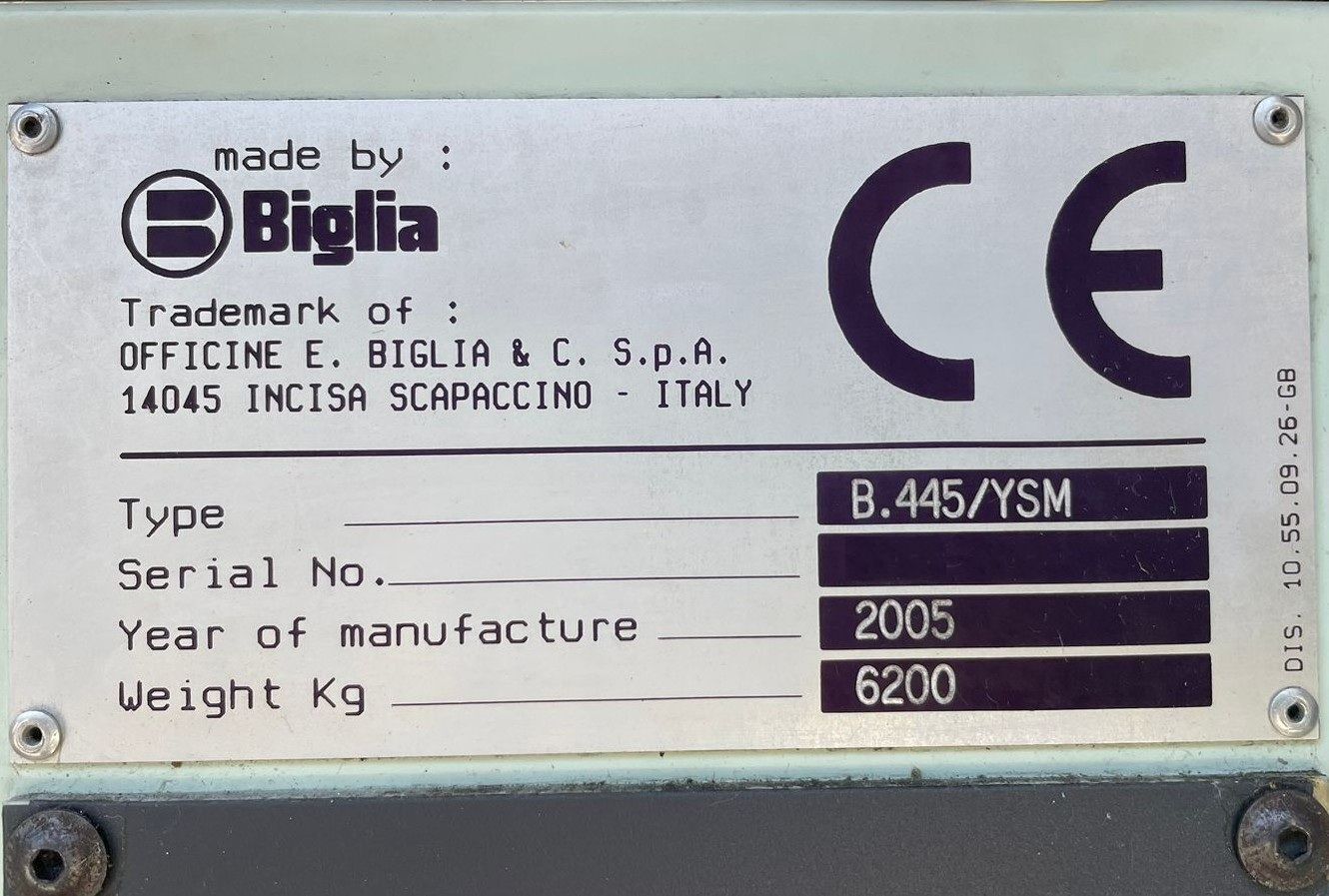

| Year: | 2005 |
| Condition: | Used – Good |
| Equipped With: |
|---|

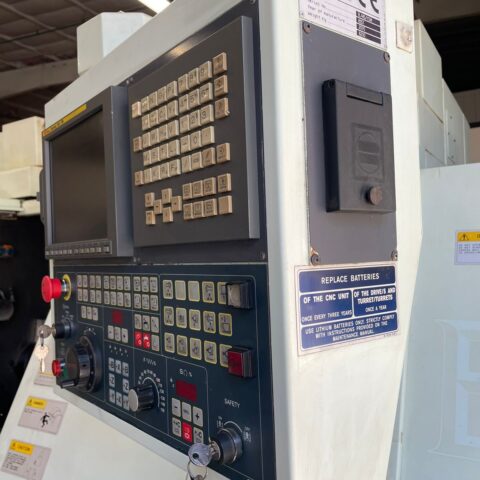

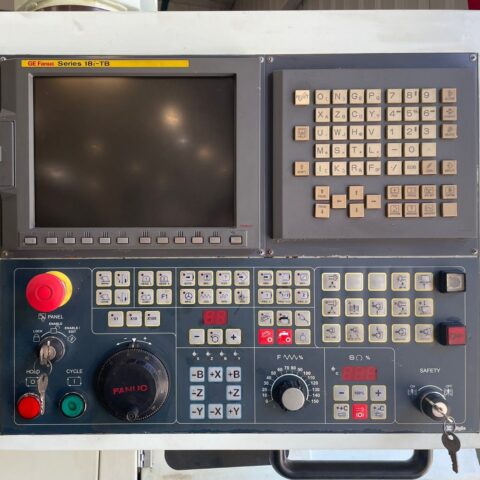

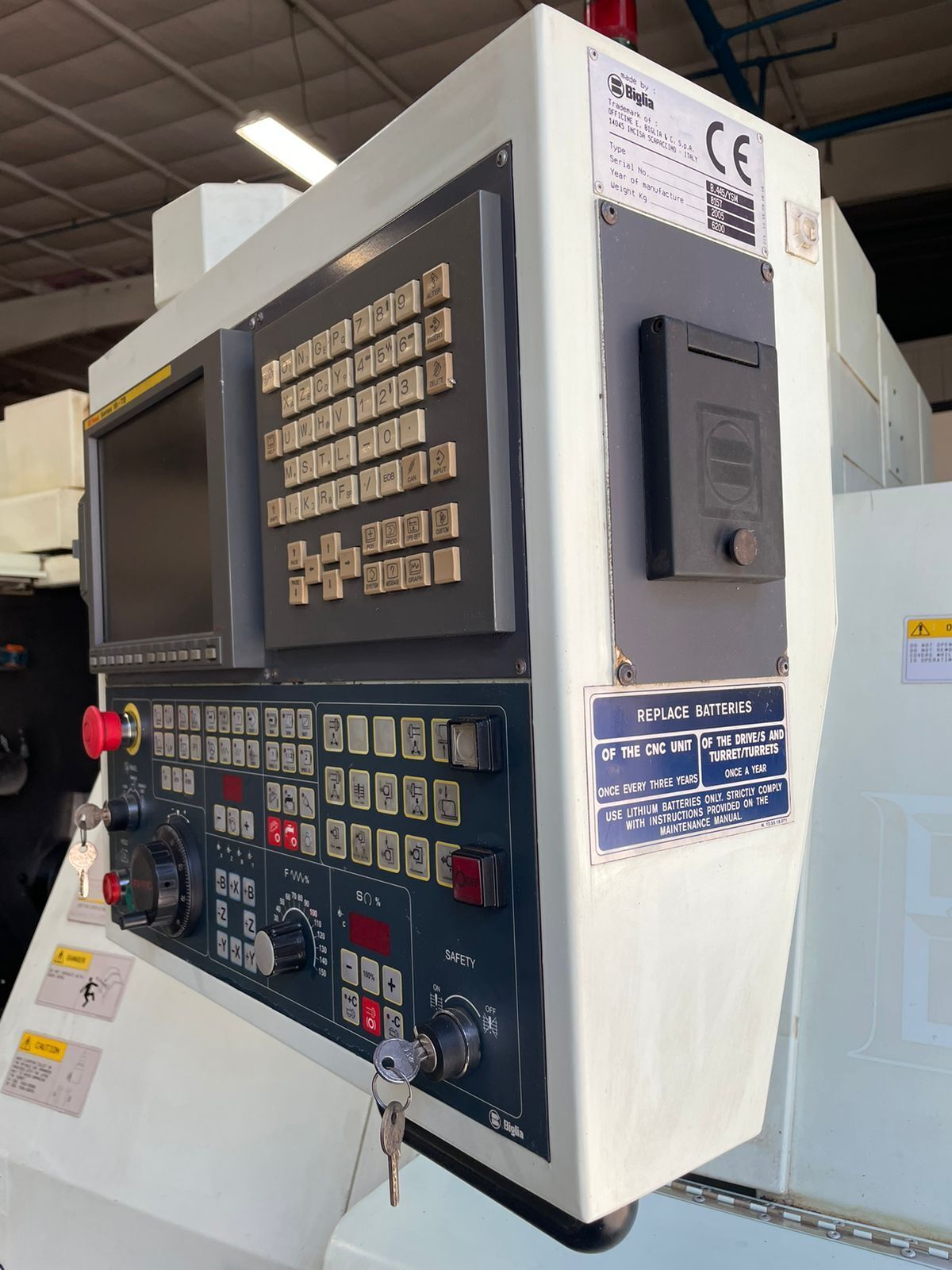

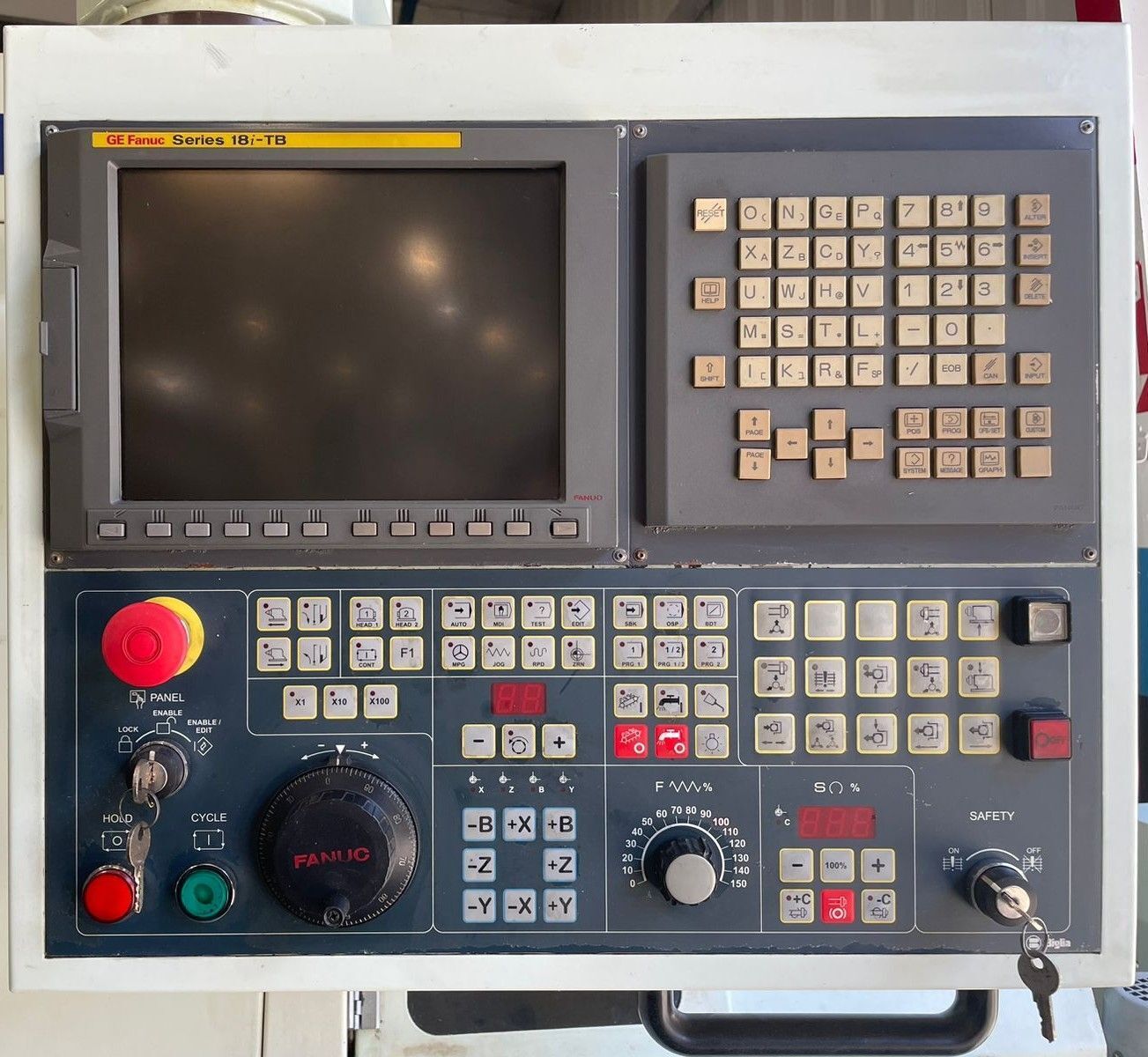

| Fanuc 18i-TB CNC Control |

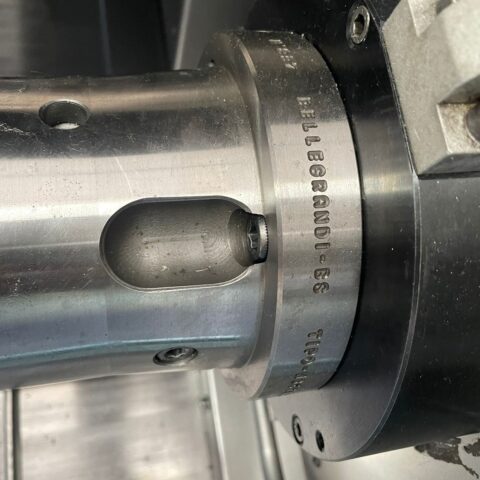

| Collet Chuck on Main Spindle |

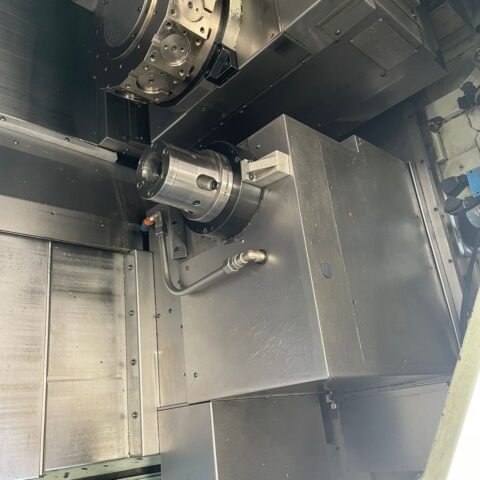

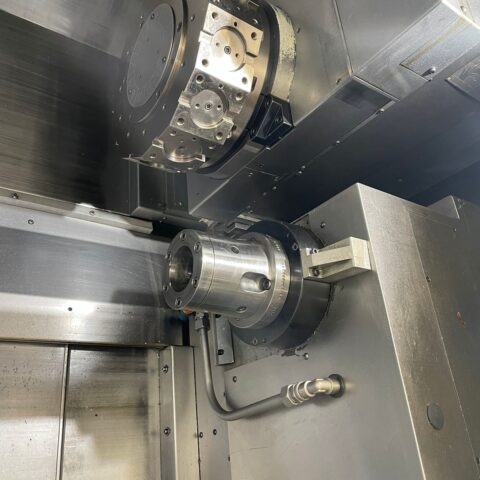

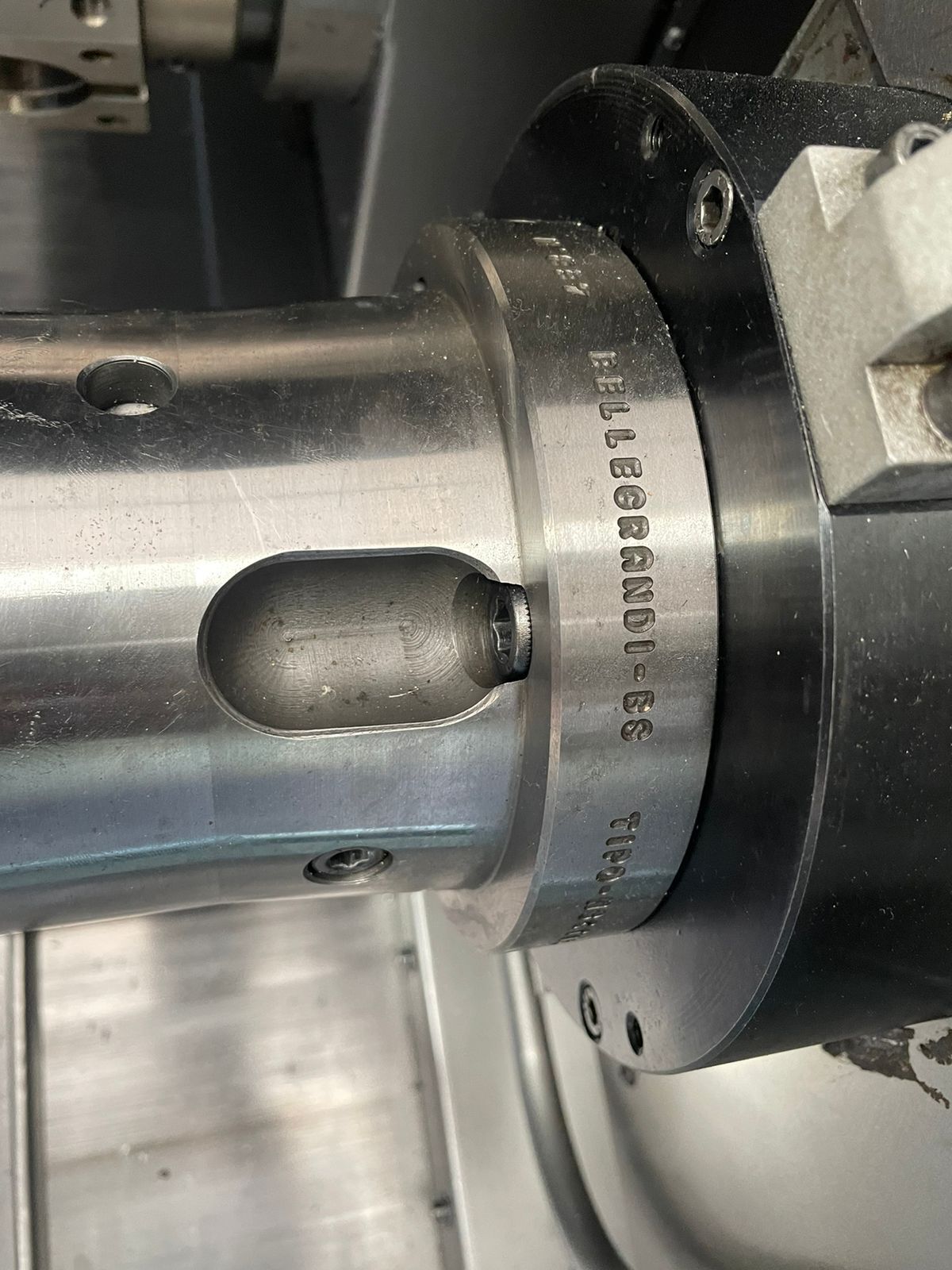

| Collet Chuck on Sub Spindle |

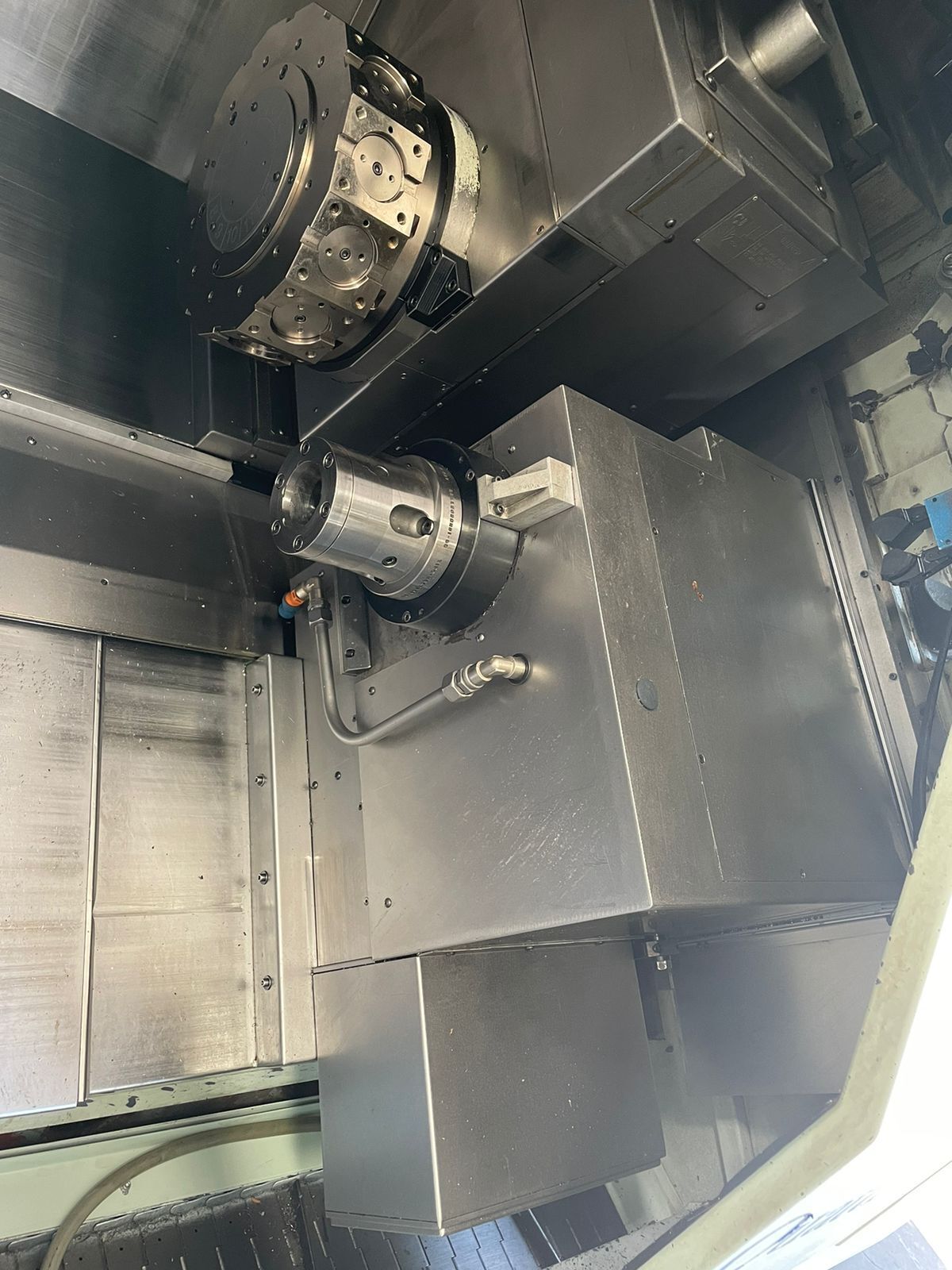

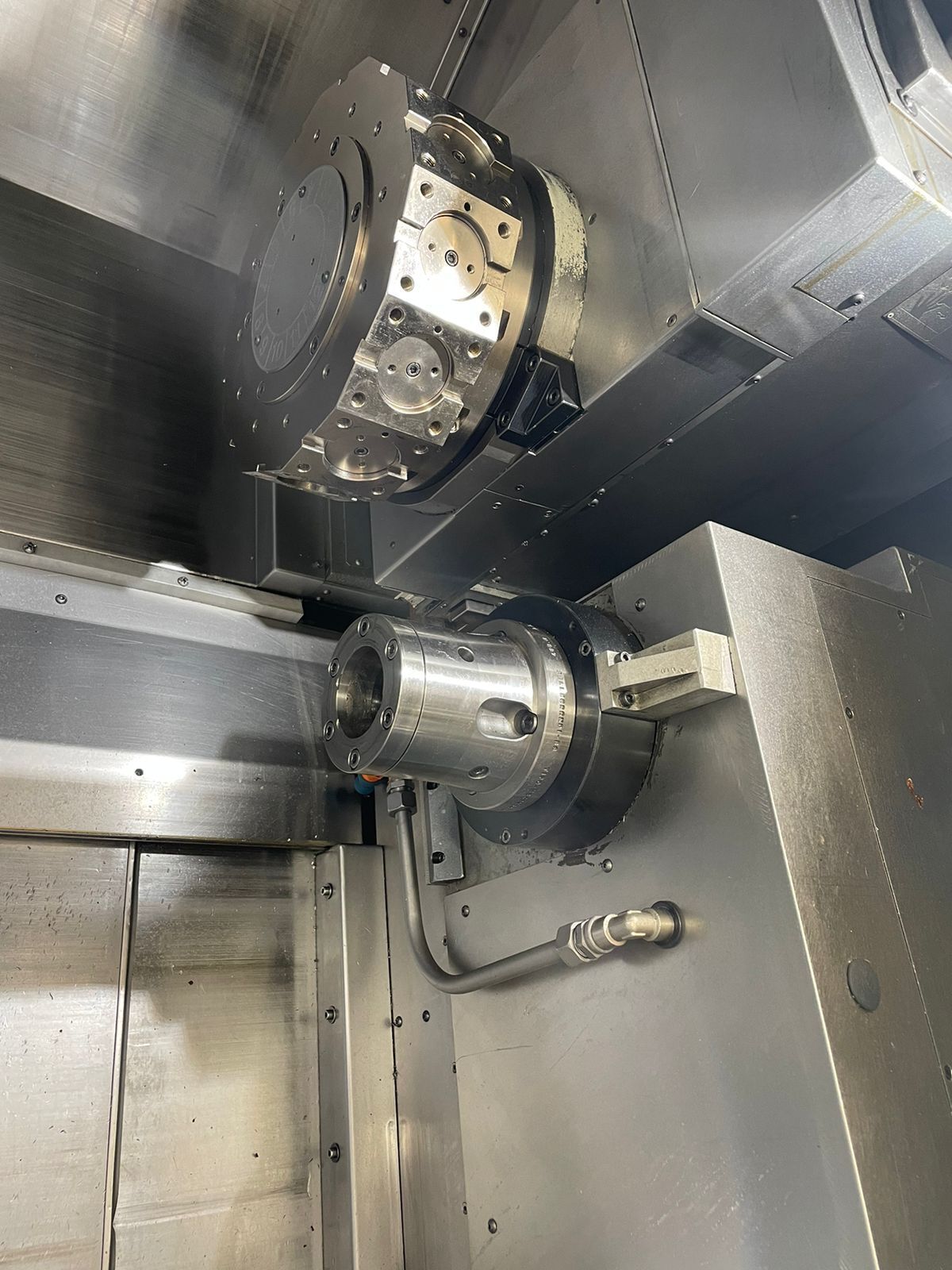

| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Both Spindle Synchronization |

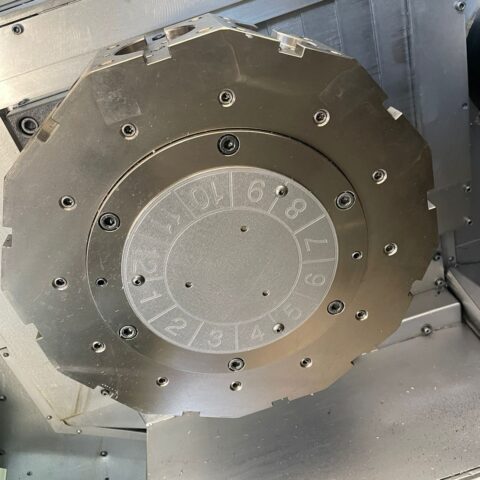

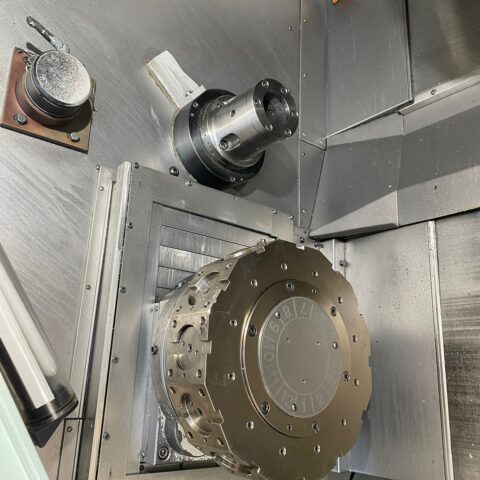

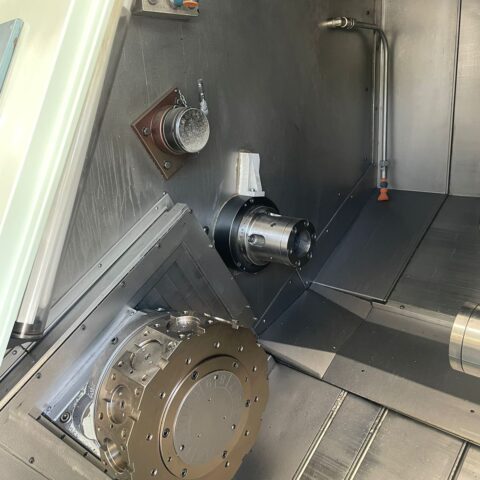

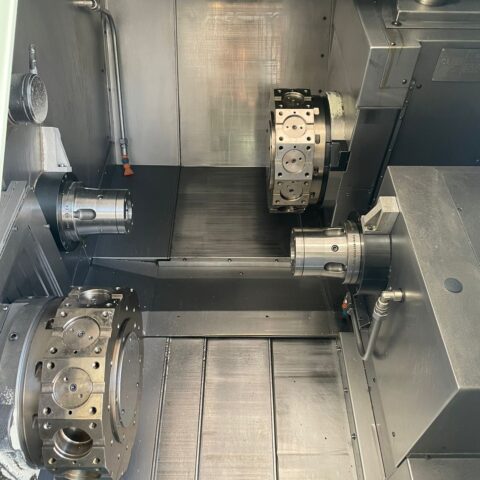

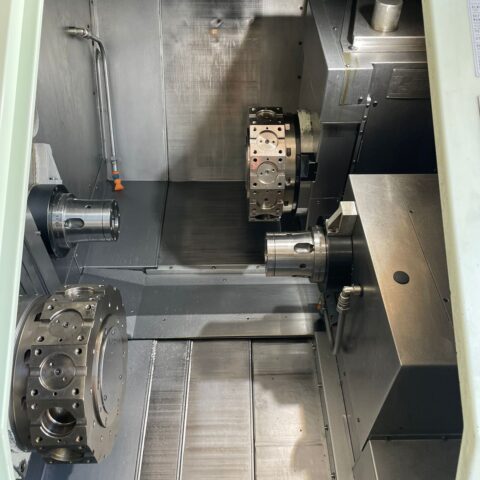

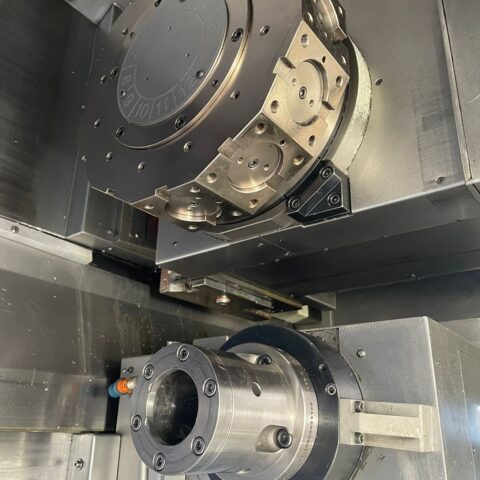

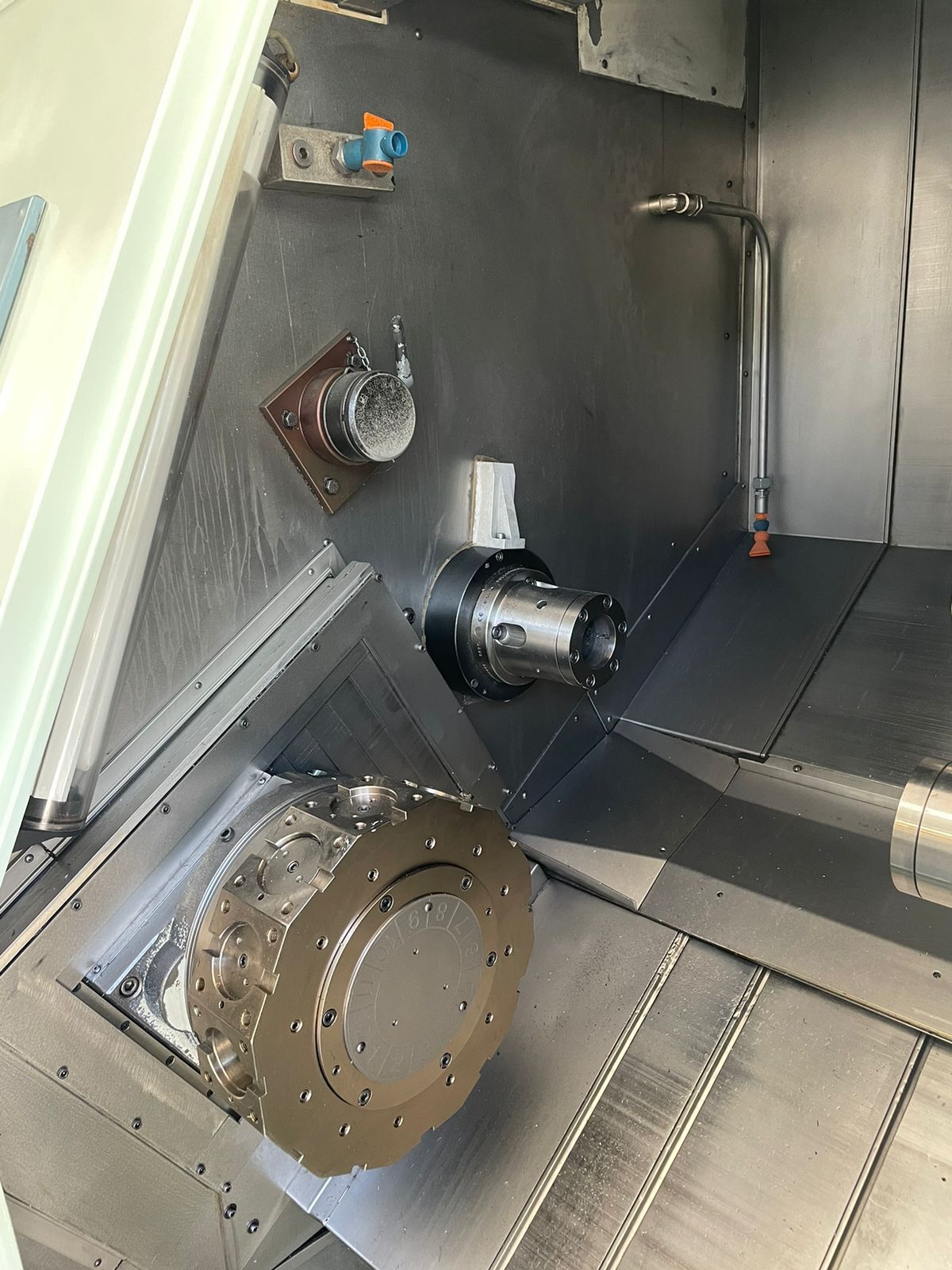

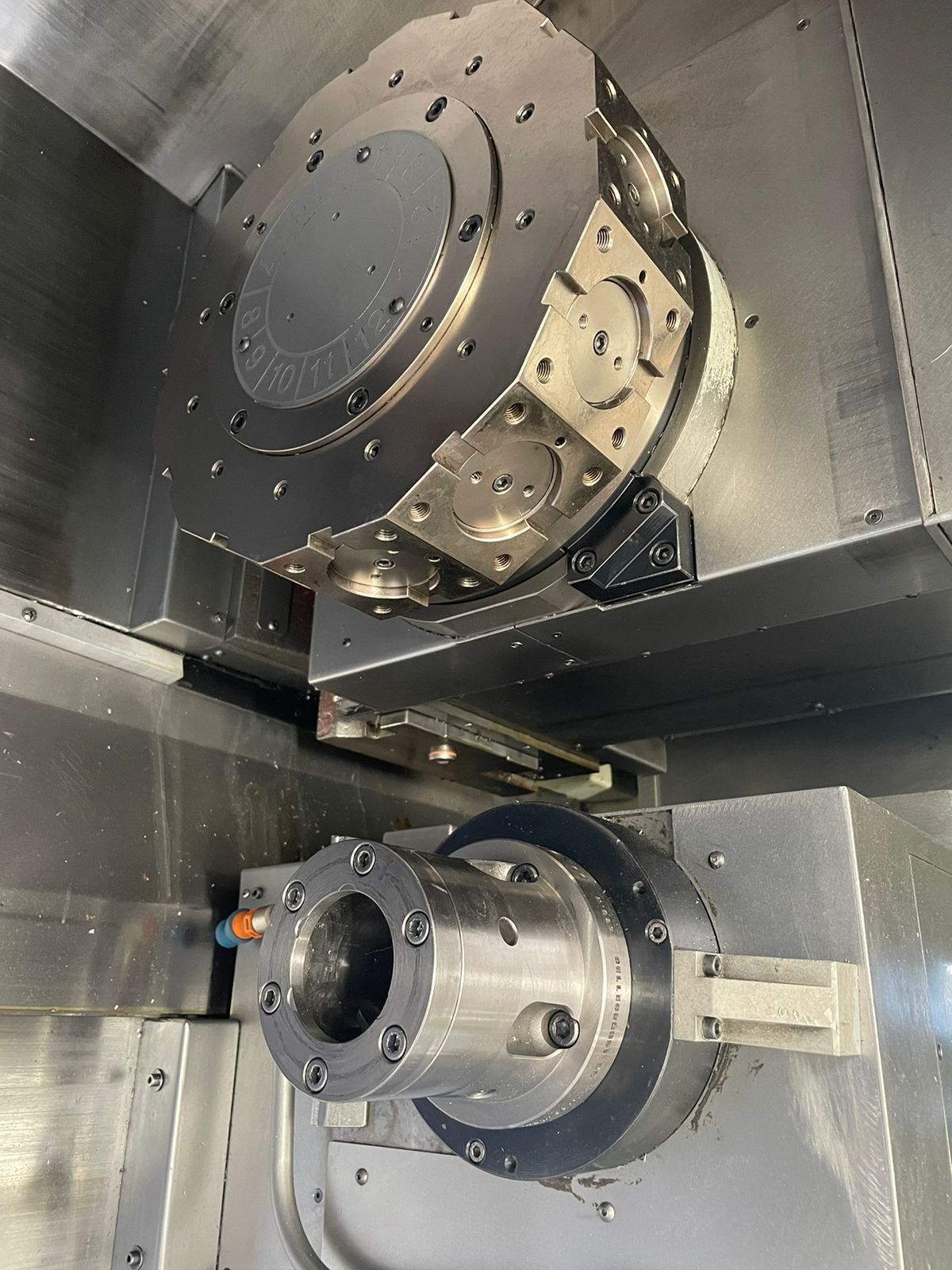

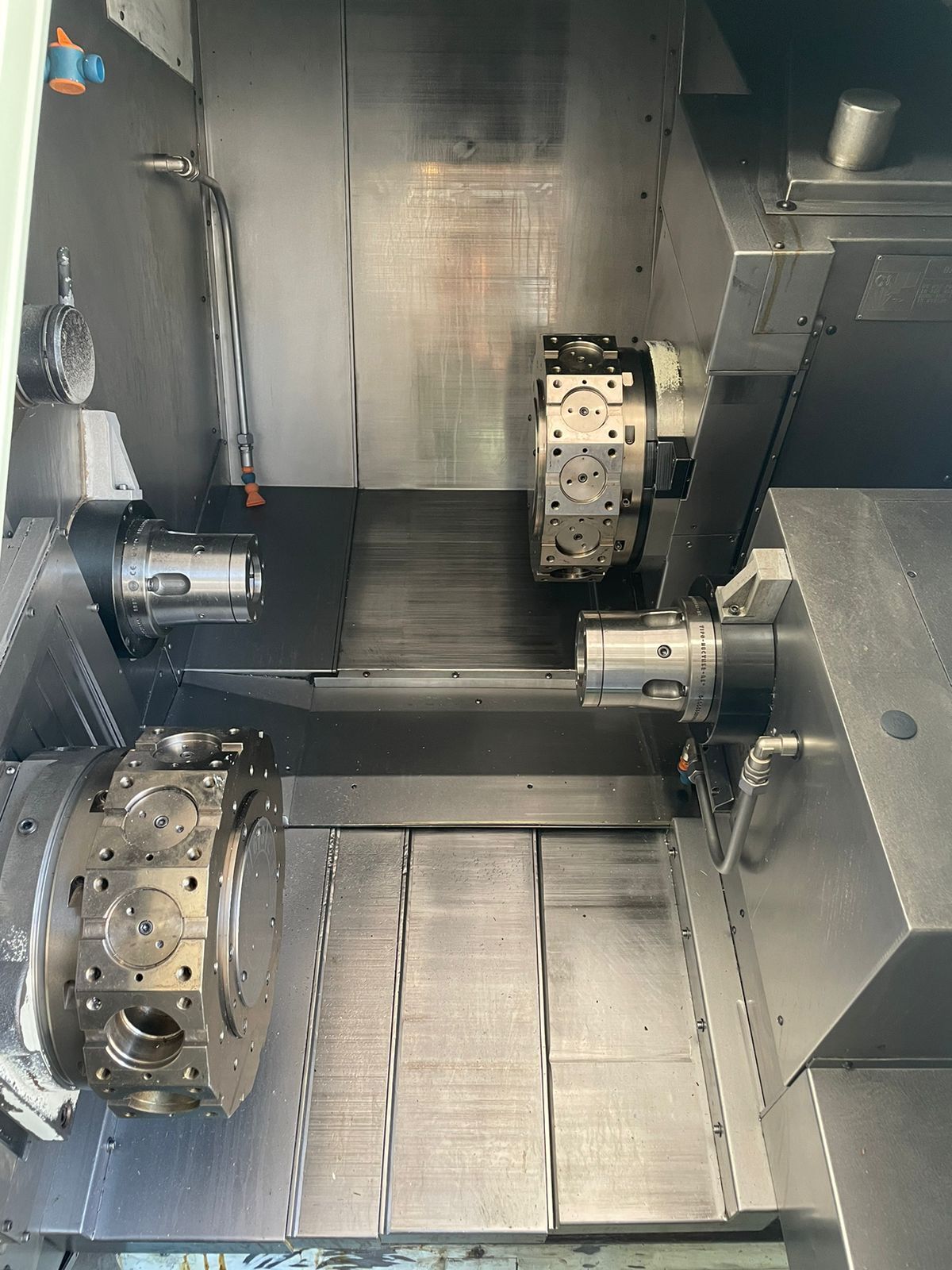

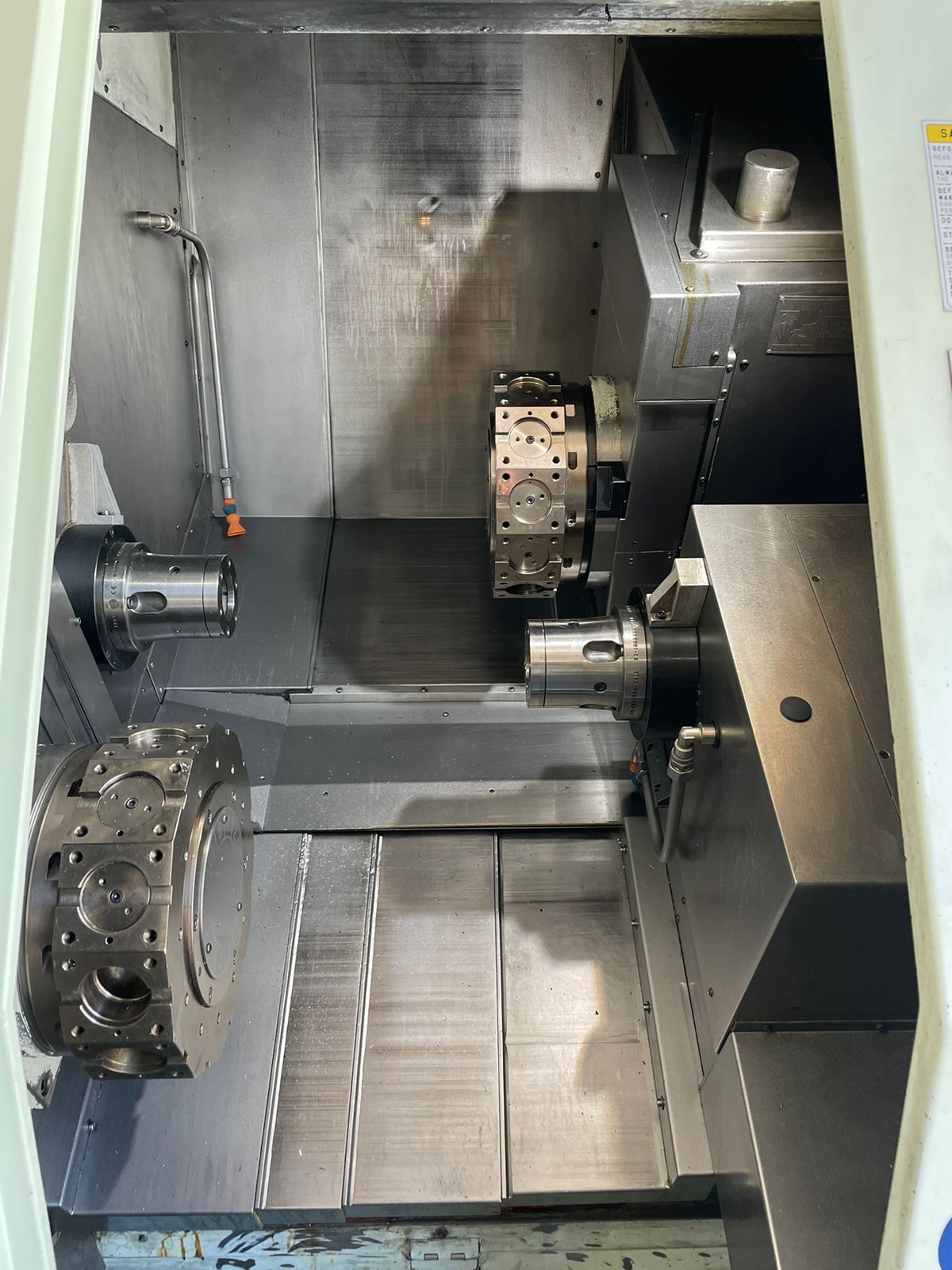

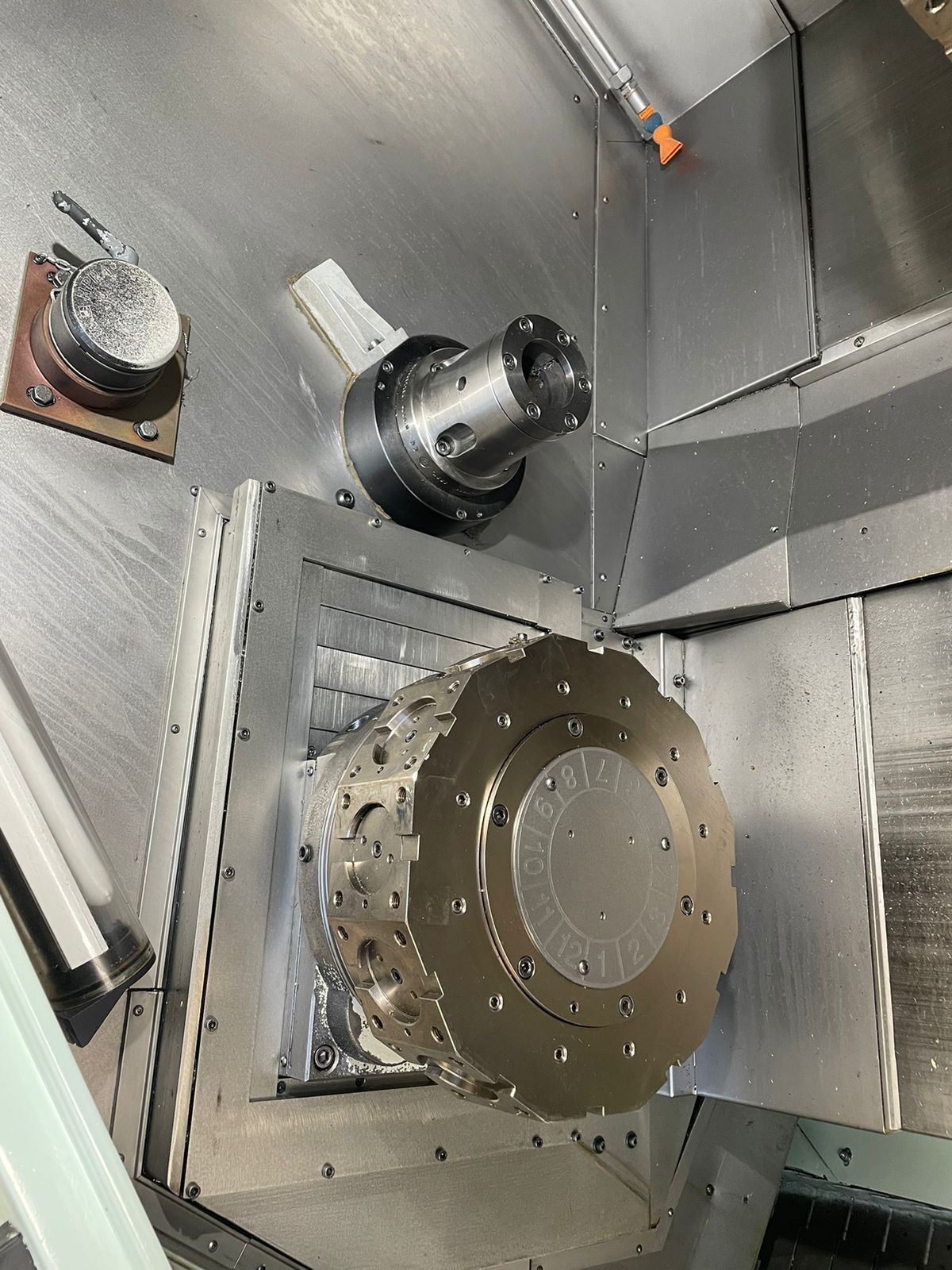

| 12 Station Live Tool Upper Turret |
| 12 Station Live Tool Lower Turret |
| Y Axis Capability on Upper Turret |
| Bar Feeder Interface |

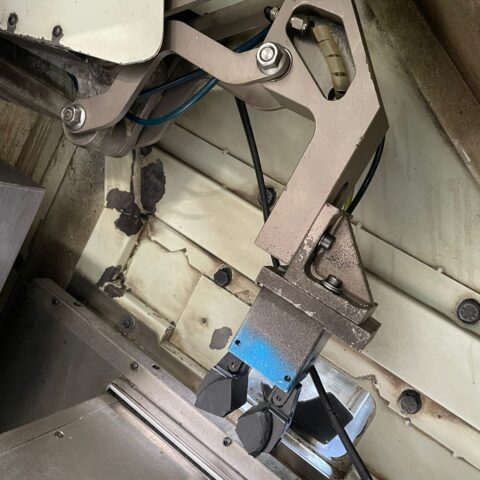

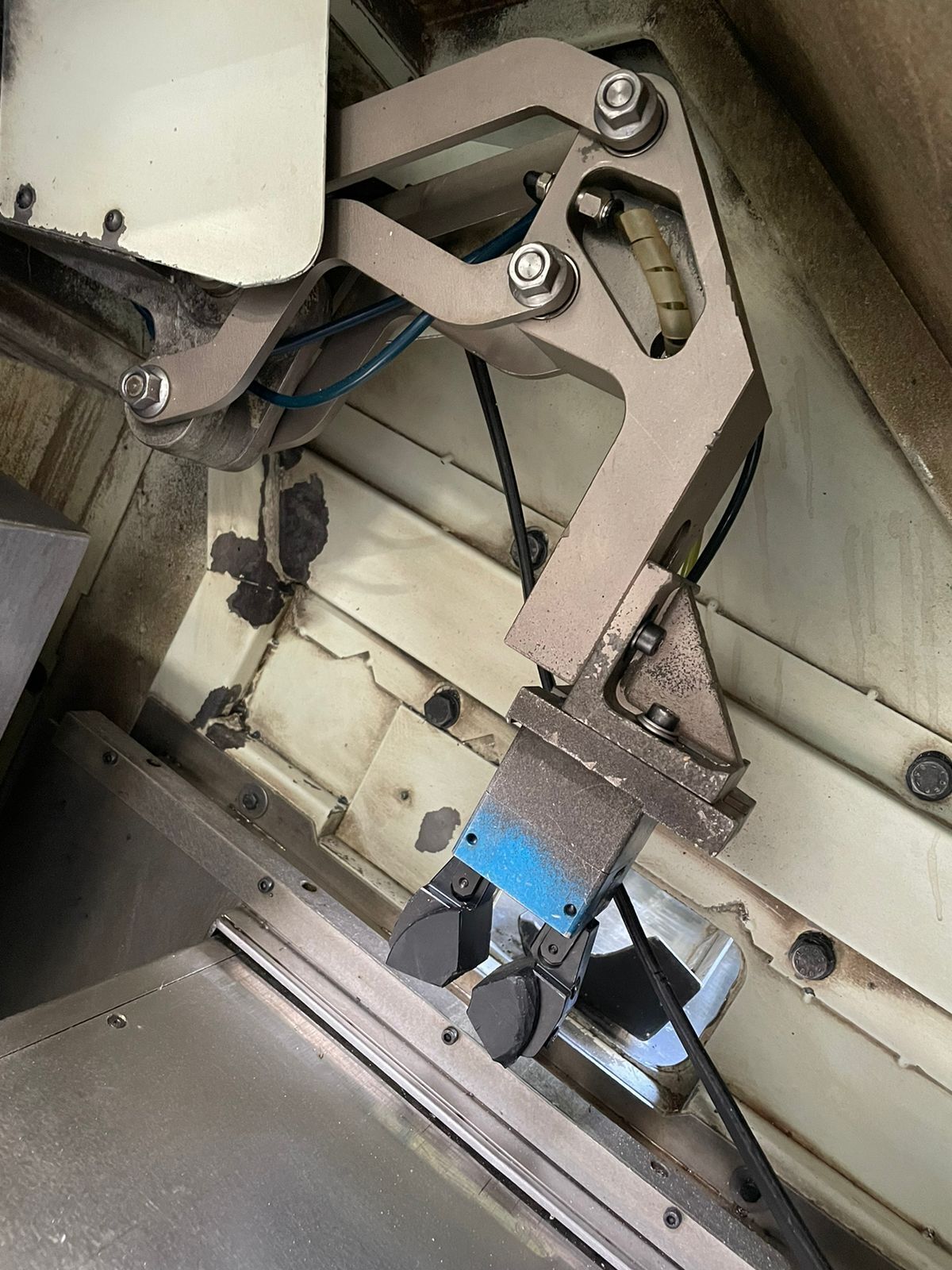

| Parts Catcher |
| Parts Conveyor |
| High Pressure Coolant System |

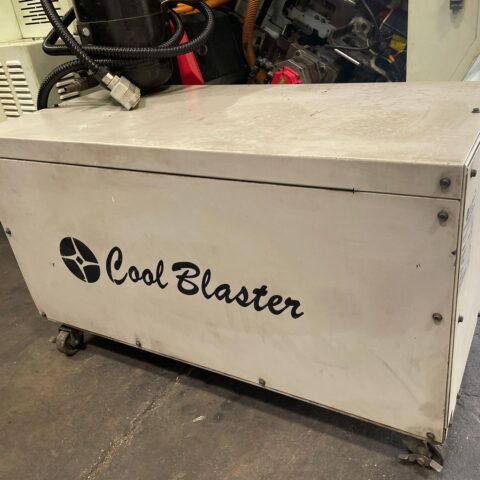

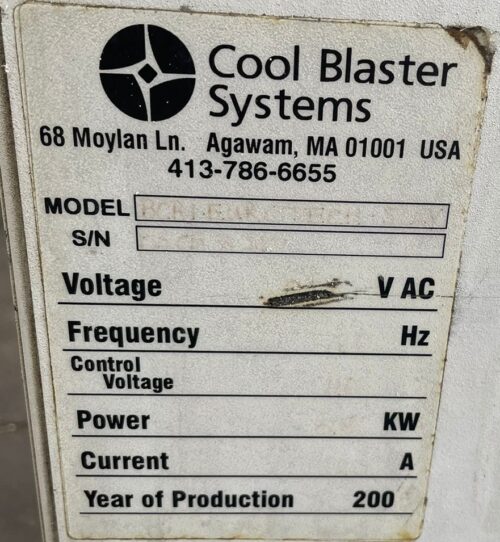

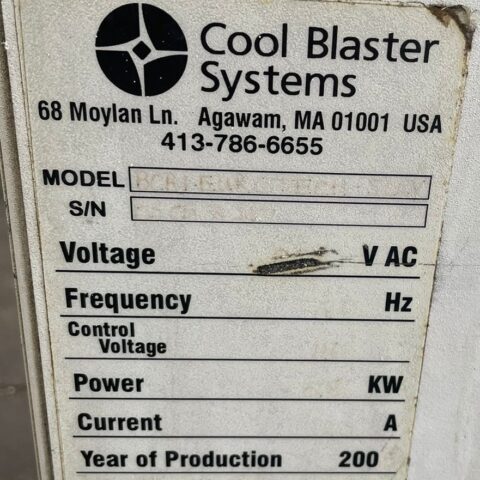

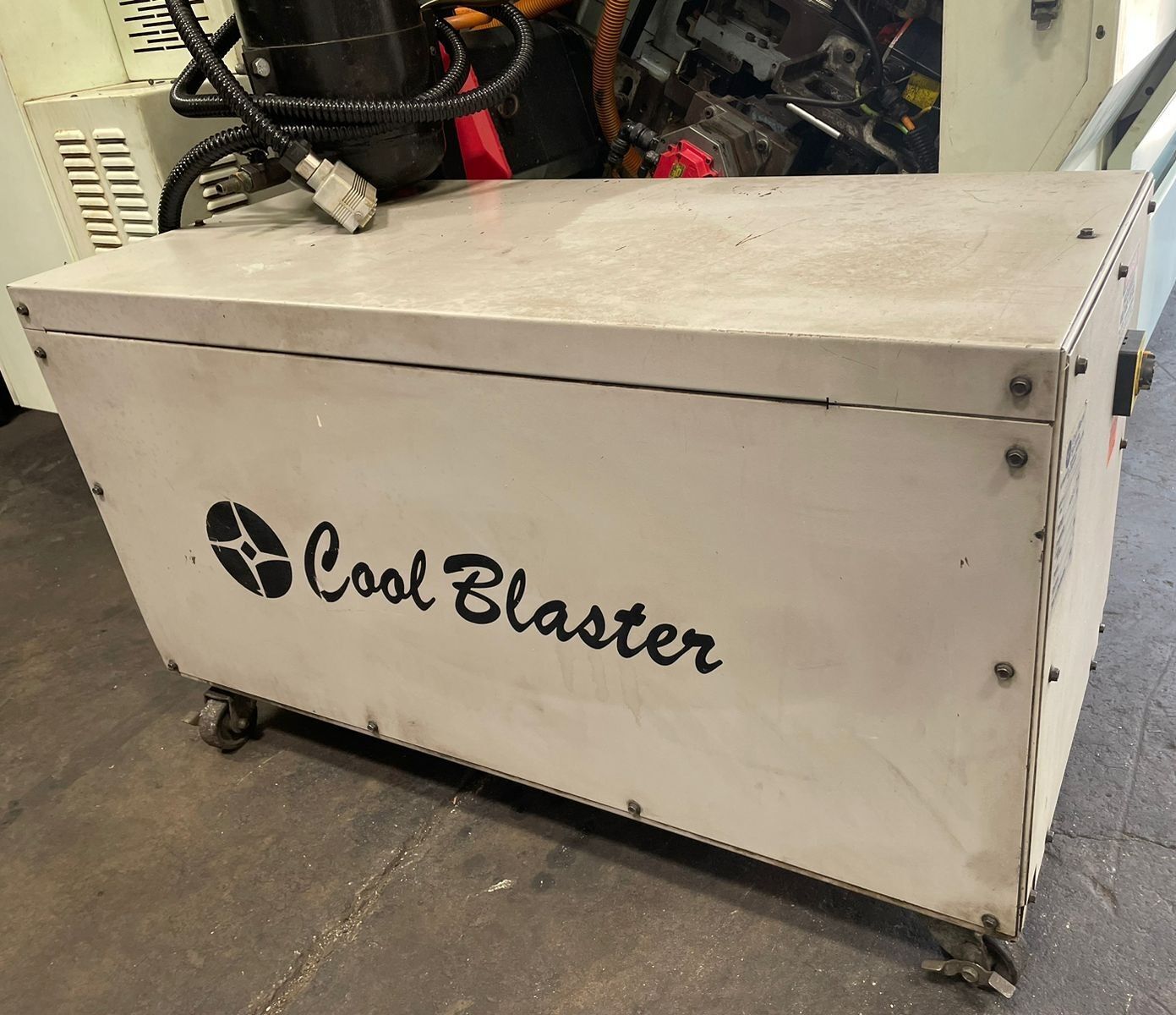

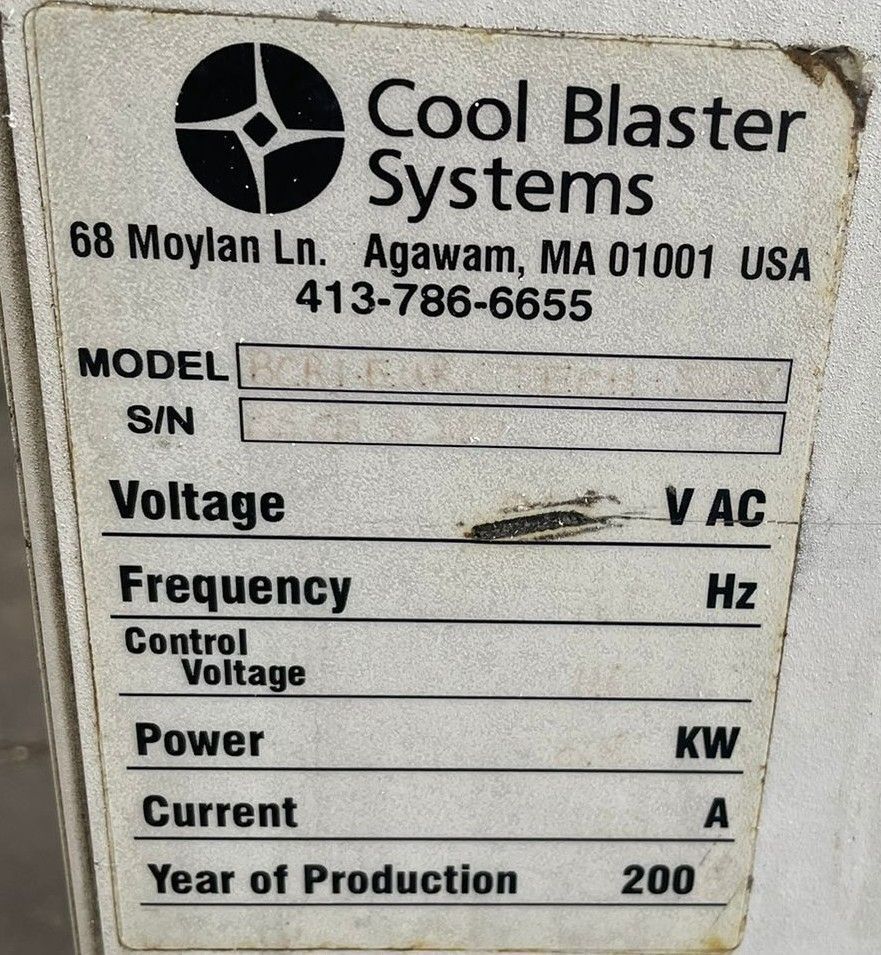

| Cool Blaster System |
| Chip Conveyor |
| Capacity: |
|---|
| Max Machining Diameter : 9.44″ |
| Max Turning Length : 12.60″ |
| Max Swing Over Bed : 20.47″ |
| Max Bar Capacity : 1.77″ |
| Travels: |
|---|
| X1 Axis Travel Upper Turret: 6.30″ |
| X2 Axis Travel Lower Turret : 6.30″ |
| Y1 Axis Travel Upper Turret: 3.93″ |
| Z1 Axis Travel Upper Turret: 15.35″ |
| Z2 Axis Travel Lower Turret : 9.45″ |
| B Axis Travel: 16.53″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X1 Axis: 787 IPM Rapid Traverse |
| X2 Axis: 472 IPM Rapid Traverse |
| Y1 Axis: 236 IPM Rapid Traverse |
| Z1 Axis: 945 IPM Rapid Traverse |
| Z2 Axis: 787 IPM Rapid Traverse |
| B Axis: 1181 IPM Rapid Traverse |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-5 |
| Main Spindle Bore: 2.16″ |
| Main Spindle Speed: 5,000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.16″ |
| Sub Spindle Speed: 5,000 RPM |
| Sub Spindle Power: 15 HP |
| Turret: |
|---|

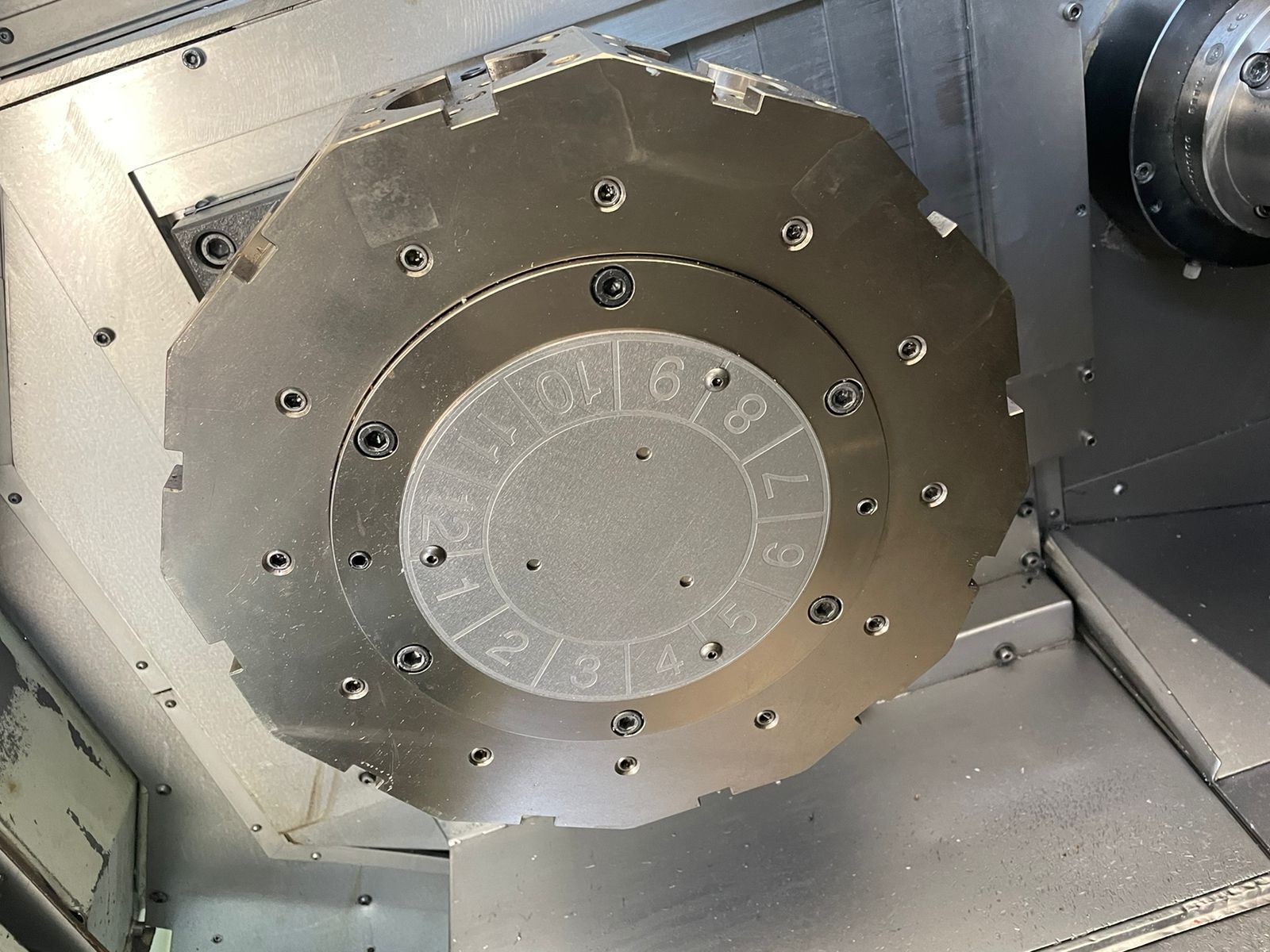

| Upper Turret Capacity: 12 Stations |
| Lower Turret Capacity: 12 Stations |
| Live Milling Speed: 4000 RPM |
| Live Milling Motor: 5.5 HP |
| Turret Index Time (Tool to Tool): 0.15 sec |
| Turret Type: BMT |
| General: |
|---|

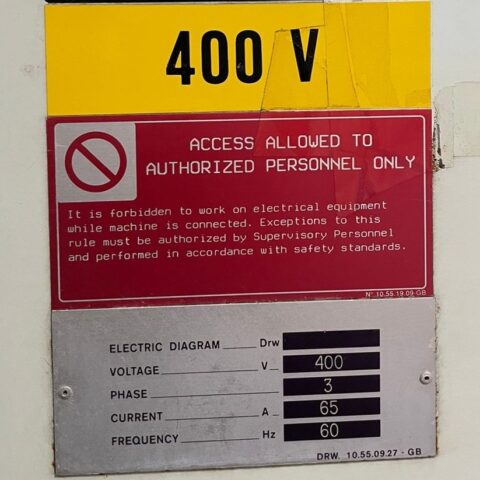

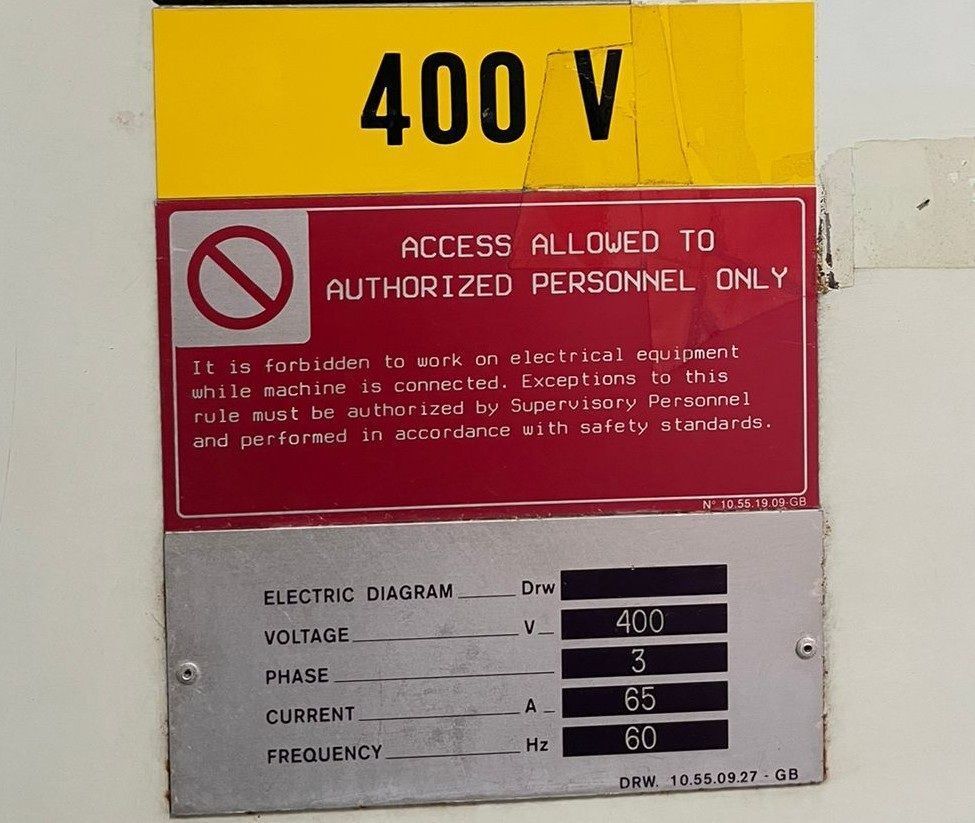

| Power Source: AC 400v / 3-Phase / 60 Hz |
| Machine Dimensions: 164″ x 83″ x 87″ Height (With Chip Conveyor) |
| Machine Weight: 15,000 lbs Approx. (With Chip Conveyor) |
| Machine Weight: 13,670 lbs Approx. (Without Chip Conveyor) |
