*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

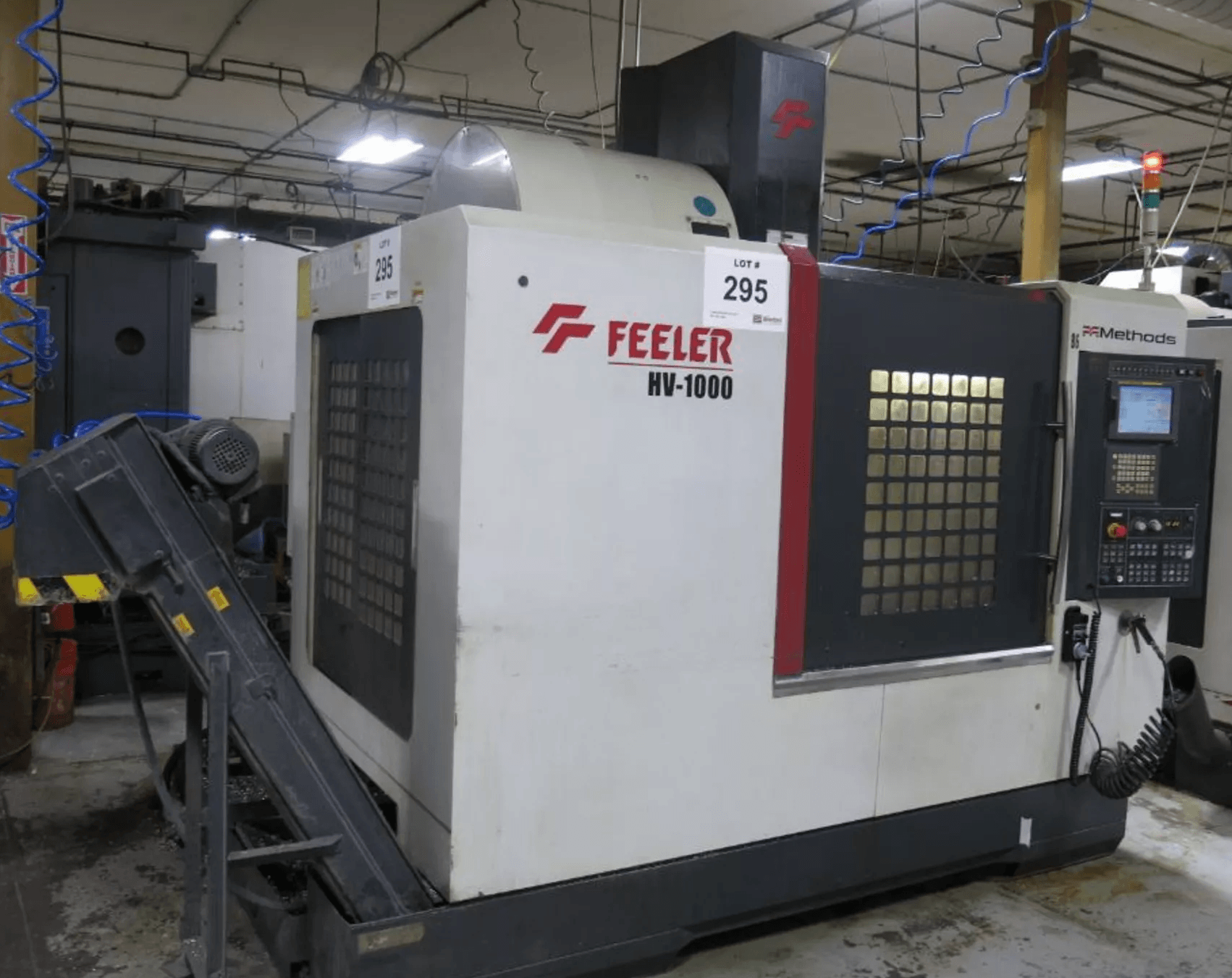

| Make: |
Feeler |
| Model No.: |
HV-1000 |
| Year of Manufacture: |
2011 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |
Fanuc 0i-MD |
| Country of Origin: |
Taiwan |
| Equipped With: |
| Fanuc 0i-MD CNC Control |
| Big Plus BT40 High-Speed Spindle |
| 24 Station Automatic Tool Changer |
| Rigid Tapping |
| Coolant System |
| Full Enclosure |
| Chip Conveyor (optional) |
| 4th Axis Ready (in some configs) |
| Capacity: |
| Table Size: 1,220 × 650 mm |
| Max Table Load: ~700–800 kg |
| Travels: |
| X-Axis Travel: 1,020 mm |
| Y-Axis Travel: 560 mm |
| Z-Axis Travel: 600 mm |
| Rapid Traverse (X/Y): ~30–36 m/min |
| Rapid Traverse (Z): ~24–30 m/min |
| Spindle: |
| Spindle Speed: 15,000 RPM |
| Spindle Taper: Big Plus BT40 |
| Spindle Motor: ~30 HP (22.4 kW) |
| Tooling System: |
| Tool Capacity: 24 Tools |
| Type: Arm Type ATC |
| Fast and reliable tool changes for production |
| General: |
| Axis: 3-Axis |
| Machine Weight: ~9,000 kg |
| Dimensions: ~3050 × 2800 × 3300 mm |
| Power Requirement: ~30 kVA |
| Features: |
| High-speed 15K RPM spindle (ideal for aluminum & mold work) |
| Big Plus spindle interface (better rigidity & accuracy) |
| Box guideway construction (heavy-duty cutting capability) |
| Large Y-axis travel vs standard VMCs |
| Fanuc control = easy service & reliability |
