*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Feeler |
| Model: | VMP-580 APC |
| Year: | 2013 |
| Features: |
|---|

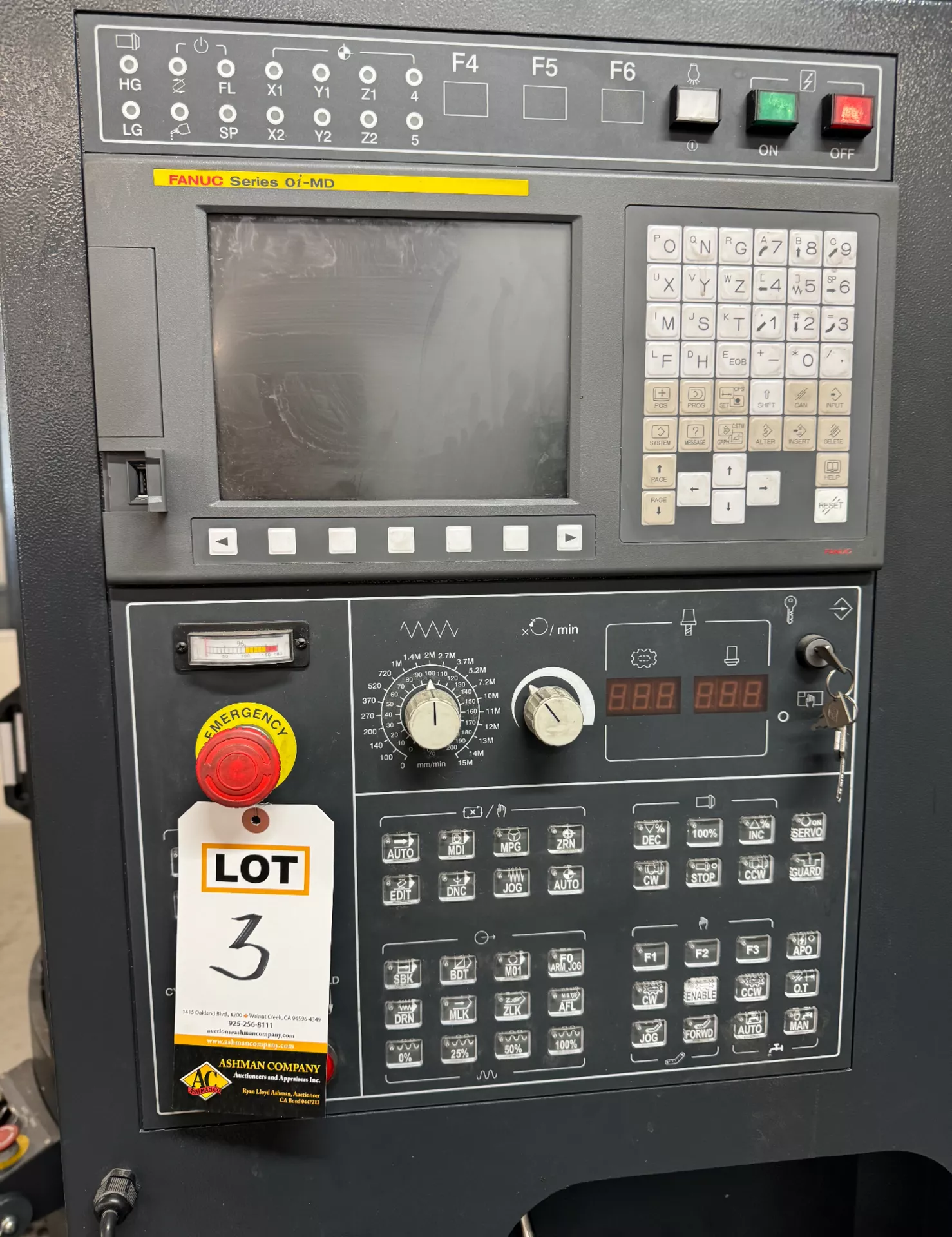

| Fanuc Series 0i-MD CNC Control |
| 2-Pallet Automatic Pallet Changer (APC) |
| CAT 40 Spindle |
| Automatic Tool Changer |
| Chip Conveyor |
| Coolant System |
| Coolant Through Spindle Ready |
| Rigid Tapping |
| Electronic Handwheel |
| Work Light |
| Air Blast |
| Automatic Lubrication |
| Capacity: |
|---|
| Pallet Size: 22.8″ × 22.8″ |
| Number of Pallets: 2 |
| Maximum Table Load: 880 lbs |
| Travels: |
|---|
| X-Axis Travel: 31.5″ |
| Y-Axis Travel: 22.8″ |
| Z-Axis Travel: 24″ |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Drive Motor: 20 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: Approx. 24 Tools |
| Tool Changer Type: Automatic Arm Type |
| Max Tool Diameter: 3.1″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 15 lbs |
| Feedrates: |
|---|
| Rapid Traverse (X/Y/Z): 1,417 IPM |
| Cutting Feedrate: Programmable |
| Electrical: |
|---|
| Power Requirement: 220 Volt |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Dimensions (Approx.): 130″ × 110″ × 115″ |
| Machine Weight (Approx.): 17,500 lbs |
