All specifications are approximations and are subject to verification.
“This Machine has low cutting hours. Its a Clean MACHINE with 8″ Chuck & Fanuc 0T-C control. On Our Floor now, Fully powered / tested & is in Great working condition.”
-

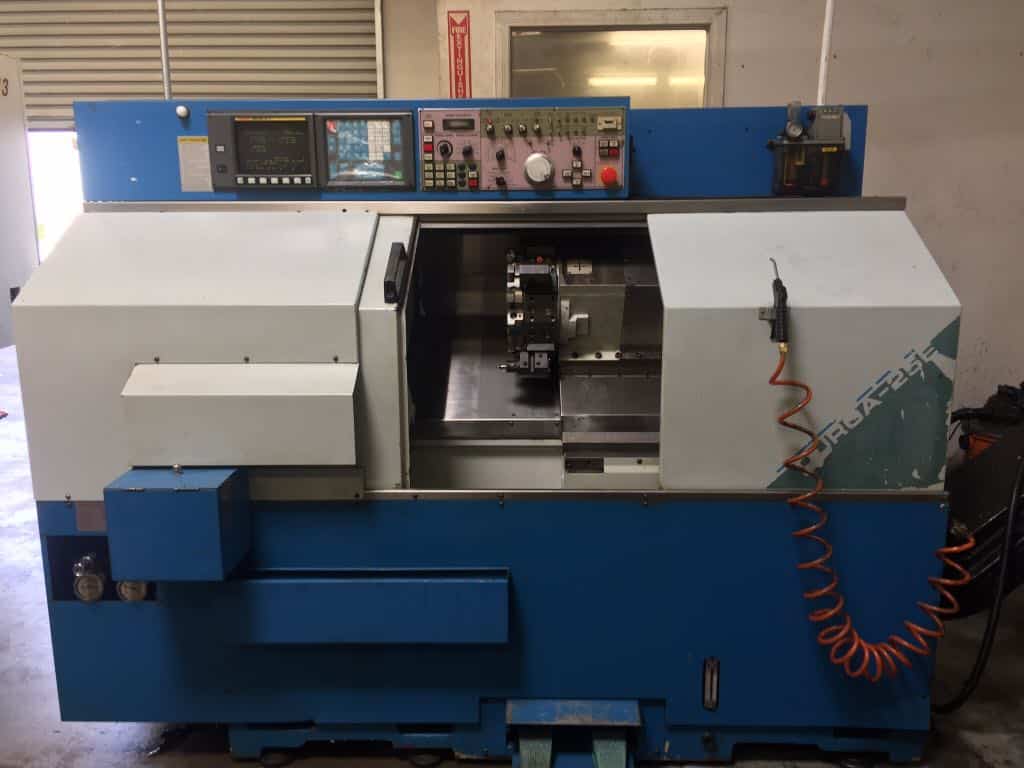

FEMCO DURGA 25E CNC Equipped With:
- Fanuc 0T-C CNC Control
- 8″ 3 Jaw Hydraulic Chuck
- Coolant System
- Barfeed Interface
- RS-232 ports
- 12 Station Automatic Turret
- Chip Conveyor
- Comes with 8″ Chuck, Tailstock, Tool Holders, Books & Chip Conveyor.
-
FEMCO DURGA 25E CNC Specifications:
- Capacity:
- Max Turning Diameter: 9.84″
- Max Turning Length: 23.62″
- Max Bar Capacity: 2.04″
- Swing Over Bed: 17.75″
- X Axis Travel: 5″
- Z Axis Travel: 23.62″
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Z Axis: 630 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 40 – 4800 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 23 Stations Double Disc
- Turret Index Time: 1.5 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
-
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 90″ x 60″ x 66″ High
- Weight: 6700 lbs
