All specifications are approximations and are subject to verification.

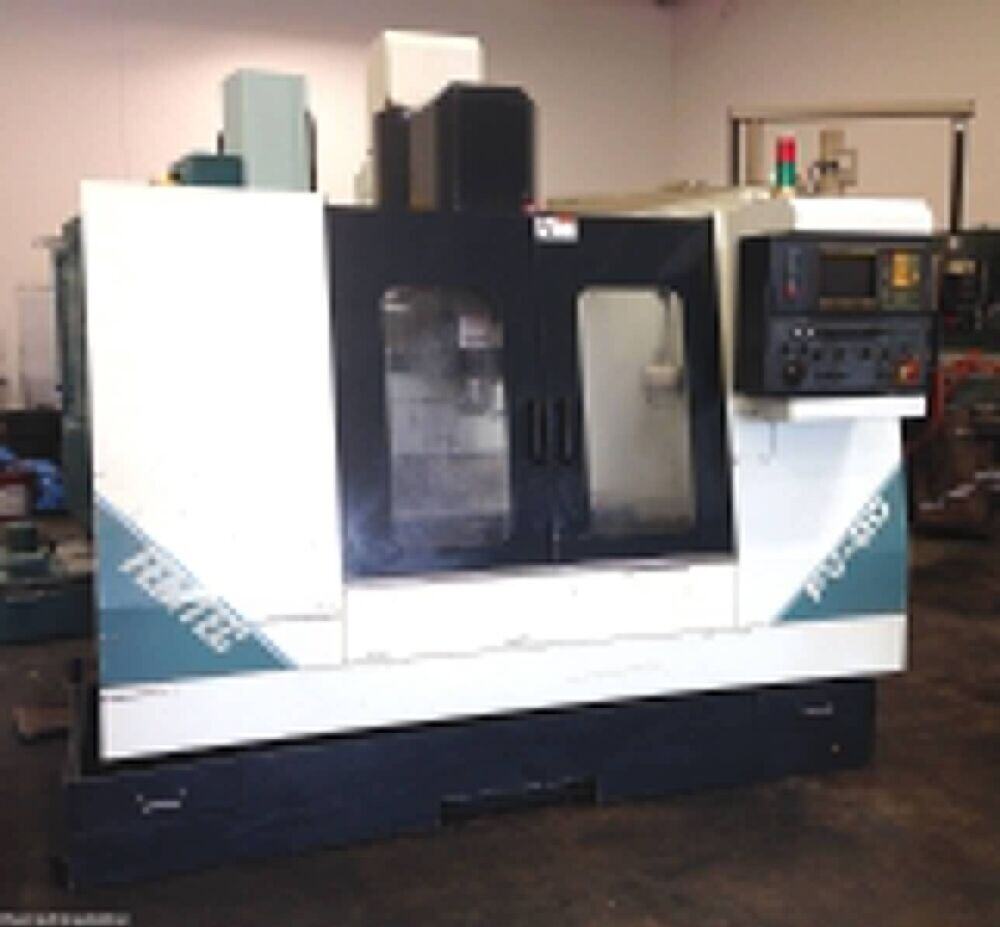

FEMCO FV20 CNC VERTICAL MACHINING CENTER Features:
- RS-232 Port.
- CAT40 Spindle Taper.
- 20-Station Automatic Tool Changer.
- Coolant System.
- Centralized Lubrication System.
FEMCO FV20 CNC VERTICAL MACHINING CENTER Specifications:
Travels:
- X-Axis: 25″
- Y-Axis: 20″
- Z-Axis: 22″
Table:
- Table Dimensions: 39-1/4″ x 18″
- T-Slots (number x width x distance between centers): 3 x 18mm/0.71″ x 5″
Spindle:
- Taper: CAT40
- Speed: 6,000 RPM (approx.)
- Spindle Center to Column: 20″
Automatic Tool Changer:
- Tool Capacity: 20
General:
- Machine Weight: 9,000 lbs.
- Electrical: 220 Volt, Three Phase
- Overall Dimensions: 90″ x 105″ x 105″ tall
MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.
BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
