*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 1908 |

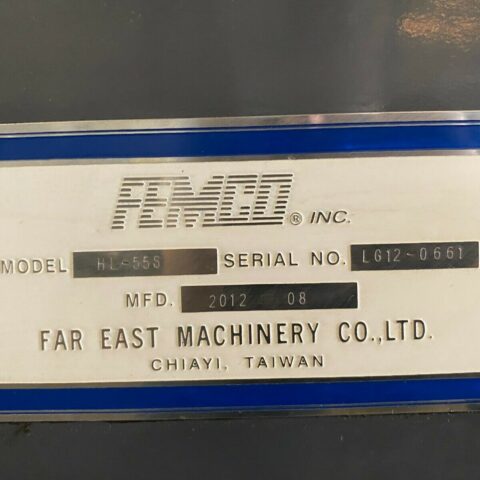

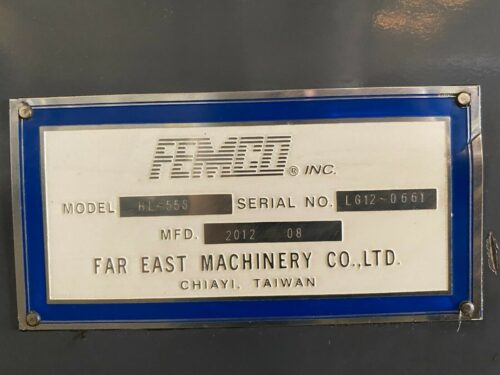

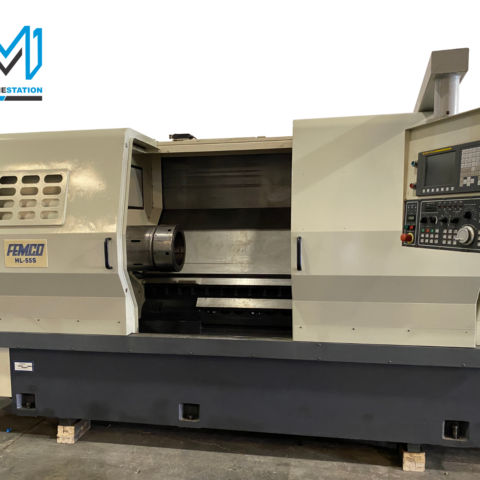

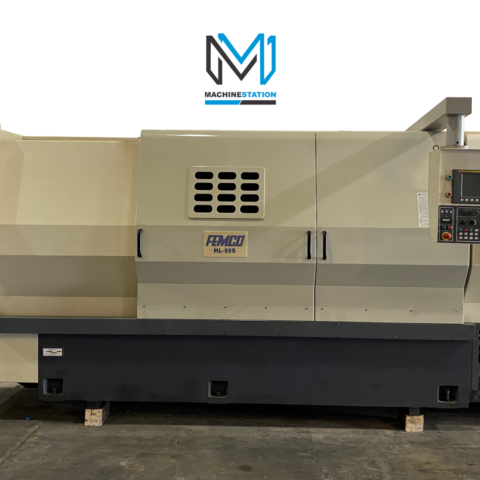

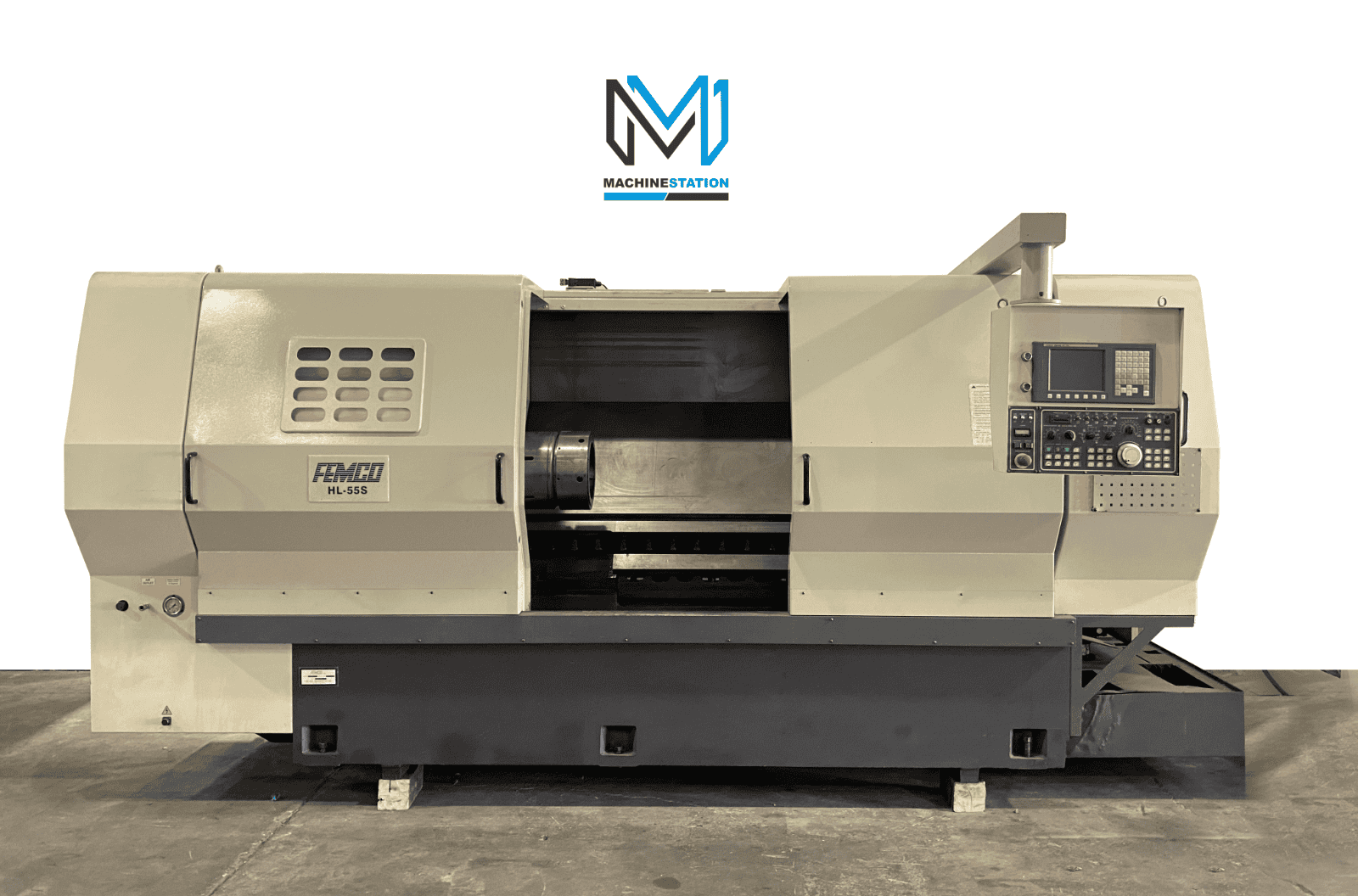

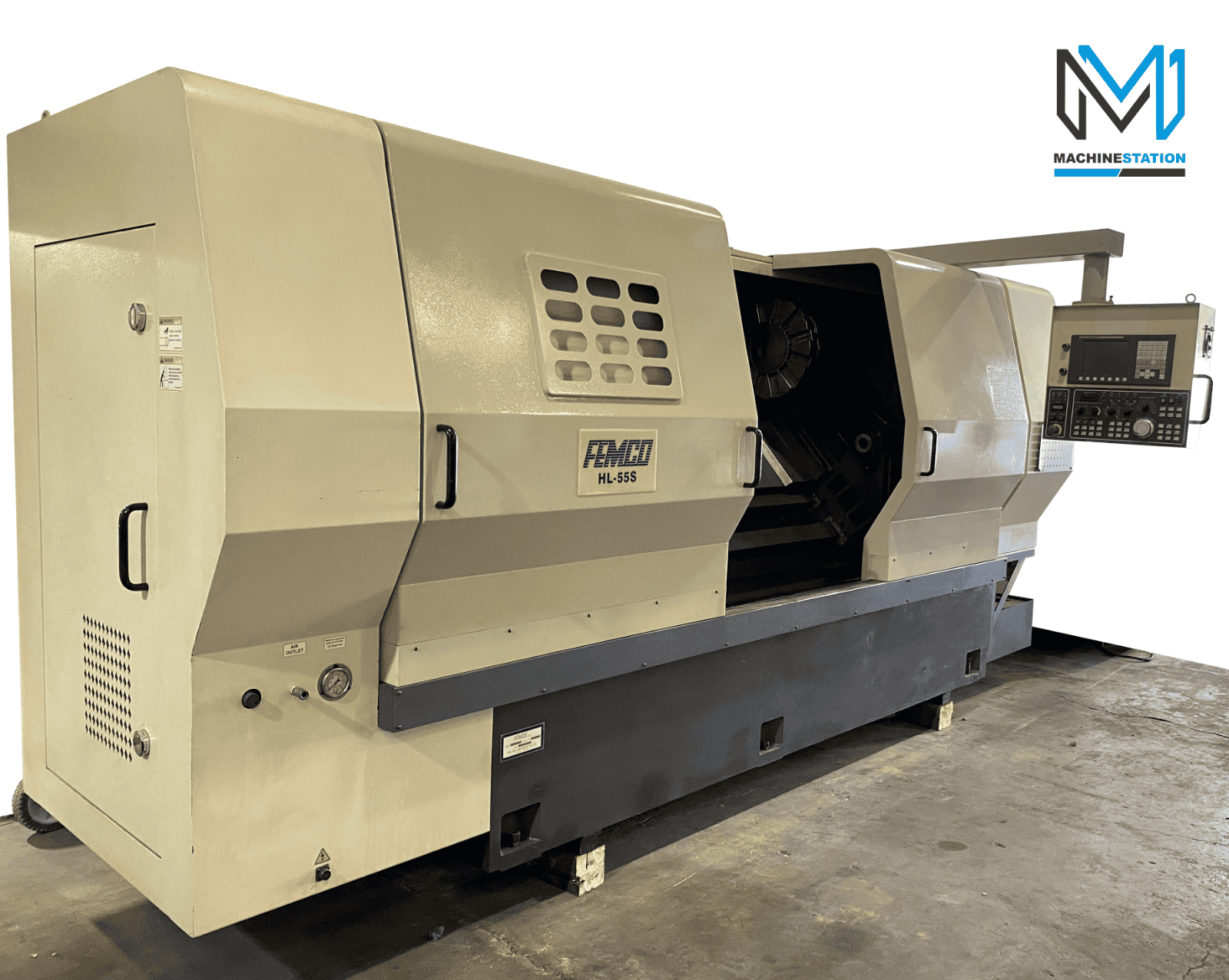

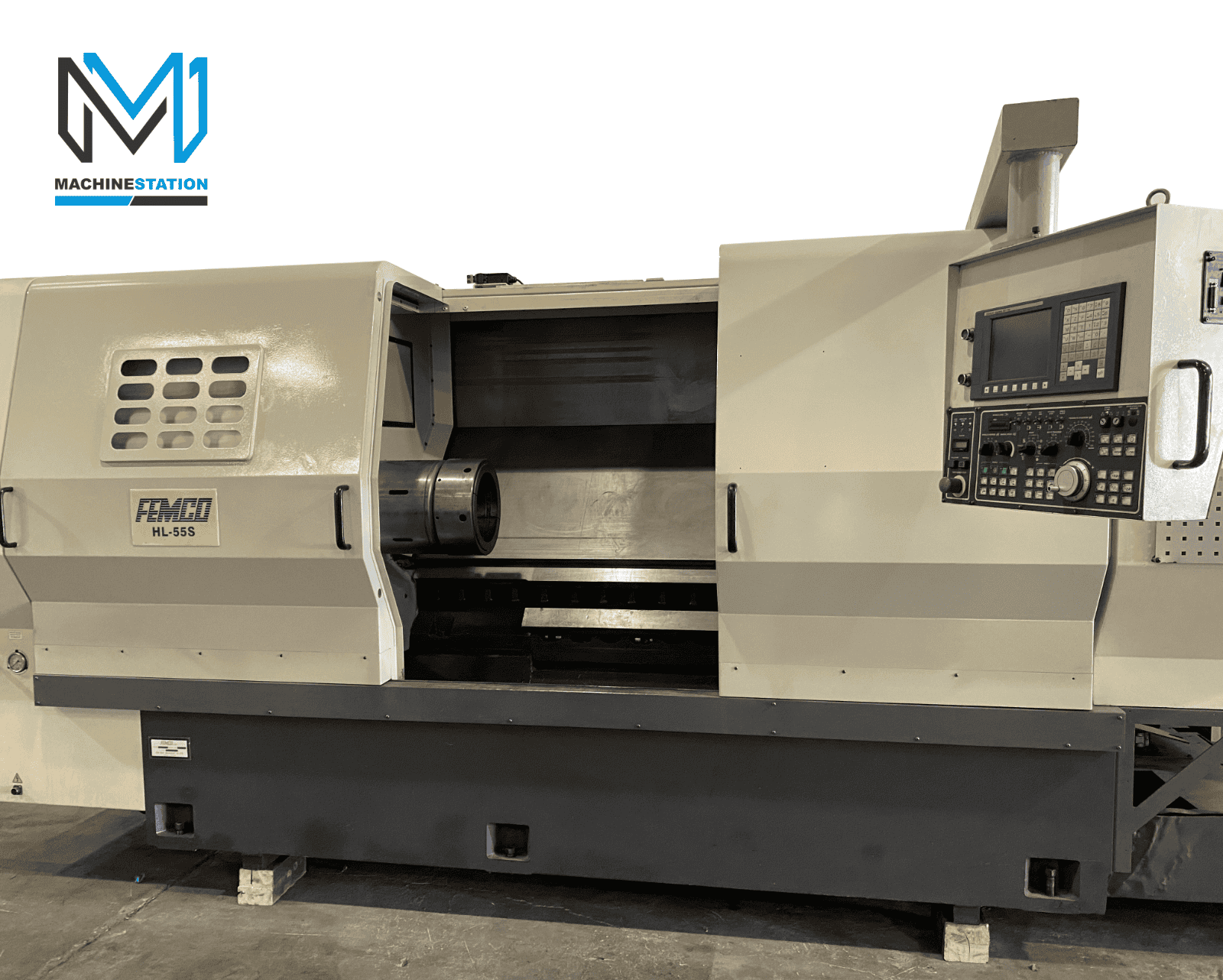

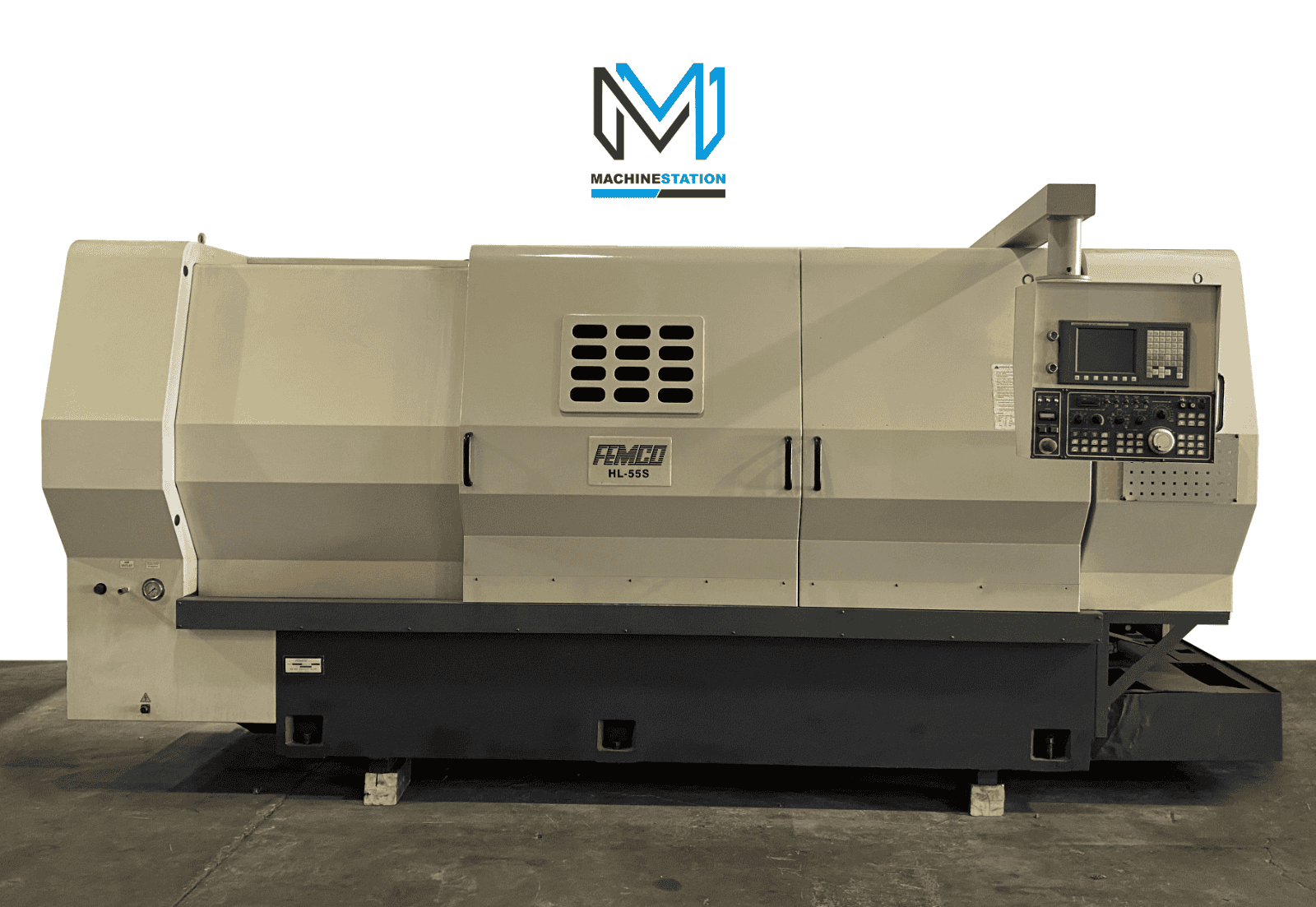

| Make: | Femco |
| Model: | HL-55S |
| Year: | 2012 |
| Serial: | LG12-0661 |

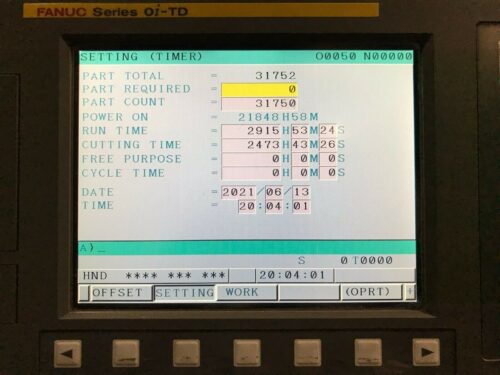

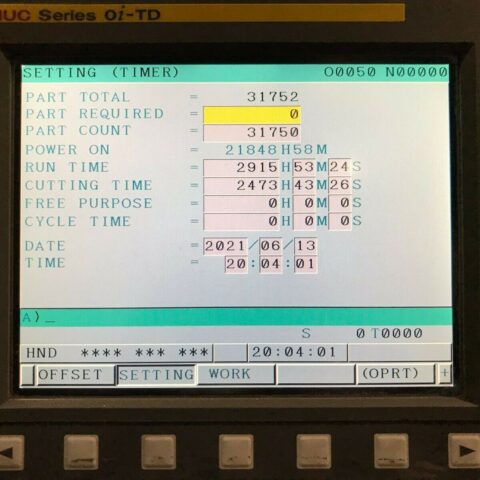

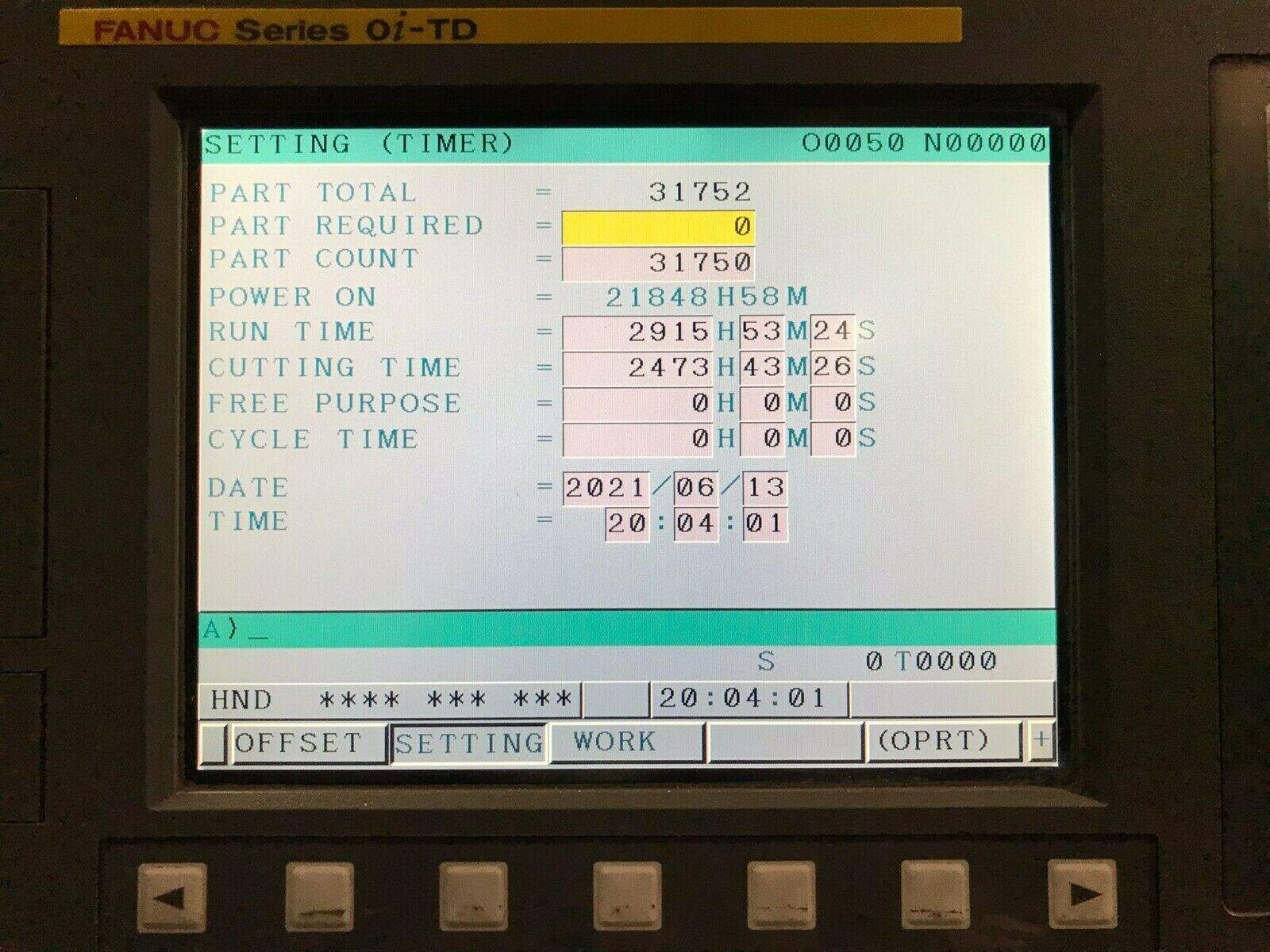

| Cutting Hours: | 2473 |
| Condition: | Very Good |
| Equipped With: |
|---|

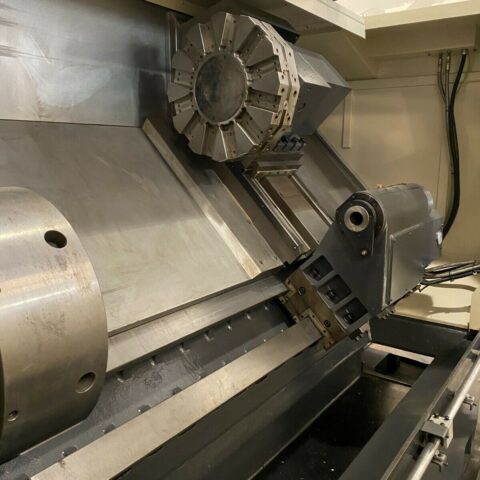

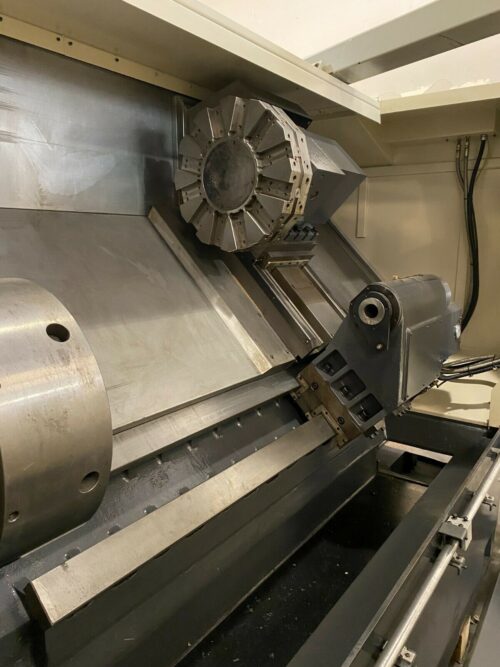

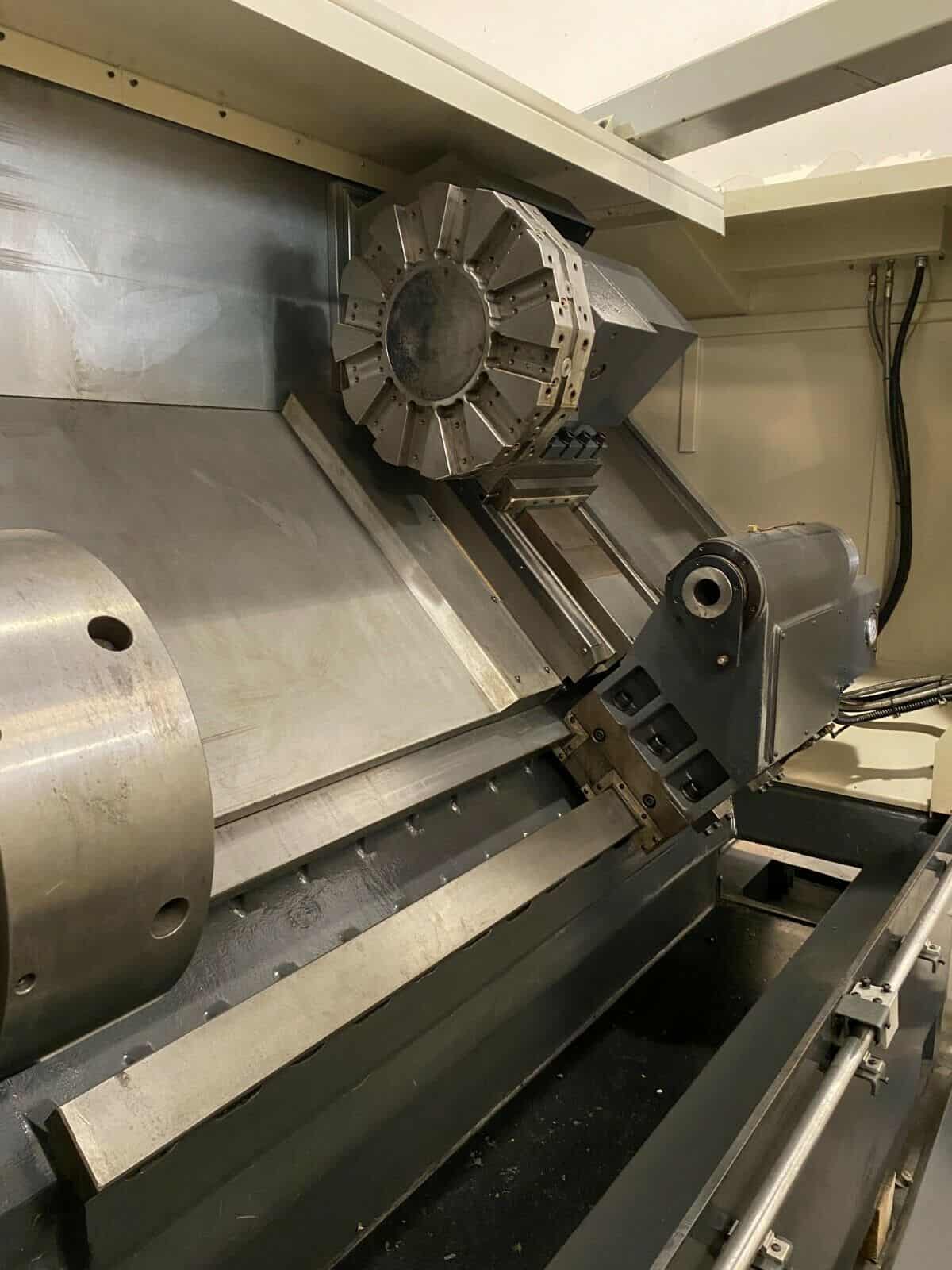

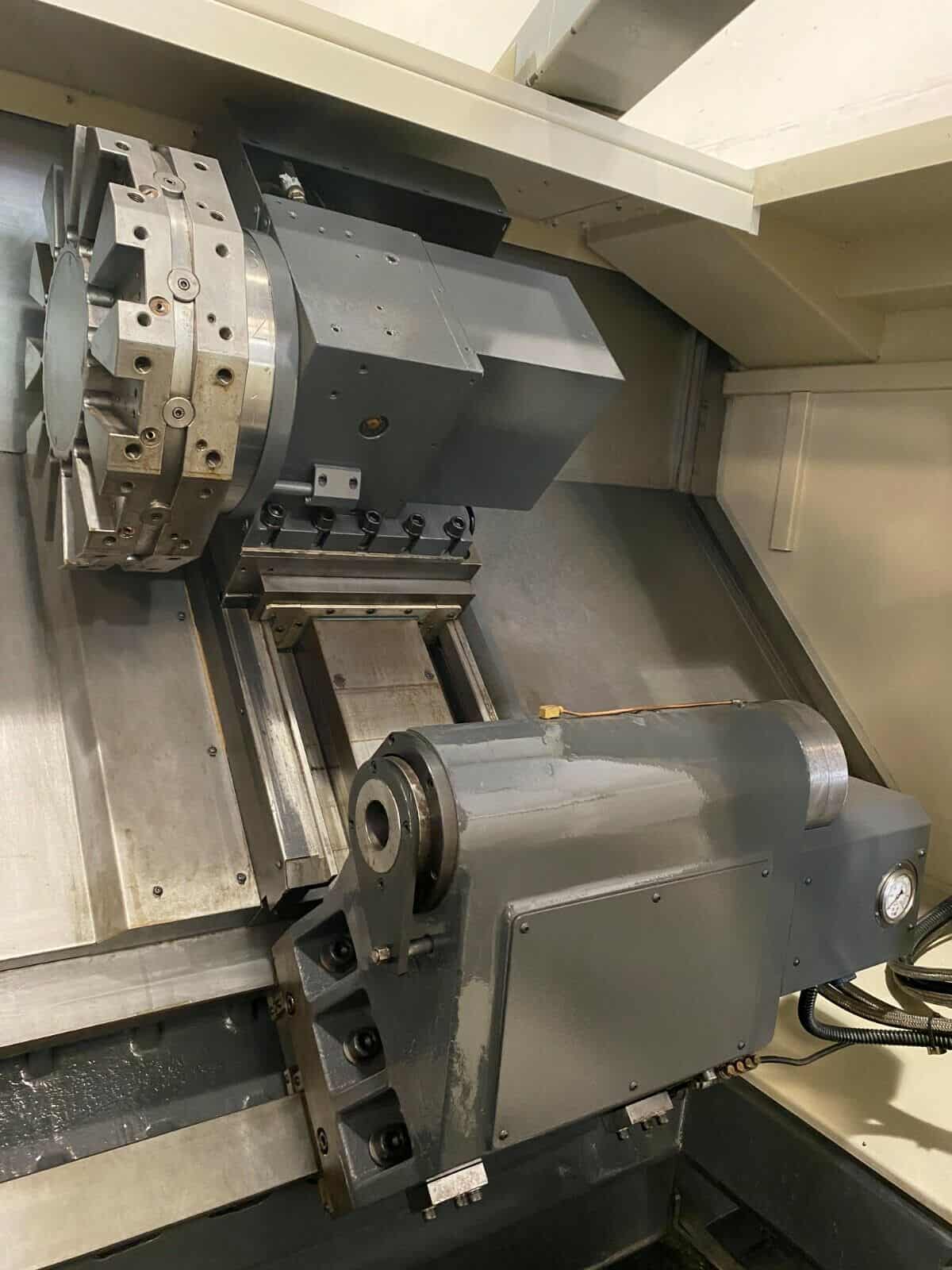

| 12-Station Turret |
| Fanuc 0i-TC CNC Control |
| PCMCIA Card Drive |
| No chuck Included (18″-24″ Capable) |

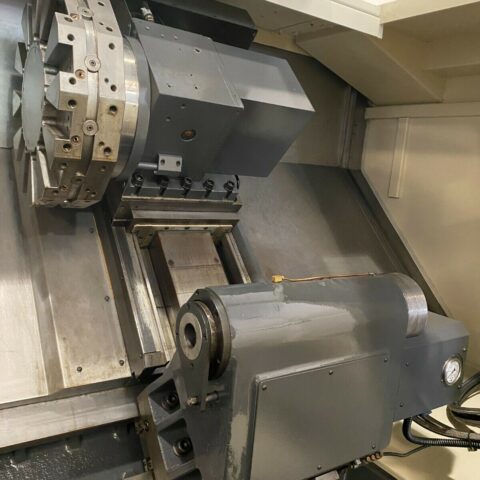

| Hydraulic Tailstock with Power Quill |
| Chip Pan |
| Coolant System |
| Automatic Lubrication system |
| Foot Operated Control for Chuck and Tailstock |
| Box Way Heavy Duty Construction |
| Specifications: |
|---|
| Max Turning Diameter: 25.4″ |
| Max Turning Length: 42.12″ |
| Max Bar Capacity: 4.65″ |
| Swing Over Bed: 28.4″ |
| Distance Between Centers: 46.4″ |
| Spindle: |
|---|

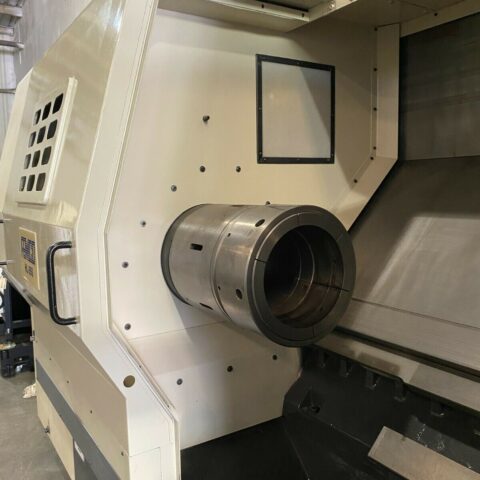

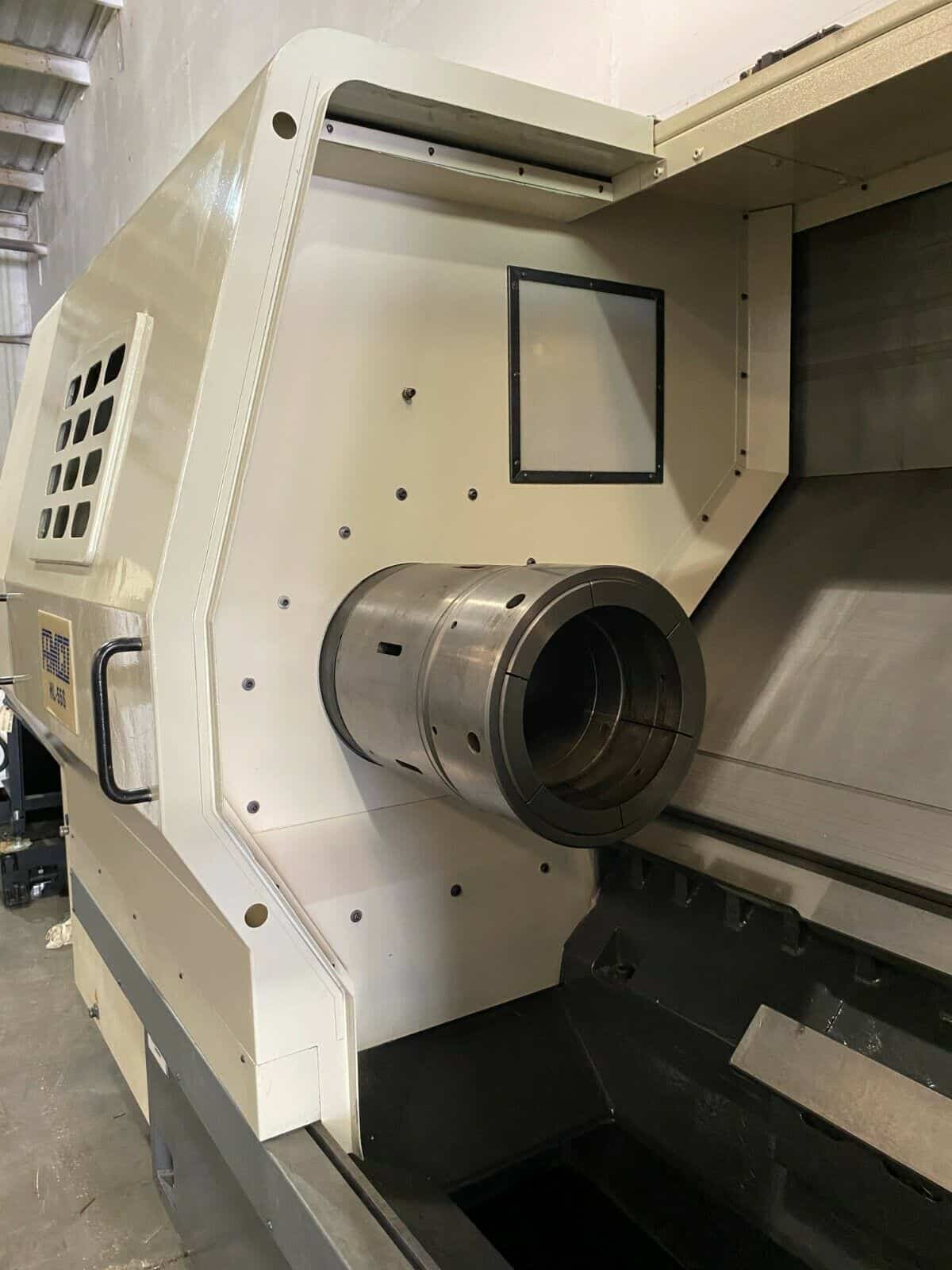

| Spindle Nose: A2-11 |
| Spindle Bore: 5.2″ |
| Spindle Speed: 25-2000 RPM |
| Spindle Motor: 35 HP |
| Travel: |
|---|
| X Axis Travel: 13.4″ |
| Z Axis Travel: 47.6″ |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 591 IPM |
| Turret: |
|---|

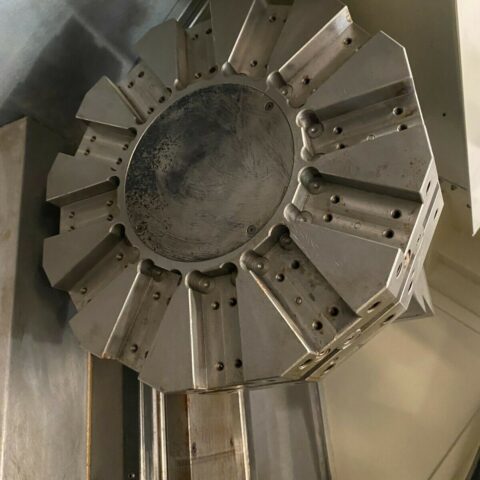

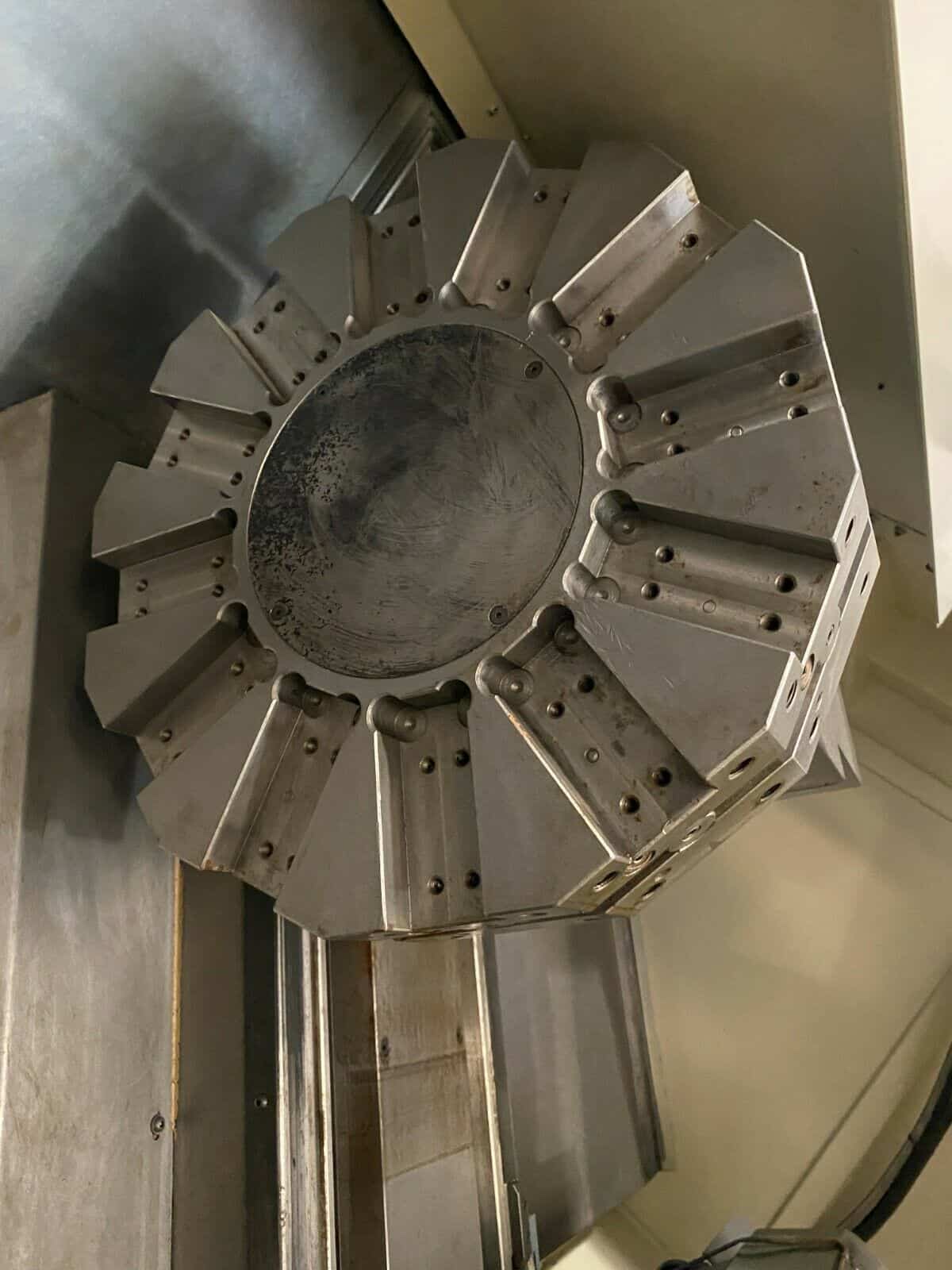

| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 14.3″ |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Stroke: 4.72″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: 126″ x 68″ x 80″ High |
| Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor |
| Weight : 17500 lbs Approx. |
