All specifications are approximations and are subject to verification.
Comes with 10″ Chuck, Tool Presetter, Tailstock & Chip Conveyor
“This One Owner machine is in good running condition. It is equipped with 10″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”
“This One Owner machine is in good running condition. It is equipped with 10″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”
-

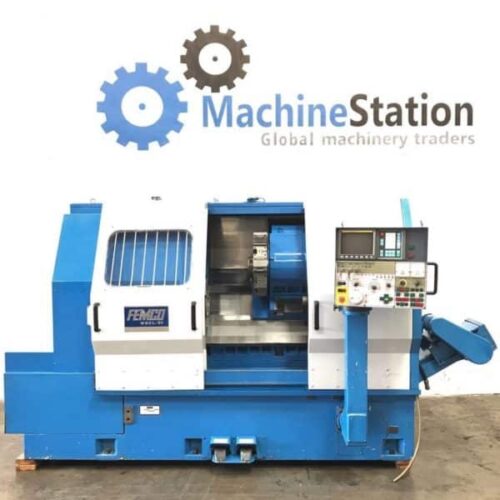

FEMCO WNCL 20/60 Equipped With:

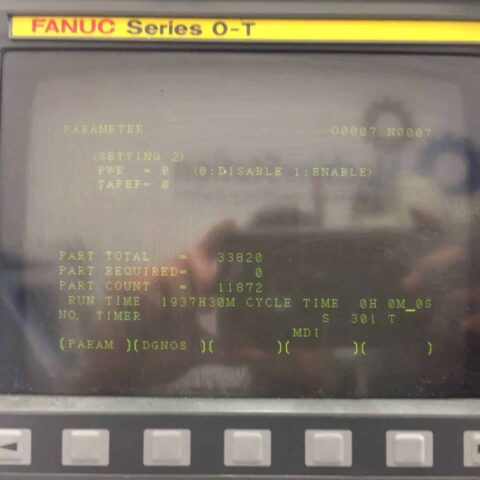

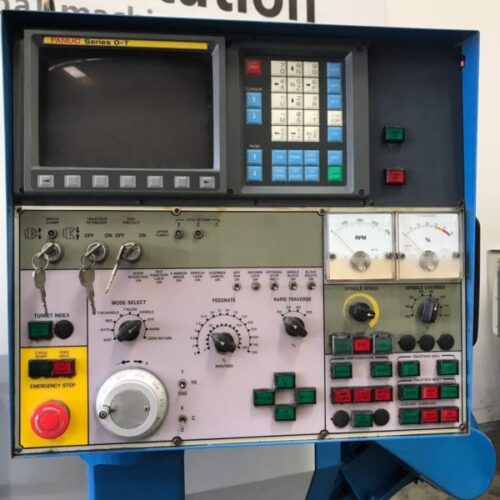

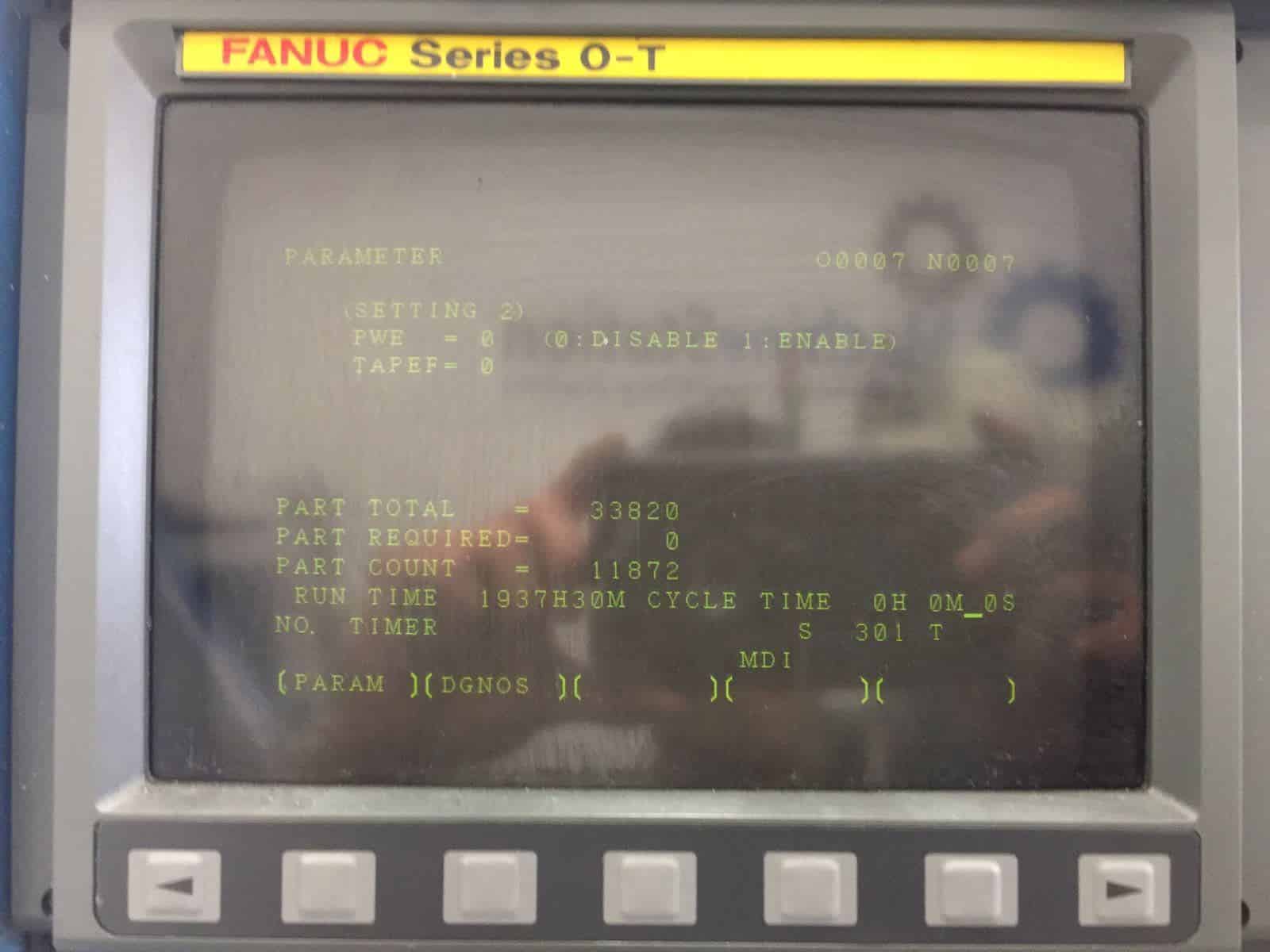

- Fanuc OT CNC Control
- 10″ Kitagawa 3 Jaw Hydraulic Chuck
- Tool Presetter
- A2-8 Spindle
- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports
- 12 Station Automatic Turret
- Foot Switch
- Chip Conveyor
-
FEMCO WNCL 20/60 Specifications:
- Capacity:
- Max Turning Diameter: 12.5″
- Max Turning Length: 24.7″
- Max Bar Capacity: 3.0″
- Swing Over Bed: 21.26″
- Distance Between Centers: 28.54″
- X Axis Travel: 6.0″
- Z Axis Travel: 24.7″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.43″
- Spindle Speed: 0 – 4000 RPM
- Spindle Motor: 30/25 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.0″
- Tailstock Quill Travel: 4.0″
-
General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 114″ x 76″ x 77″ High
- Overall Dimensions: 1328″ x 76″ x 77″ High with Chip Conveyor
- Weight: 12600 lbs
