*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Forst |
| Model: |
RISH 50 x 2000 x 630M |
| Condition: |
Used – Good |
| Machine Type: |
Vertical Internal Broaching Machine |
| CNC Control: |
Siemens Simatic Panel |
| Country of Origin: |
Germany |
| Equipped With: |
| 50-Ton Broaching Capacity |
| 2,000 mm Stroke Length |
| Siemens Simatic Control Panel |
| Heavy-Duty Vertical Broaching Frame |
| Hydraulic Drive System |
| Coolant System |
| Full Safety Enclosure with Sliding Doors |
| Operator Platform |
| Capacity: |
| Broaching Force: 50 Tons |
| Stroke Length: 2,000 mm (78.7″) |
| Max Workpiece Diameter: Approx. 630 mm |

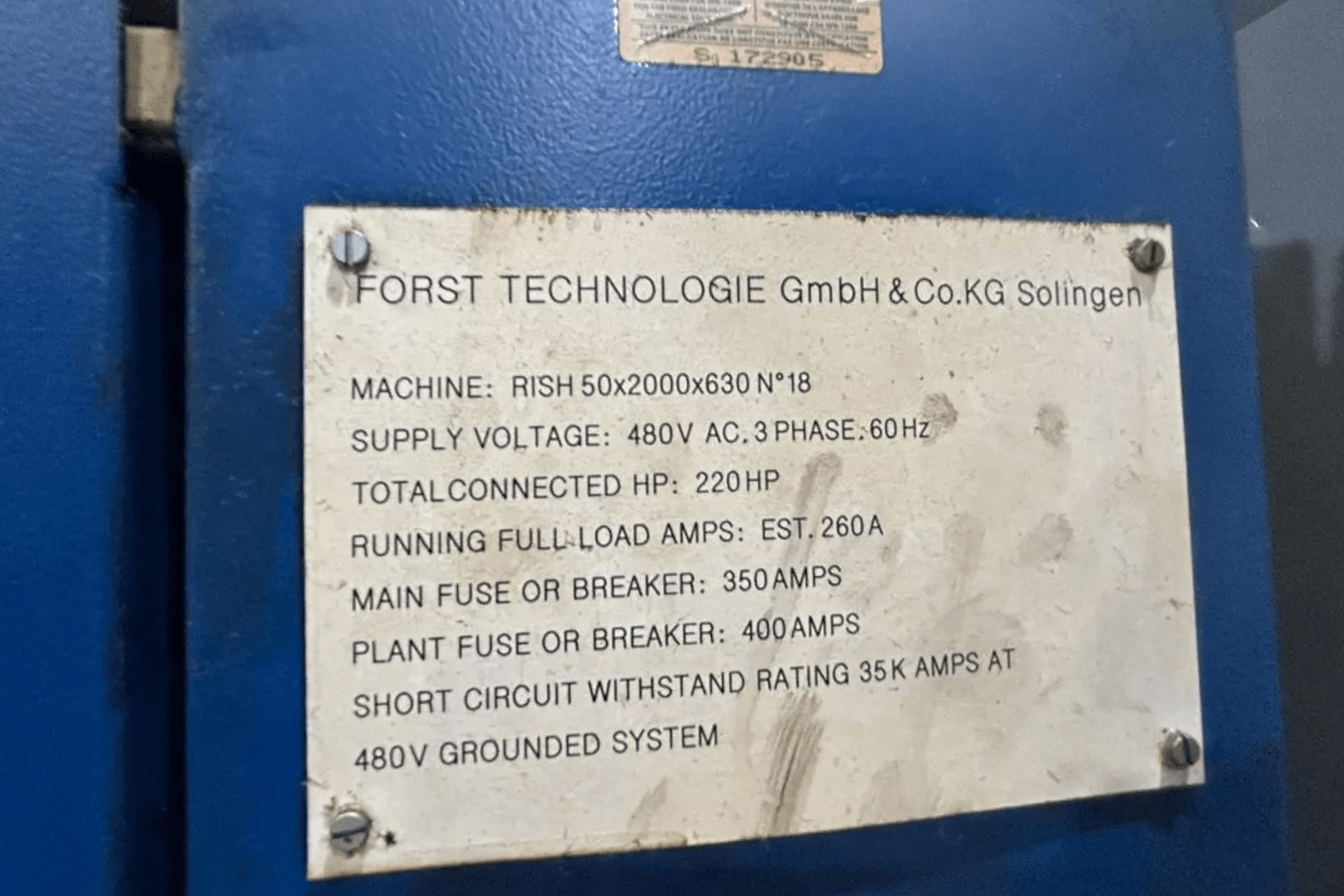

| Electrical: |
| Total Connected Load: 220 HP |
| Estimated Running Load: 260 Amps |
| Main Breaker: 350 Amps |
| Plant Breaker: 400 Amps |
| Short Circuit Rating: 35 kA |
| General: |
| Power: 480V AC, 3-Phase, 60 Hz |
| Overall Dimensions: Approx. 180″ x 120″ x 220″ High |
| Weight: Approx. 40,000 lbs |
