All specifications are approximations and are subject to verification.
-

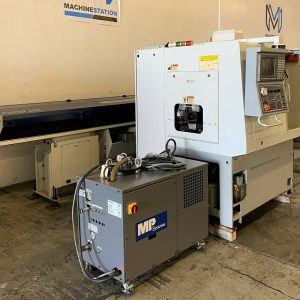

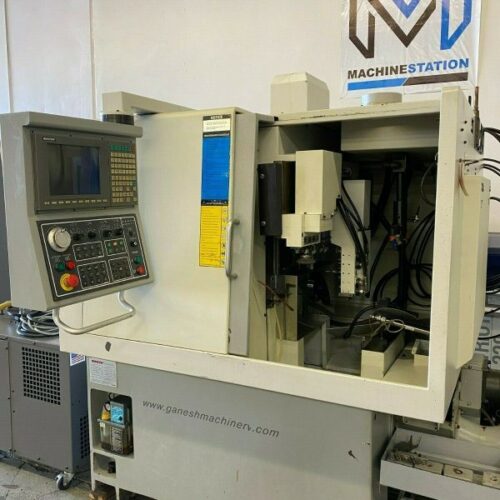

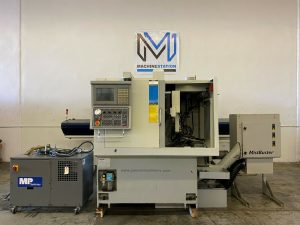

Ganesh Cyclone 32-CY CNC Swiss Screw Turning Lathe Equipped With:
- C & True Y Axis Capability
- Edge Patriot 338 12′ Barfeeder

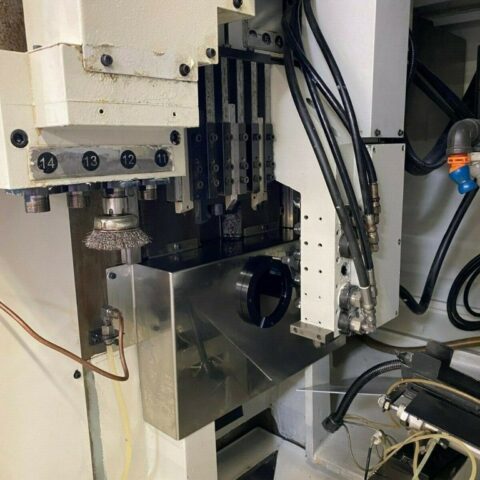

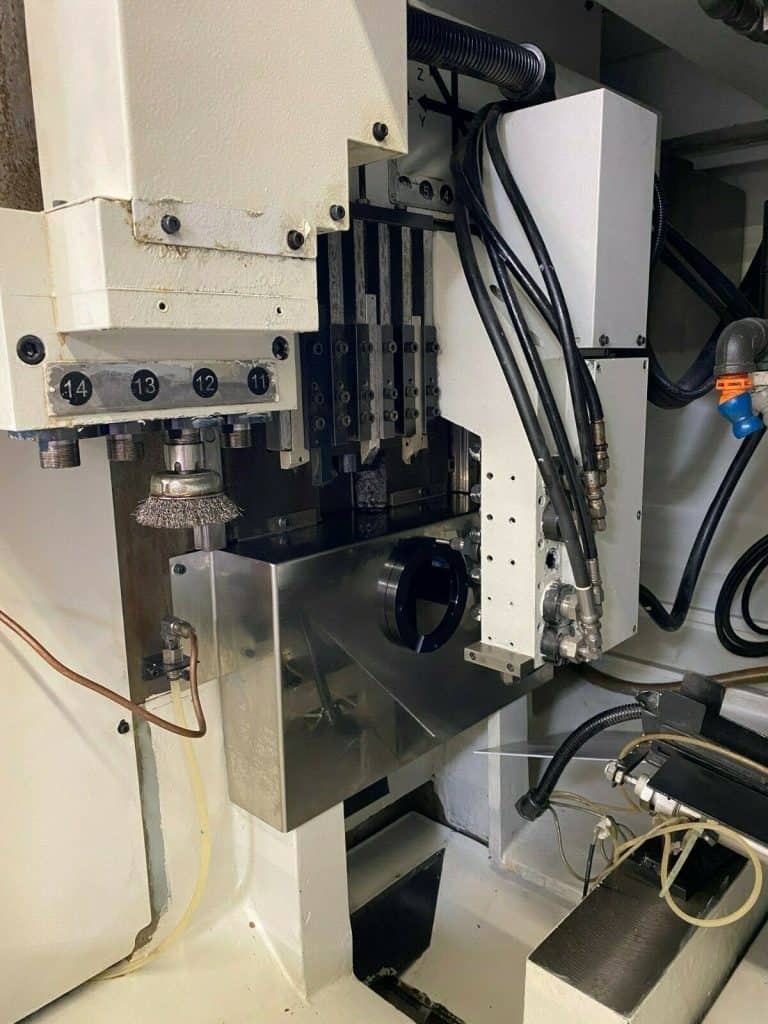

- 18 Tool Stations with 7 Live Tools
- MP Systems 1000 PSI High Pressure Coolant

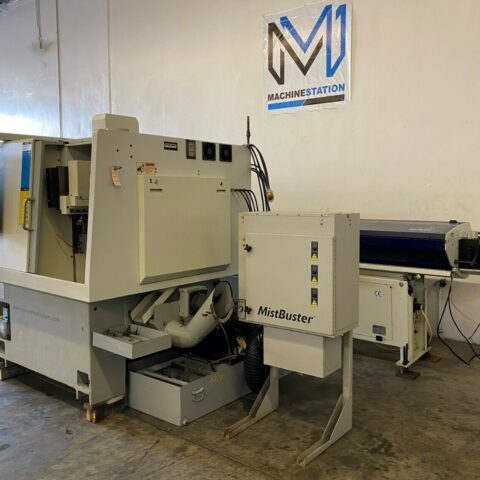

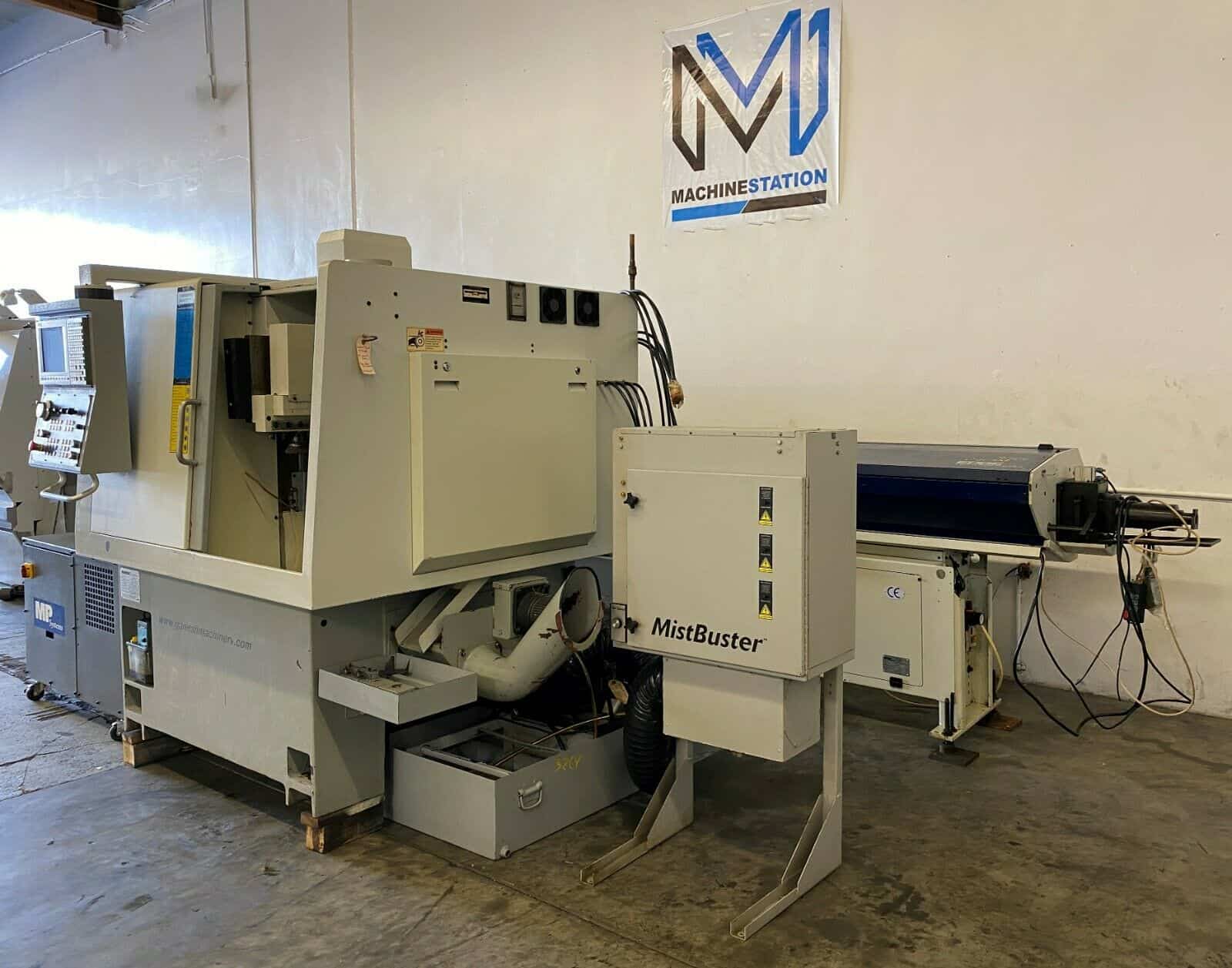

- Mist Buster Filteration System
- Uses ER-20 or Solid 25mm solid bushings
- Rigid Tapping
- Automatic Lubrication system
- Coolant Tank
-
Ganesh Cyclone 32-CY CNC Swiss Screw Turning Lathe Specifications:
- Max Turning Diameter: 1.25″ (32 mm)
- Max Turning Length:5.31″/2.24″ ( 135 mm)
- Max Bar Capacity: 0.79″ (20 mm)
- X Axis Travels: 7.5″
- Y Axis Travels: 19.3″
- Z Axis Travels: 6.5″
- C Axis: 0.001 degrees
- Rapid Travel Rate: 1181 inch per minute
-
Spindle:
- Main Spindle Bore: 1.456″
- Main Spindle Speed: 100 – 6,000 RPM
- Spindle Power: 10 HP
- Spindle Center Height: 38″
- Tool Capacity: 18
- Turning Tools: 6
- ID Tools: 5
- Cross Live Tools: 4
- Axial Live Tools: 3
- Live Tool Speed: 0-4000 RPM
-
General:
- Power: 16 kva, AC 220 V, Three Phase, 60 Hz Overall
- Air: 85 psi
- Dimensions: 86″ x 80″ x 79″ High without Barfeeder
- Weight : 6200 lbs Approx.
